LE2ATR60-TXKBWireless Keyboard

FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Warning : To comply with FCC RF exposure requirements for mobile transmitting devices, a minimum separation distance of 20 cm must be maintained between the antenna and all persons during device operation. Canada IC Information Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. The term “IC:” before the certification/registration number only signifies that the Industry Canada technical specifications were met.

From: etcemi [[email protected]] Sent: Monday, May 13, 2002 9:19 PM To: Mike Kuo Subject: Re: JSW PACIFIC CORPORATION, FCC ID:LE2ATR60-TXKB, AN02T2024 Hello! Mike, Thank you for your help. Please find below for our explanation: 1. Aattached please find the lost page, please kindly add it to the original user's manual. 2. Yes, the operational frequencies are 27.095 - 27.195 MHz. If youhave any further questions, please kindly let me know. Best regards, K. C. Chen ETC/EMC Department II ----- Original Message ----- From: Mike Kuo To: K. C. (E-mail) ; Will Yauo (E-mail) ; Will Yauo-Personal (E-mail) Sent: Tuesday, May 14, 2002 10:07 AM Subject: FW: JSW PACIFIC CORPORATION, FCC ID:LE2ATR60-TXKB, AN02T2024 -----Original Message----- From: CERTADM Sent: Monday, May 13, 2002 7:06 PM To: '[email protected]' Subject: JSW PACIFIC CORPORATION, FCC ID:LE2ATR60-TXKB, AN02T2024 Notice_content ------------- Question #1: User Manual does not contain information required under 15.21 of FCC rules. Please provide revised user manual. FYI: In the future submission, please make sure to indicate the operating frequencies on the TCB application form. Do not indicate the Frequency Band per FCC rules. In addition, in your test report, please also indicate the operating frequencies but the frequency band. For this application, the operating frequencies is 27.095-27.195MHz. Please confirm. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and Forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

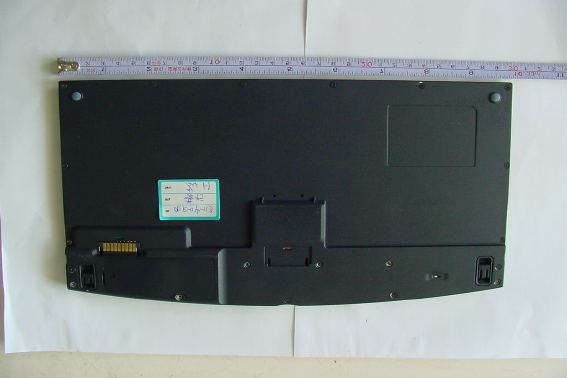

ETC Report No.:ET91R-04-113-01 FCC ID.: LE2ATR60-TXKB Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT

ETC Report No.:ET91R-04-113-01 FCC ID.: LE2ATR60-TXKB Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No.:ET91R-04-113-01 FCC ID.: LE2ATR60-TXKB Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB ETC Report No.:ET91R-04-113-01 FCC ID.: LE2ATR60-TXKB Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Connected PCB Solder View of Connected PCB ETC Report No.:ET91R-04-113-01 FCC ID.: LE2ATR60-TXKB Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Keyboard Solder View of Keyboard

The EUT is the transmitter portion of wireless keyboard. The EUT can transmit 26.96~27.28MHz RF signal to the receiver portion of wireless keyboard that is connected to a personal computer. The whole wireless keyboard system can perform all functions that a traditional keyboard can do.

Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Wireless Keyboard FCC ID. : LE2ATR60-TXKB MODEL : ATR60-TXKB Working Frequency : 26.96 MHz ~ 27.28 MHz for APPLICANT : JSW PACIFIC CORPORATION ADDRESS : 7TH FL., 168-1 LIEN CHENG RD., CHUNG HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-04-113-01 ETC Report No.:ET91R-04-113-01 FCC ID.: LE2ATR60-TXKB Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : JSW PACIFIC CORPORATION 7TH FL., 168-1 LIEN CHENG RD., CHUNG HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Manufacturer : JSW PACIFIC CORPORATION 7TH FL., 168-1 LIEN CHENG RD., CHUNG HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Description of EUT : a) Type of EUT : Wireless Keyboard b) Trade Name : Navigator c) Model No. : ATR60-TXKB d) FCC ID : LE2ATR60-TXKB e) Working Frequencies : 26.96 MHz ~ 27.28 MHz f) Power Supply : DC 3.6V Batteries Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : May 07, 2002 Test Engineer : ( K. C. Chen ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET91R-04-113-01 FCC ID.: LE2ATR60-TXKB Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION .................................................................................................................................... 1 1.1 PRODUCT DESCRIPTIO N............................................................................................................................................ 1 1.2 CHARACTERISTICS OF DEVICE:.................................................................................................................................. 1 1.3 TEST METHODOLOGY................................................................................................................................................ 1 1.4 TEST FACILITY........................................................................................................................................................... 1 2 DEFINITION AND LIMITS...................................................................................................................................... 2 2.1 DEFINITION............................................................................................................................................................... 2 2.2 RESTRICTED BANDS OF OPERATION.......................................................................................................................... 2 2.3 LIMITATION............................................................................................................................................................... 2 2.4 LABELIN G REQ UIREMEN T.......................................................................................................................................... 3 2.5 USER INFORMATION.................................................................................................................................................. 3 3 SYSTEM TEST CONFIGURATION...................................................................................................................... 4 3.1 JUSTIFICATIO N.......................................................................................................................................................... 4 3.2 DEVICES FO R TESTED SYSTEM................................................................................................................................... 4 4 RADIATED EMISSION MEASUREMENT............................................................................................................ 5 4.1 APPLICABLE STANDARD............................................................................................................................................ 5 4.2 MEASUREMEN T PROCEDURE...................................................................................................................................... 5 4.3 TEST DATA................................................................................................................................................................ 7 4.3.1 Fundamental .................................................................................................................................................... 7 4.3.2 Harmonics......................................................................................................................................................... 7 4.4 FIELD STREN GTH CALCULATIO N................................................................................................................................8 4.5 RADIATED TEST EQUIPMENT..................................................................................................................................... 8 4.6 MEASURIN G IN STRUMEN T SETUP...............................................................................................................................8 4.7 RADIATED MEASUREMEN T PHOTOS........................................................................................................................... 9 4.7.1 9KHz~30MHz .................................................................................................................................................. 9 4.7.1 30MHz~1GHz ................................................................................................................................................ 10 5 CONFORMATION OF THE FUNDAMENTAL FREQUECNY..................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET91R-04-113-01 FCC ID.: LE2ATR60-TXKB Rev. No 1.0 Radiated Measurement Photos 9KHz~30MHz ETC Report No.:ET91R-04-113-01 FCC ID.: LE2ATR60-TXKB Rev. No 1.0 30MHz~1GHz
