LE2CCD-620AWireless Mini Camera

From: etcemi [[email protected]] Sent: Tuesday, February 05, 2002 9:07 PM To: Mike Kuo Subject: Re: JSW PACIFIC CORPORATION, FCC ID:LE2CCD-620A, AN02T1781 Dear Mike, Attached please find the required information for above application. If you ahve any further questions, please advise as soon as possible. Thank you! Regards, K. C. Chen ETC/EMC Department II ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "K. C. (E-mail)" <[email protected]> Sent: Wednesday, February 06, 2002 7:09 AM Subject: FW: JSW PACIFIC CORPORATION, FCC ID:LE2CCD-620A, AN02T1781 > > -----Original Message----- > From: CERTADM > Sent: Tuesday, February 05, 2002 3:09 PM > To: '[email protected]' > Subject: JSW PACIFIC CORPORATION, FCC ID:LE2CCD-620A, AN02T1781 > > > Notice_content > ------------- > Question #1: Since the tuned frequency range is from 2412 - 2472MHz, > investigation should be made at low (2412MHz), Middle(2442MHz) and High > (2472MHz) frequencies. Only low and middle frequencies were provided in the > test report, please provide additionalt test data for high channel. > > Question #2: Modifications have been on the product during the final > compliance tests. Please provide a modification report signed by the > applicant to state that all modifications ( please list modifications in > detail ) documented in the test report will be incorporated into each unit > sold in the U.S. > > Best Regards > > Mike Kuo / TCB Certifier > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender.

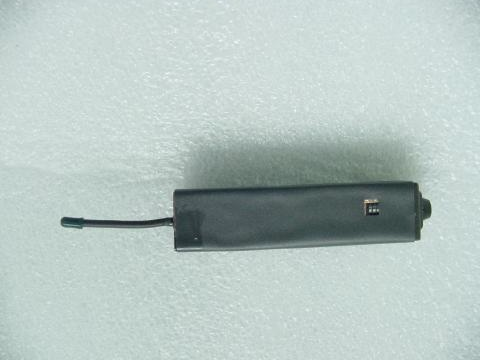

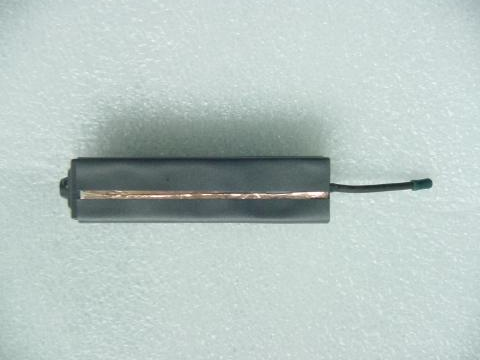

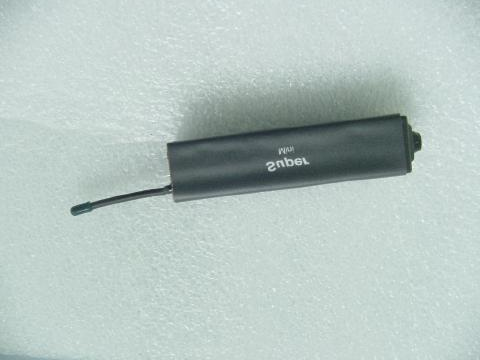

ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Rear View of EUT ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Front View of Adaptor 6. Rear View of Adaptor

ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Internal View of EUT 2. Component View of Power PCB 1 ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Solder View of Power PCB 1 4. Component View of Power PCB 2 ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Solder View of Power PCB 2 6. Internal View of EUT ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Component View of Main PCB 8. Solder View of Main PCB ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Front View of CCD 10. Rear View of CCD ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 11. Component View of CCD PCB 12. Solder View of CCD PCB ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 13. Total View of Antenna 14. Front View of Adaptor ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 15. Component View of Adaptor’s PCB 16. Solder View of Adaptor’s PCB

Inside the CCD housing is a camera and 2.4GHz transmitter channel selection (CH 1: 2412MHz, CH 2: 2442MHz, CH 3: 2472MHz), by Dip switches on the body. You can set-up channel by Dip switches.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Mini Camera MODEL : CCD-620A FCC ID. : LE2CCD-620A for APPLICANT : JSW PACIFIC CORP. ADDRESS : 7TH FLOOR, NO. 168-1, LIEN CHENG ROAD, CHUNG HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-01-033 ETC Report No. : ET91R-01-033 FCC ID. : LE2CCD-620A Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : JSW PACIFIC CORP. 7TH FLOOR, NO. 168-1, LIEN CHENG ROAD, CHUNG HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Manufacturer : JSW PACIFIC CORP. 7TH FLOOR, NO. 168-1, LIEN CHENG ROAD, CHUNG HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Description of EUT : a) Type of EUT : Wireless Mini Camera b) Trade Name : Navigator c) Model No. : CCD-620A d) AC Adaptor : Model : YAD-050100CR; I/P : 120VAC, 60Hz; O/P : DC 5V, 1000mA e) Frequency Range : 2400MHz-2483.5 MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (1999) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Feb. 02, 2002 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-01-033 FCC ID. : LE2CCD-620A Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE.......................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation........................................................................................................5 2.4 Labeling Requirement.....................................................................................................................5 2.5 User Information............................................................................................................................6 3. SYSTEM TEST CONFIGURATION...........................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System.............................................................................................................7 4 RADIATED EMISSION MEASUREMENT..............................................................................8 4.1 Applicable Standard.......................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument...................................................................................................................10 4.4 Radiated Emission Data................................................................................................................11 4.4.1 RF Portion...............................................................................................................................11 4.4.2 Other Emission........................................................................................................................13 4.5 Field Strength Calculation.............................................................................................................13 4.6 Photos of Radiation Measuring Setup............................................................................................14 5 CONDUCTED EMISSION MEASUREMENT........................................................................15 5.1 Standard Applicable.....................................................................................................................15 5.2 Measurement Procedure...............................................................................................................15 5.3 Conducted Emission Data.............................................................................................................16 5.4 Result Data Calculation.................................................................................................................17 5.5 Conducted Measurement Equipment.............................................................................................17 5.6 Photos of Conduction Measuring Setup........................................................................................18 6 ANTENNA REQUIREMENT.................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 Appendix : RF Portion Channel 02 Operation Mode : TX Fundamental Frequency : 2442 MHz Test Date : Jan. 29, 2002 Temperature : 20 Humidity : 60 % Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2441.584 84.5*** 91.8 83.5 -2.988.9 80.6 114.0 94.0-13.4 90 1.00 4883.168 53.545.5 51.8 44.2 2.756.2 48.2 74.0 54.0-5.8 90 1.00 7324.752 46.237.1 48.5 38.1 5.954.4 44.0 74.0 54.0-10.0 90 1.00 9766.336 ------ --- --- 7.3--- --- 74.0 54.0--- --- --- 12207.920 ------ --- --- 9.3--- --- 74.0 54.0--- --- --- 14649.504 ------ --- --- 11.6--- --- 74.0 54.0--- --- --- 17091.088 ------ --- --- 13.3--- --- 74.0 54.0--- --- --- 19532.672 ------ --- --- 8.5--- --- 74.0 54.0--- --- --- 21974.256 ------ --- --- 9.9--- --- 74.0 54.0--- --- --- 24415.840 ------ --- --- 10.7--- --- 74.0 54.0--- --- --- Note : 1. Item of margin shown in above table refer to average limit. 2. Remark “---” means that the emission level is too low to be measured, with a preamplifier of 35 dB. 3. Measuring data showed on above table was derived with peak detector function. 4. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit.

ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 Photos of Radiation Measuring Setup ETC Report No. : ET91R-01-033 FCC ID.: LE2CCD-620A Rev. No 1.0 Photos of Conduction Measuring Setup
