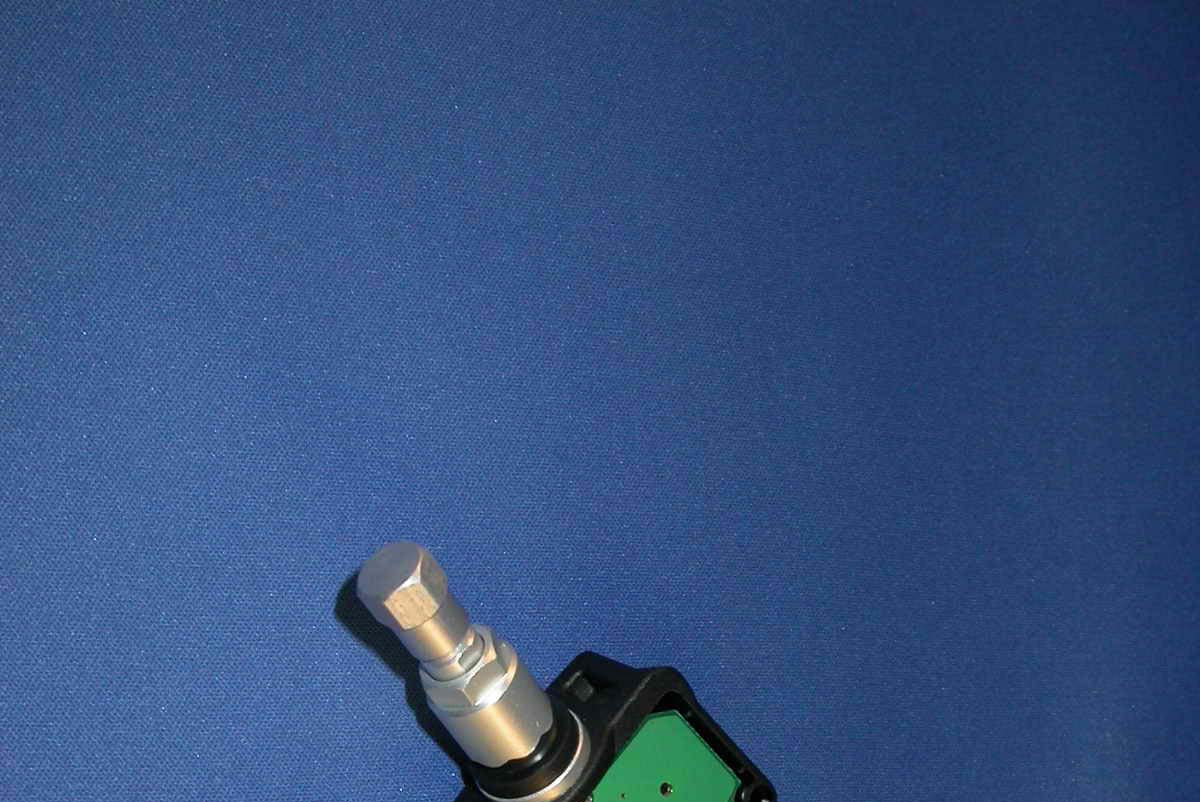

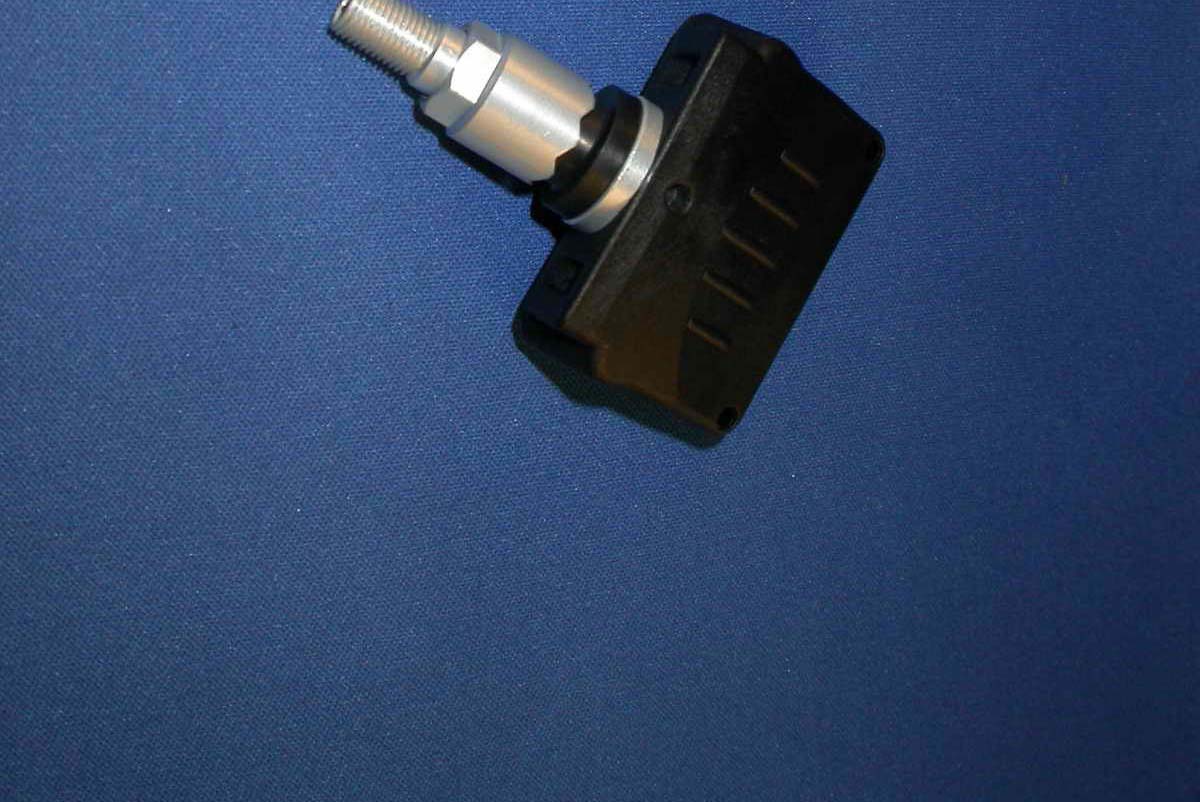

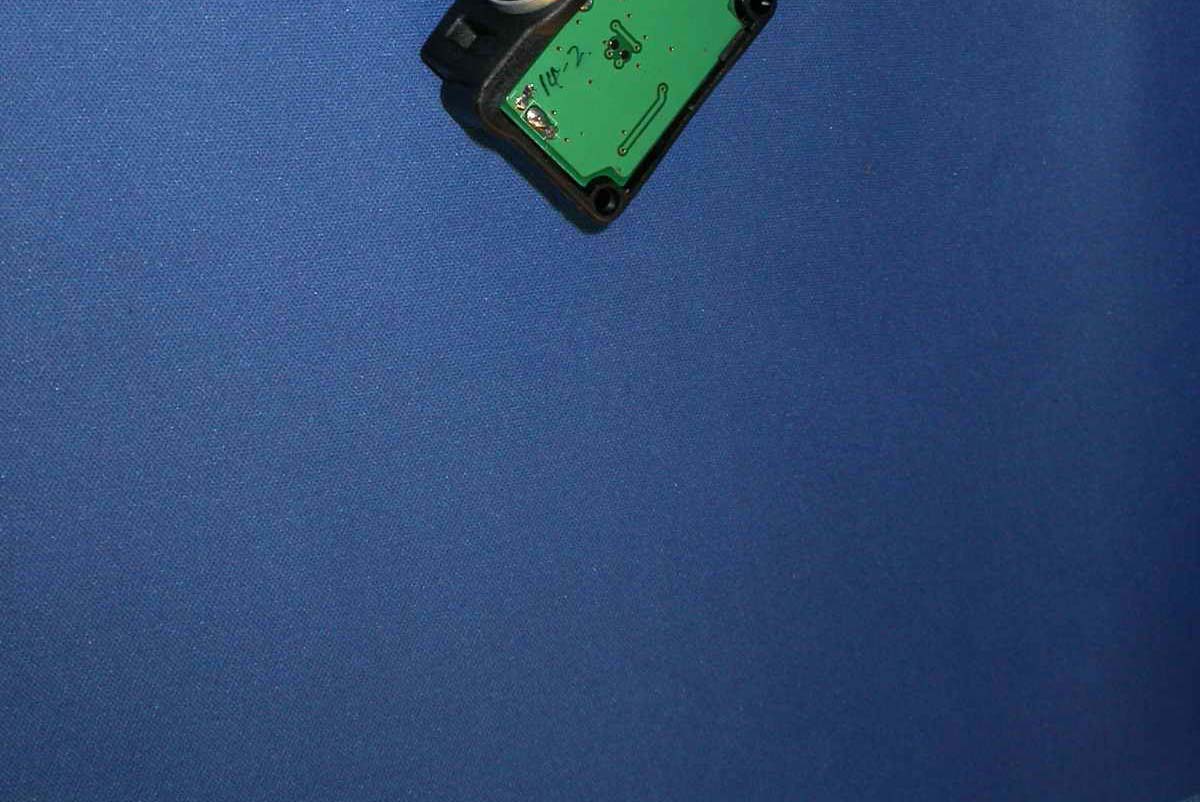

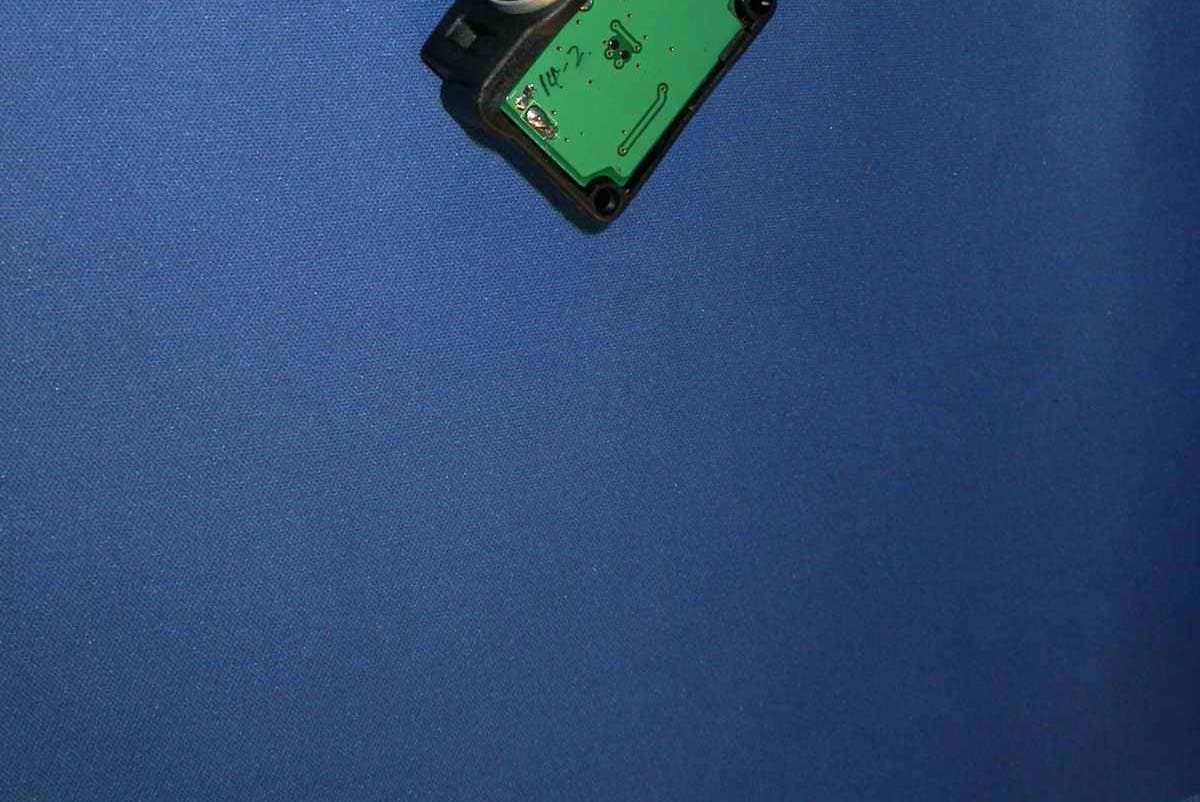

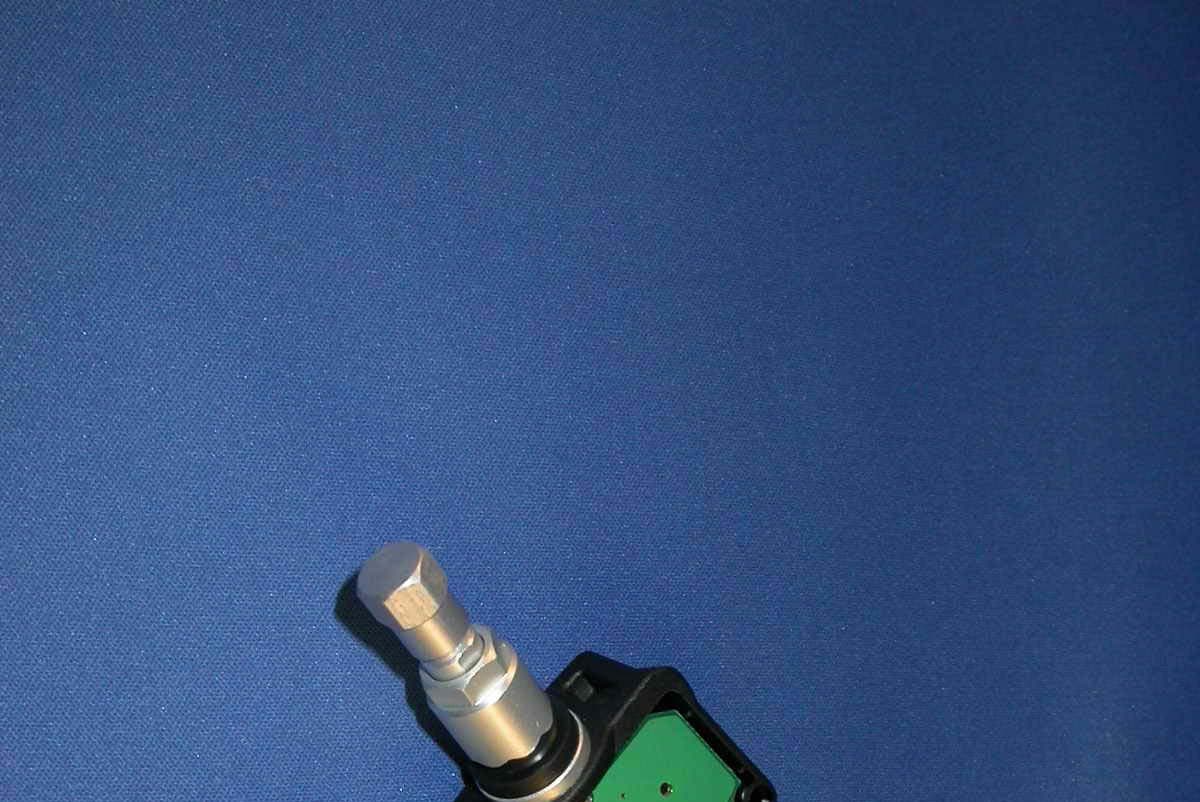

LJL041201TTire Pressure Monitor System

TPM 167 Tire Pressure Monitor System User manual 1. Introduction This document provides a Global Standard features and functions for all Lite-On Automotive Antenna-less High End TPM Systems. 2. Motivation for this Document The motivation behind this document is to agree on a standard product range for all High End TPM System that is to be used through the organization. The intention is to standardizing the basic feature and function of the system within the entire Lite-On Automotive organization and therefore reduce the amount of unnecessary customer specific modifications and as a result, make more effective use of the available engineering resources. 3. Scope This is a software related document covering the Electronic module features and functions only. It is the intention that customer specific versions of the system will be offered but this is to be achieved by changing wheel sensors, hardware kits and display tooling leaving the Electronic module software and hardware unchanged. Note : The actual Electronic Module PCB is to be further standardized across the entire Lite-On Automotive TPM product range – one PCB Platform for all TPM system regardless of the features offered or the type of display being used. The different interface requirements are to be satisfied by PCB population changes only. 4. What is High End TPM? High End TPM is a generic term for any Lite-On Automotive TPM system, supplied with an LCD Display incorporating two buttons. 5. Deviations Customer specific deviation from this standard will be considered but only on the following conditions :- 6. Standard Feature and Functions 6.1 Normal operation mode As soon as the ignition is switched on, the system will perform a self-test. This self-test should take no longer than 108 seconds to be completed. The self-test period is defined as the period from the point that the ignition is switched on to the point that the Electronic Module receiver has received the latest Tire Conditions from each wheel taught to the system. During the first 2-seconds of the self-test period, the back lighting of the display will turn on and display all Icons. After this 2-second period, one of 3 sets of conditions will be displayed:- i) If all Tire Conditions were OK when the ignition was last switched off, then all tire symbols on the display will flash at a rate of 0.5 Seconds ON/0.5 Seconds OFF. If all tire conditions are OK at the end of the self-test period, the system will show the current conditions of each tire (Pressure and Temperature) starting from Left Front (LF), Right Front (RF), Right Rear (RR), Right Inside Rear (RIR), Left Rear (LR), Left Inside Rear (LIR) and finally the Spare Wheel. ii) If all Tire Conditions were OK when the ignition was last switched off, then all tire symbols on the display will flash at a rate of 0.5 seconds ON/0.5 Seconds OFF. If Tire Condition information is received from a sensor indicting a Warning or Alert conditions (either Temperature or Pressure), then the Icon for the affected tire will start to flash immediately and the display will show the relevant Warning or Alert. See Tire Condition section below for more details. Note : This should happen as soon as the information is receiver – do not wait until the end of the self-test period. iii) If Tire Conditions were not OK when the ignition was last switched off, then the Icon for the affected tire will immediately start to flash and the display will show the relevant Warning or Alert. See Tire Condition section below for more details. This Tire Conditions will continue to be displayed throughout the self-test period. At the end of the self-test period, the display will either change to indicate all tire conditions are now OK if the problem has been rectified or to show the Tire Condition Warning or Alert if the conditions still exists. If the Tire Conditions of all tires are OK, all icons that represent a driving wheel will remain on for minute and the 3-digit 7-segment display will be empty (blank). The display will turn off after 1 minute (To avoid distraction/ irritation of the driver). If no signal has been received from one sensor for more then 10 minutes (with the ignition on), the 3-digits 7-segment display will show “SCH” and the corresponding tire will blink (2Hz) indicating that the receiver is searching for a signal. This is only available in an ignition on condition. Notes : - The worst condition always has priority over the other conditions. - The number of tire conditions displayed will be dependant upon the number of sensors taught to the system and the number of wheel Icons on the display. The Spare wheel, LIR and RIR will only be displayed if these sensors have been taught to the system. - For a correct functionality of the system, the wheel-sensors need to be learnt to the system first. The sensors will be supplied pre-taught to the system. Each sensor will include identification to show its pre-taught position. (Actual Identification method will be determined at a later date in conjunction with the final customer). - For a correct functionality of the system, the correct pressures need to be taught to the system (preset-pressure). - 6.2 Single Tire Display Mode If the Tire Conditions of all tires are OK, the display will turn off after 1 minute (To avoid distraction/ irritation of the driver). If the mode button is pressed after the display turn-off, the system will display the current condition of each tire starting from LF. ( Rotation from LF->RF->RR->LR) If the mode button is pressed again within one minute of completion of the self test or within one minute of the display being turned back on, the display will change and show the condition of the LF Tire. This tire condition will be displayed for 1 minute. If the mode button is pressed again within one minute(while the display is still showing the condition of LF Tire), the display will change the show the condition of the RF Tire. This tire condition will be displayed for …
