DRAFT Nokia 6200 User Guide DRAFT Phone notes My Nokia informationNotesInformation source My numberWireless service provider Voice mail numberWireless service provider Provider’s customer careWireless service provider Message center numberWireless service provider Default recipient number (e-mail gateway number) Wireless service provider International Mobile Equipment Identifier (IMEI) Type label. Located on the back of your phone, beneath the battery. Model number6200 Phone typeNPL-3 DRAFT The wireless phone described in this guide is approved for use in GSM 850, 1800, and 1900 networks. LEGAL INFORMATION Part No. 9356027, Issue No. 1 Copyright ©2003 Nokia. All rights reserved. Nokia, Nokia 6200, Pop-Port, Nokia Connecting People, and the Nokia Original Accessories logos are trademarks or registered trademarks of Nokia Corporation. All other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Printed in Canada 02/2003 US Patent No 5818437 and other pending patents.T9 text input software Copyright «1999-2003. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. The information contained in this user guide was written for the Nokia 6200 phone. Nokia operates a policy of on-going development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. law is prohibited. DRAFT FCC/INDUSTRY CANADA NOTICE Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. The term “IC:” before the certification/registration number only signifies that Industry Canada technical specifications were met. DRAFT Manufactured or sold under one or more following US Patents: 486884655198855827082596637861120996266330 496919255263665835889597005961156176282436 500137255531255839101598713761187756285888 50459735557639584884599171661218466292668 510117555658215845219599185761224986295286 521283455703695857151599952361283226308084 523009155812445862178600585761285096310609 523363455971025870683601185361380916311054 524128456252745887266601457361409666314166 524158356403955889770601827761442436324412 526678256640045892475602616161446766347218 5 3111 5156640535898925602856761482096356759 5 3111 7 956690695907823602912861514856359904 531728356776205914690603823861515076363259 533163856782245914796604376061636096370362 533536256920325915440604719661645476370390 535332856994065917868604979661672486377803 537893556994825920826605041561700736393121 538478257013925926138605543961785356430721 539022357295345926769606019361852956434133 53966575729541593023360699236188909 54009495734683594665160727876195338 54164355754976595633260815346199035 54425215760568595662560849626201876 54448165782646595663360887466219560 54463645794142596035460945876240076 54794765802465596038960979646240079 54870845805084596390161057846249584 54932555805301596637461085536259312 DRAFT DRAFT [ i ] Contents 1For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2Overview of functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Multimedia messaging service (MMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Polyphonic sound (MIDI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 (E)GPRS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Speakerphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Java TM applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 FM stereo radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 3Welcome and quick guide . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Get the most out of this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Understand wireless network services . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Register your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Learn about accessibility solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Understand your phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Get started with the Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Menu shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 4Basic operations . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 January 9, 2003 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPNPL-3 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Hannu Haukka Product Program Manager Nokia Mobile Phones, MP Oulu

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 28, 2003 RE: FCC ID: LJPNPL-3 Attention: Kare Oksanen I have a few comments on this Application. 1. Please note that the ERP and EIRP values in EMC report are exactly the same as the power in the SAR report. However, the type power measurement (conducted or ERP/EIRP) is not specified. Please note that these would appear to be measured on two different sites. I would expect that in ERP and EIRP measurements on different locations to be different. I would also expect that conducted on one site and ERP/EIRP on another site to be different values. Please explain what type measurement was done in the SAR report (conducted power or ERP/EIRP). Please also verify that the device power was measured at each location and that even though the same values are given in the separate reports, these values are true and accurate as measured at each site to the best of your knowledge.. 2. FYI - Please note that this device cannot be granted under the new rules that are to take affect Feb 18, 2003. Prior to Feb 18, 2003 this device can only be granted under the existing rules. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RESPONSE 1 (1) 1. Please note that the ERP and EIRP values in EMC report are exactly the same as the power in the SAR report. However, the type power measurement (conducted or ERP/EIRP) is not specified. Please note that these would appear to be measured on two different sites. I would expect that in ERP and EIRP measurements on different locations to be different. I would also expect that conducted on one site and ERP/EIRP on another site to be different values. Please explain what type measurement was done in the SAR report (conducted power or ERP/EIRP). Please also verify that the device power was measured at each location and that even though the same values are given in the separate reports, these values are true and accurate as measured at each site to the best of your knowledge.. There is no external antenna connector available in LJPNPL-3, and therefore all power measurements are done radiated. Unfortunately, ERP/EIRP texts were missing from SAR report. Since SAR laboratory does not have possibility to do radiated power output measurements, a separate accredited EMC laboratory was used. Since the same sample was used for both EMC and SAR measurements, radiated power measurements were re-used in SAR report. Given values are accurate to our best capability. 2. FYI - Please note that this device cannot be granted under the new rules that are to take affect Feb 18, 2003. Prior to Feb 18, 2003 this device can only be granted under the existing rules. Acknowledged.

22 Jan 2003 Exhibit 3: External Photographs FCC ID: LJPNPL-3 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved. 22 Jan 2003 Exhibit 3: External Photographs FCC ID: LJPNPL-3 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved.

FCC ID:LJPNPL-3 IC:661E-NPL3 168 XXXXXX/xx/yyyyyy/0 CODE: XXXXXXX Type: NPL-3 Model: 6200 MADE IN BRAZIL Applicant: Nokia CorporationCopyright2002 Nokia. All rights reserved. Exhibit 1: Label Position FCC ID: LJPNPL-3 21 Oct 2002 FCC ID:LJPNPL-3 IC:661E-NPL3 168 XXXXXX/xx/yyyyyy/0 CODE: XXXXXXX Type: NPL-3 Model: 6200 MADE IN BRAZIL FCC ID:LJPNPL-3 IC:661E-NPL3 168 XXXXXX/xx/yyyyyy/0 CODE: XXXXXXX Type: NPL-3 Model: 6200 MADE IN BRAZIL Applicant: Nokia CorporationCopyright2002 Nokia. All rights reserved. Exhibit 1: Label FCC ID: LJPNPL-3 21 Oct 2002 NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 January 9, 2003 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF LJPNPL-3 The compliance statement can be seen in User Guide of LJPNPL-3 because the size of the handportable LJPNPL-3 and its identification label are so small that the compliance statement cannot be printed visible enough. NOKIA CORPORATION Hannu Haukka Product Program Manager Nokia Mobile Phones, MP Oulu

22 Jan 2003 Exhibit 9: Internal Photographs FCC ID: LJPNPL-3 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved. 22 Jan 2003 Exhibit 9: Internal Photographs FCC ID: LJPNPL-3 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved. 22 Jan 2003 Exhibit 9: Internal Photographs FCC ID: LJPNPL-3 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved.

NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 January 9, 2003 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road Columbia, MD. 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC ID: LJPNPL-3 complies with ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. Compliance was determined by testing appropriate parameters according to standard. NOKIA CORPORATION Hannu Haukka Product Program Manager Nokia Mobile Phones, MP Oulu TCC Oulu Exhibit 11: SAR Report DTX06281-EN Applicant: Nokia Corporation FCC ID: LJPNPL-3 Copyright  2003 Nokia Corporation 1 (14) SAR Compliance Test Report Test report no.: Not numbered Date of report: 2003-01-17 Number of pages: 67 Contact person: Pentti Pärnänen Responsible test engineer: Pertti Mäkikyrö Testing laboratory: Nokia Corporation Elektroniikkatie 10 P.O. Box 50 FIN-90571 OULU Finland Tel. +358-7180-08000 Fax. +358-7180-47222 Client: Nokia Corporation Elektroniikkatie 10 P.O. Box 50 FIN-90571 OULU Finland Tel.+358-7180-08000 Fax. +358-7180-47222 Tested devices: LJPNPL-3 Supplement reports: - Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices IEEE P1528-200X Draft 6.4 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Oulu Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: 2003-01-17 For the contents: Pertti Mäkikyrö Engineering Manager, EMC Anne Kiviniemi Test Engineer TCC Oulu Exhibit 11: SAR Report DTX06281-EN Applicant: Nokia Corporation FCC ID: LJPNPL-3 Copyright  2003 Nokia Corporation 2 (14) CONTENTS 1. SUMMARY FOR SAR TEST REPORT............................................................................................................................. 3 1.1 MAXIMUM RESULTS FOUND DURING SAR EVALUATION..................................................................................................................3 1.1.1 Head Configuration ..........................................................................................................................................................3 1.1.2 Body Worn Configuration ...............................................................................................................................................3 1.1.3 Measurement Uncertainty..............................................................................................................................................3 2. DESCRIPTION OF TESTED DEVICE................................................................................................................................ 4 PICTURE OF PHONE.......................................................................................................................................................................................4 2.2 D ESCRIPTION OF THE ANTENNA.........................................................................................................................................................4 2.3 B ATTERY OPTIONS..............................................................................................................................................................................5 3. TEST CONDITIONS............................................................................................................................................................ 5 3.1 AMBIENT CONDITIONS.......................................................................................................................................................................5 3.2 RF CHARACTERISTICS OF THE TEST SITE.............................................................................................................................................5 3.3 T EST SIGNAL, FREQUENCIES, AND OUTPUT POWER...........................................................................................................................5 4. DESCRIPTION OF THE TEST EQUIPMENT................................................................................................................... 5 4.1 SYSTEM ACCURACY VERIFICATION....................................................................................................................................................6 4.2 T ISSUE SIMULANTS............................................................................................................................................................................7 4.2.1 Head Tissue Simulant.......................................................................................................................................................7 4.2.2 Muscle Tissue Simulant ...................................................................................................................................................7 4.3 P HANTOMS........................................................................................................................................................................................8 4.4 I SOTROPIC E-FIELD PROBE ET3DV6.........................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: LJPNPL-3 MFA p02c0003, d02c0023 TRANSMITTER CERTIFICATION of FCC ID: LJPNPL-3 MODEL: 6200 Serial Numbers of Units Tested: 001004/10/062943/6, 001004/10/062953/5 to FEDERAL COMMUNICATIONS COMMISSION Rule Parts 22H, 22.901(d), 24E, Confidentiality DATE OF REPORT: December 18, 2002 ON THE BEHALF OF THE APPLICANT: Nokia Corporation AT THE REQUEST OF: P.O. Olli Kautio 12/09/2002 Nokia Corporation Elektroniikkatie 10 Fin-90570 Oulu, Finland Attention of: Olli Kautio, Senior Engineering Manager, Testing & Type Approvals [email protected] and/or Kare Oksanen, R&D Type Approvals [email protected] 011 358 7180 08000; FAX: 011 358 7180 47222 SUPERVISED BY: Morton Flom, P. Eng. FCC ID: LJPNPL-3 MFA p02c0003, d02c0023 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: LJPNPL-3 MFA p02c0003, d02c0023 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 5 . General Information 6 . Standard Test Conditions and Engineering Practices 7 2.1046(a) ERP Carrier Power (Radiated) 8 2.1049(c)(1), 22 Emission Masks (Occupied Bandwidth) 10 2.1051, 2.1049(c), 24, 24.238(b)Emission Masks (Occupied Bandwidth) . Transmitter Conducted Measurements 22 2.1051, 22.917 Spurious Emissions at Antenna Terminals 34 2.1053(a) Field Strength of Spurious Radiation 39 2.1055(a)(1) Frequency Stability (Temperature Variation) 45 2.1055(b)(1) Frequency Stability (Voltage Variation) 48 2.202(g) Necessary Bandwidth and Emission Bandwidth 49 FCC ID: LJPNPL-3 MFA p02c0003, d02c0023 PAGE NO.1of49. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d02c0023 d) Client: Nokia Corporation Elektroniikkatie 10 Fin-90570 Oulu, Finland e) Identification: 6200 FCC ID: LJPNPL-3 Description: Dual-band Cellular Telephone f) EUT Condition: Not required unless specified in individual tests. g) Report Date: December 18, 2002 EUT Received: December 9, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. ACCESSORIES USED DURING TESTING: TypeModelMFA# Charger ACP-7U s001248 Charger ACP-8U s001250 Charger ACP-9U s001249 Charger ACP-12U s001275 Battery BLD-3 s000559 Battery BLD-3 s000560 Desktop Charger DCV-14 s000561 Stereo Headset HS-1C s000562 Stereo Music Stand DT-1 s000563 Loopset LPS-4 s000564 Headset HS-5 s000565 Stereo Headset HDS-3 s000566 Headset HDS-4 s000567 FCC ID: LJPNPL-3 MFA p02c0003, d02c0023 PAGE NO.2of49. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 22H, 22.901(d), 24E, Confidentiality Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Nokia Corporation Elektroniikkatie 10 Fin-90570 Oulu, Finland MANUFACTURER: Nokia Brazil Manaus AM Rod. Torquato Tapajos, 7200 KM 12 – Taruma Postal Code: 69048-660 Manaus, Amazonas, Brazil (c)(2): FCC ID: LJPNPL-3 MODEL NO: 6200 (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: 300KGXW, 300KG7W (c)(5): FREQUENCY RANGE, MHz : 1850.2 to 1909.8 824.2 to 848.8 (c)(6): POWER RATING, Watts: 1 to 2 Switchable x Variable N/A FCC GRANT NOTE: BC - The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. (c)(7): MAXIMUM POWER RATING, Watts:1,2 FCC ID: LJPNPL-3 MFA p02c0003, d02c0023 PAGE NO.3of49. Subpart 2.1033(continued) (c)(8): VOLTAGES & CURRENTS IN ALL ELEMENTS IN FINAL R. F. STAGE, INCLUDING FINAL TRANSISTOR OR SOLID STATE DEVICE: COLLECTOR CURRENT, A = per manual COLLECTOR VOLTAGE, Vdc = per manual SUPPLY VOLTAGE, Vdc = 3.9 (c)(9): TUNE-UP PROCEDURE: PLEASE SEE ATTACHED EXHIBITS (c)(10): CIRCUIT DIAGRAM/CIRCUIT DESCRIPTION: Including description of circuitry & devices provided for determining and stabilizing frequency, for suppression of spurious radiation, for limiting modulation and limiting power. PLEASE SEE ATTACHED E…

Text truncated - open the document above for the full version.

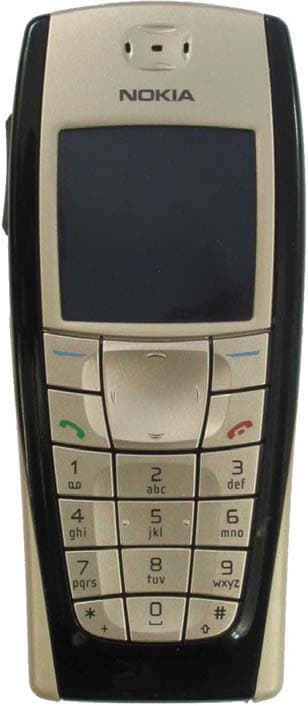

Picture 1. EUT Picture 2. Substitution antenna
