LJPNSB-6NYPSC Band GSM Cellular Transceiver

8890 UG version 0.092/2/00 Nokia 8890 User Guide version 0.09 • 8890titl.fm Page 1 Wednesday, February 2, 2000 6:35 AM 8890 UG version 0.092/2/00 The wireless phone described in this guide is approved for use in GSM 900 and GSM 1900 networks. Copyright information Part No. 9352552, © 2000 Nokia Mobile Phones. All rights reserved. Printed in Canada 02/00 Nokia, Nokia Connecting People and the Original Accessories logos are trademarks of Nokia Corporation and/or its affiliates. US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1999. Tegic Communications, Inc. All rights reserved. The information contained in this Owner’s Manual was written for Nokia phone NSB-6. The right to make changes and improvements to any of the products described in this guide without prior notice is reserved. These commodities are authorized by the U.S. Government for export only to Canada, Mexico, or the United States. They may not be resold, diverted, transferred, or otherwise disposed of in any other country, either in their original form or after being incorporated through an intermediate process into other end-items, without the written approval of the U.S. Department of State. FCC/Industry Canada Notice Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. 8890titl.fm Page 2 Wednesday, February 2, 2000 6:35 AM 8890 UG version 9i2/2/00 Contents For your safety......................1 Your phone’s label................2 1. Welcome...............................3 Using this guide 3 Documentation conventions............................3 Terms........................................4 Accessing this guide online.....................................4 Keys and features................ 5 Front........................................ 5 Back..........................................5 Left side...................................6 Bottom.....................................6 Network services...................7 Contacting Nokia..................7 Contacting your service provider.................................8 2. Before you begin..................9 Preparing your phone for use...................................9 Install the SIM card..............9 Notes about SIM cards......10 Install the battery...............10 Charge the battery..............10 Remove the battery............11 3. About your phone..............12 Switch on your phone........12 About the Start screen.......13 About indicators and icons.......................................13 4. Making and answering calls.....................................16 Make a call..........................16 Check the signal strength.................................16 Use the keypad....................16 Use the phone book...........17 Use the sliding cover.........17 Make calls with the sliding cover closed..........................18 Advanced calling options.18 Adjust the earpiece volume during a call.........................18 End a call.............................18 Answer a call.......................19 Reject a call.........................19 Redial the last-dialed number.................................19 Dial any of the 10 last-dialed numbers................................ 19 5. The menu............................20 Using the menus.................20 Selection keys......................20 Scroll keys ............................20 Scroll bar ..............................21 Help text ..............................21 Menu shortcuts ..................21 List of menu shortcuts ......22 8890ug v9TOC3.fm Page i Wednesday, February 2, 2000 6:46 AM 8890 UG version 9ii2/2/00 6. Entering letters and numbers .............................26 Standard text input........... 26 ABC mode ............................26 123 mode .............................28 Use special characters in names and phone numbers ................................28 7. Phone book ........................29 Save names and numbers...29 Save a name and number ..................................29 Save a number only ...........29 Save a name and number while in a call .....................29 If your phone book is full..30 Find names in the phone book ....................................30 From the Start screen .......30 While in a call .....................30 Edit (revise) names and numbers ..............................31 Erase names and numbers ..............................31 Erase stored names and numbers ................................31 Erase your entire phone book........................................31 Two types of memory ........32 Switch between internal memory and SIM memory ................................32 Call log ...............................33 Look up dialed calls ..........33 Look up received calls ......33 Check for missed calls ......33 Clearing call lists ...............35 8. Voice mail..........................36 Save the voice mailbox number ...............................37 Work with two phone lines .......................................37 Listen to your voice messages .............................37 9. Profiles 38 Select profiles ....................38 10. Advanced calling features ............................39 Active call options .............39 Use call waiting..................39 Use in-call options ............41 Put a call on hold ..............41 Make a new call .................42 Send touch tones ...............42 End all calls .........................43 Access the phone book ....43 Access menus .....................43 Mute/unmute the microphone .........................44 Conference calls ................44 Transfer a call .....................45 88…

Text truncated - open the document above for the full version.

NOKIA MOBILE PHONES Elektroniikkatie 10 FIN-90570 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222 January 12, 1999 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch This letter will authorize the appointment of MORTON FLOM, P. Eng., and/or M. FLOM ASSOCIATES, INC. to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advice that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, NOKIA MOBILE PHONES Timo Huttunen Vice President, Product Creation Center, Oulu

C:\Ready_To_Convert\Doc\85821.DOC Confidential - The information in this message is only intended for the person(s) or organization(s) to whom it is addressed. If you are not that person, please call the sender collect, and destroy this copy. January 24, 2000 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPNSB-6NY and as outlined below: - block diagram - schematic diagrams - description of circuitry / theory of operation - list of active devices - tune-up procedure These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, William H. Graff Director of Engineering M. Flom Associates, Inc. C:\Ready_To_Convert\Doc\85821.DOC Confidential - The information in this message is only intended for the person(s) or organization(s) to whom it is addressed. If you are not that person, please call the sender collect, and destroy this copy.

L:\MFA\FCC letter re Bill Graff.doc May 23, 2000 Federal Communications Commission Gentlemen: Please be advised that William H. (Bill) Graff is no longer employed by M. Flom Associates, Inc. in any capacity nor as a consultant. The only contact person to replace him is Morton Flom, P. Eng., President. Telephone number: 480 926 3100, FAX: 480 926 3598, email: general@mflom. Regards, Morton Flom, P. Eng., President M. Flom Associates, Inc.

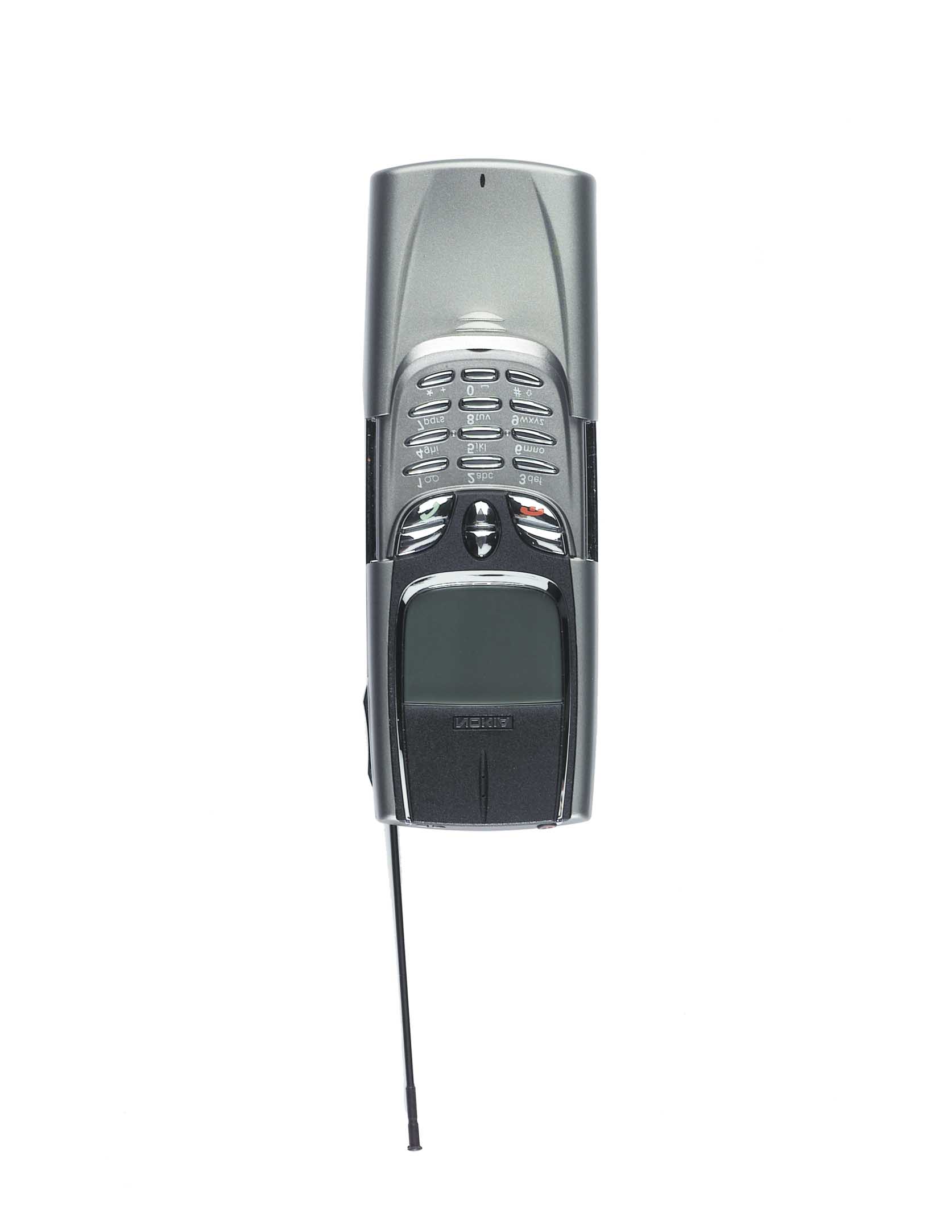

27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones 27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones 27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones 27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones 27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones 27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones 27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones 27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones

21 Jan 2000 FCC ID: LJPNSB-6NY Applicant: Nokia Mobile PhonesCopyright © 2000 Nokia Mobile Phones FCC ID: LJPNSB-6NY CAN: 66133XXXXX MOBILE PHONES LTD. Type: NSB-6NYModel: 8890 IMEI:001004/30/015564/2 CODE:0502714 01680168 MADE IN KOREA A163 21 Jan 2000 FCC ID: LJPNSB-6NY Applicant: Nokia Mobile PhonesCopyright © 2000 Nokia Mobile Phones FCC ID: LJPNSB-6NY CAN: 66133XXXXX MOBILE PHONES LTD. Type: NSB-6NYModel: 8890 IMEI:001004/30/015564/2 CODE:0502714 01680168 MADE IN KOREA A163 FCC ID: LJPNSB-6NY CAN: 66133XXXXX MOBILE PHONES LTD. Type: NSB-6NYModel: 8890 IMEI:001004/30/015564/2 CODE:0502714 01680168 MADE IN KOREA A163 NOKIA MOBILE PHONES Elektroniikkatie 10 FIN-90570 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222 January 24, 2000 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF NOKIA 8890, FCC ID: LJPNSB-6NY The compliance statement can be seen in User Guide of NOKIA 8890 because the size of the handportable NOKIA 8890 and its identification label are so small that the compliance statement can’t be printed visible enough. NOKIA MOBILE PHONES Juha Lumila Product Program Manager, Product Creation Center, Oulu 8890 UG version 0.0811/30/99 The wireless phone described in this guide is approved for use in GSM 900 and GSM 1900 networks. Copyright information Part No. 935nnnn, Issue No. 1, n.nn © 1999 Nokia Mobile Phones. All rights reserved. Printed in Canada nn/99 Nokia, Nokia Connecting People and the Original Accessories logos are trademarks of Nokia Corporation and/or its affiliates. US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1999. Tegic Communications, Inc. All rights reserved. The information contained in this Owner’s Manual was written for Nokia phone NSB-6. The right to make changes and improvements to any of the products described in this guide without prior notice is reserved. These commodities are authorized by the U.S. Government for export only to Canada, Mexico, or the United States. They may not be resold, diverted, transferred, or otherwise disposed of in any other country, either in their original form or after being incorporated through an intermediate process into other end-items, without the written approval of the U.S. Department of State. FCC/Industry Canada Notice Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. 8890ug.book Page 2 Tuesday, November 30, 1999 3:39 PM

27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones 27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones 27 Jan 2000 Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Copyright © 2000 Nokia Mobile Phones

NOKIA MOBILE PHONES Elektroniikkatie 10 FIN-90570 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222 January 28, 2000 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road Columbia, MD. 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC ID: LJPNSB-6NY complies with ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. Compliance was determined by testing appropriate parameters according to standard. NOKIA MOBILE PHONES Juha Lumila Product Program Manager, Product Creation Center, Oulu 1 January 27th, 2000 Nokia Mobile Phones P.O. Box 86 Joensuunkatu 7E FIN-24101 SALO Finland FEDERAL COMMUNICATIONS COMMISSION Equipment Authorization Branch 7435 Oaklands Mills Road Columbia, MD 21046 SAR TEST REPORT of Nokia 8890 Gentlemen, Please find attached SAR test report of FCC ID: LJPNSB-6NY For and on behalf of Nokia Mobile Phones Ltd. Respectfully, Sami Savela RF Design Engineer Responsible for NMP SAR measurements 2 ContentsPage 1.Description of the measurement......................................................................... 3 2.Description of calibration by manufacturer.......................................................... 4 3.List of standards ................................................................................................. 4 4.Device list ........................................................................................................... 5 5.Equipment under test ......................................................................................... 6 5.1 Verification and results.................................................................................... 6 5.2 Specification of Liquid ..................................................................................... 6 5.3 Specification of position with phone against generic twin phantom ................ 7 5.4 The phone position against generic twin phantom .......................................... 8 5.5 Results of SAR for 1g ..................................................................................... 9 3 1.Description of the measurement This measurements were done by E-field scanning system for dosimetric assessments. It is robot-based system which allows automated E-field scanning in tissue simulating solutions. The measurements are based on the induced specific absorption rate (SAR) definition of relevant ANSI / IEEE standards. The dosimetric assessment system of Nokia Mobile Phones is manufactured by Prof. Niels Kuster at ETH (Schmid & Partner Engineering AG) in Switzerland, Europe. The method used to determine the 1 gram average value of SAR is: Initially a coarse scan is performed over the whole area on a 15 x 15 mm grid. From this coarse scan, the location at which the maximum value is measured is used as the centre for a second, more detailed scan. This second scan is based on a 3 dimensional grid of 5 x 5 x 7 points on a grid of 8 mm for 1800 MHz band. The average SAR values are computed using the 3D spline inter-polation algorithm. The 3D spline is composed on three one- dimensional splines with the “Not a knot” condition in the x, y and z directions (1), (2). The volume is integrated with the trapezoidal algorithm. 1000 points (10x10x10) are interpolated to calculate the average. All neighbouring volumes are evaluated until no neighbouring volume with a higher average is found. (1) W. Gander, Computermathematik, Birkhauser, Basel, 1992 (2) W. H. Press, S. A Teukolsky, W. T. Vettering and B. P. Flannery, Numerical Recipes in C, The Art of Scientific Computing, second edition, Cambridge University Press, 1992 4 2. Description of calibration by manufacturer The calibration of data acquisition electronics and probe was done by the manufacturer. (Appendix 3 and 7) - the data acquisition unit is calibrated and tested using a FLUKE 702 Process Calibrator - measurement uncertainty is less than ± 20% for various tissues simulating solutions and frequencies: - these calibration parameters were measured using a temperature probe developed by manufacturer - description of the probe calibration and examples of the evaluation are enclosed in Appendix 7 3.List of standards ANSI/IEEE Std C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz ANSI/IEEE Std C95.3-1992 IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave 5 4.Device list Automated E-field scanning system for dosimetric assessments System. Calibration due July 2000. Technical data (Appendix 1) Probe ET3DV4, SN: 1105, Recalibrated due July 2000 Technical data (Appendix 2) DASY-dosimetric assessment system, DAE V2, SN: 213, Calibration due July 2000 (Appendix 3) Industrial robot and Control unit, type STÄUBLI CS7 RX 90(CR) NO:595148-01, Technical data (Appendix 4) Generic Twin Phantom Version 3 (Appendix 6). PC COMPAQ 466 laser printer QMS magicolor plus Devices for preparation of the brain tissue simulating liquids -General laboratory equipment for preparation of liquids -Magnetic stirrer with heating plate IKA RET CV, SN:792708 -Scale Mettler Doleto, SN: 2114177678 HP 85070A Dielectric probe system - network analyzer HP 8753B, SN:2716U00762, Calibration due April 2000 - cables - probe stand - dielectric probe kit NO: US33020242 - PC AST PREMMIA 4/66 d - HP-IB 82335B (interface and software) Dipole Validation kit for 900 MHz band, Schmid & Partner Engineering AG, Typ: D900V2, SN: 003, Recalibrated/Verification due July 2001 and Dipole Validation kit for 1800 MHz band, Schmid & Partner Engineering AG, Typ: D1800V2, SN: 207, Recalibrated/Verification due July 2001 - signal generator ROHDE & SCHWARZ, 1038.6002.03, Calibration due July 2000 - power meter, ROHDE & SCHWARZ, 857.8008.02, Calibration due December 2001 - amplifier ZHL-42 (SM…

Text truncated - open the document above for the full version.

FCC ID LJPNSB-6NY Applicant: Nokia Mobile Phones Correspondence Reference Number: 13190 731 Confirmation Number: EA96734 CORRESPONDENCE 25. April 2000 1. Q: Body-worn data was not provided in the test data. The manual indicates that there is a connector for a Headset/car kit connection. Since there is a headset option the device can be worn on the body. As a result Body-worn data will be required. Address body-worn SAR compliance with respect to belt-clips, holsters or similar accessories provided with this device. Body-worn SAR may be addressed by testing SAR with a minimum separation distance, typically 0.5 cm to 1.0 cm including the antenna whether extended or retracted, between the back of the device and the body phantom. If the accessories are not included in the test, only belt clips and holsters containing no metallic parts in the assembly can be marketed providing that they keep the device separation from the body as specified in the test. The specific operating requirements for body-worn SAR compliance must be included in the users manual for users to comply, indicating that it is for FCC RF exposure compliance and non-tested accessories may not comply and should be avoided. A: Required body-worn data is shown in appendix 1 and modified user guide page is shown in appendix 2. Measurements are based on the information already shown in the original SAR report of LJPNSB-6NY. 2. Q: Clarification is needed on the car kit accessory. If external antennas are used an evaluation of MPE compliance or qualifications for categorical exclusion requirements of Part 2.1091 need to be addressed. A: There is no external antenna connector in LJPNSB-6NY and thus no external antennas are used. 3. Q: Confirm SAR compliance with the hand either by measurements or other appropriate means. A: SAR compliance data with the hand is shown in appendix 3. Measurement is based on the information already shown in the original SAR report of LJPNSB-6NY. 4. Q: The manual indicates in Section 3 that there is a retractable whip antenna and an internal antenna. Verify the type of antenna(s) used with this device, address SAR compliance, and provide updated pages of the manual as necessary. A: LJPNSB-6NY has an internal antenna with rectractable whip. It is possible to use phone by having whip either up or down position. This question has already been addressed in original SAR report where SAR values were reported in both positions ('whip in' and 'whip up'). Appendix 1. Body-worn SAR Data BODY SAR REPORT1 (5) NOKIA MOBILE PHONES2000-4-20 Sami Savela Evaluation of SAR in Body Worn Configurations LJPNSB-6NY. Introduction Our approach was to measure the SAR, when phone is used with body worn accessories or is against the Flat Phantom. Body worn accessories CSH-3 Leather Carrying Case and Leather Carrying Case from CBP-2 Travel pack (Picture 1) was tested. The measurement test equipment and setup was the same as used and referred in SAR TEST REPORT of NOKIA 8890. Picture 1. Leather Carrying Case CSH-3 and Leather Carrying Case from Travel pack CBP-2. Test method Measurements were done with the Dasy 2 dosimetric assessment system DAE V2, SN: 213 and with the generic Twin Phantom version 3 from Schmid & Partner Engineering Ag. Positioning of the phone in all measurements was done according to the user guide instructions in section Radio Frequency (RF) Signals i.e. display and keypad were facing the flat phantom. Also the design of body worn accessories encourages to this kind of positioning. The point of maximum SAR was searched and SAR was measured with a 3-dimensional cube measurement. Because of the highest SAR values were originally measured on the channel 512 (1850 MHz) with the head phantom, body-worn SAR was measured on this same channel with the maximum output power level. Brain equivalent liquid, which has higher conductivity than tissues in the body, was used also in body-worn measurements. Thus this method overestimates SAR. BODY SAR REPORT2 (5) NOKIA MOBILE PHONES2000-4-20 Sami Savela Results Graphical presentations of test positions with the highest SAR values are presented in the end of this report. Digital mode GSM PCS (1900MHz) meas. nr: Phone position Frequency MHz / channel Power,dBm EIRP *) SAR (1g)[mW/g] 1 Body Worn, Carrying Case (CSH-3) against Flat Phantom 1850 / 512 30.8 0.26 2 Body Worn, Carrying Case (from Travel Pack CBP-2) against Flat Phantom 1850 / 512 30.8 0.57 3 Body Worn, Display against Flat Phantom 1850 / 512 30.8 0.55 FCC ID: LJPNSB-6NY MEASURED: 2000-4-20/NMP FCC limit1.60[mW/g] (ANSI/IEEE) *) Radiated power was measured by FCC accredited test lab Summary The SAR values found for the portable cellular phone (FCC ID: LJPNSB-6NY) are below the maximum recommended levels of 1.6 mW/g. BODY SAR REPORT3 (5) NOKIA MOBILE PHONES2000-4-20 Sami Savela Figure 1. SAR-plot LJPNSB-6NY with Carrying Case CSH-3 BODY SAR REPORT4 (5) NOKIA MOBILE PHONES2000-4-20 Sami Savela Figure 2. SAR-plot LJPNSB-6NY with Carrying Case from CBP-2 BODY SAR REPORT5 (5) NOKIA MOBILE PHONES2000-4-20 Sami Savela Figure 3. SAR-plot LJPNSB-6NY body worn Appendix 2. FCC RF Exposure Info in User Guide [ 110 ] Radio Frequency (RF) Signals Your wireless handheld portable telephone is a low-power radio transmitter and receiver. When it is ON, it receives and sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines that included safety levels for handheld wireless phones. Those guidelines are consistent with safety standards previously set by both U.S and international standards bodies: •ANSI C95.1 (1992)*, NCRP Report 86 (1986)*, ICNIRP (1996)*, and RSS-102 issue 1. Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard…

Text truncated - open the document above for the full version.

Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Correspondence Reference Number: 14308 731 Confirmation Number: EA96734 Federal Communications Commision Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Kwok Chan / Errol Chang: Please find attached our reply to your correspondence concerning LJPNSB-6NY (EA96734, correspondence reference number 14308). The original text is followed by our highlighted response. Regards, Kare Oksanen Engineering Manager, Type Approval Nokia Mobile Phones, PCC Oulu 1. Please provide photos or other illustrations indicating the phone can only be placed in the proposed carrying holsters with its keypad/display facing the user when transmitting in body-worn configurations. Otherwise, additional SAR compliance results would be needed. In case of positioning LJPNSB-6NY correctly in the carrying cases, the bottom connector is available for headset as shown in Picture 1. Picture 1. LJPNSB-6NY positioned keypad/display facing the user Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Correspondence Reference Number: 14308 731 Confirmation Number: EA96734 If LJPNSB-6NY is positioned in the way that its keypad and display are facing away from the user, the bottom connector will not be available without misusing the carrying cases (Picture 2). Thus having a call while having LJPNSB-6NY in the carrying case is reasonable only when keypad and display and facing the user. Picture 2. LJPNSB-6NY positioned keypad/display facing away from the user Even though the above pictures are taken of the horizontal carrying case, all the information applies also to the vertical one. Unfortunately we do not have the final vertical carrying case available yet, but hopefully the following figures clarify the positioning of the phone. Picture 3. LJPNSB-6NY positioned correctly in the vertical carrying case Picture 4. LJPNSB-6NY positioned falsely in the vertical carrying case Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Correspondence Reference Number: 14308 731 Confirmation Number: EA96734 2. Please revise body-worn SAR compliance statement in the manual to exclude belt- clip. Only two carrying cases were tested for body-worn SAR compliance. Suggestion: "....., place the phone in specific Nokia carrying cases that have been tested for compliance. Use of non-Nokia-approved accessories may violate FCC RF exposure guidelines and should be avoided.". We accept your suggestion. This paragraph will be changed as follows: For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only Nokia approved accessories. When carrying the phone while it is on, place the phone in the specific Nokia carrying cases that have been tested for compliance. Use of non-Nokia-approved accessories may violate FCC RF exposure guidelines and should be avoided. 3. Please identify if the previously submitted body-worn SAR data for the two carrying cases and display against flat phantom are with antenna extended or retracted and submit SAR data for the other antenna position. Previous carrying case SAR data was measured with antenna retracted. Actually we intended to measure SAR with antenna extended at the same time. The problem was that when the phone is placed in the carrying case which is then closed, extending the antenna is extremely difficult if not impossible. Even though the phone would be placed in the carrying case with antenna extended, the antenna would bend so badly that we could not consider this as a normal operating position. Thus we gave up the idea. I have included some photos, where the position of the antenna is marked with a red arrow. Picture 5. LJPNSB-6NY placed in CSH-3 and the position of the antenna Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Correspondence Reference Number: 14308 731 Confirmation Number: EA96734 Picture 6.LJPNSB-6NY placed in CSH-3 and the position of the antenna Picture 7. LJPNSB-6NY placed in Carrying Case from CBP-2 and the position of the antenna Picture 8. LJPNSB-6NY placed in Carrying Case from CBP-2 and the position of the antenna Applicant: Nokia Mobile Phones FCC ID: LJPNSB-6NY Correspondence Reference Number: 14308 731 Confirmation Number: EA96734 4. FYI - Even at 6 GHz, muscle-equivalent dielectric constant... (a very long explanation deleted to save some space)... For the current filing, there is sufficient SAR margin in the measured results which we do not believe the difference in tissue dielectric parameters could result in non-compliance conditions; therefore, additional testing is not requested. Please test SAR with appropriate tissue dielectric parameters as inappropriate tissue parameters may not be accepted for future filings. Your concern is understandable. We will try to find a more suitable tissue simulating liquid for the future filings to the best of our abilities. 5. FYI - the response provided by the test lab had incorrectly substitute permittivity for tissue density in the SAR equation. Please note that any error or misunderstanding of this basic SAR equation could have significant effects on all SAR eva…
