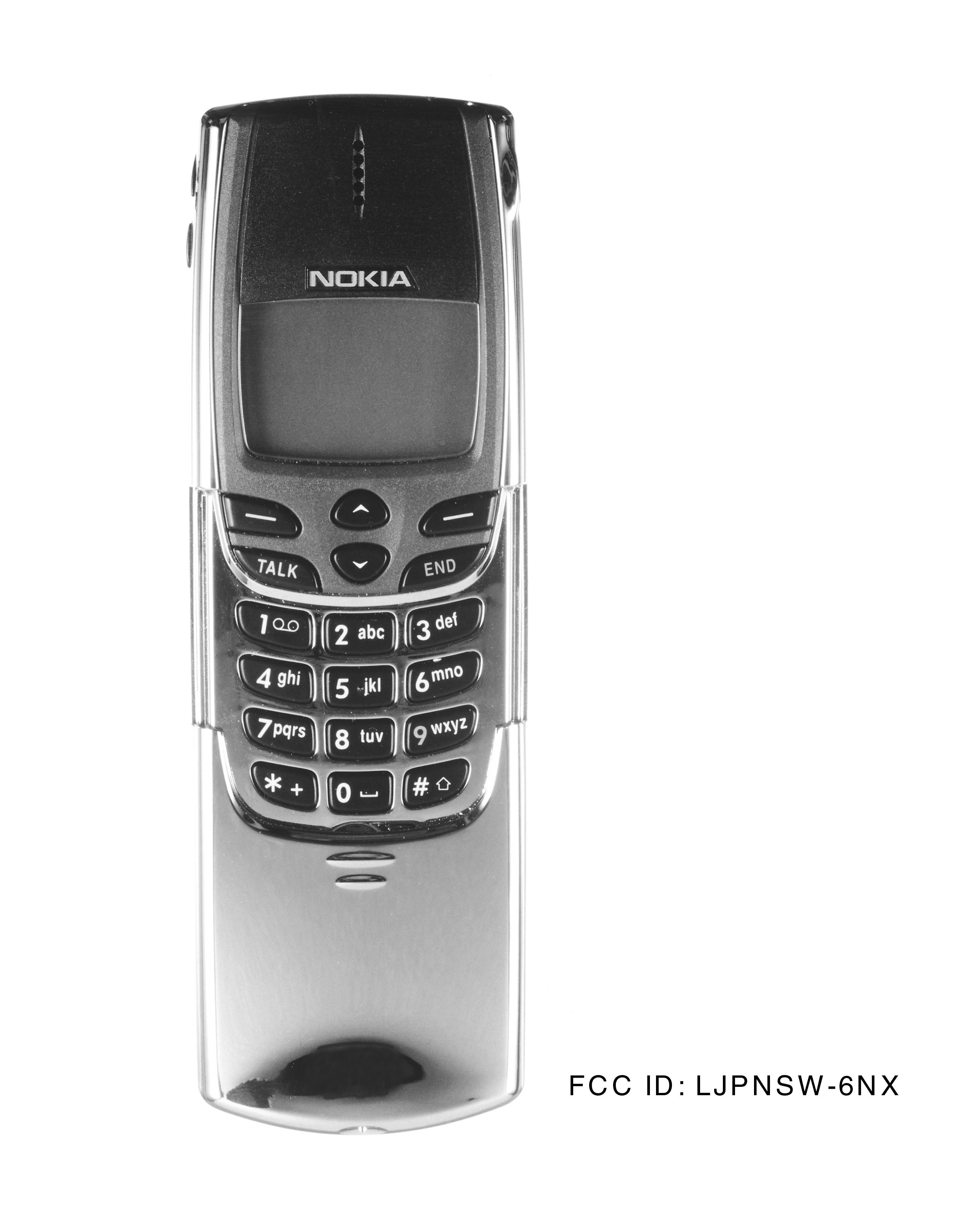

LJPNSW-6NXDual Band Tri Mode Non-Broadcast Cellular Transcei

Last modified 15-Mar-99 8860 User Guide Draft pre-release version 0.01 8860 UG version 0.01 3/15/99 1 Indicators and Icons You have an active call.The phone is waiting for you to enter a response.The current profile you have selected for your phone is 6LOHQW . Keyguard has been activated to help prevent any accidental keypresses.You have one or more voice messages waiting.You have one or more unread text messages waiting. Digital service is available.Any characters you enter will be upper-case letters or numbers. Press the # key to switch letter case.Any characters you enter will be lower-case letters or numbers. Press the # key to switch letter case.This appears when you press and hold the # key when storing names. Letters can not be entered when this appears, allowing quicker access to numbers. You are in “special character” mode; select a special character and press ,QVHUW . (When entering letters, you can switch to this mode by pressing the ∗ key.) The alarm clock is set.You have a reminder in your calendar to do something (appears only on Calendar display).You have a reminder in your calendar that it’s someone’s birthday (appears only on Calendar display).You have a reminder in your calendar to call someone (appears only on Calendar display).You have a reminder in your calendar of a meeting (appears only on Calendar display). 21. Safety At A Glance Read these simple guidelines before using your phone. Failure to comply with these guidelines may be dangerous or illegal. For more detailed safety information, “Important Safety Information” on page 91. Road Safety Comes FirstDon’t use a hand-held phone while driving; park the vehicle first.Switch Off In HospitalsSwitch off your phone when near medical equipment. Follow any regulations or rules in force.Switch Off On AircraftMobile phones can cause interference. Using them on aircraft is illegal.Switch Off When RefuelingDo not use the phone at a refueling point. Do not use near fuels or chemicals.Switch Off Near BlastingDo not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules in force. 8860 UG version 0.01 3/15/99 3 Safety At A Glance InterferenceAll mobile phones may get interference which could affect performance.Use SensiblyUse only in the normal position (to ear). Avoid unnecessary contact with the antenna when phone is on.Qualified ServiceOnly qualified service personnel may install or repair cellular phone equipment. Accessories and BatteriesUse only approved accessories and batteries. Do not connect incompatible products. FCC/Industry Canada NoticeYour phone may cause TV or radio interference (e.g. when using a telephone in close proximity to receiving equipment). The FCC/Industry Canada can require you to stop using your telephone if such interference can not be eliminated. If you require assistance, contact your local service facility.This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. 4Using this GuideThe wireless phone described in this guide is approved for use in TDMA/AMPS networks.A number of features included in this guide are called Network Services. They are special services provided by wireless service providers. Before you can take advantage of any of these Network Services, you must subscribe to the service(s) from your home service provider and obtain instructions for their use.DisclaimerIt’s possible that you may not be able to activate your phone on all wireless systems. Please see your service provider for details. 8860 UG version 0.01 3/15/99 5 Getting Connected 2. Getting ConnectedYou’re battery should be charged before you activate your new phone. This section will help familiarize you on how, and when, to charge your battery.Attaching your batterySimply place the battery in the grooves on the back of your phone. Then slide the battery upward until it clicks.Note: Use only those batteries approved by the phone manufacturer and recharge your battery only with the chargers approved by the manufacturer. See “Important Battery Information” on page 8.Removing the batteryNote: Switch off the phone before removing the battery! 6 Press and hold the button at the top of the battery. Slide the battery toward the bottom of the phone. Lift the battery off the phone. Charging your new battery Your phone can be used with either a rechargeable Li-Ion or NiMH battery. Note that a new battery’s full performance is achieved only after two or three complete charge and discharge cycles.With your phone on or off, connect the charger to a standard 120V AC outlet. Then connect the lead from the charger to the bottom of your phone or place it on a charging stand.When the battery begins charging, your phone will beep once and the battery strength indicator on the right side of the display will scroll.Note: If the battery is totally empty, it may take a few minutes before the charging indication appears on the display.If your phone displays 1RWFKDUJLQJ , charging is suspended. Check that the battery is not connected to a non-approved charging device. If the battery is very hot or cold, wait for a while; charging will automatically resume after the battery is restored to its normal operating state. If charging still fails, contact your dealer. 8860 UG version 0.01 3/15/99 7 Getting Connected When is a good time to charge?You can charge your battery anytime. If you have a NiMH battery, you should allow it to completely discharge once in a while.When your phone beeps once and displays %DWWHU\ORZ , you only have a couple of minutes of talk time remaining. The repetition rate of these battery-low warnings depend on the remaining battery capacity and the battery condition. These warnings are more frequent when you’re in a call.Note: The phone will not give you the warning tone under certain conditions. See “Warning tones” on page 81.Once all the power has drained from your battery, you’ll hear thr…

Text truncated - open the document above for the full version.

NOKIA MOBILE PHONES Elektroniikkatie 10 FIN-90570 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222 March 15, 1999 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention:Equipment Authorization Branch PER:47 CFR 22.919 RE:FCC ID: LJPNSW-6NX The Electronic Serial Number (ESN) for each transceiver is unique. The ESN host component is permanently attached to a main circuit board of the alterable. The ESN is isolated from fraudulent contact and tampering. The host component does not contain other information, it is not removable and its electrical connections are not accessible. The host component does contain other information, and the ESN information is encoded using: (1) Multiplication or division by a polynomial. (2) Cyclic coding. (3) The spreading of ESN bits over various non-sequential memory locations. The ESN is factory set and is not alterable, transferable, removable, or otherwise able to be manipulated. Cellular mobile equipment is designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. NOKIA MOBILE PHONES Väinö Mäki Project Manager, Product Development, Oulu NOKIA MOBILE PHONES Elektroniikkatie 10 FIN-90570 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222 March 15, 1999 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC ID: LJPNSW-6NX complies with OET Bulletin No. 53 as referenced in Section 22.915 of the Commission’s rules and with TIA/EIA IS-54B and IS-136A Mobile Station - Land Station Compatibility Standards. Compliance was determined by testing appropriate parameters according to standards. Extensive field testing has been performed in several locations in the USA to verify the compatibility against different systems. NOKIA MOBILE PHONES Väinö Mäki Project Manager, Product Development, Oulu

Date: April 1, 1999 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization & Evaluation Division Applicant: Nokia Mobile Phones Equipment: 8860, Type NSW-6NX FCC ID: LJPNSW-6NX FCC Rules: 22, 24, Confidentiality Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. enclosure(s) cc: Applicant MF/cvr

NOKIA MOBILE PHONES Elektroniikkatie 10 FIN-90570 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222 January 12, 1999 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch This letter will authorize the appointment of MORTON FLOM, P. Eng., and/or M. FLOM ASSOCIATES, INC. to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advice that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, NOKIA MOBILE PHONES Timo Huttunen Vice President, Product Creation Center, Oulu NOKIA MOBILE PHONES Elektroniikkatie 10 FIN-90570 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222 March 15, 1999 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPNSW-6NX and as outlined below: - block diagram - schematic diagrams - theory of operation - list of active devices - tune-up procedure These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA MOBILE PHONES Väinö Mäki Project Manager, Product Development, Oulu

Federal Communications Commission Reference:FCC ID: LJPNSW-6NX EA:93768 Corrections to form 731 Please change the following item on the Form 731. **Name, Title, and Mail Stop, if any, of at applicant’s address to receive grant: Timo Huttenen, Vice President, Product Creation Center, Oulu Respectfully submitted. William H. Graff Director of Regulatory Engineering M. Flom Associates, Inc.

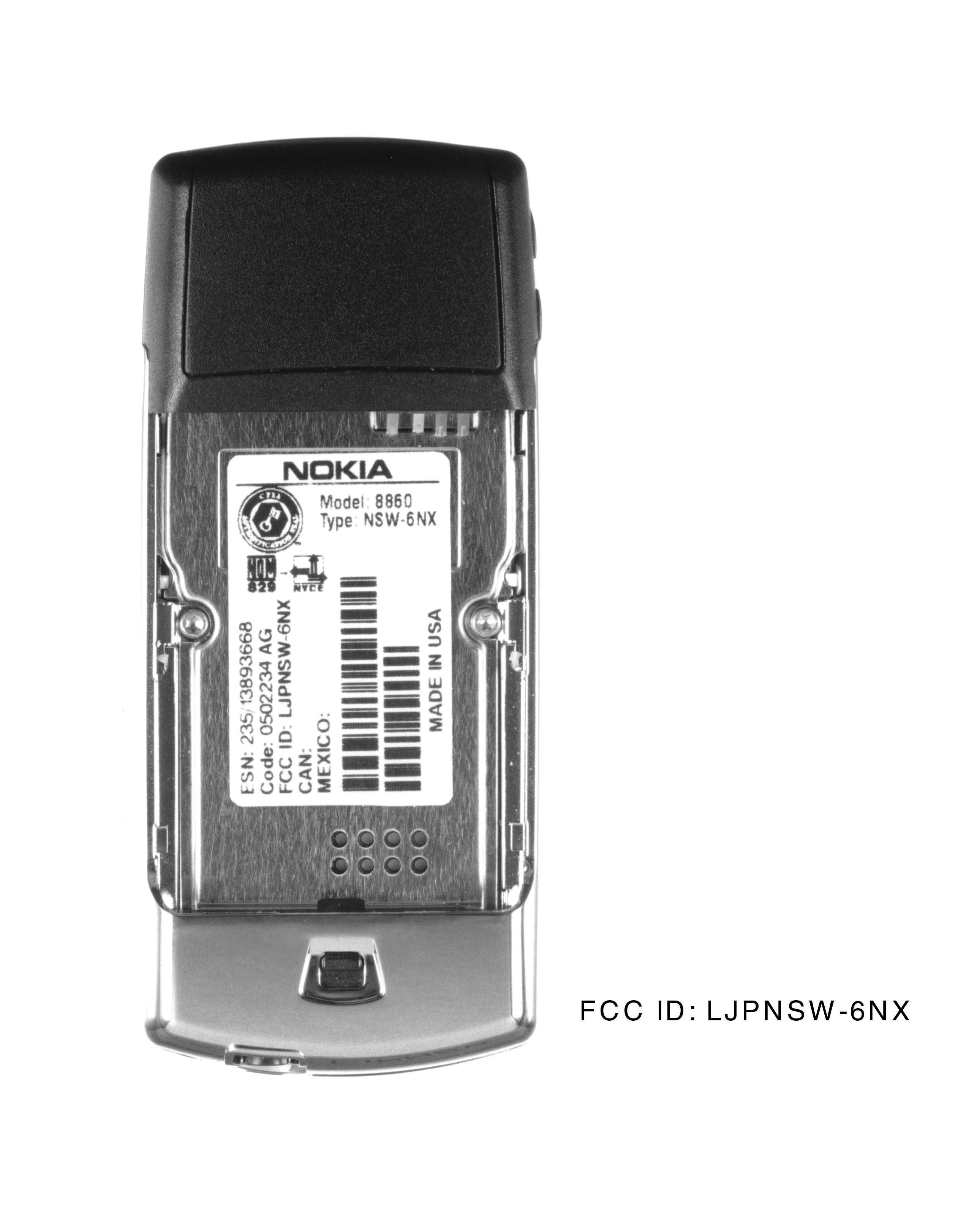

MADE IN USA Model: 8860 Type: NSW-6NX ESN: 235/13893668Code: 0502234 AGFCC ID: LJPNSW-6NXCAN:MEXICO: 10 Mar 99 FCC ID: LJPNSW-6NX Applicant: Nokia Mobile PhonesCopyright1999 Nokia Mobile Phones MADE IN USA Model: 8860 Type: NSW-6NX ESN: 235/13893668Code: 0502234 AGFCC ID: LJPNSW-6NXCAN:MEXICO: MADE IN USA Model: 8860 Type: NSW-6NX ESN: 235/13893668Code: 0502234 AGFCC ID: LJPNSW-6NXCAN:MEXICO: 10 Mar 99 FCC ID: LJPNSW-6NX Applicant: Nokia Mobile PhonesCopyright1999 Nokia Mobile Phones NOKIA MOBILE PHONES Elektroniikkatie 10 FIN-90570 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222 March 15, 1999 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF NOKIA 8860, FCC ID: LJPNSW-6NX The compliance statement can be seen in User Guide of NOKIA 8860 because the size of the handportable NOKIA 8860 and its identification label are so small that the compliance statement can’t be printed visible enough. NOKIA MOBILE PHONES Väinö Mäki Project Manager, Product Development, Oulu 21. Safety At A Glance Read these simple guidelines before using your phone. Failure to comply with these guidelines may be dangerous or illegal. For more detailed safety information, “Important Safety Information” on page 91. Road Safety Comes FirstDon’t use a hand-held phone while driving; park the vehicle first.Switch Off In HospitalsSwitch off your phone when near medical equipment. Follow any regulations or rules in force.Switch Off On AircraftMobile phones can cause interference. Using them on aircraft is illegal.Switch Off When RefuelingDo not use the phone at a refueling point. Do not use near fuels or chemicals.Switch Off Near BlastingDo not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules in force. 8860 UG version 0.01 3/15/99 3 Safety At A Glance InterferenceAll mobile phones may get interference which could affect performance.Use SensiblyUse only in the normal position (to ear). Avoid unnecessary contact with the antenna when phone is on.Qualified ServiceOnly qualified service personnel may install or repair cellular phone equipment. Accessories and BatteriesUse only approved accessories and batteries. Do not connect incompatible products. FCC/Industry Canada NoticeYour phone may cause TV or radio interference (e.g. when using a telephone in close proximity to receiving equipment). The FCC/Industry Canada can require you to stop using your telephone if such interference can not be eliminated. If you require assistance, contact your local service facility.This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.

NOKIA MOBILE PHONES Elektroniikkatie 10 FIN-90570 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222 March 19, 1999 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road Columbia, MD. 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC ID: LJPNSW-6NX complies with ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. Compliance was determined by testing appropriate parameters according to standard. NOKIA MOBILE PHONES Väinö Mäki Project Manager, Product Development, Oulu NOKIA MOBILE PHONES 1 March 23th, 1999 P.O. Box 86 Joensuunkatu 7E FIN-24101 SALO Finland FEDERAL COMMUNICATIONS COMMISSION Equipment Authorization Branch 7435 Oaklands Mills Road Columbia, MD 21046 SAR TEST REPORT of Nokia 8860 Gentlemen, Please find attached SAR test report of FCC ID: LJPNSW-6NX For and on behalf of Nokia Mobile Phones Ltd. Respectfully, Sami Savela RF Design Engineer Responsible for NMP SAR measurements NOKIA MOBILE PHONES 2 ContentsPage 1.Description of the measurement3 2.Description of calibration by manufacturer4 3.List of standards4 4.Device list5 5.Equipment under test6 5.1Verification and results6 5.2Specification of Liquids6 5.3Specification of position with phone against 7 generic twin phantom 5.4The phone position against generic twin 8 phantom 5.5Results of SAR for 1g 9 Appendix 111 Appendix 212 Appendix 313 Appendix 414 Appendix 515 Appendix 616 Appendix 717 Appendix 818 Appendix 919 Appendix 1020 NOKIA MOBILE PHONES 3 1.Description of the measurement This measurements were done by E-field scanning system for dosimetric assessments. It is robot-based system which allows automated E-field scanning in tissue simulating solutions. The measurements are based on the induced specific absorption rate (SAR) definition of relevant ANSI / IEEE standards. The dosimetric assessment system of Nokia Mobile Phones is manufactured by Prof. Niels Kuster at ETH (Schmid & Partner Engineering AG) in Switzerland, Europe. The method used to determine the 1 gram average value of SAR is: Initially a coarse scan is performed over the whole area on a 15 x 15 mm grid. From this coarse scan, the location at which the maximum value is measured is used as the centre for a second, more detailed scan. This second scan is based on a 3 dimensional grid of 4 x 4 x 7 points on a grid of 10 mm for 900 MHz band and grid of 5 x 5 x 7 points on a grid of 8 mm for 1800 MHz band . The average SAR values are computed using the 3D spline inter- polation algorithm. The 3D spline is composed on three one-dimensional splines with the “Not a knot” condition in the x, y and z directions (1), (2). The volume is integrated with the trapezoidal algorithm. 1000 points (10x10x10) are interpolated to calculate the average. All neighbouring volumes are evaluated until no neighbouring volume with a higher average is found. (1) W. Gander, Computermathematik, Birkhauser, Basel, 1992 (2) W. H. Press, S. A Teukolsky, W. T. Vettering and B. P. Flannery, Numerical Recipes in C, The Art of Scientific Computing, second edition, Cambridge University Press, 1992 NOKIA MOBILE PHONES 4 2.Description of calibration by manufacturer The calibration of data acquisition electronics and probe was done by the manufacturer. (Appendix 3 and 7) - the data acquisition unit is calibrated and tested using a FLUKE 702 Process Calibrator - measurement uncertainty is less than ± 20% for various tissues simulating solutions and frequencies: - these calibration parameters were measured using a temperature probe developed by manufacturer - description of the probe calibration and examples of the evaluation are enclosed in Appendix 7 3.List of standards ANSI/IEEE Std C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz ANSI/IEEE Std C95.3-1992 IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave NOKIA MOBILE PHONES 5 4.Device list: Automated E-field scanning system for dosimetric assessments System. Calibration due August 1999. Technical data (Appendix 1) Probe ET3DV4, SN: 1105, Recalibrated due August 1999 Technical data (Appendix 2) DASY-dosimetric assessment system, DAE V2, SN: 213, Calibration due August 1999 (Appendix 3) Industrial robot and Control unit, type STÄUBLI CS7 RX 90(CR) NO:595148-01, Technical data (Appendix 4) Generic Twin Phantom Version 3 (Appendix 6). PC COMPAQ 466 laser printer QMS magicolor plus Devices for preparation of the brain tissue simulating liquids - General laboratory equipment for preparation of liquids - Magnetic stirrer with heating plate IKA RET CV, SN:792708 - Scale Mettler Doleto, SN: 2114177678 HP 85070A Dielectric probe system - network analyzer HP 8753B, SN:2716U00762, Calibration due April 1999 - cables - probe stand - dielectric probe kit NO: US33020242 - PC AST PREMMIA 4/66 d - HP-IB 82335B (interface and software) Dipole Validation kit for 900 MHz band, Schmid & Partner Engineering AG, Typ: D900V2, SN: 003, Recalibrated/Verification due August 1999 and Dipole Validation kit for 1800 MHz band, Schmid & Partner Engineering AG, Typ: D1800V2, SN: 207, Recalibrated/Verification due August 1999 - signal generator ROHDE & SCHWARZ, 1038.6002.03, Calibration due July 2000 - power meter, ROHDE & SCHWARZ, 857.8008.02, Calibration due November 1999 - amplifier ZHL-42 (SMA), 022488-RM:4152 NOKIA MOBILE PHONES 6 5.Equipment under test Unit: NOKIA 8860 FCC-ID: LJPNSW-6NX 5.1Verification and results Validation of the measurement system was made before measurement using the Validation kit. Appendix: 8 and 9 This validation measurement makes sure that the repeatability of SAR measurement value with careful positioning is better than 10 %. On 900 MHz band error was < 8 % compared to the parameter of manufacturer SAR results (0.25W): 2.34 mW/g (1g) a…

Text truncated - open the document above for the full version.

REPLY1 (4) 24. June 1999 FCC ID LJPNSW-6NX Applicant: Nokia Mobile Phones Correspondence Reference Number: 8337 731 Confirmation Number: EA93768 REPLY2 (4) 24. June 1999 1. Q: It has an integrated internal antenna. For SAR purposes, we need a description of the dimension and location of the antenna within the handset. A: Internal integrated antenna could be seen on section 9 (internal photos) on page 3 on top-right corner. It is located on the top of the device on its backside. Picture 1. Internal antenna: Dimensions and location max. < 35mm max. < 25mm ~1mm REPLY3 (4) 24. June 1999 2. Q: For AMPS Mode, SAR was performed at 600 mW ERP. This mode will be listed on the grant as 600 mW ERP nominal, and AMPS mode not to exceed 600 mW maximum ERP for SAR compliance as external grant comment. Ratings for cellular TDMA is 500 mW ERP, and 630 nW for PCS/TDMA. (based on third version of radiated output data) A: Nokia has no problem accepting your power ratings on the Grant. 3. Q: Section 3 of users manual - "Switching the phone on and off", the Normal Position description is for conventional antennas, which does not appear to be appropriate for this particular device with an internal antenna, should be revised accordingly. A: In this device antenna is internal but it is still located in the one end of the device. Therefore it still can be pointing either up or down. In the user manual there already was a drawing attached into "Switching the phone on and off" -section to clarify antenna's location in the device (pointed by an arrow) and the correct positioning of the device but in the final version there will also be a note beside the drawing to explain its content more precisely. 4. Q: Page 11 of manual, "Using the slide" - need clarification for the "slide" and "keypad cover" and their relations to normal operating positions for this device. A: Unfortunately both "slide" and "keypad cover" were used in "Using the slide" –section and these items were not harmonized in the user manual. However, they were both used in the same meaning. Furthermore, a glossary will be added to user manual where slide is explained to be 'the sliding keypad cover on the front of your phone'. Normally this device is operated slide open during calls and otherwise slide closed. However, it is possible to answer the call by pressing TALK button without opening the slide. Thus slide can be either open or closed during conversation. Output power and SAR values are slightly higher when slide is open and this situation is used in all measurements as a worst case. REPLY4 (4) 24. June 1999 5. Q: Clarify why left-hand side configuration was used for the SAR evaluation, with respect to worst case exposure conditions produced by the device and its antenna. A: Left-hand side configuration was selected for SAR as a worst-case situation. If device is looked from the frontside internal antenna's feeding point is located on top-right corner. Using left-hand side will cause "hot- spot" to be located closer to the surface of the phantom and thus also the measurement probe. Therefore higher SAR values are achieved with this method compared to the right-hand side configuration. Picture 2. Feeding point on top-right corner

FCC ID: LJPNSW-6NX MFA p9930009, d9940002 Sub-part 2.1033(c): EQUIPMENT IDENTIFICATION FCC ID: LJPNSW-6NX NAMEPLATE DRAWING ATTACHED, EXHIBIT 1. LOCATION AS PER LABEL DRAWING(S) DATE OF REPORT April 1, 1999 SUPERVISED BY: Morton Flom, P. Eng. FCC ID: LJPNSW-6NX MFA p9930009, d9940002 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: LJPNSW-6NX MFA p9930009, d9940002 TABLE OF CONTENTS RULE DESCRIPTION PAGE .Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 4 .General Information 5 .Standard Test Conditions and Engineering Practices 6 2.1046(a) R. F. Power Output (Radiated) 7 2.1047(a) Audio Frequency Response 9 2.1047(a) Audio Low Pass Filter (Voice Input) 11 2.1047(b), 22.915 Modulation Limiting 14 .Measurement of Maximum Deviation 17 2.1049(c)(1) Part 22 Emission Masks (Occupied Bandwidth) 20 2.1049, 24.238(b).Part 24 Emission Masks (Occupied Bandwidth) 38 22.917.Emission Limitations for Cellular 48 2.1051 Spurious Emissions at Antenna Terminals 59 2.1053(a) Field Strength of Spurious Radiation 61 2.1055(a)(1) Frequency Stability (Temperature Variation) 67 2.1055(b)(1) Frequency Stability (Voltage Variation) 71 2.202(g).Necessary Bandwidth and Emission Bandwidth 72 FCC ID: LJPNSW-6NX MFA p9930009, d9940002 PAGE NO.1of72. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85224 c) Report Number: d9940002 d) Client: Nokia Mobile Phones Elektroniikkatie 10 Fin-90570 Oulu, Finland e) Identification: 8860, Type NSW-6NX FCC ID: LJPNSW-6NX Description: Dual Mode, Tri-band Cellular Telephone f) EUT Condition: Not required unless specified in individual tests. g) Report Date: April 1, 1999 EUT Received: March 22, 1999 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: LJPNSW-6NX MFA p9930009, d9940002 PAGE NO.2of72. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 22, 24 Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Nokia Mobile Phones Elektroniikkatie 10 Fin-90570 Oulu, Finland MANUFACTURER: Nokia Manufacturing Inc U.S.A. 4201 Diplomacy Road Centreport 2 Fort Worth, TX 76155 (c)(2): FCC ID:LJPNSW-6NX MODEL NO:8860, Type NSW-6NX (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: AMPS-FM: 40K0F8W 40K0F1D AMPS-TDMA: 30K0DXW PCS-TDMA: 30K0DXW (c)(5): FREQUENCY RANGE, MHz: AMPS-FM: 824.04 to 848.97 AMPS-TDMA: 824.04 to 848.97 PCS-TDMA: 1850.04 to 1909.92 (c)(6): POWER RATING, Watts: AMPS-FM: 0.66 W ERP AMPS-TDMA: 0.50 W ERP PCS-TDMA: 0.63 W EIRP Switchable x Variable N/A (c)(7): MAXIMUM POWER RATING, Watts:0.6 FCC ID: LJPNSW-6NX MFA p9930009, d9940002 PAGE NO.3of72. Subpart 2.1033 (continued) (c)(8): VOLTAGES & CURRENTS IN ALL ELEMENTS IN FINAL R. F. STAGE, INCLUDING FINAL TRANSISTOR OR SOLID STATE DEVICE: COLLECTOR CURRENT, A = per manual COLLECTOR VOLTAGE, Vdc = per manual SUPPLY VOLTAGE, Vdc = 3.6 (c)(9): TUNE-UP PROCEDURE: PLEASE SEE ATTACHED EXHIBITS (c)(10): CIRCUIT DIAGRAM/CIRCUIT DESCRIPTION: Including description of circuitry & devices provided for determining and stabilizing frequency, for suppression of spurious radiation, for limiting modulation and limiting power. PLEASE SEE ATTACHED EXHIBITS (c)(11): LABEL INFORMATION: PLEASE SEE ATTACHED EXHIBITS (c)(12): PHOTOGRAPHS: PLEASE SEE ATTACHED EXHIBITS (c)(13): DIGITAL MODULATION DESCRIPTION: ___ ATTACHED EXHIBITS _x_ N/A (c)(14): TEST AND MEASUREMENT DATA: FOLLOWS Accessories used during testing: Travel Charger ACP-7U Performance Travel Charger ACP-8U Two Slot Desk Top Charger CGE-1 Headset HDC-5 Xena Battery Ni-MH 600mAh BMP-1D FCC ID: LJPNSW-6NX MFA p9930009, d9940002 PAGE NO.4of72. Sub-part 2.1033(c)(14): TEST AND MEASUREMENT DATA All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2, Sub-part J, Sections 2.94…

Text truncated - open the document above for the full version.

FCC ID: LJPNSW-6NX MFA p9930009, d9940002 Date:April 1, 1999 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention:Authorization & Evaluation Division Applicant:Nokia Mobile Phones Equipment:8860, Type NSW-6NX FCC ID:LJPNSW-6NX FCC Rules:22, 24, Confidentiality Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. encl…
