LJPR1Nokia Mobile RFID Kit

FCC/INDUSTRY CANADA NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment.

NOKIA CORPORATION Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 June 4, 2004 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPR1 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Product Description These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION (signed) Pekka K. Viitaniemi Product Program Manager Nokia Ventures Organization, Helsinki

NOKIA CORPORATION Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 June 4, 2004 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF LJPR1 The compliance statement can be seen in User Guide of LJPR1 because the size of the handportable LJPR1 and its identification label are so small that the compliance statement cannot be printed visible enough. NOKIA CORPORATION (signed) Pekka K. Viitaniemi Product Program Manager Nokia Ventures Organization, Helsinki

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 7, 2004 RE: FCC ID: LJPR1_ATCB001403 Attention: Kare Oksanen I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please provide the users manual for this device. Please make sure that all of the pertinent part 15 and Industry Canada statements are located in the manual. 2. Please provide a block diagram for the intentional radiator as required by 2.1033. 3. Please note that you have not provided a confidentiality request letter. If the block diagram, schematics or technical description are to be held confidential, please provide a letter requesting confidentiality. 4. Please provide the ID label sample and location drawings. 5. As this is a part 15 device, please open the device and provide internal photos of all boards and internal controls located in the device. For example, how does the ribbon cable shown going to the rf board connect to the rest of the unit, etc. If there are no other boards in the unopened portion shown in the photos, please show how the ribbon cable connects to the phone portion via the functional cover interface connector. 6. Please note that the plot on page 10 of the report states it is for 15.109. Please note that 15.109 does not have limits below 30MHz and is not for intentional radiators. Please verify if this is a typographical error or not. Please refer to the correct limits of 15.209 for intentional radiators on the plot. 7. Please note that while the plot on page 10 states that measurements were made at 3 meters, the data table on page 9 appear to compare a converted measurement to the actual limit at the specified distance. For example the reading at 78kHz in the plot and the reading listed in the table can only coincide using an 80dB correction factor from 300meters to 3 meters. However, it is not apparent in the report that you have done this. Please note that, even though the device is compliant, 2.1033 states that for part 15 devices all calculations are to be clearly identified and a sample provided. Please clearly specify to manner in which you related the measured value (39dBuV or 90uV/m) to the .009uV/m (-41dBuV/m) you show in the table. 8. FYI – no action needed. Please note that as this device operates below 30MHz, the highest spurious emissions measurement only need go to 1GHZ (actually only to the 10 th harmonic of the highest clock or fundamental frequency). 9. Please identify the specific paragraphs of RSS210 Issue 5 that are used for the appropriate IC testing. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RESPONSE Kare Oksanen 10 th June 2004 1. Please provide the users manual for this device. Please make sure that all of the pertinent part 15 and Industry Canada statements are located in the manual. Manual and FCC/IC Notice pamphlet has been uploaded now. 2. Please provide a block diagram for the intentional radiator as required by 2.1033. Uploaded. 3. Please note that you have not provided a confidentiality request letter. If the block diagram, schematics or technical description are to be held confidential, please provide a letter requesting confidentiality. Uploaded. 4. Please provide the ID label sample and location drawings. Uploaded. 5. As this is a part 15 device, please open the device and provide internal photos of all boards and internal controls located in the device. For example, how does the ribbon cable shown going to the rf board connect to the rest of the unit, etc. If there are no other boards in the unopened portion shown in the photos, please show how the ribbon cable connects to the phone portion via the functional cover interface connector. All parts are visible in Internal Photographs. We have uploaded revised document to include also picture of connection to phone portion. 6. Please note that the plot on page 10 of the report states it is for 15.109. Please note that 15.109 does not have limits below 30MHz and is not for intentional radiators. Please verify if this is a typographical error or not. Please refer to the correct limits of 15.209 for intentional radiators on the plot. Revised test report has been uploaded. 7. Please note that while the plot on page 10 states that measurements were made at 3 meters, the data table on page 9 appear to compare a converted measurement to the actual limit at the specified distance. For example the reading at 78kHz in the plot and the reading listed in the table can only coincide using an 80dB correction factor from 300meters to 3 meters. However, it is not apparent in the report that you have done this. Please note that, even though the device is compliant, 2.1033 states that for part 15 devices all calculations are to be clearly identified and a sample provided. Please clearly specify to manner in which you related the measured value (39dBuV or 90uV/m) to the .009uV/m (-41dBuV/m) you show in the table. Revised test report has been uploaded. 8. FYI – no action needed. Please note that as this device operates below 30MHz, the highest spurious emissions measurement only need go to 1GHZ (actually only to the 10 th harmonic of the highest clock or fundamental frequency). Acknowledged 9. Please identify the specific paragraphs of RSS210 Issue 5 that are used for the appropriate IC testing. RSS-210 6.2.2(e)

Label Picture Exhibit 1 Applicant: Nokia Corporation FCC ID: LJPR1 IC: 661E-R1 Copyright2004 Nokia. All Rights Reserved. 08 Jun 2004 NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 June 8, 2004 LABEL LOCATION OF CC-197D (FCC ID: LJPR1 / IC: 661E-R1) Label location can been seen in external photographs -section.

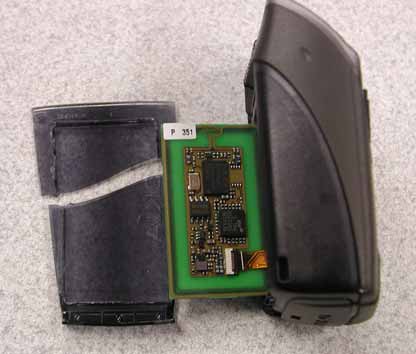

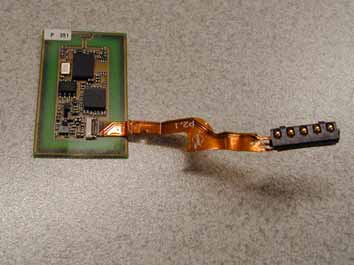

04 Jun 2004 Internal Photographs FCC ID: LJPR1 Exhibit 9 IC: 661E-R1 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 04 Jun 2004 Internal Photographs FCC ID: LJPR1 Exhibit 9 IC: 661E-R1 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 04 Jun 2004 Internal Photographs FCC ID: LJPR1 Exhibit 9 IC: 661E-R1 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-9100 Telefax: -9075 RSC14 issue test report consist of 20 Pages Page 1 (20) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Anechoic chamber registration no.: 3463 (IC) Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2-3613-01-01/04 FCC Part 15.225 CC-197D CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no.:2-3613-01-01/04 Issue date: 2004-05-06 Page 2 (20) Table of contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test specifications 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report no.:2-3613-01-01/04 Issue date: 2004-05-06 Page 3 (20) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test laboratory manager: 2004-06-08 RSC - 8411 Berg M. Date Section Name Signature Technical responsibility for area of testing: 2004-06-08 RSC - 8412 Hausknecht D. Date Section Name Signature CETECOM ICT Services GmbH Test report no.:2-3613-01-01/04 Issue date: 2004-05-06 Page 4 (20) 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone : + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory Accredited by : Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by : Federal Communications Commission (FCC) Authority Identification/Registration No. RegTP TTI-P-G 081/94-D0 FCC 90462 1.3 Details of applicant Name : NOKIA Corporation Street : P.O. Box 300 City : FIN-90401 OULU Country : Finnland Telephone : +358 7180 08000 Telefax : +358 7180 44911 Contact : Kare Oksanen Telephone : +358 7180 58667 Contact person: Name : Kare Oksanen Telephone : +358 7180 58667 Telex : +358 7180 44911 E-mail : [email protected] 1.4 Application details Date of receipt of test item : 2004-04-26 Date of test : 2004-04-30 Person(s) who have been : Raimo Ikonen present during the test : CETECOM ICT Services GmbH Test report no.:2-3613-01-01/04 Issue date: 2004-05-06 Page 5 (20) 1.5 Test item Test Report Cover Sheet Company Number: 661E Model Number: CC-197D Product Name: Manufacturer: Nokia Corporation Tested to Radio Standards Specification(RSS) No.: 210 Issue 5 Open Area Test Site Industry Canada Number: 3463 Frequency Range (or fixed frequency): 13.56 MHz R:F: Power in Watts: Field Strength (at what distance): 50 dBμV/m in 3m Occupied Bandwidth (99% BW): 5.48 kHz Type of Modulation: Amplitude Emission Designator (TRC-43): 2K12A1DBN Transmitter Spurious (worst case): 39.2dBμV/m in 3m Receiver Spurious (worst case): -.- IC no. 661E-R1 FCC ID no. LJPR1 Temperature range -20°C to +50°C Power supply 3.7 V DC via Battery from Mobile ATTESTATION: I attest that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned departmental standard(s), and that the radio equipment identified in this application has been subject to all the applicable test conditions specified in the departmental standards and all of the requirements of the standards have been met. Signature: Date: 2004-05-03 NAME AND TITLE (Please print or type): Berg Michael, Project Engineer Note: This form must be completed and provided with the submission. 1.6 Test specifications: FCC Part 15 §15.225 CANADA RSS-210 Issue 5 CETECOM ICT Services GmbH Test report no.:2-3613-01-01/04 Issue date: 2004-05-06 Page 6 (20) 2 Technical test 2.1 Summary of test results FCC Part 15 Subpart B The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 20 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1996 clause 15 and ANSI C63.4-2001 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test set-ups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analyzers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63.4-2001 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 10 Hz, wave guide horn All measurement settings are according to FCC 15.225 and 15.207 The product fulfils also the requirements for CANADA RSS-210 Issue 5 No devia…
