LJPRD-1GSM/WCDMA Radio Module

Wireless Platforms CM/BU 1 (10) RD-1/RD-2 handling guidelines for OEMs Print Date: 1/15/2007 Copyright © 2007 Nokia. RD-1/RD-2 Handling Guidelines for PC OEMs LEGAL NOTICE The contents of this document are proprietary and confidential property of Nokia. This document is provided subject to confidentiality obligations of the applicable agreement(s). This document is intended for use of Nokia’s customers and collaborators only for the purpose for which this document is submitted by Nokia. No part of this document may be reproduced or made available to the public or to any third party in any form or means without the prior written permission of Nokia. This document is to be used by properly trained professional personnel. Any use of the contents in this document is limited strictly to the use(s) specifically authorized in the applicable agreement(s) under which the document is submitted. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products and/or services described in this document or withdraw this document at any time without prior notice. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. NOKIA SHALL NOT BE RESPONSIBLE IN ANY EVENT FOR ERRORS IN THIS DOCUMENT OR FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, INDIRECT OR DIRECT DAMAGES HOWSOEVER CAUSED, that might arise from the use of this document or any contents of this document. This document and the product(s) it describes are protected by copyright according to the applicable laws. Nokia is a registered trademark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or trade names of their respective owners. Copyright © Nokia Corporation 2007. All rights reserved. Wireless Platforms CM/BU 2 (10) RD-1/RD-2 handling guidelines for OEMs Print Date: 1/15/2007 Copyright © 2007 Nokia. TABLE OF CONTENTS TABLE OF CONTENTS............................................................................................................................. 2 1 Introduction ........................................................................................................................................ 3 2 FCC part 15 notice ............................................................................................................................. 3 3 ESD/Static Sensitive Device .............................................................................................................. 3 4 Unpacking .......................................................................................................................................... 4 4.1 Individual Module Clamshell ...................................................................................................... 4 4.2 100 Module Trays ...................................................................................................................... 4 5 Handling ............................................................................................................................................. 5 5.1 General Handling ....................................................................................................................... 5 6 Installation .......................................................................................................................................... 6 6.1 Insertion into PCI Express Mini Card Connector ....................................................................... 6 6.1.1 Maximum Safe Load (Module Insertion)............................................................................. 7 6.2 Antenna Connection .................................................................................................................. 8 6.2.1 Maximum Safe Load (Antenna Connection)....................................................................... 8 6.3 Antenna Disconnection.............................................................................................................. 9 6.4 Removal from PCI Express Mini Card Connector ................................................................... 10 Wireless Platforms CM/BU 3 (10) RD-1/RD-2 handling guidelines for OEMs Print Date: 1/15/2007 Copyright © 2007 Nokia. 1 Introduction The purpose of this guideline is to enable mechanical and electrical installation of the RD-1/RD-2 WWAN module into a host laptop with the minimum of risk of damage to the module. Possible misuse cases are identified and mitigation defined. Failure to observe these guidelines at all times during the unpacking, handling and assembly processes may result in avoidable damage to the module. This document provides the minimum handling requirements for satisfactory handling. 2 FCC part 15 notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tur…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 January 8, 2007 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPRD-1 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Kare Oksanen Product Certification Officer Technology Platforms, Oulu

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 12, 2007 RE: FCC ID: LJPRD-1_ATCB004427 Attention: Kare Oksanen I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that both the 850MHz band and the 1900MHz band need MPE calculations. The MPE report provided appears only to address the 850MHz band. Please provide the MPE calculations for the 1900MHz band. 2. Please note that the FCC has stated that for licensed modular transmitters “A licensed module must have an FCC ID label on the module itself, visible through a window on the final device or when an access cover is easily removed; if not visible, a second label must be placed on the outside of the final product stating: “Contains FCC ID: xxxxxxxxx”. Please note that the manual does not appear to instruct the OEM of this requirement. Please provide information on how this is relayed to the OEM (i.e. manual instructions etc). 3. FYI – Please note that devices of this type (i.e. with antenna connectors) are to have the conducted power levels listed on the grant. This is to let you know that the conducted power levels in the report will be the power levels listed. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RESPONSE 1 (1) Kare Oksanen 15 January 2007 1. Please note that both the 850MHz band and the 1900MHz band need MPE calculations. The MPE report provided appears only to address the 850MHz band. Please provide the MPE calculations for the 1900MHz band. 1900MHz band was originally omitted as both limit is higher and power output lower than those of 850MHz band. However, document is now revised to include also 1900MHz data. 2. Please note that the FCC has stated that for licensed modular transmitters “A licensed module must have an FCC ID label on the module itself, visible through a window on the final device or when an access cover is easily removed; if not visible, a second label must be placed on the outside of the final product stating: “Contains FCC ID: xxxxxxxxx”. Please note that the manual does not appear to instruct the OEM of this requirement. Please provide information on how this is relayed to the OEM (i.e. manual instructions etc). Handling guidelines –document is now updated to include this information. 3. FYI – Please note that devices of this type (i.e. with antenna connectors) are to have the conducted power levels listed on the grant. This is to let you know that the conducted power levels in the report will be the power levels listed. Acknowledged. We have updated both 731 and RSP-100 forms accordingly.

04 Jan 2007 External Photographs FCC ID: LJPRD-1 Exhibit 3 IC: 661E-RD1 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved.

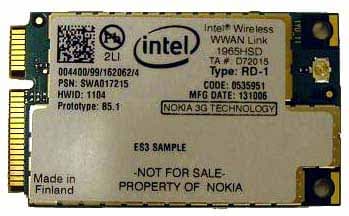

Labe Exhibit 1 Applicant: Nokia Corporation l FCC ID: LJP IC: 661E-RD1 Copyright 2007 Nokia. All Rights Reserved. RD-1 04 Jan 2007 XXXXXX/xx/yyyyyy/0 Type: RD-1 Made in TA #: D72015 0434 IC: 661E-RD1 CODE: YYYYYYY Finland Pb 2LI MFG DATE: DDMMYY NOKIA 3G TECHNOLOGY XXXXXX/xx/yyyyyy/0 FCC ID: LJPRD-1 ® Intel Wireless WWAN Link 1965HSD

04 Jan 2007 Internal Photographs FCC ID: LJPRD-1 Exhibit 9 IC: 661E-RD1 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved.

ENVIRONMENTAL EVALUATION 1 (5) 08 Jan 2007 Environmental Evaluation of RF Exposure for the GSM/WCDMA Radio Module RD-1 ENVIRONMENTAL EVALUATION 2 (5) 08 Jan 2007 1. INTRODUCTION 1.1 Purpose of the Report This technical report is a detailed environmental evaluation of the radio frequency exposure expected from use of the LJPRD-1 transmitter. The following analysis demonstrates that the LJPRD-1 terminal is in compliance with the requirements for maximum permissible exposure (MPE) to radiofrequency exposure as defined in the FCC Rules, 47 CFR 2.1091, as amended. 1.2 Description of the LJPRD-1 Terminal The LJPRD-1 Transceiver has been designed as M2M terminal. LJPRD-1 terminal includes internal antenna or possibility to use external antenna. All calculations related to MPE are made using antenna gain guidelines provided in customer documentation such as the LJPRD-1 User Guide. The module has three functional modes of operation: (1) GSM 850 mode - Class 4 terminal (2) GSM 1900 mode - Class 1 terminal (3) WCDMA 850 mode – Class 3 terminal In the GSM 850 band (824 to 849 MHz), the transmitter section delivers up to 2 Watts bursted output power in GPRS mode of operation (max two TX slots per frame) and 0.25 Watts continuous output power in WCDMA mode of operation. In GSM 1900 band, the transmitter section delivers up to 1 Watt bursted output power in GPRS mode of operation (max two TX slots per frame). This transceiver is designed primarily to be integrated into laptops. 2. CLASSIFICATION OF DEVICE / APPLICABILITY OF RULES 2.1 Mobile terminal The LJPRD-1 terminal is properly defined as a mobile terminal per 47 CFR 2.1091 (b), which states that “mobile devices are defined as transmitters designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between radiating antennas and the body of the user or nearby persons.” For most applications of the LJPRD-1, there is typically a separation distance of greater than 20 centimeters. The discussion below will demonstrate that the maximum likely exposures in these applications are significantly below the maximums permitted. However, whenever possible, the transmitter should be installed in such a manner as to make it unlikely that a human body can be maintained in close proximity (i.e. less than 20 centimeters) to the radiating antenna. A statement to this effect is included in the manual supplied to the customers using this device (LJPRD-1 User Guide). This statement should make it clear that Nokia does not mean to imply that proximities of less than 20 centimeters are unsafe. Rather, maintaining a separation of at least 20 centimeters simply ENVIRONMENTAL EVALUATION 3 (5) 08 Jan 2007 ensures that the analysis below is valid and that the margins with respect to the maximum permissible exposures that are demonstrated below are maintained. 2.2 Excludability from routine environmental evaluation 47 CFR 2.1091(c) states that “mobile devices that operate in the Cellular Radiotelephone Service...are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if... their effective radiated power (ERP) is 1.5 Watts or more.” For Class 4 operation, the LJPRD-2 transceiver is rated at 2 Watts of output power in GSM 850 mode, and for Class 3 operation, the transceiver is rated at 0.25 Watts of output power in WCDMA 850 mode. The User’s Manual supplied to customers specifies the use of an antenna with maximum system gain of 3dBi. The following sections analyze the maximum RF radiation exposures from a LJPRD-1 transmitter under maximum and typical conditions. This analysis will clearly demonstrate compliance with the amended FCC rules. 2.3 Applicable limits for exposure to radio frequency exposure The following paragraphs analyze the maximum RF radiation exposures from a LJPRD-1 transmitter under extreme and typical conditions. This analysis will clearly demonstrate compliance with the amended FCC rules. The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power Density (mW/cm 2) Averaging Time (minutes) 300 – 1500 f/1500 30 1500-100,000 1.0 30 where f = frequency in MHz. The lowest frequency of operation in the cellular band is 824 MHz, so the MPE limit is f/1500 = 824/1500 = 0.549 mW/cm 2 . In all systems calculations for the LJPRD-1 terminal the following assumptions are made: Customer supplied antenna gain = 3 dBi Antenna gain of standard dipole = 2.14 dBi Given power density S = P out x D / 4πR 2 , where Pout = transmitter output power from connector (Watts) D = directive gain of antenna relative to std. dipole R = spherical surface distance from origin The effective radiated power (ERP) is defined as the product of the measured transmitter output power and the specified antenna system gain, relative to a half-wave dipole, in the direction of interest. ERP = P out x D = S x 4πR 2 ENVIRONMENTAL EVALUATION 4 (5) 08 Jan 2007 If a distance of R = 20 cm is selected, then the ERP can be found as follows: Cellular Band (850MHz): = .549 mW/cm 2 x 4π x (20 cm) 2 = 2.76 Watts PCS Band (1900MHz): = 1 mW/cm 2 x 4π x (20 cm) 2 = 5.03 Watts The maximum radiated power of 2.76 W represents the maximum average power that produces MPE limit levels at 20 cm over a 30 minutes period. It should be noted that this power density equation is only accurate in the far-field and that at 20 cm distance, the MPE will be overestimated. 3. RF EXPOSURE ANALYSIS 3.1 Power Output To complete the calculations, the peak ERP delivered by the device must be determined. The User’s guide assumes the use of an antenna with 3dBi gain. 3.2 Class 4 Operation – GSM 850 For Class 4 GSM 850 operation (bursted), the unit is calibrated to deliver 33 dBm to the antenna connector. Due to nature of GSM signal, time averaged power is 27 …

Text truncated - open the document above for the full version.

FCC Part 22/24 Compliance Test Report FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0649_10.doc Copyright © TCC Nokia 1 (16) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Test Report no.: 12.12.2006 Salo_FCC_0649_10.doc Date of Report: Number of pages: 16 Sonja Perälä Customer’s Contact person: Testing laboratory: TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: 533467 5385 Nokia Corporation Customer: P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Tested devices/ accessories: GSM Module RD-1 / External Antenna FCC ID: 661E-RD1 LJPRD-1 IC: Supplement reports: Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-B-2002 and IC standards RSS-GEN, RSS-132 and RSS-133. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". The test report must always be reproduced in full; reproduction of an excerpt only is subject to Documentation: written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. The EUT complies with the requirements in respect of all parameters subject to the test. Test Results: The test results relate only to devices specified in this document. Date and signature for the contents: Sami Lehtonen, System Manager FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0649_10.doc Copyright © TCC Nokia 2 (16) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 13.11.2006 Testing completed 08.12.2006 The customer's contact person Sonja Perälä Test Plan referred to T:\Projects\RD-1\TestPlan_RS\RS_Test_plan_for_RD-1.xls Notes - Document name T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0649_10.doc 1.1. EUT and Accessory Information The EUT is a 6-band (GSM850/900/1800/1900 and WCDMA Band I/V(850)) mobile phone with GPRS and EGPRS. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT GSM Module RD-1 004400/99/162249/7 1104 - - 11641 External Antenna - - - - - 11640 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.6, 4.4 Conducted RF output power NP §22.913(a) 4.6, 4.4 Radiated RF output power PASSED §2.1049(h) 4.4.1 99 % occupied bandwidth NP §22.917(a) 4.7, 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.7, 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.7, 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.5, 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.5, 4.3 Frequency stability, voltage variation NP GSM 1900: Section in CFR 47 Section in RSS-133 Name of the test Result §2.1046(a) 6.2 Conducted RF output power NP §24.232(b) 6.2 Radiated RF output power PASSED §2.1049(h) 5.6 99 % occupied bandwidth NP §24.238(a) 6.3 Band edge compliance PASSED §24.238(a), §2.1051 6.3 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.3 Spurious radiated emissions PASSED §2.1055(a) 7 Frequency stability, temperature variation NP §2.1055(d) 7 Frequency stability, voltage variation NP WCDMA 850 (Band V): Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.6, 4.4 Conducted RF output power NP §22.913(a) 4.6, 4.4 Radiated RF output power PASSED FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0649_10.doc Copyright © TCC Nokia 3 (16) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 §2.1049(h) 4.4.1 99 % occupied bandwidth NP §22.917(a) 4.7, 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.7, 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.7, 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.5, 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.5, 4.3 Frequency stability, voltage variation NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Salo Laboratory. FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0649_10.doc Copyright © TCC Nokia 4 (16) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ........................................... 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Radiated RF output power (FCC §22.913(a), §24.232(b), RSS-GEN 4.6, RSS-132 4.4, RSS-133 6.2) ........................ 5 2.1. Test setup ..............................................................................................................................5 2.2. Test method and limit .............................................................................................................5 2.3. GSM 850 Test results ............................................................................................................6 2.4. GSM 1900 Test results .................................…

Text truncated - open the document above for the full version.

FCC Part 22/24 Compliance Test Report FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0648_12.doc Copyright © TCC Nokia 1 (20) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Test Report no.: 12.12.2006 Salo_FCC_0648_12.doc Date of Report: Number of pages: 20 Sonja Perälä Customer’s Contact person: Testing laboratory: TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: 533467 5385 Nokia Corporation Customer: P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Tested devices/ accessories: GSM Module RD-1 FCC ID: 661E-RD1 LJPRD-1 IC: Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-B-2002 and IC standards RSS-GEN, RSS-132 and RSS-133. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". The test report must always be reproduced in full; reproduction of an excerpt only is subject to Documentation: written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. The EUT complies with the requirements in respect of all parameters subject to the test. Test Results: The test results relate only to devices specified in this document. Date and signature for the contents: Sami Lehtonen, System Manager FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0648_12.doc Copyright © TCC Nokia 2 (20) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 13.11.2006 Testing completed 08.12.2006 The customer's contact person Sonja Perälä Test Plan referred to \Projects\RD-1\TestPlan_RS\RS_Test_plan_for_RD-1.xls Notes - Document name T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0648_12.doc 1.1. EUT and Accessory Information The EUT is a 6-band (GSM850/900/1800/1900 and WCDMA Band I/V(850)) mobile phone with GPRS and EGPRS. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT GSM Module RD-1 004400/99/162249/7 1104 - - 11641 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.6, 4.4 Conducted RF output power PASSED §22.913(a) 4.6, 4.4 Radiated RF output power NP §2.1049(h) 4.4.1 99 % occupied bandwidth PASSED §22.917(a) 4.7, 4.5 Band edge compliance NP §22.917(a), §2.1051 4.7, 4.5 Spurious emissions at antenna terminals PASSED §22.917(a), §2.1053 4.7, 4.5 Spurious radiated emissions NP §2.1055(a) 4.5, 4.3 Frequency stability, temperature variation PASSED §2.1055(d) 4.5, 4.3 Frequency stability, voltage variation PASSED GSM 1900: Section in CFR 47 Section in RSS-133 Name of the test Result §2.1046(a) 6.2 Conducted RF output power PASSED §24.232(b) 6.2 Radiated RF output power NP §2.1049(h) 5.6 99 % occupied bandwidth PASSED §24.238(a) 6.3 Band edge compliance NP §24.238(a), §2.1051 6.3 Spurious emissions at antenna terminals PASSED §24.238(a), §2.1053 6.3 Spurious radiated emissions NP §2.1055(a) 7 Frequency stability, temperature variation PASSED §2.1055(d) 7 Frequency stability, voltage variation PASSED WCDMA 850 (Band V): Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.6, 4.4 Conducted RF output power PASSED §22.913(a) 4.6, 4.4 Radiated RF output power NP §2.1049(h) 4.4.1 99 % occupied bandwidth PASSED FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0648_12.doc Copyright © TCC Nokia 3 (20) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 §22.917(a) 4.7, 4.5 Band edge compliance NP §22.917(a), §2.1051 4.7, 4.5 Spurious emissions at antenna terminals PASSED §22.917(a), §2.1053 4.7, 4.5 Spurious radiated emissions NP §2.1055(a) 4.5, 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.5, 4.3 Frequency stability, voltage variation NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Salo Laboratory. FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RD-1\EMC\Results\FCC\Salo_FCC_0648_12.doc Copyright © TCC Nokia 4 (20) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ........................................... 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Conducted RF output power (FCC §2.1046(a), 22.913(a), RSS-GEN 4.6, RSS-132 4.4, RSS-133 6.2) .......................... 6 2.1. Test setup ..............................................................................................................................6 2.2. Test method and limit .............................................................................................................6 2.3. GSM 850 Test results ............................................................................................................7 2.4. GSM 1900 Test results ...................................................................…

Text truncated - open the document above for the full version.

RD-1_test_setup_photographs.DOC 1 (2) TCC Salo TCC Salo P.O. Box 86 FIN -24101 Salo FINLAND Tel. +358-71-8008000 Fax. +358-71-8044277 EUT test setups Picture 1 Spurious radiated emission measurement RD-1_test_setup_photographs.DOC 2 (2) TCC Salo TCC Salo P.O. Box 86 FIN -24101 Salo FINLAND Tel. +358-71-8008000 Fax. +358-71-8044277 Picture 2 Radiated emission measurement GSM RX/GPRS, EDGE and WCDMA RD-1_test_setup_photographs.DOC 3 (2) TCC Salo TCC Salo P.O. Box 86 FIN -24101 Salo FINLAND Tel. +358-71-8008000 Fax. +358-71-8044277 Picture 3 AC powerline conducted emission measurement GSM RX/GPRS, EDGE and WCDMA
