Nokia 6340i User Guide Phone notes My Nokia 6340i information Information source My numberWireless provider Phone serial number (ESN) On back of your phone, beneath the battery International Mobile Equipment Identifier (IMEI) Voicemail numberWireless provider Wireless provider customer care Wireless provider Message center numberWireless provider Default recipient number (e-mail gateway number) Wireless provider The wireless phone described in this guide is approved for use in GSM 850/1900, TDMA 800/1900, and AMPS networks. LEGAL INFORMATION Part No. 9355059, Issue No. 1 Copyright ©2002 Nokia. All rights reserved. Nokia, Nokia Connecting People, the Nokia Original Accessories logos, Nokia 6340i, Snake II, Pass ‘n Rush, Bumper, and Pairs II are trademarks or registered trademarks of Nokia Corporation. All other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Printed in Canada 09/2002 US Patent No 5818437 and other pending patents. T9 text input software Copyright ©1999-2002. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. The information contained in this user guide was written for the Nokia model 6340i phone. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. law is prohibited. FCC/INDUSTRY CANADA NOTICE Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. [ i ] Contents 1Safety first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 About accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2Quick guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Menu shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3Welcome to Nokia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Get the most out of this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Sign up with a wireless provider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Register your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 E-Newsletters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Before you contact Nokia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Dynamic memory use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 About the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 4The Nokia 6340i at a glance . . . . . . . . . . . . . . . . . . . . . . . . 9 Remove the back cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Install the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Install the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Charge the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Remove the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Remove the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Switch on the phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Switch off the phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Set the time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 The Start screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Use the selection and scroll keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 The volume key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Make and answer calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Help text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Navigate your phone’s menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Accessibility solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Full menu shortcuts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 [ ii ] 5Your phone’s keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Enter characters and numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 6Th…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 July 31, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road Columbia, MD. 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC ID: LJPRH-13 fully complies with 47CFR22.921. Nokia has received approval for its alternate 911 call completion method (DA 00-132 released January 28, 2000) and has incorporated the required modifications. NOKIA CORPORATION Jaakko Vänttilä Product Program Manager Nokia Mobile Phones, MP Oulu

NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 July 31, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPRH-13 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Jaakko Vänttilä Product Program Manager Nokia Mobile Phones, MP Oulu

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 10, 2002 RE: FCC ID: LJPRH-13 Attention: Kare Oksanen I have a few comments on this Application. 1 The following accessories are listed in the manual – LPS-1 loop set, HAD-8 TTY Adapter, HDC-9P Headset, ACP-8U rapid travel charger. Please explain why these accessories were not tested during SAR evaluation. 2 No testing appears to have been done using the external antenna port. For example, what antenna is used and what is the ERP produced using this external antenna port? Please explain. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1 The following accessories are listed in the manual – LPS-1 loop set, HAD-8 TTY Adapter, HDC-9P Headset, ACP-8U rapid travel charger. Please explain why these accessories were not tested during SAR evaluation. LPS-1: It was determined at the time of testing that simply testing a headset would fulfill requirements of FCC RF exposure guidelines. Loop set did not have a notable effect on SAR compared to HDE-1 in comparision measurement. HAD-8: In OET Bulletin 65 C it is told that use of signal leads not normally required in normal use should be avoided in SAR testing. This adapter is not suitable to be used together with body-worn accessories neither do we consider it normal to use TTY while holding phone at the ear. HDC-9P connects to the phone similarily than HDE-1. Therefore, these accessories were considered to be identical in RF exposure sense. ACP-8U: In OET Bulletin 65 C it is told that external DC power adapter should not be used in SAR tests. 2 No testing appears to have been done using the external antenna port. For example, what antenna is used and what is the ERP produced using this external antenna port ? Please explain. Antenna port has been fully tested and conducted results are listed in the test report. Car kit is eventually the only available application for antenna port, and users choice of antenna is limited with instructions to connect only an external antenna with maximum gain of 3dBi. Considering the antenna cable loss, actual gain is much lower.

13 Aug 2002 Exhibit 3: External Photographs FCC ID: LJPRH-13 Applicant: Nokia Corporation Copyright © 2002 Nokia Corporation 13 Aug 2002 Exhibit 3: External Photographs FCC ID: LJPRH-13 Applicant: Nokia Corporation Copyright © 2002 Nokia Corporation

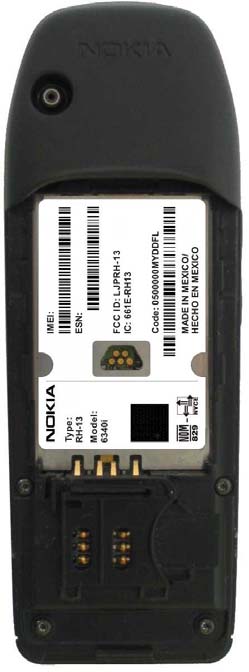

08 Aug 2002 Applicant: Nokia CorporationCopyright2002 Nokia Corporation FCC ID LJPRH-13: Exhibit 1: Type Label Position Code: 0500000MYDDFL Type: Model: RH-13 6340i MADE IN MEXICO/ HECHO EN MEXICO IMEI: 000001/30/000001/0 ESN: 15600000000 FCC ID:LJPRH-13 IC: 661E-RH13 08 Aug 2002 Code: 0500000MYDDFL Type: Model: RH-13 6340i MADE IN MEXICO/ HECHO EN MEXICO IMEI: 000001/30/000001/0 ESN: 15600000000 FCC ID: LJPRH-13 IC: 661E-RH13 Code: 0500000MYDDFL Type: Model: RH-13 6340i MADE IN MEXICO/ HECHO EN MEXICO IMEI: 000001/30/000001/0 ESN: 15600000000 FCC ID:LJPRH-13 IC: 661E-RH13 Applicant: Nokia CorporationCopyright2002 Nokia Corporation FCC ID LJPRH-13: Exhibit 1: Type Label Position NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 July 31, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF LJPRH-13 The compliance statement can be seen in User Guide of LJPRH-13 because the size of the handportable LJPRH-13 and its identification label are so small that the compliance statement cannot be printed visible enough. NOKIA CORPORATION Jaakko Vänttilä Product Program Manager Nokia Mobile Phones, MP Oulu The wireless phone described in this guide is approved for use in GSM 850/1900, TDMA 800/1900, and AMPS networks. LEGAL INFORMATION Part No. 9355059, Issue No. 1 Copyright ©2002 Nokia. All rights reserved. Nokia, Nokia Connecting People, the Nokia Original Accessories logos, Nokia 6340i, Snake II, Pass ‘n Rush, Bumper, and Pairs II are trademarks or registered trademarks of Nokia Corporation. All other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Printed in Canada 09/2002 US Patent No 5818437 and other pending patents. T9 text input software Copyright ©1999-2002. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. The information contained in this user guide was written for the Nokia model 6340i phone. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. law is prohibited. FCC/INDUSTRY CANADA NOTICE Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you EN6340i.ug9355059.book Page 2 Wednesday, August 14, 2002 10:29 AM require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. EN6340i.ug9355059.book Page 3 Wednesday, August 14, 2002 10:29 AM

13 Aug 2002 Exhibit 9: Internal Photographs FCC ID: LJPRH-13 Applicant: Nokia Corporation Copyright © 2002 Nokia Corporation 13 Aug 2002 Exhibit 9: Internal Photographs FCC ID: LJPRH-13 Applicant: Nokia Corporation Copyright © 2002 Nokia Corporation

NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 July 31, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road Columbia, MD. 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC ID: LJPRH-13 complies with ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. Compliance was determined by testing appropriate parameters according to standard. NOKIA CORPORATION Jaakko Vänttilä Product Program Manager Nokia Mobile Phones, MP Oulu PC Site Oulu Exhibit 11: SAR Report DTX05221-EN Applicant: Nokia Corporation FCC ID: LJPRH-13 Copyright
2002 Nokia Corporation 1 (15) SAR Compliance Test Report Test report no.: Not numbered Date of report: 2002-09-03 Number of pages: 89 Contact person: Pentti Pärnänen Responsible test engineer: Pertti Mäkikyrö Testing laboratory: Nokia Corporation Elektroniikkatie 10 P.O. Box 50 FIN-90571 OULU Finland Tel. +358-7180-08000 Fax. +358-7180-47222 Client: Nokia Corporation Elektroniikkatie 10 P.O. Box 50 FIN-90571 OULU Finland Tel.+358-7180-08000 Fax. +358-7180-47222 Tested devices: LJPRH-13 CSL-17, CSL-27 Supplement reports: - Testing has been carried out in accordance with: IEEE P1528-200X Draft 6.4 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques FCC Suplement C Edition, 01-01 Evaluating Compliance with FCC Guidelines fo Human Exposure to Radiofrequency Electromagnetic Fields Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at PC Site Oulu Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: 2002-09-03 For the contents: Pertti Mäkikyrö Engineering Manager, EMC Anne Kiviniemi Test Engineer PC Site Oulu Exhibit 11: SAR Report DTX05221-EN Applicant: Nokia Corporation FCC ID: LJPRH-13 Copyright
2002 Nokia Corporation 2 (15) CONTENTS 1.SUMMARY FOR SAR TEST REPORT.......................................................................................................................... 3 1.1 MAXIMUM RESULTS FOUND DURING SAR EVALUATION..................................................................................................................3 1.1.1Head Configuration ..........................................................................................................................................................3 1.1.2Body Worn Configuration ...............................................................................................................................................3 1.1.3Measurement Uncertainty ..............................................................................................................................................3 2.DESCRIPTION OF TESTED DEVICE............................................................................................................................. 4 PICTURE OF PHONE.......................................................................................................................................................................................4 2.2 D ESCRIPTION OF THE ANTENNA.........................................................................................................................................................4 2.3 B ATTERY OPTIONS..............................................................................................................................................................................5 2.4 B ODY WORN ACCESSORIES...............................................................................................................................................................5 3.TEST CONDITIONS........................................................................................................................................................ 5 3.1 AMBIENT CONDITIONS.......................................................................................................................................................................5 3.2 RF CHARACTERISTICS OF THE TEST SITE..............................................................................................................................................5 3.3 T EST SIGNAL, FREQUENCIES, AND OUTPUT POWER...........................................................................................................................6 4.DESCRIPTION OF THE TEST EQUIPMENT ................................................................................................................ 6 4.1 SYSTEM ACCURACY VERIFICATION....................................................................................................................................................6 4.2 T ISSUE SIMULANTS............................................................................................................................................................................7 4.2.1Head Tissue Simulant .......................................................................................................................................................7 4.2.2Muscle Tissue Simulant ...................................................................................................................................................8 4.3 P HANTOMS........................................................................................................................................................................................9 4.4 I SOTROPIC E-FIELD PROBE ET3DV6.....................................…

Text truncated - open the document above for the full version.

FCC ID: LJPRH-13 MFA p0280001, d0280017 TRANSMITTER CERTIFICATION of FCC ID: LJPRH-13 MODEL: 6340i Samples Numbers: IMEI: 001004/10/07456/9 ESN: 235/140484173 and IMEI: 001004/10/070455/1 ESN: 235/14048172 to FEDERAL COMMUNICATIONS COMMISSION Rule Part(s) 22H, 24E, Confidentiality DATE OF REPORT: August 21, 2002 ON THE BEHALF OF THE APPLICANT: Nokia Corporation AT THE REQUEST OF : P.O. Kare Oksanen August 5, 2002 Nokia Corporation Elektroniikkatie 10 Fin-90570 Oulu, Finland Attention of: Olli Kautio, Senior Engineering Manager, Testing & Type Approvals [email protected] and/or Kare Oksanen, R&D Type Approvals [email protected] 011 358 7180 08000; FAX: 011 358 7180 47222 SUPERVISED BY: Morton Flom, P. Eng. FCC ID: LJPRH-13 MFA p0280001, d0280017 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: LJPRH-13 MFA p0280001, d0280017 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 5 . General Information 6 . Standard Test Conditions and Engineering Practices 7 2.1046(a) Carrier Output Power (Conducted) 8 2.1046(a) ERP Carrier Power (Radiated) 10 2.1047(a) Audio Frequency Response 12 2.1047(a) Audio Low Pass Filter (Voice Input) 14 2.1047(b) Modulation Limiting 17 . Measurement Of Maximum Deviation 20 2.1049(c)(1), 22 Emission Masks (Occupied Bandwidth) 23 2.1051, 2.1049(c), 24, 24.238(b). . Transmitter Conducted Measurements 56 22.917 Emission Requirements - . Worst Case Modulation & Wideband Data 68 2.1051, 22.917 Spurious Emissions at Antenna Terminals 79 2.1053(a) Field Strength of Spurious Radiation 90 2.1055(a)(1) Frequency Stability (Temperature Variation) 95 2.1055(b)(1) Frequency Stability (Voltage Variation) 98 2.202(g) Necessary Bandwidth and Emission Bandwidth 99 FCC ID: LJPRH-13 MFA p0280001, d0280017 PAGE NO.1of99. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0280017 d) Client: Nokia Corporation Elektroniikkatie 10 Fin-90570 Oulu, Finland e) Identification: 6340i FCC ID: LJPRH-13 Description: Dual Band, 5-Mode Cellular Telephone f) EUT Condition: Not required unless specified in individual tests. g) Report Date: August 21, 2002 EUT Received: August 5, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. ACCESSORIES USED DURING TESTING: Type Model S/N MFA # EUT 6340i IMEI: 001004/10/07456/9 ESN: 235/140484173 s00462 Dummy Battery FLV-1 N/A s00463 Headset HDE-1 N/A s00464 Charger ACP-12U N/A s00465 Battery BLB-3 N/A s00466 EUT 6340i IMEI: 001004/10/070455/1 ESN: 235/14048172 s00467 Rapid Charger ACP-9U N/A s00468 Charger ACP-8U N/A s00862 Charger ACP-7U N/A s00966 FCC ID: LJPRH-13 MFA p0280001, d0280017 PAGE NO.2of99. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 22H, 24E, Confidentiality Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Nokia Corporation Elektroniikkatie 10 Fin-90570 Oulu, Finland MANUFACTURERS: Nokia Mexico, S.A. DE C.V. Ave. Ind. Rio Bravo s/n, Parque Ind. Del Nte. Cd. Reynosa, Tam. CP 88730 Nokia Brazil Manaus AM Rod. Torquato Tapajos, 7200 KM 12 – Taruma Manaus, Amazonas, AM 69048-660 (c)(2): FCC ID: LJPRH-13 MODEL NO: 6340i (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4)&(5) FREQUENCY RANGES, MHz EMISSION DESIGNATORS NAME 824 – 849 40K0F1D, 40K0F8W AMPS 824 – 849 30K0DXW TDMA AMPS 824 - 849 256K0GXW GSM AMPS 1850 – 1910 30K0DXW TDMA PCS 1880 - 1910 256K0GXW GSM PCS (c)(6): POWER RATING, Watts: 0.575 AMPS800 0.916 TDMA800 1.48 GSM850 0.692 TDMA1900 1.41 GSM1900 Switchable x Variable N/A FCC GRANT NOTE: BC – The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. (c)(7): MAXIMUM POWER RATING, Watts: 0.6 AMPS800 0.6 TDMA800 1.0 GSM850 0.6 TDMA1900 1.0 GSM1900 FCC ID: LJPRH-13 MFA p028000…

Text truncated - open the document above for the full version.

TEST SETUP PICTURES Test setup Substitution antenna
