LJPRH-20GSM 1900 PCS Telephone

27 May 2003 Exhibit 8: User Guide FCC ID: LJPRH-20 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved. USER GUIDE Following is a preliminary draft copy of the US English User Guide for FCC ID: LJPRH-20 Draft User’s Guide for Nokia 6220 93xxxxx 1. issue / draft 7 Jesse draft_07_TA.fm Page 1 Thursday, May 22, 2003 8:22 AM Draft DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product RH-20 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from http://www.nokia.com/phones/declaration_of_conformity/. Copyright © 2003 Nokia. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trademarks or registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Nokia tune is a sound mark of Nokia Corporation. US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2003. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice. The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you. Jesse draft_07_TA.fm Page 2 Thursday, May 22, 2003 8:22 AM 3 Draft FCC Notice - Industry Canada Notice Your phone may cause TV or radio interference (e.g. when using a telephone in close proximity to receiving equipment). The FCC/Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Export Controls This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion to U.S. law is prohibited. Jesse draft_07_TA.fm Page 3 Thursday, May 22, 2003 8:22 AM Contents 4 Draft Contents FOR YOUR SAFETY.................... 6 General information ................. 9 Access codes............................................ 9 Security code (5 to 10 digits).......... 9 PIN and PIN2 codes (4 to 8 digits), Module PIN and Signing PIN........... 9 PUK and PUK2 codes (8 digits) ....... 9 Barring password (4 digits)........... 10 Wallet code (4 to 10 digits).......... 10 Overview of the functions of the phone .............................................. 10 Shared memory ................................ 11 1. Getting started .................. 12 Installing the SIM card and the battery ............................................ 12 Changing the covers .......................... 14 Charging the battery.......................... 15 Switching the phone on and off..... 15 2. Your phone......................... 17 Keys and connectors .......................... 17 Standby mode ...................................... 18 Wallpaper........................................... 19 Screen saver ...................................... 19 Essential indicators in standby mode ................................... 19 Keypad lock (Keyguard) ..................... 21 Over the air settings service ............ 21 3. Call functions..................... 23 Making a call........................................ 23 Speed dialling a phone number... 23 Answering or rejecting an incoming call........................................ 24 Call waiting ....................................... 24 Options during a call.......................... 24 4. Writing text ....................... 26 Setting predictive text input on or off................................................. 26 Using predictive text input .............. 26 Writing compound words ............. 27 Using traditional text input ............. 27 Tips for writing text ........................... 28 5. Using the menu.................. 29 Accessing a menu function.............. 29 List of menu functions ...................... 30 6. Menu functions.................. 32 Messages (Menu 1) ............................ 32 Text messages (SMS) ...................... 32 Multimedia messages..................... 37 Multimedia messages memory full....................................... 40 Deleting messages........................... 41 E-mail messages .............................. 41 Chat ..................................................... 46 Voice messages ................................ 52 Info messages ................................... 53 Message settings ............................. 53 Service commands .......................... 56 Call register (Menu 2)........................ 56 Recent calls lists .............................. 56 Call counters and call timers ....... 57 Contacts (Menu 3).............................. 57 Selecting settings for contacts.... 58 Saving names and phone number…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 May 2, 2003 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPRH-20 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Pasi Pentinpuro Product Program Manager Nokia Mobile Phones, MP Oulu

12 May 2003 Exhibit 3: External Photographs FCC ID: LJPRH-20 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved. 12 May 2003 Exhibit 3: External Photographs FCC ID: LJPRH-20 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved.

168 XXXXXX / xx / yyyyyy / 0 Type: RH-20 Nokia Corporation Model: 6220 MADE IN HUNGARY CODE: XXXXXXX ME 30 FCC ID: LJPRH-20 IC: 661E-RH20 Fabriqué en Hongrie 339/2002 Instytut Lacznosci Exhibit 1: Type Label Position Applicant: Nokia Corporation FCC ID: LJPRH-20 Copyright © 2003 Nokia. All rights reserved. 21 May 2003 168 XXXXXX / xx / yyyyyy / 0 Type: RH-20 Nokia Corporation Model: 6220 MADE IN CHINA CODE: XXXXXXX FCC ID: LJPRH-20 IC: 661E-RH20 168 XXXXXX / xx / yyyyyy / 0 Type: RH-20 Nokia Corporation Model: 6220 MADE IN HUNGARY CODE: XXXXXXX ME 30 FCC ID: LJPRH-20 IC: 661E-RH20 Fabriqué en Hongrie 339/2002 Instytut Lacznosci Exhibit 1: Type Label Position Applicant: Nokia Corporation FCC ID: LJPRH-20 Copyright © 2003 Nokia. All rights reserved. 21 May 2003 Type label shape will vary in different marketing areas NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 May 2, 2003 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF LJPRH-20 The compliance statement can be seen in User Guide of LJPRH-20 because the size of the handportable LJPRH-20 and its identification label are so small that the compliance statement cannot be printed visible enough. NOKIA CORPORATION Pasi Pentinpuro Product Program Manager Nokia Mobile Phones, MP Oulu

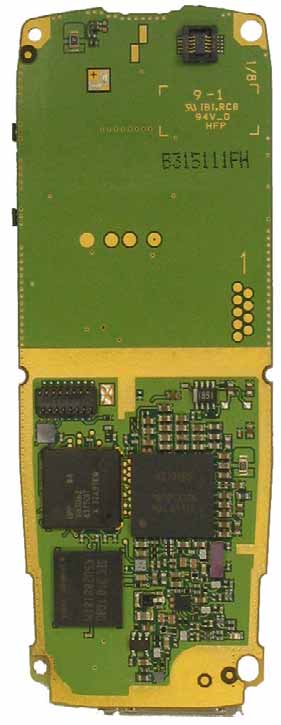

12 May 2003 Exhibit 9: Internal Photographs FCC ID: LJPRH-20 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved. 12 May 2003 Exhibit 9: Internal Photographs FCC ID: LJPRH-20 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved. 12 May 2003 Exhibit 9: Internal Photographs FCC ID: LJPRH-20 Applicant: Nokia Corporation Copyright © 2003 Nokia. All rights reserved.

NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 May 2, 2003 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road Columbia, MD. 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC ID: LJPRH-20 complies with ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. Compliance was determined by testing appropriate parameters according to standard. NOKIA CORPORATION Pasi Pentinpuro Product Program Manager Nokia Mobile Phones, MP Oulu TCC Oulu Exhibit 11: SAR Report DTX07159-EN Applicant: Nokia Corporation FCC ID: LJPRH-20 Copyright  2003 Nokia Corporation 1 (13) SAR Compliance Test Report Test report no.: Not numbered Date of report: 2003-05-22 Number of pages: 47 Contact person: Pentti Pärnänen Responsible test engineer: Pentti Pärnänen Testing laboratory: Nokia Corporation Elektroniikkatie 10 P.O. Box 50 FIN-90571 OULU Finland Tel. +358-7180-08000 Fax. +358-7180-47222 Client: Nokia Corporation Elektroniikkatie 10 P.O. Box 50 FIN-90571 OULU Finland Tel. +358-7180-08000 Fax. +358-7180-47222 Tested devices: LJPRH-20 Supplement reports: - Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices IEEE P1528-200X Draft 6.4 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Oulu Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: 2003-05-22 For the contents: Pentti Pärnänen Manager, TCC Oulu Anne Kiviniemi Test Engineer TCC Oulu Exhibit 11: SAR Report DTX07159-EN Applicant: Nokia Corporation FCC ID: LJPRH-20 Copyright  2003 Nokia Corporation 2 (13) CONTENTS 1. SUMMARY FOR SAR TEST REPORT............................................................................................................................ 3 1.1 M AXIMUM R ESULTS F OUND DURING SAR E VALUATION .............................................................................................................3 1.1.1 Head Configuration.......................................................................................................................................................3 1.1.2 Body Worn Configuration...........................................................................................................................................3 1.1.3 Measurement Uncertainty ..........................................................................................................................................3 2. DESCRIPTION OF TESTED DEVICE.............................................................................................................................. 4 2.1 PICTURE OF PHONE......................................................................................................................................................................4 2.2 DESCRIPTION OF THE ANTENNA..................................................................................................................................................4 2.3 BATTERY OPTIONS.......................................................................................................................................................................5 3. TEST CONDITIONS.......................................................................................................................................................... 5 3.1 AMBIENT CONDITIONS.................................................................................................................................................................5 3.2 RF CHARACTERISTICS OF THE TEST SITE.......................................................................................................................................5 3.3 TEST SIGNAL, FREQUENCIES, AND OUTPUT POWER ...................................................................................................................5 4. DESCRIPTION OF THE TEST EQUIPMENT................................................................................................................. 5 4.1 SYSTEM ACCURACY VERIFICATION................................................................................................................................................6 4.2 TISSUE SIMULANTS......................................................................................................................................................................7 4.2.1 Head Tissue Simulant...................................................................................................................................................7 4.2.2 Muscle Tissue Simulant................................................................................................................................................7 4.3 PHANTOMS...................................................................................................................................................................................8 4.4 ISOTROPIC E-FIELD PROBE ET3DV6..........................................................................................................................................8 5. DESCRIPTION OF THE TEST PROCEDURE..............................................…

Text truncated - open the document above for the full version.

FCC ID: LJPRH-20 Date: May 27, 2003 Applicant: Nokia Corporation Elektroniikkatie 10 Fin-90570 Oulu, Finland Attention of: Kare Oksanen, R&D Type Approvals [email protected] 011 358 7180 08000; FAX: 011 358 7180 47222 Equipment: RH-20 FCC ID: LJPRH-20 P.O. Number: Kare Oksanen 05/05/2003 FCC Rules: 24E, Confidentiality Gentlemen: Enclosed please find your copies your copy of the Engineering Test Report for which you are subject to the restrictions as listed on the attached summary. Our invoice for services has already been sent to you. Should you need any clarification, just fax or phone. Thank you again for this order - it has been a pleasure to be of service. Sincerely yours, Morton Flom, P. Eng. enclosure(s) MF/cva MFA p0350001, d0350026 FCC ID: LJPRH-20 SUMMARY OF RESTRICTIONS 1. All submissions to the FCC are subject to their Examiner's interpretation. 2. Please allow from 60 to 90 days before hearing from the FCC with regard to any submission. 3. The FCC can set aside any action; modify or set aside any action, within 30 days. (FCC Rule 1.108, 1.113). 4. Under Rule 2.803, if device is not type accepted/certificated then it must NOT be sold, leased, offered for sale, imported, shipped or distributed or advertised for sale. 5. FCC can revoke its certificates at any time if the equipment does not meet or CONTINUE to meet their Rules. (Rule Parts 2.927, 2.939). 6. FCC can request a sample at any time (2.936). M. FLOM ASSOCIATES, INC. Morton Flom, P. Eng. MFA p0350001, d0350026 FCC ID: LJPRH-20 T R A N S M I T T E R C E R T I F I C A T I O N of FCC ID: LJPRH-20 MODEL: RH-20 SERIAL NUMBERS OF UNITS TESTED: 004400/23/166330/1 and 004400/23/166315/2 to FEDERAL COMMUNICATIONS COMMISSION Rule Part(s) 24E, Confidentiality DATE OF REPORT: May 21, 2003 ON THE BEHALF OF THE APPLICANT: Nokia Corporation AT THE REQUEST OF: P.O. Kare Oksanen 05/05/2003 Nokia Corporation Elektroniikkatie 10 Fin-90570 Oulu, Finland Attention of: Kare Oksanen, R&D Type Approvals [email protected] 011 358 7180 08000; FAX: 011 358 7180 47222 SUPERVISED BY: Morton Flom, P. Eng. MFA p0350001, d0350028 FCC ID: LJPRH-20 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. MFA p0350001, d0350028 FCC ID: LJPRH-20 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 5 . Standard Test Conditions and Engineering Practices 6 2.1046(a), 24.232(b) . Carrier Output Power (Radiated) 7 2.1051, 2.1049(c), 24, 24.238(b). . Transmitter Conducted Measurements 9 2.1053(a) Field Strength of Spurious Radiation 21 2.1055(a)(1), 24.235 . . Frequency Stability (Temperature Variation) 29 2.1055(b)(1) Frequency Stability (Voltage Variation) 32 2.202(g) Necessary Bandwidth and Emission Bandwidth 33 MFA p0350001, d0350028 FCC ID: LJPRH-20 PAGE NO. 1 of 33. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0350028 d) Client: Nokia Corporation Elektroniikkatie 10 Fin-90570 Oulu, Finland e) Identification: RH-20 FCC ID: LJPRH-20 Description: GSM/GPRS, EGPRS(EDGE) Cellular Phone 900/1800/1900 f) EUT Condition: Not required unless specified in individual tests. g) Report Date: May 21, 2003 EUT Received: May 5, 2003 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. ACCESSORIES: TYPE MODEL SERIAL NUMBER MFA NUMBER EUT RH-20 004400/23/166330/1 S00726 EUT RH-20 004400/23/166315/2 S00727 Music Stand DT-1 N/A S00728 Desk Top Stand DCV-14 N/A S00729 Headset HS-5 N/A S00730 Boom Headset HDB-4 N/A S00731 Battery BLD-3 N/A S00732 Battery BLD-3 N/A S00560 Charger ACP-12U N/A S00465 Charger ACP-8U N/A S01280 Charger ACP-7U N/A S01248 Stereo Headset HDS-3 N/A S00566 Loopset LPS-4 N/A S00764 MFA p0350001, d0350028 FCC ID: LJPRH-20 PAGE NO. 2 of 33. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART …
