LJPRM-106GSM850/900/1800/1900 Cellular Telephone w/WLAN

1 Nokia 6136 User Guide - FCC Draft 2 LEGAL INFORMATION This device model is intended for sale only in the United States and has not been certified for use in the European Union and EFTA countries. The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of-life. This applies to your device but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. PART NO. 9247945, ISSUE NO. 1 Copyright © 2006 Nokia. All rights reserved. Nokia, Nokia Connecting People, Pop-Port, PC Suite, and the Nokia Original Enhancements logos are trademarks or registered trademarks of Nokia Corporation. Other company and product names mentioned herein may be trademarks or trade names of their respective owners. Nokia tune is a sound mark of Nokia Corporation. US Patent No 5818437 and other pending patents. T9 text input software Copyright © 1999-2006. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See <http://www.mpegla.com>. The information contained in this user guide was written for the Nokia 6136 product. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes to any of the products described in this document without prior notice. UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF 3 MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This device may contain commodities, technology, or software subject to export laws and regulations from the U.S. and other countries. Diversion contrary to law is prohibited. FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment. Contents 4 Contents 1. General information ............. 8 2. Get started ......................... 11 3. Your phone......................... 17 4. Call functions..................... 23 5. Phone menus...................... 26 6. Messaging .......................... 27 7. Contacts ............................. 38 8. Call log ............................... 42 9. Settings .............................. 43 10. Operator menu................ 62 11. Gallery.............................. 63 12. Media............................... 64 13. Instant messaging........... 69 14. Organizer ......................... 73 15. Applications .................... 77 16. Web.................................. 79 17. SIM services..................... 87 18. Computer connectivity ... 88 19. Enhancements ................. 89 20. Reference information.... 90 Index....................................... 99 For your safety 5 For your safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the device on when wireless phone use is prohibited or when it may cause interference or danger. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless phones may get interference, which could affect performance. SWITCH OFF IN HOSPITALS Follow any regulations or rules. Switch the phone off near medical equipment. SWITCH OFF IN AIRCRAFT Follow any restrictions. Wireless devices can cause interference in aircraft. SWITCH OFF WHEN REFUELING Do not use the phone at a refueling point. Do not use near fuel or chemicals. SWITCH OFF NEAR BLASTING Follow any restrictions. Do not use the phone where blasting is in progress. USE SENSIBLY Use only in the normal position as explained in the product documentation. Do not touch the antenna unnecessarily. QUALIFIED SERVICE Only qualified personnel may install or repair this product. ENHANCEMENTS AND BATTERIES Use only approved enhancements and batteries. Do not connect incompatible products. For your safety 6 WATER-RESISTANCE Your phone is not water-resistant. Keep it dry. BACKUP COPIES Remember to make back-up copies or keep a written record of all important information. CONNECTING TO OTHER DEVICES When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatibl…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 April 28, 2006 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPRM-106 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Pekka Väyrynen Product Program Manager Mobile Phones, Oulu

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 27, 2006 RE: FCC ID: LJPRM-199_ATCB003446 and LJPRM-106_ATCB003447 Attention: Kare I have a few comments on these Applications. Please note that further comments may arise in response to answers provided to the questions below. LJPRM-106_ATCB003447 1. Please note that the SAR report for the WLAN shows a maximum conducted power of 25.4dBm. the WLAN test report shows a maximum power level of 26.3dBm. The SAR report has to have the highest power level and there is a 0.9dB difference between the two maximums. 2. Please note that the revised SAR report appears to only have the WLAN data. Please provide the Cellphone data as well. 3. Please note that probe SN1813 calibration data is dated Sept 2004. Please note that recent FCC interpretation is that SAR probes are to have one year or less calibration cycle. Please retest those configurations where probe serial number is 1813. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RESPONSE LJPRM-106_ATCB003447 1. Please note that the SAR report for the WLAN shows a maximum conducted power of 25.4dBm. the WLAN test report shows a maximum power level of 26.3dBm. The SAR report has to have the highest power level and there is a 0.9dB difference between the two maximums. The WLAN SAR values in the SAR report have been scaled up to account for the above-mentioned difference in power levels. 2. Please note that the revised SAR report appears to only have the WLAN data. Please provide the Cellphone data as well. Unfortunately the supplemental SAR of LJPRM-199 report was initially not uploaded. As noted in Section 3.2 of the SAR report, the only difference between LJPRM-106 and LJPRM-199 is in the WLAN output power tuning; the cellular bands in LJPRM-106 are identical to those in LJPRM-199. The full cellphone data is provided in the SAR report for LJPRM-199, which is now uploaded with this application. 3. Please note that probe SN1813 calibration data is dated Sept 2004. Please note that recent FCC interpretation is that SAR probes are to have one year or less calibration cycle. Please retest those configurations where probe serial number is 1813. An expired calibration certificate was erroneously included in the SAR report. A revised version of the report has been updated with the current certificate. LJPRM-199_ATCB003446 4. Please note that the Power in the WLAN report (page 6 of the WLAN power report) is conducted at a power of 27.3dBm. The SAR report lists WLAN as EIRP (page3 and 4) with the maximum tested power almost 3dB less than that in the EMC (page 18 of the SAR report only shows 24.6dBm). Please note that power must be in the same units either conducted (with less than 0.0dB difference between the two reports) or EIRP (with up to 3dB difference but the SAR must be the higher). Please correct to show the same power measurements and/or retest as necessary. The above-mentioned power levels in the EMC report are radiated power levels and are therefore different for Open and Closed modes. The WLAN SAR values in the SAR report have been scaled up to account for the 1.0dB difference in the power levels between modulation modes BPSK/1Mbps and QPSK/11Mbps. Modulation mode OFDM/64QAM/48Mbps appears to have the highest power in the EMC report, but the power level reported is peak power. OFDM/64QAM/48Mbps mode has been tuned to -4.0dB time-averaged power relative to the BPSK/1Mbps modulation mode. OFDM/64QAM/48Mbps peak power result in the EMC report is therefore not relevant for SAR testing. 5. Please note that probe SN1813 calibration data is dated Sept 2004. Please note that recent FCC interpretation is that SAR probes are to have one year or less calibration cycle. Please retest those configurations where probe serial number is 1813. An expired calibration certificate was erroneously included in the SAR report. A revised version of the report has been updated with the current certificate. 6. Please note that the dipole calibration data for SN476 is Jan 2005. The FCC has recently stated that cal cycle for SAR equipment is not to exceed 1 year. Please correct and re-measure as needed. The dipole manufacturer (SPEAG) states a calibration cycle of 2 years is adequate.

Dward ATCB From: Dward ATCB [[email protected]] Sent: 05/19/2006 12:36 PM To: 'Martin Perrine' Cc: '[email protected]'; 'William Graff' Subject: RE: Response to Inquiry to FCC (Tracking Number 928319) 05/19/06 HI Martin The email from the KDB was a forward to you as received. I double checked and the comment is not at the bottom of the email I received. Perhaps the email server on one end or the other nixed that last line. I will take your email as an OK and proceed. Thanks for your efforts and consideration in this matter it is very greatly appreciated. Dennis Ward Evaluation Engineer American TCB Certification Resource for the Wireless Industry www.atcb.com 703‐847‐4700 fax 703‐847‐6888 direct ‐ 703‐880‐4841 cell ‐ 209‐769‐8316 NOTICE: This E‐Mail message and any attachment may contain privileged or company proprietary information. If you received this message in error, please return to the sender. From: Martin Perrine [mailto:[email protected]] Sent: 05/19/2006 12:30 PM To: Dward ATCB Cc: [email protected]; William Graff Subject: RE: Response to Inquiry to FCC (Tracking Number 928319) Dennis Please double check your email. The end should have the following. Please send me the email if it does not and I'll forward it to our KDB folks. Best Regards Martin Perrine *** Non-Public: For Internal Use Only *** Response to Inquiry on May 19 2006 2:49PM: Answer: For this specific case of handover operation the TCB can authorize the grant. It should be handled as if there were no simultaneous transmission for RF exposure purposes. This KDB correspondence or similar information should be included in the exhibit. There should be no simultaneous transmission evaluation in the SAR report.

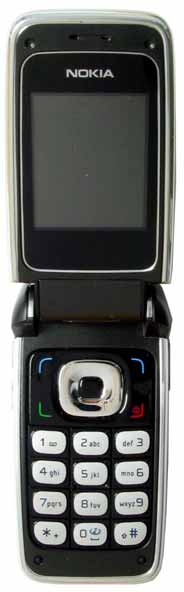

25 Apr 2006 External Photographs FCC ID: LJPRM-106 Exhibit 3 IC: 661E-RM106 Applicant: Nokia Corporation Copyright © 2006 Nokia. All rights reserved. 25 Apr 2006 External Photographs FCC ID: LJPRM-106 Exhibit 3 IC: 661E-RM106 Applicant: Nokia Corporation Copyright © 2006 Nokia. All rights reserved. 25 Apr 2006 External Photographs FCC ID: LJPRM-106 Exhibit 3 IC: 661E-RM106 Applicant: Nokia Corporation Copyright © 2006 Nokia. All rights reserved. 25 Apr 2006 External Photographs FCC ID: LJPRM-106 Exhibit 3 IC: 661E-RM106 Applicant: Nokia Corporation Copyright © 2006 Nokia. All rights reserved.

Label Location Exhibit 1 Applicant: Nokia Corporation FCC ID: LJPRM-106 IC: 661E-RM106 Copyright 2006 Nokia. All Rights Reserved. 03 May 2006 FCC ID: LJPRM-106 Model: 6136 Type: RM-106 IMEI: 123456/78/901234/5 MADE IN MEXICO Code: 0500000MYDDFL CNC ID: XX-XXXXIC: 661E-RM106 Label Exhibit 1 Applicant: Nokia Corporation FCC ID: LJPRM-106 IC: 661E-RM106 Copyright 2006 Nokia. All Rights Reserved. 13 Jan 2006 FCC ID: LJPRM-106 Model: 6136 Type: RM-106 IMEI: 123456/78/901234/5 MADE IN MEXICO Code: 0500000MYDDFL CNC ID: XX-XXXXIC: 661E-RM106 FCC ID: LJPRM-106 Model: 6136 Type: RM-106 IMEI: 123456/78/901234/5 MADE IN MEXICO Code: 0500000MYDDFL CNC ID: XX-XXXXIC: 661E-RM106 NOKIA CORPORATION Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 April 28, 2006 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF LJPRM-106 The compliance statement can be seen in User Guide of LJPRM-106 because the size of the handportable LJPRM-106 and its identification label are so small that the compliance statement cannot be printed visible enough. NOKIA CORPORATION Pekka Väyrynen Product Program Manager Mobile Phones, Oulu

25 Apr 2006 Internal Photographs FCC ID: LJPRM-106 Exhibit 9 IC: 661E-RM106 Applicant: Nokia Corporation Copyright © 2006 Nokia. All rights reserved. 25 Apr 2006 Internal Photographs FCC ID: LJPRM-106 Exhibit 9 IC: 661E-RM106 Applicant: Nokia Corporation Copyright © 2006 Nokia. All rights reserved. 25 Apr 2006 Internal Photographs FCC ID: LJPRM-106 Exhibit 9 IC: 661E-RM106 Applicant: Nokia Corporation Copyright © 2006 Nokia. All rights reserved. 25 Apr 2006 Internal Photographs FCC ID: LJPRM-106 Exhibit 9 IC: 661E-RM106 Applicant: Nokia Corporation Copyright © 2006 Nokia. All rights reserved.

FCC Part 15B Compliance Test Report / Template Version 6.0 T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_03.doc Copyright © TCC Nokia 1 (13) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 15B Compliance Test Report Test Report no.: Tre_FCC_0609_03.doc Date of Report: 15.3.2006 Number of pages: 13 Customer’s Contact person: Jorma Hanni Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC listing no.: IC recognition no.: 94436 3608 Client: Nokia Corporation P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Tested devices/ accessories: GSM phone RM-199 / Battery BL-4C, AC charger AC-4, Data cable DKU- 2, Laptop IBM Thinkpad T22, AC adapter 02K6543, Printer HP deskjet 1600CC3540A, Digital camera FUJI DS-7, Serial cable for camera, Parallel cable for printer FCC ID: LJPRM-199 IC: 661E-RM199 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22 and IC standards RSS-132, RSS-133 and RSS-210. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jari Jantunen, System Manager FCC Part 15B Compliance Test Report / Template Version 6.0 T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_03.doc Copyright © TCC Nokia 2 (13) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 2.3.2006 Testing completed 10.3.2006 The customer's contact person Jorma Hanni Test Plan referred to \EMC\TESTPLAN\ Notes - Document name T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_03.doc 1.1. EUT and Accessory Information The EUT is a quadri band (GSM850/900/1800/1900) mobile phone with GPRS, EGPRS and WLAN. GSM bands are tested in idle mode. WLAN is tested with maximum rated TX power. Product Type SN HW MV SW DUT GSM phone RM-199 004400631642987 500432 - 3.09 40549 Battery BL-4C - - - - 40552 AC-Charger AC-4 - - - - 40554 Data cable DKU-2 - - - - 40144 Laptop IBM Thinkpad T22 555V2PT - - - 40201 AC Adapter 02K6543 - - - 40202 Printer HP deskjet 1600CC3540A USB8302546 - - - 40077 Digital camera FUJI DS-7 7102516 - - - 40076 Serial cable for camera - - - - - 40088 Parallel cable for printer - - - - - 40087 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions PASSED 15.109, a 5.5 (6.6) Radiated emissions PASSED GSM 1900: Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions PASSED 15.109, a 5.5 (9) Radiated emissions PASSED WLAN: Section in CFR 47 Section in ICES-003 Name of the test Result 15.107, a 5.3 AC powerline conducted emissions PASSED 15.109, a 5.5 Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. FCC Part 15B Compliance Test Report / Template Version 6.0 T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_03.doc Copyright © TCC Nokia 3 (13) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3)............ 4 2.1. Test setup ..............................................................................................................................4 2.2. Test method and limit .............................................................................................................4 2.3. GSM 850 Test results ............................................................................................................5 2.4. GSM 1900 Test results ..........................................................................................................6 2.5. WLAN Test results .................................................................................................................7 3. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 6.6, RSS-133 9) 8 3.1. Test setup ..............................................................................................................................8 3.2. Test method and limit .............................................................................................................8 3.3. GSM 850 Test results ............................................................................................................9 3.4. GSM 1900 Test results ........................................................................................................10 3.5. WLAN Test results .....................................................................................................…

Text truncated - open the document above for the full version.

RM-106_test_setup_photographs.DOC 1 (2) TCC Tampere P.O. Box 68 FIN -33721 Tampere FINLAND Tel. +358 7180 46800 Fax. +358 7180 46880 TCC Tampere EUT test setups Picture 1 Spurious radiated emission measurement Picture 2 Radiated emission measurement WLAN TX RM-106_test_setup_photographs.DOC 2 (2) TCC Tampere P.O. Box 68 FIN -33721 Tampere FINLAND Tel. +358 7180 46800 Fax. +358 7180 46880 TCC Tampere Picture 3 AC powerline conducted emission measurement WLAN TX
