LJPRM-310GSM quadband cellular phone w/BT

DR A FT RM-310 User Guide DRAFT DECLARATION OF CONFORMITY Hereby, NOKIA CORPORATION declares that this RM-310 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity/ © 2007 Nokia. All rights reserved. Nokia, Nokia Connecting People, Nokia Care, Navi, and Visual Radio are trademarks or registered trademarks of Nokia Corporation. Nokia tune and Visual Radio are sound marks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. This product includes software licensed from Symbian Software Ltd © 1998-2007. Symbian and Symbian OS are trademarks of Symbian Ltd. US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2007. Tegic Communications, Inc. All rights reserved. Java™ and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See <http://www.mpegla.com>. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. The availability of particular products and applications for these products may vary by region. Please check with your Nokia dealer for details, and availability of language options. Export controls 0434 DR A FT This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. NO WARRANTY The third-party applications provided with your device may have been created and may be owned by persons or entities not affiliated with or related to Nokia. Nokia does not own the copyrights or intellectual property rights to the third-party applications. As such, Nokia does not take any responsibility for end-user support, functionality of the applications, or the information in the applications or these materials. Nokia does not provide any warranty for the third-party applications. BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS. FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment. 4 DR A FT Contents For your safety ................................. 6 Support ............................................. 8 Extended user guide ........................................ 8 Help ...................................................................... 8 Nokia support and contact information .... 9 1. Get started.................................. 10 Insert a SIM card and battery .................... 10 MicroSD card .................................................. 11 Charge the battery ........................................ 12 Switch the phone on and off ..................... 12 Normal operating position.......................... 12 Transfer data ................................................... 13 2. Your phone ................................. 13 Keys and parts ................................................ 13 Standby mode................................................. 14 Indicators ......................................................... 15 Menu ................................................................. 16 Volume control............................................... 17 Keypad lock (keyguard) ................................ 17 Access codes ...........................…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 June 08, 2007 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPRM-310 and as outlined below: - Exhibit 4: Block Diagram (for Part 22/24 and Part 15 applications) - Exhibit 5: Schematic Diagrams (for Part 22/24 and Part 15 applications) - Exhibit 10: List of Active Devices and Tune-Up Procedure (for Part 22/24 application) - Exhibit 12: Theory of Operation / Description of Circuitry (for Part 22/24 and Part 15 applications) These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Kare Oksanen Product Certification Officer Technology Platforms, Oulu

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 19, 2007 RE: FCC ID: LJPRM-310_ATCB005074 Attention: Kare Oksanen I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the label sample provided does not appear to be the FCC ID or IC label. Please provide a correct FCC ID label sample. 2. Please note that on page 3 of the test report it states “ The test results of LJPRM-243 are re-used for certification of the LJPRM-310.” Testing must be on the device for which certification is being requested. Please explain and provide adequate justification as to why the test results mentioned are applicable to the RM-310 device. 3. Please note that section 3.2 of the part 22.24 report “Limits for spurious radiated emissions measurements” lists WCDMA. Please explain. Does this device use WCDMA850 or 1900 technology? 4. Please note that the SAR report states use of data from RM-243. Please explain and please justify why this data is relevant to the RM-310 device. Please account for any changes or modifications between the two devices. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RESPONSE 1 (1) TP/PPS/MAS Kare Oksanen 09 August 2007 Ref: FCC ID: LJPRM-310 IC: 661E-RM310 1. Please note that the label sample provided does not appear to be the FCC ID or IC label. Please provide a correct FCC ID label sample. A: This has now been corrected in new FCC ID label document uploaded to your server. 2. Please note that on page 3 of the test report it states “The test results of LJPRM-243 are re-used for certification of the LJPRM-310.” Testing must be on the device for which certification is being requested. Please explain and provide adequate justification as to why the test results mentioned are applicable to the RM-310 device. A: The differences between LJPRM-243 and LJPRM-310 are - Removal of WCDMA-component. This section is still covered with the same RF shield than in LJPRM-243. Signal paths to missing components are terminated as appropriate in design guidelines. - Removal of secondary camera Therefore these two products are electrically similar so that test results can be reused. 3. Please note that section 3.2 of the part 22.24 report “Limits for spurious radiated emissions measurements” lists WCDMA. Please explain. Does this device use WCDMA850 or 1900 technology? A: This product does not have any WCDMA functionality. Test report uses generic template, which includes limits for several kind of devices. 4. Please note that the SAR report states use of data from RM-243. Please explain and please justify why this data is relevant to the RM-310 device. Please account for any changes or modifications between the two devices. A. Please see A2.

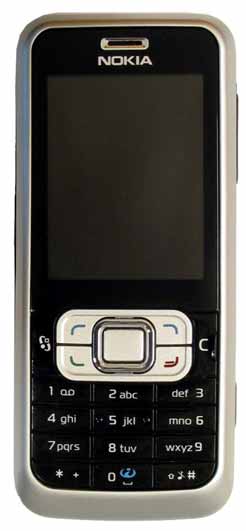

12 Jun 2007 External Photographs FCC ID: LJPRM-310 Exhibit 3 IC: 661E-RM310 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved. 12 Jun 2007 External Photographs FCC ID: LJPRM-310 Exhibit 3 IC: 661E-RM310 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved. 12 Jun 2007 External Photographs FCC ID: LJPRM-310 Exhibit 3 IC: 661E-RM310 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved.

Label Location Exhibit 1 Applicant: Nokia Corporation FCC ID: LJP IC: 661E-RM310 Copyright 2007 Nokia. All Rights Reserved. RM-310 09 Aug 2007 Model ( Type: RM-310 CMII ID: 2007CP2056 MADE BY NOKIA 123456789012345 0123456 S & E 0434 GSM/GPRS ): 6120c FCC ID: LJPRM-310 IC: 661E-RM310 Label Exhibit 1 Applicant: Nokia Corporation FCC ID: LJP IC: 661E-RM310 Copyright 2007 Nokia. All Rights Reserved. RM-310 09 Aug 2007 Model ( Type: RM-310 CMII ID: 2007CP2056 MADE BY NOKIA 123456789012345 0123456 S & E 0434 GSM/GPRS ): 6120c FCC ID: LJPRM-310 IC: 661E-RM310

12 Jun 2007 Internal Photographs FCC ID: LJPRM-310 Exhibit 9 IC: 661E-RM310 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved. 12 Jun 2007 Internal Photographs FCC ID: LJPRM-310 Exhibit 9 IC: 661E-RM310 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved. 12 Jun 2007 Internal Photographs FCC ID: LJPRM-310 Exhibit 9 IC: 661E-RM310 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved. 12 Jun 2007 Internal Photographs FCC ID: LJPRM-310 Exhibit 9 IC: 661E-RM310 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved. 12 Jun 2007 Internal Photographs FCC ID: LJPRM-310 Exhibit 9 IC: 661E-RM310 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved.

Nokia ____________________________________________________________________________ SAR Report Salo_SAR_0722_06 Applicant: Nokia Corporation Type: RM-310 Copyright © 2007 TCC Nokia 1/44 SAR Compliance Test Report Test report no.: Salo_SAR_0722_06 Date of report: 2007-06-05 Template version: 5.0 Number of pages: 44 Testing laboratory: TCC Nokia Salo Laboratory P.O.Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Client: Nokia Corporation P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Responsible test engineer: Virpi Tuominen Product contact person: Sonja Perälä Measurements made by: Janne Hirsimäki, Virpi Tuominen Tested device: RM-310 FCC ID: LJPRM-310 IC: 661E-RM310 Supplement reports: Salo_SAR_0711_03 for RM-243 / FCC ID: LJPRM-243 / IC: 661E-RM243, Salo_SAR_0723_09 Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Nokia ____________________________________________________________________________ SAR Report Salo_SAR_0722_06 Applicant: Nokia Corporation Type: RM-310 Copyright © 2007 TCC Nokia 2/44 CONTENTS 1. SUMMARY OF SAR TEST REPORT............................................................................................................................................. 3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 MAXIMUM RESULTS....................................................................................................................................................................3 1.2.1 Head Configuration**................................................................................................................................................... 3 1.2.2 Body Worn Configuration**........................................................................................................................................ 3 1.2.3 Maximum Drift................................................................................................................................................................ 4 1.2.4 Measurement Uncertainty........................................................................................................................................... 4 2. DESCRIPTION OF THE DEVICE UNDER TEST........................................................................................................................... 4 2.1 DESCRIPTION OF THE ANTENNA..................................................................................................................................................4 3. TEST CONDITIONS..................................................................................................................................................................... 5 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................5 3.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER......................................................................................................................5 4. DESCRIPTION OF THE TEST EQUIPMENT...............................................................................................................................6 4.1 MEASUREMENT SYSTEM AND COMPONENTS................................................................................................................................6 4.1.1 Isotropic E-field Probe Type ET3DV6......................................................................................................................... 7 4.2 PHANTOMS................................................................................................................................................................................7 4.3 TISSUE SIMULANTS....................................................................................................................................................................8 4.3.1 Tissue Simulant Recipes............................................................................................................................................... 8 4.3.2 System Checking............................................................................................................................................................. 8 4.3.3 Tissue Simulants used in the Measurements....................................................................................................... 10 5. DESCRIPTION OF THE TEST PROCEDURE............................................................................................................................. 11 5.1 DEVICE HOLDER.......................................................................................................................................…

Text truncated - open the document above for the full version.

FCC Part 22/24 Compliance Test Report FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-310\EMC\Results\FCC\Salo_FCC_0724_21.doc Copyright © TCC Nokia 1 (14) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Test Report no.: 15.06.2007 Salo_FCC_0724_21.doc Date of Report: Number of pages: 14 Sonja Perälä Customer’s Contact person: Testing laboratory: TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: 533467 5385 Nokia Corporation Customer: P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Tested devices/ accessories: Phone RM-310 / Battery BL-5B, Headset HS-47 and AC- Charger AC-4 FCC ID: 661E-RM310 LJPRM-310 IC: Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-B-2002 and IC standards RSS-GEN, RSS-132 and RSS-133. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". The test report must always be reproduced in full; reproduction of an excerpt only is subject to Documentation: written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. The EUT complies with the requirements in respect of all parameters subject to the test. Test Results: The test results relate only to devices specified in this document. Date and signature for the contents: Anni Manninen, System Manager FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-310\EMC\Results\FCC\Salo_FCC_0724_21.doc Copyright © TCC Nokia 2 (14) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 08.03.2007 Testing completed 23.03.2007 The customer's contact person Sonja Perälä Test Plan referred to T:\Projects\RM-243\TestPlan_RS\RS_test_plan_RM-243.xls Notes - Document name T:\Projects\RM-310\EMC\Results\FCC\Salo_FCC_0724_21.doc 1.1. EUT and Accessory Information The EUT is a 4-band (GSM850/900/1800/1900) mobile phone with GPRS, EGPRS and Bluetooth. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-243 004401/01/049392/8 4.01 - V r02.09 11774 Battery BL-5B 0670455363807N45441C109548 - - - 11773 Headset HS-47 0694579649 502100693 - - - 11760 AC-Charger AC-4E 3943495307070110758;0675384 - - - 11764 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.6, 4.4 Conducted RF output power NP §22.913(a) 4.6, 4.4 Radiated RF output power PASSED §2.1049(h) 4.4.1 99 % occupied bandwidth NP §22.917(a) 4.7, 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.7, 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.7, 4.5 Spurious radiated emissions NP §2.1055(a) 4.5, 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.5, 4.3 Frequency stability, voltage variation NP GSM 1900: Section in CFR 47 Section in RSS-133 Name of the test Result §2.1046(a) 6.2 Conducted RF output power NP §24.232(b) 6.2 Radiated RF output power PASSED §2.1049(h) 5.6 99 % occupied bandwidth NP §24.238(a) 6.3 Band edge compliance PASSED §24.238(a), §2.1051 6.3 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.3 Spurious radiated emissions NP §2.1055(a) 7 Frequency stability, temperature variation NP §2.1055(d) 7 Frequency stability, voltage variation NP FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-310\EMC\Results\FCC\Salo_FCC_0724_21.doc Copyright © TCC Nokia 3 (14) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Salo Laboratory. The test results of LJPRM-243 are re-used for certification of the LJPRM-310. The table above indicates the results, which will be re-used. FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-310\EMC\Results\FCC\Salo_FCC_0724_21.doc Copyright © TCC Nokia 4 (14) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ........................................... 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Radiated RF output power (FCC §22.913(a), §24.232(b), RSS-GEN 4.6, RSS-132 4.4, RSS-133 6.2) ........................ 5 2.1. Test setup ..............................................................................................................................5 2.2. Test method and limit .............................................................................................................5 2.3. GSM 850 Test results ............................................................................................................6 2.4. GSM 1900 Test results ..........................................................................................................7 3. Band edge compliance (FCC §22.917(a), 24.238(a), RSS-GEN 4.7, RSS-132 4.5, RSS-133 6.3) .......................... 8 3.1. Test setup ........................................................…

Text truncated - open the document above for the full version.

Nokia ____________________________________________________________________________ SAR Report Salo_SAR_0723_09 Applicant: Nokia Corporation Type: RM-310 Copyright © 2007 TCC Nokia 1/4 Test Setup photos for RM-310 SAR Compliance Test Report Test report no.: Salo_SAR_0723_09 Date of report: 2007-06-05 Template version: 5.0 Number of pages: 4 Testing laboratory: TCC Nokia Salo Laboratory P.O.Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Client: Nokia Corporation P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Responsible test engineer: Virpi Tuominen Product contact person: Sonja Perälä Measurements made by: Janne Hirsimäki, Virpi Tuominen Tested device: RM-310 FCC ID: LJPRM-310 IC: 661E-RM310 Supplement reports: Salo_SAR_0722_06 Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Nokia ____________________________________________________________________________ SAR Report Salo_SAR_0723_09 Applicant: Nokia Corporation Type: RM-310 Copyright © 2007 TCC Nokia 2/4 CONTENTS 1. SUMMARY OF SAR TEST REPORT............................................................................................................................................. 3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 PICTURE OF THE DEVICE..............................................................................................................................................................3 2. TEST POSITIONS........................................................................................................................................................................ 3 2.1 AGAINST PHANTOM HEAD..........................................................................................................................................................3 2.2 BODY WORN CONFIGURATION...................................................................................................................................................4 Nokia ____________________________________________________________________________ SAR Report Salo_SAR_0723_09 Applicant: Nokia Corporation Type: RM-310 Copyright © 2007 TCC Nokia 1. SUMMARY OF SAR TEST REPORT 1.1 Test Details Period of test 2007-03-13 to 2007-03-25 SN, HW and SW numbers of tested device SN: 004401/01/049392/8, HW: 0401, SW: V r02.09, DUT: 11774 Batteries used in testing BL-5B, DUT: 11005,11758, 11759 Headsets used in testing HS-47, DUT: 11760 Other accessories used in testing - State of sample Prototype unit Notes - 1.2 Picture of the Device 2. TEST POSITIONS 2.1 Against Phantom Head Measurements were made in “cheek” and “tilt” positions on both the left hand and right hand sides of the phantom. The positions used in the measurements were according to IEEE 1528 - 2003 "IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques". 3/4 Nokia ____________________________________________________________________________ SAR Report Salo_SAR_0723_09 Applicant: Nokia Corporation Type: RM-310 Copyright © 2007 TCC Nokia Photo of the device in “cheek” position Photo of the device in “tilt” position 2.2 Body Worn Configuration The device was placed in the SPEAG holder using the Nokia spacer and placed below the flat section of the phantom. The distance between the device and the phantom was kept at the separation distance using a separate flat spacer that was removed before the start of the measurements. The device was oriented with its antenna facing the phantom since this orientation gives higher results. Photo of the device positioned for Body SAR measurement. The spacer was removed for the tests. 4/4
