Nokia 6710 Navigator User Guide 9215324 Issue 4 CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k DECLARATION OF CONFORMITY Hereby, NOKIA CORPORATION declares that this RM-491 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at www.nokia.com/phones/declaration_of_conformity/. © 2009 Nokia. All rights reserved.Nokia, Nokia Connecting People, Navi, Mail for Exchange, OVI, an d Nokia Original Enhancements lo go are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corpor ation. Other product and comp any names mentioned herein ma y be trademarks or tradenam es of their respective owners. Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the prod ucts described in this document without prior notice. This product includes software licensed from Symbian Software Ltd ©1998-2009. Symbian and Symbian OS are trademarks of Symbian Ltd. Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. Portions of the Nokia Maps software are ©1996-2009 The FreeType Project. All rights reserved.This product is licensed under the MPEG-4 Visual Patent Portfo lio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a cons umer engaged in a pers onal and noncommercial activity and (ii) f or use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional informatio n, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CI RCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FO R ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUE NTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT AR E PROVIDED "AS IS". EXCEPT AS RE QUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXP RESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.Reverse engineering of software in the device is prohibited to the extent permitted by applicable law. Insofar as this user gui de contains any limitations on Nokia's representations, warranties, damages and liabilities, such limitations shall likewise limit any representations, warranties, da mages and liabilities of Nokia's licensors. CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k The third-party applications provided with your device may have been created and may be owned by persons or entities not affili ated with or related to Nokia. Nokia does not own the copyrights or intellectual property rights to the third-party applications. As such, Nokia does not take any r esponsibility for end-user support, functionality of the applications, or the information in the applications or these materials. Nokia does not provide any warran ty for the third-party applications. BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRA NTY OF ANY KIND, EXPRESS OR IMP LIED, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR W ARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE APP LICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS.The availability of particular products an d applications and services for these products may vary by region. Please check with your Nokia dealer for details and availability of language options. This device may contain commodities, technology or software subject to export laws and regulations from th e US and other countries. Diversion contrary to law is prohibited.FCC/INDUSTRY CANADA NOTICEYour device may cause TV or radio interference (for example, wh en using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local servi ce facility. This device complies with part 15 of the FCC rules. Operation is subject to the following two co nditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un desired operation. Any changes or modifications not expressly ap proved by Nokia could void the user's authority to operate this equipment.9215324/Issue 4 EN CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k ContentsSafety...................................................................7About your device......................................................................7Network services.......................................................................81. Get started........................................................9Insert SIM card and battery......................................................9Insert a memory card................................................................9Remove a memory card..........................................................10Charge the battery...................................................................10Switch the device on and off..…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 December 18, 2009 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPRM-491X and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Kare Oksanen Product Certification Officer DQD, Oulu

10 December 2009 External Photographs FCC ID: LJPRM-491X Exhibit 3 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. 10 December 2009 External Photographs FCC ID: LJPRM-491X Exhibit 3 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. 10 December 2009 External Photographs FCC ID: LJPRM-491X Exhibit 3 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. 10 December 2009 10 December 2009 External Photographs FCC ID: LJPRM-491X External Photographs FCC ID: LJPRM-491X Exhibit 3 IC: 661E-RM491 Exhibit 3 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved.

CONFIDENTIAL 10 December 2009 Label Location FCC ID: LJPRM-491X Exhibit 1 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. CONFIDENTIAL 10 December 2009 Label Location FCC ID: LJPRM-491X Exhibit 1 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved.

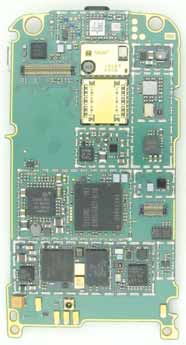

10 December 2009 Internal Photographs FCC ID: LJPRM-491X Exhibit 9 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. 10 December 2009 Internal Photographs FCC ID: LJPRM-491X Exhibit 9 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. 10 December 2009 Internal Photographs FCC ID: LJPRM-491X Exhibit 9 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. 10 December 2009 Internal Photographs FCC ID: LJPRM-491X Exhibit 9 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. 10 December 2009 Internal Photographs FCC ID: LJPRM-491X Exhibit 9 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. 10 December 2009 Internal Photographs FCC ID: LJPRM-491X 10 December 2009 Internal Photographs FCC ID: LJPRM-491X Exhibit 9 IC: 661E-RM491Exhibit 9 IC: 661E-RM491 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved.

Nokia ____________________________________________________________________________ SAR Report FCC_RM-491_06 Applicant: Nokia Corporation Type: RM-491 Copyright © 2009 TCC Nokia 1/96 SAR Compliance Test Report Test report no.: FCC_RM-491_06 Date of report: 2009-12-22 Template version: 12.0 Number of pages: 96 Testing laboratory: TCC Nokia Salo Laboratory P.O.Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Client: Nokia Corporation P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Responsible test engineer: Virpi Tuominen Product contact person: Jyrki Juvani Measurements made by: Janne Hirsimäki, Heikki Kuusela, Virpi Tuominen Tested device: RM-491 FCC ID: LJPRM-491X IC: 661E-RM491 Supplement reports: SAR_Photo_RM-491_07 Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Nokia ____________________________________________________________________________ SAR Report FCC_RM-491_06 Applicant: Nokia Corporation Type: RM-491 Copyright © 2009 TCC Nokia 2/96 CONTENTS 1. SUMMARY OF SAR TEST REPORT.............................................................................................................................................3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 MAXIMUM RESULTS....................................................................................................................................................................3 1.2.1 Head Configuration........................................................................................................................................................3 1.2.2 Body Worn Configuration ............................................................................................................................................4 1.2.3 Maximum Drift ................................................................................................................................................................4 1.2.4 Measurement Uncertainty ...........................................................................................................................................4 2. DESCRIPTION OF THE DEVICE UNDER TEST...........................................................................................................................5 2.1 DESCRIPTION OF THE ANTENNA..................................................................................................................................................5 3. TEST CONDITIONS .....................................................................................................................................................................6 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................6 3.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER......................................................................................................................6 3.3 TEST CASES AND TEST MINIMISATION........................................................................................................................................6 4. DESCRIPTION OF THE TEST EQUIPMENT ...............................................................................................................................8 4.1 MEASUREMENT SYSTEM AND COMPONENTS................................................................................................................................8 4.1.1 Isotropic E-field Probe Type ES3DV3 .........................................................................................................................9 4.2 PHANTOMS.............................................................................................................................................................................10 4.3 TISSUE SIMULANTS.................................................................................................................................................................10 4.3.1 Tissue Simulant Recipes ............................................................................................................................................10 4.3.2 System Checking ..........................................................................................................................................................11 4.3.3 Tissue Simulants used in the Measurements .......................................................................................................12 5. DESCRIPTION OF THE TEST PROCEDURE .............................................................................................................................13 5.1 DEVICE HOLDER....................…

Text truncated - open the document above for the full version.

FCC Part 22/24/27 Compliance Test Report / Template Version 13.0 T:\Projects\RM-491\EMC\Results\FCC\Salo_FCC_0919_18X.doc Copyright © TCC Nokia 1 (20) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC Part 22/24 Compliance Test Report Test Report no.: Salo_FCC_0919_18X.doc Date of Report: 15-Dec-2009 Number of pages: 20 Customer’s Contact person: Jyrki Juvani Testing laboratory: TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: 533467 661V-1 Customer: Nokia Corporation P.O. Box 300 Yrttipellontie 6 FIN-90230 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 58300 Tested devices/ accessories: Phone RM-491 / Battery BL-5F / Headset HS-48 / AC-Charger AC-8E FCC ID: LJPRM-491X IC: 661E-RM491 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-C-2004 and IC standards RSS-GEN (Issue 2, June 2007), RSS-132 (Issue 2, September 2005) and RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jari Jantunen, Test System Manager FCC Part 22/24/27 Compliance Test Report / Template Version 13.0 T:\Projects\RM-491\EMC\Results\FCC\Salo_FCC_0919_18X.doc Copyright © TCC Nokia 2 (20) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 14-Apr-2009 Testing completed 11-May-2009 The customer's contact person Jyrki Juvani Test Plan referred to T:\Projects\RM-491\TestPlan_RS\RS_testplan_RM-491.xls Notes - Document name T:\Projects\RM-491\EMC\Results\FCC\Salo_FCC_0919_18.doc 1.1. EUT and Accessory Information The EUT is a 7-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/VIII) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-491 004401/10/647199/4 0503 021.000.1 13678 Battery BL-5F 3635638441511301222;0670498 13679 Headset HS-48 0694581840 143102661 13694 AC-Charger AC-8E 1103338234120300751;0675387 - - - 13654 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth NP §22.917(a) 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions NP §2.1055(a) 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.3 Frequency stability, voltage variation NP GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth NP §24.238(a) 6.5 Band edge compliance PASSED §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions NP §2.1055(a) 6.3 Frequency stability, temperature variation NP §2.1055(d) 6.3 Frequency stability, voltage variation NP WCDMA 1900 (Band II): Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power NP FCC Part 22/24/27 Compliance Test Report / Template Version 13.0 T:\Projects\RM-491\EMC\Results\FCC\Salo_FCC_0919_18X.doc Copyright © TCC Nokia 3 (20) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 §24.232(b) 6.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth NP §24.238(a) 6.5 Band edge compliance PASSED §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions NP §2.1055(a) 6.3 Frequency stability, temperature variation NP §2.1055(d) 6.3 Frequency stability, voltage variation NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Salo Laboratory. FCC Part 22/24/27 Compliance Test Report / Template Version 13.0 T:\Projects\RM-491\EMC\Results\FCC\Salo_FCC_0919_18X.doc Copyright © TCC Nokia 4 (20) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ........................................... 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Radiated RF output power (FCC §22.913(a), §24.232(b), RSS-132 4.4, RSS-133 6.4) ................................................ 5 2.1. Test setup ..............................................................................................................................5 2.2. Test method and limit ....................................................................................…

Text truncated - open the document above for the full version.

FCC Part 22/24/27 Compliance Test Report / Template Version 13.0 T:\Projects\RM-491\EMC\Results\FCC\Tre_FCC_0916_08X.doc Copyright © TCC Nokia 1 (16) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 22/24 Compliance Test Report Test Report no.: Tre_FCC_0916_08X.doc Date of Report: 15-Dec-2009 Number of pages: 16 Customer’s Contact person: Jyrki Juvani Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC listing no.: IC recognition no.: 94436 661AK-1 Customer: Nokia Corporation P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Tested devices/ accessories: Phone RM-491 / Headset HS-48, Battery BL-5F, AC charger AC-8E, Dummy Battery SF-175T FCC ID: LJPRM-491X IC: 661E-RM491 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-C-2004 and IC standards RSS-GEN (Issue 2, June 2007), RSS-132 (Issue 2, September 2005) and RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jari Jantunen, Test System Manager FCC Part 22/24/27 Compliance Test Report / Template Version 13.0 T:\Projects\RM-491\EMC\Results\FCC\Tre_FCC_0916_08X.doc Copyright © TCC Nokia 2 (16) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 16-Apr-2009 Testing completed 17-Apr-2009 The customer's contact person Jyrki Juvani Test Plan referred to T:\Projects\RM-491\TestPlan_RS\RS_testplan_RM-491.xls Notes - Document name T:\Projects\RM-491\EMC\Results\FCC\Tre_FCC_0916_08.doc 1.1. EUT and Accessory Information The EUT is a 7-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/VIII) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-491 004401106472034 0503 - 021.001 41839 Phone RM-491 004401106472083 0503 - 021.001 41838 AC charger AC-8E 1103338304100308331;0675387 - - - 41842 AC-Charger AC-8E 3997917527070300479;0675387 - - - 41757 Dummy Battery SF-175T BQ 0607484K0675 v.0.1 - - 41844 Headset HS-48 - - - - 41843 Battery BL-5F 3635638441511301225;0670498 - - - 41840 Battery BL-5F 3635638441511301197;0670498 - - - 41841 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §22.917(a) 4.5 Band edge compliance NP §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.3 Frequency stability, temperature variation PASSED §2.1055(d) 4.3 Frequency stability, voltage variation PASSED GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §24.238(a) 6.5 Band edge compliance NP §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation PASSED §2.1055(d) 6.3 Frequency stability, voltage variation PASSED FCC Part 22/24/27 Compliance Test Report / Template Version 13.0 T:\Projects\RM-491\EMC\Results\FCC\Tre_FCC_0916_08X.doc Copyright © TCC Nokia 3 (16) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 WCDMA 1900 (Band II): Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §24.238(a) 6.5 Band edge compliance NP §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation NP §2.1055(d) 6.3 Frequency stability, voltage variation NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. FCC Part 22/24/27 Compliance Test Report / Template Version 13.0 T:\Projects\RM-491\EMC\Results\FCC\Tre_FCC_0916_08X.doc Copyright © TCC Nokia 4 (16) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ........................................... 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. 99 % occupied bandwidth (FCC §2.1049(h), RSS-GEN 4.6.1) ..................................................................................... 5 2.1. Test setup .........................…

Text truncated - open the document above for the full version.

Nokia ____________________________________________________________________________ SAR Report SAR_Photo_RM-491_04 Applicant: Nokia Corporation Type: RM-491 Copyright  2009 TCC Nokia 1/5 Test Setup photos for RM-491 SAR Compliance Test Report Test report no.: SAR_Photo_RM-491_04 Date of report: 2009-11-30 Template version: 13.0 Number of pages: 5 Testing laboratory: TCC Nokia Salo Laboratory P.O.Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Client: Nokia Corporation P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Responsible test engineer: Janne Hirsimäki Product contact person: Jyrki Juvani Measurements made by: Alina Tähkäpää Tested device: RM-491 FCC ID: LJPRM-491X IC: 661E-RM491 Supplement reports: FCC_RM-491_03 Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Nokia ____________________________________________________________________________ SAR Report SAR_Photo_RM-491_04 Applicant: Nokia Corporation Type: RM-491 Copyright  2009 TCC Nokia 2/5 CONTENTS 1. SUMMARY OF SAR TEST REPORT............................................................................................................................................. 3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 PICTURE OF THE DEVICE............................................................…
