LJPRM-56GSM850/900/1800/1900 Cellular Telephone w/BT

Nokia 6270 User Guide 9242257 Issue 1 DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product RM-56 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from http://www.nokia.com/phones/declaration_of_conformity/. The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of-life. This applies to your device but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. Copyright © 2005 Nokia. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia, Visual Radio, Nokia Connecting People, and Pop-Port are trademarks or registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Nokia tune is a sound mark of Nokia Corporation. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information including that relating to promotional, internal and commercial uses may be obtained from MPEG LA, LLC. See <http://www.mpegla.com>. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice. The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful intereference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the Nokia could void the user's authority to operate this equipment. 9242257 / Issue 1 Contents 4 Contents For your safety.......................... 6 General information ................. 9 Overview of functions........................... 9 Access codes............................................ 9 Configuration settings service ........ 10 Download content and applications .......................................... 11 Nokia support and contact information........................................... 11 1. Get started ......................... 13 Install the SIM card and the battery.................................................... 13 Install a memory card........................ 14 Charge the battery.............................. 15 Switch the phone on and off........... 16 Open the keypad ................................. 17 Normal operating position ............... 17 Wrist strap ............................................ 17 2. Your phone......................... 18 Keys and parts...................................... 18 Standby mode ...................................... 19 Keypad lock (keyguard) ..................... 23 3. Call functions..................... 24 Make a call ........................................... 24 Answer or reject a call....................... 25 Options during a call.......................... 26 4. Write text........................... 27 Settings.................................................. 27 Predictive text input .......................... 27 Traditional text input......................... 28 5. Navigate the menus .......... 29 6. Messaging .......................... 30 Text messages (SMS).......................... 30 SIM messages....................................... 31 Multimedia messages ........................ 32 Memory full .......................................... 35 Folders.................................................... 35 Flash messages .................................... 35 Nokia Xpress audio messaging........ 36 Instant messaging............................... 37 E-mail application .............................. 42 Voice messages.................................... 45 Info messages ...................................... 45 Service commands.............................. 45 Delete messages.................................. 45 Message settings................................. 46 7. Conta…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 September 6, 2005 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPRM-56 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Pasi Pentinpuro Product Program Manager Mobile Phones, Oulu

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 29, 2005 RE: FCC ID: LJPRM-56_ATCB002808 Attention: Kare Oksanen I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please provide the Block diagram of the Bluetooth device. 2. Please clearly identify the Bluetooth portion of the schematics. 3. FYI - Please note that RSS210 was revised to Issue 6 in early September. References to RSS210 should be to the newer version Annex 8. In the future, please make sure that the latest RSS210 issue 6 is used. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RESPONSE 1 (1) Kare Oksanen 5 October 2005 Ref. FCC ID: LJPRM-56 / IC: 661E-RM56 1. Please provide the Block diagram of the Bluetooth device. 1. This exhibit has now been uploaded. 2. Please clearly identify the Bluetooth portion of the schematics. 2. I have uploaded now schematics in two parts; one for BT and another for rest of the device. 3. FYI - Please note that RSS210 was revised to Issue 6 in early September. References to RSS210 should be to the newer version Annex 8. In the future, please make sure that the latest RSS210 issue 6 is used. 3. Acknowledged.

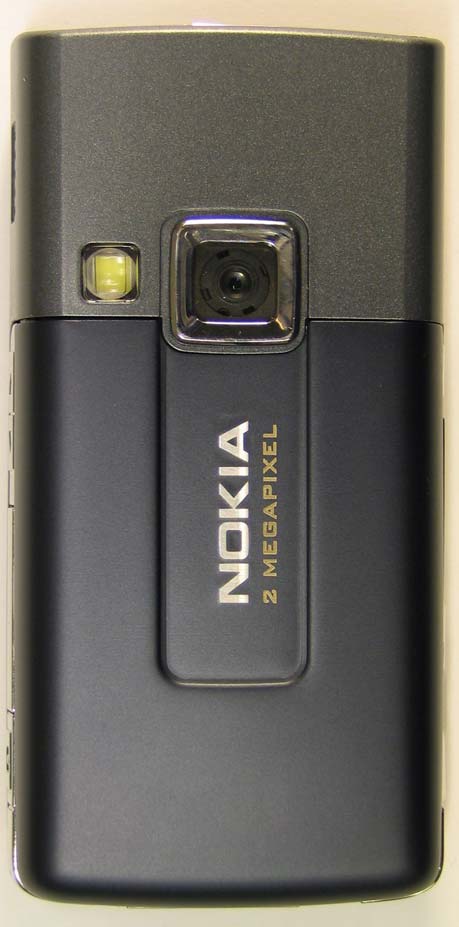

27-Jul-2005 External Photos FCC ID: LJPRM-56 Exhibit 3 IC: 661E-RM56 Applicant: Nokia Corporation Copyright © 2005 Nokia. All rights reserved 27-Jul-2005 External Photos FCC ID: LJPRM-56 Exhibit 3 IC: 661E-RM56 Applicant: Nokia Corporation Copyright © 2005 Nokia. All rights reserved External Photos FCC ID: LJPRM-56 Exhibit 3 IC: 661E-RM56 Applicant: Nokia Corporation Copyright © 2005 Nokia. All rights reserved

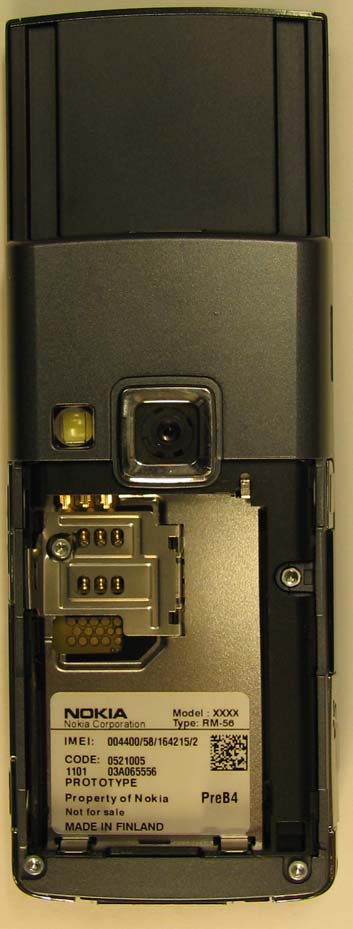

LabelLocation Exhibit1 Applicant:NokiaCorporation FCCID:LJPRM-56 IC:661E-RM56 Copyright2005Nokia.AllRightsReserved. 01 Aug2005 CODE: XXXXXXX MADE IN GERMANY IMEI: XXXXXX/XX/yyyyyy/0 Nokia Corporation Type: RM-56 Model: 6270 Fabriqué en Allemagne FCC ID: LJPRM-56 IC: 661E-RM56 Modéle 434 Label Exhibit1 Applicant:NokiaCorporation FCCID:LJPRM-56 IC:661E-RM56 Copyright2005Nokia.AllRightsReserved. 01 Aug2005 CODE: XXXXXXX MADE IN GERMANY IMEI: XXXXXX/XX/yyyyyy/0 Nokia Corporation Type: RM-56 Model: 6270 Fabriqué en Allemagne FCC ID: LJPRM-56 IC: 661E-RM56 Modéle 434 CODE: XXXXXXX MADE IN GERMANY IMEI: XXXXXX/XX/yyyyyy/0 Nokia Corporation Type: RM-56 Model: 6270 Fabriqué en Allemagne FCC ID: LJPRM-56 IC: 661E-RM56 Modéle 434 NOKIA CORPORATION Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 September 6, 2005 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF LJPRM-56 The compliance statement can be seen in User Guide of LJPRM-56 because the size of the handportable LJPRM-56 and its identification label are so small that the compliance statement cannot be printed visible enough. NOKIA CORPORATION Pasi Pentinpuro Product Program Manager Mobile Phones, Oulu

27-Jul-2005 Internal Photos FCC ID: LJPRM-56 Exhibit 9 IC: 661E-RM56 Applicant: Nokia Corporation Copyright © 2005 Nokia. All rights reserved 27-Jul-2005 Internal Photos FCC ID: LJPRM-56 Exhibit 9 IC: 661E-RM56 Applicant: Nokia Corporation Copyright © 2005 Nokia. All rights reserved 27-Jul-2005 Internal Photos FCC ID: LJPRM-56 Exhibit 9 IC: 661E-RM56 Applicant: Nokia Corporation Copyright © 2005 Nokia. All rights reserved 27-Jul-2005 Internal Photos FCC ID: LJPRM-56 Exhibit 9 IC: 661E-RM56 Applicant: Nokia Corporation Copyright © 2005 Nokia. All rights reserved 27-Jul-2005 Internal Photos FCC ID: LJPRM-56 Exhibit 9 IC: 661E-RM56 Applicant: Nokia Corporation Copyright © 2005 Nokia. All rights reserved

1 (1) 27 September 2005 TRANSMITTER FREQUENCY RANGES Precise transmitter frequency ranges for this device are: GSM/EGPRS850 824.2 – 848.8 MHz Cellular Band GSM/EGPRS1900 1850.2 – 1909.8 MHz PCS Band BT 2402 – 2480 MHz Nokia ____________________________________________________________________________ SAR Report Oulu_SAR_0533_04 Applicant: Nokia Corporation Type: RM-56 Copyright © 2005 TCC Nokia 1/60 SAR Compliance Test Report Test report no.: Oulu_SAR_0533_04 Date of report: 2005-09-14 Template version: 4a Number of pages: 69 Testing laboratory: TCC Nokia, Oulu Yrttipellontie 6 P.O. Box 300 FIN-90401 OULU Tel. +358-7180-08000 Fax. +358-7180-47222 Client: Nokia Finland, Oulu Elektroniikkatie 10 P.O. Box 50 FIN-90571 OULU Tel. +358-7180-08000 Fax. +358-7180-47999 Responsible test engineer: Kai Niskala Product contact person: Jorma Hanni Measurements made by: Kai Niskala, Rolf Rundgren Tested device: RM-56 FCC ID: LJPRM-56 IC: 661E-RM56 Supplement reports: - Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Kai Niskala Test System Manager Nokia ____________________________________________________________________________ SAR Report Oulu_SAR_0533_04 Applicant: Nokia Corporation Type: RM-56 Copyright © 2005 TCC Nokia 2/60 CONTENTS 1. SUMMARY OF SAR TEST REPORT............................................................................................................................................. 3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 MAXIMUM RESULTS....................................................................................................................................................................3 1.2.1 Head Configuration........................................................................................................................................................ 3 1.2.2 Body Worn Configuration ............................................................................................................................................ 3 1.2.3 Maximum Drift ................................................................................................................................................................ 4 1.2.4 Measurement Uncertainty ........................................................................................................................................... 4 2. DESCRIPTION OF THE DEVICE UNDER TEST........................................................................................................................... 5 2.1 PICTURE OF THE DEVICE..............................................................................................................................................................5 2.2 DESCRIPTION OF THE ANTENNA..................................................................................................................................................6 3. TEST CONDITIONS ..................................................................................................................................................................... 6 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................6 3.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER......................................................................................................................6 4. DESCRIPTION OF THE TEST EQUIPMENT ............................................................................................................................... 6 4.1 MEASUREMENT SYSTEM AND COMPONENTS................................................................................................................................6 4.1.1 Isotropic E-field Probe serial number ....................................................................................................................... 7 4.2 PHANTOMS................................................................................................................................................................................8 4.3 TISSUE SIMULANTS....................................................................................................................................................................8 4.3.1 Tissue Simulant Recipes ............................................................................................................................................... 9 4.3.2 System Checking ............................................................................................................................................................. 9 4.3.3 Tissue Simulants used in the Measurements ....................................................................................................... 10 5. DESCRIPTI…

Text truncated - open the document above for the full version.

FCC Part 22/24 Compliance Test Report / Template Version 2.0 T:\Projects\RM-56\results\emc\FCC\Tre_FCC_0534_03.doc Copyright © TCC Nokia 1 (23) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 22/24 Compliance Test Report Test Report no.: Tre_FCC_0534_03.doc Date of Report: 7.9.2005 Number of pages: 23 Customer’s Contact person: Jorma Hanni Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC listing no.: IC recognition no.: 94436 3608 Client: Nokia Corporation P.O. Box 50 Elektroniikkatie 10 FIN-90571 OULU, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 47222 Tested devices/ accessories: GSM phone RM-56 / Battery BL-5C, AC-charger AC-4, Headset HS-23, Memory card MU-17, Dummy battery SD-4 v.1161 FCC ID: LJPRM-56 IC: 661E-RM56 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-B-2002 and IC standards RSS-132 and RSS-133. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jan-Erik Lilja, System Manager FCC Part 22/24 Compliance Test Report / Template Version 2.0 T:\Projects\RM-56\results\emc\FCC\Tre_FCC_0534_03.doc Copyright © TCC Nokia 2 (23) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 24.8.2005 Testing completed 5.9.2005 The customer's contact person Jorma Hanni Test Plan referred to \EMC\TESTPLAN\ Notes - Document name T:\Projects\RM-56\results\emc\FCC\Tre_FCC_0534_03.doc 1.1. EUT and Accessory Information The EUT is a dual band (GSM850/1900) mobile phone with GPRS and EGPRS. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT GSM phone RM-56 004400/58/164239/21101 - 03.07 40319 GSM phone RM-56 004400/58/164222/81101 - 03.07 40320 AC-Charger AC-4 - 1.0 3.0 - 40321 Memory Card MU-17 - - - 40322 Battery BL-5C - - - - 40323 Headset HS-23 - - - - 40324 Dummy battery SD-4 v.1161 - - - - 40241 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4, 6.4 Radiated RF output power PASSED §2.1049(h) 4.2 99 % occupied bandwidth PASSED §22.917(a) 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.3, 6.3 Frequency stability, temperature variation PASSED §2.1055(d) 4.3, 6.3 Frequency stability, voltage variation PASSED GSM 1900: Section in CFR 47 Section in RSS-133 Name of the test Result §2.1046(a) 6.2 Conducted RF output power NP §24.232(b) 6.2 Radiated RF output power PASSED §2.1049(h) 5.6 99 % occupied bandwidth PASSED §24.238(a) 6.3 Band edge compliance PASSED §24.238(a), §2.1051 6.3 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.3 Spurious radiated emissions PASSED §2.1055(a) 7 Frequency stability, temperature variation PASSED §2.1055(d) 7 Frequency stability, voltage variation PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. FCC Part 22/24 Compliance Test Report / Template Version 2.0 T:\Projects\RM-56\results\emc\FCC\Tre_FCC_0534_03.doc Copyright © TCC Nokia 3 (23) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ........................................... 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Radiated RF output power (FCC §22.913(a), §24.232(b), RSS-132 6.4, RSS-133 6.2)........... 5 2.1. Test setup ..............................................................................................................................5 2.2. Test method and limit .............................................................................................................5 2.3. GSM 850 Test results ............................................................................................................6 2.4. GSM 1900 Test results ..........................................................................................................6 3. 99 % occupied bandwidth (FCC §2.1049(h), RSS-132 4.2, RSS-133 5.6)............................ 8 3.1. Test setup ..............................................................................................................................8 3.2. Test method and limit .............................................................................................................8 3.3. GSM 850 Test results ............................................................................................................9 3.4. GSM 1900 Test results ........................................................................................................10 4. Band …

Text truncated - open the document above for the full version.
