LJPRM-8GSM900/1800/1900 Cellular Telephone

Microsoft Corporation
GSM900/1800/1900 Cellular Telephone - FCC ID LJPRM-8 - Microsoft Corporation
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Nov 03, 2004
Application Purpose
Original Equipment
Date of Application
Nov 03, 2004
Equipment Note
GSM900/1800/1900 Cellular Telephone
Frequency Range
1850.20000000 - 1909.80000000
Company
Microsoft Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Nokia  User GuideLCopyright © 2004 Nokia Nokia 7270 phone at a glance iiCopyright © 2004 Nokia Quick guide Make a callEnter a phone number, and press Call. Answer a callPress Call, or open the fold. Answer call during callSelect Answer . End a callPress End. Decline a callPress End . Mute a callSelect Options > Mute during a call. RedialPress Call twice to redial the last number dialed. Adjust call volumePress the Volume keys on the left side of the phone during a call. Use the in-call menuSelect Options during a call. Save a name and numberEnter a number, select Save, enter a name, and select OK. Use 1-touch dialingPress and hold a key (2–8). You must assign a key to a number in Contacts. Look up a nameSelect Contacts > Find. Check voice mailPress and hold the 1 (contact your service provider for details). Write and send text messages Select Menu > Messages > Create message > Text message. Enter the message, and select Send. Enter the number, and select OK. Send a picture message Select Menu > Messages > Create message > Text message > Options > Insert picture. Scroll to the picture you want, and select View > Insert. Enter the text message, and select Send. Enter the number, and select OK. Read a new text messageIf New Message appears, select Show. Nokia 7270 User Guide iiiCopyright © 2004 Nokia LEGAL INFORMATION DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product RM-8 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity/ . 168 PART NO. 9233640 ISSUE NO. 1 Copyright © 2004 Nokia. All rights reserved. Nokia, Nokia Connecting People, Pop-Port, Xpress-on, Nokia Original Enhancements, Nokia 7270, and the Nokia Original Enhancements logos are trademarks or registered trademarks of Nokia Corporation. Other company and product names mentioned herein may be trademarks or trade names of their respective owners. Printed in Canada 09/2004 US Patent No 5818437 and other pending patents. T9 text input software Copyright © 1999-2004. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION (i) GENERATED BY AND OBTAINED WITHOUT CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR PERSONAL USE ONLY; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C. The information contained in this user guide was written for the Nokia 7270 product. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes to any of the products described in this document without prior notice. UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. ivCopyright © 2004 Nokia FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Manufactured or sold under one or more following US Patents. Asterisk (*) indicates design patents pending. 486884655198855827082596637861120996266330 496919255263665835889597005961156176282436 500137255531255839101598713761187756285888 50459735557639584884599171661218466292668 510117555658215845219599185761224986295286 521283455703695857151599952361283226308084 523009155812445862178600585761285096310609 523363455971025870683601185361380916311054 524128456252745887266601457361409666314166 524158356403955889770601827761442436324412 526678256640045892475602616161446766347218 5 3111 5156640535898925602856761482096356759 531117956690695907823602912861514856359904 531728356776205914690603823861515076363259 533163856782245914796604376061636096370362 533536256920325915440604719661645476370390 535332856994065917868604979661672486377803 537893556994825920826605041561700736393121 538478257013925926138605543961785356430721 539022357295345926769606019361852956434133 53966575729541593023360699236188909*29/170210 54009495734683594665160727876195338*29/170229 54164355754976595633260815346199035*29/170245 54425215760568595662560849626201876*29/170246 54448165782646595663360887466219560 54463645794142596035460945876240076 54794765802465596038960979646240079 54870845805084596390161057846249584 54932555805301596637461085536259312 Nokia  User GuideYCopyright © 2004 Nokia Contents Quick guideii 1 For your safety1 About your device2 Network Services2 Shared memory3 2 About your phone4 Register your phone4 Terms4 Find information about your phone5 Get help5 Phone introduction—fold closed6 Phone introduction—fold open7 Start screen8 Copyright protection11 Accessibility solutions11 Nokia PC Suite11 Connection settings service 11 Phone menus12 3 Basic ope…

Text truncated - open the document above for the full version.

Cover Letter(s)

NOKIA CORPORATION Nokia Mobile Phones Elektroniikkatie 10 FIN-90570 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 September 13, 2004 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPRM-8 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Ismo Savikoski Product Program Manager Mobile Phones, Oulu

External Photos

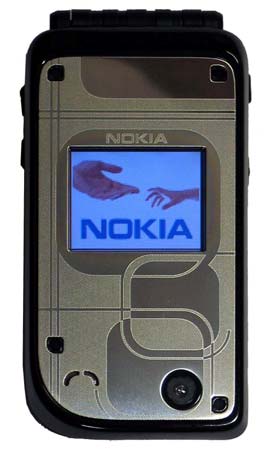

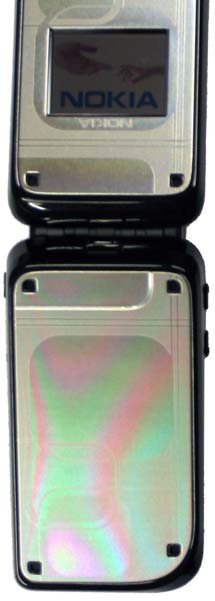

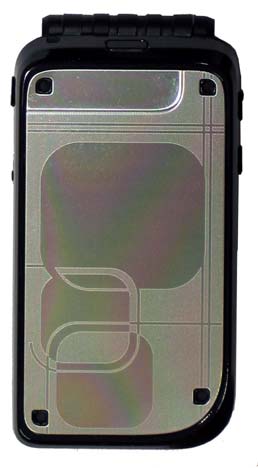

24 Sep 2004 External Photographs FCC ID: LJPRM-8 Exhibit 3 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 24 Sep 2004 External Photographs FCC ID: LJPRM-8 Exhibit 3 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 24 Sep 2004 External Photographs FCC ID: LJPRM-8 Exhibit 3 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 24 Sep 2004 External Photographs FCC ID: LJPRM-8 Exhibit 3 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

ID Label/Location Info

24 Sep 2004 Internal Photographs FCC ID: LJPRM-8 Exhibit 9 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 24 Sep 2004 Internal Photographs FCC ID: LJPRM-8 Exhibit 9 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 24 Sep 2004 Internal Photographs FCC ID: LJPRM-8 Exhibit 9 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

Internal Photos

24 Sep 2004 Internal Photographs FCC ID: LJPRM-8 Exhibit 9 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 24 Sep 2004 Internal Photographs FCC ID: LJPRM-8 Exhibit 9 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 24 Sep 2004 Internal Photographs FCC ID: LJPRM-8 Exhibit 9 IC: 661E-RM8 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

RF Exposure Info

Oulu ____________________________________________________________________________ SAR Report OULU_SAR0436_04 Applicant: Nokia Corporation Type: RM-8 Copyright  2004 TCC Oulu 2/32 CONTENTS 1. SUMMARY OF SAR TEST REPORT 4 1.1 TEST DETAILS 4 1.2 MAXIMUM RESULTS 4 1.2.1 Head Configuration 4 1.2.2 Body Worn Configuration 4 1.2.3 Maximum Drift 5 1.2.4 Measurement Uncertainty 5 2. DESCRIPTION OF THE DEVICE UNDER TEST 5 2.1 PICTURE OF THE DEVICE 6 2.2 DESCRIPTION OF THE ANTENNA 6 3. TEST CONDITIONS 6 3.1 TEMPERATURE AND HUMIDITY 6 3.2 TEST SIGNAL, FREQUENCIES, AND OUTPUT POWER 6 4. DESCRIPTION OF THE TEST EQUIPMENT 7 4.1 MEASUREMENT SYSTEM AND COMPONENTS 7 4.1.1 Isotropic E-field Probe ET3DV6 8 4.2 PHANTOMS 9 4.3 SIMULATING LIQUIDS 9 4.3.1 Liquid Recipes 9 4.3.2 Verification of the System 9 4.3.3 Tissue Simulants used in the Measurements 10 5. DESCRIPTION OF THE TEST PROCEDURE 11 5.1 DEVICE HOLDER 11 5.2 TEST POSITIONS 11 5.2.1 Against Phantom Head 11 5.2.2 Body Worn Configuration 12 5.3 SCAN PROCEDURES 12 5.4 SAR AVERAGING METHODS 13 6. MEASUREMENT UNCERTAINTY 14 7. RESULTS 15 APPENDIX A: VALIDATION SCANS 16 APPENDIX B: MEASUREMENT SCANS 21 APPENDIX C: RELEVANT PAGES FROM PROBE CALIBRATION REPORT(S) 31 Oulu ____________________________________________________________________________ SAR Report OULU_SAR0436_04 Applicant: Nokia Corporation Type: RM-8 Copyright  2004 TCC Oulu 3/32 APPENDIX D: RELEVANT PAGES FROM DIPOLE VALIDATION KIT REPORT(S) 32 Oulu ____________________________________________________________________________ SAR Report OULU_SAR0436_04 Applicant: Nokia Corporation Type: RM-8 Copyright  2004 TCC Oulu 4/32 1. SUMMARY OF SAR TEST REPORT 1.1 Test Details Period of test 2004-8-27 to 2004-8-30 SN, HW and SW numbers of tested device SN: 004400/35/176534/0; DUT#: 30206;HW: 10.15; SW: 3.07 Batteries used in testing BL-4C; DUT#’s: 30202, 30203, 30204 Headsets used in testing HS-3; DUT#:30205 Other accessories used in testing State of sample Prototype Unit Notes 1.2 Maximum Results The maximum measured SAR values for Head configuration and Body Worn configuration are given in section 1.2.1 and 1.2.2 respectively. The device conforms to the requirements of the standard(s) when the maximum measured SAR value is less than or equal to the limit. 1.2.1 Head Configuration Mode Ch / f (MHz) EIRP Position SAR limit (1g avg) Measured SAR value (1g avg) Result GPRS 1900 512/1850.2 MHz 22.51 dBm Right Cheek 1.6 W/kg 1.05 W/kg PASSED 1.2.2 Body Worn Configuration Mode Ch / f (MHz) EIRP Separation distance SAR limit (1g avg) Measured SAR value (1g avg) Result GPRS 1900 512/1850.2 MHz 22.51 dBm 1.5 cm 1.6 W/kg 0.61 W/kg PASSED Oulu ____________________________________________________________________________ SAR Report OULU_SAR0436_04 Applicant: Nokia Corporation Type: RM-8 Copyright  2004 TCC Oulu 5/32 1.2.3 Maximum Drift Maximum drift during measurements -0.16 dB 1.2.4 Measurement Uncertainty Extended Uncertainty (k=2) 95% ± 29.1 % 2. DESCRIPTION OF THE DEVICE UNDER TEST Device category portable Exposure environment general population/uncontrolled Modes and Bands of Operation GSM1900 GPRS 1900 E-GPRS1900 BT Modulation Mode GMSK GMSK 8PSK GFSK Duty Cycle 1/8 1/8 or 2/8 1/8 or 2/8 Transmitter Frequency Range (MHz) 1850.2-1909.8 1850.2-1909.8 1850.2-1909.8 2402.0 – 2480.0 Outside of USA and Canada, the transmitter is capable of operating also in GSM900 and GSM1800, which are not part of this filing. This device has Push-to-Talk/Voice-over-IP capability for use at the ear. Therefore, SAR for 2-slot GPRS mode was evaluated against the head profile of the phantom. Oulu ____________________________________________________________________________ SAR Report OULU_SAR0436_04 Applicant: Nokia Corporation Type: RM-8 Copyright  2004 TCC Oulu 6/32 2.1 Picture of the Device 2.2 Description of the Antenna The device has an internal patch antenna. 3. TEST CONDITIONS 3.1 Temperature and Humidity Period of measurement: 2004-8-27 to 2004-8-30 Ambient temperature (°C): 21 to 24 Ambient humidity (RH %): 35 to 50 3.2 Test Signal, Frequencies, and Output Power The device was put into operation by using a call tester. Communication between the device and the call tester was established by air link. The device output power was set to maximum power level for all tests; a fully charged battery was used for every test sequence. Oulu ____________________________________________________________________________ SAR Report OULU_SAR0436_04 Applicant: Nokia Corporation Type: RM-8 Copyright  2004 TCC Oulu 7/32 In all operating bands the measurements were performed on lowest, middle and highest channels. The power output was measured by a separate test laboratory on the same unit as used for SAR testing. 4. DESCRIPTION OF THE TEST EQUIPMENT 4.1 Measurement System and Components The measurements were performed using an automated near-field scanning system, DASY 4 software version 4.2, manufactured by Schmid & Partner Engineering AG (SPEAG) in Switzerland. The SAR extrapolation algorithm used in all measurements on the device was the ‘worst-case extrapolation’ algorithm. The following table lists calibration dates of SPEAG components: Test Equipment Serial Number Calibration interval Calibration expiry DAE V1 555 12 months 02/05 E-field Probe ET3DV6 1765 12 months 02/05 Dipole Validation Kit, D1900V2 5d030 12 months 04/05 Additional test equipment used in testing: Oulu ____________________________________________________________________________ SAR Report OULU_SAR0436_04 Applicant: Nokia Corporation Type: RM-8 Copyright  2004 TCC Oulu 8/32 Test Equipment Model Serial Number Calibration interval Calibration expiry Signal Generator HP 8657B 3630U08114 12 months 06/05 Amplifier Amplifier Research 5S1G4 306024 - - Power Meter R&S NRT 101143 12 months 04/05 Power Sensor R&S NRT-Z43 100239 12 months 04/05 Thermometer Fluke 51 II 84350048 12 months 06/05 Network Analyzer HP 8753D 3410A08934 12 months 06/05 Dielectric Probe Kit Agilent 85070D…

Text truncated - open the document above for the full version.

Test Report

DOCUMENT NAME: TREFCC_41_04_01.DOC 1 (23) TCC Tampere GSM1900 test report for RM-8 The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 46800 Fax. +358 7180 46880 DOCUMENT NAME: TREFCC_41_04_01.DOC 2 (23) TCC Tampere CONTENTS 1 LABORATORY INFORMATION................................................................................................................4 2 CUSTOMER INFORMATION....................................................................................................................4 3 SUMMARY OF TEST RESULTS...............................................................................................................5 4 EUT INFORMATION..................................................................................................................................6 4.1 EUT description..................................................................................................................................6 5 EUT TEST SETUPS..................................................................................................................................6 6 APPLICABLE STANDARDS......................................................................................................................6 7 RADIATED RF OUTPUT POWER............................................................................................................7 7.1 Test setup...........................................................................................................................................7 7.2 Test method........................................................................................................................................7 7.3 EUT operation modes.........................................................................................................................8 7.4 Limit....................................................................................................................................................8 7.5 Results ................................................................................................................................................8 8 99% OCCUPIED BANDWIDTH...............................................................................................................10 8.1 Test setup.........................................................................................................................................10 8.2 EUT operation mode.........................................................................................................................10 8.3 Results ..............................................................................................................................................10 8.4 Screen shot.......................................................................................................................................11 8.5 EUT operation mode.........................................................................................................................11 8.6 Results ..............................................................................................................................................11 8.7 Screen shot.......................................................................................................................................12 9 BANDEDGE COMPLIANCE....................................................................................................................13 9.1 Test setup.........................................................................................................................................13 9.2 EUT operation mode.........................................................................................................................13 9.3 Limit..................................................................................................................................................13 9.4 Results ..............................................................................................................................................13 9.5 Screen shots.....................................................................................................................................14 9.6 EUT operation mode.........................................................................................................................14 9.7 Limit..................................................................................................................................................14 9.8 Results ..............................................................................................................................................15 9.9 Screen shots.....................................................................................................................................15 10 SPURIOUS RADIATED EMISSION........................................................................................................16 10.1 Test setup.........................................................................................................................................16 10.2 Test method......................................................................................................................................16 10.3 EUT operation mode.........................................................................................................................17 10.4 Limit..................................................................................................................................................17 10.5 Results ..............................................................................................................................................17 10.6 EUT operation mode................................…

Text truncated - open the document above for the full version.

Test Report

DOCUMENT NAME: 1 (15) TreFCC_41_04_02.doc TCC Tampere EMC Test Report for RM-8 The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 DOCUMENT NAME: 2 (15) TreFCC_41_04_02.doc TCC Tampere CONTENTS 1 CUSTOMER INFORMATION....................................................................................................................3 2 EUT AND ACCESSORY INFORMATION.................................................................................................4 2.1 EUT description..................................................................................................................................4 2.2 EUT and accessories.........................................................................................................................4 3 STANDARDS AND MEASUREMENT METHODS....................................................................................6 4 TEST RESULTS........................................................................................................................................6 4.1 AC powerline conducted emissions (§15.107)...................................................................................6 4.1.1 Limit............................................................................................................................................6 4.1.2 EUT operation mode...................................................................................................................6 4.1.3 EUT test setup............................................................................................................................6 4.1.4 Emission measurement data......................................................................................................7 4.2 AC powerline conducted emissions (§15.107)...................................................................................8 4.2.1 Limit............................................................................................................................................8 4.2.2 EUT operation mode...................................................................................................................8 4.2.3 EUT test setup............................................................................................................................8 4.2.4 Emission measurement data......................................................................................................9 4.3 Radiated emissions (§15.109)..........................................................................................................10 4.3.1 Test method and level, 30 MHz – 8.5 GHz..............................................................................10 4.3.2 EUT operation mode.................................................................................................................11 4.3.3 EUT test setup..........................................................................................................................11 4.3.4 Emission measurement data, 30 MHz – 8.5 GHz....................................................................11 4.4 Radiated emissions (§15.109)..........................................................................................................13 4.4.1 Test method and level, 30 MHz – 8.5 GHz..............................................................................13 4.4.2 EUT operation mode.................................................................................................................14 4.4.3 EUT test setup..........................................................................................................................14 4.4.4 Emission measurement data, 30 MHz – 8.5 GHz....................................................................15 The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 DOCUMENT NAME: 3 (15) TreFCC_41_04_02.doc TCC Tampere 1 CUSTOMER INFORMATION Test laboratory: FCC registration number IC file number: TCC Tampere Nokia Oyj Sinitaival 5 FIN-33720 TAMPERE Tel. +358 7180 08000 Fax. +358 7180 46800 94436 (June 14, 2002) IC 3608 (March 5, 2003) Client: Nokia Corporation Yrttipellontie 6F Peltola III, F406.09 FIN-90230 OULU FINLAND Tel. +358503872478 Fax. +358718008000 Contact person: Sonja Perälä Receipt of EUT: 24.9.2004 Date of testing: 29.9.2004 Date of report: 18.10.2004 Contents approved: Asko Välimäki Quality Manager The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 DOCUMENT NAME: 4 (15) TreFCC_41_04_02.doc TCC Tampere 2 EUT AND ACCESSORY INFORMATION 2.1 EUT description The EUT is a triple band (900/1800/1900, E-GPRS) phone, with FM radio. The highest internal frequency of the EUT is 3979.6MHz. 2.2 EUT and accessories The table below lists all EUTs and accessories used in the tests. Later in this test report, only numbers in the last column are used to refer to the devices in each test. Name Type S/N Number EUT GSM Phone RM-8 004400481662896 40072 Accessories Battery BL-4C - 40067 Charger ACP-12U 399791K216J30089257 40074 Nokia Headset HS-5 - 40081 Data Cable DKU-2 - 40075 Fuji Digital Camera DS-7 7102516 40076 Hewlett & Packard Parallel Printer HP deskjet 1600CC3540A USB8302546 40077 DELL Laptop PC LATITUDE CP M233XT 0009321C-12800-8A5- 2913 40078 DELL Charger PA-2 00085391 40080 The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, witho…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Hasnain Syed(Director, EMC, SI and RF Compliance)
[email protected]1-425-707-1039Fax: 1-425-706-7329

Technical Contact

Nokia CorporationKare Oksanen
[email protected]011 358 7180 08000

Elektroniikkatie 10 · OULU · Finland

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz186.00 mW300KG7W0.1 ppm
Confidentiality
Long Term
Grant Notes
Power Output is EIRP. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 1.05 W/kg; Body-worn 0.61 W/kg. This device contains 900/1800 MHz GSM functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations.
