LKT-BMAX-SI23CRBreezeMax 2300 Broadband Wireless Indoor CPE

BreezeMAX™ CPEs PRO-S CPE and Si CPE Product Manual SW Version 4.0 September 2006 P/N Rev. A iiBreezeMAX CPEs Product Manual Document History Document History TopicDescriptionDate Issued First ReleaseNew Product ManualSW Version 4.0, August 2006 BreezeMAX CPEs Product Manualiii Legal Rights Legal Rights © Copyright 2006 Alvarion Ltd. All rights reserved. The material contained herein is proprietary, privileged, and confidential and owned by Alvarion or its third party licensors. No disclosure thereof shall be made to third parties without the express written permission of Alvarion Ltd. Alvarion Ltd. reserves the right to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty. Trade Names Alvarion ® , BreezeCOM ® , WALKair ® , WALKnet ® , BreezeNET ® , BreezeACCESS ® , BreezeMANAGE ™ , BreezeLINK ® , BreezeCONFIG ™ , BreezeMAX ™ , AlvariSTAR ™ , BreezeLITE ™ , MGW ™ , eMGW ™ , WAVEXpress ™ , MicroXpress ™ , WAVEXchange ™ , WAVEView ™ , GSM Network in a Box and TurboWAVE ™ and/or other products and/or services referenced here in are either registered trademarks, trademarks or service marks of Alvarion Ltd. All other names are or may be the trademarks of their respective owners. Statement of Conditions The information contained in this manual is subject to change without notice. Alvarion Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Warranties and Disclaimers All Alvarion Ltd. ("Alvarion") products purchased from Alvarion or through any of Alvarion's authorized resellers are subject to the following warranty and product liability terms and conditions. Exclusive Warranty (a) Alvarion warrants that the Product hardware it supplies and the tangible media on which any software is installed, under normal use and conditions, will be free from significant defects in materials and workmanship for a period of fourteen (14) months from the date of shipment of a given Product to Purchaser (the "Warranty Period"). Alvarion will, at its sole option and as Purchaser's sole remedy, repair or replace any defective Product in accordance with Alvarion' standard R&R procedure. ivBreezeMAX CPEs Product Manual Legal Rights (b) With respect to the Firmware, Alvarion warrants the correct functionality according to the attached documentation, for a period of fourteen (14) month from invoice date (the "Warranty Period")". During the Warranty Period, Alvarion may release to its Customers firmware updates, which include additional performance improvements and/or bug fixes, upon availability (the "Warranty"). Bug fixes, temporary patches and/or workarounds may be supplied as Firmware updates. Additional hardware, if required, to install or use Firmware updates must be purchased by the Customer. Alvarion will be obligated to support solely the two (2) most recent Software major releases. ALVARION SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. Disclaimer (a) The Software is sold on an "AS IS" basis. Alvarion, its affiliates or its licensors MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING DOCUMENTATION. ALVARION SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT WITH RESPECT TO THE SOFTWARE. UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO PURCHASER HEREUNDER ARE NOT FAULT-TOLERANT AND ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE ("HIGH RISK ACTIVITIES"). HIGH RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF ON-LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD. ALVARION SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES. (b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE PURCHASE PRICE AS SPECIFIED ABOVE, AT ALVARION'S OPTION. TO THE BreezeMAX CPEs Product Manualv Legal Rights FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY DISCLAIMED. ALVARION' WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE NOT EXTENDED TO ANY THIRD PARTIES. ALVARION NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. Limitation of Liability (a) ALVARION SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY…

Text truncated - open the document above for the full version.

Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Date:September 11, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize THOMAS N COKENIAS, d.b.a. T.N. Cokenias Consulting, to act on our behalf in all manners relating to application for equipment authorization through the Certification Division of Compliance Certification Services (CCS) , including signing of all documents relating to these matters. Any and all acts carried out by THOMAS N COKENIAS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing THOMAS N COKENIAS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Avner Ruta , Compliance Engineer Name and Title of Person to Receive Grant/Certificate Alvarion Ltd. REMARK: 1.This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format on company letterhead and mail original to: T.N. Cokenias Consulting P.O. Box 1086 El Granada CA 94018

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 Compliance Certification Services 14 Sept 2006 561F Monterey Road Morgan Hill CA 95037 Attention: Application Examiner Reviewing Engineer RE: Request for confidentiality per FCC Rule Sections 0.457 and 0.459 Applicant: Alvarion Ltd. CCS Assessment No.: AN06T6137 FCC ID: LKT-BMAX-SI23 To whom it may concern, Request is hereby submitted, on behalf of my client Alvarion Ltd. to withhold from public review indefinitely certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Operational Description Schematic Block Diagram BOM/Parts List Rationale for request for confidentiality: Alvarion has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for Alvarion Ltd.

Response to Inquiry to FCC (Tracking Number 550684) (TCB) InboxX Inquiry: NOTE: This inquiry was originally submitted on 4 Feb 2008, but was apparently overwritten by a second similar inquiry. A response to the second inquiry (KDB 462673) was received and the g composite grant, but information and exhibits are very similar to those submitted in KDB 462673. As the original inquiry was somehow lost in the system, if there is any way that the reply to t appreciated. This is an original application filed under Part 27 Subpart C for operation under Subpart D. FCCID: LKT-BMAX-SI23CR Permit But Ask Category: 4. WiMax and 802.16 devices operating in the various bands. This is a WIMAX 802.16 device. Summary Description: TNB, operates from 2307.5-2312.5/2352.5-2357.5 MHz, 0.204W conducted power, 15.97KHz frequency tolerance, channel bandwidth 5MHz, and emission 4M72W1D: OFDM (BPSK,4QAM, 16QAM, 64QAM). Additional Permit but Ask information is in the attachment KDB Info LKT-BMAXSI23CR.pdf The application has been reviewed by the TCB and applicant has replied to questions. Please advise whether TCB can issue grant. Also attached are Test Report, Technical Description, User Manual, TCB Q&A. Best regards, Tim Dwyer CCS Response: It is acceptable to issue the Certification grant. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. [email protected] [email protected], dateTue, Mar 11, 2008 at 3:34 PM subjectResponse to Inquiry to FCC (Tracking Number 550684) (TCB) h FCC Home | Search | Updates | E-Filin Office of Engineering and Technology

Alvarion Ltd., FCC ID: LKT-BMAX-SI23CR, Assessment NO.: AN08T7468, Notice#1 Inbox X from [email protected] to [email protected], cc [email protected], date Jan 8, 2008 2:23 PM subject Alvarion Ltd., FCC ID: LKT-BMAX-SI23CR, Assessment NO.: AN08T7468, Notice#1 hide details Jan 8 Reply Hello Tom, The review for this application is complete. Please respond to the following issues. Since this product is based on WiMax technology a Permit But Ask inquiry will be submitted to FCC following your reply. The review of for the similar Alvarion product is in process and a similar notice is expected to be sent to you shortly. Q1: In order to comply with the channel block specifications in 47CFR 27.5(a)(1), please confirm that the product will operate only on the channel frequencies shown in the test report and will not operate on channels with other center frequencies. Q2: The measurement antenna shown in the test report has an upper frequency specification of 18 GHz. Measurements for this device are required up to 23 GHz. In this case, since no conducted spurious emissions were observed above 8 GHz, there is negligible risk of non-compliance from 18 - 23 GHz however please be aware of the antenna's frequency limits for future tests. Q3: CFR47 2.1033(c)(9) requires a tune-up procedure exhibit for licensed device applications. Please provide an exhibit or explanation as to why the exhibit is not included in the application. Q4: The user manual describes 3.5 GHz operation. Please confirm that 3.5 GHz operation is not included for the product described in this application. Happy New Year and Best Regards, Tim Dwyer Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Reply Reply to all Forward from Thomas Cokenias <[email protected]> to Tim Dwyer <[email protected]>, date Jan 27, 2008 12:19 PM subject Fwd: Alvarion Ltd., FCC ID: LKT-BMAX-SI23CR, Assessment NO.: AN08T7468, Notice#1 hide details 12:19 PM (3 hours ago) Reply Hi Tim, Answers follow questions. I'll have cell tomorrow if you need to contact me. best regards Tom cell 650 302 0887 Begin forwarded message: From: <[email protected]> Date: January 8, 2008 11:23:57 AM PST To: < [email protected]> Cc: < [email protected]> Subject: Alvarion Ltd., FCC ID: LKT-BMAX-SI23CR, Assessment NO.: AN08T7468, Notice#1 Hello Tom, The review for this application is complete. Please respond to the following issues. Since this product is based on WiMax technology a Permit But Ask inquiry will be submitted to FCC following your reply. The review of for the similar Alvarion product is in process and a similar notice is expected to be sent to you shortly. Q1: In order to comply with the channel block specifications in 47CFR 27.5(a)(1), please confirm that the product will operate only on the channel frequencies shown in the test report and will not operate on channels with other center frequencies. ANS1 Channel frequencies shown in the test report will be the only ones used on units sold in the United States Q2: The measurement antenna shown in the test report has an upper frequency specification of 18 GHz. Measurements for this device are required up to 23 GHz. In this case, since no conducted spurious emissions were observed above 8 GHz, there is negligible risk of non-compliance from 18 - 23 GHz however please be aware of the antenna's frequency limits for future tests. ANS 2 Noted. Future applications will show date up to 10fo Q3: CFR47 2.1033(c)(9) requires a tune-up procedure exhibit for licensed device applications. Please provide an exhibit or explanation as to why the exhibit is not included in the application. ANS 3 The tune-up procedure is attached Q4: The user manual describes 3.5 GHz operation. Please confirm that 3.5 GHz operation is not included for the product described in this application. ANS4 The user manual is designed for world wide use. In the United States, the 3.5 GHz band will NOT be implemented for this product. Happy New Year and Best Regards, Tim Dwyer Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 2 attachments — Download all attachments 23KDBInfo.doc 27K View as HTML Open as a Google document Download 23Tuneup.doc 22K View as HTML Open as a Google document Download

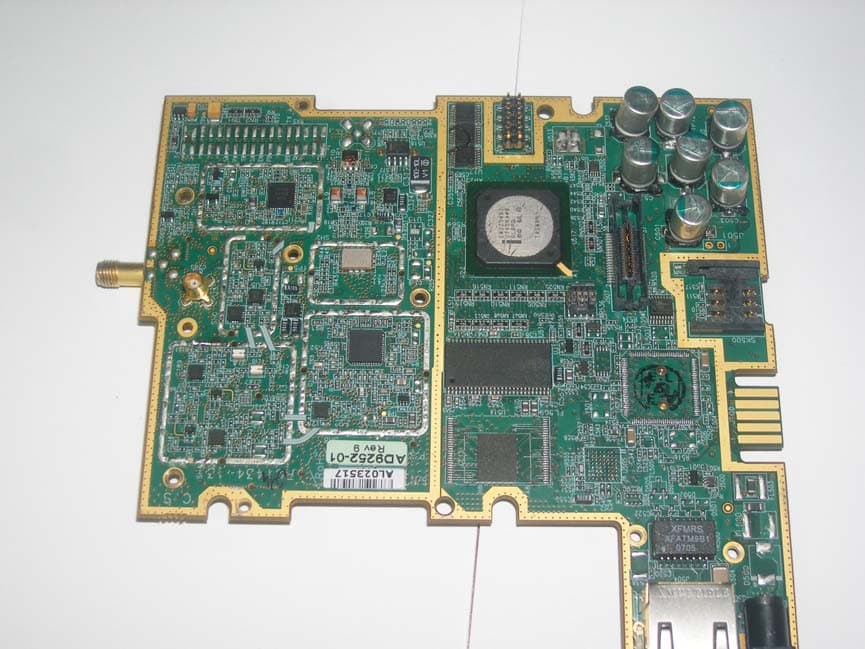

PHOTOS : BreezeMAX 2300 Subscriber unit, CPE Si. (self install) Model: BMAX-CPE-Si-E-2.3 FCC ID: LKT-BMAX-SI23CR Photo 1.General view Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Photo2 External view Label location Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo 3. External view Photo4. Top view External antenna connector Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo5. Bottom view Photo6. Internal view CS Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo7. Internal view CS Photo8. Internal view PS Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo9. Internal view PS Photo10. Internal view, antennas Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo11. Internal view, antennas Photo12. Antenna side view Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo13. Top view Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com

Photo5. Bottom view Photo6. Internal view CS Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo7. Internal view CS Photo8. Internal view PS Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo9. Internal view PS Photo10. Internal view, antennas Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo11. Internal view, antennas Photo12. Antenna side view Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo13. Top view Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com

Test Report No. 8712353771 For ALVARION Ltd. Equipment Under Test: BreezeMAX 2300 Broadband Wireless Access System Indoor Subscriber unit. From The Standards Institution Of Israel Industry Division Electronics & Telematics Laboratory EMC Section Certificate No. 1487-01 Test report No: 8712353771 Page 1 of 46 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- Si- E- 2.3 FCC ID: LKT-BMAX-SI23CR Table of Contents 1. Applicant information ..............................................................................2 2. Test performance .....................................................................................2 3. Summary of test: ......................................................................................3 4. Equipment under test description. .........................................................4 4.1 General description..................................................................................4 4.2 EUT test configuration .............................................................................5 5. Test results ...............................................................................................6 5.1 Transmitter characteristics ....................................................................6 5.1.1 Occupied bandwidth according to § 2.1049.........................................6 5.1.2 Peak output power test § 27.50 ...............................................................8 5.1.3 Spurious emissions at antenna terminal § 27.53.................................10 5.1.4 Radiated emissions according to §§ 2.1053, 27.53 .............................23 5.1.5 Frequency stability test according to § 27.54 ......................................33 5.2 Radiated emissions test according to § 15.209 ...................................34 5.3 Conducted emissions according to § 15.207.......................................36 APPENDIX A Photographs ...............................................................................39 APPENDIX B Test equipment used ..................................................................42 APPENDIX C General information ....................................................................46 Test report No: 8712353771 Page 2 of 46 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- Si- E- 2.3 FCC ID: LKT-BMAX-SI23CR 1. Applicant information Order placed by: Alvarion Ltd Address: 21A Habarzel str, Tel-Aviv, 69710, Israel Sample for test selected by: The customer The date of test: October 2007 Equipment under test information Description of Equipment Under Test (EUT ): Transmitter BreezeMAX 2300 Model: BMAX-CPE-Si-E-2.3 Serial Number: NA Manufactured by: Alvarion Ltd 2. Test performance Location: SII EMC Section Purpose of test: Apparatus compliance verification in accordance with emission requirements Test specifications: 47CFR part 15, part 27, part 2 §§ 2.1049, 2.1053, part 1 §1.1310 This Test Report contains 46 pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Test report No: 8712353771 Page 3 of 46 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- Si- E- 2.3 FCC ID: LKT-BMAX-SI23CR 3. Summary of test: The EUT was found to be in compliance with requirements of: 47CFR Part 15 §§ 15.207 and 15.209 part 27, §§ 27.50, 27.53, 27.54 and part 2 §§ 2.1049 Parameter Subclasses Transmitter characteristics Occupied bandwidth 2.1049 Peak output power 27.50 Spurious emissions at antenna terminal 27.53 Spurious emissions radiated 27.53 Frequency stability 27.54 Conducted emissions 15.207 Radiated emissions 15.209 Test performed by: Mr. Michael Feldman test technician Test report prepared by: Mr. Michael Feldman test technician Test report approved by: Mr. Yuri Rozenberg. Head of EMC Branch Test report No: 8712353771 Page 4 of 46 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- Si- E- 2.3 FCC ID: LKT-BMAX-SI23CR 4. Equipment under test description. *The customer provided description. 4.1 General description BreezeMAX 2300 is Alvarion’s WiMAX platform for the licensed 2.3 GHz WCS frequency band. It is digital modulated TDD system operating in the 2300MHz up to 2360MHz band with OFDM modulation. The basic system configuration is a one-box configuration that contains a power supply, an Ethernet 10/100BaseT (RJ 45) interface, radio and digital section. The Si CPE contains the 6 element beam switching antenna, covers 360 degree physically. At given time slot only one element out of six elements is selected according to internal algorithm, giving 60 deg. coverage one at given time slot. When external antenna is attached to the unit, the number of antenna elements becomes 7, and the antenna selection algorithm applies now to 7 antennas elements. Usually the external antenna will be selected as it has the best RX signal level EUT technical characteristics Transmitter technical characteristics. Note Stand-alone/fixed use Assigned frequency range 2305 – 2315 MHz and 2350 – 2360 MHz Operating frequency range 2307.5 MHz, 2312.5 MHz, 2352.5 MHz, 2357.5 MHz RF channel spacing 5 MHz Maximum rated output power 24 dBm At transmitter 50 Ω RF output connector Antenna connection Connector: SMA external Transmitter 99% power bandwidth 5 MHz Type of modulation BPSK, 4QAM, 16QAM, 64QAM Type of multiplexing OFDM Modulating test signal (baseband) PRBS Maximum transmitter duty cycle in normal use 50 % Transmitter duty cycle supplied for test 100 % Antenna information Type Manufacturer Model Gain Internal Raytron AN1351 7 dBi Flat panel MTI LA3620110/s 11.5 dBi Cable to external antenna MTI MT-850001/MA 2m/-3 dB @ 2.3 GHz Test report No: 8712353771 Page 5 of 46 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- Si- E- 2.3 FCC ID: LKT-BMAX-SI23CR 4.1.1 Environmental evaluation and exposure limit according to FCC CFR 47 …
