LKT-BMAX-SU23BreezeMAX 2300 Wireless Access Outdoor CPE

BreezeMAX™ CPEs PRO-S CPE and Si CPE Product Manual SW Version 4.0 October 2006 P/N Rev. A iiBreezeMAX CPEs Product Manual Document History Document History TopicDescriptionDate Issued First ReleaseNew Product ManualSW Version 4.0, August 2006 BreezeMAX CPEs Product Manualiii Legal Rights Legal Rights © Copyright 2006 Alvarion Ltd. All rights reserved. The material contained herein is proprietary, privileged, and confidential and owned by Alvarion or its third party licensors. No disclosure thereof shall be made to third parties without the express written permission of Alvarion Ltd. Alvarion Ltd. reserves the right to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty. Trade Names Alvarion ® , BreezeCOM ® , WALKair ® , WALKnet ® , BreezeNET ® , BreezeACCESS ® , BreezeMANAGE ™ , BreezeLINK ® , BreezeCONFIG ™ , BreezeMAX ™ , AlvariSTAR ™ , BreezeLITE ™ , MGW ™ , eMGW ™ , WAVEXpress ™ , MicroXpress ™ , WAVEXchange ™ , WAVEView ™ , GSM Network in a Box and TurboWAVE ™ and/or other products and/or services referenced here in are either registered trademarks, trademarks or service marks of Alvarion Ltd. All other names are or may be the trademarks of their respective owners. Statement of Conditions The information contained in this manual is subject to change without notice. Alvarion Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Warranties and Disclaimers All Alvarion Ltd. ("Alvarion") products purchased from Alvarion or through any of Alvarion's authorized resellers are subject to the following warranty and product liability terms and conditions. Exclusive Warranty (a) Alvarion warrants that the Product hardware it supplies and the tangible media on which any software is installed, under normal use and conditions, will be free from significant defects in materials and workmanship for a period of fourteen (14) months from the date of shipment of a given Product to Purchaser (the "Warranty Period"). Alvarion will, at its sole option and as Purchaser's sole remedy, repair or replace any defective Product in accordance with Alvarion' standard R&R procedure. ivBreezeMAX CPEs Product Manual Legal Rights (b) With respect to the Firmware, Alvarion warrants the correct functionality according to the attached documentation, for a period of fourteen (14) month from invoice date (the "Warranty Period")". During the Warranty Period, Alvarion may release to its Customers firmware updates, which include additional performance improvements and/or bug fixes, upon availability (the "Warranty"). Bug fixes, temporary patches and/or workarounds may be supplied as Firmware updates. Additional hardware, if required, to install or use Firmware updates must be purchased by the Customer. Alvarion will be obligated to support solely the two (2) most recent Software major releases. ALVARION SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. Disclaimer (a) The Software is sold on an "AS IS" basis. Alvarion, its affiliates or its licensors MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING DOCUMENTATION. ALVARION SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT WITH RESPECT TO THE SOFTWARE. UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO PURCHASER HEREUNDER ARE NOT FAULT-TOLERANT AND ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE ("HIGH RISK ACTIVITIES"). HIGH RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF ON-LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD. ALVARION SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES. (b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE PURCHASE PRICE AS SPECIFIED ABOVE, AT ALVARION'S OPTION. TO THE BreezeMAX CPEs Product Manualv Legal Rights FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY DISCLAIMED. ALVARION' WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE NOT EXTENDED TO ANY THIRD PARTIES. ALVARION NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. Limitation of Liability (a) ALVARION SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY K…

Text truncated - open the document above for the full version.

ATT00199 On Oct 9, 2006, at 8:47 PM, Thomas Cokenias wrote: > > On Sep 29, 2006, at 8:09 AM, <[email protected]> <charvey- > [email protected]> wrote: > >> Tom, I have reviewed the above referenced TCB application and find >> that the following items need to be addressed before the review >> can be continued. >> >> 1. Please provide a Label Location exhibit. ANS1 Label location photo is attached >> >> 2. Also, the Label has an FCC Pt. 15 compliance statement, where >> the manual does not contain any FCC Pt. 15 Class A information. >> Please correct this discrepancy. ANS2 The revised manual now references Part 15 as well as EN301 489 >> >> 3. The test setup exhibit submitted seems to have a conducted test >> setup photo of a different unit on page 2. Please update the test >> setup photo exhibit to include the radiated test photo from the >> test report. ANS3 Corrected test set-up photo is attached >> >> 4. The Antenna exhibit is for a 14dBi antenna part number AN1350. >> The specifications indicate that the 14dBi is the minimum gain >> (14dBi(min)). Page 4 of this document seems to indicate that this >> antenna has a maximum gain of 15.86dBi. The test report indicates >> that an Mti model AL-344035/M 14.5dBi gain antenna will be used. >> Please clarify what antenna(s) will be used with this device. >> Please verify the peak (max) gain of this antenna and update all >> exhibits that contain this incorrect information (report, MPE, >> etc.). Additionally, please ensure that all testing incorporating >> the antenna has been performed using the correct antenna(s). ANS5 For the 2.3 GHz band, Alvarion is declaring AN1350 gain as 14 dBi, the 15.86 dBi gain is for the 2.5 GHz band and is not achieved at 2.3 GHz. The user manual is used for both 2.3 GHz and 2.5 GHz radios. >> >> 5. The Letter of Authorization is dated 9/11/2005, which is over 1 >> year old. FCC Policy is that letters must be current within 1 >> year. Please obtain a more recent Letter of Authorization. ANS5 A copy of the updated letter is attached. >> >> 6. Please provide a tune-up procedure exhibit. ANS6 The tune-up procedure is attached >> >> 7. FCC 2.1055(b) requires the Frequency Stability to be measured >> at intervals not more than 10 degrees. The measurements in the >> test report are only provided for the temperature extremes of -30 >> to +50 degrees C. Please provide the additional compliance data >> required by FCC 2.1055. ANS7 Revised frequency stability data is attached >> >> 8. The RF exposure MPE exhibit indicates a 20cm minimum RF safe >> distance using the 14dBi antenna. This RF Exposure guidance is >> not contained in the BST System Manual provided. Please update >> the manual to contain the appropriate antenna installation and use >> guidance for RF exposure compliance. Since this is a >> professionally installed fixed mounted (outdoor) device the grant >> can be conditioned to allow the RF Exposure to be addressed at the >> time of licensing, which takes the place of the RF Exposure Page 1 ATT00199 >> details in the manual. ANS8 RF exposure information is in the revised user manual >> >> 9. The FCC requires measurements of 'licensed' devices to be made >> in accordance with EIA/TIA-603, which includes measurements of >> Radiated Emissions to be performed using the substitution method. >> Please document compliance with the EIA/TIA-603 measurement >> procedure. ANS9 Attached is a letter from the test lab confirming they follow substitution method for radiated emissions >> >> The items indicated above must be submitted before processing can >> continue on the above referenced application. Failure to provide >> the requested information within 30 days of the original e-mail >> date may result in application dismissal and forfeiture of the >> filing fee. Also, please note that partial responses increase >> processing time and should not be submitted. Any questions about >> the content of this correspondence should be directed to the e- >> mail address listed below the name of the sender. >> >> Best regards, >> >> Chris Harvey >> [email protected] > Page 2

1 Chris Harvey From: Thomas Cokenias [[email protected]] Sent: Tuesday, October 17, 2006 11:45 AM To: [email protected] Subject: Re: Alvarion Ltd., FCC ID: LKT-BMAX-SU23, Assessment NO.: AN06T6136, Notice#2 Attachments: BreezeMAX TDD CPE 10_8_06 Manual.pdf; ATT00013.txt BreezeMAX TDD CPE 10_8_06 Manu.. ATT00013.txt (95 B) Attached is the user manual that did not survive the zip process. Regarding frequency stability, the channel plan used by this product has channel bandedges that are 2.5 MHz removed from the band edge limits in the Rules. Review of the out of band emissions plots indicates that a frequency shift of 47.39 kHz will not result in emissions exceeding out of band limits. As such, the EUT complies with the frequency stability requirement in 27.54 that fundamental emissions stay within the authorized bands. I have already instructed the applicant that in the future, frequency stability measurement data is to be presented per the requirements of 2.1055. thank and best regards Tom On Oct 17, 2006, at 8:20 AM, <[email protected]> wrote: > Tom, > > The updated Users Manual was not supplied. Please provide this > revised Users Manual in accordance with the original request and your > response. > > Frequency stability is a delta of 47.39 kHz per new data, which does > not agree with the Form 731. Please ensure that this new data > continues to comply with the Frequency Stability requirement of FCC > 27.54 (fundamental emissions stay within the authorized bands). > They have performed every 10 degrees at the voltage extremes instead > of at nominal voltage and then also at voltage extremes at room > temperature. In the future please provide Frequency Stability data in > accordance with the FCC 2.1055 requirement (every 10 degrees using > nominal voltage and then at the +/- 15% voltage at room temperature). > > The items indicated above must be submitted before processing can > continue on the above referenced application. Failure to provide the > requested information within 30 days of the original e-mail date may > result in application dismissal and forfeiture of the filing fee. > Also, please note that partial responses increase processing time and > should not be submitted. Any questions about the content of this > correspondence should be directed to the e-mail address listed below > the name of the sender. > > Best regards, > > Chris Harvey > [email protected]

Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Date:September 25, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize THOMAS N COKENIAS, d.b.a. T.N. Cokenias Consulting, to act on our behalf in all manners relating to application for equipment authorization through the Certification Division of Compliance Certification Services (CCS) , including signing of all documents relating to these matters. Any and all acts carried out by THOMAS N COKENIAS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing THOMAS N COKENIAS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Avner Ruta, Compliance Engineer Name and Title of Person to Receive Grant/Certificate Alvarion Ltd REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format on company letterhead and mail original to: T.N. Cokenias Consulting P.O. Box 1086 El Granada CA 94018

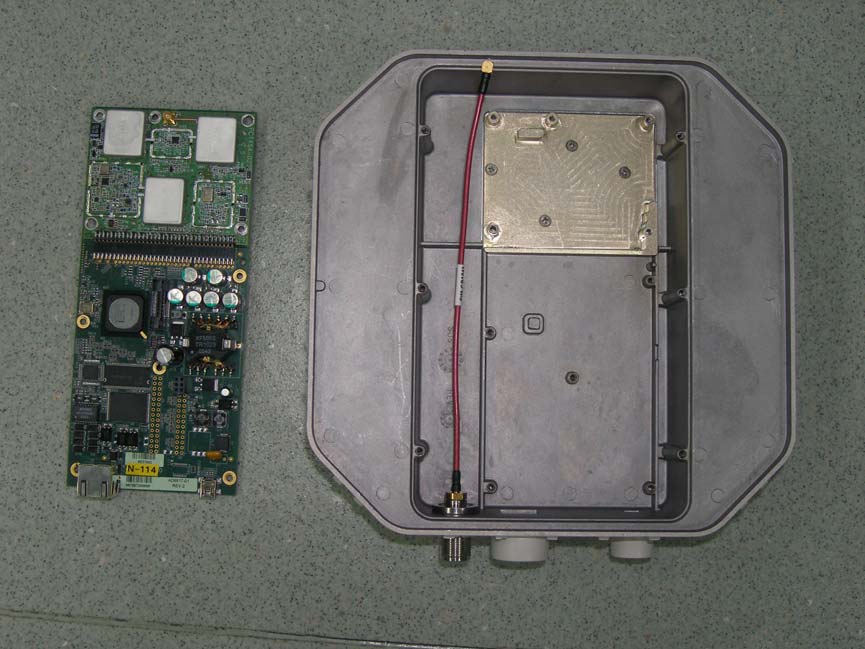

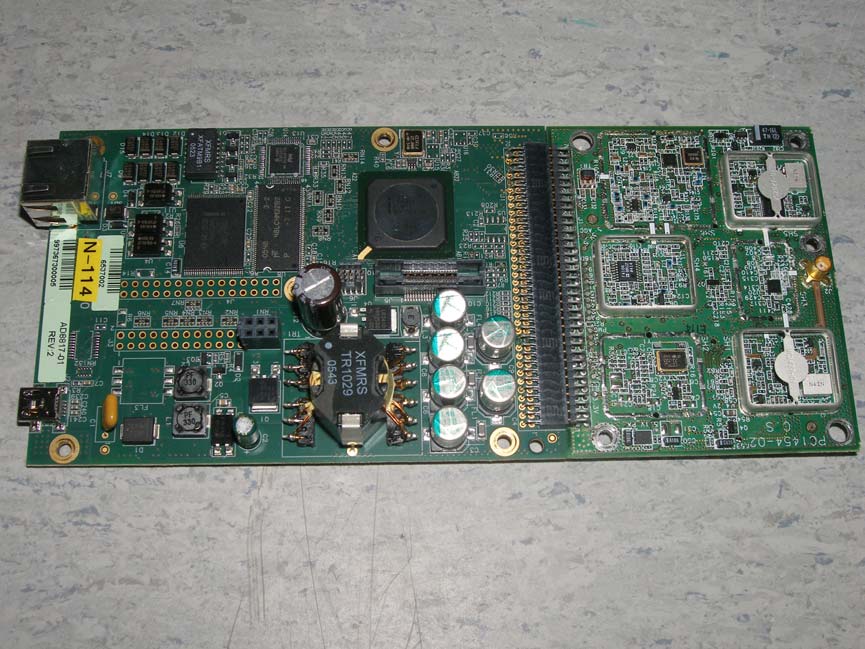

PHOTOS : BreezeMAX 2300 Subscriber unit Model: BMAX-CPE-ODU-PRO-SA-2.3 FCC ID: LKT-BMAX-SU23 Photo1. CPE external view Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 1 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo2. CPE rear view Photo3 CPE open cover . Components view Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 2 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo4. CPE connectors view Photo 5. CPE with internal cover Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 3 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo 6. Antenna print view Photo7. CPE with PCB removed , component side Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 4 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo 8. PCB component side Photo9 PCB print side Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 5 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com

Label location BMAX-CPE-ODU-PRO-SA2.3 FCC ID: LKT-BMAX-SU23 Product label location

PHOTOS : BreezeMAX 2300 Subscriber unit Model: BMAX-CPE-ODU-PRO-SA-2.3 FCC ID: LKT-BMAX-SU23 Photo1. CPE external view Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 1 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo2. CPE rear view Photo3 CPE open cover . Components view Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 2 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo4. CPE connectors view Photo 5. CPE with internal cover Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 3 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo 6. Antenna print view Photo7. CPE with PCB removed , component side Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 4 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com Photo 8. PCB component side Photo9 PCB print side Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel 5 of 5 Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com

Antenna Technical Specifications P/N AN1350 Rev. A Page 1 of 4 TERMINAL STATION ANTENNA 2.3 – 2.7 GHz VERTICAL & HORIZONTAL POLARIZATION AN1350 REGULATORY COMPLIANCE ESTI EN 301 525 V.1.1.1 (2000-06) TS RoHS Compliance ELECTRICAL FREQUENCY RANGE 2.3 - 2.7 GHz GAIN 14 dBi (min) VSWR 1.9:1 (max) 3 dB AZIMUTH BEAMWIDTH 33° (typ) POLARIZATION Linear Vertical@ Horizontal ELEVATION BEAMWIDTH 27° (typ) SIDELOBES LEVEL TS2 (ETSI EN 301 525 v1.1.1) CROSS POLARIZATION TS2 (ETSI EN 301 525 v1.1.1) F/B RATIO TS2 (ETSI EN 301 525 v1.1.1) INPUT IMPEDANCE 50 (ohm) INPUT POWER 6W (max) MECHANICAL DIMENSIONS (LxWxD) 199.9 x 199.9 x 0.8 mm (Nom) WEIGHT 150 g. CONNECTOR Custom Pin to RF cable RADOME POLYCARBONAT 2407 BASE PLATE Aluminum with chemical conversion coating Pole mounting hardware Tilt Mounting Kit for 1” to 4” Dia pole Antenna Technical Specifications P/N AN1350 Rev. A Page 2 of 4 MECHANICAL TEMP. CYCLING -40°C to +70°C VIBRATION ETSI 300 019-2-4 V2.2.2(2003) T4.1E SHOCK MECHANICAL ETSI 300 019-2-4 V2.2.2(2003) T4.1E HUMIDITY 95% Condensation, (IEC 60068) WATER TIGHTNESS IP-67 SOLAR RADIATION IEC 68-2-5, MIL-STD-810 FLAMMABILITY UL 94 Class HB SALT SPRAY ETSI 300 019-2-4 ICE AND SNOW 25mm Radial WIND SPEED: SURVIVAL OPERATION 220 Km/h 160 Km/h Antenna Technical Specifications P/N AN1350 Rev. A Page 3 of 4 PATTERNSANTENNA Elevation Pattern Frequency 2.5GHz Antenna Technical Specifications P/N AN1350 Rev. A Page 4 of 4 Azimuth Pattern Frequency 2.5GHz

Alvarion Ltd. BreezeCOM and Floware unite 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com 5/10/06 BreezeMAX 2300 system FCC ID: LKT-BMAX-BA23 FCC ID: LKT-BMAX-SU23 FCC ID: LKT-BMAX-SI23 Frequency and power determination before shipment: Before product shipment from the factory, the units pass automatic calibration sequence test where the unit is calibrated (including power out) and frequency is tested. Base station installation. The user configures the unit according to licensed frequencies( user may have several frequencies) Subscriber station transmits only when Base station is detected and adjusts the frequency to the Base station transmission.

Sheet1 Alvarion Ltd.FCC ID: LKT-BMAX-SU232.3 GHz SiCPE Calculate mW/cm2 here. Enter frequency in MHz: RF Hazard Distance Calculation Calculation of Limits from 1.1310 Table 1 ControAve 6 mW/cm2 from Table1: 1.00 F(MHz) Actual F, MHz Occ, 0.3-3 0.5 10 Max RF Powe TX Antenna MPE distance S, mW/cm@ Comment 3.0 - 30.0 5 18 P, dBm G, dBi cm at 20 cm 30.0-300 55 1 300-1500 902 3 19.50 14.50 14.1 0.50 1500-100000 5555 5 Enter P(mW) Equivalent dBm Enter dBm Equiva Basis of Calculations: 895.4 29.52 29.52 E^2/3770 = S, mW/cm2E, V/m = (Pwatts*Ggain*30)^.5/d, metersd = ((Pwatts*G*30)/3770*S))^0.5 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) S@20cm = 20 log (MPE dist/20cm)NOTE: For mobile or fixed location transmitters, minimum separation distance is for FCC compliance is 20 cm, even if calculations indicate MPE distance is less Page 1

Test report No: 8612337012 Page 1 of 83 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- ODU- PRO- SA- 2.3 FCC ID: LKT- BMAX- SU23 Test Report No. 8612337012 For ALVARION Ltd. Equipment Under Test: BreezeMAX 2300 Broadband Wireless Access System Outdoor Subscriber unit. From The Standards Institution Of Israel Industry Division Telematics Laboratory EMC Section Certificate No. 1487-01 Test report No: 8612337012 Page 2 of 83 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- ODU- PRO- SA- 2.3 FCC ID: LKT- BMAX- SU23 Table of Contents 1 Applicant information......................................................................... 3 2 Test performance...............................................................................3 3 Summary of test................................................................................4 4 EUT description.................................................................................5 4.1 General description........................................................................5 4.2 EUT test configuration............................................................................6 5 Test result.......................................................................................8 5.1 Transmitter characteristics............................................................8 5.1.1 Occupied Bandwidth ....................................................................7 5.1.2 Peak output power ...................................................................... 10 5.1.3 Spurious emissions at antenna terminal.............................................. 13 5.1.4 Spurious emissions radiated...........................................................39 5.1.5 Frequency stability...................................................................... 61 5.2 Radiated emissions test § 15.209.....................................................72 5.3 Conducted emissions test §§ 15.207..................................................74 Appendix A Photographs.......................................................................76 Appendix B Test equipment used for test....................................................79 Appendix C General information..............................................................83 Test report No: 8612337012 Page 3 of 83 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- ODU- PRO- SA- 2.3 FCC ID: LKT- BMAX- SU23 1 Applicant information Company: Alvarion Ltd. Address: 21A Habarzel str, Tel-Aviv, 69710, Israel The date of test: May –June 2006 Equipment under test information Test items: Transmitter BreezeMAX 2300 Manufacturer: Alvarion Ltd Model: BMAX-CPE-ODU-PRO-SA-2.3 Equipment serial number: NA 2 Test performance Location: SII EMC Section Purpose of test: Apparatus compliance verification in accordance with emission requirements Test specifications: 47CFR part 15, part 27, part 2 §§ 2.1049, 2.1053, part 1 §1.1310 This Test Report contains 83 pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Test report No: 8612337012 Page 4 of 83 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- ODU- PRO- SA- 2.3 FCC ID: LKT- BMAX- SU23 3 Summary of test: The EUT was found to be in compliance with requirements of: 47CFR Part 15, part 27, and part 2 §§ 27.50, 27.53, 27.54, 2.1055, 15.207, and 15.209 Parameter Subclasses Transmitter characteristics Occupied bandwidth 2.1049 Peak output power 27.50 Spurious emissions at antenna terminal 27.53 Spurious emissions radiated 27.53 Frequency stability 27.54 Conducted emissions 15.207 Radiated emissions 15.209 Test performed by: Mr. Michael Feldman test technician Test report prepared by: Mr. Michael Feldman test technician Test report approved by: Mr. Yuri Rozenberg. Head of EMC Branch Test report No: 8612337012 Page 5 of 83 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- ODU- PRO- SA- 2.3 FCC ID: LKT- BMAX- SU23 4. Equipment Under Test description *The customer provided description. 4.1 General description BreezeMAX 2300 is Alvarion’s WiMAX platform for the licensed 2.3 GHz WCS frequency band. It is digital modulated TDD system operating in the 2300MHz up to 2360MHz band with OFDM modulation. The basic system configuration of SU is a two-box configuration that contains Indoors unit includes a power supply and an Ethernet 10/100BaseT (RJ 45) interface and Outdoors unit includes the integral antenna, modem, radio, data processing and management components of the SU. EUT technical characteristics Transmitter technical characteristics. Note Stand-alone/fixed use Assigned frequency range 2305 – 2315 MHz and 2350 – 2360 MHz Operating frequency range 2307.5 MHz, 2312.5 MHz, 2352.5 MHz, 2357.5 MHz RF channel spacing 5 MHz Maximum rated output power 23 dBm At transmitter 50 Ω RF output connector Antenna connection Standard connector: N-TYPE Professional installation Transmitter 99% power bandwidth 5 MHz Type of modulation BPSK, 4QAM, 16QAM, 64QAM Type of multiplexing OFDM Modulating test signal (baseband) PRBS Maximum transmitter duty cycle in normal use 50 % Transmitter duty cycle supplied for test 100 % Antenna information Type Manufacturer Model Gain Internal MTI AL-344035/M 14 dBi Test report No: 8612337012 Page 6 of 83 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- ODU- PRO- SA- 2.3 FCC ID: LKT- BMAX- SU23 4.2 EUT test configuration Shielded cable 110 – 240 VAC Fig. 1 Subscriber unit test setup. Outdoor unit ODU Indoor Unit IDU Test report No: 8612337012 Page 7 of 83 Pages Title: BreezeMax 2300 Broadband Wireless Access System Model : BMAX-CPE- ODU- PRO- SA- 2.3 FCC ID: LKT- BMAX- SU23 5 Test results 5.1 Transmitter characteristics 5.1.1 Occupied bandwidth for digitally modulated systems according to § 2.1049 Method of measurement …
