5/12/06 BreezeMAX 2500 system differences and similarity BreezeMAX 2500 system consists of 4 units indicated in the table below Function Model name FCC ID: Base station BMAX-BST-AU-ODU-HP-2.5-A FCC ID: LKT-BMAX-B-A25 Base station BMAX-BST-AU-ODU-HP-2.5-B FCC ID: LKT-BMAX-B-B25 CPE outdoor BMAX-CPE-ODU-PRO-SA-2.5 FCC ID: LKT-BMAX-SU25 CPE indoor BMAX-CPE-Si-2.5 FCC ID: LKT-BMAX-SI25 1. Base station. Both units share same radio, the difference is in the output RF filters, which are tuned for different frequency bands. 2. CPE model: BMAX-CPE-ODU-PRO-SA-2.5 , is intended for outdoor application and BMAX-CPE-Si-2.5 , is intended for indoor application. . Both CPE’s share similar electrical circuits, different enclosures. Avner Ruta Compliance Engineer Alvarion Ltd. BreezeCOM and Floware unite Rev. 1/1/03 Rev. 1/1/03 21a HaBarzel St. Tel Aviv, 69710 Israel Main Line / Fax: 972 3 645 6262 / 6222 www.alvarion.com

KDB Inquiry Tracking Number - 403921

Exhibit for KDB: FCC ID: LKT-BMAX-SU25 1) General description of device and applicable rule parts/sections TNB, operates from 2498.5 to 2687.5MHz, 0.074W conducted power, 31.7KHz frequency tolerance, channel bandwidth 5MHz, and emission 4M75D7D: OFDM (BPSK, 4QAM, 16QAM, 64QAM). The product is a one-box configuration that contains a power supply, Ethernet 10/100BT interface, radio, and digital section. It has an internal array of 6 antennas with an optional external antenna. The 6 elements beam-switching antenna, covers 360 degree physically. At given time slot only one element out of six elements is selected according to internal algorithm, giving 60 deg. Coverage only at given time slot. When external antenna is attached to the unit, the number of antenna elements becomes 7, and the antenna selection algorithm applies now to 7 antennas elements. Usually the external antenna will be selected as it has the best RX signal level. 2) Summary of what the unique technology is Applicant’s answer: [quote] We comply to the FCC part 27 on the radio part and to the 802.16D version of the WiMax on the modem and radio performance part as EVM, sensitivity, dynamic range etc... More information on the 802.16D can be found on the WEB under the WiMax forum activity. [end of quote] 3) Operational description and manual These exhibits are uploaded to EAS 4) Test procedures used and data, including justification for subset of operational modes if selected Test report is uploaded to EAS 5) Info about how device operates as fixed, mobile, or portable within the network protocol, e.g., channel bandwidths, modulations, power control / adjustments Outdoor applications – antenna installation on permanent structure and integral antennas. 6) Availability of and specific test equipment required, or justification how FTM represents and covers end-use conditions Test report section 3.1 and 3.2 contain relevant information 7) Info about applicable and/or loosely-related public standards, if any, e.g., 802.16 and Conformance standards, and what parts of these are applicable or not, how and why Ans. we support 801.16D standard , information can be found on WiMAX forum 8) Evaluate smart-antenna modes per FCC procedures, where applicable, or for permit- but-ask submit additional details herein about adaptive antennas Ans. No smart antenna in this product. The antenna is beam switching antenna in SU indoor 9) Address how allowed FCC frequency range is applicable for FDD and/or TDD modes Ans. we are TDD in BreezeMAX 2500 system Additional information: "It is a common manual covering 3 frequency bands for 3 systems . Table 1-12 on p. 35 of 154 , contains two columns ."TDD Frequencies" and FDD Frequencies , which describe frequency bands for TDD and FDD type systems. The present FCC application refers to TDD type system 2.5 GHz band . Therefore "not applicable" and "uplink/downlink" note is not relevant to our system" 10) Details about selected subchannelizations, permutations, profiles tested and why Ans. we support UP link subchannelization between 1,2,4,16 subchannels 11) Response to Inquiry on Dec 11 2006 c) EAS filing must identify, justify, describe what/how/why specific "RF Profile(s)" are appropriate and used to test the device, among those in the applicable conformance documents and standards (eg 802.16, WiMAX) Applicant’s answer: [quote] We comply to the FCC part 27 on the radio part and to the 802.16D version of the WiMax on the modem and radio performance part as EVM, sensitivity, dynamic range etc... More information on the 802.16D can be found on the WEB under the WiMax forum activity. [end of quote]

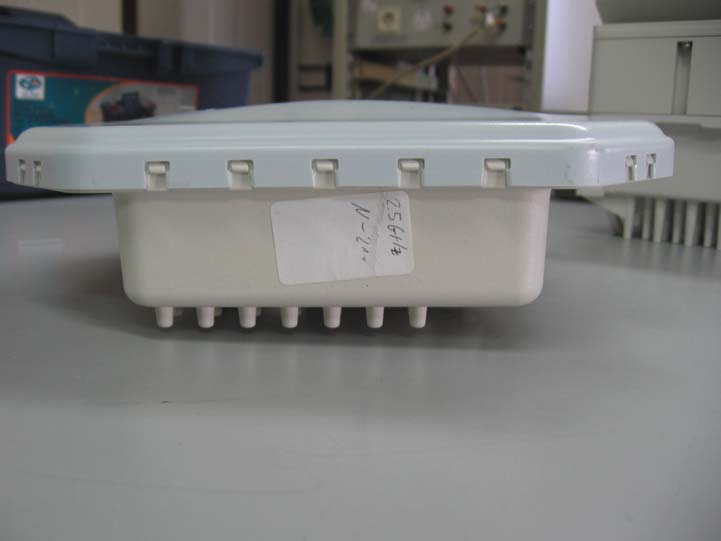

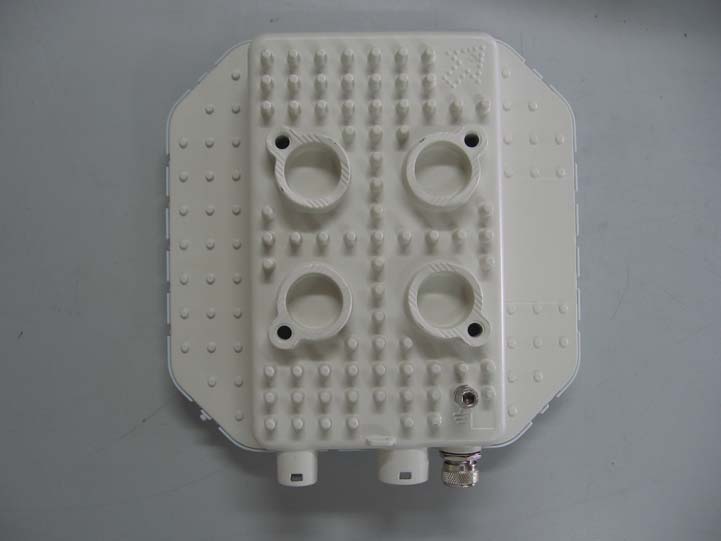

Front Rear Bottom Top
