LKT-DS58WLAN system

Alvarion Technologies Ltd.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Mar 26, 2002
Application Purpose: Original Equipment
Date of Application: Mar 26, 2002
Equipment Note: WLAN system
Frequency Range: 5740.00000000 - 5812.00000000
Company: Alvarion Technologies Ltd.
Country: Israel

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Front Matter User’s Guide iv BreezeNET BU-DS.5800/RB-DS.5800 FCC Radiation Exposure Statement To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 1.29 m (51 inches) is required between the antenna and all persons. Antenna Installation WARNING: It is the responsibility of the installer to insure that when using the outdoor antenna kits in the United States (or where FCC rules apply), only those antennas certified with the product are used. The use of any antenna other than those certified with the product is expressly forbidden in accordance to FCC rules CFR47 part 15.204. The installer should configure the output power level of antennas, according to country regulations and per antenna type. See section 2.4.9 for more information regarding setting the appropriate power level per antenna. Information to User Any changes or modifications of equipment not expressly approved by the manufacturer could void the user’s authority to operate the equipment and the company’s warranty.

Cover Letter(s)

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 FCC Laboratory14 March 2002 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Applicant: Alvarion Ltd. FCC ID: LKT-DS58 To whom it may concern, Request is hereby submitted, on behalf of my client Alvarion Ltd. to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Block Diagrams Schematic Operational Description Rationale for request for confidentiality: Alvarion has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, tel: 650-726-1263 fax: 650-726-1252 [email protected] THOMAS N. COKENIAS EMC Consultant/Agent for Alvarion Ltd.

Cover Letter(s)

From: Tom Cokenias [[email protected]] Sent: Wednesday, March 27, 2002 5:21 PM To: Mike Kuo Subject: Re: FW: Breezecom Ltd., FCC ID:LKT-DS58, AN02T1907 ANS1. Attached are correct MPE calculations. Note the 28.5 dish gain is expressed as 29 dBi because I found out from Alvarion it is max 29, typical 28.5. I have also updated the table in the test report and the user manual to reflect this change. ANS2 The integral antenna is for the end user (subscriber) installation. This antenna only talks to the base station so it is point to point always. 28.5/29 dBi dish is point to point, omni 7.5dBi is point to multi-point, and sector 17 dBi is point to multipoint and Point to Point . ANS3 I separated out the power density plot and it is attached, it seems to be a clear plot ANS4 I re-wrote the paragraph in the report to make it clear how I determined the required out of band field strenth using the EV/m = (š(30*PW*G))/d meters relationship. This way you don't need to follow the tedious math that converts everything to dB -----Original Message----- From: CERTADM Sent: Wednesday, March 27, 2002 5:10 PM To: '[email protected]' Subject: Breezecom Ltd., FCC ID:LKT-DS58, AN02T1907 Notice_content ------------- Question #1:Antenna type and Antenna gain: In the test report, Four type of antennas were tested. The antenna gains are : Integral-21dBi; Omni-7.5dBi; Sector-17dBi; and Dish-28.5dBi. However, in the MPE calculation, the antenna gain used for calculation are different than those documented in the test report. Please verify the information again and provide revised test data as necessary. Question #2: Please confirm : Antennas for point-to-point are: Integral( panel ) antenna with 21dBi gain and Dish/Sp2-5 antenna with 28dBi gain. For point-to-multipoint are : Omni with 7dBi gain, Sector with 17dBi gaina and Integral antenna with 21dBi gain. Question #3: Power Density plots can not be read. Please provide a clear copy of plots. Question #4: Please explain how you calculate 95.24dB in the page 4 of test report . Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

External Photos

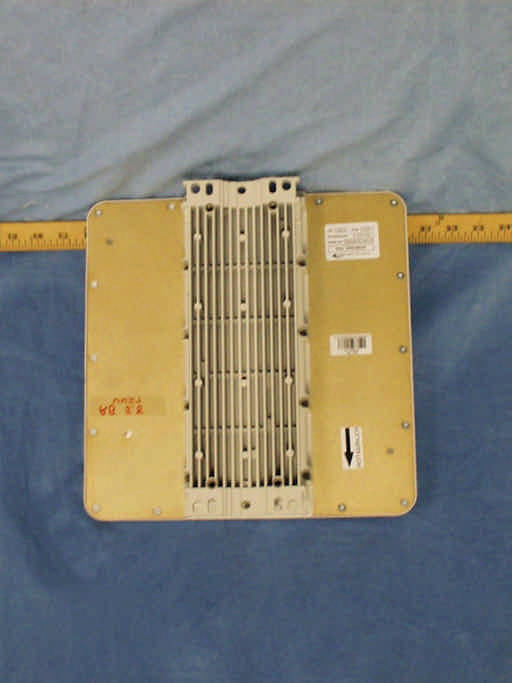

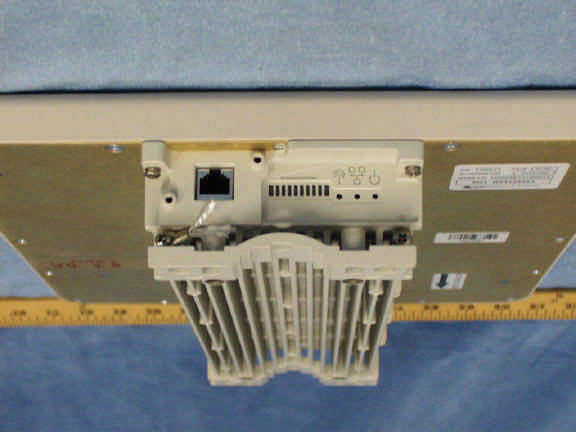

Alvarion 5.8 GHz Spread Spectrum FCC ID: LKT-DS58 Indoor and Outdoor Units, Base Station (BU) Configuration Alvarion 5.8 GHz Spread Spectrum FCC ID: LKT-DS58 Outdoor radio unit, Base Station (BU) Configuration Alvarion 5.8 GHz Spread Spectrum FCC ID: LKT-DS58 Outdoor radio unit, Base Station (BU) Configuration Alvarion 5.8 GHz Spread Spectrum FCC ID: LKT-DS58 Outdoor radio unit, Base Station (BU) Configuration Alvarion 5.8 GHz Spread Spectrum FCC ID: LKT-DS58 Outdoor radio unit, Base Station (BU) Configuration Alvarion 5.8 GHz Spread Spectrum FCC ID: LKT-DS58 Indoor and Outdoor unit, CPE (SU) Configuration Alvarion 5.8 GHz Spread Spectrum FCC ID: LKT-DS58 Outdoor unit, CPE (SU) Configuration Alvarion 5.8 GHz Spread Spectrum FCC ID: LKT-DS58 Outdoor unit, CPE (SU) Configuration

ID Label/Location Info

FCC Label/Location FCC ID: LKT-DS58 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation

Internal Photos

FCC ID: LKT-DS58 1 of 13 Internal Photographs for Alvarion 5.8 GHz DSSS Radio FCC ID: LKT-DS58 Power Supply/Data Inserter unit FCC ID: LKT-DS58 2 of 13 Power Supply/Data Inserter unit FCC ID: LKT-DS58 3 of 13 Power Supply/Data Inserter unit FCC ID: LKT-DS58 4 of 13 Outdoor radio unit, bottom cover removed FCC ID: LKT-DS58 5 of 13 Outdoor radio unit, up/down converter unit, board bottom FCC ID: LKT-DS58 6 of 13 Outdoor radio unit, up/down converter, case side FCC ID: LKT-DS58 7 of 13 Outdoor radio unit, up/down converter, component side, case removed FCC ID: LKT-DS58 8 of 13 Shield located under up/down converter, FCC ID: LKT-DS58 9 of 13 Outdoor radio unit, radio board component side FCC ID: LKT-DS58 10 of 13 Outdoor radio unit, radio board bottom side FCC ID: LKT-DS58 11 of 13 Outdoor radio unit, radio board component side with cans removed FCC ID: LKT-DS58 12 of 13 Outdoor radio unit, radio board heat sink detail FCC ID: LKT-DS58 13 of 13 Outdoor radio unit, radio board under heat sink

RF Exposure Info

Sheet1 8-Mar-02 Alvarion 5.8 GHz Spread SpectrumFCC ID: LKT-DS58 Calculate mW/cm2 here. Enter frequency in MHz: RF Hazard Distance Calculation Calculation of Limits from 1.1310 Table 1 Controlled UncontrolleAve 6 min Ave 30 min mW/cm2 from Table1: 1.00 F(MHz) A ctual F, MHz Occ, mW/c2 Gen, mW/cm2 0.3-3 1 100.0 100.0 Max RF Powe TX Antenna MPE 3.0 - 30.0 30 30.0 6.0P, dBm G, dBi Safe Distance, cm 30.0-300 20 1.0 0.2 300-1500 869 2.9 0.58 24.2 7.5 10.8 omni 1500-100000 1500 5.0 1.0 24.2 18.0 36.3 p2p sector 18.0 18.0 17.8 p2mp sector 24.2 29.0 128.9 p2p 2ft dish 24.2 21.0 51.3 p2p integral Enter P(watts ) Equivalent d Enter dBm Equivalent Watts Basis of Calculations: 4 36.0 36.0 4.0 E^2/3770 = S, mW/cm2E, V/m = (Pwatts*Ggain*30)^.5/d, metersd = ((Pwatts*G*30)/3770*S))^0.5 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10)NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less Page 1 Sheet1 d Page 2

RF Exposure Info

DS.5800 Antennas and Accessories Vendor Information and Pricing RadioWaves SEC-5V-90-16 90 degree sector, 17 dBi gain, 8 degree Elevation. Model Desc. List Alvarion SEC-5V-90-17 5.725 – 5.85 GHz, Vertical, 17 dBi $ 890.00 $ 356.00 RadioWaves SP2-5 2 ft. (0.6m) 28.5 dBi gain, solid parabolic dish, 6 x 6 degrees Terms & Conditions Delivery: see above Payment Terms: Net 45 Freight: FOB Radio Waves, USA or FOB Radio Waves, UK Validity This quote is valid for 90 days (#03130201-CC) We will buy the SP2-5.8NS for the near term until the SP2-5 is available, pricing is below: Get specs for the above antennas at www.radiowaves.com. Accessories: UNII Band Filter, 5.725 - 5.850 GHz band pass filter, 40dB rejection @ +- 250MHz This filter will be recommended in areas where there are high signal levels of 2.4 GHz or other out of band signals. Microwave Filter Co., Inc. 6743 Kinne Street E. Syracuse, NY 13057 800-448-1666 315-463-1467 fax [email protected] Vendor part number: 14712 100 = $99 250 = $94 Terms: 1% 15 days, Net 30 Reference quote number: 20020117JD3 Delivery: 4wks Radio Waves, Inc. 495 R Billerica Ave., N. Billerica, MA 01862 USA Tel: (978) 459-8800 Fax: (978) 459-3310 / 8814 SP2-5 NEW - 2-ft., Standard Antenna, 28.5 dBiOEM195.00$ 6 - 8 weeks Model #Antenna DescriptionQtyList PriceDelivery SP2-5.8NS Current Design 2-ft., Standard Antenna, 28.5 dBiOEM235.00$ 1 - 2 days for Qty <25. For Qty >25 3 - 5 days

RF Exposure Info

Test Report

1 EMISSIONS TEST REPORT FOR A LOW POWER TRANSMITTER I. GENERAL INFORMATION Requirement:Federal Communications Commissions Test Requirements: 15.205, 15.207, 15.209, 15.247 Applicant: Alvarion Ltd. Atidim Technological Park, Bldg. #1 P,O, Box 13139 Tel Aviv 61131 Israel Product ID: FCC ID: LKT-DS58 II. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) The Breezenet DS.5800 is a direct sequence spread spectrum transceiver, operating in the 5725 - 5850 MHz Part 15 ISM band Opertion is per IEEE 802.11b. Output power : 12 dBm, 15 dBm, 18 dBm, 21 dBm, or 24 dBm (software controlled). Lowest channel: Channel 1 ( 5740 MHz ) Highest channel: Channel 14 ( 5812 MHz ) Four modulation rates are available: 1 Mbps: DBPSK 2 Mbps: DQPSK 5.5 and 11 Mbps: CCK III. TEST LOCATION All emissions tests were performed at: Compliance Certification Services 571F Monterey Road Morgan Hill, CA 95037 2 T.N. Cokenias10 March 2002 EMC Consultant/Agent for Alvarion 3 TEST PROCEDURES Radiated Emissions Test Requirement: 15.109, 15.205, 15.209, 15.247 Measurement Equipment Used: Type of EquipmentManufactureModel Spectrum AnalyzerHP8566B Spectrum DisplayHP85662A Quasi-Peak DetectorHP85650A Pre-Amplifier (10k-1.3GHz) HP8447D Pre-Amplifier (1-26.5GHz) MITEQNSP2600-44 Bilog Antenna 30 - 1000 MHz CHASECBL6112 Horn Antenna (1-18GHz) EMCO3115 Horn Antenna (18-26.5GHz) ARAMWH-1826/B Horn Antenna (26.5-40GHz) DICO1149 Harmonic Mixer (18-26.5GHz) HP11970K Harmonic Mixer (26.5-40GHz) HP11970A HPF (1.8GHz)FSYHP 1800-9SS HPF (7.6GHz)FSYHP 7600-9SS Test Procedures, 1- 22 GHz: 1. The EUT was placed on a wooden table resting on a turntable on the open air test site. The search antenna was placed 3m from the EUT. The EUT antenna was mounted vertically as per normal installation. 2. The turntable was slowly rotated to locate the direction of maximum emission at each emission falling in the restricted bands of 15.205. 3. Radiated emissions were investigated for a LOW channel, a MID channel, and HIGH channel. Emissions were investigated to the 10 th harmonic. 4 4. Once maximum direction was determined, the search antenna was raised and lowered in both vertical and horizontal polarizations. The maximum readings so obtained are recorded in the data listed below. Test Procedures, 22 - 40 GHz: 5. The EUT was moved to within 1 m of the appropriate external mixer antenna used for the frequency band being investigated. 6. The external mixer antenna was raised and lowered in horizontal and vertical polarity along each face of the EUT and the EUT antenna. 7. Maximum reading obtained in (5) and (6) was recorded on the spread sheet Radiated Test Set-up, 1-40 GHz d: 1-3m 1-2m d -or- preamplifier HP11970A HP11975A Fig. 1 Testing was performed at 3 different frequencies ChannelFrequency, MHz Low5740 Mid5780 High5812 Radiated emissions were performed at each frequency 4 different transmitter antennas at maximum input power to antenna. Antennas tested: 5 Antenna TypeGainAntenna Manufacturer Model Number Integral panel (P2P)21 dBiMars AntennaMA575820V Omnidirectional(P2MP)7.5 dBiRadioWavesMFB58008 Sector antenna(P2P &(P2MP)17 dBi RadioWavesSEC-5V-90-17 2 ft.Dish (P2P)29 dBi 28.5 dBi typ RadioWaves SP2-58NS Test Results: Worst case results are presented. Refer to separate Excel spread sheet files. NOTE: For radiated emissions that fall on restricted bands per 15.205, emissions limit is 54 dBuV/m at 3 m for emissions above 960 MHz. Per 15.247(c) all other undesired emissions must be 20 dB below the highest in-band emission when measured in a 100 kHz bandwidth. Conducted measurements are presented for emissions up to 26.5 GHz. For emissions above 26.5 GHz only radiated emissions were possible due to the operating frequency limitation of the spectrum analyzer. The equivalent field strength for a radiated emission 20 dB below peak emission is calculated below: 24.2 dBm - 20 dB = 4.2 dBm conducted emission maximum. Assume 0 dBi = 1 numeric (worst case for radiated emission limit) antenna gain , out of band. Relationship between E, V/m and TX power at 3m separation: EV/m = ( • (30*PW*G))/d meters 4 dBm = 2.51 mW = .00251 watts E V/m at 3 m = ( • (30*.00251*1))/3 meters = .009146 V/m = 91,469 uV/m = 99,2 dBuV/m Radiated emissions test results indicate emissions more than 30 dB below limit for 15.247(c) 20dB out of band requirement. Radiated Test Set-up, 30 - 1000 MHz 6 Antenna mast Ground plane 1 - 4 meters 3 meters turntable, laptop computer preamplifier spectrum analyzer Test Procedures, 30 -1000 MHz The EUT was set to RECEIVE/TRANSMIT mode. Radiation emissions from the digital portion of the EUT were measured according to the dictates of ANSI C63.4. Test Results Refer to tabulated data sheet. 7 Minimum 6 dB Bandwidth Test Requirement: 15.247(a)2 Measurement Equipment Used: HP 8593EM Spectrum Analyzer 6’ length low loss coaxial cable Test Procedures The EUT was configured on a test bench. The EUT was set for continuous operation (TDD function turned OFF) . Frequency was set to 5.740 GHz (LOW channel). While the transmitter broadcast a steady stream of digital data, the analyzer MAX HOLD function was used to capture the envelope of the transmission occupied bandwidth. The test was repeated at 5.780 GHz (MID channel) and at 5.812 GHz (HIGH channel). Test Results: Refer to attached spectrum analyzer charts. Data taken with RES BW of 100 kHz shows minimum 6 dB BW of 10.5 MHz. Minimum requirement: 500 kHz ChannelFrequency, MHz Low5740 Mid5780 High5812 NOTE: 6 dB bandwidth was measured at each modulation, with essentially the same bandwidth resulting. Data is presented for the 11 Mbps modulation setting. 8 15.247(a)2: Minimum 6 dB Bandwidth 9 10 RF Power Output Test Requirement:15.247(b) Measurement Equipment Used: Gigatronics Peak Power Meter model 8651A cal 01/02/2002 Gigatronics Peak Power Sensor model 80701A cal 01/02/2002 Test Procedures 1. The EUT was configured on a test bench. The power meter was zeroed and calibrated. The control software was activated and power was se…

Text truncated - open the document above for the full version.

Test Report

11 Processing gain measurements 1.1 Processing gain according to §15.247 (e)(2) 1.1.1 General This test was performed to demonstrate that the processing gain of the system was at least 10 dB. 1.1.2 Test procedure The processing gain was measured using the CW jamming margin method. Test setup is shown in Figure 1. A signal generator was stepped in 50 kHz increments across the pass band of the system, recording at each point the generator level required to produce the BER = 10 -5 . This level was the jammer level. The output power of the intentional radiator was measured at the same point. The jammer to signal ratio (J/S) was then calculated, discarding the worst 20% of the J/S data points. The lowest remaining J/S ratio was used to calculate the processing gain as follows: G p = (S/N) o + M j + L sys , where G p = processing gain of the system, (S/N) o = signal to noise ratio = 16.4 dB @ BER 10 -5 (Alvarion Declaration) M j = J/S ratio, the worst case, was found –1.7 dB, L sys = system losses = 2 dB; hence G p = 16.4 – 1.7 + 2 = 16.7 dB. > 10dB APPENDIX A – Test equipment and ancillaries used for tests Serial No. Description Manufacturer Model No. Due Calibr. 3412A00137 Spectrum analyzer, 9 kHz-22 GHz Hewlett Packard 8529L Oct-30-2002 3308A72547 Attenuator, 50 Ohm, 2W, 0- 18 GHz, 0-110dB Hewlett Packard 8496B Oct-30-2002 3308A40537 Attenuator, 50 Ohm, 2W, 0- 18 GHz, 0-11dB Hewlett Packard 8494B Oct-30-2002 GB40513342 Power meter, RF Agilent E4419B Oct-30-2002 US38482878 Power sensor, E series sensor –70-+20dBm, 50MHz-26.5GHz Agilent E4413B Oct-30-2002 US37100986 Frequency synthesized signal generator 1-20GHz Agilent 83731B July-3-2002 Channel 1 Minimum process gain:16.7 Frequency(S/N)ReferenceJammerJ/SSystemProcess SignalLossesGain [MHz][dB][dBm][dBm][dB][dB][dB] 5731.516.4-44.4-46.1-1.7216.7 5731.5516.4-44.4-46-1.6216.8 5731.616.4-44.4-46-1.6216.8 5731.6516.4-44.4-45.9-1.5216.9 5731.716.4-44.4-45.9-1.5216.9 5731.7516.4-44.4-45.9-1.5216.9 5731.816.4-44.4-45.9-1.5216.9 5731.8516.4-44.4-45.8-1.4217 5731.916.4-44.4-45.8-1.4217 5731.9516.4-44.4-45.9-1.5216.9 573216.4-44.4-45.9-1.5216.9 5732.0516.4-44.4-45.7-1.3217.1 5732.116.4-44.4-45.7-1.3217.1 5732.1516.4-44.4-45.8-1.4217 5732.216.4-44.4-45.6-1.2217.2 5732.2516.4-44.4-45.7-1.3217.1 5732.316.4-44.4-45.7-1.3217.1 5732.3516.4-44.4-45.6-1.2217.2 5732.416.4-44.4-45.7-1.3217.1 5732.4516.4-44.4-45.7-1.3217.1 5732.516.4-44.4-45.6-1.2217.2 5732.5516.4-44.4-45.5-1.1217.3 5732.616.4-44.4-45.3-0.9217.5 5732.6516.4-44.4-45.1-0.7217.7 5732.716.4-44.4-44.6-0.2218.2 5732.7516.4-44.4-42.81.6220 5732.816.4-44.4-42.91.5219.9 5732.8516.4-44.4-42.81.6220 5732.916.4-44.4-42.81.6220 5732.9516.4-44.4-42.81.6220 573316.4-44.4-42.71.7220.1 5733.0516.4-44.4-42.71.7220.1 5733.116.4-44.4-42.51.9220.3 5733.1516.4-44.4-42.61.8220.2 5733.216.4-44.4-42.32.1220.5 5733.2516.4-44.4-42.51.9220.3 5733.316.4-44.4-42.32.1220.5 5733.3516.4-44.4-42.42220.4 5733.416.4-44.4-42.51.9220.3 5733.4516.4-44.4-42.32.1220.5 5733.516.4-44.4-42.32.1220.5 5733.5516.4-44.4-42.12.3220.7 5733.616.4-44.4-42.22.2220.6 5733.6516.4-44.4-42.12.3220.7 5733.716.4-44.4-422.4220.8 5733.7516.4-44.4-422.4220.8 5733.816.4-44.4-41.82.6221 5733.8516.4-44.4-41.72.7221.1 5733.916.4-44.4-41.82.6221 5733.9516.4-44.4-41.43221.4 573416.4-44.4-41.33.1221.5 5734.0516.4-44.4-40.93.5221.9 5734.116.4-44.4-40.93.5221.9 5734.1516.4-44.4-40.73.7222.1 5734.216.4-44.4-40.83.6222 5734.2516.4-44.4-40.53.9222.3 5734.316.4-44.4-40.63.8222.2 5734.3516.4-44.4-40.63.8222.2 5734.416.4-44.4-40.44222.4 5734.4516.4-44.4-40.53.9222.3 5734.516.4-44.4-40.24.2222.6 5734.5516.4-44.4-404.4222.8 5734.616.4-44.4-40.14.3222.7 5734.6516.4-44.4-404.4222.8 5734.716.4-44.4-39.94.5222.9 5734.7516.4-44.4-39.94.5222.9 5734.816.4-44.4-39.74.7223.1 5734.8516.4-44.4-39.84.6223 5734.916.4-44.4-39.84.6223 5734.9516.4-44.4-39.64.8223.2 573516.4-44.4-39.54.9223.3 5735.0516.4-44.4-39.54.9223.3 5735.116.4-44.4-39.64.8223.2 5735.1516.4-44.4-39.45223.4 5735.216.4-44.4-39.54.9223.3 5735.2516.4-44.4-39.45223.4 5735.316.4-44.4-39.35.1223.5 5735.3516.4-44.4-39.35.1223.5 5735.416.4-44.4-39.25.2223.6 5735.4516.4-44.4-39.15.3223.7 5735.516.4-44.4-39.15.3223.7 5735.5516.4-44.4-395.4223.8 5735.616.4-44.4-39.15.3223.7 5735.6516.4-44.4-395.4223.8 5735.716.4-44.4-38.95.5223.9 5735.7516.4-44.4-38.95.5223.9 5735.816.4-44.4-38.85.6224 5735.8516.4-44.4-38.75.7224.1 5735.916.4-44.4-38.95.5223.9 5735.9516.4-44.4-38.85.6224 573616.4-44.4-38.75.7224.1 5736.0516.4-44.4-38.95.5223.9 5736.116.4-44.4-38.85.6224 5736.1516.4-44.4-38.75.7224.1 5736.216.4-44.4-38.75.7224.1 5736.2516.4-44.4-38.75.7224.1 5736.316.4-44.4-38.65.8224.2 5736.3516.4-44.4-38.55.9224.3 5736.416.4-44.4-38.46224.4 5736.4516.4-44.4-38.46224.4 5736.516.4-44.4-38.55.9224.3 5736.5516.4-44.4-38.46224.4 5736.616.4-44.4-38.46224.4 5736.6516.4-44.4-38.55.9224.3 5736.716.4-44.4-38.46224.4 5736.7516.4-44.4-38.46224.4 5736.816.4-44.4-38.36.1224.5 5736.8516.4-44.4-38.36.1224.5 5736.916.4-44.4-38.26.2224.6 5736.9516.4-44.4-38.26.2224.6 573716.4-44.4-38.16.3224.7 5737.0516.4-44.4-38.16.3224.7 5737.116.4-44.4-38.26.2224.6 5737.1516.4-44.4-38.16.3224.7 5737.216.4-44.4-386.4224.8 5737.2516.4-44.4-38.16.3224.7 5737.316.4-44.4-38.16.3224.7 5737.3516.4-44.4-38.16.3224.7 5737.416.4-44.4-38.16.3224.7 5737.4516.4-44.4-38.16.3224.7 5737.516.4-44.4-386.4224.8 5737.5516.4-44.4-386.4224.8 5737.616.4-44.4-386.4224.8 5737.6516.4-44.4-386.4224.8 5737.716.4-44.4-37.96.5224.9 5737.7516.4-44.4-37.96.5224.9 5737.816.4-44.4-386.4224.8 5737.8516.4-44.4-37.96.5224.9 5737.916.4-44.4-37.96.5224.9 5737.9516.4-44.4-37.96.5224.9 573816.4-44.4-37.86.6225 5738.0516.4-44.4-37.66.8225.2 5738.116.4-44.4-37.47225.4 5738.1516.4-44.4-37.56.9225.3 5738.216.4-44.4-37.47225.4 5738.2516.4-44.4-37.37.1225.5 5738.316.4-44.4-37.27.2225.6 5738.3516.4-44.4-37.17.3225.7 5738.416.4-44.4-37.17.3225.7 5738.4516.4-44.4-37.17.3225.7 5738.516.4-44.4-377.4225.8 5738.5516.4-44.4-377.4225.8 5738.616.4-44.4-36.97.5225.9 5738.6516.4-44.4-36.97.5225.9 5738.716.4-44.4-36.87.6226 5738.7516.4…

Text truncated - open the document above for the full version.

Test Report

561F Monterey Road Morgan Hill, CA 95037 Tel: (408) 463-0885 Fax:(408) 463-0888 Data#: 11File#: LC0219.EMIDate: 02-19-2002 Time: 15:38:27 Trace:Ref Trace: Project# : 02U1143-1 Company : Alvarion EUT Description : 5.725 - 5.850 GHz DSSS Radio Device Model Number : 2.4/5.8 GHz Spread Spectrum Test Configurtion: BU-DS11, BU 5.8, 5.8 GHz antenna Test Target : FCC CLASS B Mode of Operation: Normal : Pea: L1(GREEN), L2(BLACK) : 115Vac, 60Hz 561F Monterey Road Morgan Hill, CA 95037 Tel: (408) 463-0885 Fax:(408) 463-0888 Data#: 4File#: LC0219.EMIDate: 02-19-2002 Time: 15:11:01 Trace:Ref Trace: Project# : 02U1143-1 Company : Alvarion EUT Description : 5.725 - 5.850 GHz DSSS Radio Device Model Number : 2.4/5.8 GHz Spread Spectrum Test Configurtion: BU-DS11, BU 5.8, 5.8 GHz antenna Test Target : FCC CLASS B Mode of Operation: Normal : PEAK: L1 : 115Vac, 60Hz 02U1143-1 020219A01 02/19/0211:34 AM Frank Ibrahim Alvarion 5.725 - 5.850 DSSS Radio Device FCC CLASS B , Digitap part Normal 02/19/02 Freq.ReadingAFClossPre-ampLevelLimitMarginPolAzHeightMark (MHz)(dBuV)(dB)(dB)(dB)(dBuV/m)FCC_B(dB)(H/V)(Deg)(Meter)(P/Q/A) 264.0046.9014.622.1827.0536.6646.00-9.343mV0.001.00P 352.0046.0016.132.6227.4537.3046.00-8.703mV0.001.00P 416.0047.1017.432.9027.9039.5246.00-6.483mV0.001.00P 589.7746.9019.843.4928.5441.6946.00-4.313mV0.001.00P 264.0050.7014.112.1827.0539.9546.00-6.053mH0.001.00P 352.0047.1015.842.6227.4538.1246.00-7.883mH0.001.00P 384.0046.7016.682.7627.6938.4546.00-7.553mH0.001.00P 442.1750.0017.753.0228.0642.7046.00-3.303mH0.001.00P 416.0045.0017.342.9027.9037.3446.00-8.663mH0.001.00P 589.7647.3019.523.4928.5441.7746.00-4.233mH0.001.00P Total data #: 10 V.2a Company: EUT Description: Test Configuration : Type of Test: Mode of Operation: FCC, VCCI, CISPR, CE, AUSTEL, NZ UL, CSA, TUV, BSMI, DHHS, NVLAP 561F MONTEREY ROAD, SAN JOSE, CA 95037-9001 PHONE: (408) 463-0885 FAX: (408) 463-0888 Project #: Report #: Date& Time: Test Engr: A-Site nmlkji A-Site nmlkji B-Site nmlkj B-Site nmlkj C-Site nmlkj C-Site nmlkj F-Site nmlkj F-Site nmlkj 6 Worst Data Descending 02/20/2002 and 02/21/02 Compliance Certification Services, Morgan Hill Open Field Site Equipment for 1-18 GHzEquipment for 18-26.5 GHzEquipment for 26.5-40 GHz HP8566B AnalyzerHP8566B AnalyzerHP8566B Analyzer MITEQ NSP2600-44 PreampHP11975A Preamp (LO)HP 11975A Amplifier (LO) EMCO 3115 Antenna; S/N:2238ARA MWH-1826B & HP11970KHP 11970A External mixer/antenna (#2) Cable:12.0feetCable:3.0feetCable: IF Only (321 MHz) Conns:4Conns:4 Avg Lim:54.0dBuV/mSection 15.209 limitAverage Spurious:Peak Spurious: Peak Lim:74.0dBuV/mSection 15.209 limitRBW > 1 MHzRBW > 1 MHz VBW = 10 HzVBW >= RBW Peak DetectPeak Detect Linear ModeLinear Mode fDistReadAFCLAmpD CorrEwLimitMarginRBWVBWPolarizeDetectNotes GHzcmdBuVdB/mdBdBdBdBuV/mdBuV/mdBHzHz DISH CH 14 2.485300.057.530.32.7-42.30.048.154.0-5.91M1Mverticalpeak 2.484300.058.930.32.7-42.30.049.554.0-4.51M1Mverticalpeak 3.328300.052.032.33.1-42.10.045.354.0-8.71M1Mverticalpeak CH 145.8120GHz (harmonic) 11.624250.058.340.06.4-39.7-1.663.474.0-10.61M1Mverticalpeak 11.624250.047.640.06.4-39.7-1.652.754.0-1.31M10verticalaverage 11.624250.056.740.06.4-39.7-1.661.874.0-12.21M1Mhorizontalpeak 11.624250.044.540.06.4-39.7-1.649.654.0-4.41M10horizontalaverage 17.436200.047.244.48.7-44.1-3.552.799.6-46.91M1Mverticalpeak 25.982200.036.933.93.8-30.0-3.541.199.6-58.51M1Mverticalpeak CH 95.7800GHz (harmonic) 11.560250.056.840.06.4-39.7-1.661.974.0-12.11M1Mverticalpeak 11.560250.045.640.06.4-39.7-1.650.754.0-3.31M10verticalaverage 11.560250.053.040.06.4-39.7-1.658.174.0-15.91M1Mhorizontalpeak 11.560250.042.640.06.4-39.7-1.647.754.0-6.31M10horizontalaverage 17.340200.047.244.08.7-44.1-3.552.399.6-47.31M1Mverticalpeak 25.839200.037.633.93.8-30.0-3.541.799.6-57.91M1Mverticalpeak CH 15.7400GHz (harmonic) 11.480250.058.340.06.4-39.6-1.663.574.0-10.51M1Mverticalpeak 11.480250.047.240.06.4-39.6-1.652.454.0-1.61M10verticalaverage 11.480250.055.640.06.4-39.6-1.660.874.0-13.21M1Mhorizontalpeak 11.480250.044.240.06.4-39.6-1.649.454.0-4.61M10horizontalaverage 17.220200.047.243.68.6-44.1-3.551.999.6-47.71M1Mverticalpeak 25.659200.039.033.83.8-30.0-3.543.199.6-56.51M1Mverticalpeak fMeasurement FrequencyCLCable LossEwField Strength @ 3 m DistDistance to AntennaAmpPreamp GainLimitField Strength Limit @ 3m ReadAnalyzer ReadingD CorrDistance Correct to 3 metersRBWResolution Bandwidth AFAntenna FactorVBWVideo Bandwidth NOTE: with any red color limit, you may use 20dB down. 15.247, -20dBc restricted band 10.6 - 12.7GHz restricted band 10.6 - 12.7GHz restricted band 10.6 - 12.7GHz 15.247, -20dBc 15.247, -20dBc restricted band 10.6 - 12.7GHz restricted band 10.6 - 12.7GHz restricted band 10.6 - 12.7GHz restricted band 10.6 - 12.7GHz 15.247, -20dBc 15.247, -20dBc restricted band 10.6 - 12.7GHz restricted band 10.6 - 12.7GHz restricted band 10.6 - 12.7GHz restricted band 10.6 - 12.7GHz 15.247, -20dBc restricted band 2483.5 - 2500MHz LO for 5.8 GHz LO restricted band 10.6 - 12.7GHz 02/20/2002 and 02/21/02 Compliance Certification Services, Morgan Hill Open Field Site Equipment for 1-18 GHzEquipment for 18-26.5 GHzEquipment for 26.5-40 GHz HP8566B AnalyzerHP8566B AnalyzerHP8566B Analyzer MITEQ NSP2600-44 PreampHP11975A Preamp (LO)HP 11975A Amplifier (LO) EMCO 3115 Antenna; S/N:2238ARA MWH-1826B & HP11970KHP 11970A External mixer/antenna (#2) Cable:12.0feetCable:3.0feetCable: IF Only (321 MHz) Conns:4Conns:4 Avg Lim:54.0dBuV/mSection 15.209 limitAverage Spurious:Peak Spurious: Peak Lim:74.0dBuV/mSection 15.209 limitRBW > 1 MHzRBW > 1 MHz VBW = 10 HzVBW >= RBW Peak DetectPeak Detect Linear ModeLinear Mode fDistReadAFCLAmpD CorrEwLimitMarginRBWVBWPolarizeDetectNotes GHzcmdBuVdB/mdBdBdBdBuV/mdBuV/mdBHzHz PANEL CH 14 2.485300.055.230.32.7-42.30.045.854.0-8.21M1Mverticalpeak 2.484300.056.030.32.7-42.30.046.654.0-7.41M1Mverticalpeak 3.328300.052.032.33.1-42.10.045.354.0-8.71M1Mverticalpeak CH 145.8120GHz (harmonic) 11.624250.058.540.06.4-39.7-1.663.674.0-10.41M1Mverticalpeak…

Text truncated - open the document above for the full version.

Test Setup Photos

Alvarion 5.8 GHz Spread SpectrumFCC ID: LKT-DS58 Test Set-up Photographs - Dish Antenna Alvarion 5.8 GHz Spread SpectrumFCC ID: LKT-DS58 Test Set-up Photographs - Sector Antenna Alvarion 5.8 GHz Spread SpectrumFCC ID: LKT-DS58 Test Set-up Photographs - Omni Antenna Alvarion 5.8 GHz Spread SpectrumFCC ID: LKT-DS58 Test Set-up Photographs - Integral Antenna, 1-18 GHz Alvarion 5.8 GHz Spread SpectrumFCC ID: LKT-DS58 Test Set-up Photographs - Integral Antenna, 18-26 GHz

Contact Information

Applicant

Gennady Furmanov(Senior HW Engineer)

[email protected]972-3-7674222Fax: 972-3-7674491

Test Firm

Compliance Certification Services IncSteve Cheng

[email protected]408-463-0885Fax: 408-463-0888

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	5.74 GHz - 5.81 GHz	252.00 mW

Confidentiality

Long Term

Grant Notes

Output is conducted. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 2 meters from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
