LKT-IF-900Broadband Wireless Access System

Version 1.02 BreezeACCESS 900 System Manual May 2003 Cat. No. 213474 Error! No text of specified style in document. BreezeACCESSS 900 System Manual ii Legal Rights Legal Rights © 2003 by Alvarion Ltd. All rights reserved. No part of this publication may be reproduced in any material form without the written permission of the copyright owner. Trade Names Alvarion®, BreezeACCESS®, BreezeCOM®, BreezeLINK®, BreezePHONE®, BreezeNET®, WALKair®, WALKnet®, are trade names or trademarks of Alvarion Ltd. Other brand and product names are trade names or trademarks of their respective owners. Statement of Conditions The information contained in this manual is subject to change without notice. Alvarion Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Warranties and Disclaimers All Alvarion Ltd. (“Alvarion”) products purchased from Alvarion or through any of Alvarion’s authorized resellers are subject to the following warranty and product liability terms and conditions. Exclusive Warranty Alvarion warrants that the Product hardware it supplies and the tangible media on which any software is installed, under normal use and conditions, will be free from significant defects in materials and workmanship for a period of fourteen (14) months from the date of shipment of a given Product to Purchaser (the “Warranty Period”). Alvarion will, at its sole option and as Purchaser’s sole remedy, repair or replace any defective Product in accordance with Alvarion’ standard RMA procedure. Manual Revision 1.0 - Preliminary i Legal Rights Disclaimer (a) UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO PURCHASER HEREUNDER ARE NOT FAULTTOLERANT AND ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE (“HIGH RISK ACTIVITIES”). HIGH RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF ONLINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD. ALVARION SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES. (b) PURCHASER’S SOLE REMEDY FOR BREACH OF THE EXPRESS WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE PURCHASE PRICE AS SPECIFIED ABOVE, AT ALVARION’S OPTION. TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, NONINFRINGEMENT, AND ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY DISCLAIMED. ALVARION’ WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE NOT EXTENDED TO ANY THIRD PARTIES. ALVARION NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. BreezeACCESSS 900 System Manual ii Legal Rights (c) ALVARION SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY PURCHASER’S OR ANY THIRD PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. Limitation of Liability (a) ALVARION SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE AND WHETHER BASED ON THIS AGREEMENT OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. (b) TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE LIABILITY FOR DAMAGES HEREUNDER OF ALVARION OR ITS EMPLOYEES OR AGENTS EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT BY PURCHASER, NOR SHALL THE AGGREGATE LIABILITY FOR DAMAGES TO ALL PARTIES REGARDING ANY PRODUCT EXCEED THE PURCHASE PRICE PAID FOR THAT PRODUCT BY THAT PARTY (EXCEPT IN THE CASE OF A BREACH OF A PARTY’S CONFIDENTIALITY OBLIGATIONS). Electronic Emission Notices This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Manual Revision 1.0 - Preliminary iii Legal Rights FCC Radio Frequency Interference Statement The Cell Extender equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in commercial, business and industrial environments. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at the user’s own expense. The Subscriber Unit equipment has been tested and found to comply with the limits for a class B digital devic…

Text truncated - open the document above for the full version.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 email: [email protected] Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 Attention: Mike Kuo Re: Request to withhold portions of certification application from public view FCC Rule Part: 0.459 Applicant: Alvarion Ltd. FCC ID: LKT-IF-900 Dear Mike, On behalf of my client Alvarion Ltd. I request the following documents be withheld from public view: Schematics Block diagram Theory of operation Alvarion has invested considerable resources in the design and execution of this product and as such, other manufacturers would be afforded an unfair competitive advantage were the referenced documents to be made easily available. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N COKENIAS Agent for Alvarion Ltd.

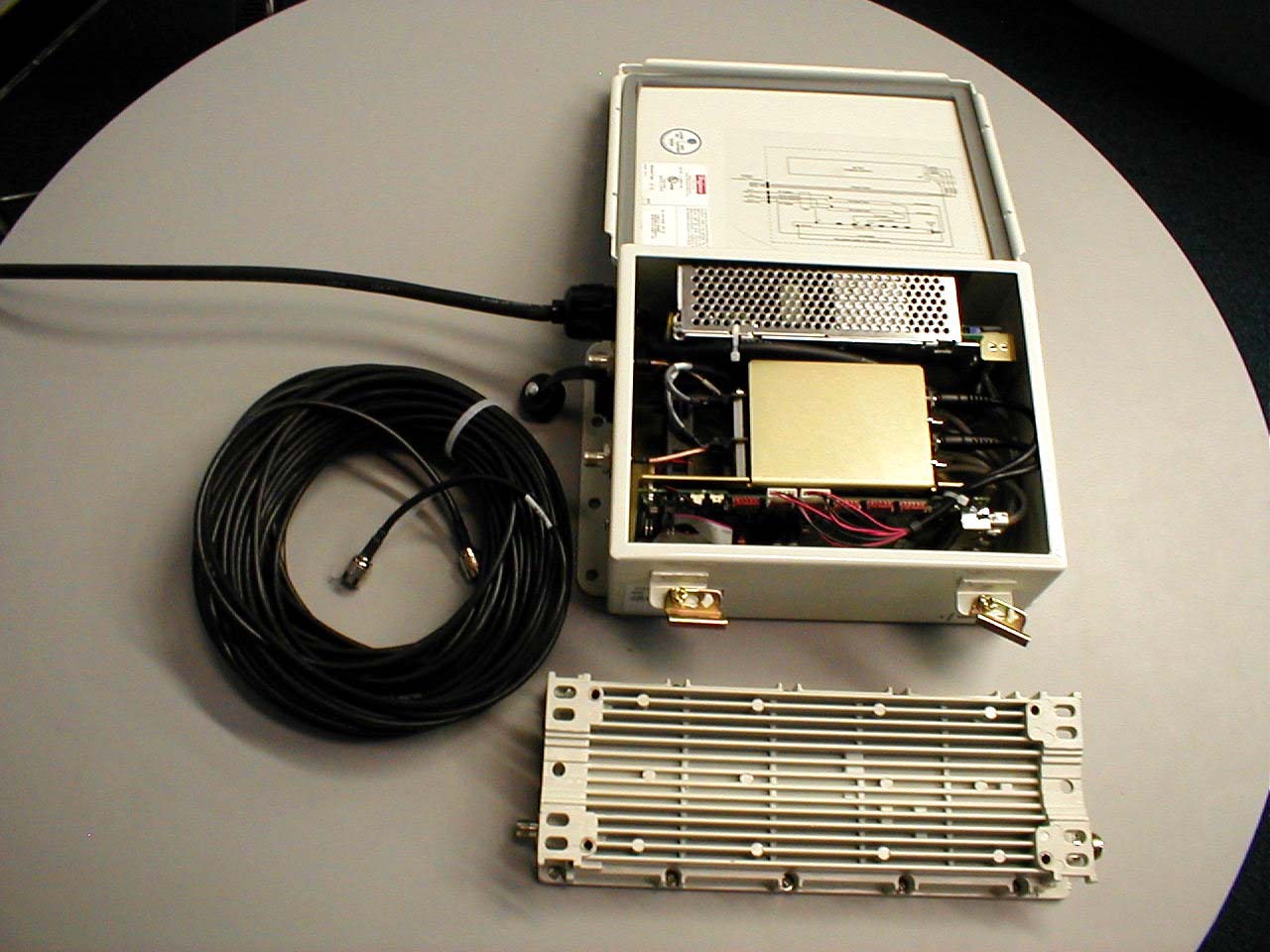

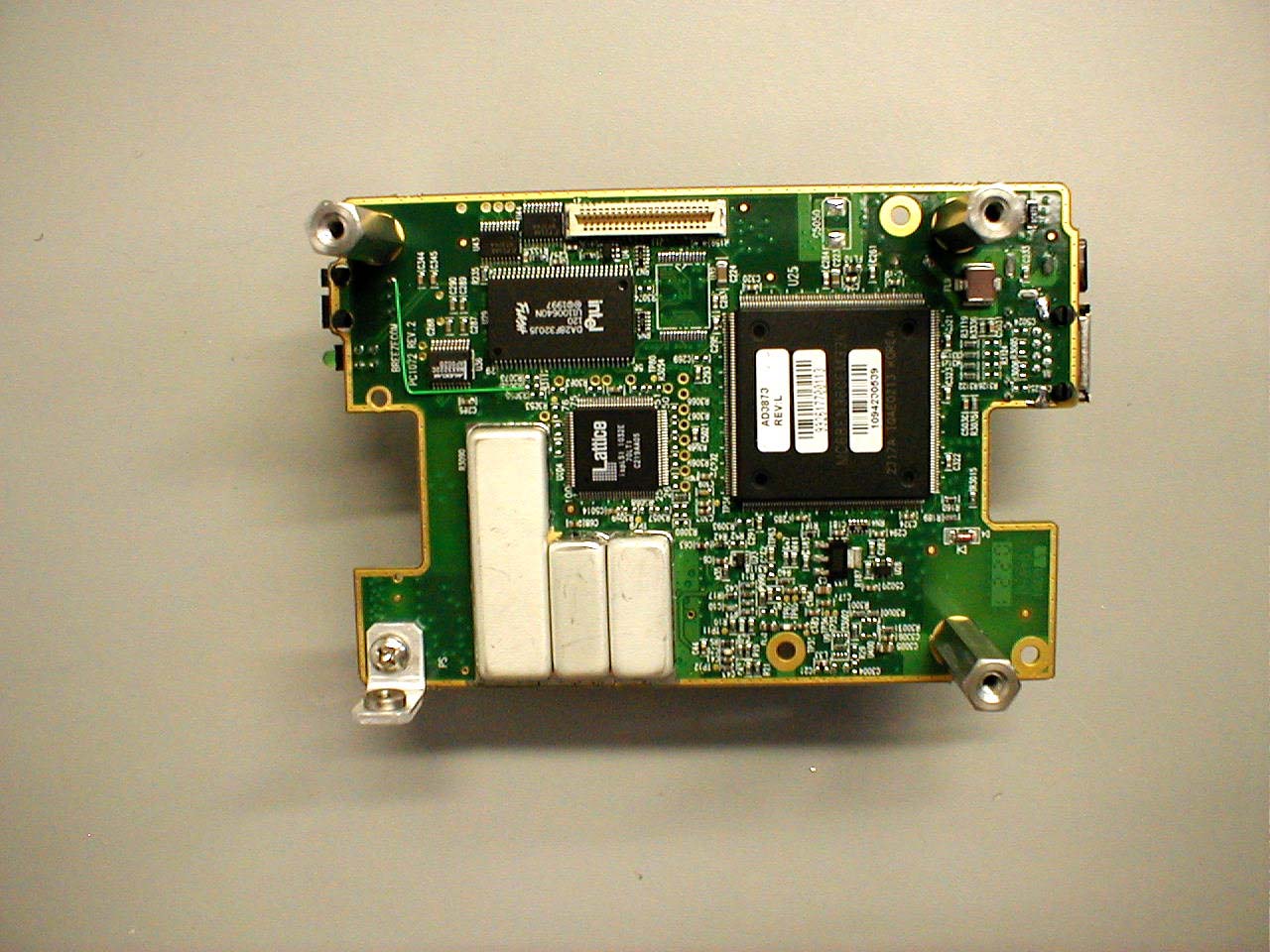

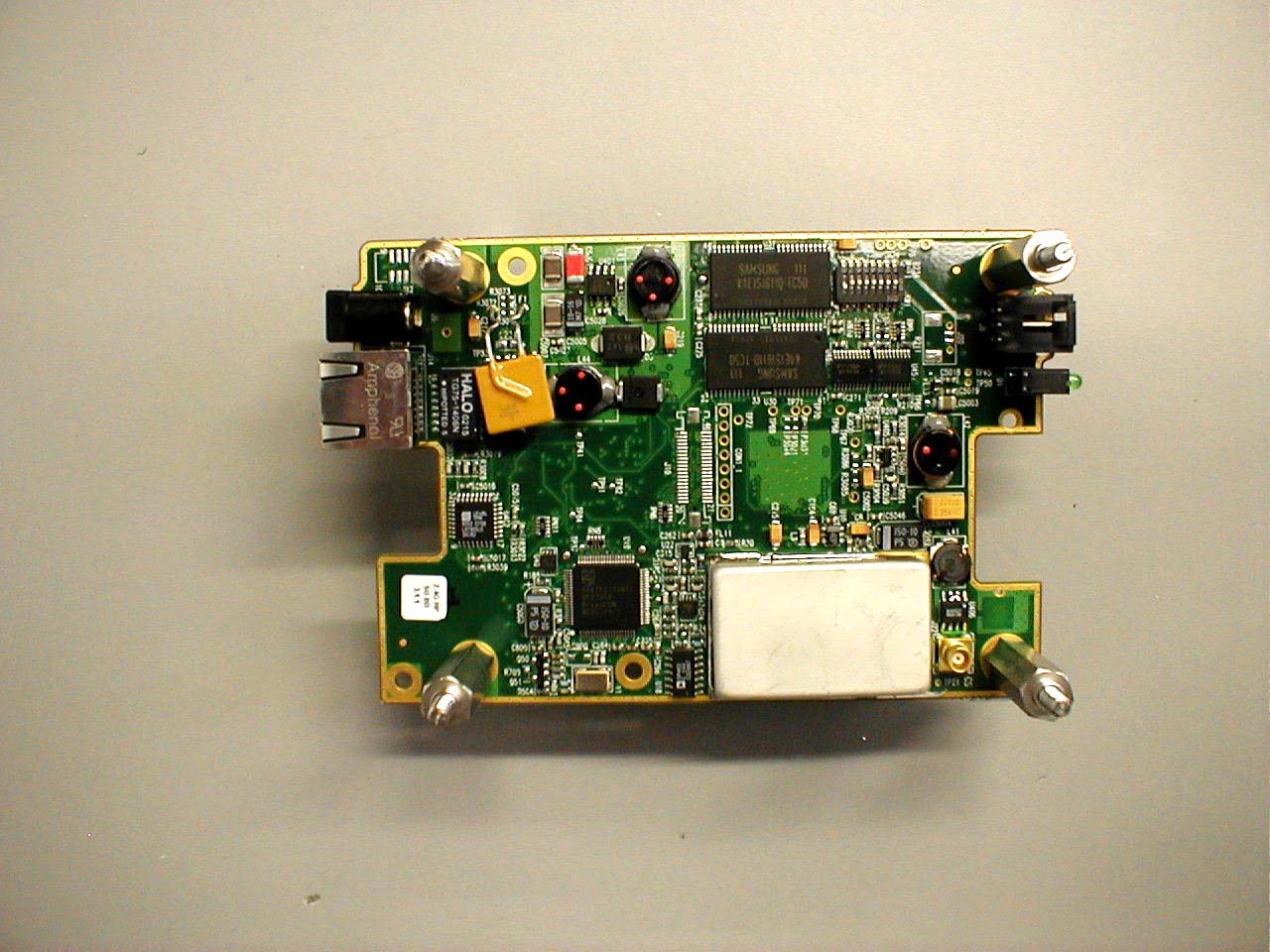

Alvarion Product Photographs FCC ID: LKT-IF-900 Indoor unit and outdoor unit with IF cable Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit, power supply rear Indoor unit, power supply top Indoor unit, hub card side 1 Indoor unit, hub card side 2 IDU IF card side 1 IDU IF card side 1 can removed IDU IF card side 2 IDU IF card side 2 cans removed Indoor unit, ethernet cable assembly Indoor unit, chassis back Indoor unit, chassis front

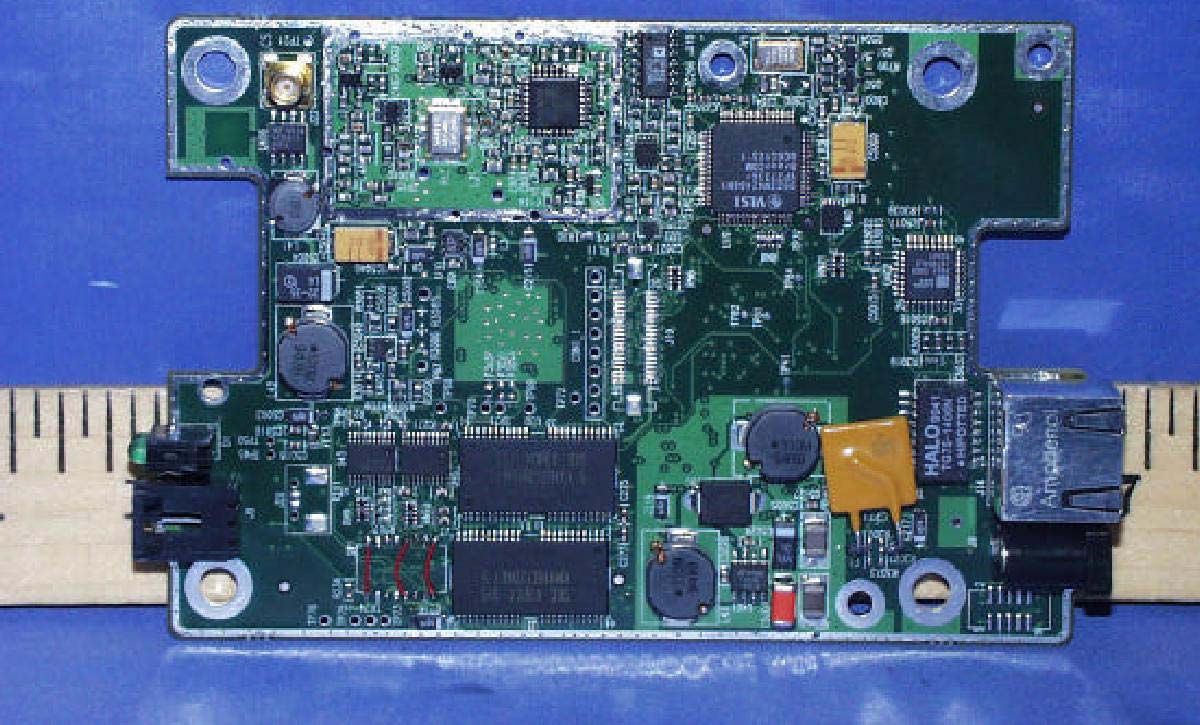

Alvarion Product Photographs Subscriber Unit IF for use with ODU FCC ID: LKT-IF-900 Indoor unit and power supply Indoor unit IF output, DC and Ethernet connector Indoor unit serial port (monitor) connector (set-up only) IDU IF card side 1 IDU IF card side 1 can removed IDU IF card side 2 IDU IF card side 2 cans removed

Sheet1 Alvarion MPE CalculationsFCC ID: LKT-IF-900 Calculate mW/cm2 here. Enter frequenc RF Hazard Distance Calculation Calculation of Limits from 1.1310 Table 1 mW/cm2 from Table1: 0.60 F(MHz) Actual F, MHz 0.3-3 0.5 Max RF Powe TX Antenna MPE Cable Model POWER INDE 3.0 - 30.0 5 P, dBm G, dBi Safe Distance, cm 30.0-300 55 (ant. Term) 300-1500 902 1500-100000 5555 22.8 14.6 27.0 1ftSMA/N cable IF-900 14 22.5 14.6 26.0 10 ft LMR400 IF-900 14 24.5 14.6 32.8 100ft LMR 400 IF-900 15 Enter P(watts) Equivalent dBm Enter dBm Basis of Calculations: 4 36.0 36.0 E^2/3770 = S, mW/cm2E, V/m = (Pwatts*Ggain*30)^.5/d, metersd = ((Pwatts*G*30)/3770*S))^0.5 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less Page 1 Sheet1 UncontrolledAve 30 min Gen, mW/cm2 100.0 36.0 0.2 0.60 1.0 atts Page 2

561F Monterey Road Morgan Hill, CA 95037, U.S.A. Tel: (408) 463-0885 Fax:(408) 463-0888 Data#: 12File#: emi albvarion.EMIDate: 04-02-2003 Time: 09:41:41 Trace: 10 Ref Trace: Condition: FCC CLASS-B 3m CHAMBER 030117 1185 HORIZONTAL Company : Alvarion Ltd EUT Description : Alvarion 902-928MHz DTS Device Model Number : 900CX AU Test Configurtion: EUT, Antenna, Test Target : FCC classB Mode of Operation: Constant Tx : Note: Page: 1 Read Probe Cable Preamp Limit Over Freq Level Factor Loss Factor Level Line Limit Remark _________ ______ ______ ______ ______ ______ ______ ______ ______ MHz dBuV dB dB dB dBuV/m dBuV/m dB 1 882.630 12.09 21.87 3.20 0.00 37.16 46.00 -8.84 Peak 2 * 919.490 59.52 22.16 3.23 0.00 84.91 46.00 38.91 Peak 3 948.590 11.43 22.32 3.38 0.00 37.13 46.00 -8.87 Peak 561F Monterey Road Morgan Hill, CA 95037, U.S.A. Tel: (408) 463-0885 Fax:(408) 463-0888 Data#: 14File#: emi albvarion.EMIDate: 04-02-2003 Time: 09:51:47 Trace: 13 Ref Trace: Condition: FCC CLASS-B 3m CHAMBER 030117 1185 VERTICAL Company : Alvarion Ltd EUT Description : Alvarion 902-928MHz DTS Device Model Number : 900CX AU Test Configurtion: EUT, Antenna, Test Target : FCC classB Mode of Operation: Constant Tx : Note: Page: 1 Read Probe Cable Preamp Limit Over Freq Level Factor Loss Factor Level Line Limit Remark _________ ______ ______ ______ ______ ______ ______ ______ ______ MHz dBuV dB dB dB dBuV/m dBuV/m dB 1 101.780 25.99 10.40 0.93 0.00 37.32 43.50 -6.18 Peak 2 106.630 25.48 10.59 1.00 0.00 37.07 43.50 -6.43 Peak 3 * 919.490 73.84 22.16 3.23 0.00 99.23 46.00 53.23 Peak 4 926.280 12.72 22.20 3.26 0.00 38.18 46.00 -7.82 Peak

Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 1 EMISSIONS TEST REPORT FOR A LOW POWER TRANSMITTER I. GENERAL INFORMATION Requirement: Federal Communications Commissions Test Requirements: 15.205, 15.207, 15.209, 15.247 Applicant: Alvarion Ltd. Product ID: FCC ID: LKT-IF-900 II. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) The EUT is a DTS transmitter operating under section 15.247 of FCC Rules. The EUT is a hybrid system, using a frequency hopping function along with digital modulation of the RF carrier. RF Specifications RF Frequency Band 904 – 926 MHz RF Channels Programmable in 1 MHz steps Modulation Type GFSK DTS/FHSS hybrid Transmitter Output Power 24 dBm typical, variable in approx. 1 dB steps Antennas 11 dBi flat panel antenna 14.6 dBi sector antenna 6 dBi and 9 dBi omni antennas Product configurations: CX-2.4-900 base station IF card IF card ethernet antenna 2.4 GHz radio unit* antenna 900 MHz radio unit Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 2 enclosure box SU subscriber The 2.4 GHz external radio is a previously certified Alvarion product, FCC ID: LKT-IF- 24. The IF card delivers a 440 MHz modulated signal and DC power to the radio units. The IF card is identical to the ones used in other Alvarion 2.4 GHz and 5.7 GHz products. The interface between the Outdoor and Indoor Units is identical to all of BreezeACCESS systems. The subscriber IF circuitry is the same as the base station IF circuitry. Antennas are outdoor fixed mounted. III. TEST LOCATION Frequency hopping timing characteristics were measured at Alvarion’ s laboratory in Carlsbad, CA. All other FCC tests were performed at Compliance Certification Services 571F Monterey Road Morgan Hill, CA 95037 T.N. Cokenias 31 May 2003 EMC Consultant/Agent for Alvarion Ltd. power supply AC main AC/DC subscriber IF 900 MHz radio unit antenna Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 3 TEST PROCEDURES The EUT can be configured for use with various antennas and antenna cable lengths. FCC Rules limit power spectral density to 8 dBm in a 3 kHz bandwidth. RF output power is adjusted to meet psd limits while maximizing RF output power. Maximum allowed output power settings are as follow: MaxPower at Antenna connector dBm Power at Cable end, dBm Cable 22.8 22.8 1ftSMA/N cable 23.5 22.5 5ft LMR400 24.5 20.7 100ft LMR 400 Radiated Emissions Test Requirement: 15.109, 15.205, 15.209, 15.247 Measurement equipment used: Agilent 4440A Spectrum Analyzer, 9 kHz-26.5 GHz Chase Biconolog antenna EMCO 3115 Horn antenna, 1-18 GHZ ARA Horn antenna, 12 – 26.5 GHz Miteq pre-amplifier, 1 – 26.5 GHz IFI High pass filter, fp = 1800 MHz Test Procedures, 1- 26 GHz: 1. The EUT was placed on a wooden table resting on a turntable on the open air test site. The search antenna was placed 3m from the EUT. The EUT antenna was mounted vertically as per normal installation. 2. The turntable was slowly rotated to locate the direction of maximum emission at each emission falling in the restricted bands of 15.205. 3. Radiated emissions were investigated for a LOW channel, a MID channel, and HIGH channel. Emissions were investigated to the 10 th harmonic. 4. Once maximum direction was determined, the search antenna was raised and lowered in both vertical and horizontal polarizations. The maximum readings so obtained are recorded in the data listed below. Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 4 Radiated Test Set-up, 1-40 GHz d: 1-3m 1-2m d -or- preamplifier Figure 2 Testing was performed at 3 different frequencies Channel Frequency, MHz Low 904 Mid 915 High 926 Radiated emissions were performed at each frequency for 3 different transmitter antennas. Antennas tested: Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 5 Antenna Type Gain Antenna Manufacturer Model Number omni 9 dBi Mobilemark MFB91579-2400 sector 14.6 dBi Pacific Wireless PAWDC24 flat panel 11 dBi MTI MT364023/n Test Results: Worst case results are presented. Refer to separate Excel spread sheet files. Radiated Test Set-up, 30 - 1000 MHz Antenna mast Ground plane 1 - 4 meters 3 meters turntable, laptop computer Figure 3 preamplifier spectrum analyzer Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 6 Test Procedures, 30 -1000 MHz The EUT was set to RECEIVE/TRANSMIT mode. Radiation emissions from the digital portion of the EUT were measured according to the dictates of ANSI C63.4. Test Results Refer to separate attachment. Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 7 AC Line Conducted Emissions Test Requirement: 15.107, 15.207 Measurement Equipment Used: Rohde & Schwarz EMI Receiver ESHS-20 Fischer Custom Communication LISN, FCC-LISN-50/250-25-2 Test Procedure 1. The EUT was placed on a wooden table 40 cm from a vertical ground plane and approximately 80 cm above the horizontal ground plane on the floor. The EUT was set to transmit in normally. 2. Line conducted data was recorded for both NEUTRAL and HOT lines. Test Results PASS. Refer to data sheet below. Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 8 Line Conducted AC, CX-2.4-900 Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 9 Minimum 6 dB Bandwidth Test Requirement: 15.247(a)2 Measurement Equipment Used: Agilent 4440A Spectrum Analyzer 20 dB attenuator Test Procedures The EUT was configured on a test bench. The EUT was set for continuous operation . Frequency was set to LOW channel. While the transmitter broadcast a steady stream of digital data, the analyzer MAX HOLD function was used to capture the envelope of the transmission occupied bandwidth. The test was repeated at MID channel and at HIGH channel. Test Results: Refer to attached spectrum analyzer charts. Data is presented for both product packaging configurations. Data taken with RES BW of 100 kHz shows minimum 6 dB BW of 1.25 MHz. Minimum requirement: 500 kHz Channel Frequency, MHz Low 904 Mid 915 High 926 Alvarion Ltd. 902-928 MHz DTS Systems FCC ID: LKT-IF-900 10 15.247(a)2: Minimum 6 dB B…

Text truncated - open the document above for the full version.

Test Set-up Photographs Alvarion FCC ID: LKT-IF-900 Radiated emissions panel antenna Radiated emissions panel antenna Radiated emissions, sector antenna Radiated emissions 9 dBi omni antenna Antenna conducted emissions setup Line conducted set-up Line conducted test set-up
