LKT-SUI-MMDS1Indoor MMDS CPE transceiver

BreezeACCESS MMDS Indoor Subscriber Units SU-I-D-MMDS Series Installation Manual July, 2000 Cat. No. 213099 Front Matter SU-I-D Installation ManualiiBreezeACCESS-MMDS Series © 1999 by BreezeCOM Ltd. All rights reserved. No part of this publication may be reproduced in any material form without the written permission of the copyright owner. Trade Names BreezeACCESS, BreezeNET, BreezeLINK, BreezeVIEW and WIX are trade names of BreezeCOM Ltd. Other brand and product names are registered trademarks or trademarks of their respective companies. Statement of Conditions The information contained in this manual is subject to change without notice. BreezeCOM shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Warranty In the following warranty text, “the Company” shall mean: • BreezeCOM Ltd., for products located outside the USA. • BreezeCOM Inc., for products located in the USA. This BreezeACCESS product is warranted against defects in material and workmanship for a period of one year from date of purchase. During this warranty period the Company will, at its option, either repair or replace products that prove to be defective. For warranty service or repair, the product must be returned to a service facility designated by the Company. Authorization to return products must be obtained prior to shipment. The buyer shall pay all shipping charges to the Company and the Company shall pay shipping charges to return the product to the buyer within the USA. The Company warrants that the firmware designed by it for use with the unit will execute its programming instructions when properly installed on the unit. The Company does not warrant that the operation of the unit or firmware will be uninterrupted or error-free. Limitation of Warranty The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by the buyer, buyer supplied interfacing, unauthorized modification or misuse, operation outside of the environmental specifications for the product, or improper site preparation or maintenance. No other warranty is expressed or implied. The company specifically disclaims the implied warranties of merchantability and fitness for any particular purpose. Front Matter BreezeACCESS MMDS SeriesiiiSU-I-D Installation Manual BreezeCOM shall not be liable to any person for any special or indirect damages, including, but not limited to, loss of profits or revenues, loss of use or damage to any associated equipment, cost of capital, cost of substitute products, facilities or services, downtime costs or claims resulting from any cause whatsoever arising from or in any way connected with the manufacture, sale, handling, service, repair, maintenance or use of the products. In no event shall the company’s liability exceed the purchase price denoted on the invoice. Electronic Emission Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Information to User Any changes or modifications of equipment not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Safety Considerations For the following safety considerations, “Instrument” means the BreezeACCESS Subscriber or Access unit components and their cables. Caution To avoid shock, do not perform any servicing unless you are qualified to do so. Front Matter SU-I-D Installation ManualivBreezeACCESS-MMDS Series Grounding Before connecting the instrument to the power line, verify that a suitable power cord is being used (the protective earth terminal of this instrument must be connected to the protective conductor of the power cord). The mains plug shall only be inserted in a socket outlet provided with a protective earth contact. If an extension cord (power cable) is used make sure it has a protective conductor (grounding). Line Voltage Before connecting this instrument to the power line, make sure that the voltage of the power source matches the requirements of the instrument: 100-250 VAC, 50-60 Hz. Radio The instrument transmits radio energy during normal operation. To avoid possible harmful exposure to this energy, do not stand or work for extended periods of time in front of its antenna. The long-term characteristics or the possible physiological effects of Radio Frequency Electromagnetic fields have not been yet fully investigated. Antenna Installation and Grounding Be sure that the outdoor antennas and the supporting structure are properly installed to eliminate any physical hazard to either people or property. Verify that the antenna mast is grounded so as to provide protection against voltage surges and static charges. Make sure that the installation of the antenna and cable is performed in accordance with all relevant national and local building and safety codes. BreezeACCESS MMDS SeriesvSU-I-D Installation Manual Table of Contents 1. INTRODUCTION ...............................................................................................…

Text truncated - open the document above for the full version.

BreezeACCESS MMDS Indoor Subscriber Units SU-I/ID-MMDS Series Installation Manual July, 2000 Cat. No. 213099 Front Matter SU-I/ID Installation ManualiiBreezeACCESS MMDS Series © 2000 by BreezeCOM Ltd. All rights reserved. No part of this publication may be reproduced in any material form without the written permission of the copyright owner. Trade Names BreezeACCESS, BreezeNET, BreezeLINK, BreezeVIEW and WIX are trade names of BreezeCOM Ltd. Other brand and product names are registered trademarks or trademarks of their respective companies. Statement of Conditions The information contained in this manual is subject to change without notice. BreezeCOM shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Warranty In the following warranty text, “the Company” shall mean: • BreezeCOM Ltd., for products located outside the USA. • BreezeCOM Inc., for products located in the USA. This BreezeACCESS product is warranted against defects in material and workmanship for a period of one year from date of purchase. During this warranty period the Company will, at its option, either repair or replace products that prove to be defective. For warranty service or repair, the product must be returned to a service facility designated by the Company. Authorization to return products must be obtained prior to shipment. The buyer shall pay all shipping charges to the Company and the Company shall pay shipping charges to return the product to the buyer within the USA. The Company warrants that the firmware designed by it for use with the unit will execute its programming instructions when properly installed on the unit. The Company does not warrant that the operation of the unit or firmware will be uninterrupted or error-free. Limitation of Warranty The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by the buyer, buyer supplied interfacing, unauthorized modification or misuse, operation outside of the environmental specifications for the product, or improper site preparation or maintenance. No other warranty is expressed or implied. The company specifically disclaims the implied warranties of merchantability and fitness for any particular purpose. Front Matter BreezeACCESS/MMDS SeriesiiiSU-I/ID Installation Manual BreezeCOM shall not be liable to any person for any special or indirect damages, including, but not limited to, loss of profits or revenues, loss of use or damage to any associated equipment, cost of capital, cost of substitute products, facilities or services, downtime costs or claims resulting from any cause whatsoever arising from or in any way connected with the manufacture, sale, handling, service, repair, maintenance or use of the products. In no event shall the company’s liability exceed the purchase price denoted on the invoice. Electronic Emission Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Information to User Any changes or modifications of equipment not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Safety Considerations For the following safety considerations, “Instrument” means the BreezeACCESS Subscriber or Access unit components and their cables. Caution To avoid shock, do not perform any servicing unless you are qualified to do so. To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance 20cm (8 inches) is required between this antenna and all persons. Front Matter SU-I/ID Installation ManualivBreezeACCESS MMDS Series Grounding Before connecting the instrument to the power line, verify that a suitable power cord is being used (the protective earth terminal of this instrument must be connected to the protective conductor of the power cord). The mains plug shall only be inserted in a socket outlet provided with a protective earth contact. If an extension cord (power cable) is used make sure it has a protective conductor (grounding). Line Voltage Before connecting this instrument to the power line, make sure that the voltage of the power source matches the requirements of the instrument: 100-250 VAC, 50-60 Hz. Radio The instrument transmits radio energy during normal operation. To avoid possible harmful exposure to this energy, do not stand or work for extended periods of time in front of its antenna. The long-term characteristics or the possible physiological effects of Radio Frequency Electromagnetic fields have not been yet fully investigated. Antenna Installation and Grounding Be sure that the outdoor antennas and the supporting structure are properly installed to eliminate any physical hazard to either people or property. Verify that the antenna mast is grounded so as to provide protection against voltage surges and static charges. Make sure that the installation of the antenna and cable is performed in accordance with all relevant national and local building and safety codes. BreezeACCESS MMDS …

Text truncated - open the document above for the full version.

BreezeACCESS MMDS Indoor Subscriber Units SU-I/ID-MMDS Series Installation Manual July, 2000 Cat. No. 213099 Front Matter SU-I/ID Installation ManualiiBreezeACCESS MMDS Series © 2000 by BreezeCOM Ltd. All rights reserved. No part of this publication may be reproduced in any material form without the written permission of the copyright owner. Trade Names BreezeACCESS, BreezeNET, BreezeLINK, BreezeVIEW and WIX are trade names of BreezeCOM Ltd. Other brand and product names are registered trademarks or trademarks of their respective companies. Statement of Conditions The information contained in this manual is subject to change without notice. BreezeCOM shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Warranty In the following warranty text, “the Company” shall mean: • BreezeCOM Ltd., for products located outside the USA. • BreezeCOM Inc., for products located in the USA. This BreezeACCESS product is warranted against defects in material and workmanship for a period of one year from date of purchase. During this warranty period the Company will, at its option, either repair or replace products that prove to be defective. For warranty service or repair, the product must be returned to a service facility designated by the Company. Authorization to return products must be obtained prior to shipment. The buyer shall pay all shipping charges to the Company and the Company shall pay shipping charges to return the product to the buyer within the USA. The Company warrants that the firmware designed by it for use with the unit will execute its programming instructions when properly installed on the unit. The Company does not warrant that the operation of the unit or firmware will be uninterrupted or error-free. Limitation of Warranty The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by the buyer, buyer supplied interfacing, unauthorized modification or misuse, operation outside of the environmental specifications for the product, or improper site preparation or maintenance. No other warranty is expressed or implied. The company specifically disclaims the implied warranties of merchantability and fitness for any particular purpose. Front Matter BreezeACCESS/MMDS SeriesiiiSU-I/ID Installation Manual BreezeCOM shall not be liable to any person for any special or indirect damages, including, but not limited to, loss of profits or revenues, loss of use or damage to any associated equipment, cost of capital, cost of substitute products, facilities or services, downtime costs or claims resulting from any cause whatsoever arising from or in any way connected with the manufacture, sale, handling, service, repair, maintenance or use of the products. In no event shall the company’s liability exceed the purchase price denoted on the invoice. Electronic Emission Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Information to User Any changes or modifications of equipment not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Safety Considerations For the following safety considerations, “Instrument” means the BreezeACCESS Subscriber or Access unit components and their cables. Caution To avoid shock, do not perform any servicing unless you are qualified to do so. To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance 20cm (8 inches) is required between this antenna and all persons. Front Matter SU-I/ID Installation ManualivBreezeACCESS MMDS Series Grounding Before connecting the instrument to the power line, verify that a suitable power cord is being used (the protective earth terminal of this instrument must be connected to the protective conductor of the power cord). The mains plug shall only be inserted in a socket outlet provided with a protective earth contact. If an extension cord (power cable) is used make sure it has a protective conductor (grounding). Line Voltage Before connecting this instrument to the power line, make sure that the voltage of the power source matches the requirements of the instrument: 100-250 VAC, 50-60 Hz. Radio The instrument transmits radio energy during normal operation. To avoid possible harmful exposure to this energy, do not stand or work for extended periods of time in front of its antenna. The long-term characteristics or the possible physiological effects of Radio Frequency Electromagnetic fields have not been yet fully investigated. Antenna Installation and Grounding Be sure that the outdoor antennas and the supporting structure are properly installed to eliminate any physical hazard to either people or property. Verify that the antenna mast is grounded so as to provide protection against voltage surges and static charges. Make sure that the installation of the antenna and cable is performed in accordance with all relevant national and local building and safety codes. BreezeACCESS MMDS …

Text truncated - open the document above for the full version.

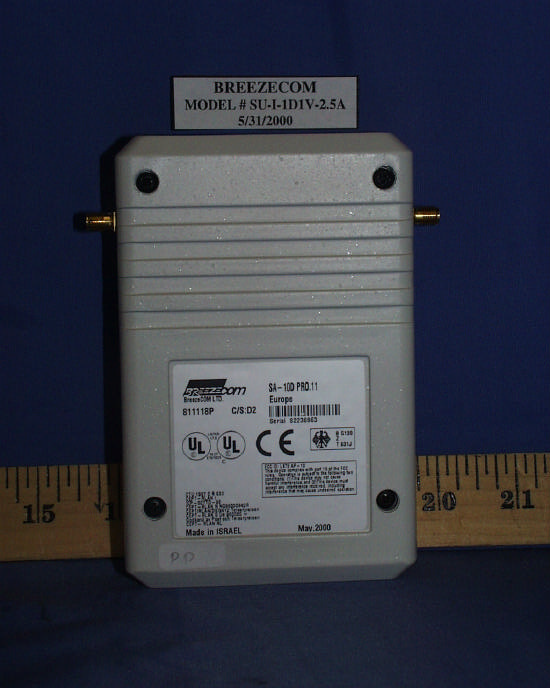

FCC ID Label and Label Location Applicant: BreezeCom Ltd. FCC ID: LKT-SUI-MMDS1 Description: MMDS transceiver, Indoor subscriber unit This device complies with part 15 of the BreezeCom Ltd FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause FCC ID: LKT-SUI-MMDS1 harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. rear of indoor subscriber unit

FCCID: LKT-SUI-MMDS1 BreezeCOM MMDS 8dBi Wall Mount Antenna Dimensions: 5 inches by 4.5 inches by 0.5 inches This label, 0.5 inch by 1.5 inch, is placed on the side of the antenna. Antenna has 4ft. of white LMR-195 or RG-58 Coax Cable with SMA or MCX Connector. Net Gain is 7dBi.

FCCID: LKT-SUI-MMDS1 BreezeCOM MMDS Indoor Subscriber Unit with 2dBi antennas . Antennas are 0.25 inches by 3 inches each. This label, 0.75 inches by 1.5 inches, will be placed on the side of the radio unit.

FCCID: LKT-SUI-MMDS1 BreezeCOM MMDS 8dBi Wall Mount Antenna Dimensions: 5 inches by 4.5 inches by 0.5 inches This label, 0.75 inch by 2.75 inch, 10pt black type, is placed on the side of the antenna. Antenna has 4ft. of white LMR-195 or RG-58 Coax Cable with SMA or MCX Connector. Net Gain is 7dBi.

FCCID: LKT-SUI-MMDS1 BreezeCOM MMDS 8dBi Wall Mount Antenna Dimensions: 5 inches by 4.5 inches by 0.5 inches This label, 0.75 inch by 2.75 inch, 10pt black type, is placed on the front of the antenna. Antenna has 4ft. of white LMR-195 or RG-58 Coax Cable with SMA or MCX Connector. Net Gain is 7dBi.

BreezeCom FCC ID: LKT-SUI-MMS1 page 1 of 21 EXHIBITS EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) EXHIBIT 2: Product Description and Operation Overview EXHIBIT 3:Information for which Confidentiality is Requested Schematics Block Diagrams Theory of Operation EXHIBIT 4:Product Photographs EXHIBIT 5:User Manual and FCC ID Label EXHIBIT 6:RF Hazard Information per Sec. 1.1307 EXHIBIT 7: Report of Measurements EXHIBIT 8: Data Graphs – Emissions Masks EXHIBIT 9: Data Graphs - Out of Band Emissions EXHIBIT 10: Data Graphs - Cable Modem Signal to RF Module BreezeCom FCC ID: LKT-SUI-MMS1 page 2 of 21 EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) BreezeCom FCC ID: LKT-SUI-MMS1 page 3 of 21 Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 24 July 2000 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: BreezeCom Ltd. FCC ID: LKT-SUI-MMDS1 To whom it may concern, Request is hereby submitted, on behalf of my client BreezeCom Ltd., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block diagrams Theory of Operations Rationale for request for confidentiality: BreezeCom has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. The $135 fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for BreezeCom BreezeCom FCC ID: LKT-SUI-MMS1 page 4 of 21 Tel 650 726 1263 fax 650 726 [email protected] BreezeCom FCC ID: LKT-SUI-MMS1 page 5 of 21 EXHIBIT 2:Product Description and Operation Overview The SUI customer premises transceiver made by BreezeCom is a single integrated unit design using a single antenna for both transmit and receive. The radio has a diversity system, so there are two identical antennas, but only one is active at any given time. The transceiver is designed to interface with Ethernet inputs: SU-I-1D-MMDS: supports single Ethernet input SU-I-8D-MMDS: supports up to 8 Ethernet workstations/ps’s SU-I-1D-MMDS: supports single Ethernet input Antennas available for this product: Standard 2 dBi monopole 6 dBi omni directional antenna with 3m cable 8.5 dBi omni directional wall mount antenna The SUI operates in the 2500-2586 MHz band. Data rate is 1Mbps, 2Mbps, or 3Mbps Modulation is GFSK. BreezeCom FCC ID: LKT-SUI-MMS1 page 6 of 21 EXHIBIT 3:Information for which Confidentiality is Requested Schematics Block Diagrams Theory of Operation - refer to separate electronic attachments- BreezeCom FCC ID: LKT-SUI-MMS1 page 7 of 21 EXHIBIT 4: Product Photographs -refer to separate electronic attachments- BreezeCom FCC ID: LKT-SUI-MMS1 page 8 of 21 EXHIBIT 5:User Manual and FCC ID Label -refer to separate electronic attachments- BreezeCom FCC ID: LKT-SUI-MMS1 page 9 of 21 EXHIBIT 6: RF Hazard Information Per Sec. 1.1307 For transmitters operating in the 2.150 - 2.162 GHz frequency range, paragraph 1.1310 limits maximum permissible exposure (MPE) to 1 mW/cm2 for uncontrolled environments. The maximum distance from the antenna at which MPE is met or exceeded is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain, and separation distance in meters: E,V/m = ( √ (30*P*G))/dPower density, mW/m2 = E 2 /3770 E for MPE 1mW/m2 = 61.4 V/m The SUI transceiver will be used with one of the following antennas, described in the user manual: 2 dBi monopole 6 dBi omni 8.5 dBi “Uni” omni Calculated MPE distances from power into antenna: Ex po s ure , mW/ c m2 : 1.0 P, dBmG, dBiMPE Distance, cm 19.02.03.2 19.06.05.0 19.08.56.7 Basis of Calculations: E^2/3770 = S, mW/cm2 E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) The following statement will be included in the users manual and on a label that will be attached to the transceiver: CAUTION: To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 20 cm is required between this antenna and all persons. The label is placed on the side of the unit on a silver label with 14 point black type. BreezeCom FCC ID: LKT-SUI-MMS1 page 10 of 21 BreezeCom FCC ID: LKT-SUI-MMS1 page 11 of 21 EXHIBIT 7:Report of Measurements BreezeCom FCC ID: LKT-SUI-MMS1 page 12 of 21 FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part 2. 2.1033(c)1 Applicant:BreezeCom Ltd 2.1033(c)2 FCC ID: LKT-SUI-MMDS1 2.1033(c)3 Installation instructions are found in attached document. 2.1033(c)4 Emission type is 2M00F1D 2.1033(c)5 Frequency range: 2500-2686 MHz 2.1033(c)6 Range of Operating Power 10-30 dBm 2.1033(c)7 Maximum Power Rating 30 dBm 2.1033(c)8 Applied voltages and currents into the final transistor elements Refer to schematics accompanying this application 2.1033(c)10 Circuit and Functional Block Diagram, Description of Circuitry Attached as electronic file. 2.1033(c)11 FCC ID Label Attached as electronic file. 2.1033(c)12 Product Photographs Attached as electronic file. BreezeCom FCC ID: LKT-SUI-MMS1 page 13 of 21 2.1033(c)13 Description of Modulation System GFSK: 1Mbps/2Mbps/3Mbps configurable 2.1033(c)14 Test Data per 2.1046 – 2.1057 2.1055 RF Output Power Measurements Measurement equipment used: HP 436A RF power meter HP 8482A RF power sensor 10 dB attenuator Low-loss cable, cable adapte…

Text truncated - open the document above for the full version.

BreezeCom FCC ID: LKT-SUI-MMDS1 page 1 of 21 EXHIBITS EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) EXHIBIT 2: Product Description and Operation Overview EXHIBIT 3:Information for which Confidentiality is Requested Schematics Block Diagrams Theory of Operation EXHIBIT 4:Product Photographs EXHIBIT 5:User Manual and FCC ID Label EXHIBIT 6:RF Hazard Information per Sec. 1.1307 EXHIBIT 7: Report of Measurements EXHIBIT 8: Data Graphs – Emissions Masks EXHIBIT 9: Data Graphs - Out of Band Emissions EXHIBIT 10: Data Graphs - Cable Modem Signal to RF Module BreezeCom FCC ID: LKT-SUI-MMDS1 page 2 of 21 EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) BreezeCom FCC ID: LKT-SUI-MMDS1 page 3 of 21 Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 24 July 2000 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: BreezeCom Ltd. FCC ID: LKT-SUI-MMDS1 To whom it may concern, Request is hereby submitted, on behalf of my client BreezeCom Ltd., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block diagrams Theory of Operations Rationale for request for confidentiality: BreezeCom has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. The $135 fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for BreezeCom BreezeCom FCC ID: LKT-SUI-MMDS1 page 4 of 21 Tel 650 726 1263 fax 650 726 [email protected] BreezeCom FCC ID: LKT-SUI-MMDS1 page 5 of 21 EXHIBIT 2:Product Description and Operation Overview The SUI customer premises transceiver made by BreezeCom is a single integrated unit design using a single antenna for both transmit and receive. The radio has a diversity system, so there are two identical antennas, but only one is active at any given time. The transceiver is designed to interface with Ethernet inputs: SU-I-1D-MMDS: supports single Ethernet input SU-I-8D-MMDS: supports up to 8 Ethernet workstations/ps’s SU-I-1D-MMDS: supports single Ethernet input Antennas available for this product: Standard 2 dBi monopole 6 dBi omni directional antenna with 3m cable 8.5 dBi omni directional wall mount antenna The SUI operates in the 2500-2586 MHz band. Maximum output power is 19 dBm. Data rate is 1Mbps, 2Mbps, or 3Mbps Modulation is GFSK. BreezeCom FCC ID: LKT-SUI-MMDS1 page 6 of 21 EXHIBIT 3:Information for which Confidentiality is Requested Schematics Block Diagrams Theory of Operation - refer to separate electronic attachments- BreezeCom FCC ID: LKT-SUI-MMDS1 page 7 of 21 EXHIBIT 4: Product Photographs -refer to separate electronic attachments- BreezeCom FCC ID: LKT-SUI-MMDS1 page 8 of 21 EXHIBIT 5:User Manual and FCC ID Label -refer to separate electronic attachments- BreezeCom FCC ID: LKT-SUI-MMDS1 page 9 of 21 EXHIBIT 6: RF Hazard Information Per Sec. 1.1307 For transmitters operating in the 2.500 - 2.700 GHz frequency range, paragraph 1.1310 limits maximum permissible exposure (MPE) to 1 mW/cm2 for uncontrolled environments. The maximum distance from the antenna at which MPE is met or exceeded is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain, and separation distance in meters: E,V/m = ( √ (30*P*G))/dPower density, mW/m2 = E 2 /3770 E for MPE 1mW/m2 = 61.4 V/m The SUI transceiver will be used with one of the following antennas, described in the user manual: 2 dBi monopole 6 dBi omni 8.5 dBi “Uni” omni Calculated MPE distances from power into antenna: Ex po s ure , mW/ c m2 : 1.0 P, dBmG, dBiMPE Distance, cm 19.02.03.2 19.06.05.0 19.08.56.7 Basis of Calculations: E^2/3770 = S, mW/cm2 E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) The follo…

Text truncated - open the document above for the full version.
