LKT-SUR-MMDS1MMDS Subscriber Unit

FCCID: LKT-SUR-MMDS1 BreezeACCESS MMDS Indoor Subscriber Units SU-R Series Installation Manual April, 2001 Cat. No. 213160 Front Matter BreezeACCESS MMDS SeriesiiSU-R Installation Manual © 2001 by BreezeCOM Ltd. All rights reserved. No part of this publication may be reproduced in any material form without the written permission of the copyright owner. Trade Names BreezeACCESS, BreezeNET, BreezeLINK, BreezeMANAGE, BreezeVIEW and BreezeWIZARD are trade names of BreezeCOM Ltd. Other brand and product names are registered trademarks or trademarks of their respective companies. Statement of Conditions The information contained in this manual is subject to change without notice. BreezeCOM shall not be liable for errors contained herein or for incidental or consequential damages in connection w ith the furnishing, performance, or use of this manual or equipment supplied with it. Warranty In the follow ing w arranty text, “the Company” shall mean: • BreezeCOM Ltd., for products located outside the USA. • BreezeCOM Inc., for products located in the USA. This BreezeACCESS product is warranted against defects in material and workmanship for a period of one year from date of purchase. During this warranty period the Company will, at its option, either repair or replace products that prove to be defective. For warranty service or repair, the product must be returned to a service facility designated by the Company. Authorization to return products must be obtained prior to shipment. The buyer shall pay all shipping charges to the Company and the Company shall pay shipping charges to return the product to the buyer within the USA. The Company warrants that the firmware designed by it for use with the unit will execute its programming instructions when properly installed on the unit. The Company does not warrant that the operation of the unit or firmware will be uninterrupted or error-free. Limitation of Warranty The foregoing w arranty shall not apply to defects resulting from improper or inadequate maintenance by the buyer, buyer supplied interfacing, unauthorized modification or misuse, operation outside of the environmental specifications for the product, or improper site preparation or maintenance. No other warranty is expressed or implied. The company specifically disclaims the implied warranties of merchantability and fitness for any particular purpose. Front Matter SU-R Installation ManualiiiBreezeACCESS MMDS Series BreezeCOM shall not be liable to any person for any special or indirect damages, including, but not limited to, loss of profits or revenues, loss of use or damage to any associated equipment, cost of capital, cost of substitute products, facilities or services, downtime costs or claims resulting from any cause whatsoever arising from or in any way connected with the manufacture, sale, handling, service, repair, maintenance or use of the products. In no event shall the company’s liability exceed the purchase price denoted on the invoice. Electronic Emission Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment notwithstanding use in commercial, business and industrial environments. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. FCC Radiation Hazard Warning To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance 20cm (8 inches) is required between the antenna and all persons. Information to User Any changes or modifications of equipment not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Safety Considerations For the following safety considerations, “Instrument” means the BreezeACCESS Subscriber Uni t components. Caution To avoid shock, do not perform any servicing unless you are qualified to do so. Front Matter BreezeACCESS MMDS SeriesivSU-R Installation Manual Line Voltage Before connecting this instrument to the power line, make sure that the voltage of the power source matches the requirements of the instrument. Radio The instrument transmits radio energy during normal operation. To avoid possible harmful exposure to this energy, do not stand or work for extended periods of time in front of its antenna. The long-term characteristics or the possible physiological effects of Radio Frequency Electromagnetic fields have not been yet fully investigated. Table of Contents BreezeACCESS MMDS SeriesvSU-R Installation Manual Table of Contents 1.Introduction_______________________________________________________ 1 2.Basic Installation___________________________________________________ 2 2.1Packing List___________________________________________________ 2 2.2Other Required Items___________________________________________ 2 2.3Installation Overview___________________________________________ 3 2.4Installation Guidelines__________________________________________ 3 2.5Wall Mounting the Unit_________________________________________ 6 2.6Connecting the Antenna_________________________________________ 6 2.7Connecting the Unit to the Power Supply and to the CPE_____________ 6 3.Configuring System Parameters_______________________________________ 7 3.1Getting Started with the Local Terminal___________________________ 7 3.2Configuring Basic Parameters____________________________________ 9 3.3Reset Unit___________________________…

Text truncated - open the document above for the full version.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 12 May 2001 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: BreezeCom Ltd. FCC ID: LKT-SUR-MMDS1 To whom it may concern, Request is hereby submitted, on behalf of my client BreezeCom Ltd., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block diagrams Theory of Operations Rationale for request for confidentiality: BreezeCom has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. The $145 fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for BreezeCom tel: 650-726-1263 fax: 650-726-1252 [email protected]

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 25 June 2001 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: BreezeCom Ltd. FCC ID: LKT-SUR-MMDS1 To whom it may concern, Request is hereby submitted, on behalf of my client BreezeCom Ltd., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block diagrams Theory of Operations Parts List Rationale for request for confidentiality: BreezeCom has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. The $145 fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS tel: 650-726-1263 fax: 650-726-1252 [email protected] EMC Consultant/Agent for BreezeCom

FCC ID: LKT-SUR-MMDS1 RF Hazard Information Per Sec. 1.1307 RF Hazard Distance Calculation mW/cm2 from Table1:1.00 Max RF PowerTX AntennaMPE P, dBmG, dBiSafe Distance, cm 28.07.015.9 Basis of Calculations: E^2/3770 = S, mW/cm2 E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less The SUR transceiver will be used with one of the following antennas, described in the user manual: 3 dBi monopole antenna 7 dBi wallmount panel antenna Note: Wall mount ntenna has 4ft. of white LMR-195 or RG-58 Coax Cable with SMA or MCX Connector. Gain is 7.5 dBi – 0.5 dB cable loss = Net Gain is 7dBi. The following statement will be included in the users manual and on a label that will be attached to the transceiver and the : CAUTION: To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 20 cm is required between this antenna and all persons. The label is placed on the side of the unit on a label with 14 point black type. FCC ID: LKT-SUR-MMDS1 RF hazard label location for EUT with 3 dBi antenna FCC ID: LKT-SUR-MMDS1 From Page iii of installation manual: FCC Radiation Hazard Warning To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance 20cm (8 inches) is required between the antenna and all persons. FCCID: LKT-SUR-MMDS1 BreezeCOM MMDS 7dBi Wall Mount Antenna Dimensions: 5 inches by 4.5 inches by 0.5 inches This label, 0.75 inch by 2.75 inch, 10pt blue type, is placed on the front of the antenna. Antenna has 4ft. of white LMR-195 or RG-58 Coax Cable with SMA or MCX Connector. Gain is 7.5 dBi – 0.5 dB cable loss = Net Gain is 7dBi.

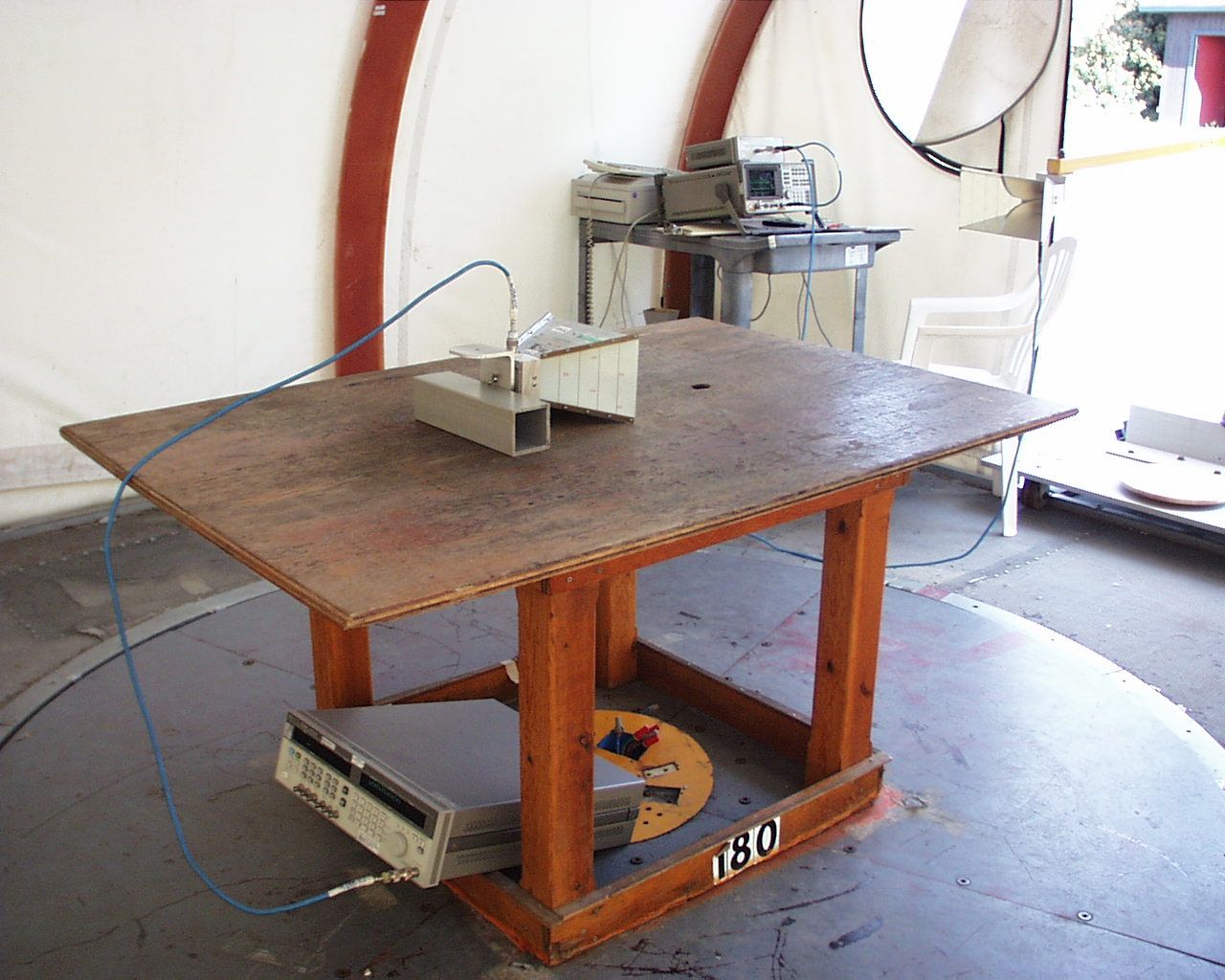

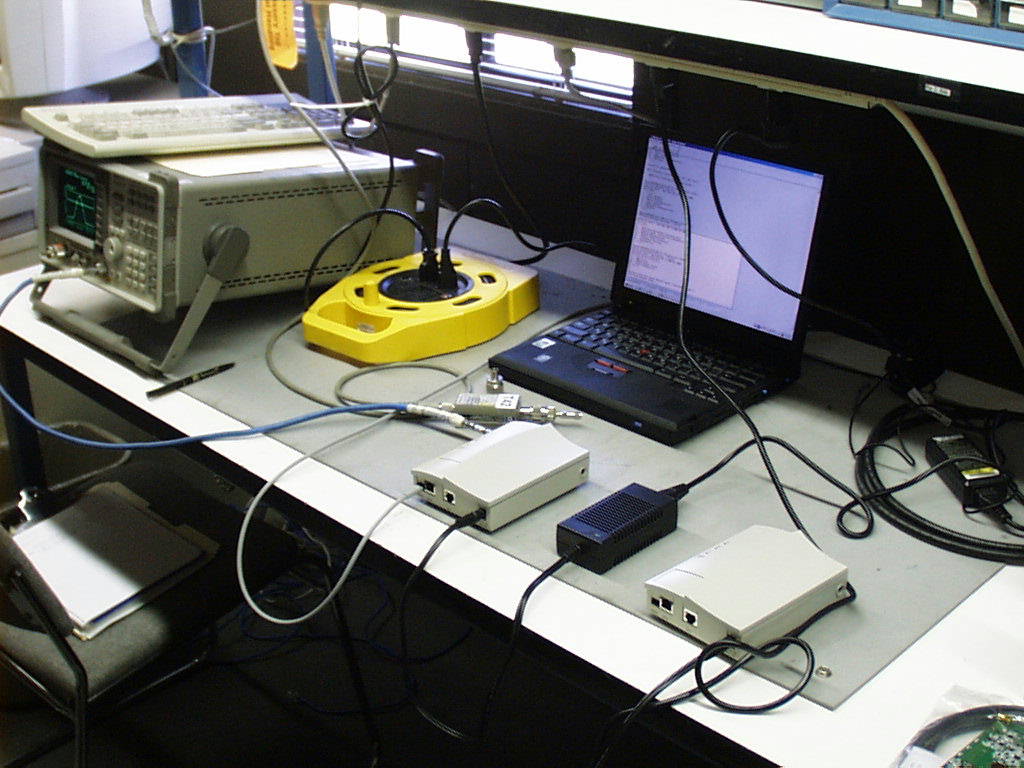

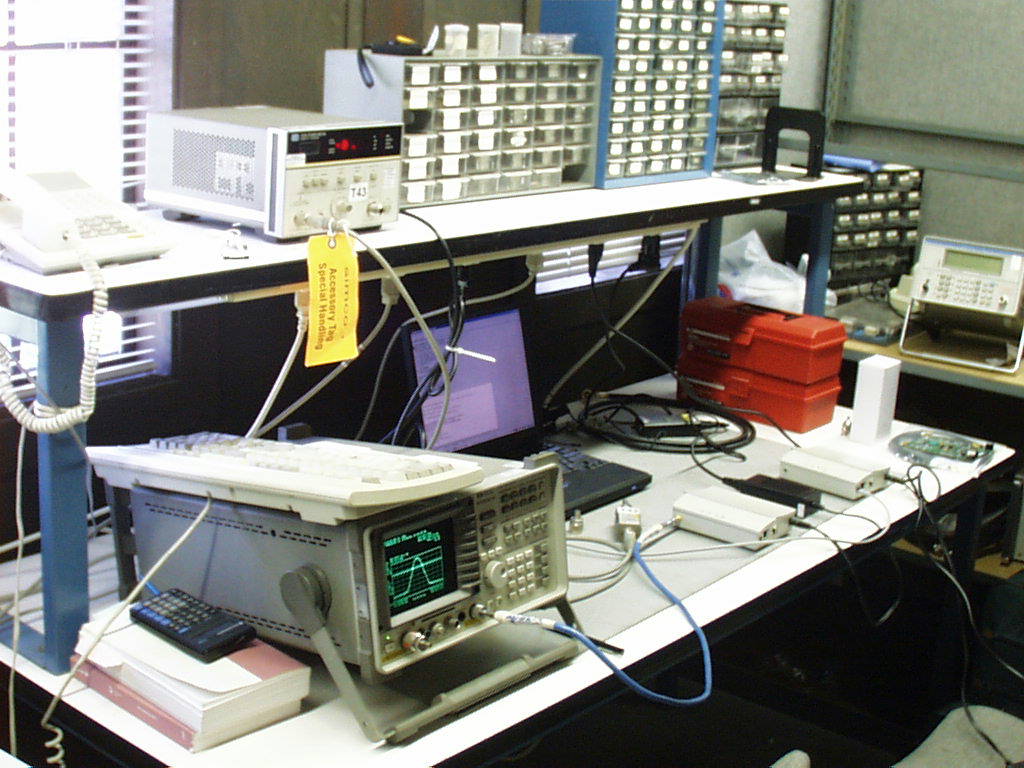

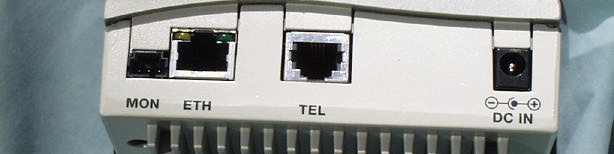

BreezeCom FCC ID: LKT-SUR-MMDS1 page 1 of 19 EMISSIONS TEST REPORT FOR A LICENSED TRANSMITTER I. GENERAL INFORMATION Requirement:Federal Communications Commissions Test Requirements: Part 2, Part 21 Applicant: BreezeCom Ltd. Atidim Technological Park, Bldg. #1 Tel Aviv 61131, Israel Product ID: FCC ID: LKT-SUR-MMDS1 II. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) The SUR customer premises transceiver made by BreezeCom is a single integrated unit design using a single antenna for both transmit and receive. The radio has a diversity system, so there are two identical antennas, but only one is active in transmit mode at any given time. The transceiver is designed to interface with Ethernet inputs: Antennas available for this product: Standard 3 dBi monopole 6 dBi omni directional antenna with 3m cable 8.5 dBi omni directional wall mount antenna The SUR operates in the 2500-2586 MHz band. Channel 1 (LOW): 2501.5 MHz Channel 184 (HIGH): 2684.5 MHz Maximum output power is 28 dBm. Data rate is 1Mbps, 2Mbps, or 3Mbps Modulation is 8FSK, 4FSK, or FSK. III. TEST LOCATION Frequency stability tests, power output and mask tests were performed at Breezecom . Power output and mask tests were repeated, and all other tests were performed at: Compliance Certification Services BreezeCom FCC ID: LKT-SUR-MMDS1 page 2 of 19 561F Monterey Road Morgan Hill, CA 95037 T.N. Cokenias3 May 2001 EMC Consultant/Agent for Breezecom RF Hazard Information Per Sec. 1.1307 RF Hazard Distance Calculation mW/cm2 from Table1:1.00 Max RF Pow erTX AntennaMPE P, dBmG, dBiSafe Distance, cm 28.07.015.9 Basis of Calculations: E^2/3770 = S, mW/cm2 E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less The SUR transceiver will be used with one of the following antennas, described in the user manual: 3 dBi monopole antenna 7 dBi wallmount panel antenna Note: Wall mount ntenna has 4ft. of white LMR-195 or RG-58 Coax Cable with SMA or MCX Connector. Gain is 7.5 dBi – 0.5 dB cable loss = Net Gain is 7dBi. The following statement will be included in the users manual and on a label that will be attached to the transceiver and the : CAUTION: To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 20 cm is required between this antenna and all persons. BreezeCom FCC ID: LKT-SUR-MMDS1 page 3 of 19 BreezeCom FCC ID: LKT-SUR-MMDS1 page 4 of 19 FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part 2. 2.1033(c)1 Applicant:BreezeCom Ltd 2.1033(c)2 FCC ID: LKT-SUR-MMDS1 2.1033(c)3 Installation instructions are found in attached document. 2.1033(c)4 Emission type is 2M00F1D 2.1033(c)5 Frequency range: 2500-2686 MHz 2.1033(c)6 Range of Operating Power 0-28 dBm 2.1033(c)7 Maximum Power Rating 28 dBm 2.1033(c)8 Applied voltages and currents into the final transistor elements Refer to schematics accompanying this application - attached as electronic file 2.1033(c)10 Circuit and Functional Block Diagram, Description of Circuitry Attached as electronic file. 2.1033(c)11 FCC ID Label Attached as electronic file. 2.1033(c)12 Product Photographs Attached as electronic file. BreezeCom FCC ID: LKT-SUR-MMDS1 page 5 of 19 2.1033(c)13 Description of Modulation System GFSK: 1Mbps/2Mbps/3Mbps configurable 2.1033(c)14 Test Data per 2.1046 – 2.1057 2501.5 RF Output Power Measurements Measurement equipment used: HP 436A RF power meter HP 8482A RF power sensor 10 dB attenuator Low-loss cable, cable adapters Test Set-up PC controller SUR 10 dB attn HP8482A HP 436A Test Procedures The SUR was set to produce an 8 FSK 3Mbps signal. Power level in dBm was read off the meter. Test Results TX, MHzTX Pout, dBm 2501.5 (Ch1)28.0 2684.5 (Ch186)28.0 BreezeCom FCC ID: LKT-SUR-MMDS1 page 6 of 19 Section 2.1047 Modulation Characteristics Measurement Equipment Used: HP 8593 EM spectrum analyzer, 9kHz – 26.5 GHz 10 dB attenuator Low-loss cable, cable adapters Test Set-up: PC controller SUR unit 10 dB attn HP 8593EM Test Procedures: Out -of-band emissions limits, digital modulation, section 21.908(a): At 6MHz channel edge: attenuated -25 dB below licensed average 6 MHz channel power From edge to 250 kHz : attenuated along a slope to at least -40 dB Beyond 250 kHz removed: attenuated along a slope to at least -60 dB at 3 MHz removed Per section 21.908(e): Attenuation in dB (below "flat top") = A + 10log (RBW1/RBW2) A = attenuation specified (25, 40, 60 dB) RBW1 = Resolution bandwidth for flat top measurement (relative) RBW2 = Resolution bandwidth for spectral point measurement (relative) The transmitter was set to produce a 3Mbps data rate. Test Results Refer to attached plots. BreezeCom FCC ID: LKT-SUR-MMDS1 page 7 of 19 Mask, 2501.5 MHz (Ch1) BreezeCom FCC ID: LKT-SUR-MMDS1 page 8 of 19 Mask, 2684.5 MHz (Ch 184) BreezeCom FCC ID: LKT-SUR-MMDS1 page 9 of 19 Section 2.1049 Occupied Bandwidth Measurement Equipment Used: HP 8593 EM spectrum analyzer, 9kHz – 26.5 GHz 10 dB attenuator Low-loss cable, cable adapters Test Set-up: PC controller SUR unit 10 dB attn HP 8593EM Test Procedures: The PC programmed the SUR to transmit packets at a 3Mbps rate. The resultant spectrum analyzer signal was recorded. Test Results Refer to attached plots. BreezeCom FCC ID: LKT-SUR-MMDS1 page 10 of 19 8FSK and 4FSK Modulations BreezeCom FCC ID: LKT-SUR-MMDS1 page 11 of 19 FSK Modulation BreezeCom FCC ID: LKT-SUR-MMDS1 page 12 of 19 Section 2.1051 Spurious and Harmonic Emissions at Antenna Terminals Measurement Equipment Used: HP 8593 EM spectrum analyzer, 9kHz – 26.5 GHz 10 dB attenuator Low-loss cable, cable adapters Test Procedures The relative power measurement method described in Section 21.908(e) is followed: 1. Set spectrum analyzer to TX output center frequency, RES BW = 100 kHz, VID BW = 100 kHz. 2. Use analyzer PEAK SEARCH to find…

Text truncated - open the document above for the full version.
