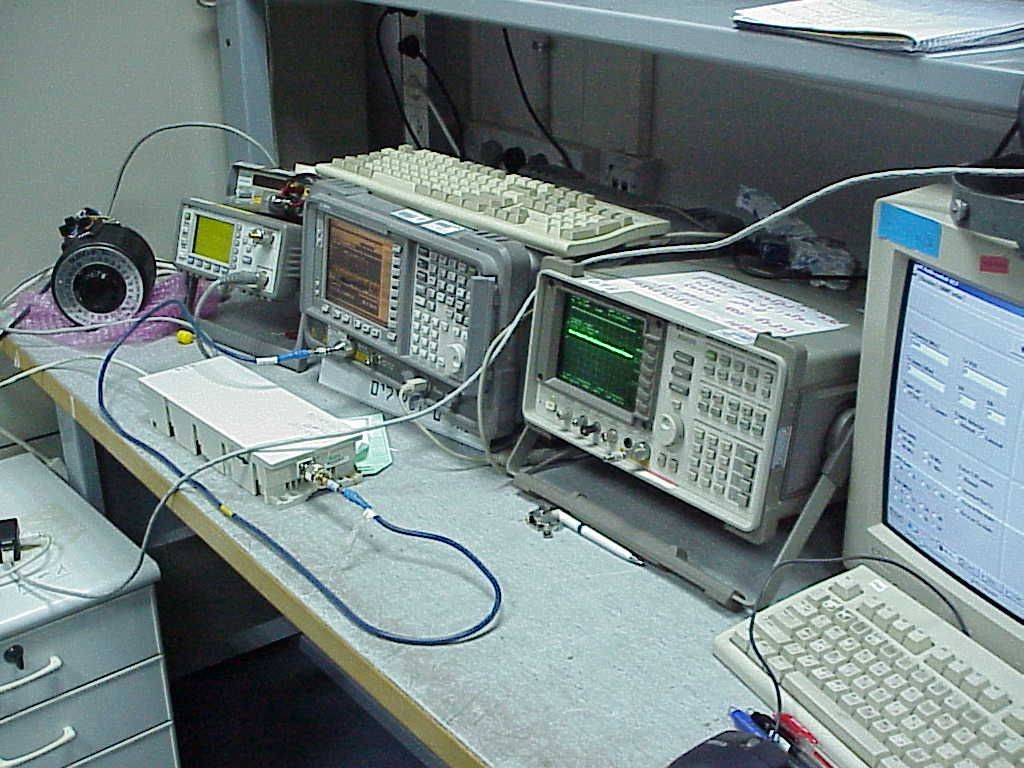

Operation Verification Commissioning 75 Table 3-4: SU-ODU LEDs Name Description Functionality W-LINK Wireless Link Indictor
Green – Unit is associated with an AU, no wireless link activity
Blinking Green – Data received or transmitted on the wireless link. Blinking rate is proportional to wireless traffic rate
Off – Wireless link is disabled Status Self-test and power indication
Green – Power is available and self-test passed.
Blinking Amber – Testing (not ready for operation)
Red – Self-test failed – fatal error ETH Ethernet activity/ connectivity indication
Green – Ethernet link between the indoor and outdoor units is detected, no activity
Blinking Green – Ethernet connectivity is OK, with traffic on the port. Blinking rate proportional to traffic rate.
Red – No Ethernet connectivity between the indoor and outdoor units. SNR BAR (SU-RA) Received signal strength Indication
Red LED: Signal is too low (SNR<4 dB)
8 green LEDs: Quality of the received signal
Orange LED: Signal is too high (SNR > 50 dB) Chapter 3 - Commissioning BreezeACCESS VL System Manual 76 Table 3-5: SU-ODU SNR Bar LED Functionality SNR Bar LEDs SNR (typical) LED 1 (red) is On Signal is too low (SNR < 4 dB) LED 2 (green) is On SNR > 4 dB LEDs 2 to 3 (green) are On SNR > 8 dB LEDs 2 to 4 (green) are On SNR > 13 dB LEDs 2 to 5 (green) are On SNR > 19 dB LEDs 2 to 6 (green) are On SNR > 26 dB LEDs 2 to 7 (green) are On SNR > 31 dB LEDs 2 to 8 (green) are On SNR > 38 dB LEDs 2 to 9 (green) are On SNR > 44 dB LEDs 2 to 9 (green) and 10 (orange) are On Signal is too high (SNR > 50 dB) Operation Verification Commissioning 77 3.5.2 Indoor Unit Verification To verify the correct operation of the indoor equipment, examine the LED indicators located on the top panel of the SU IDU and AU IDU units, or on the front panel of the BS-AU module. Table 3-6 provides information for the BS-AU IDU LEDs. Table 3-7 lists the LEDs of the PS1073 IDU. Table 3-6: BS-AU LEDs Name Description Functionality W-LINK Wireless link activity
Green - At least one SU is associated.
Blinking Red - No SU is associated.
Off - Wireless link is disabled. ODU CURRENT CONSUMPTION Current Consumption of the Outdoor Unit
Red - over current.
Blinking Red - open circuit or below anticipated current consumption.
Green - within tolerance. ODU STATUS Outdoor Unit Self-test
Green - Self test passed and ODU ready for operation.
Blinking Amber - Testing (not ready for operation)
Red - fatal failure. IDU PWR Power indication for the Indoor Unit
Green - IDU power is OK.
Off - no power is supplied to the IDU. ALARM Indoor Unit Alarm Indication
Red - a fatal failure indication.
Off - IDU is functioning properly. Table 3-7: PS1073 SU IDU / AU-SA IDU LEDs Name Description Functionality POWER Power Indication
Green – IDU power is OK
Off – No power or power failure ETH Self test and end-to- end Ethernet connectivity
Off – No Ethernet connectivity has been detected between the outdoor unit and the device connected to the indoor unit. Chapter 3 - Commissioning BreezeACCESS VL System Manual 78 Table 3-7: PS1073 SU IDU / AU-SA IDU LEDs Name Description Functionality
Green – Self-test passed and Ethernet connection confirmed by the outdoor unit (Ethernet integrity check passed). 3.5.3 SU-I Unit Verification To verify the correct operation of the SU-I unit, examine the LED indicators located on the front panel of the SU-I unit. The following tables list the provided LEDs and their associated indications. Operation Verification Commissioning 79 Table 3-8: SU-I LEDs Name Description Functionality Status Self-test and power indication Green: Power is available and self-test passed. Blinking Amber: Testing (not ready for operation) Red: Self-test failed. Fatal error Ethernet Ethernet activity/ connectivity indication Green: Ethernet link between the SU-I and the data equipment is detected, no activity Blinking Green: Ethernet connectivity is OK, with traffic on the port. Blinking rate proportional to traffic rate. Red: No Ethernet connectivity between the SU-I and the data equipment. W-Link Wireless Link traffic Indication Green: Unit is associated with an AU, no wireless link activity Blinking Green: Data received or transmitted on the wireless link. Blinking rate is proportional to traffic rate. Off: Wireless link disabled Chapter 3 - Commissioning BreezeACCESS VL System Manual 80 Table 3-9: SU-I SNR Bar LED Functionality SNR Bar LEDs SNR (typical) LED 1 (red) is On Signal is too low (SNR < 4 dB) LED 2 (green) is On SNR > 4 dB LEDs 2 to 3 (green) are On SNR > 8 dB LEDs 2 to 4 (green) are On SNR > 13 dB LEDs 2 to 5 (green) are On SNR > 19 dB LEDs 2 to 6 (green) are On SNR > 26 dB LEDs 2 to 7 (green) are On SNR > 31 dB LEDs 2 to 8 (green) are On SNR > 38 dB LEDs 2 to 9 (green) are On SNR > 44 dB LEDs 2 to 9 (green) and 10 (orange) are On Signal is too high (SNR > 50 dB) 3.5.4 Verifying the Ethernet Connection (Modular Base station) After connecting the unit to an Ethernet outlet, verify that the Ethernet Integrity Indicator, which is the yellow LED embedded in the 10/100 BaseT connector, is on. This indicates that the unit is connected to an Ethernet segment. The Ethernet Activity Indicator, which is the green embedded LED, should blink whenever the unit receives or transmits traffic on the 10/100 BaseT port. 3.5.5 Verifying the Indoor-to-Outdoor Connection (Modular Base Station) After connecting the unit to an Ethernet outlet, verify that the Ethernet Integrity Indicator, which is the yellow LED embedded in the RADIO connector, is on. This indicates that the unit has detected an Ethernet link connection. The Ethernet Activity Indicator, which is the green embedded LED, should blink whenever the unit receives or transmits traffic on the RADIO port. 3.5.6 Verifying Data Connectivity To verify data connectivity, from the end-user’s PC or from a portable PC connected to the unit, ping the Access Unit, or try to connect to the Internet. …
