8M074X01-01 Rev.1 User’s Manual 8M074X01-01 REV. 1 CMDUHF 8M074X01-01 Rev.1 x TABLE OF CONTENTS Page FCC / IC Compliance Statements.............................................................................xi 1.0 Safety Information........................................................................................................1 2.0 General Radio Procedures Operating.....................................................................3 3.0 Specification..................................................................................................................4 4.0 Introduction....................................................................................................................5 5.0 Main Features................................................................................................................6 6.0 Block Diagram and Description................................................................................7 6.1 Transceiver.............................................................................................................7 6.2 Power Amplifier.....................................................................................................8 6.3 Controller Board.....................................................................................................8 7.0 Set Up..............................................................................................................................9 7.1 Programming Software Installation......................................................................9 7.2 Channel Module Connections..............................................................................9 7.3 Mode of Operation Setting...................................................................................10 7.4 Basics of Gain Setting..........................................................................................11 7.5 Downlink Gain Setting...........................................................................................11 7.6 Uplink Gain Setting................................................................................................12 8.0 Operation........................................................................................................................14 8.1 General...................................................................................................................14 8.2 Transmit Disable....................................................................................................14 8.3 Reset.......................................................................................................................15 9.0 Cleaning..........................................................................................................................16 8M074X01-01 Rev.1 xi FCC Class A Digital Device or Peripheral - Information to User ‹‹NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, can cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. ‹‹WARNING Changes or Modifications not expressly approved by Futurecom Systems Group Inc. could void the user’s authority to operate the equipment. ‹‹WARNING To satisfy FCC/IC RF exposure requirements for transmitting devices, a minimum separation distance should be maintained between the antenna of this device and anyone in the vicinity of the radiating element. The following table shows the minimum distance, as per FCC 1.1310 requirement, for selected values of CMDUHF Tx power settings and antenna / feed cable assembly gains: Antenna gain [dBi] γ CMDUHF Tx Power [W] ι 0 3 6 10 15 1 18 25 35 55 97 5 39 55 77 122 217 10 55 77 109 173 306 20 77 109 173 244 433 35 102 144 204 322 573 43.6 114 161 228 359 639 Table 1. Minimum distance between CMDUHF Tx antenna and general population ( in [cm] ). 8M074X01-01 Rev.1 1 1.0 SAFETY INFORMATION The following information may or may not be applicable to your product. In any case, precautions should always be taken when handling any electrical product. • This manual contains important safety and operating instructions, therefore keep this manual always on hand! • Prior to using any product, follow all warning, safety and operating instructions written on the product and in the user’s manual. All instructions should be saved for reference in the future! • Always keep product dry, never expose to any kind of moisture. • Do Not expose product to extreme temperatures- as found near a hot radiator or stove. • Do Not expose product to open flames, cigarettes, etc. • Precautions should be taken to avoid objects falling or liquids spilling onto product. • Do Not incorporate the use of other equipment that is not recommended or sold by the manufacturer. The result may be the risk of fire or electric shock injury. • Connect DC power cord to DC power source as marked on the product.. • DANGER - Never alter the AC cord or plug! If plug does not fit outlet have a qualified electrician install a proper outlet. Failure to do so results in improper connection and increases the risk of electric shock. • This product does not contain customer serviceable components, therefore never disassemble the product. • Damage Requiring Service - This product should be serviced by qualified service personnel when: A.The power supply cord or the plug has been damaged; or B.Objects have fallen, or liquid has been spilled into the product; or C.The product has been exposed to rai…

Text truncated - open the document above for the full version.

8M074X01-01 Rev.1 User’s Manual 8M074X01-01 REV. 2 CMDUHF 8M074X01-01 Rev.1 x TABLE OF CONTENTS Page FCC / IC Compliance Statements.............................................................................xi 1.0 Safety Information........................................................................................................1 2.0 General Radio Procedures Operating.....................................................................3 3.0 Specification..................................................................................................................4 4.0 Introduction....................................................................................................................5 5.0 Main Features................................................................................................................6 6.0 Block Diagram and Description................................................................................7 6.1 Transceiver.............................................................................................................7 6.2 Power Amplifier.....................................................................................................8 6.3 Controller Board.....................................................................................................8 7.0 Set Up..............................................................................................................................9 7.1 Programming Software Installation......................................................................9 7.2 Channel Module Connections..............................................................................9 7.3 Mode of Operation Setting...................................................................................10 7.4 Basics of Gain Setting..........................................................................................11 7.5 Downlink Gain Setting...........................................................................................11 7.6 Uplink Gain Setting................................................................................................12 8.0 Operation........................................................................................................................14 8.1 General...................................................................................................................14 8.2 Transmit Disable....................................................................................................14 8.3 Reset.......................................................................................................................15 9.0 Cleaning..........................................................................................................................16 8M074X01-01 Rev.1 xi FCC Class A Digital Device or Peripheral - Information to User ‹‹NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, can cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. ‹‹WARNING Changes or Modifications not expressly approved by Futurecom Systems Group Inc. could void the user’s authority to operate the equipment. 8M074X01-01 Rev.1 1 1.0 SAFETY INFORMATION The following information may or may not be applicable to your product. In any case, precautions should always be taken when handling any electrical product. • This manual contains important safety and operating instructions, therefore keep this manual always on hand! • Prior to using any product, follow all warning, safety and operating instructions written on the product and in the user’s manual. All instructions should be saved for reference in the future! • Always keep product dry, never expose to any kind of moisture. • Do Not expose product to extreme temperatures- as found near a hot radiator or stove. • Do Not expose product to open flames, cigarettes, etc. • Precautions should be taken to avoid objects falling or liquids spilling onto product. • Do Not incorporate the use of other equipment that is not recommended or sold by the manufacturer. The result may be the risk of fire or electric shock injury. • Connect DC power cord to DC power source as marked on the product.. • DANGER - Never alter the AC cord or plug! If plug does not fit outlet have a qualified electrician install a proper outlet. Failure to do so results in improper connection and increases the risk of electric shock. • This product does not contain customer serviceable components, therefore never disassemble the product. • Damage Requiring Service - This product should be serviced by qualified service personnel when: A.The power supply cord or the plug has been damaged; or B.Objects have fallen, or liquid has been spilled into the product; or C.The product has been exposed to rain or moisture; or D.The product does not appear to operate normally or exhibits a marked change of performance; or E.The product has been dropped, or the cabinet damaged. • If an outdoor antenna is connected, make sure the system is always grounded to allow for protection against voltage surge and built-up static charges. Outdoor antennas should always be located away from power lines. 8M074X01-01 Rev.1 2 The operator of any mobile radio should be aware of certain hazards common to the operation of vehicular radio transmissions. A list of possible hazards follows: 1.Explosive Atmospheres To ensure safety, make sure that the radio is off while fueli…

Text truncated - open the document above for the full version.

Feb.01, 2001 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2 and 90 (Subpart I) - Radio Services Transmitters Operating in the frequency bands 403 - 512 MHz (excluding 406-406.125 MHz, 12.5 kHz and 25 kHz Channel Spacings). Applicant:Futurecom Systems Group Inc. Product:UHF Channel Module II (Repeater) Model:CMDUHF FCC ID:LO6-CMDUHF Dear Sir/Madam, we would like to submit the application to the Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site for detailed information. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.:1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/AK Encl. 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] UltraTech Group of Labs

Jan. 26 th , 2001 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject:Authority to Act as an Agent to FCC Applicant:Futurecom Systems Group Product:Channel Module ( Repeater ) Model:CMDUHF FCC ID:L06-CMDUHF Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application to F.C.C. for authorization of equipment under F.C.C. Rules. I also certify that the information provided, properly described the device or system for which authorization is required. Regards Adam J. Kolanski 110 Snow Blvd., Unit 3 & 4, Concord, Ontario L4K 4B8, Canada, Tel: (905)660-5548 Fax: (905)660-6858

23-Jan-2001 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant:Futurecom Systems Group Inc. Product:UHF Channel Module II ( Repeater ) Model:CMDUHF FCC ID:LO6-CMDUHF Dear Sir/Madam, We, Futurecom Systems Group Inc., would like to request that the schematic diagrams and system block diagrams, labeled Exhibit 6, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials, which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. The detailed confidential materials are listed as follows: No. Title Drawing No. Sheet No. 1CMDUHF BLOCK DIAGRAM8D074A16 1 2CMDUHF PA SCHEMATICS8D074B02 1 3CMDUHF Repeater Oscillator Frequencies If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.:1 800 701 9180 or (905) 660 - 5548 Yours truly, Adam J. Kolanski 110 Snow Blvd., Unit 3 & 4, Concord, Ontario L4K 4B8, Canada, Tel: (905)660-5548 Fax: (905)660-6858

REV. ECNDESCRIPTIONDATEBY TITLE F.C.F.OSCALE DRAWN BYCHECKED BY FUTURECOM SYSTEMS GROUP Model No. CMDUHF Serial No. IC Approval No : FCC ID: LO6-CMDUHF 0.5” 1.5 “ 2L074A04 SHT 1 OF 1 LABEL, CMDUHF, FCC, IC AJK 26-Jan-01 2L074A04 SHT 1 OF 1

REV. ECNDESCRIPTIONDATEBY TITLE F.C.F.OSCALE DRAWN BYCHECKED BY 8H074A06 SHT 1 OF 1 CMDUHF FCC/IC LABEL LOCATION AJK 26-Jan-01 8H074A06 SHT 1 OF 1 I.D Jan 25 / 01

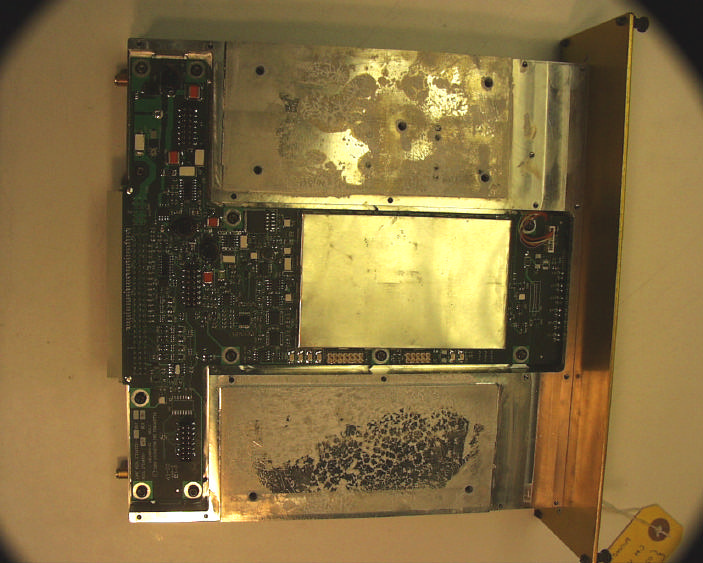

Exhibit 12(a) - Internal Photographs of the Equipment under TestsPhoto # 1 Exhibit 12(a) - Internal Photographs of the Equipment under TestsPhoto # 2 Exhibit 12(a) - Internal Photographs of the Equipment under TestsPhoto # 3 Exhibit 12(a) - Internal Photographs of the Equipment under TestsPhoto # 4 Exhibit 12(a) - Internal Photographs of the Equipment under TestsPhoto # 5

Exhibit 12(b) - Internal Photographs of the Equipment under TestsPhoto # 6 Exhibit 12(b) - Internal Photographs of the Equipment under TestsPhoto # 7 Exhibit 12(b) - Internal Photographs of the Equipment under TestsPhoto # 8 Exhibit 12(b) - Internal Photographs of the Equipment under TestsPhoto # 9 Exhibit 12(b) - Internal Photographs of the Equipment under TestsPhoto # 10 Exhibit 12(b) - Internal Photographs of the Equipment under TestsPhoto # 11

Feb.01, 2001 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2 and 90 (Subpart I) - Radio Services Transmitters Operating in the frequency bands 403 - 512 MHz (excluding 406-406.125 MHz, 12.5 kHz and 25 kHz Channel Spacings). Applicant:Futurecom Systems Group Inc. Product:UHF Channel Module II (Repeater) Model:CMDUHF FCC ID:LO6-CMDUHF Dear Sir/Madam, we would like to submit the application to the Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site for detailed information. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.:1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/AK Encl. 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 UltraTech Group of Labs 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Feb.01, 2001 Futurecom Systems Group Inc. 110 Snow Blvd., Unit 3 Concord, Ontario Canada, L4K 4B8 Attn.:Mr. Adam J. Kolanski Subject:Certification Testing in accordance with FCC CFR 47, Parts 2 and 90 (Subpart I) - Radio Services Transmitters Operating in the frequency bands 403 - 512 MHz (excluding 406-406.125 MHz, 12.5 kHz and 25 kHz Channel Spacings). Product:UHF Channel Module II (Repeater) Model:CMDUHF Dear Mr. Kolanski , The product sample has been tested in accordance with FCC CFR 47, Parts 2 and 90 (Subpart I) - Radio Services Transmitters Operating in the frequency bands 403- 406.125 MHz and 406.125- 512 MHz (12.5 kHz and 25 kHz Channel Spacings), and the results and observation were recorded in the engineering report, Our File No.: FSG- 028Q Enclosed you will find copies of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs UHF Channel Module II (Repeater) Model No.: CMDUHF FCC ID: LO6-CMDUHF Applicant: Futurecom Systems Group Inc. 110 Snow Blvd., Unit 3 Concord, Ontario Canada, L4K 4B8 Tested in Accordance With Federal Communications Commission (FCC) CFR 47, PARTS 2 and 90 (Subpart I) 403 - 512 MHz (excluding 406-406.125 MHz, 12.5 kHz and 25 kHz Channel Spacings). UltraTech's File No.: FSG-028Q This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: Feb. 01, 2001 Report Prepared by: Tri Luu . Tested by: Hung Trinh Issued Date: Feb.01, 2001Test Dates: Jan. 04-18, 2001 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] FCC PARTS 2 & 90, SUBPART I, RADIO SERVICES TRANSMITTERS Page 1 UHF Channel Module II (Repeater), Model CMDUHFFCC ID: LO6-CMDUHF ULTRATECH GROUP OF LABSFile #: FSG-028Q 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4Feb.01, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia) • Recognized/Listed by FCC (USA), Industry Canada (Canada) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1.SUBMITTAL CHECK LIST.................................................................................................................................................3 EXHIBIT 2.INTRODUCTION..................................................................................................................................................................4 2.1.SCOPE..............................................................................................................................................................................................4 2.2.RELATED SUBMITAL(S)/GRANT(S)...............................................................................................................................................4 2.3.NORMATIVE REFERENCES........................................................................................................................................................4 EXHIBIT 3.PERFORMANCE ASSESSMENT.......................................................................................................................................5 3.1.CLIENT INFORMATION...............................................................................................................................................................5 3.2.EQUIPMENT UNDER TEST (EUT) INFORMATION..................................................................................................................5 3.3.EUT’S TECHNICAL SPECIFICATIONS.....................................................................................................................................6 3.4.LIST OF EUT’S PORTS.....................................................................................................................................................................7 3.5.ANCILLARY EQUIPMENT..............................................................................................................................................................7 EXHIBIT 4.EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS........................................................8 4.1.CLIMATE TEST CONDITIONS........................................................................................................................................................8 4.2.OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS..............…

Text truncated - open the document above for the full version.

Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 13 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 14 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 15 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 16 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 17 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 18 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 19 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 20 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 21 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 22 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 23 Exhibit 9(b) - Plots of Measurements (99% Occupied BW)Plot # 24

Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 1 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 2 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 3 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 4 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 5 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 6 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 7 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 8 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 9 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 10 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 11 Exhibit 9(a) - Plots of Measurements (Emission Masks)Plot # 12

Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 25 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 26 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 27 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 28 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 29 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 30 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 31 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 32 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 33 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 34 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 35 Exhibit 9(c) - Plots of Measurements (Conducted Spurious/Harmonic Emissions)Plot # 36

Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 37 Test Condition:Channel Spacing: 12.5 kHz, Modulation: un-modulated, SWITCH OFF 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T3 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 38 Test Condition:Channel Spacing: 12.5 kHz, Modulation: un-modulated, SWITCH ON 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T1 T2 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 39 Test Condition:Channel Spacing: 12.5 kHz, Modulation: FM Modulation with random data @ 9600b/s SWITCH OFF 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T3 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 40 Test Condition:Channel Spacing: 12.5 kHz, Modulation: FM Modulation with random data @ 9600b/s SWITCH ON T1 T2 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 41 Test Condition:Channel Spacing: 12.5 kHz, Modulation: FM Modulation with 1 kHz Sine Wave signal SWITCH OFF 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T3 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 42 Test Condition:Channel Spacing: 12.5 kHz, Modulation: FM Modulation with 1 kHz Sine Wave signal SWITCH ON 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T1 T2 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 43 Test Condition:Channel Spacing: 25 kHz, Modulation: un-modulated, SWITCH OFF 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T3 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 44 Test Condition:Channel Spacing: 25 kHz, Modulation: un-modulated, SWITCH ON 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T1 T2 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 45 Test Condition:Channel Spacing: 25 kHz, Modulation: FM Modulation with random data @ 9600b/s SWITCH OFF 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T3 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 46 Test Condition:Channel Spacing: 25 kHz, Modulation: FM Modulation with random data @ 9600b/s SWITCH ON 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T1 T2 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 47 Test Condition:Channel Spacing: 25 kHz, Modulation: FM Modulation with 1 kHz Sine Wave signal SWITCH OFF 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T3 Exhibit 9(d) - Plots of Transient Behavior MeasurementsPlot # 48 Test Condition:Channel Spacing: 25 kHz, Modulation: FM Modulation with 1 kHz Sine Wave signal SWITCH ON 12.5 kHz 6.25 kHz 0.605 kHz 0 -0.605 kHz -6.25 kHz -12.5 kHz T1 T2

Exhibit 10 - Photographs of Test SetupPhoto # 1 Exhibit 10 - Photographs of Test SetupPhoto # 2
