LPRRTR-424GWireless 2.4 GHz Transceiver
Leidos, Inc.
Click to zoom
Application Details
- Equipment Class
- DSS - Part 15 Spread Spectrum Transmitter
- Date of Grant
- Apr 23, 2000
- Application Purpose
- Original Equipment
- Date of Application
- Mar 14, 2000
- Equipment Note
- Wireless 2.4 GHz Transceiver
- Frequency Range
- 2432.00000000 - 2432.00000000
- Company
- Leidos, Inc.
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
SUS# RTR-4 Portable Digital X-ray Imaging System Operators Manual 120300 Rev B T6D8 %& Xr7r h q9 vr Th9vrt86(! !& VT6 8 vtu (((T6D8 6yy vtu rr rqQ vrqvurVvrqThrs6r vph 6yyqhhhqvs hvphvrqv qvpyrqiuvqprh rpsvqrvhyhq vrh vs hvsT6D8hqvhssvyvhrhqhyy vtuur rvh rr ry rr rq7hpprvtuv hr vhyur rpvvrht rruhuvhr vhyhqurvs hvphvrqur rvh ruryqv psvqrprhqv hqvyyirrqpvrq r qprqvuyr vh vpr rrhyrqvhhr ur vuurr r vrr vvsT6D8Dp hrq Uuvrpuytvp yyrqiurVvrqThrBr r9vr vp h VTyh uvivrq T6D8Q vrh )A ryrrsT6D8Sryrhrur h vrvhu vrqvu T6D8/ vrr vv T6D8 rr rur vtupuhtr rvruvvs hvvuvprSrhhiyrrss uh irrhqrr ruhurvs hvvuvhhyvhpp hr0urr T6D8hr rvivyvs vhpp hpvr vvshxvqT6D8hxrh hs urrsv qp T6D8vh rtvr rq hqrh xsTpvrprhyvphvDr hvhy8 hv SUS#4vh hqrh xsT6D8 SUS#Q hiyr9vtvhyY hDhtvtTrPr h Hhhy !"Sr7 Hh pu"! FCC Compliance Statements FEDERAL COMMUNICATIONS COMMISSION RADIO AND TELEVISION INTERFERENCE STATEMENT FOR A CLASS ‘B’ DEVICE Changes or modifications not expressly approved by Science Applications International Corporation could void the user’s authority to operate the equipment. NOTE: This product was FCC certified under test conditons that included the use of shielded I/O cables and connectors between system components. To be in compliance with FCC regulations, the user must use shielded cables and connectors and install them properly. X-Ray Receiver Only FEDERAL COMMUNICATIONS COMMISSION RADIO AND TELEVISION INTERFERENCE STATEMENT FOR A CLASS ’B’ DEVICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and then on, the user is encouraged to try to correct the interference by one of more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver •Connect the equipment into a different outlet so that the equipment and receiver are on different branch circuits. •Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15, of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Changes or modifications not expressly approved by Science Applications International Corporation could void the user’s authority to operate the equipment. 120300 Rev BSAIC Proprietary Revision History VersionRelease DateNotes 9Er $ ((( Dvvhy ryrhr 66 vy % ((( Hv rvv 7Hh pu"! Hv qhrhqqrq6rqvAXv ryrPvrq qprvrryhrs hqhrq8uhr $vu rvs hvhqp rruSr qr rqpuhr hq hrqvpr 120300 Rev BSAIC Proprietary (DRAFT VERSION—TO BE UPDATED) i Table of Contents Introduction ............................................................................................................................... ix Purpose and scope ............................................................................................................... ix RTR-4 technical support ....................................................................................................... ix Document revisions ............................................................................................................... ix Symbols ................................................................................................................................ x Acronyms and abbreviations ................................................................................................. x Before You Begin .................................................................................................................... 1-1 Introduction ........................................................................................................................ 1-1 Safety Information .............................................................................................................. 1-1 Danger and Warning Icons: ......................................................................................... 1-1 Operating Precautions ................................................................................................. 1-2 System Components .................................................................................................... 1-4 Setup and Operation............................................................................................................... 2-1 Setup and Operation .......................................................................................................... 2-1 Component Overview .................................................................................…
Text truncated - open the document above for the full version.
Cover Letter(s)
March 16, 2000 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Rd. Columbia, MD 21046 Ref.:FCC ID: LPRRTR-424G, 731 Confirmation #EA97063 To Whom It May Concern, An error in the 731 Form, Item 13: “Equipment Specifications” was made for the above referenced application. The proper Rated Power Output is listed as 0.000048 watts and should be listed as 0.018 watts. Please contact me with any questions. Sincerely, Andrew Smith Nemko EESI, Inc. Project Manager

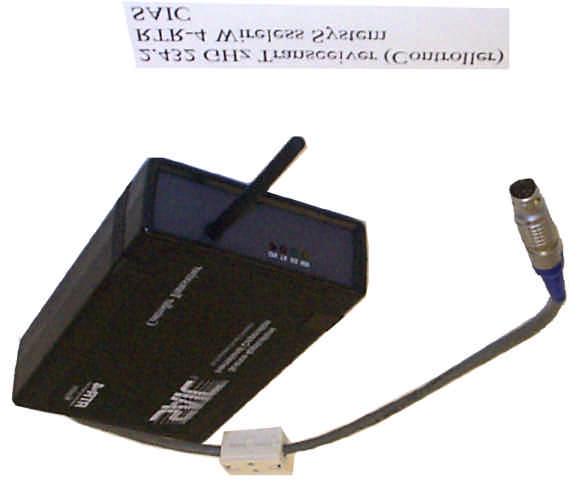

External Photos
Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Exterior Photographs LPRRTR-424G1 of 2 Top/Front Exterior View Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Exterior Photographs LPRRTR-424G2 of 2 Bottom/Rear Exterior View
Internal Photos
Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Exterior Photographs LPRRTR-424G1 of 6 EUT with Top Cover Removed Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Exterior Photographs LPRRTR-424G2 of 6 EUT with Printed Circuit Boards Removed from Case (Power Supply Board still in Case) Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Exterior Photographs LPRRTR-424G3 of 6 Top View of Logic Board and RF Boards (Separated) Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Exterior Photographs LPRRTR-424G4 of 6 Bottom View of Logic Board and RF Boards (Separated) Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Exterior Photographs LPRRTR-424G5 of 6 Top View of Power Supply Board Removed from Case Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Exterior Photographs LPRRTR-424G6 of 6 Bottom View of Power Supply Board Removed from Case
Operational Description
Portable Digital X-Ray Imaging System With RF Wireless Option The Faster, Safer Solution for Inspecting Suspicious Objects SAIC introduces the RTR-4 RF wireless option, an invaluable enhancement to the operating convenience of the popular RTR-4 Portable Digital X-Ray System. This option replaces the cabling which connects the Control Unit, X-Ray Imager and X-Ray Source. Important benefits of this option include: x SAFETY: Assisting law enforcement and security professionals’ efforts to quickly detect, identify, and evaluate the contents of suspicious packages and transport devices, the RTR-4 wireless option provides a wireless connection from the Control Unit to the X-ray Imager. The operator, as well as other personnel and property, remain up to a safe 200-meter (656-foot) line of site distance from the potentially dangerous item being evaluated. x EASE OF SET-UP: All cabling between components is eliminated; thus, overall system set-up is easier and set-up time is decreased. The wireless components reduce the overall carrying weight up to 9 kilograms (20 pounds). x FREEDOM OF MOVEMENT: Unrestricted by cable connections, bomb technicians utilizing the RF wireless have unlimited freedom of movement. x COMPATIBILITY: The wireless option is compatible with all existing and new RTR-4 and ARS units, although not with the older RTR-3. x ROBOT-MOUNTABLE: The RTR-4 with the wireless option allows mounting capability on customer’s existing robotic platforms for independent operation. Controller Transceiver, Imager Transceiver and X-Ray Receiver RTR-4 WIRELESS OPTION SPECIFICATIONS DATA TRANSFERRANGE Type: 2.4 GHz wireless link from Controller to Imager 418 MHz 64-bit encoded control message from Imager to X-ray Source Digital encoding provides added security against interference Controller to Imager: 100 meters (328 feet) in typical office environment Tested and proven to operate through 1 meter (3.28 feet) of reinforced concrete 200 meters (656 feet) line of site * Imager to X-Ray:6 meters (19.68 feet) in typical office environment SUPPLIED COMPONENTSVISUAL INDICATORS Imager TransceiverImager Transceiver: Operation Mode, Transmit, Receive, Controller TransceiverPower On X-Ray Receiver with 9V alkaline batteryControl Transceiver: Operation Mode, Transmit, Receive, One SMP 10.8V NiMH Battery, 3.8 Amp hr.Power On Carrying CaseX-Ray Receiver:Low Battery, Power On BATTERIES X-Ray Receiver: Type: 9-volt alkaline Battery Life: Up to 20 hours Imager Transceiver: Type: 10.8V NiMH or equivalent (same battery used in RTR-4 Control Unit) Battery Life: Approximately 3 hours Battery Charging: Use BC-108 accessory charger, an option to the RTR-4 REGULATORY STANDARD Complies with FCC Part 15(c) * Specific results may vary, since operating conditions widely fluctuate. Radio Frequency (RF) devices are subject to interference and momentary interruptions in communication. Higher elevation of Controller Unit will improve performance. Nearby walls may act as reflectors and cause multipath interference at certain distances. Note: Due to our efforts to continually improve this product, specifications, dimensions, and operating procedures are subject to change without notice. All specifications and measurements are approximate, based on the standard configuration; results may vary with the application and environment. Safety and Security Instruments A Division of Science Applications International Corporation Our facility has been registered by Underwriters Laboratories Inc. to the International Organization for Standardization ISO 9000 Series Standards for Quality. Registered by UL to I I S S O O 9 9 0 0 0 0 2 2 , , F F i i l l e e # # A A 6 6 1 1 1 1 3 3 . . 16701 West Bernardo Drive, San Diego, CA 92127 USA For information, please contact: (800) 962-1632 or (858) 826-9831 Fax: (858) 826-9224 www.ssio.saic.com Copyright ¤ 1999 by Science Applications International Corporation (SAIC). All rights reserved. All material contained herein is considered proprietary information and should not be reproduced without written permission of SAIC. Document TPN #09-0076, Rev. 4, 3/2000 SPECIAL FEATURES Transparent replacement of existing cable connections. The wireless option is compatible with all RTR-4 and ARS Digital X-ray Imaging Systems. No special adapters or cables are required. Rugged aluminum extrusion housing on wireless Imager and Controller Transceiver units. High Impact ABS plastic housing on wireless X-ray unit and Image Transceiver.
Schematics
55 44 33 22 11 D D C C B B A A RTR-4 Wireless D. Kearney 04/29/99 120507 RTR Wireless Sketch Release Notes:1. Parts JR1, Circular Connector, and J1, 2-Pin Header,are to be mounted on the primary side of the PWA.2. Part PWR1, Power Supply, is to be mounted on thesecondary side of the PWA. 120508 32101 X1 Controller Transceiver TITLE SIZE CAGE CODE REV SHEET OF DWG NO. SCALE NONE APPROVALS DATE CONTRACT NO. PREPAREDCHECKEDAPPROVEDQAREL SOURCE FILE APPLICATION NEXT ASSY USED ON UNLESS OTHERWISE SPECIFIEDDIMENSIONS ARE IN INCHESTOLERANCES ARE: .X +/- .1 .XX +/- .02 .XXX +/- .005 DO NOT SCALE DRAWING MATERIAL:FINISH: COPYRIGHT SAIC 1999 ALL RIGHTS RESERVED ANY UNAUTHORIZED REPRODUCTION, DISCLOSURE, COPYING, OR OTHER USE IS STRICTLY PROHIBITED. X1 REVISION LTR DESCRIPTION DATE APPROVED J1CON2MOLEX6373-02 12 MTG1MTG125/380MTG4MTG093MTG5MTG6MTG7MTG8MTG9MTG10MTG11 JR1CIRDIN_3-RMD-30S 1 2 3 4 PWR1ASD-PWRASD-0X 12 3 4 5 6 +IN-IN +OUT N/C -OUT CTRL C10.1uF1206
Test Report
FCC, PART 15, SUBPART C CERTIFICATION REPORT For The RTR-4 Wireless Controller Transceiver Part Number: 120550 FCC ID: LPRRTR-424G (PENDING) PREPARED FOR: Science Application International Corporation 10260 Campus Point Drive San Diego, CA 92121 PREPARED ON MARCH 13, 2000 REPORT NUMBER 20-035 This report has been prepared in accordance with all applicable requirements of ANSI C63.4-1992 Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMESUBMITTAL #FCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 FCC ‘C’ Certification Report 20-035LPRRTR-424Gii DOCUMENT HISTORY REVISIONDATECOMMENTS -3/11/00Prepared By: Wm. Morton -3/11/00Reviewed By: A. Smith -3/11/00Initial Release J. L. Griffin NOTE: Nemko EESI, Inc. hereby makes the following statements so as to conform to Chapter 10 (Test Reports) Requirements of ANSI C63.4 (1992) “Methods and Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”: • The unit described in this report was received at Nemko EESI, Inc.'s facilities on February 11, 2000. Testing was performed on the units described in this report February 11–24, 2000. • The Test Results reported herein apply only to the units actually tested, and to substantially identical units. • This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. This Report is the property of Nemko EESI, Inc., and shall not be reproduced, except in full, without prior written approval of Nemko EESI, Inc.. However, all ownership rights are hereby returned unconditionally to Science Application International Corporation, and approval is hereby granted to Science Application International Corporation and its employees and agents to reproduce all or part of this report for any legitimate business purpose without further reference to Nemko EESI, Inc.. Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMESUBMITTAL #FCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 FCC ‘C’ Certification Report 20-035LPRRTR-424Giii TABLE OF CONTENTS DOCUMENT HISTORY..............................................................................................................................ii CERTIFICATION........................................................................................................................................iv 1.ADMINISTRATIVE DATA AND TEST SUMMARY.........................................................................1 1.1Administrative Data.........................................................................................................................1 1.2FCC Test Requirements...................................................................................................................1 1.3FCC Test Summary.........................................................................................................................2 2.SYSTEM DESCRIPTION AND CONFIGURATION..........................................................................3 2.1Description of EUT.........................................................................................................................3 2.2System Components and Power Cables...........................................................................................4 2.3Device Interconnection and I/O Cables...........................................................................................5 2.4Design Modifications for Compliance.............................................................................................5 3.DESCRIPTION OF TEST SITE AND EQUIPMENT..........................................................................6 3.1Description of Open Area Test Site.................................................................................................6 3.2Test Equipment................................................................................................................................6 4.DESCRIPTION OF TESTING METHODS..........................................................................................7 4.1Introduction.....................................................................................................................................7 4.2Configuration and Methods of Measurements for Conducted Emissions........................................9 4.3Configuration and Methods of Measurements for Radiated Emissions.........................................11 5.TEST RESULTS.....................................................................................................................................14 5.1Conducted Emissions Test Results - §15.207................................................................................14 5.2Radiated Emissions Test Data - §15.209.......................................................................................16 5.3Occupied Bandwidth Test Data.....................................................................................................17 5.4Radiated Emissions Test Data - §15.247(c)...................................................................................18 EXHIBITS Figure 1. General EUT Test Setup Diagram..............................................................................................8 Figure 2. Conducted Emissions Test Setup Diagram...............................................................................10 Figure 3. Radiated Emissions Frequency ID Test Setup Diagram...........................................................12 Figure 4. Radiated Emissions (OATS) Test Setup Diagram....................................................................13 APPENDICES Conducted & Radiated Emissions Measurement Uncertainties .....................................................…
Text truncated - open the document above for the full version.
Test Report
FCC ID: LPRRTR-424G Nemko EESI, Inc. FCC, Part 15.109, Class 'A' Radiated Emissions Data Sheet (10m Open Area Test Site) Client:SAIC Conducted by: C. Rickard EUT:RTR-4 Wireless Accessory (for Controller)Date of Test:02-11-00 Model #:120550Frequency Range:30-1000MHz Frequency (MHz) Spectrum Analyzer Reading (dBμμV) Antenna Polarization (V or H) Amp. Gain & Cable Loss, Distance & Antenna Factor Correction for 10m (dB/m) Total Interference Level Corrected for 10 m (dBμμV/m) Emission Spec. Limit at 10 m (dBμμV/m) Difference Margin (dB) 41.70015.4v13.428.839.1-10.3 50.11922.8v13.536.339.1-2.8 62.54013.4v12.425.839.1-13.3 75.11520.1v9.829.939.1-9.2 79.19012.3v9.722.039.1-17.1 112.70015.4v16.732.143.5-11.4 125.22021.0v15.536.543.5-7.0 137.76021.8v15.437.243.5-6.3 150.33021.3v17.338.643.5-5.0 162.87017.8v19.136.943.5-6.6 200.45019.9v15.335.243.5-8.3 225.50022.9v15.838.746.4-7.7 250.48013.5v18.031.546.4-14.9 263.10016.6v18.234.846.4-11.7 300.68017.0v20.037.046.4-9.4 313.20013.4v19.933.346.4-13.1 338.25013.2v20.033.246.4-13.2 363.32010.4h20.430.846.4-15.7 413.4209.8h21.731.546.4-14.9 476.07016.3v24.240.546.4-6.0 501.08015.7v24.740.446.4-6.0 526.07018.4v24.843.246.4-3.3 551.21011.9v25.637.546.4-8.9 840.90612.9v31.144.046.4-2.5 Test Conditions: Standard radiated emissions test set up on FCC registered open field site. The highest emissions for all antenna heights, polarities, and table orientations are the only emissions recorded.
Test Report
FCC ID: LPRRTR-424G Nemko EESI, Inc. FCC, Part 15C, 15.209/15.247(c) Radiated Emissions Data Sheet (3m Open Area Test Site) Client:SAIC Conducted by: C. Rickard EUT:RTR-4 Wireless Accessory (for Controller)Date of Test:02-24-00 Model #:120550Test Distance:3 Frequency (MHz) Spectrum Analyzer Reading at 3m (dBμμV) Antenna Position f O Amp. Gain Factor (dB) Cable Loss Factor (dB) Antenna Factor (dB) Total Interference Level at 3 m (dBμμV/m) Emission Spec. Limit at 3 m (dBμμV/m) Difference Margin (dB) 560.00032.7v --7.4 18.358.487.4-29.1 1081.25017.3v --0.32.7 25.545.855.0-9.2 1120.00018.2v --0.12.7 25.646.654.0-7.4 1399.91517.0v -1.43.0 26.445.054.0-9.0 2444.00076.8v f 0 3.53.9 30.2107.4125.0-17.6 4887.0004.5v f 2 2.56.2 33.842.054.0-12.0 7329.0001.8v f 3 0.57.7 38.047.054.0-7.0 Notes: No additional harmonics of the fundamental frequency or spurious emissions were noted up to 24GHz. Transmitter Local Oscillator reading at 560MHz was interpolated to 3m distance and compared to 15.247(c) limit. 15.205 Restricted Band limits apply to all other (non-fundamental) emissions. Test Conditions: Standard radiated emissions test set up on FCC registered open field site. The highest emissions for all antenna heights, polarities, and table orientations are the only emissions recorded.
Test Setup Photos
Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Test Configuration Photographs LPRRTR-424G1 of 2 Conducted Emissions Test Configuration EUT: Transmitter Controller LISN Monitor Trackball Printer Nemko EESI, Inc. 11696 Sorrento Valley Road, Suite. F, San Diego, CA 92121 Phone (858) 793-9911 Fax (858) 259-7170 DATEDOCUMENT NAMEFCC IDPAGE 3/11/00 Science Application International Corporation Part Number 120550 Test Configuration Photographs LPRRTR-424G2 of 2 Radiated Emissions Test Configuration Log Periodic Antenna Controller (EUT mounted on back of lid) Monitor Trackball Printer
