LQN2887Microwave Sensor

Connaught Electronics Ltd

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: Jun 25, 2003
Application Purpose: Original Equipment
Date of Application: Jun 25, 2003
Equipment Note: Microwave Sensor
Frequency Range: 5605.00000000 - 5995.00000000
Company: Connaught Electronics Ltd
Country: Ireland

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Connaught Electronics Ltd. IDA INDUSTRIAL ESTATE, DUNMORE ROAD, TUAM, CO. GALWAY, IRELAND. Telephone: +353 93 25128 Fax: +353 93 25133 [email protected] www.cel-europe.com User Manual Product Reference: MDD Sensor. CEL Part No. 902887 FCC ID: LQN2887 FCC WARNING STATEMENT Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential/office installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced Radio/TV technician for help CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. DIRECTORS: DR. JOE MCBREEN, FRANK CLANCY COMPANY REGISTRATION NO. 92489

Block Diagram

[email protected] www.cel-europe.com Connaught Electronics Ltd. IDA INDUSTRIAL ESTATE, DUNMORE ROAD, TUAM, CO. GALWAY, IRELAND. Telephone: +353 93 25128 Fax: +353 93 25133 A/C Fax: +353 93 24047 FCC ID: -LQN2887 MICROWAVE BLOCK DIAGRAM: Transmi t Antenna TARGET Voltage Regulator Micro – Controller PRF Oscillator/ U8 4MHz RF Oscillator 5.8GHz Envelope Detector Range Gate Generator Range Adjust IF FILTER IF AMPS Target Receive Antenna +12 Gnd ST INRS Frame 1 of 1

Cover Letter(s)

ITC Engineering Services Over 20 years experience in Compliance Testing and Engineering Consulting Services ———————————————————————————————————————————————————————— 9959 Calaveras Road, Box 543, Sunol, CA 94586-0543 Phone: (925) 862-2944 • (888) 336-7625 • Fax: (925) 862-9013 E-mail: [email protected] • Web: www.itcemc.com Date: Monday March 10, 2003 Attn.: Authorization and Standards Division Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 File Number: FCC ID: LNQ2887 Subject: Request for Confidentiality To Whom It May Concern, Pursuant to 47CFR 0.575(d) of the commissions rules and section 552(b)(4) of the Freedom of Information Act (which authorizes the withholding from public inspection; materials which would be privileged as a matter of law, such as trade secrets), we are hereby requesting that the following documents are to be handled with confidentiality and removed from display on the FCC Status Query Form Display of Exhibits: • Schematics (all pages) If there are any questions or if further information is needed, please call us at (925) 862-2944 or fax (925) 862-9013. Thank you. Yours sincerely, Bandele Adepoju ITC ————————————————EN 45001, NVLAP and VCCI Accredited Laboratory————————————————

Cover Letter(s)

From: Bandele Adepoju [[email protected]] Sent: Thursday, June 26, 2003 2:02 PM To: Mike Kuo Subject: RE: Connaught Electronics Ltd, FCC ID:LQN2887, AN03T2678 Importance: High Hello Mike, Thank you for taking the time to meet with me this morning. I do agree with your assessment below as, also, was confirmed during our meeting. The measured peak and average field strengths are within the 15.209 general requirement and this section can be applied to the application. Based on the above, I hope that this application can be closed today. If you should have any additional questions or comments, please do not hesitate to contact. Thank you for your prompt attention. Regards, Bandele Adepoju ITC Engineering Services Engineering Services Company including Compliance Services 9959 Calaveras Road, Sunol, CA 94586-0543 Tel: +1 (925) 862-2944 Fax: +1 (925) 862-9013 website: www.itcemc.com <http://www.itcemc.com> ********************************************************************** This message and any files attached are intended only for the recipients above, and contain information that may be confidential, proprietary or privileged. If you are not the intended or correct recipient, you must not read, copy, distribute, use or disclose this message and its attachments. Please also notify the sender by replying to this message, and then delete all copies of it from your system. ********************************************************************* -----Original Message----- From: Mike Kuo [mailto:[email protected]] Sent: Thursday, June 26, 2003 1:29 PM To: 'Bandele Adepoju' Subject: RE: Connaught Electronics Ltd, FCC ID:LQN2887, AN03T2678 Hi Bandele : This is to recap the meeting that we had this morning. 1) Based upon the revised test report, the fundamental frequency is from 5605-5995MHz which is beyond the frequency band 5725-5875MHz per section 15.249 of FCC rules. After reviewing the revised test report, the measured peak and average field strengths are within the 15.209 general requirement. Please confirm in writing that you are agreed with this assessment. Best Regards Mike Kuo -----Original Message----- From: Bandele Adepoju [mailto:[email protected]] Sent: Wednesday, June 18, 2003 1:54 AM To: Mike Kuo Subject: RE: Connaught Electronics Ltd, FCC ID:LQN2887, AN03T2678 Hello Mike, The answers to your questions are as follows: Question #4: The manufacturer rates the exact frequency of the LP_Sensor as 5.8GHz. Question #5: The limits stated in 15.249 for out of band emissions are equal to the limits specified in 15.209, which are the general emission limits for non-ISM band operation. This is generally 500uV/m outside of the 15.249 band, and with the operation of the LP_MDD sensor at <10% duty cycle, there is a duty cycle correction for limiting peak emissions per 15.209e, so out of band emissions for the LP_MDD sensor are well below the spurious emissions limits. The out-of-band levels are shown in plots in the attached Report. Question #6: The limits in table have been corrected and a revised report is attached. The 2 limits are for the peak at 5GHz and spurious for out-of-band. Question #7: The pulsed width is 5 nano-seconds. If you should have any additional questions, please do not hesitate to contact me. Thank you for your prompt attention to this response. Regards, Bandele Adepoju ITC Engineering Services Engineering Services Company including Compliance Services 9959 Calaveras Road, Sunol, CA 94586-0543 Tel: +1 (925) 862-2944 Fax: +1 (925) 862-9013 website: www.itcemc.com <http://www.itcemc.com> ********************************************************************** This message and any files attached are intended only for the recipients above, and contain information that may be confidential, proprietary or privileged. If you are not the intended or correct recipient, you must not read, copy, distribute, use or disclose this message and its attachments. Please also notify the sender by replying to this message, and then delete all copies of it from your system. ********************************************************************* -----Original Message----- From: Mike Kuo [mailto:[email protected]] Sent: Wednesday, June 11, 2003 6:47 PM To: 'Bandele Adepoju' Subject: RE: Connaught Electronics Ltd, FCC ID:LQN2887, AN03T2678 Hi Bandele : I have reviewed the supplemental attachments with the following questions: Question #4: In accordance with product specification sheet Page 27 of 28 of test report, the transmitting frequency band of this device is 5725-5875MHz band. What is the exact fundamental frequency that this device is transmitting ? Page 14 indicates 5793MHz, Page 18 indicates 5810MHz, Page 19 Occupied BW indicates 5777MHz, Page 24 indicates 5742MHz. Question #5: Page 19 Occupied BW: Based upon the occupied BW plots, the entire BW is outside the frequency band of 5725-5875MHz. Please explain how the section 15.249(c) requirement can be complied. Question #6: Page 24 of radiated emission tabular data, please explain why the 82dBuV/m limits is used for 5742MHz and 60dBuV/m is used for all other emissions. Question #7: What is the pulsed Width ? Best Regards Mike Kuo -----Original Message----- From: Bandele Adepoju [mailto:[email protected]] Sent: Tuesday, May 13, 2003 4:04 AM To: Mike Kuo Subject: RE: Connaught Electronics Ltd, FCC ID:LQN2887, AN03T2678 Importance: High Dear Mike Kuo, Questions #1 and #2: Please find attached our request for review of the subject application under FCC Rules 47 CFR 15.249. I have also attached a revised test report. This should address your questions #1 and 2. Question #3: The receiving frequency range is 5,780 MHz to 5,820 MHz. If should require any additional questions, please do not hesitate to contact me. Regards, Bandele Adepoju ITC Engineering Services, Inc. Engineering Services Company including Compliance Services 9959 Calaveras Road, Sunol, CA 94586-0543 Tel: +1 (925) 862-2944 Fax: +1 (925) 862-9013 website: www.itcemc.com <http://www.itcemc.…

Text truncated - open the document above for the full version.

External Photos

EUT Photos for FCC Test Report for 47CFR15, Subpart B for Unintentional Radiators, per Section 101 Equipment authorization of unintentional radiators, and 47CFR15, Subpart C for Intentional Radiators, per Section 249 Operation within the bands 5725-5875 MHz on BMW LP_MDD Microwave Sensor [FCC ID: LQN2887] part number 502887 itc report number 20021126-01-F15rb manufacturer Connaught Electronics Ltd. IDA Industrial Estate Dunmore Road, Tuam County Galway, Ireland judgement Complies tests and report by ITC Engineering Services, Inc. (ITC) 9959 Calaveras Road, P.O. Box 543 Sunol, California 94586 Tel.: (925) 862-2944 Fax: (925) 862-9013 E-Mail: [email protected] Web Site: www.itcemc.com  EN45001 Accredited Compliance Laboratory (RES-GmbH) Lab Code: 200172-0 Registration number: TTI-P-G 159/98-00 (RES-GmbH) Applicant: Connaught Electronics, Ltd. Report No.: 20021126-01-F15rb Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com BMW LP_MDD Microwave Sensor P/N: 502887 FCC ID:LQN2887 EUT PHOTOGRAPHS Antenna board EUT - Overview Bottom View Page 2 of 5 Applicant: Connaught Electronics, Ltd. Report No.: 20021126-01-F15rb Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com BMW LP_MDD Microwave Sensor P/N: 502887 FCC ID:LQN2887 EUT PHOTOGRAPHS (cont) EUT – Top View EUT Mainboard – SolderSide View Page 3 of 5 Applicant: Connaught Electronics, Ltd. Report No.: 20021126-01-F15rb Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com BMW LP_MDD Microwave Sensor P/N: 502887 FCC ID:LQN2887 EUT PHOTOGRAPHS (cont) EUT Mainboard – Component Side View (with Shield Cover) Mainboard – Component Side View (Shield Cover Removed) Page 4 of 5 Applicant: Connaught Electronics, Ltd. Report No.: 20021126-01-F15rb Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com BMW LP_MDD Microwave Sensor P/N: 502887 FCC ID:LQN2887 Page 5 of 5 EUT PHOTOGRAPHS (cont) Antenna Board –Side1 Antenna Board – Side2

ID Label/Location Info

Connaught Electronics Ltd. Project: BMW Microwave Rev: 002 Date: 6/02/03 Product /Assembly BMW Microwave Doc Description: BMW Microwave FFT Label Specification Page 1 of 1 Drawn Up By: Joe Mannion Authorised by: Rev 2 Changes 1. BMW P/N font size increase 2. e approval numbers removed 3. Index Number changed from EY76R to 01 Purpose. This document details information requirements and label material specification of the pass label for the BMW Microwave (FFT). Label Spec Label Size 44mm x 38mm Material: Z Extreme 4000 (Automotive spec) blank white label Barcode type: Code 93 Barcode data: Serial Number + CEL P/N

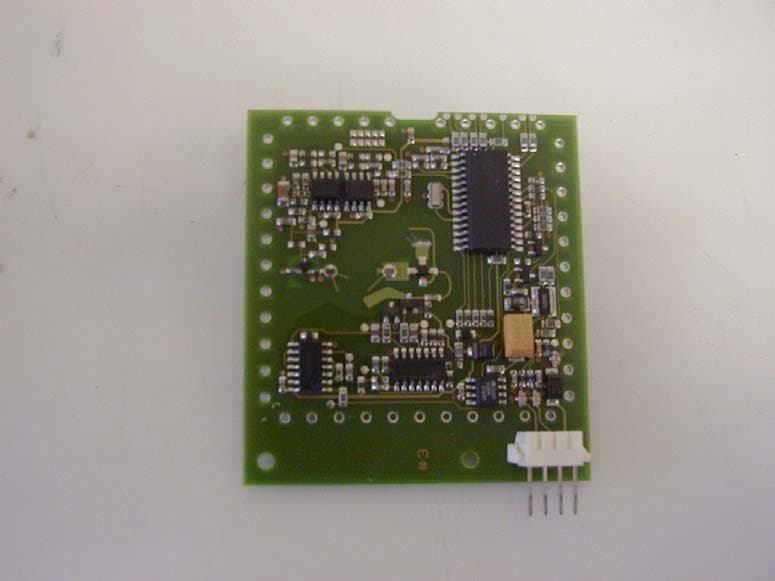

Internal Photos

Operational Description

FCC ID: LQN2887 [email protected] www.cel-europe.com Connaught Electronics Ltd. IDA INDUSTRIAL ESTATE, DUNMORE ROAD, TUAM, CO. GALWAY, IRELAND. Telephone: +353 93 25128 Fax: +353 93 25133 A/C Fax: +353 93 24047 TECHNICAL FILE FOR BMW LP_MDD MICROWAVE SENSOR BMW P/N: 6 917 557 CEL P/N: 502887 Revision Author Date Revision 01 Paul Connors 4 th December 2002 Frame 1 of 7 FCC ID: LQN2887 1.0 Introduction This is a Technical File for BMW LP MDD Microwave sensor electronics supplied by CEL to BMW. 1.1 Theory of Operation The vehicle passenger compartment protection system operates as a microwave based motion detection sensor. The sensor detects motion within a set surveillance hemisphere and an alarm signal is sent to the Ground Module. The sensor works on the Doppler principle. The transmit antenna transmits an electro-magnetic field into the vehicle. The receive antenna accepts reflections from moving targets and the resulting signals are filtered and amplified before being sent to the microcontroller for evaluation. The range is adjustable in software. Thus, the range can always be adjusted to fill the vehicle interior, in relation to the shortest distance between the LP_MDD sensor and the windscreen or vehicle roof (the limits of the vehicle passenger compartment). In this way, a hemispherical field is generated within the vehicle as the area to be monitored. If a large enough change in analog signal amplitude occurs, an analysis of the signal evaluation is started. The microcontroller contains a software algorithm that determines if the signal is a genuine movement or a spurious signal. If this analysis detects significant characteristics of a movement, an alarm is issued to the ground module via the INRS wire line. MICROWAVE BLOCK DIAGRAM: Frame 2 of 7 Transmi t Antenna TARGET Voltage Regulator Micro – Controller PRF Oscillator RF Oscillator Envelope Detector Range Gate Generator Range Adjust IF FILTER IF AMPS Target Receive Antenna +12 Gnd ST INRS FCC ID: LQN2887 1.2 Operating Modes and influencing factors In its non-sensitized condition, the SDR module is set to Sleep-Mode. When sensitized, it is woken by an interrupt on the ST line. The sensitization period for the SDR module, to full functionality, is 30 seconds. The complete alarm system is likewise ready for operation 30 seconds after sensitization of the DWA (anti-theft warning system). The SDR module operates in impulse mode : that is, like a radar impulse system. An impulse is emitted for a brief period and the reflected signal received is amplified and evaluated. Because the module operates with a very low transmission output, more powerful external frequencies can connect with the receiver side of the device and cause false alarms. The reflected signal is checked in parallel with a suitable EMC protection switching unit and any foreign frequencies are filtered out. Any real movement in the detection area is recognized by a change in the reflection sample. The module emits a pulsed signal and delays this in accordance with the detection range required. This delayed impulse then controls the receiver section. Only after this delay time is the receiver section opened for a short period, when an associated signal pattern is stored. In reality, the detection range corresponds with a spherical "shell" having a width of ca. 5cm. The signal is stored in terms of amplitude and pattern and is compared with the next signal which is received. 1.3 Physical Construction Housing: Frame 3 of 7 FCC ID: LQN2887 LENGTH: 70mm, WIDTH: 63mm, HEIGHT: 29.5mm PCB: Two layer, Board material FR4 Layer 1: Components and signal tracks Layer 2: Ground plane Connector Detail: • 4 way Amp part Number: 4-1393472-9. Table 1 – Microwave Sensor ECU Connector Pin Detail Title Pin Function Ground 1 Ground ST 2 Sensor Arm/Disarm signal INRS 3 Alarm Out signal VBAT 4 Power Supply (Battery) Frame 4 of 7 FCC ID: LQN2887 1.4 ESC Part Number(s) BMW Part No.: 6 917 557 CEL Part No.: 502887 1.5 ESC Manufacturers: CEL Dunmore Road, Tuam, Co. Galway, Ireland Tel: +353 93 25128 1.6 ESC Usage BMW E85 (Z4) Frame 5 of 7 FCC ID: LQN2887 2.0 EMC Requirements Analysis 2.1 Critical Interface Signals Pin Signal Name Signal Description Voltage / Current Level Frequency %Duty Cycle 1 GND Ground 0V DC N/A 2 ST Sensor Arm/Disarm signal 9V – 16V 1mA DC N/A 3 INRS Alarm out signal 9V – 16V / 1mA DC N/A 4 VBAT Power Supply 9V – 16V / 5mA DC N/A User interfaces: 2.2 Potential Sources of Emissions Signal Source Description Voltage/Current Level Frequency % Duty Cycle (range) Other Resonator 3V 4MHz 50% Frame 6 of 7 FCC ID: LQN2887 Frame 7 of 7 3.0 Mode Descriptions Mode VBAT ST Input INRS (Output) Armed +12V 0V 12V (1 sec 0V on Alarm) Disarmed +12V 12V 12V Mode Armed: In this Mode the ST Input to the Microwave sensor is pulled to ground which ‘Arms’ the sensor ie. if movement is detected then the INRS (alarm) output is activated (by pulling the INRS output to ground for 1 second). Mode Disarmed: In this Mode the ST Input to the Microwave sensor is pulled to VBat which ‘Disarms’ the sensor ie. the sensor is turned OFF and so should not react to any movements.
