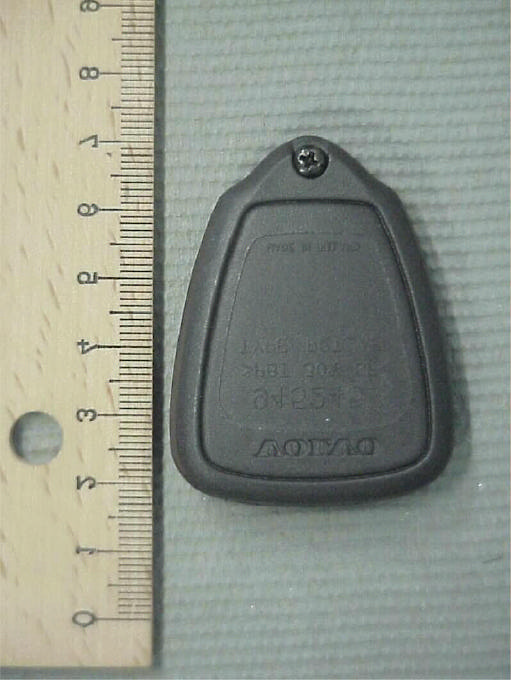

CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 12 (18) PHOTOGRAPHS OF THE EQUIPMENT TX Photograph no.: 1 CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 13 (18) PHOTOGRAPHS OF THE EQUIPMENT TX Photograph no.: 2

FCC ID:LQNP2T-APU

CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 14 (18) PHOTOGRAPHS OF THE EQUIPMENT TX Photograph no.: 3 CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 15 (18) PHOTOGRAPHS OF THE EQUIPMENT TX Photograph no.:4 CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 16 (18) PHOTOGRAPHS OF THE EQUIPMENT TX Photograph no.: 5

CETECOM ICT Services GmbH Radio Satelite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of18 PagesPage 1 (18) Test report no.: 5_2467-B/00 FCC Part 15.231 Volvo NAS Transmitter 509923 Volvo NAS Receiver 509932 Akkreditiertes Prüflaboratorium DAR-Registriernummer: TTI-P-G 166/98-00 vom 18.09.98 CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 2 (18) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 3 (18) 1.2Testing laboratory CETECOM ICT Services GmbH 66117 Saarbrücken Untertürkheimer Straße 6 - 10 Deutschland Telefone: + 49 681 598 - 9000 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98-00 vom 18.09.98 1.3Details of applicant Name : Connaught Electronics Ltd. Street : Dunmore Road City : Tuam, Co. Galway Country : Ireland Telephone: +353 93 251 28 Telefax : +353 93 251 33 Contact : Mr. Pat Lyons Telephone: +353 93 251 28 1.4Application details Date of receipt of application : 22.05.00 Date of receipt of test item : 22.05.00 Date of test: 22.05.00 1.5Test item Type of equipment :Transmitter/Receiver for car opening system Type designation: Volvo NAS Transmitter 509923 Volvo NAS Receiver 509932 Manufacturer:- applicant - Street: City: Country: Additional informations:: Frequency:315,0 MHz 14K0A1DChannel sep:>25 kHz Number of channels :1 Power output ( EIRP) : 0,01 mW Antenna:build-in print-antenna Power supply: Tx: 3V DC Lithium cell Type of equipment : - Unmodulated carrier: normally not possible 1.6Test standards FCC Part 15.231 CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 4 (18) 2 Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 24.05.2000RSC8414Ames H. DateSectionNameSignature 24.05.2000RSC8411Berg M. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 5 (18) 2.2Testreport TEST REPORT FCC Part 15.231 Testreport no.: 5_2467-B/00 CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 6 (18) TEST REPORT REFERENCE LIST OF MEASUREMENTS The list of measurements called for in FCC Part 15.231 is given below. ParagraphPARAMETER TO BE MEASUREDPAGE Transmitter parameters §15.231(b) Maximum field strenght of emission7 §15.231(a)Automatic deactivation8 §15.231(c)Bandwidth of emission9 Test equipment listing10 Photographs of the equipment12 CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 7 (18) Equipment under test: CEL 509923/509932 Temp: 20 Deg.C Rel. hum: 55% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 EMISSION LIMITATIONS (315,0 MHz)§15.231(b) EMISSION LIMITATIONS all measurements are made up to the 10 th harmonic at 3m f (MHz) polari- zation amplitude of emission (μV/m) limit max. allowed emmision power (interpolation) actual attenuation below frequency of operation (dB)results 315,0vertical29856042 μV/m-Operating frequency 629,99vertical248605 μV/m 500μV/m (209) 22complies 944,97vertical263605 μV/m 500μV/m (209) 21complies 1259,82vertical175605 μV/m 500μV/m (209) 24complies >1259,82verticalno peak found605 μV/m 500μV/m (209) complies Measurement uncertainty± 3dB LIMITSSUBCLAUSE § 15.231 In any 100 kHz bandwidth outside the frequency band at least 20dB below the highest level of the permitted fundamental power. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). All measurements are made with a CISPR quasi-peak equipment. CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 8 (18) Equipment under test: CEL 509923/509932 Temp: 20 Deg.C Rel. hum: 55% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 AUTOMATIC DEACTIVATION SUBCLAUSE § 15.231 (a) The transmitter is automatically deactivated within 5 seconds of being released. CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 9 (18) Equipment under test: CEL 509923/509932 Temp: 20 Deg.C Rel. hum: 55% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 Bandwidth of emissions SUBCLAUSE § 15.231 (c) TEST CONDITIONS 315,0 MHz FREQUENCY (MHz) at which –20 dBc occurs max ±0,78 MHz at 315 MHz low high T nom ( 20 ) 0 CV nom ( 3,0)V 314,992315,006 Measured frequencies (lowest and highest) f L = 314,992 MHz f H = 315,006 MHz Measurement uncertainty ± 1 x 10 -5 LIMITS: §15.231 Under all test conditions no wider than 0.25% of the center frequency between 70 to 900 MHz, 0.5% above 900MHz. Bandwidth is determined at 20dB below modulated carrier. CETECOM ICT Services GmbH Test report no.: 5_2467-B/00Issue Date: 24.05.00Page 10 (18) TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS To simplify the identification on each page of the test equipment used, on each page of the test report, each item of test equipment and ancillaries such as cables are identified (numbered) by the Test Laboratory, below. NoInstrument/AncillaryTypeManufacturerSerial No. 01Spectrum Analyzer856…
