LS3-146591Hunter Model 146-59-1, Alignment Console RF Remote Control

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 38 of 44 Appendix I: Manual Please refer to the following pages. 1 of 8 Form 6754-T, 05-15 Supersedes Form 6754-T, 12-13 SETUP INSTRUCTIONS FOR REMOTE CONTROL 146-57-1 & 146-59-1 This procedure should be performed only by an authorized factory representative. This document provides information for installation and setup of the XF remote controller. Second generation remotes require a different procedure to set the wireless channel. 146 - 57-1 146-59-1 Figure 1. CONSOLE CHANNEL SELECTION In most cases, the wireless channels should be correctly set from the factory. Use this procedure if there is a wireless channel conflict. 1. From the setup menu, under “Sensors”, select “Cordless Channel Selection”. Figure 2. 2 2. Wireless channels in use will be displayed. Press “Scan Channels” to identify channels that are in use. Select the desired channel, then select “Set Channel”. Figure 3. Set the channel of the remote if necessary as follows. SECOND DESIGN (146-59-1) SETTING THE REMOTE CHANNEL The wireless channel is selected using a set of dip switches on the main board. To set the wireless channel, remove the four screws securing the back cover of the device, then remove the back cover. Be careful not to lose the black rubber plug over the data port. Figure 4. Remove the batteries from the device, then remove the three screws securing the main board. 3 Leave the ribbon cable and power wires connected, the dip switches can be accessed without disconnecting them. Figure 5. Set the dip switches in sequence for the desired channel using the table below. Figure 6. 4 Re-install the board, install the batteries, then install the back cover. Make sure the data port plug is in place while assembling the case halves. Figure 7. Check the remote for proper operation. BATTERY REPLACEMENT The port on the bottom is not a charging port, it is a data connection for future devices. Do not connect any charging adaptors to this port. To replace the batteries, remove the two screws securing the battery cover then gently pry off the cover. Figure 8. Replace the batteries with two new “AA” size batteries, making sure to observe the correct polarity. Replace the the battery cover and reinstall the two cover screws. 5 FIRST DESIGN (146-57-1) CHANNEL SELECTION To connect the wireless remote with the XF Pod or receiver board hold the “K1” + “Zoom” + “Menu” buttons on the remote for 5 seconds. This will cycle the remote until an available channel is found. This can take up to 10 seconds. If successful, the remote will now operate with the WinAlign program. If multiple WinAlign consoles are running, it may take several retries to find the correct channel. BATTERY REPLACEMENT Remove the four screws securing the back cover, then remove the back cover to expose the battery. Figure 9. Replace the battery with a new 9-volt, making sure to observe the correct polarity. Reinstall the cover and the four retaining screws. If necessary, connect the remote to the console as outlined earlier. Refer to “Channel Selection,” on page 5 for detailed instructions. TROUBLESHOOTING If the remote is still not connecting to the WinAlign console after several retries, refer to the steps below to possibly identify a problem. 1. Verify XF pod or receiver board is connected to the PC. There should be a indicator light on the pod showing that they are receiving power from the console. 2. Check to make sure that the remote control channel setting is set to “A,0” in “Remote Control Channel Identification” under the “Aligner Equipment” heading in setup. 3. If the remote is still not connecting, it may be necessary to power down and unplug nearby WinAlign consoles to remove interfering channels. 4. The batteries on the remote indicator may be dead and need to be replaced. 6 COMPLIANCE STATEMENTS FCC ID: LS3-146591 IC: 2938A-146591 Model 146-59-1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 7 TCF #: 2015071TCF Declaration of Conformity We, the undersigned, Company Hunter Engineering Company Address, City 11250 Hunter Drive Country USA Phone number 314 731 0000 Fax number 314 716 1260 certify and declare under our sole responsibility that the following equipment: Product description / Intended use RF Remote Control for use on Hunter Wheel Alignment Consoles EU / EFTA member states intended for use EU: Austria, Belgium, Belarus, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden, United Kingdom EFTA: Switzerland, Iceland, Lichtenstein, Norway Member states with restrictive use N/A Manufacturer Hunter Engineering Company Brand Hunter Engineering…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 37 of 44 Appendix H: Block Diagram Please refer to the following page. MCU and Radio Combined IC U1 Power Supply U2 AA RF Amplifier U4 CC2591 Inverted F Antenna 1 2 J1 Key Pad J2 Keypad Decoder U3 APD5585 Status Leds Channel Select LED J3 AUX PORT AA Hunter 146-59-1 Block Diagram 45-1535-1 18-587-2 32 MHz Crystal IEEE 802.15.4 Radio Transceiver 2405-2480MHz MKW21D51 RF Clock and Reference Oscillator 1.8v Voltage Regulator

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 31 of 44 Appendix B: ACB Agency Authorization Letter Please refer to the following page.

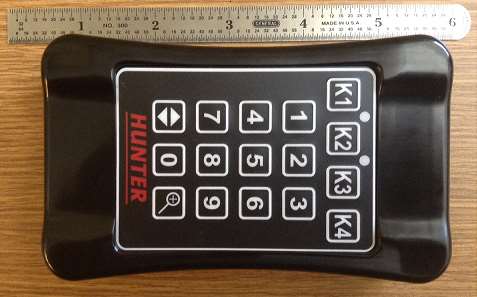

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 41 of 44 Appendix K: External Photographs Photograph 4: Front and Back Views

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 34 of 44 Appendix E: Label and Label Location Photograph 1: ID Label Sample on Back of EUT

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 42 of 44 Appendix L: Internal Photographs Photograph 5: Assembly Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 43 of 44 Photograph 6: PCB Front Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 44 of 44 Photograph 7: PCB Back

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 35 of 44 Appendix F: Technical Operational Description Please refer to the following page. Hunter Model 146-59-1 Remote Control Technical Operational Description The Hunter Model 146-59-1 is an RF based remote control used to remotely control Hunter automotive wheel alignment consoles. In common use an automotive wheel alignment system requires the operator to be away from the main console. Remote controls are commonly infrared based and simply mimic key presses as though the user is actually at the main console. In somewhat the same way when a key is pressed on Hunter model 146-59-1 the key press is momentarily stored and then transmitted to the alignment console when requested by the console. The Hunter alignment console acts as a Master device in a proprietary PAN that is polling a series of RF Devices one of which is the remote control. The radios are IEEE 802.15 based and can be set to 16 different channels.

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 30 of 44 Appendix A: FCC Part 1.1307, 1.1310, 2.1091, 2.1093; IC RSS-Gen: RF Exposure According to KDB 447498 D01 General RF Exposure Guidance v05 4.3.1. Standalone SAR test exclusion considerations, unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before the calculation  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion EUT RF Exposure The max conducted peak output power is 33 mW at 2405 MHz. The maximum duty cycle is 1.4%, Therefore, the max conducted time-averaged power is 33 mW * 0.014 = 0.5 mW The best case gain of the antenna is 2.14 numeric EIRP= 0.5 mW x 2.14 = 1.07 mW (rounding to the nearest mW = 1 mW) General RF Exposure = (1 mW / 5 mm ) x √2.405 GHz = 0.3 Therefore, SAR test is not required since the result is below the ≤ 3.0 1-g SAR limit.

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 36 of 44 Appendix G: Schematics Please refer to the following page. DNP PROTO 4 8 RF:GND 6.8 LED-RED +3.3V 1000PF 1000PF +3.3V 10PF +3.3V 270 1000PF 1000PF 0.1 LED-RED .33UF +3.3V +3.3V 33PF 10PF 4.7K 1PF 1 1 HF REMOTE +3.3V 1000PF 2.7K 0K RF 0K 27PF 12PF 12PF 1-1-580 +3.3V 0.1 +3.3V 32MHZ 1M 28AUG14 MODIFIED TIME:@MODTIME 45-1534-2/45-1535-1 +3.3V 220220220 LED-GREENLED-GREEN MODIFIED DATE:@MODDATE MKW21D512VHA5 MZ 2.7NH 2.7K 2.7NH 1PF 10K +3.3V 1000PF 0.1 LED-GREEN 1000PF 10PF .33UF LED-GREEN 220 10K +3.3V 1.0 1000PF 1000PF +3.3V 100K 1.0 +3.3V TPS60200 +3.3V 0.1 +3.3V 0.1 2.2 2.2 270 10PF LED-WHITE USBLC6 U3 6789 10 1316 5432 1 111514 TP 12 U1 4445 TP1 TP2 31 1 485163 23 57585960616233343536373940 4567 89 10111213141516171819 21 222324 41 5049 462947 42325553203852435425262728 3056 J2 1 J2 4 J2 7 J2 8 J2 2 J2 3 J2 5 J2 6 C4 J1 1 J1 2 C11 R2 C6 C8 C7 C9 C5 J3 U4 11161311015 6 TP 89 1214 75243 L1 L2 C12 C10 S1 1 8 2 7 3 6 4 5 A1 1 2 R3 C14 C15 C17 C18 C21 C20 J4 2 J4 3 J4 4 J4 5 J4 6 J4 7 J4J4 9 J4 10 J4 1 R4 C22 SW1 CR1 Y1 13 2 4 C23 C24 CR2 CR3 R6 R5 C1 CR4 R8 CR5 R9 R10 CR6 R11 CR7 J5 1 J5 2 J5 3 R12 C27 C26 C28 C29 R14 R15 R13 R16 C25 C19 C16 C13 U2 43 68 9 27 1 10 5 C2 C30 C3 R17 U5 1 63 42 5 R7 Engineering Company 11250 HUNTER DRIVE SCALESUPERSEDED BY ECO NO. PROJECTION THIRD ANGLE SHEET BRIDGETON OF A BP IN ANY OTHER WAY INCONSISTENT WITH THE PURPOSE FOR WHICH IT IS LOANED. 7 8 D ROUTING TO BE USED OR DUPLICATED WITHOUT WRITTEN PERMISSION OF THE OW NER, OR USED THIS DRAWING IS THE PROPERTY OF THE HUNTER ENGINEERING COMPA NY. IT IS NOT REVISION B C C B A MATERIAL D 1 2 3 4 5 6 7 8 1 2 3 4 5 6 1 DEGREE - + ANGLES + - .005 .015 3 PL DEC 2 PL DEC -+ Date NO. TOLERANCES: R I QC A PD MS W P PS SC SIMILAR TO: AND TOLERANCES PER INTERPRET DIMENSIONS ANSI Y14.5 1982 DR. DATE SUPERSEDES PART NO. MISSOURI 63044 TITLE RELATED PCB NO.'S UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN INCHES: RX_SWITCH VDD_RFVDD_IFVDD_PA VDD_REGD VSSAVDDA TAMPER/RTC_WAKEUPXTAL_32MGND_PA3GND_PA2GND_PA1EP_GND1EP_GND2PTC5/LLWU_P9/SPI0_SCLKPTC4/LLWU_P8/SPI0_PCSOXTAL32NC6NC5PTA18/EXTAL/CLK_OUTPTA19/XTALPTA1/TDIPTA0/TCKPTA2/TDOPTA3/TMSPTA4/LLWU_P3/NMI VDD_MCU1VDD_MCU2VBAT_MCU VBAT_RF EXTAL32EXTAL_32M GPIO1GPIO2NC4NC3NC2NC1PTC6/LLWU_P10/SPI0_SOUTPTC7/SPI0_SINRESET* VREFHVREFL RF_OUTNRF_OUTP PTE19/RTS2PTE18/CTS2PTE17/RXD2PTE16/TXD2 PTE0/ADC0_SE10 PTE1/LLWU_P0 PTE2/LLWU_P1/ADC0_DP1 PTE3/ADC0_DM1 PTE4/LLWU_P2 PTD7/TXD0 PTD6/LLWU_P15/RXD0 PTD5/CTS0 PTD4/LLWU_P14/RTS0 PTD1 ANT_B VBAT2_RF TX_SWITCH PTD3/SDA PTD2/LLWU_P13/SCL ANT_A ADP5585 RST* INT* SDA TP GND C3C4C2R0R1R4R3C0 VDD R2C1SCL IN C1+ C2+ C2-OUTLBOGND ENC1-LBI D-OUT D+OUT VBUS GND D-IN D+IN R1 R2 S T CC2591 AVDD_BIAS RF_PRXTXRF_NPAENENHGMEPADGND4GND3 BIAS ANT GND1GND2 AVDD_LNAAVDD_PA1AVDD_PA2 4B 3A 1A 2B3B 4A 1B 2A GND RF AB GND1GND2

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com Certification Application Report for FCC Part 15.247 & Industry Canada RSS-210 Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: Hunter Engineering Co. Tel: 314-731-3020 11250 Hunter Drive Fax: 314-731-9932 Bridgeton, MO 63044-2391 Contact: Jim McClenahan FCC ID/ IC LS3-146591 2938A-146591 Test Report Date May 28, 2015 Platform N/A RTL Work Order # 2015070 Model 146-59-1 RTL Quote # QRTL15-070A American National Standard Institute FCC: ANSI C63.4-2009: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz IC: ANSI C63.4-2014: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (using test site validation per ANSI C63.4-2009) FCC Classification DTS – Part 15 Digital Transmission System FCC Rule Part(s)/Guidance FCC Rules Part 15.247: Operation within the bands 920-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Direct Sequence System (2014) Industry Canada RSS-210 Issue 8: Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment RSS-Gen Issue 4: General Requirements for Compliance of Radio Apparatus Frequency Range (MHz) Output Power (W)* Frequency Tolerance Emission Designator 2405 – 2480 0.033 N/A 1M60FXD * power is peak conducted I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15, Industry Canada RSS-210, RSS-Gen, and ANSI C63.4. Signature: Date: May 28, 2015 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and Hunter Engineering Company. The test results relate only to the item(s) tested. These test(s) are accredited under Rhein Tech Laboratories, Inc. ISO/IEC 17025 accreditation issued by the ANSI-ASQ National Accreditation Board. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 2 of 44 Table of Contents 1 General Information ............................................................................................................................... 5 1.1 Scope ............................................................................................................................................ 5 1.2 Description of EUT ........................................................................................................................ 5 1.3 Test Facility ................................................................................................................................... 5 1.4 Related Submittal(s)/Grant(s) ....................................................................................................... 5 1.5 Modifications ................................................................................................................................. 5 2 Test Information ..................................................................................................................................... 6 2.1 Description of Test Modes ............................................................................................................ 6 2.2 Exercising the EUT ....................................................................................................................... 6 2.3 Test Result Summary .................................................................................................................... 6 2.4 Test System Details ...................................................................................................................... 7 2.5 Configuration of Tested System .................................................................................................... 7 3 Peak Output Power - 15.247(b)(3); IC RSS-210 A8.4(4), RSS-Gen 6.12 ............................................. 8 3.1 Power Output Test Procedure ....................................................................................................... 8 3.2 Power Output Test Data ................................................................................................................ 8 4 Duty Cycle Correction Factor ................................................................................................................. 9 5 Compliance with the Band Edge – FCC 15.247(d); RSS-210 A8.5 ...................................................... 9 5.1 Band Edge Test Procedure ........................................................................................................... 9 5.2 Band Edge Test Results ............................................................................................................. 10 5.2.1 Calculation of Lower Band Edge ............................................................................................. 10 5.2.2 Lower Band Edge – Conducted Delta Plot ............................................................................. 10 5.2.3 Calculation of Upper Band Edge ............................................................................................. 1…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 39 of 44 Appendix J: Test Photographs Photograph 2: Radiated Emissions Testing – Front View Rhein Tech Laboratories, Inc. Client: Hunter Engineering Company 360 Herndon Parkway Model: 146-59-1 Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 ID’s: LS3-146591/2938A-146591 http://www.rheintech.com Report #: 2015070 Page 40 of 44 Photograph 3: Radiated Emissions Testing – Front View (with cones)
