M3N-40821803RF Hub System

Contine ntal Investment Dr. Troy, MI 48098 Phone: 248-764-6712 Fax: 248-764-7226 RE: Certification for Continental Transmitter FCC ID: M3N-40821803 Canada IC: 7812A-40821803 USERS MANUAL & COMPLIANCE STATEMENT The Continen tal Transmitter is sold only as part of a vehicle by retail automobile dealers and as such has no separate manual. The exhibit is provided electronically to the vehicle manufacturer after submission. The compliance statement for Continental Transmitter will be integrated by the OEM into the vehicles owner's manual. It will read: FCC ID: M3N-40821803 IC: 7812A-40821803 This devic e complies with part 15 of the FCC rules and with RSS-210 of industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by Continental could void the user's authority to operate the equipment.

Re: Certification for Continental Transceiver Model/PN(s): 1KW59DX9AC FCC ID: M3N-40821803 IC: 7812A-40821803 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. December 3, 2010 Re: Certification for Continental Transceiver Model/PN(s): 1KW59DX9AC FCC ID: M3N-40821803 IC: 7812A-40821803 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Continental Transceiver Model/PN(s): 1KW59DX9AC FCC ID: M3N-40821803 IC: 7812A-40821803 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Continental Automotive Systems US Inc. 2400 Executive Hills Drive Auburn Hills Michigan 48326-2980 Contact: Juan Robledo-Mariscal [email protected] Tel: (248) 764-6712 Fax: (248) 764-7226 It will be manufactured by: Continental Automotive Guadalajara Mexico S.A. de C.V. Camino a la Tijera # 3 Km 3.5 Carretera Guadalajara-Morelia C.P. 45640 Mpio. Tlajomulco de Zúñiga, Jalisco Mexico Contact: Juan Robledo-Mariscal [email protected] Tel: (248) 764-6712 Fax: (248) 764-7226 Canadian Contact: Continental Automotive Canada, Inc. 700 Park Ave. E., P.O. Box 2014 Chatham, Ontario N7M 5M7 Contact: Gary Fell [email protected] Tel: 519-852-4855 Fax:248-209-7824

December 3, 2010 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Continental Transceiver Model/PN(s): 1KW59DX9AC FCC ID: M3N-40821803 IC: 7812A-40821803 Please find enclosed application materials for certification of Continental Transceiver. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 7812A-40821803 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist December 3, 2010 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Continental Transceiver Model/PN(s): 1KW59DX9AC FCC ID: M3N-40821403 IC: 7812A-40821403 Please find enclosed application materials for certification of Continental Transceiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

(gotioeotille Attn:DirectorofCertification AuthoritytoActasAgent I appointValdisV.Liepatoactasouragentin thepreparationofthisapplication forequipmentcertification.I certifythatsubmitteddocumentsproperlydescribe thedevice orsystemforwhichequipmentcertificationissought.I alsocertifythat eachunitmanufactured,importedormarketed,asdefinedinIndustryCanada's regulationswillhaveaffixedtoit a labelidenticaltothatsubmittedforapproval withthisapplication. Forinstanceswhereourauthorizedagentsignstheapplication forcertificationon ourbehalf,I acknowledgethatallresponsibilityforcomplyingwiththetermsand conditionsforCertification,asspecifiedbyAmericanTCB,stillresideswith ContinentalAutomotiveSystemsUS Inc.~ Datedthisi h dayofMarch,2008. By:~<::::-._-·-I-&--1.~~~ ReimusI (Signature) (Printname) Title: email: N.A.RFDomainManager [email protected] Onbehalfof:ContinentalAutomotiveSystemsUSInc (CompanyName) Telephone: +1(248)764-6522 (gotioeotalG) Interior FederalCommunicationsCommission ApplicationsProcessingBranch 7435OaklandMillsRoad Colombia,MD21046 Re:LetterofAgencyforFCCComplianceTesting PleasebeadvisedthatContinentalAutomotiveSystemsUSInc.authorizes ProfessorValdis V.LiepaoftheUniversityofMichigan,DepartmentofElectrical EngineeringandComputerScience,AnnArbor,Michigan,toact onourbehalfin frontof theFederalCommunicationsCommissionwithrespecttoallmatters relatingtocertification. Anti-DrugAbuseCertification: I furthercertifythatnoparty(asdefined in1.2002ofCFR47,1992)tothis application,includingmyself, issubjecttoa denialof federalbenefits,that includesFCCbenefits,pursuanttoSection5301oftheAntiDrugAbuseActof 1988,21U.S.C.853(a). Datedthis t h dayofMarch,2008. (Printname) (Signature) I~~- By: Reimus Title: N.A.RFDomainManager email: [email protected] Onbehalfof:ContinentalAutomotiveSystemsUSInc (CompanyName) Telephone: +1(248)764-6522

Re: Certification for Continental Transceiver FCC ID: M3N-40821803 IC: 7812A-40821803 REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Continental requests that a part of the subject application be held confidential. Continental has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4 ) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (1 1) RF Exposure Short Term Permanent (12 ) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: Continental requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Continental requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

December 3, 2010 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: M3N-40821803 IC: 7812A-40821803 Model/PN(s): 1KW59DX9AC Please find enclosed application materials for certification of Continental Transceiver Note: 1) Portions of this submittal are filed Confidential. 2) A list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

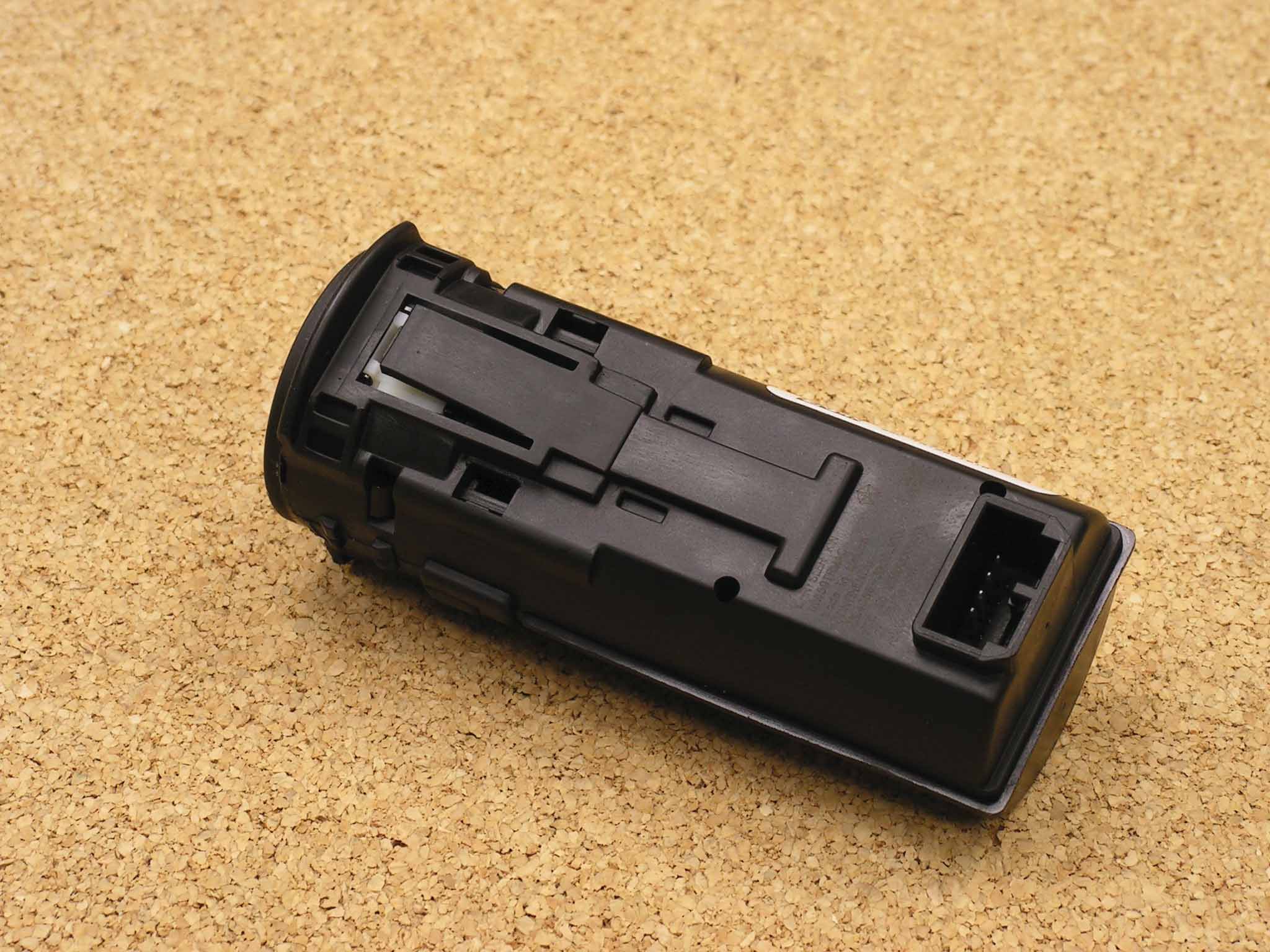

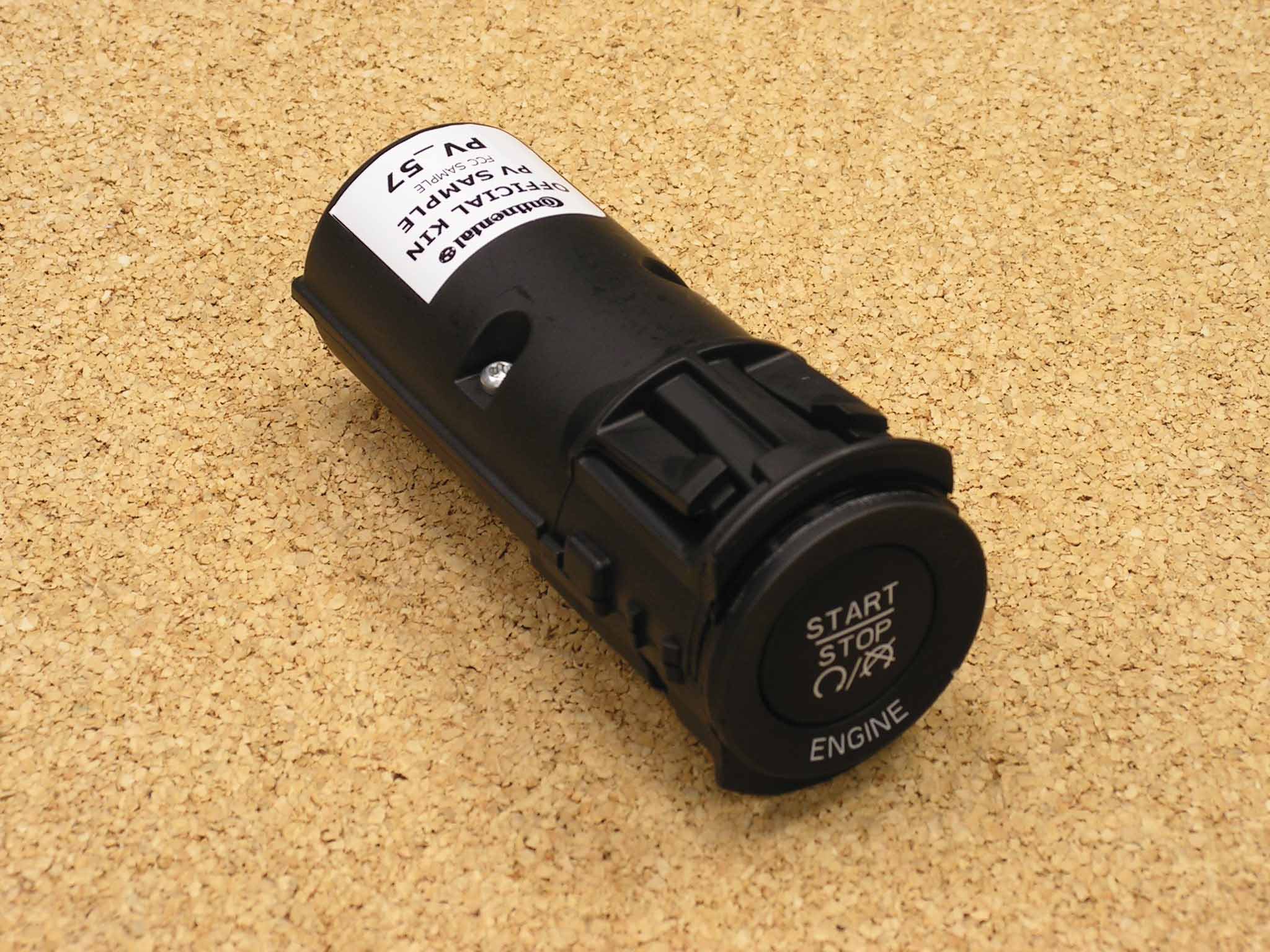

KIN Description of Operation The KIN module is part of the Chrysler RF – HUB System that provides the capability for the driver to operate certain features of the vehicle via small, personally – carried customer Identification device (Fobik). The RF – HUB System consist of an ECU (RF-HUB), a Fobik and Keyless Ignition Node (KIN). The KIN module, which provide the immobilizer functionality when the Fobik is in failure battery condition, also provide the ignition start signal to the RF Hub module when the IGN switch is activated and have 4 different led in order to indicate the IGN Position (OFF, ACC, RUN and Start/Stop). The KIN module provides the following functions : 1. Provide the immobilizer functionality when the Fobik is in failure battery condition. 2. Provide the ignition start TTL signal to the RF Hub module when the IGN switch is activated via the KIN line and hard wire. 3. Indicate the IGN position with LEDS.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-595 Page 1 of 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Continental Automotive Systems Transceiver FCC ID: M3N-40821803 IC: 7812A-40821803 Test Report No. 417124-595 December 3, 2010 Copyright © 2010 For: Continental Automotive Systems US Inc. 2400 Executive Hills Drive Auburn Hills Michigan 48326-2980 Contact: Juan Robledo-Mariscal [email protected] Phone: (248) 764-6712 Fax: (248) 764-7226 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a Continental, FCC ID: M3N -40821803, IC: 781 2A -40821803. This device under test (DUT ) is subject to the rules and regulations as a Transmitter. In testing completed on November 10, 2010, the DUT tested met the allowed specifications for radiated emissions by 38.4 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 12 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-595 Page 2 of 13 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants and Samples ............................................................................................................ 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi -Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Field Behavior at 125 kHz .................................................................................................... 8 6.3 Conducted Emissions ............................................................................................................ 8 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-595 Page 3 of 13 1. Introduction This Continental Transceiver was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 7, June 2007. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) q uality system. T his q uality system h as b een est ablished t o en sure al l equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations ar…
