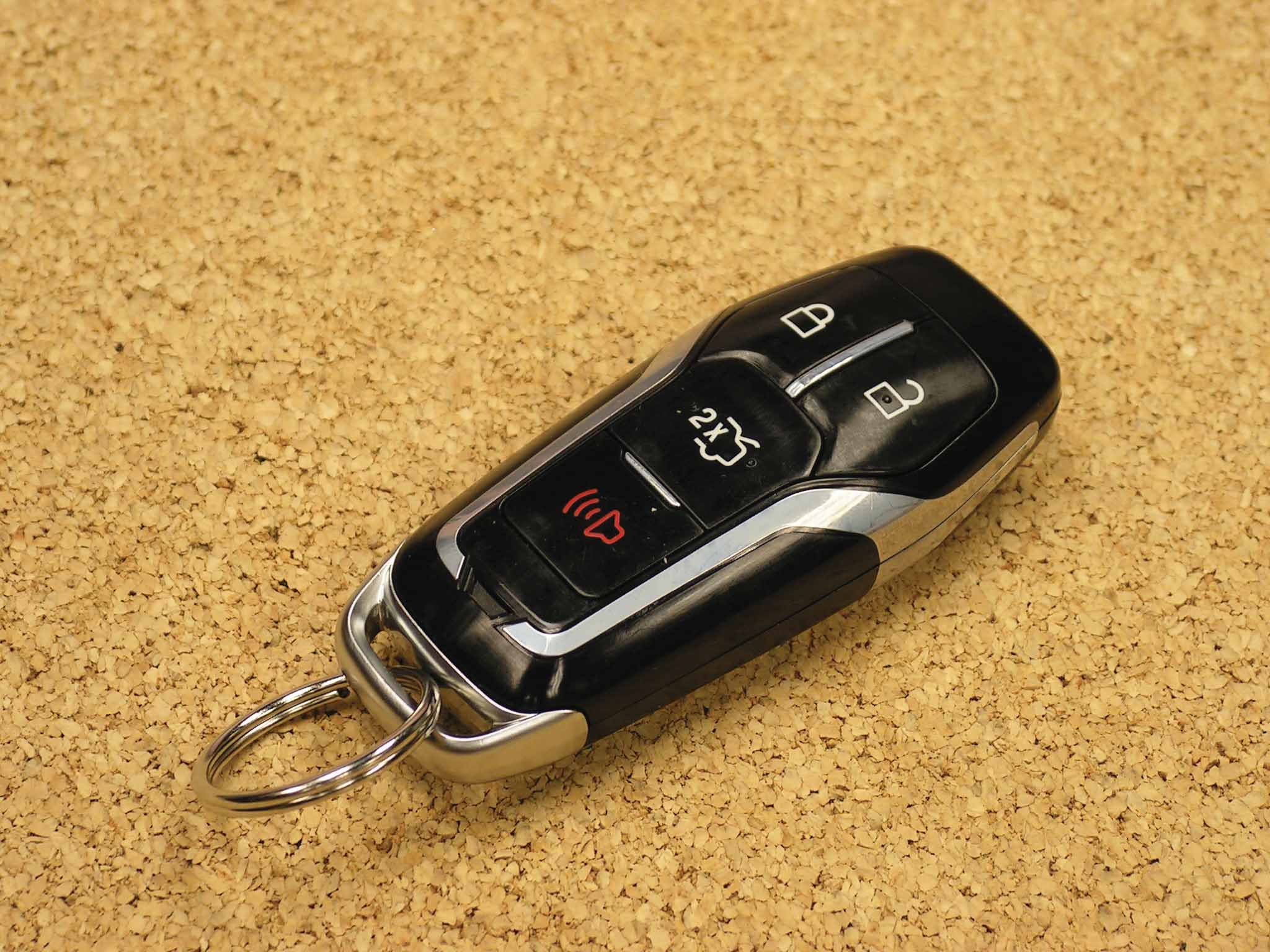

M3N-A2C31243800PEPS FOB

Continental Automotive Systems, Inc.
PEPS FOB - FCC ID M3N-A2C31243800 - Continental Automotive Systems, Inc.
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
May 01, 2013
Application Purpose
Original Equipment
Date of Application
Apr 30, 2013
Equipment Note
PEPS FOB
Frequency Range
314.95000000 - 314.95000000
Company
Continental Automotive Systems, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

The device under test is manufactured by the grantee (Continental Corporation) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end- user. Continental Corporation will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: M3N-A2C31243800, IC: 7812A- A2C31243800 This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Note: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ******************************************************************************

Cover Letter(s)

Re: Certification for Continental Transmitter Model/PN(s): A2C31243800 FCC ID: M3N-A2C31243800 IC: 7812A-A2C31243800 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. April 15, 2013 Re: Certification for Continental Transmitter Model/PN(s): A2C31243800 FCC ID: M3N-A2C31243800 IC: 7812A-A2C31243800 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist

Cover Letter(s)

Re: Certification for Continental Transmitter FCC ID: M3N-A2C31243800 IC: 7812A-A2C31243800 REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Continental requests that a part of the subject application be held confidential. Continental has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: Continental requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Continental requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

ID Label/Location Info

315MHzUniDirectional4ButtonPK(L,U,T,P) Textmoldedinhousin g Textmoldedinhousing(housingPNtobecoveredbyEmergencyKey) g Laser markeddatamatrix,5x5mm X Textmoldedinhousing(datewheel,cavitynumber,material) PN:DS7T15K601F_C:A2C31243800FCCID:M3NA2C31243800IC:7812AA2C31243800 MexicancertificationnumberBrazilHomologationxxxxxxxxxx Textmoldedinhousing(SupplierCode)Laser marked FordPNHomologationnumber

Operational Description

The 2014 PEPS FOB is a 314.95MHz PASE fob. The RF transmitter is used to transmit information to the receiver in the vehicle for locking, unlocking, opening the trunk and/or Panic function. RF messages can be transmitted by one of two means. The keypad on the fob can be used for locking, unlocking, opening the trunk, and panic (RKE). Lifting the door handle or pushing the start button in the vehicle will generate an LF field, which the key will respond to with a RF transmission to unlock or start the vehicle (PASE).

Test Report

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-660 Page 1 of 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Continental Automotive Systems US Inc. Transmitter FCC ID: M3N-A2C31243800 IC: 7812A-A2C31243800 Test Report No. 417124-660 April 15, 2013 Copyright © 2013 For: Continental Automotive Systems US Inc. 2400 Executive Hills Drive Auburn Hills Michigan 48326-2980 Contact: David Reimus [email protected] Phone: (248) 764-6522 Fax: (248) 764-7281 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a Continental, FCC ID: M3N-A2C31243800, IC: 7812A-A2C31243800. This device under test (DUT) is subject to the rules and regulations as a Transmitter. In testing completed on March 25, 2013, the DUT tested met the allowed specifications for radiated emissions by 1.0 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-660 Page 2 of 13 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants and Samples ............................................................................................................ 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-660 Page 3 of 13 1. Introduction This Continental Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 8. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 859…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Mark Kenney
[email protected]2483935300Fax: 2487647281

Technical Contact

University of Michigan/EECSValdis V Liepa
[email protected]734 483 4211

1301 Beal Ave · Ann Arbor, Michigan · United States

Test Firm

University of MichiganValdis Liepa
[email protected]734-647-1792Fax: 734-647-2106

Technical Specifications

#Rule PartsFrequency RangePower Output
