M3N5WY783XAutomotive Alarm Keyfob

Re: Certification for Siemens Transmitter Model(s): 5WY7835, 5WY7836, 5WY7825, 5WY7826, 5WY8011, 5WY8010, 5WY7918, 5WY8024, 5WY8025, 5WY7833, 5WY7834, 5WY7917, 5WY8022, 5WY8023, 5WY7827, 5WY7828 FCC ID: M3N5WY783X IC: 267F-5WY783X USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: M3N5WY783X IC: 267F-5WY783X This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Block Diagram LF Inductive Antenna RKE Buttons LF Transponder/Microcontroller Power Supply RF Antenna Colpitts Oscillator 433.92MHz On-chip RC Oscillator 4MHz

March 7, 2007 RE: Siemens Automotive Corporation FCC: M3N5WY783X The following is in response to the comments made on the above referenced application. 1) IC requires 3 items as part of the labeling. While the Certification number is present, model number and Applicant Name as Certified are not found. Please review. Note that your response cites that the model number is clearly shown on the label. Current labeling appears to show a P/N, which begins with 05. None of the current models begin with 05. Please explain. Your response also cites that the applicant name is shown on the PCB. Internal photographs do not support this fact. Please review. The drawing has been modified to show where the part number is placed without the misleading “0” precursor. Also, below is a zoom-in on the laser etched trade name next to the battery clip. 2) Regarding previous comments 2 & 3, please note that the 125 kHz circuitry does not appear passive as it attaches directly to a powered microcontroller. Additionally, it is uncertain if this initiates 125 kHz response or 433 MHz response, which is the purpose of understanding previous comment 3. Please review further. The following datasheet has been provided to detail that the IC operates a passive transponder (operates without battery), as previously stated. Siemens also reiterates that there is no RF response that can be initiated from the Transponder circuit. Philips Semiconductors Preliminary Information Product Profile PCF7941 November 1999 Security Transponder and RISC Controller, STARC lite Features • Compatible with Security Transponder, PCF7936AS. • RISC Programmable Keyless Entry features • 384 Bit EEPROM • 16-Pin SO package Transponder • 64/32 bit mutual authentication calculation unit • 32 bit unique device identification number • 48 bit Secret Key • Fast mutual authentication (39 ms) • EEPROM read/write protection capability • Excellent sensitivity in read and write mode (35 μT) RISC Controller • Advanced 8-bit RISC architecture • 4 Kbyte ROM, 64 Byte RAM • On-chip RC oscillator (< ±10%) • Short instruction execution time (as fast as 1 μs) • 11 I/O ports, general purpose • Code hopping based on transponder calculation unit • Code hopping synchronization via transponder • Clock input to serve as external data rate reference • Programmable battery low detection • Low power consumption (300 μA, PD 300 nA) • Single battery cell operation (2.1V to 5.5V) • Device supply can be derived from LF Field General Description The PCF7941 is a single chip high performance Security Transponder and Keyless Entry controller, ideally suited for vehicle immobilizer applications that incorporate keyless entry functions. The transponder circuitry is compatible with the Security Transponder PCF7936AS, for use in mixed systems that employ a STARC and a standard Security Transponder, PCF7936AS, at the same time. The Transponder circuitry meets the security and performance requirements of modern car immobilizer applications. Excellent device sensitivity and short authentication time ensure outstanding system performance. The Transponder circuitry does not require any battery supply and full operation is granted in a Keyless Entry battery low condition. The RISC Controller circuitry is powered by an advanced low power 8-Bit RISC. The device features 11 I/O ports including up to four wake-up inputs for command button sensing. Code hopping generation may employ the transponder Calculation Unit, while telegram transmission characteristics are controlled by the RISC. If the same security algorithm is applied for the Transponder and the Code Hopping function, separate Secret Keys are provided to ensure independent code characteristics. Contactless code hopping synchronization may be accomplished via the conatctless interface. The system timing is derived from a low tolerant on-chip RC- Oscillator. If desired, an external data rate reference clock may be applied for use with common PLL transmitter devices. Typical Application Buttons V BAT P10 (B0) P11 (B1) P12 (B2) P13 (B3) PCF7941 Security Transponder EEPROM 384 Bit Calculation Unit Contactless Interface Control Logic Power Management RISC Controller Timer Modulator I/O Interrupt Control RC Oscillator 8 Bit RISC RAM 4 K ROM P20 P21 P22 User Extensions V SS Li 3V Transponder Interface V DD P17 (DOUT) P16 (XON) P15 (XCLK) P14 (LED) optional IN1 IN2 Transmitter IR or UHF (PLL)

Re: Certification for Siemens Transmitter Model(s): 5WY7835, 5WY7836, 5WY7825, 5WY7826, 5WY8011, 5WY8010, 5WY7918, 5WY8024, 5WY8025, 5WY7833, 5WY7834, 5WY7917, 5WY8022, 5WY8023, 5WY7827, 5WY7828 FCC ID: M3N5WY783X IC: 267F-5WY783X POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Siemens Transmitter Model(s): 5WY7835, 5WY7836, 5WY7825, 5WY7826, 5WY8011, 5WY8010, 5WY7918, 5WY8024, 5WY8025, 5WY7833, 5WY7834, 5WY7917, 5WY8022, 5WY8023, 5WY7827, 5WY7828 FCC ID: M3N5WY783X IC: 267F-5WY783X REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Siemens requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Siemens has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan February 10, 2007 Re: Certification for Siemens Transmitter Model(s): 5WY7835, 5WY7836, 5WY7825, 5WY7826, 5WY8011, 5WY8010, 5WY7918, 5WY8024, 5WY8025, 5WY7833, 5WY7834, 5WY7917, 5WY8022, 5WY8023, 5WY7827, 5WY7828 FCC ID: M3N5WY783X IC: 267F-5WY783X STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Siemens Transmitter Model(s): 5WY7835, 5WY7836, 5WY7825, 5WY7826, 5WY8011, 5WY8010, 5WY7918, 5WY8024, 5WY8025, 5WY7833, 5WY7834, 5WY7917, 5WY8022, 5WY8023, 5WY7827, 5WY7828 FCC ID: M3N5WY783X IC: 267F-5WY783X GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Siemens Automotive Corporation 2400 Executive Hills Drive Auburn Hills, Michigan 48326-2980 USA Shawn Li Tel: (248) 764-6712 Fax: (248) 764-7226 It will be manufactured by: Siemens VDO S.A. de C.V. Camino a la Tijera # 3, Km 3.5 Carretera Guadalajara-Morelia C.P. 45640 Mpio. Tlajomulco de Zúñiga, Jalisco Mexico Shawn Li Tel: (248) 764-6712 Fax: (248) 764-7226 Canadian Contact: Siemens Automotive Ltd. 2775 St. Etienne Boulevard Windsor ,ON N8W 5B1 Kurt Van Drus [email protected] (519)974-5400 (519)974-5401 Variants There are sixteen variants of the FOBIK keys. All variants are electronically identical. The differences are on the keypads. There is one seven-button keypad, two six-button keypads, three five-button keypads, three four-button keypads, and one three-button keypad. There are also three types of logos which are Chrysler, Dodge and Jeep. Model Number Description 5WY7835RT Chrysler 7 buttons 5WY7836RT Dodge 7 buttons 5WY7825RT Chrysler 6 buttons 5WY7826RT Dodge 6 buttons 5WY8011XK Jeep 6 buttons 5WY8010XK Jeep 5 buttons 5WY7918WK Jeep 5 buttons 5WY8024LX Dodge 5 buttons 5WY8025LX Chrysler 5 buttons 5WY7833RT Chrysler 4 buttons 5WY7834RT/JC Dodge 4 buttons 5WY7917WK Jeep 4 buttons 5WY8022LX Dodge 4 buttons 5WY8023LX Chrysler 4 buttons 5WY7827RT Chrysler 3 buttons 5WY7828RT/JC Dodge 3 buttons

March 3, 2007 RE: Siemens Automotive Corporation FCC: M3N5WY783X The following is in response to the comments made on the above referenced application. 1) IC requires 3 items as part of the labeling. While the Certification number is present, model number and Applicant Name as Certified are not found. Please review. The location of the model/part number is clearly indicated on the label. The applicant name is marked on the PCB, visible when the battery is replaced. This meets IC’s requirements. 2) Given the operational description, it is uncertain if this device is also subject to transmission at 125 kHz. Please explain. The DUT contains a passive 125 kHz transponder coil, and is not capable of active transmission at 125 kHz. 3) In transponder mode, does the device automatically activate. Please explain what happens if the device stays within range of the 125 kHz transmissions for a long period of time. Does it start to transmit? How many times? How is it compliant to automatic transmissions requirements? If applicable, please show compliance to the 5 second requirement for automatic transmission as well. The transponder portion of the device cannot initiate an RF transmission. 4) Please explain if the device was investigated both with the key extended and closed. We have seen devices where the worse case for the fundamental may be one condition, while for the spurious emissions may be worse under a different condition. Please confirm if the key condition was investigated for both the fundamental and spurious emissions and that the worse case for both the fundamental and spurious was the same condition. The key you are referring to does not “extend,” but may be removed by the user for use separate from the device. Emissions were measured with the key in place and removed, and it was determined that the emissions were worse with the key in place (as tested). 5) Please provide a REL Listing Letter for IC. Our apologies, letters have been included with the application forms.

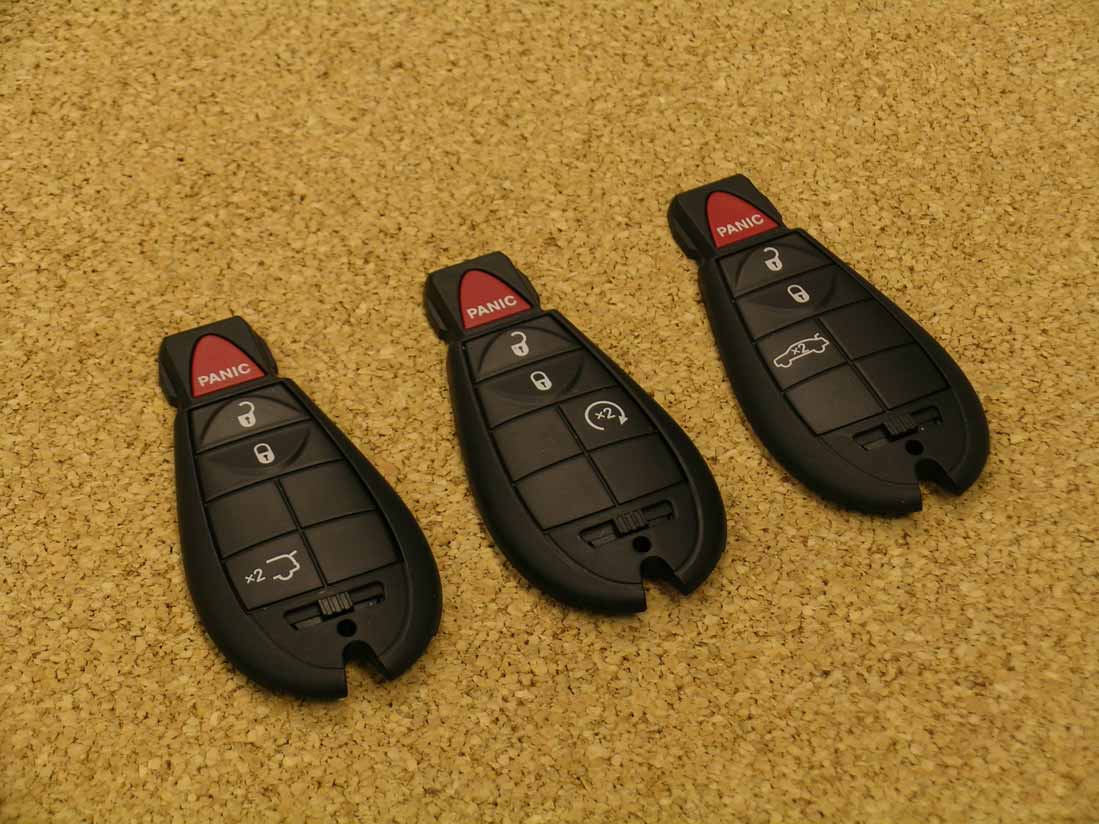

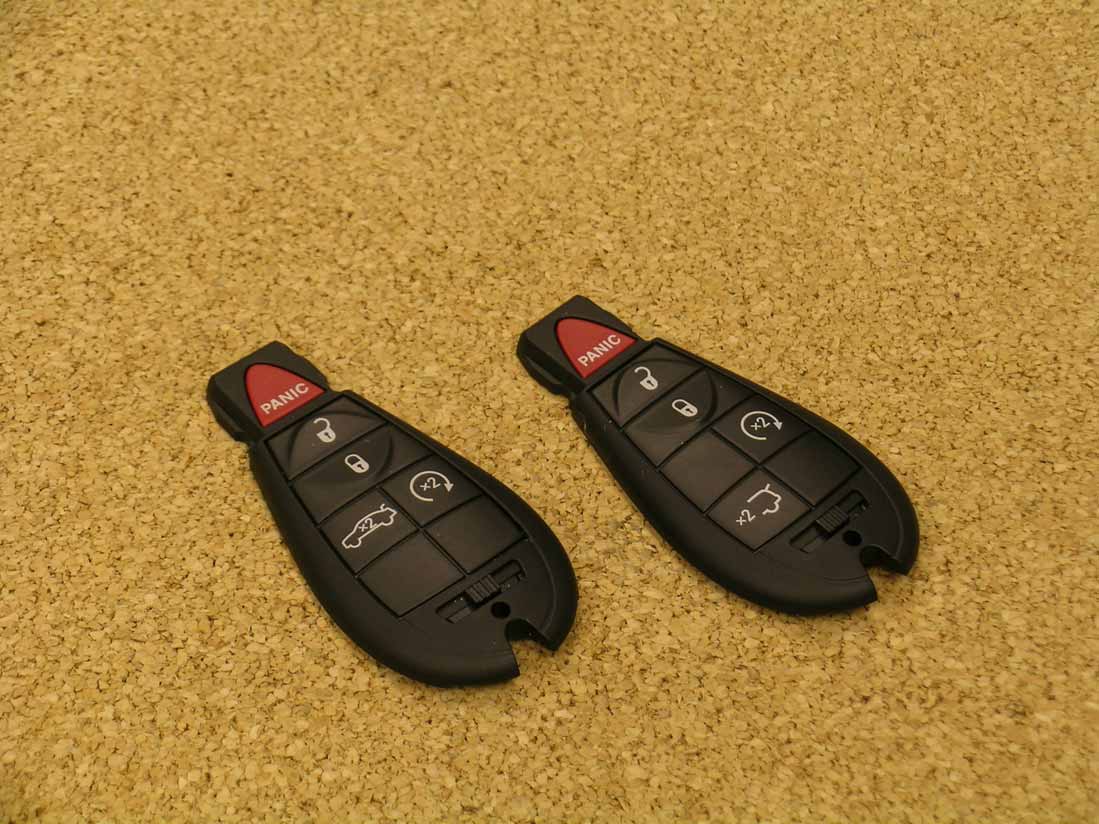

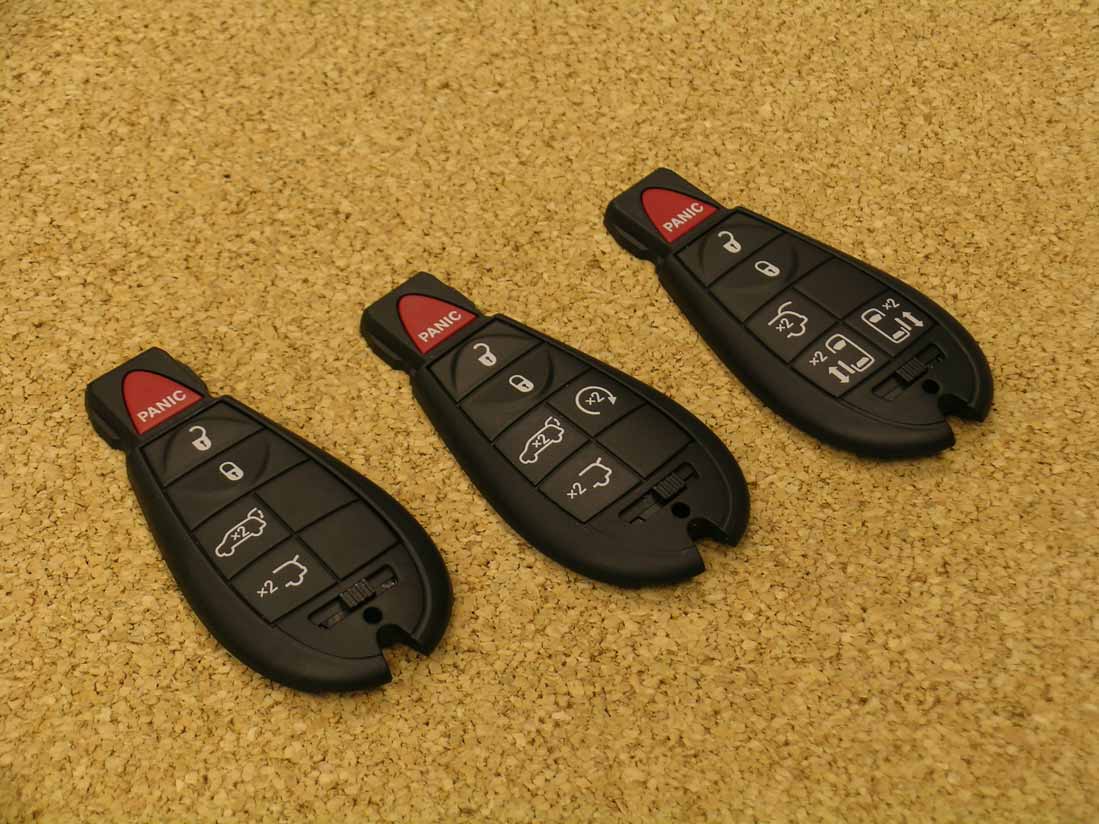

Different Button Configurations Different Button Configurations Different Button Configurations Different Button Configurations

FOBIK Label Information

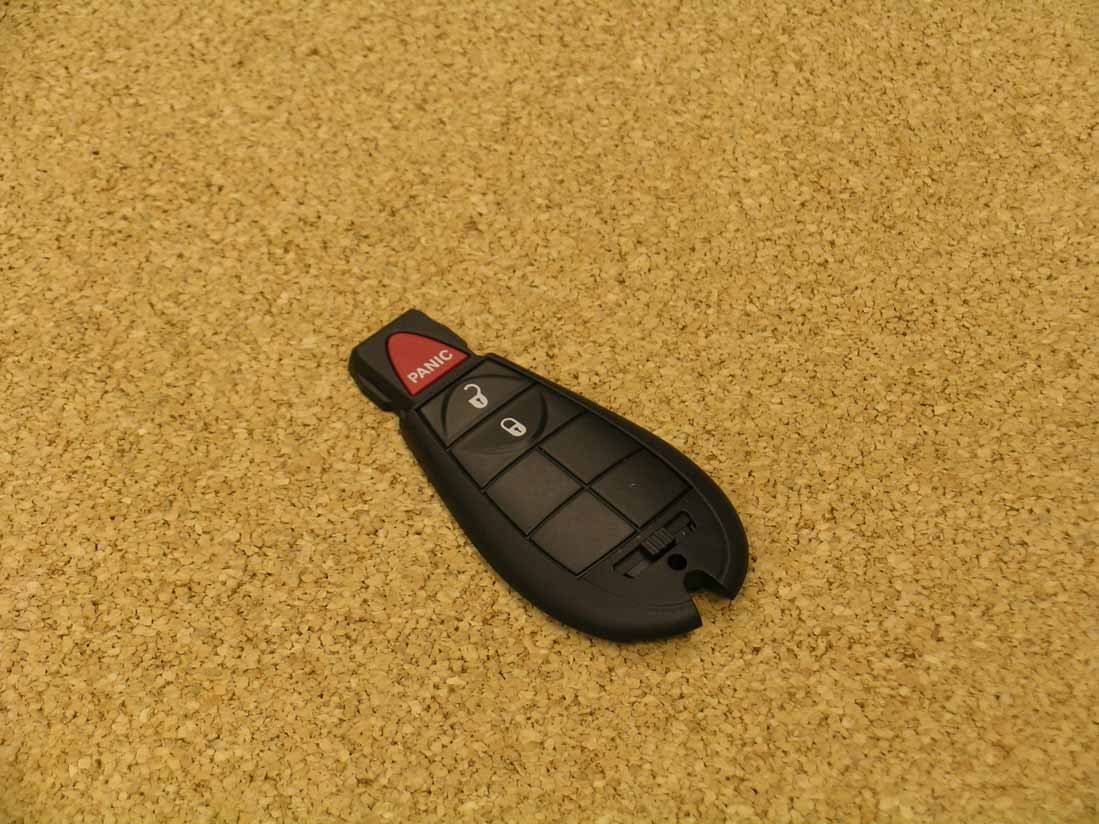

General Description The FOBIK is a stand-alone handheld device which contains no I/O circuitry and operates as a transmitter (RF) and transponder (LF). In transmitter mode, the circuit is powered by a 3V lithium CR2032 battery and transmits when one of the buttons is pressed; the communication occurs either at 433.92 MHz. There are up to seven buttons on the key, which are used for RKE lock, unlock, trunk or liftgate, left power sliding door, right power sliding door, panic, and remote start. In transponder mode, the circuit is powered by inductive coupling through the magnetic field produced by the base station (WIN module) and communicates at 125 KHz. Technical Data Carrier Frequency: 433.92MHz +/- 0.75 kHz Modulation Type: ASK Method of Generation: Saw Based Colpitts Power Supply: CR 2032 3V Lithium battery

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-349 Page 1 of 10 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Siemens FOBIK Transmitter FCC ID: M3N5WY783X Report No. 415031-349 February 10, 2007 Copyright © 2007 For: Siemens VDO Automotive 4685 Investment Drive Troy, MI 48098 Contact: Shawn Li Tel: (248) 764-6712 Fax: (248) 764-7226 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Siemens FOBIK transmitter. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on February 2, 2007, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 1.3 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found. The conducted emission tests do not apply, since the device is powered from a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-349 Page 2 of 10 1. Introduction Siemens FOBIK transmitters were tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-349 Page 3 of 10 3. Device Under Test 3.1 Identification The DUT is a 433.92 MHz transmitter, 3.25 x 1.75 x 0.5 inches in size. The carrier is ASK modulated at 32 kHz and SAW stabilized. The antenna is a trace on the PCB. The DUT was designed and manufactured by Siemens VDO Automotive, 4685 Investment Drive, Troy, MI 48098. It is identified as: Siemens VDO Automotive Transmitter Model(s): 5WY7835, 5WY7836, 5WY7825, 5WY7826, 5WY8011, 5WY8010, 5WY7918, 5WY8024, 5WY8025, 5WY7833, 5WY7834, 5WY7917, 5WY8022, 5WY8023, 5WY7827, 5WY7828 FCC ID: M3N5WY783X IC: 267F-5WY783X 3.2 Models There are sixteen variants of the FOBIK keys. All variants are electrically identical; the differences are only in the keypads. There is one seven-button keypad, two six-button keypads, three five-button keypads, three four-button keypads, and one three-button keypad. There are also three types of exterior logos including Chrysler, Dodge and Jeep. One of each button populations was tested in the worst case. A module modified for CW transmission was also provided for testing purposes. 3.3 Modes of Operation There is only a single mode of operation for this device, and it is reflected in the data reports. Note that the DUT is manually activated and ceases to transmit within 5 seconds of deactivation. See Figure 6.1. 3.4 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231(a-c), 15.209), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210…
