M3N5WY7977LF Transmitters, 5WY7977, 5WY8090

Re: Certification for Siemens Transmitter Model(s): 5WY7977, 5WY8090 FCC ID: M3N5WY7977 IC: 267F-5WY7977 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: M3N5WY7977 IC: 267F-5WY7977 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

System Block Diagram Input Interface

Re: Certification for Siemens Transmitter Model(s): 5WY7977, 5WY8090 FCC ID: M3N5WY7977 IC: 267F-5WY7977 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Siemens Transmitter Model(s): 5WY7977, 5WY8090 FCC ID: M3N5WY7977 IC: 267F-5WY7977 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Siemens requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Siemens has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan January 23, 2007 Re: Certification for Siemens Transmitter Model(s): 5WY7977, 5WY8090 FCC ID: M3N5WY7977 IC: 267F-5WY7977 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Siemens Transmitter Model(s): 5WY7977, 5WY8090 FCC ID: M3N5WY7977 IC: 267F-5WY7977 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Siemens Automotive Corporation 2400 Executive Hills Drive Auburn Hills, Michigan 48326-2980 USA Matthew Doyle Tel: 248.764.6724 Fax: 248.764.7124 It will be manufactured by: Siemens VDO S.A. de C.V. Camino a la Tijera # 3, Km 3.5 Carretera Guadalajara-Morelia C.P. 45640 Mpio. Tlajomulco de Zúñiga, Jalisco Mexico Matthew Doyle Tel: 248.764.6724 Fax: 248.764.7124 Canadian Contact: Siemens Automotive Ltd. 2775 St. Etienne Boulevard Windsor ,ON N8W 5B1 Kurt Van Drus [email protected] 1(519)974-5400 1(519)974-5401

FCC ID: M3N5WY7977 IC: 267F-5WY7977

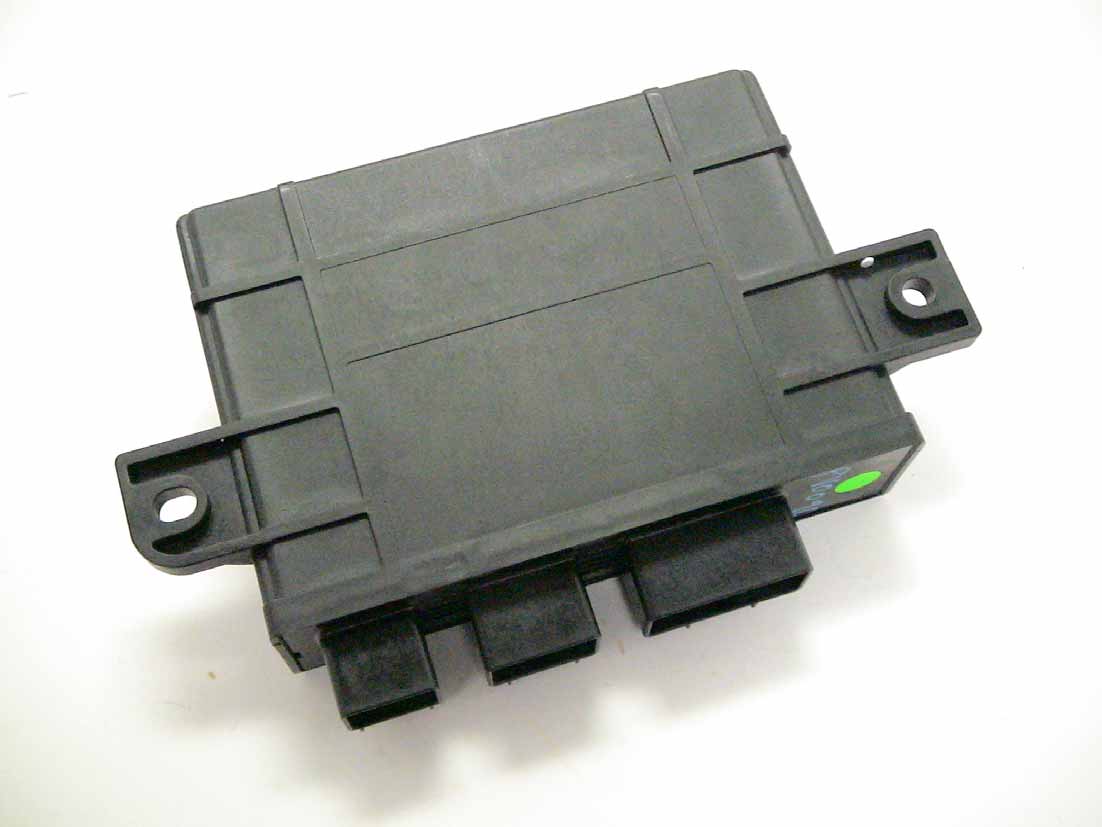

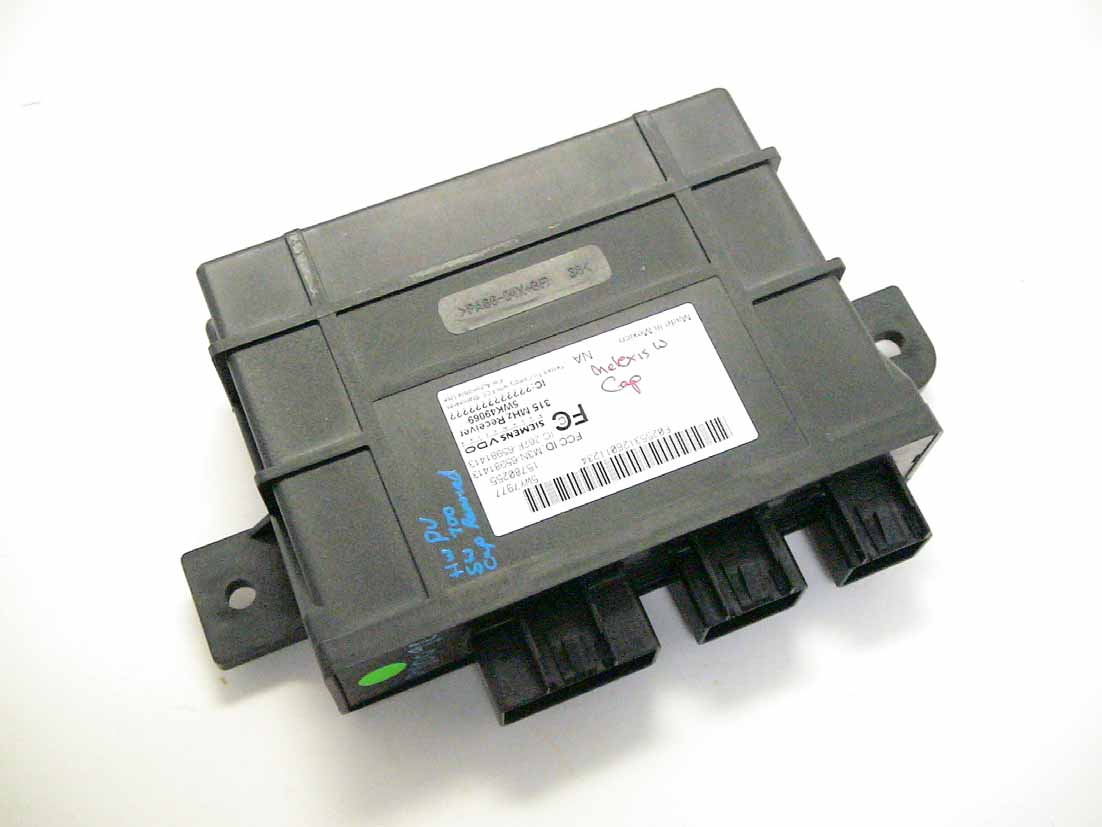

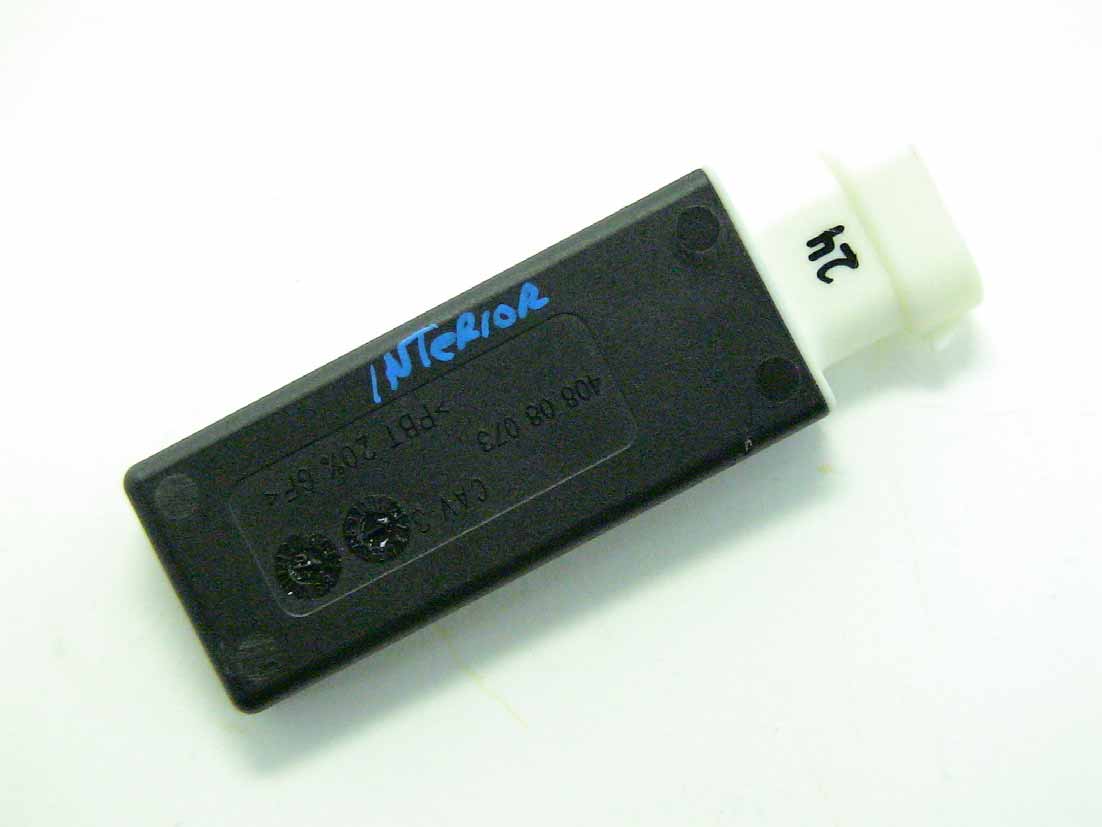

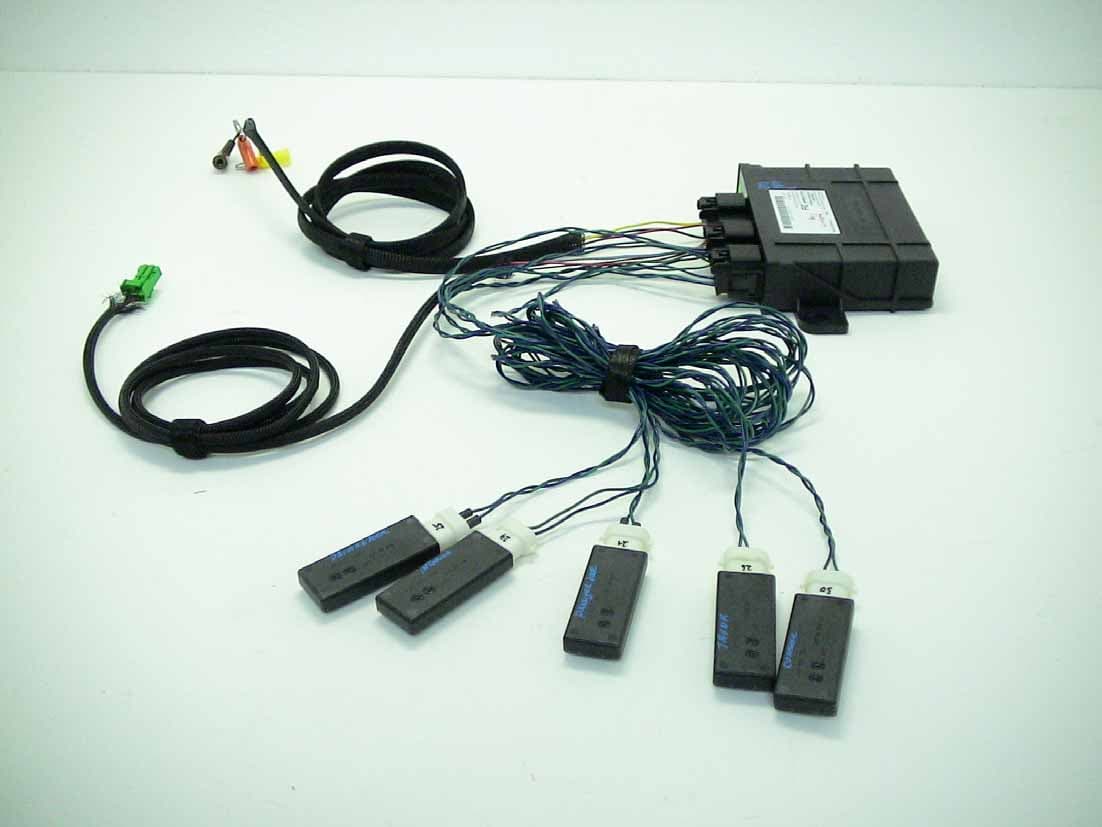

General Description The Easy Key Gen 2 PASE system consi sts of a CID (Customer Identifi cation Device), an ECU (Electronic Control Unit), 5 passive ferrite antenn as, and one Active Antenna. The ECU transmits information to the CID through a 125kHz ASK carrier and the CID tran smits information to the ECU through an RF ASK carrier (315MHz for NA). The passive an tennas are used to transmit the 125kHz. The system allows for PASE (Passive Start and Entry) and well as RKE (Remote Keyless Entry). Passive entry is initiated by lifting the do or handle. The ECU will then ge nerate a 125kHz field, which the CID will read and respond back to the ECU via an RF response (315MHz for NA) The keypad on the CID can be used for RKE, where pushing a button tran smits an RF command (315MHz for NA). Passive start is initiated by pressing the start button inside the vehicle. As with passive entry, the ECU generates a 125kHz signal and the CID responds back with an RF signal (315MHz for NA). In addition to PASE and RKE, the system will also receive TPM signals. A backup for instances where RF is not possible is th rough limphome mode with the CID. In this case, the CID is placed near a designated Active Antenna which generates a 125kHz field . The CID will respond back by dampening the field through absorption modulation. The ECU provides power, ground, and data lines to the Active Antenna. Power Supply The ECU is powered by the vehicle battery.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-345 Page 1 of 12 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Siemens LF Transmitter Model(s): 5WY7977, 5WY8090 Report No. 415031-345 January 23, 2007 Copyright © 2007 For: Siemens VDO Automotive 4685 Investment Drive Troy, MI 48098 Contact: Matthew Doyle Tel: (248) 764-6724 Fax: (248) 764-7124 Tests supervised by: Measurements made by: Joseph D. Brunett Report approved by: _____________________ Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, Part 15, Subpart C, and for compliance with Industry Canada RSS-210/Gen, were performed on Siemens VDO Automotive transmitter, models 5WY7977 and 5WY8090. This device is subject to Rules and Regulations as a transmitter. In testing completed January 10, 2007, the device tested in the worst case met the allowed specifications for transmitter radiated emissions by 35.8 dB (see p. 7). Power line conducted emissions tests do not apply, since the device is powered from a 12 VDC vehicular system. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-345 Page 2 of 12 1. Introduction Siemens model 5WY7977, 5WY8090 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedures and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) X EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantek, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantek Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-345 Page 3 of 12 3. Device Under Test 3.1 Identification The DUT is an automotive Passive Start and Entry (PASE) LF transmitter designed to communicate ID information to a customer identification device (CID) and is powered from an automotive 12 VDC source. The 125 kHz carrier is ASK modulated, the frequency generating circuitry is contained in the electronic control unit (ECU) module, and five ferrite loaded coils act as the antennas for the LF signal. The DUT was designed and manufactured by Siemens VDO Automotive, 4685 Investment Drive, Troy, MI 48098. It is identified as: Siemens VDO Automotive LF Transmitter Model: 5WY7977, 5WY8090 FCC ID: M3N5WY7977 IC: 267F-5WY7977 3.2 Models There is only a single model of the device. 3.3 Modes of Operation The device operates only in a single mode. However, the highest LF emissions occur when the in-dash LF coils are fired simultaneously as the key is placed in the vehicle ignition. All other coils are fired only individually, when a vehicle handle is lifted. 3.4 EMI Relevant Modifications No EMI Relevant Modifications were performed by this test laboratory. 4. Emission Limits 4.1 Radiated Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices, subject to Subpart C, Section 15.209; and Subpart B, Section 15.109 (transmitter generated signals excluded); and Subpart A, Section 15.33. The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, it is exempt. Table 4.1. Radiated Emission Limits (FCC: 15.205, 15.35; IC: RSS-210, 2.6 Tab. 1 & 3) (Transmitter) Frequency (MHz) Fundamental and Spurious* (μV/m) 0.009-0.490 0.490-1.705 2400/F(kHz), 3…
