M3N5WY8609Auto Remote Entry/Start Transmitter

February 09, 2009 Shawn Li Continental 4685 Investment Dr. Troy, MI 48098 Phone: 248-764-6712 Fax: 248-764-7226 RE: Certification for Continental Transmitter Model/PN(s): BT4T-15K601-Ax BT4T-15K601-Bx BA1T-15K601-Ax FCC ID: M3N5WY8609 IC: 7812A-5WY8609 USERS MANUAL & COMPLIANCE STATEMENT The Continental Transmitter is sold only as part of a vehicle by retail automobile dealers and as such has no separate manual. The exhibit is provided electronically to the vehicle manufacturer after submission. The compliance statement for Continental Transmitter will be integrated by the OEM into the vehicles owner's manual. It will read: This device complies with part 15 of the FCC rules and with RSS-210 of industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by Continental could void the user's authority to operate the equipment.

March 16, 2010 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Continental Transmitter Model/PN(s): BT4T-15K601-Ax, BT4T-15K601-Bx, BA1T-15K601-Ax FCC ID: M3N5WY8609 IC: 7812A-5WY8609 Please find enclosed application materials for certification of Continental Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

(gotioeotalG) Interior FederalCommunicationsCommission ApplicationsProcessingBranch 7435OaklandMillsRoad Colombia,MD21046 Re:LetterofAgencyforFCCComplianceTesting PleasebeadvisedthatContinentalAutomotiveSystemsUSInc.authorizes ProfessorValdis V.LiepaoftheUniversityofMichigan,DepartmentofElectrical EngineeringandComputerScience,AnnArbor,Michigan,toact onourbehalfin frontof theFederalCommunicationsCommissionwithrespecttoallmatters relatingtocertification. Anti-DrugAbuseCertification: I furthercertifythatnoparty(asdefined in1.2002ofCFR47,1992)tothis application,includingmyself, issubjecttoa denialof federalbenefits,that includesFCCbenefits,pursuanttoSection5301oftheAntiDrugAbuseActof 1988,21U.S.C.853(a). Datedthis t h dayofMarch,2008. (Printname) (Signature) I~~- By: Reimus Title: N.A.RFDomainManager email: [email protected] Onbehalfof:ContinentalAutomotiveSystemsUSInc (CompanyName) Telephone: +1(248)764-6522

Re: Certification for Continental Transmitter FCC ID: M3N5WY8609 IC: 7812A-5WY8609 REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Continental requests that a part of the subject application be held confidential. Continental has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: Continental requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Continental requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

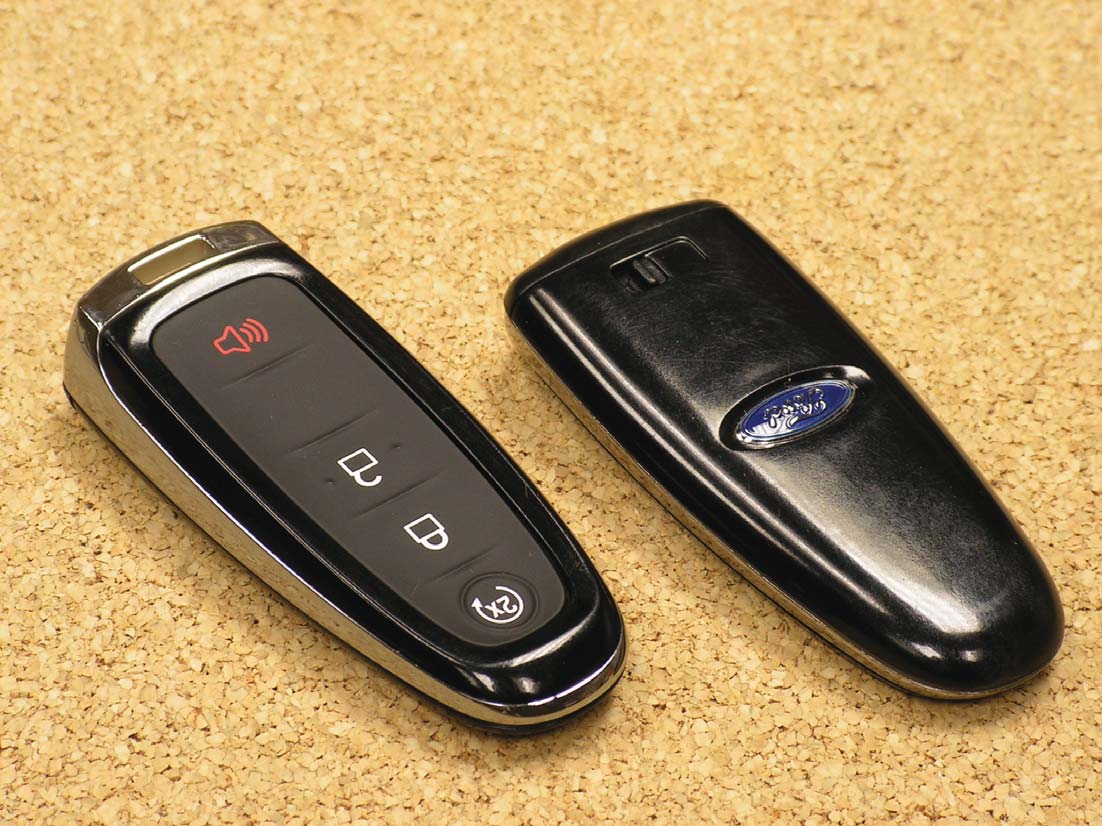

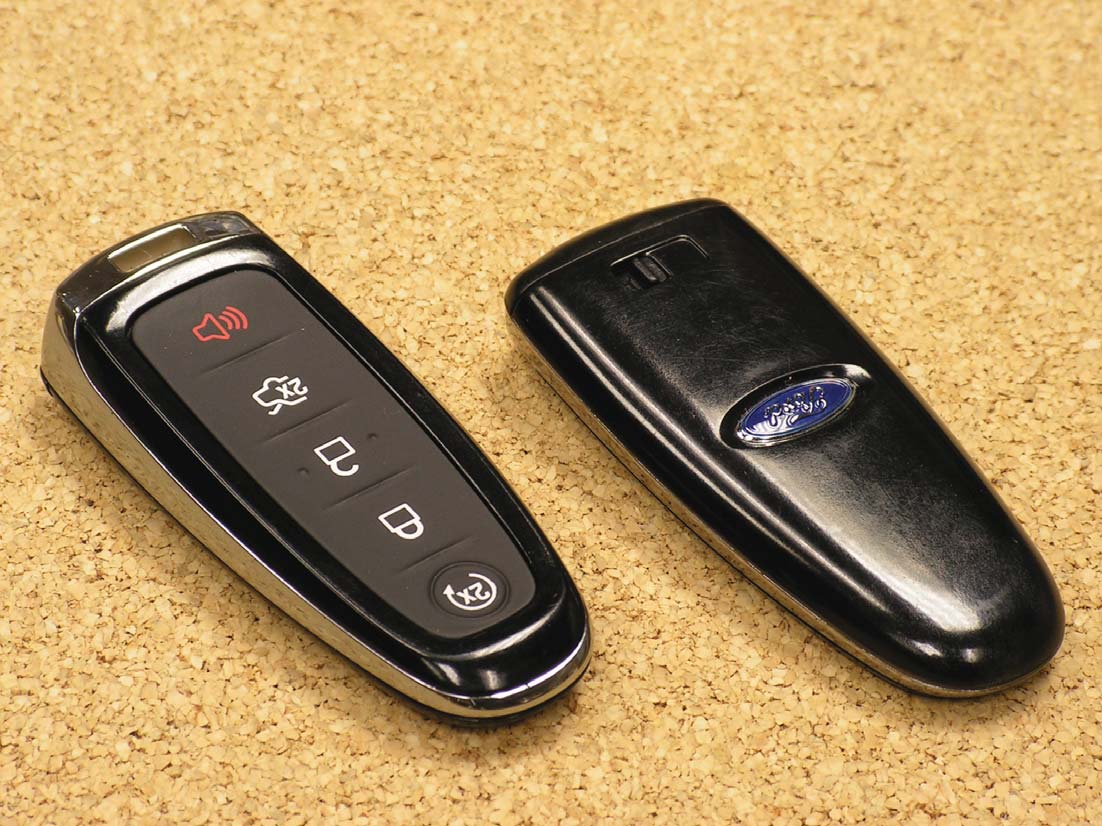

ID Label Location ID Label Drawing Data Matrix FCC ID: M3N5WY8609 IC: 7812A-5WY8609 Ford Part #BT4T-15K601–Bx Variant Ford 5-Button IC FCC ID: M3N5WY8609 IC: 7812A-5WY8609 Ford Part #BT4T-15K601–Ax Variant Ford 4-Button FCC ID FCC ID: M3N5WY8609 IC: 7812A-5WY8609 Ford Part #BA1T-15K601–Ax Variant Lincoln 5-Button

General Description The FORD PEPS system consists of an RF transmitter and Receiver. The transmitter is used to transmit information to the receiver for remote starting, locking, unlocking, opening the trunk, and Panic function. RF messages can be transmitted by one of two means. The buttons on the key can be used for remote starting, locking, unlocking, unlocking the trunk, and panic. Lifting the door handle or pushing the start button in the vehicle will generate a LF field, which the key will detect and respond to with a RF transmission to unlock or start the vehicle. There are three variants, Ford 4-Button, Ford 5-Button, and Lincoln 5-Button, which are electrically the same. The differences are keypads and logos on housings. Power Supply The transmitter is power by a single 3V CR2032 lithium battery. Buttons There are up to five buttons on the key, which are used for RKE remote start, lock, unlock, trunk, and panic.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-558 Page 1 of 14 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Continental Transmitter FCC ID: M3N5WY8609 IC: 7812A-5WY8609 Test Report No. 417124-558 March 16, 2010 Copyright © 2010 For: Continental Automotive Systems US Inc. 2400 Executive Hills Drive Auburn Hills Michigan 48326-2980 Contact: Shawn Li [email protected] Phone: 248-764-6712 Fax: 248 764 7183 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a Continental, FCC ID: M3N5WY8609, IC: 7812A-5WY8609. This device under test (DUT) is subject to the rules and regulations as a Transmitter. In testing completed on February 5, 2010, the DUT tested met the allowed specifications for radiated emissions by 3.1 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-558 Page 2 of 14 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants and Samples ............................................................................................................ 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 4.2 Power Line Conducted Emissions Limits ............................................................................. 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 7 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-558 Page 3 of 14 1. Introduction This Continental Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 7, June 2007. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Man…
