Re: Certification for Siemens Receiver Models: 5WY7111, 5WY7112, 5WY7566 FCC ID: M3N65981802 IC: 267F-65981802 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: M3N65981802 IC: 267F-65981802 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Siemens Receiver Models: 5WY7111, 5WY7112, 5WY7566 FCC ID: M3N65981802 IC: 267F-65981802 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Siemens Receiver Models: 5WY7111, 5WY7112, 5WY7566 FCC ID: M3N65981802 IC: 267F-65981802 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Siemens requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Siemens has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan April 1, 2004 Re: Certification for Siemens Receiver Models: 5WY7111, 5WY7112, 5WY7566 FCC ID: M3N65981802 IC: 267F-65981802 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Siemens Receiver Models: 5WY7111, 5WY7112, 5WY7566 FCC ID: M3N65981802 IC: 267F-65981802 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Siemens Automotive Corporation 2400 Executive Hills Drive Auburn Hills, Michigan 48326-2980 USA Matthew Doyle Tel: (248) 764-6724 Fax: (248) 764-7124 It will be manufactured by: Siemens VDO S.A. de C.V. Camino a la Tijera # 3, Km 3.5 Carretera Guadalajara-Morelia C.P. 45640 Mpio. Tlajomulco de Zúñiga, Jalisco Mexico Matthew Doyle Tel: (248) 764-6724 Fax: (248) 764-7124 Canadian Contact: Siemens Automotive Ltd. 2775 St. Etienne Boulevard Windsor ,ON N8W 5B1 Kurt Van Drus [email protected] (519)974-5400 (519)974-5401

8.0 MHz Crystal used for Micro

April 1, 2004 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: M3N65981802 Please find enclosed application materials for certification of Siemens SJB with Receiver. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

April 1, 2004 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Siemens Receiver Models: 5WY7111, 5WY7112, 5WY7566 FCC ID: M3N65981802 IC: 267F-65981802 Please find enclosed application materials for certification of Siemens 5WY7111, 5WY7112, 5WY7566 Receiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist April 1, 2004 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Siemens Receiver Models: 5WY7111, 5WY7112, 5WY7566 FCC ID: M3N65981802 IC: 267F-65981802 Please find enclosed application materials for certification of Siemens 5WY7111, 5WY7112, and 5WY7566 Receiver. We tested the device and found it to comply with RSS-210. The product is identified by: IC: 267F-65981802 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

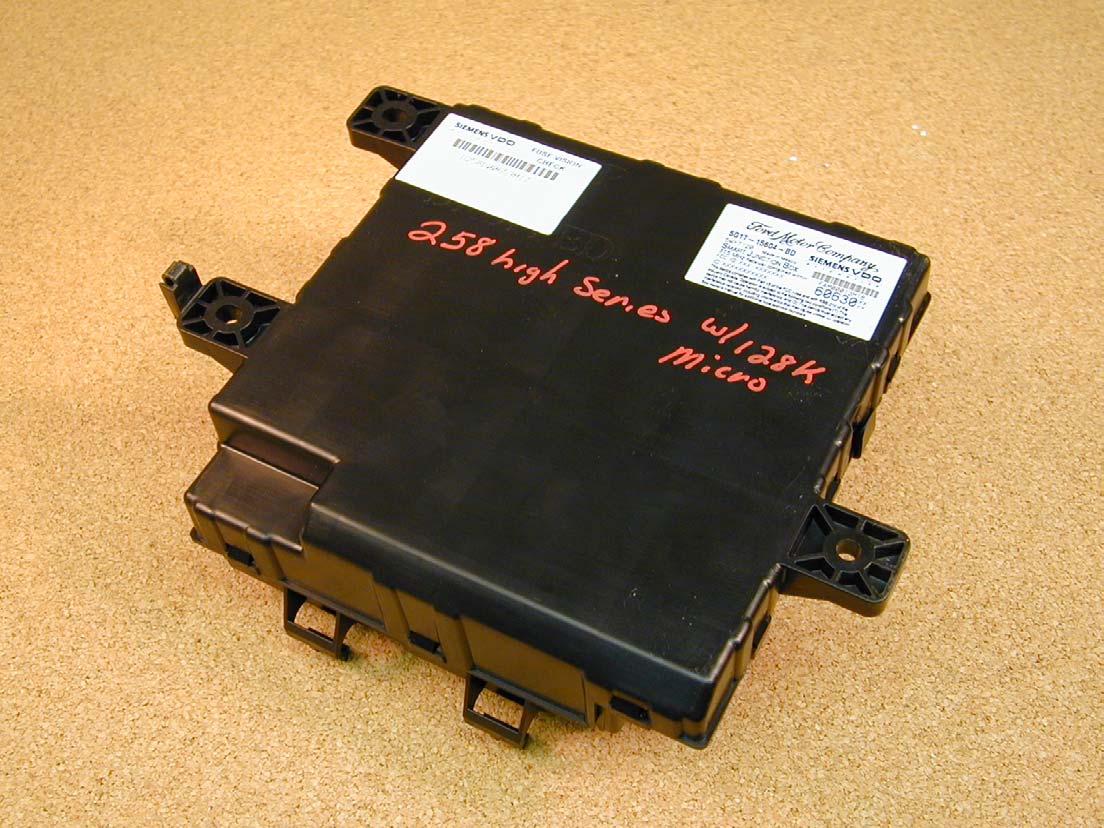

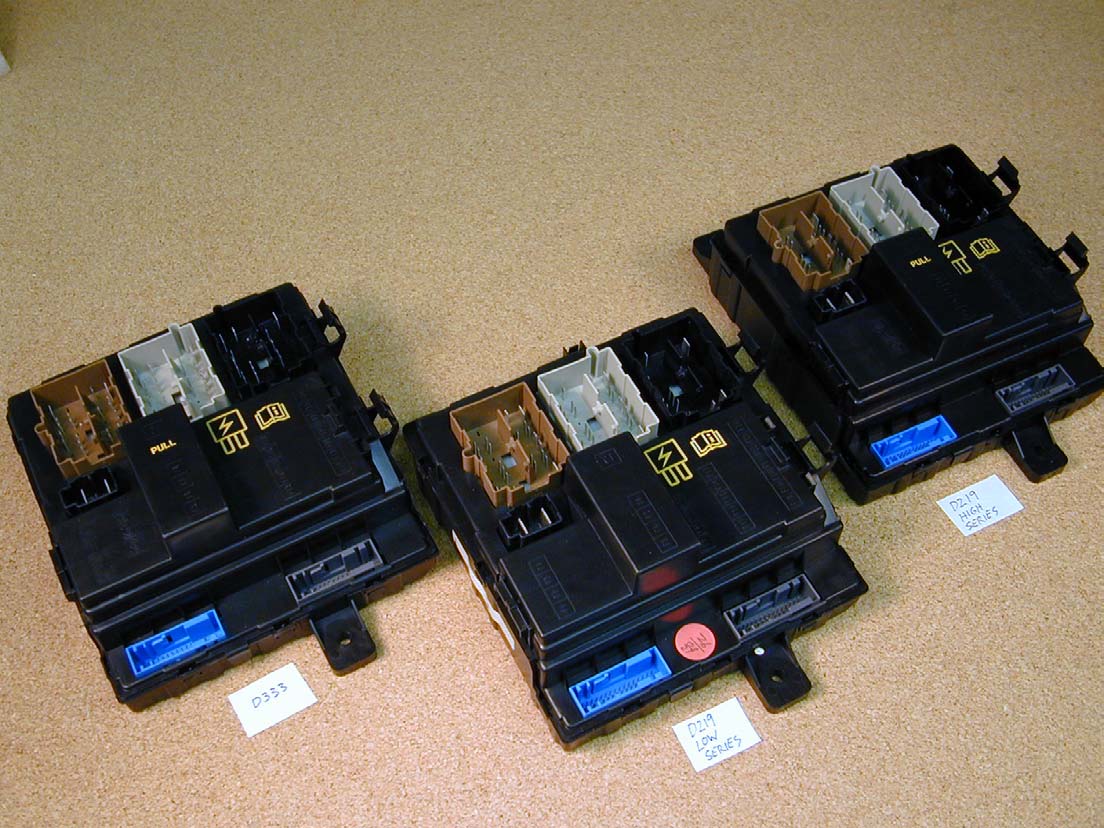

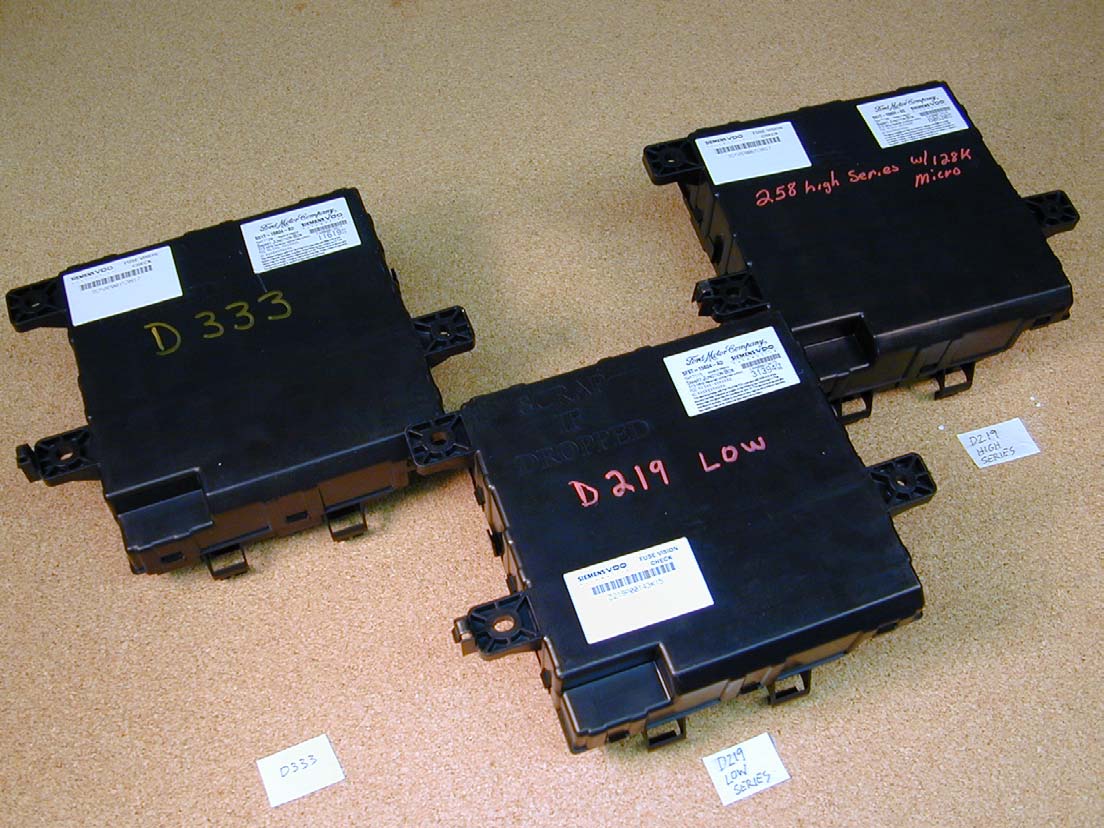

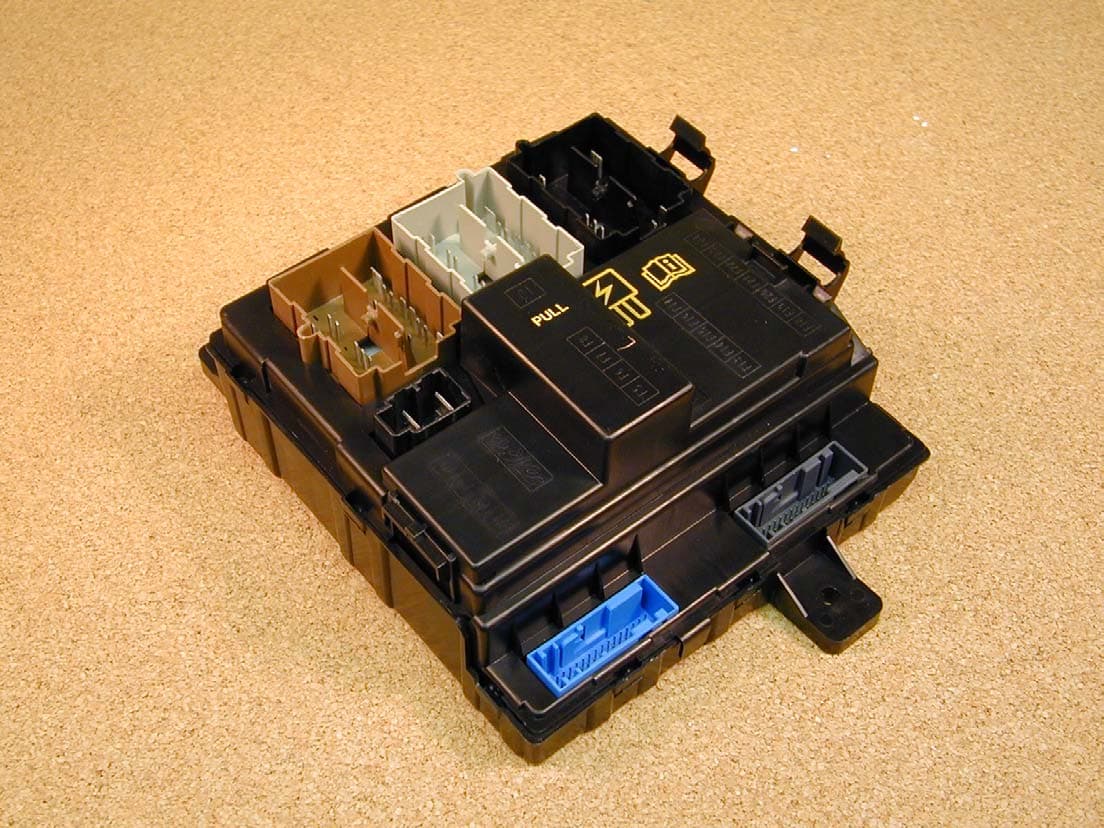

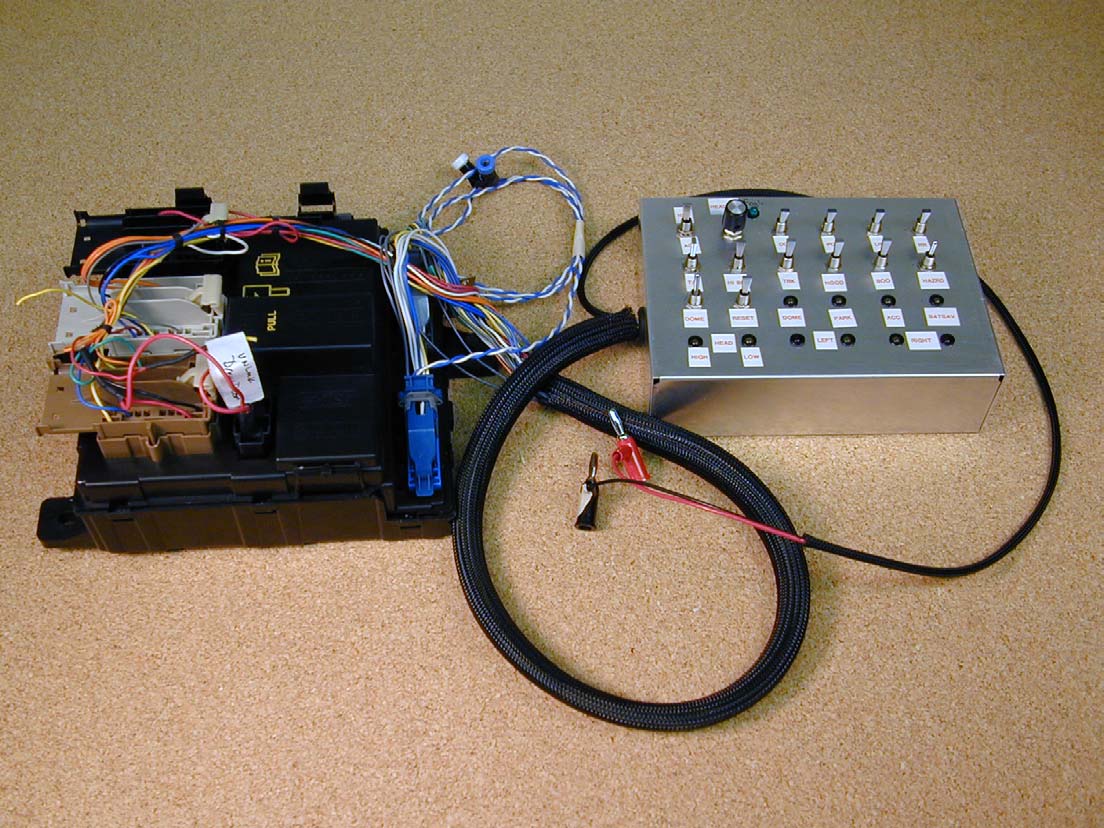

General Description The SJB controls many vehicle functions including exterior lighting, interior lighting, security locking, power functions, warnings, communication capabilities (using a CAN interface), as well as providing a fused pass through for other power devices. The SJB also contains a receiver for RKE (remote keyless entry). The receiver is a Super Regen operating at 315MHz ASK. All versions of the SJB use the same receiver and PCBs (power and electronic). Items ending with 01 (i.e. 659818.21.01) refer to the power board. The difference between the versions is only with the non- populated components. The RF section is the same on all versions.

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Siemens SJB with Receiver Models: 5WY7111, 5WY7112, 5WY7566 Report No. 415031-201 April 1, 2004 Copyright © 2004 For: Siemens VDO Automotive 4685 Investment Drive Troy, MI 48098 Contact: Matthew Doyle Tel: (248) 764-6724 Fax: (248) 764-7124 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Valdis V. Liepa Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart B, and Industry Canada RSS-210, were performed on Siemens models 5WY7111, 5WY7112, and 5WY7566. This device is subject to the Rules and Regulations as a Receiver. As a Digital Device it is exempt, but such measurements were made to assess the receiver's overall emissions. In testing completed on January 16, 2004, the device tested in the worst case met the allowed FCC (Class B) specifications for radiated emissions by 9.5 dB (see p. 6). The conducted emissions tests do not apply, since the device is powered from a 12 VDC system. 2 1. Introduction Siemens model 5WY7111, 5WY7112, 5WY7566 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator X Hewlett-Packard 8657B 3 3. Configuration and Identification of Device Under Test The DUT is a 315 MHz superregenerative receiver, designed for onboard automobile security/convenience applications, and as such, it is powered from an automotive 12 VDC source. It is housed in a plastic case approximately 6 by 7 by 2.5 inches. Antenna is internal. For testing, a generic harness was provided by the manufacturer. The (12 VDC) power wires were separated from the signal wires. In the receiver digital section, the decoding, signal processing, etc. are performed by a microprocessor timed by an 8.0 MHz oscillator. The three models tested differ only in digital functionality and digital component population. The receiver section is the same for all models. The DUT was designed and manufactured by Siemens VDO Automotive, 4685 Investment Drive, Troy, MI 48098. It is identified as: Siemens VDO Automotive Receiver Models: 5WY7111 (D219L), 5WY7112 (D219H), 5WY7566 (D333) FCC ID: M3N65981802 IC: 267F-65981802 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under Part 15, Subpart B, "Unintentional Radiators". The pertinent test frequencies, with corresponding emission limits, are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (Ref: 15.33, 15.35, and 15.109). Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Quasi-Peak readings apply to 1000 MHz (120 kHz BW) Average readings apply above 1000 MHz (1 MHz BW) 4.2 Conducted Emission Limits Table 4.2. Conducted Emission Limits (Ref: 15.107). Freq. (MHz) μV dB(μV) 0.450 - 1.705 250 48.0 1.705 - 30.0 250 48.0 Note: Quasi-Peak readings apply here 4 4.3 Antenna Power Conduction Limits Ref: 15.111(a). Pmax = 2 nW; for frequency range see Table 4.1. 5. Emission Tests and Results NOTE: Even though the FCC and/or Industry Canada specify that both the radi…
