Re: Certification for Siemens Transmitter Model: 5WY7385, 5WY7389 FCC ID: M3N-65982701 IC: 267F-65982701 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: M3N-65982701 IC: 267F-65982701 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Siemens Transmitter Model: 5WY7385, 5WY7389 FCC ID: M3N-65982701 IC: 267F-65982701 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Siemens Transmitter Model: 5WY7385, 5WY7389 FCC ID: M3N-65982701 IC: 267F-65982701 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Siemens requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Siemens has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan April 6, 2004 Re: Certification for Siemens Transmitter Model: 5WY7385, 5WY7389 FCC ID: M3N-65982701 IC: 267F-65982701 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Siemens Transmitter Model: 5WY7385, 5WY7389 FCC ID: M3N-65982701 IC: 267F-65982701 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Siemens Automotive Corporation 2400 Executive Hills Drive Auburn Hills, Michigan 48326-2980 USA Matthew Doyle Tel: (248) 764-6724 Fax: (248) 764-7124 It will be manufactured by: Siemens VDO S.A. de C.V. Camino a la Tijera # 3, Km 3.5 Carretera Guadalajara-Morelia C.P. 45640 Mpio. Tlajomulco de Zúñiga, Jalisco Mexico Matthew Doyle Tel: (248) 764-6724 Fax: (248) 764-7124 Canadian Contact: Siemens Automotive Ltd. 2775 St. Etienne Boulevard Windsor ,ON N8W 5B1 Kurt Van Drus [email protected] Tel: 1(519)974-5400 Fax: 1(519)974-5401

April 6, 2004 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: M3N-65982701 Please find enclosed application materials for certification of Siemens 5WY7385, 5WY7389 Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

April 6, 2004 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Siemens Transmitter Model: 5WY7385, 5WY7389 FCC ID: M3N-65982701 IC: 267F-65982701 Please find enclosed application materials for certification of Siemens 5WY7385, 5WY7389 Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist April 6, 2004 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Siemens Transmitter Models: 5WY7385, 5WY7389 FCC ID: M3N-65982701 IC: 267F-65982701 Please find enclosed application materials for certification of Siemens 5WY7385 and 5WY7389 Transmitter. We tested the device and found it to comply with RSS-210. The product is identified by: IC: 267F-65982701 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

SIEMENS VDO Automotive SV C BC P26 Page 6 of 7 6. Label Design Immobiliser Auto Locate: Base:

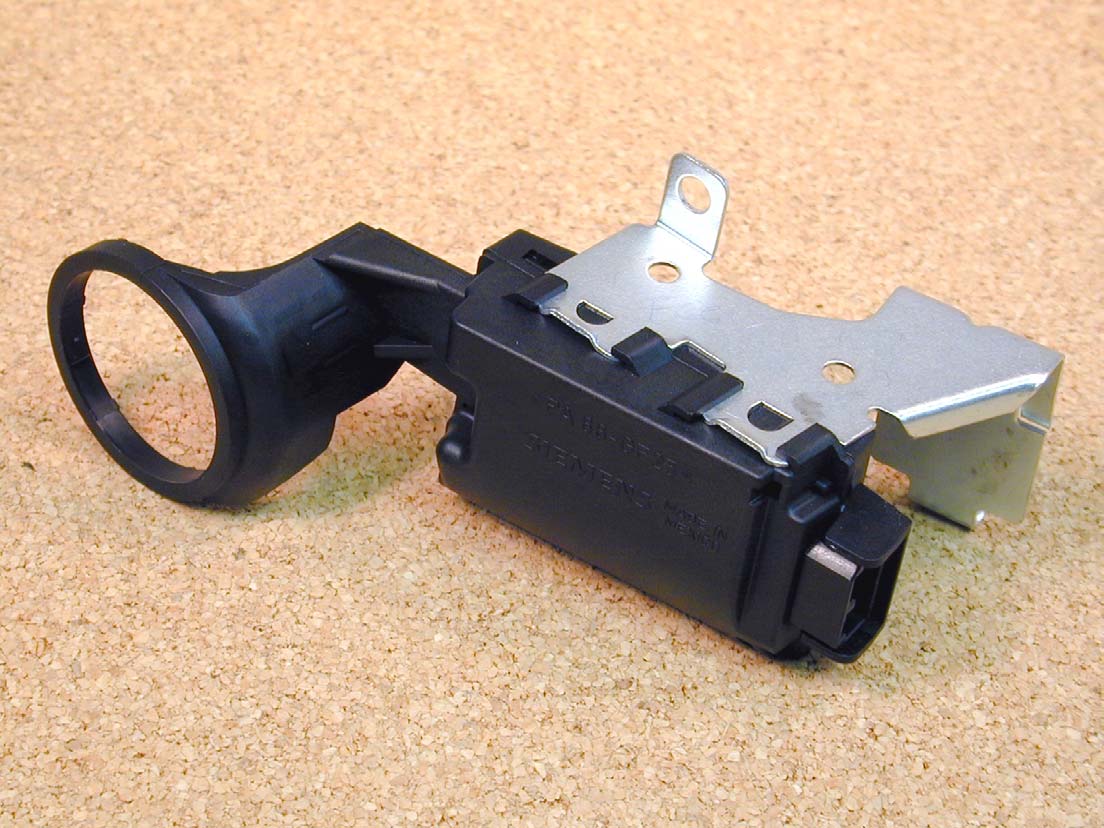

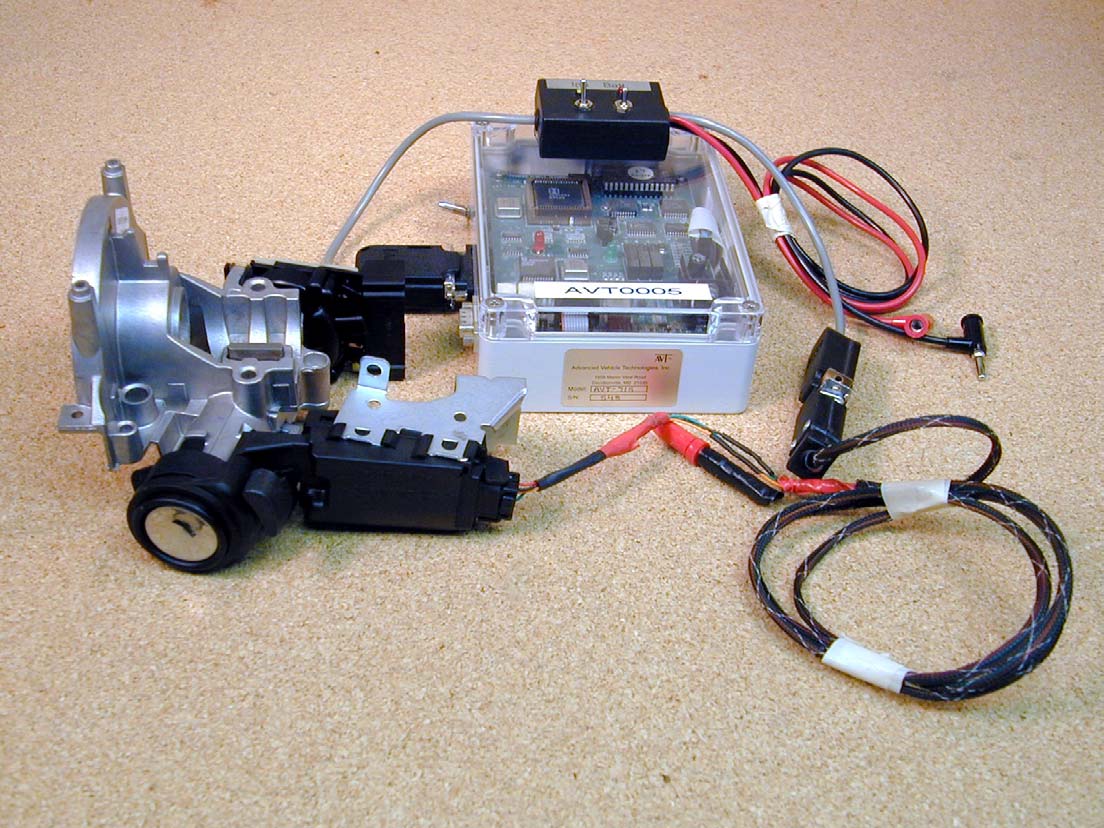

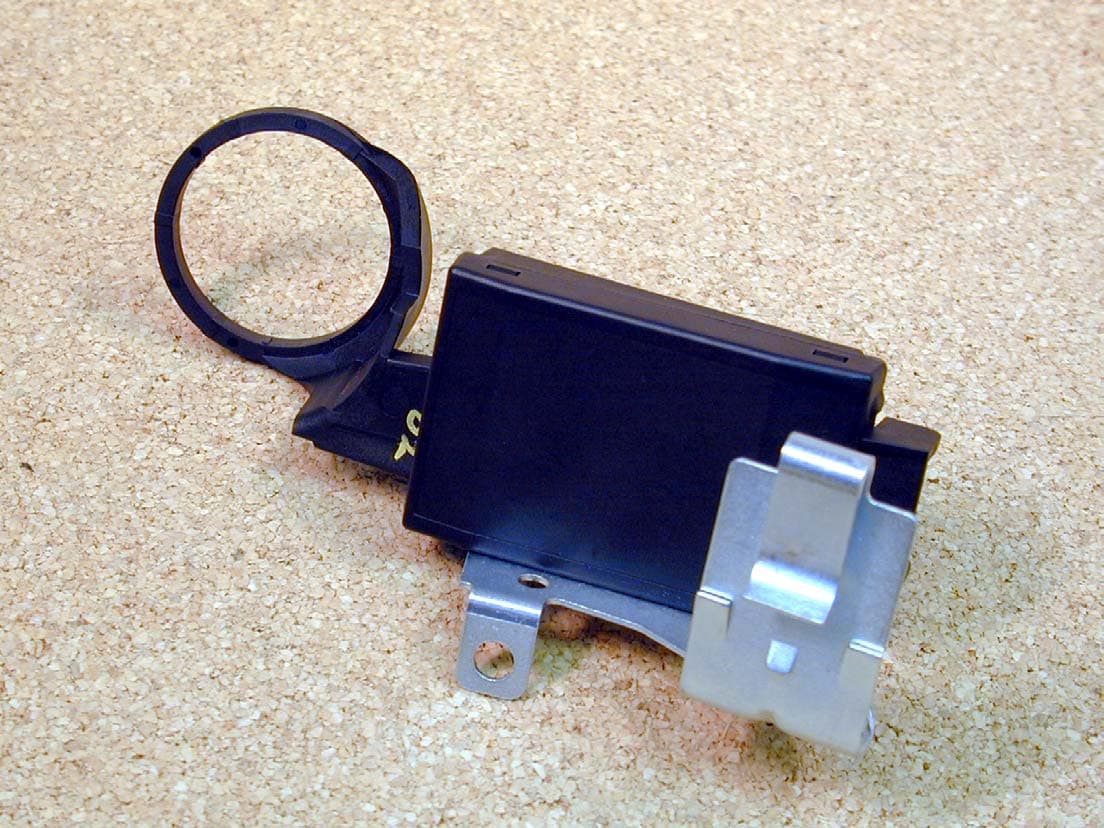

DUT apart (top) DUT apart (bottom) PCB (top) A uto Locate Model Base Model PCB (bottom) PCB with Shield Removed

SIEMENS VDO Automotive SV C BC P26 Page 2 of 7 FUNCTIONAL DESCRIPTION 1. System Components: The DaimlerChrysler SKREES (Sentry Key Remote Entry System) is a vehicle immobilization and Remote Keyless Entry (RKE) system. This system consists of a module or base station called the SKREEM (Sentry Key Remote Entry Module Wireless Control Module) with a RKE Fob and a Sentry Key. System Operation: The DaimlerChrysler Sentry Key Remote Entry System (SKREES) combines two sub-systems: an Immobilizer Module and a Remote Keyless Entry Module into one system that performs the functions of both modules. Therefore, the SKREES can be divided into two major sub-systems: a Sentry Key Immobilizer and a Remote Keyless Entry. Remote keyless entry function is provided by the RF sub-system of the SKREEM and the RKE fob. On the other hand, the immobilizer function is provided by the LF sub- system of the SKREEM and the Sentry Key. The operation of these functions are as follows: Immobilizer: The Sentry Key communicates encoded 125kHz ASK data to the SKREEM via Absorption or Load Modulation. The Sentry Key transponder sinks, dependant on its internal impedance, current out of the field that’s generated by the SKREEM Base station antenna. The base station self senses the voltage drop that’s caused on the internal resistance of the transmitter stage by the impedance (load) of the transponder. The data that the SKREEM sees (or receives) is Manchester encoded at 125kHz based on the Philips HITAG2+ protocol and encryption algorithm. The Sentry Key Immobilizer sub-system authenticates an electronically coded Sentry Key when placed into the ignition and sends a valid/invalid key message to the engine controller based on the results. The authentication of the Sentry Key is performed using Philips HITAG2 protocol and Philips HITAG2 encryption algorithm. The “valid/invalid key” message communication is performed using a DaimlerChrysler proprietary rolling code algorithm via a J1850 bus. A “valid key” message must be sent to the engine controller within 2 seconds of ignition ON to free the engine from immobilization. The RF sub-system of SKREEM receives an encrypted RF signal from a RKE fob. SKREEM then decrypts the signal and broadcasts the requested remote commands to the appropriate control modules in the vehicle through J1850 bus. The RF data is encrypted using Philips HITAG2 encryption algorithm. A valid RKE fob ID must be incorporated into the RF signal in order for the SKREEM to pass the message to the control modules. SIEMENS VDO Automotive SV C BC P26 Page 3 of 7 Automatic RKE fob synchronization is done by SKREEM if valid RKE Fob is detected when message is received. This provides a maximum operation window for RKE functions. 2. List of SKREEM system components 5WY7385 SKREEM KJ Auto Locate TPM, RKE, Immobilizer 5WY7389 SKREEM KJ Base TPM, RKE, Immobilizer

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Siemens Transmitter Models: 5WY7385, 5WY7389 Report No. 415031-202 April 6, 2004 Copyright © 2004 For: Siemens VDO Automotive 4685 Investment Drive Troy, MI 48098 Contact: Matthew Doyle Tel: (248) 764-6724 Fax: (248) 764-7124 Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, Part 15, Subpart C, and for compliance with Industry Canada RSS-210, were performed on Siemens VDO Automotive transmitter, model 5WY7385, 5WY7389. This device is subject to Rules and Regulations as a transmitter. In testing completed November 14, 2003, the device tested in the worst case met the allowed specifications for transmitter radiated emissions by 21.1 dB (see p. 7); digital emissions, Class B, were met by at least 20 dB. The conducted emissions tests do not apply, since the device is powered from a 12 VDC system. 2 1. Introduction Siemens model 5WY7385, 5WY7389 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedures and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) X EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantek, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantek Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B 3 3. Configurations and Identification of Device Under Test The DUT is a 1.125 MHz LF transmitter designed for an onboard automobile Tire Pressure Monitoring System (TPMS), and as such, it is powered from an automotive 12 VDC source. It is housed in a plastic case approximately 4 by 2 by 1 inches. Coil is internal. For testing, a generic harness was provided by the manufacturer. The DUT is designed to operate at 125 kHz. The DUT was designed and manufactured by Siemens VDO Automotive,4685 Investment Drive,Troy, MI 48098. It is identified as: Siemens VDO Automotive Transmitter Model: 5WY7385, 5WY7389 FCC ID: M3N65982701 CANADA: 267F-65982701 Two models of the device were provided. The 5WY7385 (Auto Locate) model contains additional digital i/o for communicating actuator control signals to other devices. Both models included in this filing are identical with regards to their RF/LF sections. The RKE 315 MHz receiver portion of this device has a separate DoC. 3.1 EMI Relevant Modifications No EMI Relevant Modifications were performed by this test laboratory. 4. Emission Limits 4.1 Radiated Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices, subject to Subpart C, Section 15.209; and Subpart B, Section 15.109 (transmitter generated signals excluded); and Subpart A, Section 15.33. The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, it is exempt. Table 4.1. Radiated Emission Limits (FCC: 15.205, 15.35; IC: RSS-210 (6.2.2(r), 6.3)). (Transmitter) Frequency (MHz) Fundamental and Spurious* (μV/m) 0.009-0.490 0.490-1.705 2400/F(kHz), 300m 24,000/F(kHz), 30m 0.090-0.110 0.49-0.51 Restricted Bands * Harmonics must be below the fundamental. For extrapolation to other distances, see Section 6.6. 4 Table 4.2. Radiated Emission Limits (FCC: 15.33, 15.35, 15.109; IC: RSS-210, 6.2.2(r)). (Digital Class B) Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 2…

Text truncated - open the document above for the full version.

DUT on OATS DUT on OATS (close-up)
