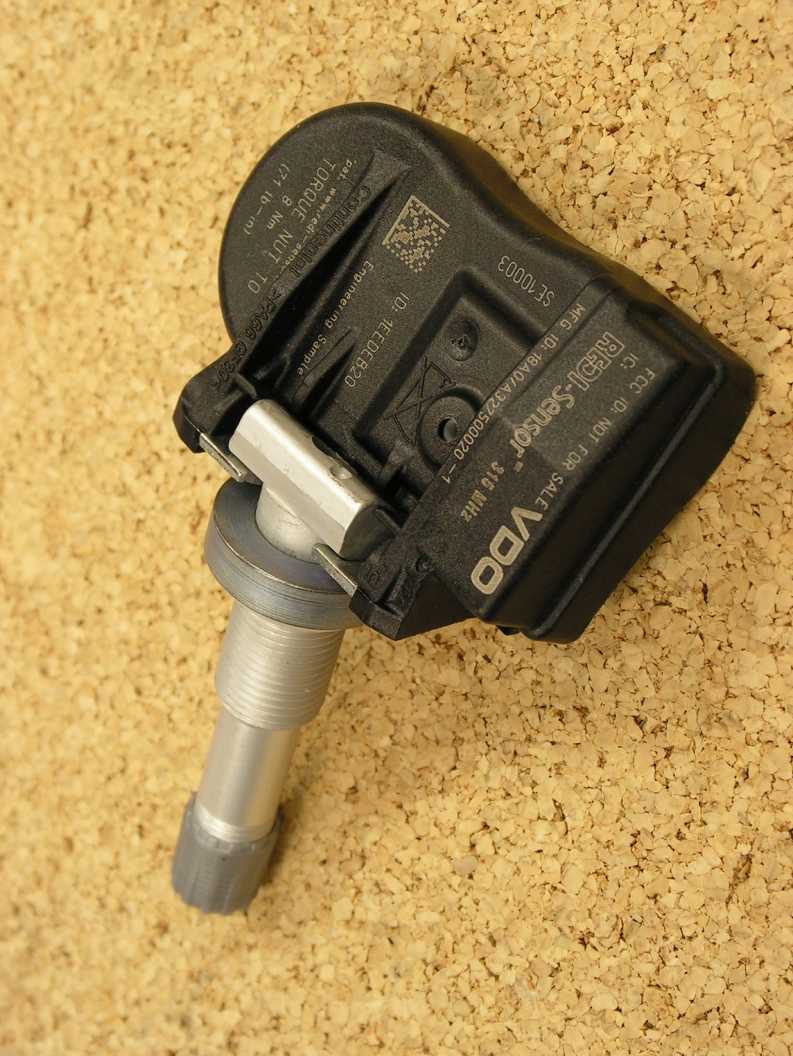

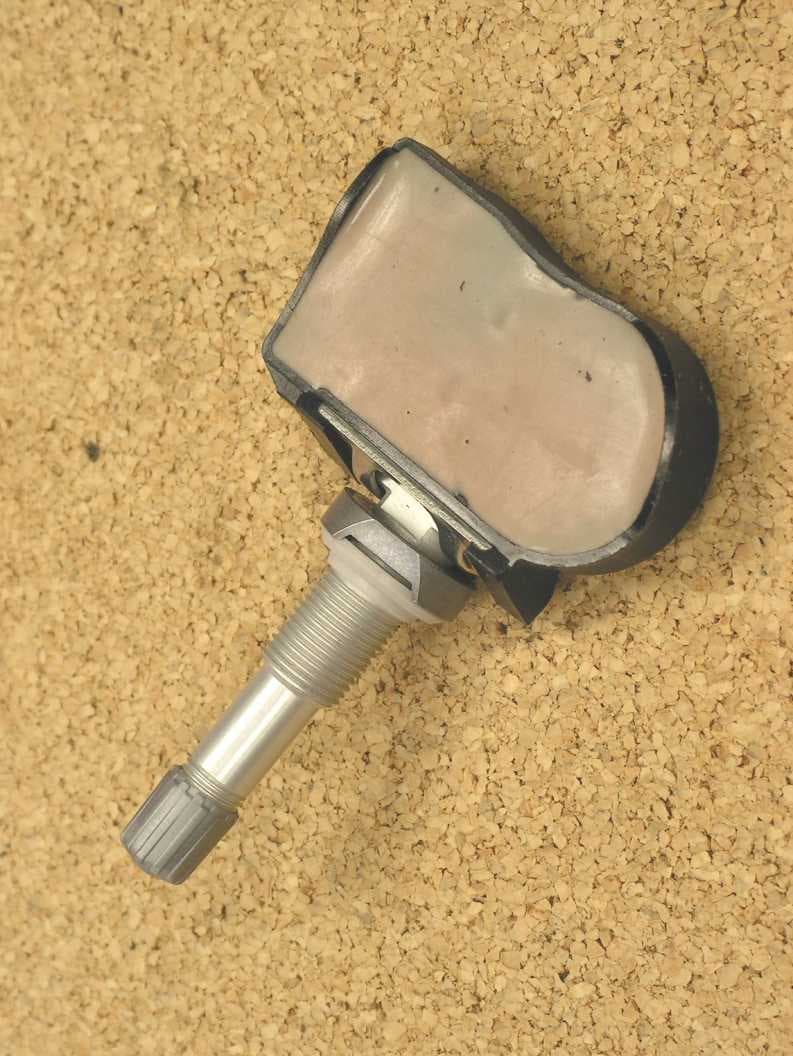

M3N80157400Tire Pressure Monitoring Transmitter

January 30, 2014 Delia Perez Continental 4685 Investment Dr. Troy, MI 48098 Phone: 248-764-6712 Fax: 248-764-7226 RE: Certification for Continental Tire Pressure Monitoring Sensor MN/FCC ID: M3N80157400 IC: 7812A-80157400 USERS MANUAL & COMPLIANCE STATEMENT This device complies with part 15 of the FCC rules and with RSS-210 of industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by Continental could void the user's authority to operate the equipment.

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Please find enclosed application materials for certification of Continental Automotive Systems US Inc. M3N80157400. We tested it and found it to comply with CFR Title 47, Part 15.231(e). If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 8 Re: Certification for Continental Automotive Systems M3N80157400 FCC ID: M3N80157400

Re:Certification for Continental Transmitter FCC ID:M3N80157400 IC:7812A-80157400 REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Continental requests that a part of the subject application be held confidential. Continental has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality RequestedExhibit Short TermPermanent(1)ID Label & Location Short TermPermanent(3)External Photos Short TermPermanent 1 (4)Block Diagram Short TermPermanent(5)Schematics Short TermPermanent(7)Test Setup Photos Short TermPermanent(8)User’s Manual Short TermPermanent 2 (9)Internal Photos Short TermPermanent(10)Parts List & Placement Short TermPermanent(11)RF Exposure Short TermPermanent 1 (12)Description of Operation (partial) 1.Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Portions of the Description of Operation detail proprietary modes of operation for the device. 2.DUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. Photograph exhibits outline the half-clam-shell device before and after potting. Permanent Confidentiality:Continentalrequests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only):Continental requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483- 4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

Modes of Operation: Notes: 1.‐The Learn mode is used only to learn the identifier of the TPM sensor in the vehicle TPM System. This mode will only be used at tire dealers/service centers only. 2. ‐ The power level for all transmissions is the same. Variant 3 315MHz Consumer Use Mode Service Mode Mode of Operation Explanation Frequency of transmission X Park Mode (Periodic) All of the time other that other modes 9 Wors every 512 seconds X X Park Mode + Delta Pressure When a Delta pressure positive is detected Up to 32 words in less than 5 seconds X Drive Mode TPM Sensor in normal operation when vehicle motion is detected 9 words every 17 seconds X Learn Mode TPM sensor transmits up to 64 words after LF tool activation Up to 64 words in less than 5 seconds

Date of Issue: February 21, 2014Prepared For: Continental Automotive Systems US Inc.Test Report No.: 417124-665r1 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.231(e) Canada: IC RSS-210/GENe are herein reported for Continental Automotive Systems US Inc. M3N80157400 Test Report No.: 417124-665r1 Copyright c ©2014 Applicant/Provider: Continental Automotive Systems US Inc. 2400 Executive Hills Drive, Auburn Hills Michigan 48326-2980 USA Phone: +1 (248) 764-6522, Fax: +1 (248) 764-7281 Contact Person: David Reimus; [email protected] Report by: Report Date of Issue: February 21, 2014 Dr. Valdis V. Liepa Results of testing completed on (or before) February 21, 2014 are as follows. Emissions:The transmitter intentional emissionsCOMPLYwith the regulatory limit(s) by no less than 1.2 dB. Transmit chain spurious harmonic emissionsCOMPLYby no less than 5.6 dB. The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 1 of 15 Date of Issue: February 21, 2014Prepared For: Continental Automotive Systems US Inc.Test Report No.: 417124-665r1 Contents 1 Test Specifications, General Procedures, and Location3 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2 Configuration and Identification of the Equipment Under Test5 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .6 3 Emissions7 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 List of Tables 1The University of Michigan Radiation Laboratory Equipment List.. . . . . . . . . . . . . . . . . . .4 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 6Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 4Radiated Emissions Test Setup Photograph(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 6Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 2 of 15 Date of Issue: February 21, 2014Prepared For: Continental Automotive Systems US Inc.Test Report No.: 417124-665r1 1 Test Specifications, General Procedures, and Location 1.1 Test Specification and General Procedures The ultimate goal of Continental Automotive Systems US Inc. is to demonstrate that the Equipment Under Test (EUT) complies with the Rules and/or Directives below. Detailed in this report are the results of testing the Conti- nental Automotive Systems US Inc. M3N80157400 for compliance to: Country/Regio…
