M3NA2C738448GBCM

The device under test is manufactured by the grantee (Continental Corporation) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end- user. Continental Corporation will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: M3N A2C7388448, IC: 7812A- A2C738448 This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). O peration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Not e: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ******************************************************************************

Re: Certification for Continental Transmitter Model/PN(s): A2C738448, A2C735280, A2C738454 FCC ID: M3NA2C738448 IC: 7812A-A2C738448 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. March 25, 2013 Re: Certification for Continental Transmitter Model/PN(s): A2C738448, A2C735280, A2C738454 FCC ID: M3NA2C738448 IC: 7812A-A2C738448 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist

Re: Certification for Continental Transmitter FCC ID: M3NA2C738448 IC: 7812A-A2C738448 REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Continental requests that a part of the subject application be held confidential. Continental has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: Continental requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Continental requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

1 © Continental AG MY14 Ford Global BCM Label Drawings 02/22/2013 2 / © Continental AG MY14 Ford Global BCM Labels MADE IN MEXICO CONTINENTAL This device complies with Part 15 of the FCC Rules and with I ndustry Canada license- exempt RSS standard(s). Operation is subject to the follo wing two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause u ndesired operation. EJ7T − 15604 − BCM KIT ASSEMBLY A2C7395500100 KEY CODE: 10335 FCC ID: M3NA2C738448 IC : 7812A-A2C738448 M:A2C738448 RXXXXXXXX-XXX KCC-XXX-XXX-XXXXXXXXX ETCXXXXXXXXXX TRC/XXX/XXXX/XXX CMIIT ID:XXXXXX Equipment t ype low power device (LPD) AA 3 / © Continental AG MY14 Ford Global BCM Labels MADE IN MEXICO CONTINENTAL This device complies with Part 15 of the FCC Rules and with I ndustry Canada license- exempt RSS standard(s). Operation is subject to the follo wing two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause u ndesired operation. EG9T − 15604 − BCM KIT ASSEMBLY A2C7352810300 KEY CODE: 10335 FCC ID: M3NA2C738448 IC : 7812A-A2C738448 M:A2C735280 RXXXXXXXX-XXX KCC-XXX-XXX-XXXXXXXXX ETCXXXXXXXXXX TRC/XXX/XXXX/XXX CMIIT ID:XXXXXX Equipment t ype low power device (LPD) BB 4 / © Continental AG MY14 Ford Global BCM Labels MADE IN MEXICO CONTINENTAL This device complies with Part 15 of the FCC Rules and with I ndustry Canada license- exempt RSS standard(s). Operation is subject to the follo wing two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause u ndesired operation. EG9T − 15604 − BCM KIT ASSEMBLY A2C7384550200 KEY CODE: 10335 FCC ID: M3NA2C738448 IC : 7812A-A2C738448 M:A2C738454 RXXXXXXXX-XXX KCC-XXX-XXX-XXXXXXXXX ETCXXXXXXXXXX TRC/XXX/XXXX/XXX CMIIT ID:XXXXXX Equipment t ype low power device (LPD) CB

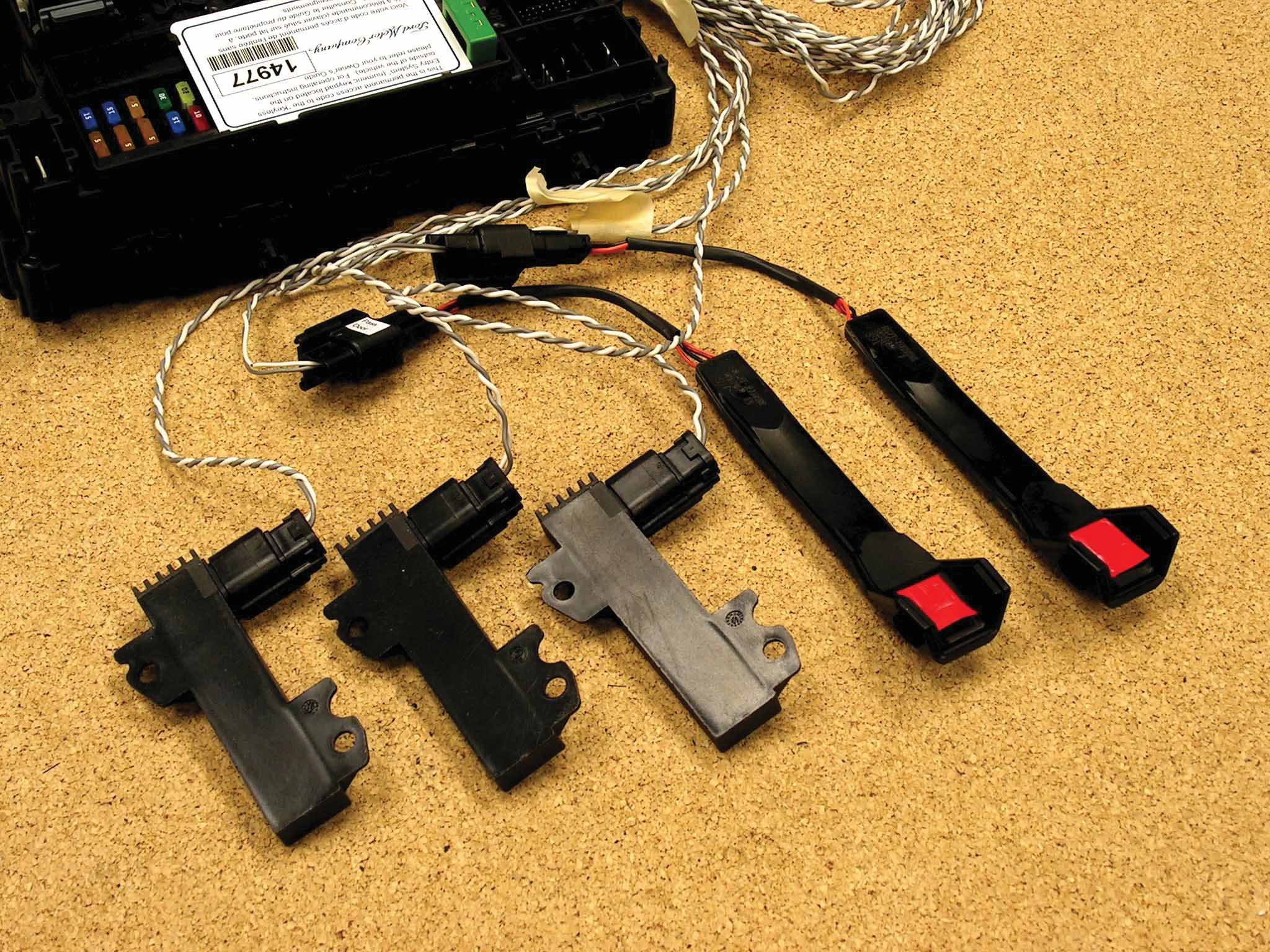

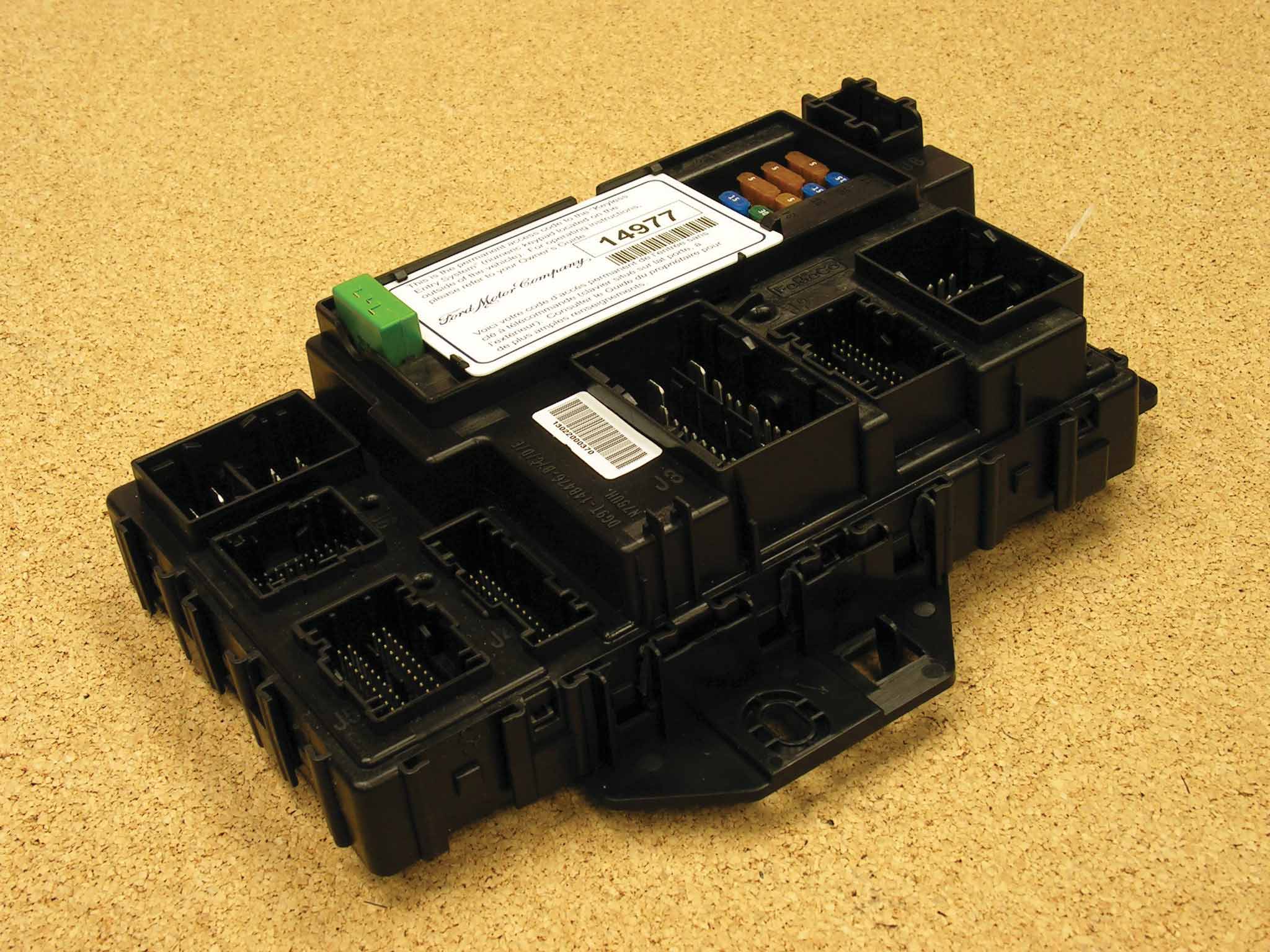

Theory of Operation The model year 2014 Ford Global Body Controller Module (GBCM) use Passive Entry Passive Start (PEPS) Systems which allows the vehicle user to you to automatically unlock and lock the vehicle doors by touching the any of the vehicles door handles, and start the engine just by pushing the Start Stop button without the need of taking the Key fob out of users pockets or hand bags...etc. In addition, the module is capable of doing LF polling for welcome lighting function, which will be activated on certain high end vehicles. The PEPS Systems consists of the following components 1- Vehicle mounted Ferrite core LF antennae 2- User Triggers: a. Capacitive Sensors on Doors Handles used as Locking and Unlocking triggers b. Start/Stop Push Button used as Vehicle Start Trigger 3- 315MHz Vehicle Mounted RF receiver (SEPARATE DEVICE) 4- GBCM which contain the LF Driver (125kHz) The PEPS system works as follows: 1- Once system is triggered by any of the user inputs, an LF challenge is sent to the Key Fob by the LF driver. The LF challenge starts with key fob wake up and data (4Kbaud modulated data for approx. 24-33ms) followed by CW on each of the antennas for approx.2.7ms with 0.32ms time off in between each of the CW. 2- Once Key fob is in the presence of the LF field created by the LF antennae, it sends its response to the GBCM via the separte RF receiver. Key fob sends 315MHz data which is received by the external RF receiver. RF receiver sends the key fob data to the BCM via a K Line link. 3- If the Key Fob is authenticated, the GBCM will activate the outputs based on the user intention (trigger). If the LF polling function is activated, the ECU will poll the Driver Door Handle and Trunk antennas Passenger Door handle antenna sequentially for 25ms every 600ms. Modulated Data (3.906KBaud / Carrier at 125KHz. Square Wave 50% duty Cycle) will be transmitted on each of the LF antennas when activated.

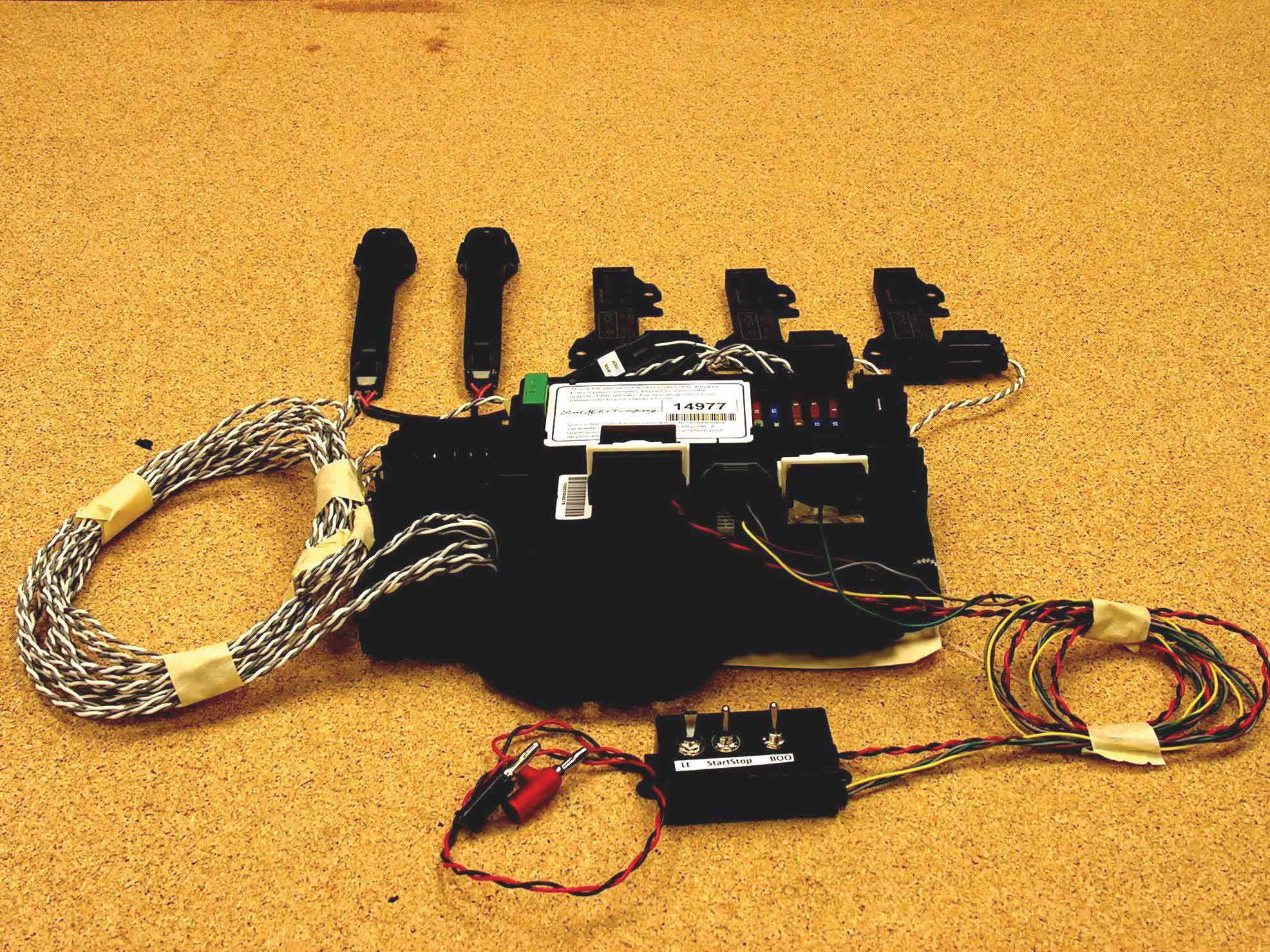

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-«Report_» Page 1 of 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Continental Automotive Systems US Inc. Transmitter FCC ID: M3NA2C738448 IC: 7812A-A2C738448 Test Report No. 417124-658 March 25, 2013 Copyright © 2013 For: Continental Automotive Systems US Inc. 2400 Executive Hills Drive Auburn Hills Michigan 48326-2980 Contact: David Reimus [email protected] Phone: (248) 764-6522 Fax: (248) 764-7281 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a Continental, FCC ID: M3NA2C738448, IC: 7812A-A2C738448. This device under test (DUT) is subject to the rules and regulations as a Transmitter. In testing completed on February 26, 2013, the DUT tested met the allowed specifications for radiated emissions by 29.5 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 12 VDC vehicular power system. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-«Report_» Page 2 of 13 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Samples & Variants .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 5 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 5 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 6 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-«Report_» Page 3 of 13 1. Introduction This Continental Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 8. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kH…
