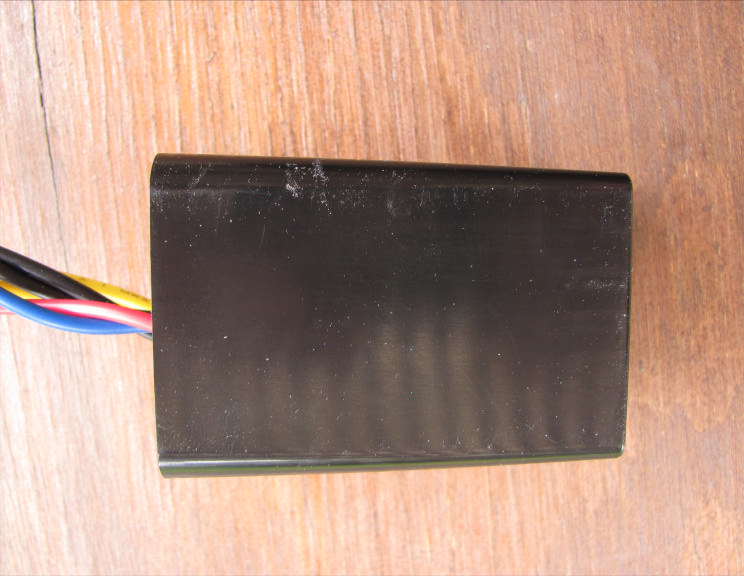

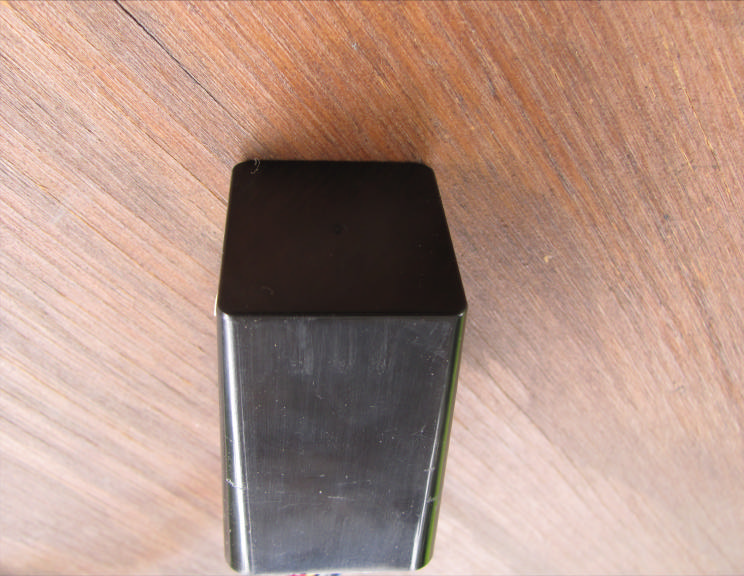

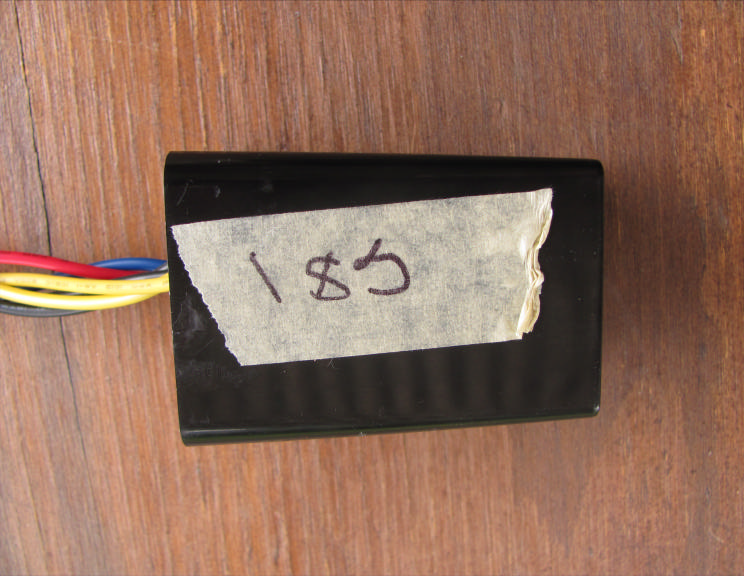

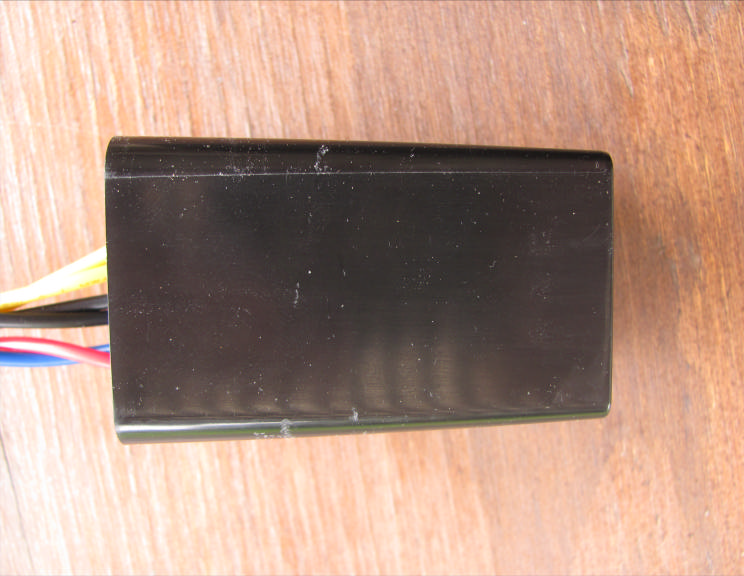

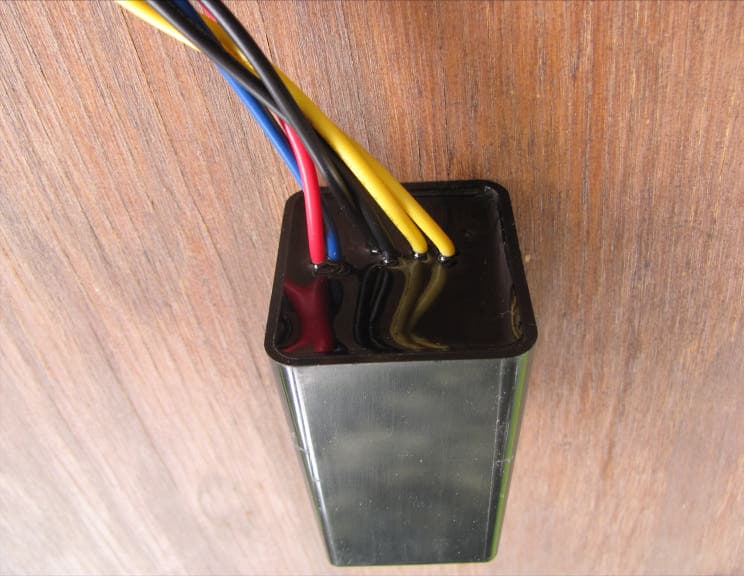

M3UDUALDEC2-Station DUAL Decoder

Made in China for Hunter Industries 23-947 DUAL 1 (Includes two DBRY-6 waterproof wire connectors for two-wire path connections) One station decoder For use with I-Core two-wire systems Wire Slack for Service Fig. 2 Decoder in Valve Box Fig. 1 Waterproof Connectors (Two connectors included for two-wire path) Fig. 3 DUAL 1One Station Decoder (for use with I-Core two-wire systems)Quantity: 1Date Code: DUAL 1One Station Decoder (for use with I-Core two-wire systems)Quantity: 1Date Code: NOTE: DUAL Decoders must be programmed before installation (unless you are using the Hunter ICD Hand Held Programmer). Please reference the DUAL48M Decoder Module Owners Manual for further information on decoder programming and installation. Installing DUAL Decoders 1. Controller power must be OFF when installing decoders in the two-wire path. 2. Select the decoder location. Decoders should be within 100 feet/33 m of the solenoid(s) they will operate. Decoders are waterproof, but should be installed in a valve box (Fig. 1) to facilitate future servicing. 3. Locate the two-wire path from the controller (typically red and blue wires). The wire path must be cut to insert decoder wiring, unless you are replacing an existing decoder. Be sure to leave enough slack in the wire path to allow easy connection and servicing of the decoder. (Fig. 2) 4. The red and blue decoder wires connect to the red and blue wire path from the controller. 5. Twist the stripped red wire ends (the ends from two-wire path and the decoder) together, and thread securely into the wire nut supplied. Seal the connection by inserting the wire nut supplied with your decoder into the connector’s waterproof grease, and snap the cap over the wires. (Fig. 3) 6. Repeat the procedure with the blue wires. 7. Each pair color-coded decoder output wires operates one or two solenoids up to 100 feet/33 m away. 8. Connect the two black wires from the decoder to the solenoid leads for the first station output. If you are installing a DUAL two-station decoder, connect the two yellow wires to the solenoid leads for the second station output. Use waterproof connectors to make solenoid wire connections. Note: Each DUAL decoder output may operate two solenoids simultaneously. The solenoids must be connected in parallel, rather than in series. Each decoder output wire should make a three-way connection, with one wire from each of the two solenoids. Made for Waterproof connectors (red wire nut) FCC ID: M3UDUALDEC IC: 2772A-DUALDEC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

1 Aug 3, 2010 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Gentlemen: This is a letter of authorization to accept that any personnel of Compatible Electronics, Inc. as an Agent for Hunter Industries Inc. 1940 Diamond Street, San Marcos, CA 92078, for a period of one year, to sign applications before the certification body on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the certification body in connection with certification of the following Hunter Industries products: DUAL 1 Decoder DUAL 2 Decoder under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of the FCC Rules and Regulations. Please also accept this letter as an attestation that neither Hunter Industries nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug Abuse act of 1988, 21 U.S.C. 853(a). In addition, Hunter Industries will notify the Federal Communications Commission if, at any time, the situation changes causing Hunter Industries to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 760-744-5240. Sincerely, Peter Woytowitz Engineering Manager, Controllers Hunter Industries

2 Sept 16, 2010 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, Hunter Industries, would like to declare that the application being submitted for the device with FCC ID: M3UDUALDEC, has not been submitted to another TCB or FCC for certification. The application was submitted to Compatible Electronics TCB on Sept 16, 2010. If you have any questions, please do not hesitate to contact us at 760-744-5240. Sincerely, Peter Woytowitz Engineering Manager, Controllers Hunter Industries

1195 A B C D 1234 4321 D C B PROPRIETARY INFORMATION THE INFORMATION AND/OR DESIGN CONTAINED WITHIN THIS DOCUMENT/DRAWING WAS ORIGINATED BY AND IS THE SOLE PROPERTY OF HUNTER INDUSTRIES INC. HUNTER IND. INC. RESERVES ALL PATENT, PROPRIETARY, DESIGN, MANUFACTURING, REPRODUCTION, USE AND SALE RIGHTS THERETO, AND TO ANY ARTICLE DISCLOSED THEREIN, EXCEPT TO THE EXTENT RIGHTS ARE EXPRESSLY GRANTED TO OTHERS. THE FOREGOING DOES NOT APPLY TO VENDOR PROPRIETARY PARTS. DO NOT SCALE DRAWING 0.010 0.010/IN A R DRAWING # SIZE SCALE ORIGINAL PRODUCT TITLE MATERIAL & SPEC: DESIGNER SHEET -TOLERANCES ARE PLUS OR MINUS IN THOUSANDS OF AN INCH -DIMENSIONS ARE IN INCHES. UNLESS OTHERWISE SPECIFIED: HUNTER INDUSTRIES 1940 DIAMOND ST. SAN MARCOS, CA. 92078 DATE REVECO. REVISION DESCRIPTION DRFT. 0.000 0.500 1.000 2.000 3.000 4.000 5.000 6.000 51015 ANGLES ±0.5° FINISH: ENGINEERING B DENOTES CRITICAL INSPECTION POINTS REV DENOTES FUNCTIONALLY CRITICAL POINTS MATERIAL: XXXXXX MATERIAL SPEC: XXXXXX ASSEMBLY, DUAL-X PRODUCT DUAL_1_FCC 1:11 of 1 XX 1RDORIGINAL DOCUMENTXX04/21/10

1195 A B C D 1234 4321 D C B PROPRIETARY INFORMATION THE INFORMATION AND/OR DESIGN CONTAINED WITHIN THIS DOCUMENT/DRAWING WAS ORIGINATED BY AND IS THE SOLE PROPERTY OF HUNTER INDUSTRIES INC. HUNTER IND. INC. RESERVES ALL PATENT, PROPRIETARY, DESIGN, MANUFACTURING, REPRODUCTION, USE AND SALE RIGHTS THERETO, AND TO ANY ARTICLE DISCLOSED THEREIN, EXCEPT TO THE EXTENT RIGHTS ARE EXPRESSLY GRANTED TO OTHERS. THE FOREGOING DOES NOT APPLY TO VENDOR PROPRIETARY PARTS. DO NOT SCALE DRAWING 0.010 0.010/IN A R DRAWING # SIZE SCALE ORIGINAL PRODUCT TITLE MATERIAL & SPEC: DESIGNER SHEET -TOLERANCES ARE PLUS OR MINUS IN THOUSANDS OF AN INCH -DIMENSIONS ARE IN INCHES. UNLESS OTHERWISE SPECIFIED: HUNTER INDUSTRIES 1940 DIAMOND ST. SAN MARCOS, CA. 92078 DATE REVECO. REVISION DESCRIPTION DRFT. 0.000 0.500 1.000 2.000 3.000 4.000 5.000 6.000 51015 ANGLES ±0.5° FINISH: ENGINEERING B DENOTES CRITICAL INSPECTION POINTS REV DENOTES FUNCTIONALLY CRITICAL POINTS MATERIAL: XXXXXX MATERIAL SPEC: XXXXXX ASSEMBLY, DUAL-X PRODUCT DUAL_FCC 1:11 of 1 XX 1RDORIGINAL DOCUMENTXX04/21/10

Report Number: B00608D1 FCC Part 15 Subpart B and FCC Section 15.209 Test Report 2-Station DUAL Decoder Model: DUAL-2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 15 FCC PART 15 SUBPART B and C TEST REPORT for 2-STATION DUAL DECODER Model: DUAL-2 Prepared for HUNTER INDUSTRIES 1940 DIAMOND STREET SAN MARCOS, CALIFORNIA 92078 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JULY 30, 2010 REPORT APPENDICES TOTAL BODY A B C D E PAGES 15 2 2 2 14 9 44 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B00608D1 FCC Part 15 Subpart B and FCC Section 15.209 Test Report 2-Station DUAL Decoder Model: DUAL-2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Radiated Emissions (Spurious, Fundamental, and Harmonics) Test 13 7.1.2 Conducted Emissions Test 14 8. CONCLUSIONS 15 Report Number: B00608D1 FCC Part 15 Subpart B and FCC Section 15.209 Test Report 2-Station DUAL Decoder Model: DUAL-2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos • Test Setup Diagram • Antenna and Amplifier Factors • Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of 3 Meter Radiated Test Site 2 Plot Map and Layout of 10 Meter Radiated Test Site 3 Conducted Emissions Test Setup Report Number: B00608D1 FCC Part 15 Subpart B and FCC Section 15.209 Test Report 2-Station DUAL Decoder Model: DUAL-2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 15 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Hunter Industries Model: DUAL-2 S/N: N/A Product Description: The EUT is a dual station decoder. Modifications: The EUT was not modifed during the testing. Customer: Hunter Industries 1940 Diamond Street San Marcos, California 92078 Test Date(s): June 4, 7, and 9, 2010 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.207, and 15.209 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C Section 15.207. Highest reading in relation to spec limit: 43.10 dBuV/m @ 3.987 MHz (*Uc = 1.00 dB) 2 Radiated RF Emissions 9 kHz – 1000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C Sections 15.205, 15.207, and 15.209. Highest reading in relation to spec limit: 37.01 dBuV/m @ 49.87 MHz (*Uc = 3.18 dB) *U c = combined standard uncertainty Report Number: B00608D1 FCC Part 15 Subpart B and FCC Section 15.209 Test Report 2-Station DUAL Decoder Model: DUAL-2 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the 2-Station Dual Decoder, Model: DUAL-2. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagn…

Text truncated - open the document above for the full version.

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE HUNTER INDUSTRIES 125 kHz TRANSCEIVER SYSTEM MODEL: LCD-200, FCC ID: TBD The fundamental was maximized on the Lab D test site using a normal test setup with the I-Core Sprinkler Controller connected directly to the AC public mains (115 Vac). Next, the I-Core Sprinkler Controller was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Wavetek Multimeter Model: DM25XT, Serial Number: 40209875, Calibration Due Date: June 9, 2011. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage to the laptop is varied between 85% and 115% of the input nominal rated supply voltage.
