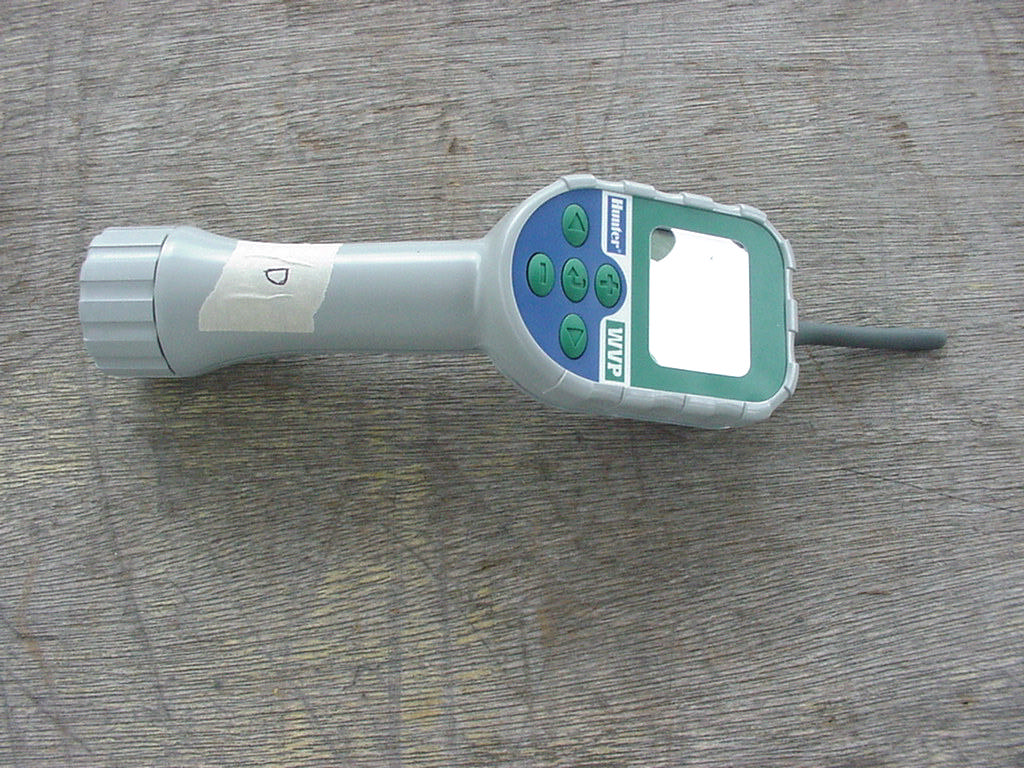

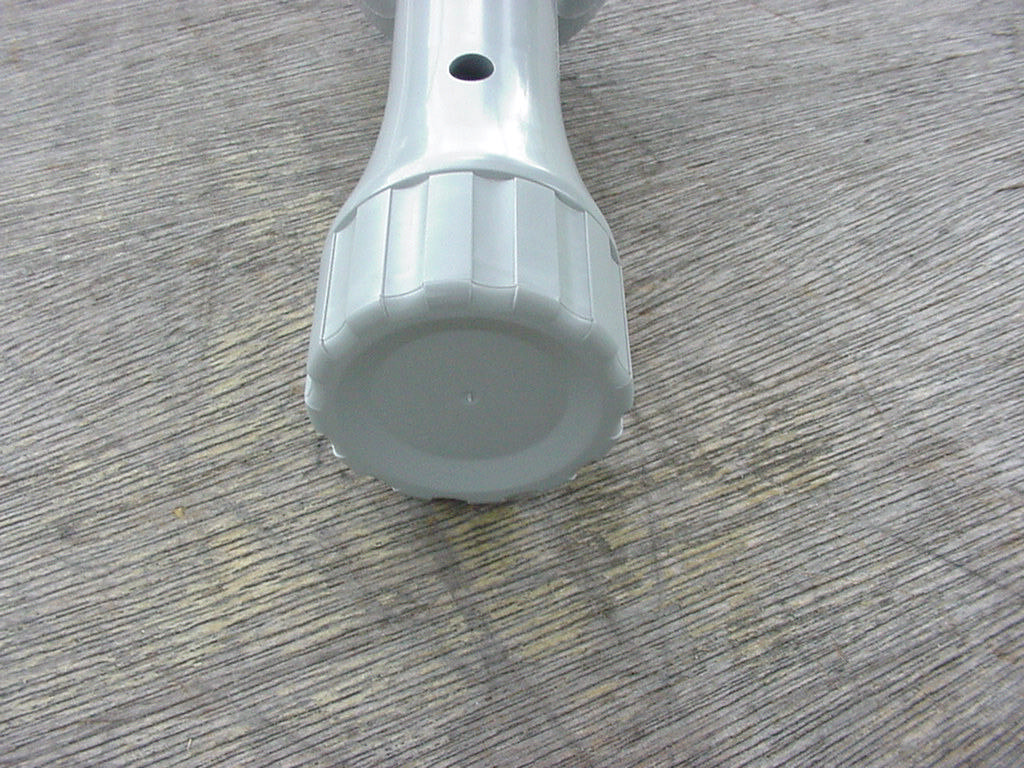

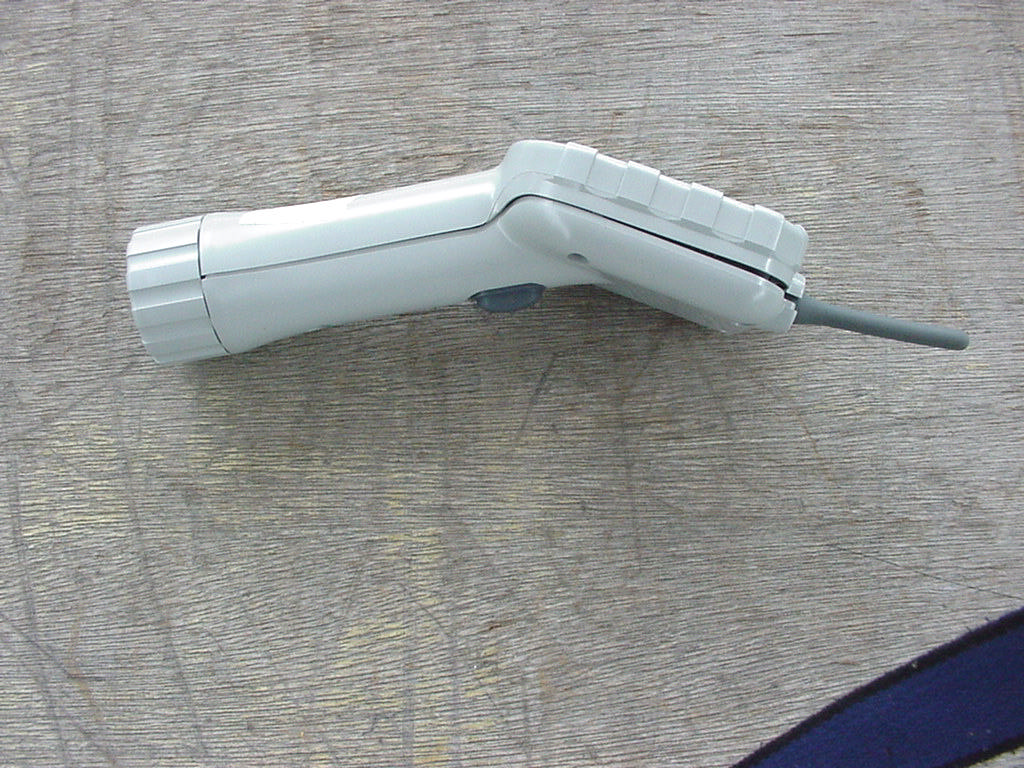

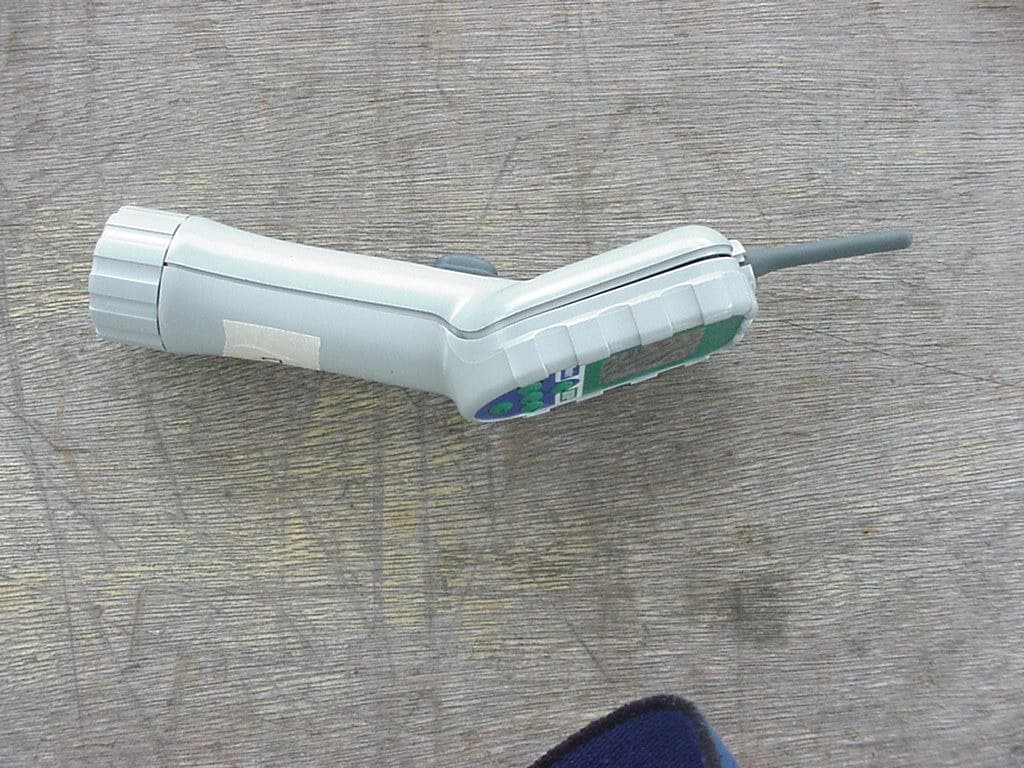

M3UWVPWireless Valve Programmer

WVP Wireless Valve Programmer Programmer for use with WVC Multi-Station Battery Powered Irrigation Controllers Owner’s Manual and Installation Instructions ® Introduction...................................................................................................................................................................1 WVP Components...........................................................................................................................................................2 WVP Features.................................................................................................................................................................5 Installing the Battery......................................................................................................................................................6 WVP Display..................................................................................................................................................................7 Setting Up the WVP........................................................................................................................................................8 Programming the Controller............................................................................................................................................9 Transmitting/Receiving Data..........................................................................................................................................13 Battery Life Indicator....................................................................................................................................................16 Troubleshooting Guide..................................................................................................................................................17 FCC Notice...................................................................................................................................................................19 Industry of Canada Notice.............................................................................................................................................20 CE Notice.....................................................................................................................................................................20 TABLE OF CONTENTS..................................................................................... 1 T he Wi reless Valve Program mer ( W VP) is pa r t of the Hunter wi reless batter y powered controller fam ily. T he W VP is a hand-held program mer that allows you to create programs and conduct manual operations with Hunter Wi reless Valve Controllers ( W VC) in the f ield. Because the W VP retr ieves and transm its data via radio signals, you never have to open a valve box to check the stat us or program your controllers. Hunter’s wireless battery powered irrigation systems are ideal for commercial/municipal applications such as street and highway landscaping, medians, parks, construction sites and other areas that do not have access to power. T he W VP can retr ieve the cur rent progra m and batter y life stat us of individual W VC controllers. Progra m m ing and manual operations a re conducted with the press of a button from up to 100 feet away from the W VC. T he following instr uctions provide deta iled infor mation on using your W VP. Please refer to your W VC Owner’s Manual for infor mation on installing and setting up your W VC controllers. INTRODUCTION............................................................................................... 2 WVP COMPONENTS........................................................................................ This section provides a brief overview of some of the components on the WVP. Each item will be discussed in further detail later; however, this section can be helpful in getting acquainted with the different options available. A key feature of the WVP is its clear, easy-to-use push button design that makes programming a simple task. All essential keypad functions are clearly marked to avoid confusion that’s characteristic with many other battery powered controllers. LCD Display (Figure 1) 1. Main Display – Indicates all programmed information. 2. Station Number – Indicates the station number being programmed. 3. Current Time/Day – Icon indicates when current day and clock are being set. 4. Run Times – Icon indicates when Run Times are being set. Allows user to set run times from 1 minute to 4 hours. 5. Start Times - Icon indicates when Start Times are being set. Allows the user to set 1 to 9 start times. 6. Start Time Number – Indicates the start time number from 1 to 9. 7. Water Days – Allows the user to select individual days to water or a selected number of days between water- ings (interval). 15 3 8. Crossed Rain Drop – Indicates that watering will NOT occur on a selected day. 9. Crossed Sprinkler – Indicates that watering is sus- pended. 10.Calendar – Indicates interval watering schedule is being programmed. Allows the user to program 1 to 31 days between waterings. 11.Battery Status – Indicates the remaining life of the bat- tery in the WVC. 12.Manual Watering – Icon indicates when manual water- ing is programmed. Allows the user to activate the station manually. 13.Communication Occurring – Segments will display in sequence when initial communication is being made with the WVC. 14.Identification Code – A unique ID to establish radio contact with an individual WVC. 15.Transmit – Arrow indicates that data is to be transmit- ted to the WVC. 16.Receive – Arrow indicates that data is to be retrieved from the WVC. 17.No Contact – Indicates that no contact was made with the WVC. Control Buttons (Figure 2) Button – Increases the selected flashing display. Button – Decreases the selected flashing display. Button – Selects programming function. Button – Advances the selected …

Text truncated - open the document above for the full version.

FCC ID: M3UWVP IC: 2772-WVP This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. this device must accept any interference received, including interference that may cause undesired operation N10675 Made in China

Report Number: B21217D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Valve Programmer Model: WVP 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 15 FCC PART 15, SUBPART B and C TEST REPORT for WIRELESS VALVE PROGRAMMER MODEL: WVP Prepared for HUNTER INDUSTRIES, INC. 1940 DIAMOND STREET SAN MARCOS, CALIFORNIA 92069 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JANUARY 31, 2003 REPORT APPENDICES TOTAL BODY A B C D E PAGES 15 2 2 2 10 13 44 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B21217D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Valve Programmer Model: WVP 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 8. CONCLUSIONS 15 Report Number: B21217D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Valve Programmer Model: WVP 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site Report Number: B21217D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Valve Programmer Model: WVP 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Wireless Valve Programmer Model: WVP S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Hunter Industries, Inc. 1940 Diamond Street San Marcos, California 92069 Test Date: December 16, 2002 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz This test was not performed because the EUT operates on a nine volt battery only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 9300 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B21217D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Valve Programmer Model: WVP 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Wireless Valve Programmer Model: WVP. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B21217D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Valve Programmer Model: WVP 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 15 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Hunter Industries, Inc. Tom Kadien Senior Electrical Engineer Peter Woytowitz Engineering Manager Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Kirit Ramani Test Engineer Michael Christensen Test Engineer 2.4 Date Test Sample was Received The test sample was received on December 15, 2002. 2.5 Disposition of the Test Sample The sample was returned to Hunter Industries, Inc. on January 15, 2003. 2.6 Abbreviations and Acronyms The following ab…

Text truncated - open the document above for the full version.

Report Number: B21217D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Valve Programmer Model: WVP 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E1 APPENDIX E DATA SHEETS RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.249) 0.0 COMPANY DATE 12/16/02 EUT DUTY CYCLE N/A % MODEL PEAK TO AVG N/A dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB D Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 921.7500 61.1 61.0 QP H 1.0 180 X LOW 21.8 5.4 0.0 0.0 0.0 88.2 -5.8 94.0 921.7500 65.6 65.5 QP H 1.0 180 Y LOW 21.8 5.4 0.0 0.0 0.0 92.7 -1.3 94.0 921.7500 66.6 66.5 QP H 1.0 90 Z LOW 21.8 5.4 0.0 0.0 0.0 93.7 -0.3 94.0 921.7500 57.1 57.0 QP V 1.0 180 X LOW 21.8 5.4 0.0 0.0 0.0 84.2 -9.8 94.0 921.7500 62.7 62.6 QP V 1.0 180 Y LOW 21.8 5.4 0.0 0.0 0.0 89.8 -4.2 94.0 921.7500 59.4 59.3 QP V 1.0 180 Z LOW 21.8 5.4 0.0 0.0 0.0 86.5 -7.5 94.0 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 1 of PAGE 6 Average (A) or Quasi- Peak (QP) N/AHUNTER INDUSTRIES, INC.WIRELESS VALVE PROGRAMMERWVPKYLE FUJIMOTO Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.249) 0.0 COMPANY DATE 12/16/02 EUT DUTY CYCLE N/A % MODEL PEAK TO AVG N/A dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB D Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 1843.5000 44.3 AH 1.0 180 X LOW 28.5 3.4 31.9 0.0 0.0 44.3 -9.7 54.0 1843.5000 46.7 AH 1.0 180 Y LOW 28.5 3.4 31.9 0.0 0.0 46.7 -7.3 54.0 1843.5000 44.2 AH 2.5 270 Z LOW 28.5 3.4 31.9 0.0 0.0 44.2 -9.8 54.0 1843.5000 45.7 AV 1.0 0 X LOW 28.5 3.4 31.9 0.0 0.0 45.7 -8.3 54.0 1843.5000 45.3 AV 1.0 180 Y LOW 28.5 3.4 31.9 0.0 0.0 45.3 -8.7 54.0 1843.5000 44.0 AV 2.0 0 Z LOW 28.5 3.4 31.9 0.0 0.0 44.0 -10.0 54.0 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 2 of PAGE 6 KYLE FUJIMOTO Average (A) or Quasi- Peak (QP) HUNTER INDUSTRIES, INC.WIRELESS VALVE PROGRAMMERWVPN/A Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.249) 0.0 COMPANY DATE 12/16/02 EUT DUTY CYCLE N/A % MODEL PEAK TO AVG N/A dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB D Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 2765.2500 38.7 AH 1.0 180 X LOW 30.8 4.4 32.5 0.0 0.0 41.4 -12.6 54.0 2765.2500 44.3 AH 1.0 270 Y LOW 30.8 4.4 32.5 0.0 0.0 47.0 -7.0 54.0 2765.2500 42.5 AH 1.0 270 Z LOW 30.8 4.4 32.5 0.0 0.0 45.2 -8.8 54.0 2765.2500 45.2 AV 1.0 180 X LOW 30.8 4.4 32.5 0.0 0.0 47.9 -6.1 54.0 2765.2500 43.2 AV 1.0 180 Y LOW 30.8 4.4 32.5 0.0 0.0 45.9 -8.1 54.0 2765.2500 42.8 AV 1.0 90 Z LOW 30.8 4.4 32.5 0.0 0.0 45.5 -8.5 54.0 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 3 of PAGE 6 KYLE FUJIMOTO Average (A) or Quasi- Peak (QP) HUNTER INDUSTRIES, INC.WIRELESS VALVE PROGRAMMERWVPN/A Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.249) 0.0 COMPANY DATE 12/16/02 EUT DUTY CYCLE N/A % MODEL PEAK TO AVG N/A dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB D Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 3687.0000 39.7 AH 1.0 180 X LOW 32.5 5.1 31.5 0.0 0.0 45.9 -8.1 54.0 3687.0000 41.4 AH 1.0 180 Y LOW 32.5 5.1 31.5 0.0 0.0 47.6 -6.4 54.0 3687.0000 43.1 AH 1.0 90 Z LOW 32.5 5.1 31.5 0.0 0.0 49.3 -4.7 54.0 3687.0000 40.3 AV 1.0 270 X LOW 32.5 5.1 31.5 0.0 0.0 46.5 -7.5 54.0 3687.0000 43.1 AV 1.0 180 Y LOW 32.5 5.1 31.5 0.0 0.0 49.3 -4.7 54.0 3687.0000 40.1 AV 1.0 90 Z LOW 32.5 5.1 31.5 0.0 0.0 46.3 -7.7 54.0 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 4 of PAGE 6 KYLE FUJIMOTO Average (A) or Quasi- Peak (QP) HUNTER INDUSTRIES, INC.WIRELESS VALVE PROGRAMMERWVPN/A Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.249) 0.0 COMPANY DATE 12/16/02 EUT DUTY CYCLE N/A % MODEL PEAK TO AVG N/A dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB D Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 4608.7500 34.5 AH 1.0 180 X LOW 34.4 5.9 31.2 0.0 0.0 43.6 -10.4 54.0 4608.7500 34.7 AH 1.0 180 Y LOW 34.4 5.9 31.2 0.0 0.0 43.8 -10.2 54.0 4608.7500 37.3 AH 1.0 180 Z LOW 34.4 5.9 31.2 0.0 0.0 46.4 -7.6 54.0 4608.7500 36.9 AV 1.0 180 X LOW 34.4 5.9 31.2 0.0 0.0 46.0 -8.0 54.0 4608.7500 35.4 AV 1.0 180 Y LOW 34.4 5.9 31.2 0.0 0.0 44.5 -9.5 54.0 4608.7500 37.0 AV 1.0 270 Z LOW 34.4 5.9 31.2 0.0 0.0 46.1 -7.9 54.0 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 5 of PAGE 6 KYLE FUJIMOTO Averag…

Text truncated - open the document above for the full version.
