M4Y-04-G3120802.11g SMC Wireless Access Point

0 802.11g SMB Wireless Access Point User’s Manual 1 FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment." 2 Table of Content Chapter 1 Introduction.......................................................................................................3 1-1 Features and Benefits..................................................................................................3 1-2 Applications................................................................................................................4 Chapter 2 Hardware Installation.......................................................................................5 2-1 Package Contents........................................................................................................5 2-2 System Requirements..................................................................................................5 2-3 Mechanical Description..............................................................................................6 2-4 Hardware Installation..................................................................................................8 2-5 Safety Notification......................................................................................................9 Chapter 3 Configuring your Access Point with the Web-Based User Interface..........10 3-1 Start-up and Log in...................................................................................................10 3-2 IP Setup.....................................................................................................................12 3-3 Wireless Setup...........................................................................................................15 3-4 Tools..........................................................................................................................25 3-5 Management..............................................................................................................26 3-6 AP Status...................................................................................................................29 Chapter 4 Troubleshooting...............................................................................................30 Limited Warranty.............................................................................................................33 3 Chapter 1 Introduction The 802.11g SMB Wireless Access Point is 2.4GHz and up to 54Mbps wireless LAN access point. The 802.11g SMB Wireless Access Point can communicate with other mobile devices enabled for 802.11g standard-based wireless LAN connectivity. Using the card in conjunction with the 802.11g SMB Wireless Access Point, you can create a wireless network for sharing your broadband cable or DSL Internet access among multiple PCs in and around your home or office and enjoy amazing speed of 54Mbps. This high-speed wireless device simultaneously supports both IEEE 802.11b and 802.11g wireless networks and lets you quickly network multiple PCs and notebooks without laying new cables, and gives users the freedom to roam throughout the workplace and stay connected to corporate resources, e-mail, and the Internet. 1-1 Features and Benefits n Technique operating in the unlicensed 2.4GHz ISM band. n Delivers up to 54Mbps. Wireless nodes negotiate to operate in the optimal data transfer rate. In a noisy environment or when the distance between the wireless nodes is far, the wireless nodes automatically adjusts to operate at the optimal speed. n Interoperable with IEEE 802.11g wireless devices. n Provides the highest available level of WEP encryption: 64-bit, 128-bit, and 152-bit for 802.11g devices. n Interfaces directly to IEEE 802.3 (10/100-BaseTX RJ-45 LAN port) Fast Ethernet networks. n Supports 1, 2, 5.5, 11, 6, 9,12,18, 24, 36, 48, and 54 Mbps data rates. n MAC Address Control provides increased security. 4 1-2 Applications The 802.11g SMB Wireless Access Point offers a fast, reliable, high-speed, and high security solution for wireless clients access to the network in applications like these: 1. Remote access to c…

Text truncated - open the document above for the full version.

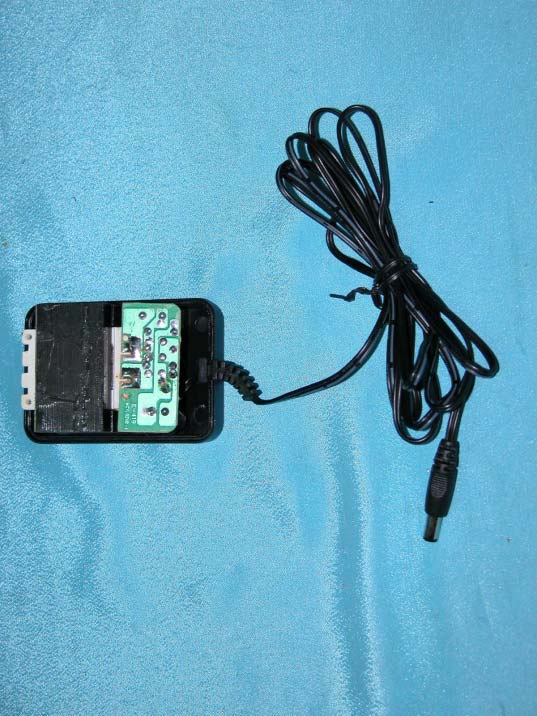

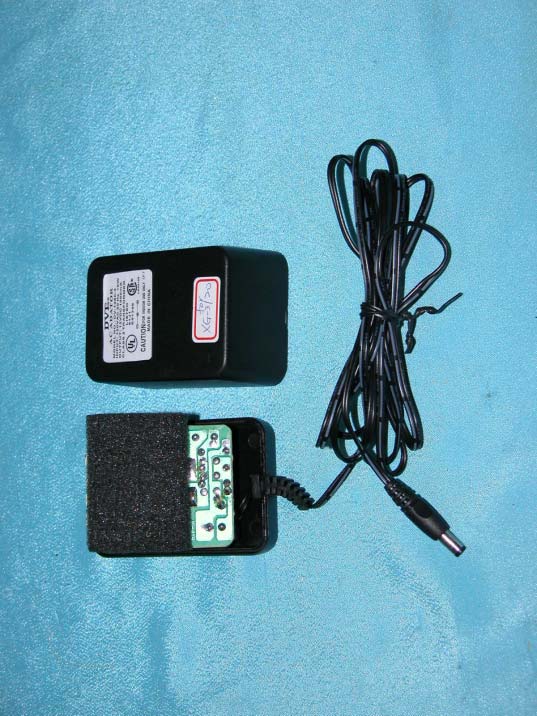

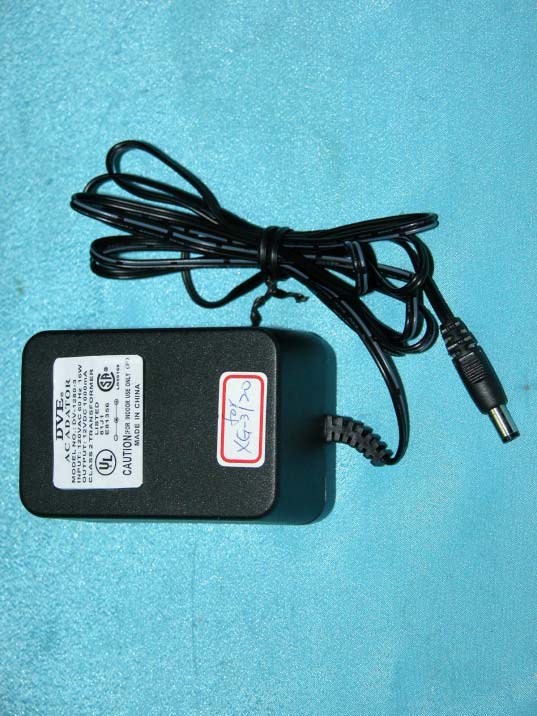

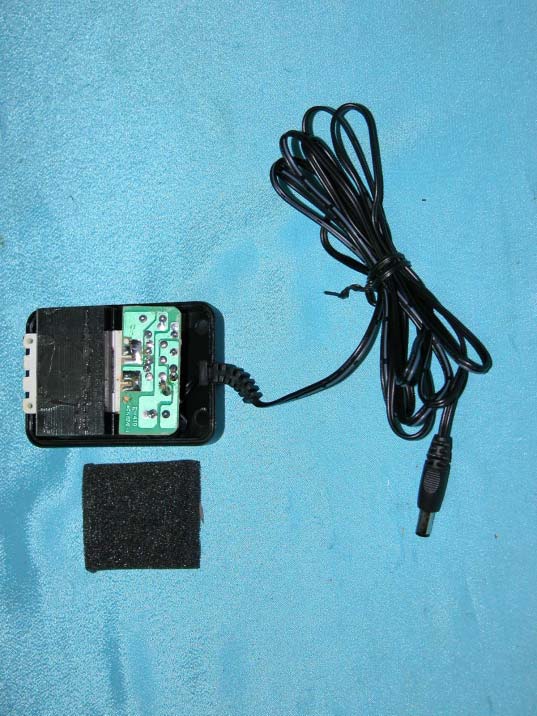

Company: Z-Com, Inc. Page: 1 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 2 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 3 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 4 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 5 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 6 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 7 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 8 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 1 of 1 Product: Cable of 802.11g SMB Wireless Access Point Company: DVE Page: 1 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 2 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 3 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 4 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 5 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 6 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 7 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 8 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 9 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 10 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 11 of 12 Product:Adaptor Model: DV-1280-3 Company: DVE Page: 12 of 12 Product:Adaptor Model: DV-1280-3

802.11g SMB Wireless Access Point Model No: XG-3120 FCC IDM4Y-04-G3120 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company: Z-Com, Inc. Page: 9 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 10 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 11 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 12 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 13 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 14 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 15 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 16 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120 Company: Z-Com, Inc. Page: 17 of 17 Product: 802.11g SMB Wireless Access Point Model: XG-3120

3 Chapter 1 Introduction The 802.11g SMB Wireless Access Point is 2.4GHz and up to 54Mbps wireless LAN access point. The 802.11g SMB Wireless Access Point can communicate with other mobile devices enabled for 802.11g standard-based wireless LAN connectivity. Using the card in conjunction with the 802.11g SMB Wireless Access Point, you can create a wireless network for sharing your broadband cable or DSL Internet access among multiple PCs in and around your home or office and enjoy amazing speed of 54Mbps. This high-speed wireless device simultaneously supports both IEEE 802.11b and 802.11g wireless networks and lets you quickly network multiple PCs and notebooks without laying new cables, and gives users the freedom to roam throughout the workplace and stay connected to corporate resources, e-mail, and the Internet. 1-1 Features and Benefits „ Technique operating in the unlicensed 2.4GHz ISM band. „ Delivers up to 54Mbps. Wireless nodes negotiate to operate in the optimal data transfer rate. In a noisy environment or when the distance between the wireless nodes is far, the wireless nodes automatically adjusts to operate at the optimal speed. „ Interoperable with IEEE 802.11g wireless devices. „ Provides the highest available level of WEP encryption: 64-bit, 128-bit, and 152-bit for 802.11g devices. „ Interfaces directly to IEEE 802.3 (10/100-BaseTX RJ-45 LAN port) Fast Ethernet networks. „ Supports 1, 2, 5.5, 11, 6, 9,12,18, 24, 36, 48, and 54 Mbps data rates. „ MAC Address Control provides increased security.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID M4Y-04-G3120 Report No.EC04-11-001FRF Page 1 of 2 9. RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 9.1 Friis Formula Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 9.2 EUT Operating Condition A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID M4Y-04-G3120 Report No.EC04-11-001FRF Page 2 of 2 9.3 Test Result of RF Exposure Evaluation Test Item RF Exposure Evaluation Data Test Mode Normal Operation 9.3.1 Antenna Gain Antenna GainThe maximum Gain measured in fully anechoic chamber is 5dBi linear scale. 9.3.2 Output Power into Antenna & RF Exposure Evaluation Distance Channel Channel Frequency (MHz) Output Peak Power to Antenna (dBm) Antenna Gain Power Density at 20cm (mW/cm2) LIMITS (mW/cm 2 ) CH1 2412.00 16.22 5 0.026347 1 CH6 2437.00 17.92 5 0.038970 1 CH11 2462.00 15.49 5 0.022271 1 Note : 1. For 802.11b Mode (11Mbps) 2. The power density Pd (4 th column) at a distance of 20cm calculated from the fries transmission formula is far below the limit of 1 mW/cm 2 . The EUT is classified as mobile product. So, RF exposure limit warning or SAR test are not required. Channel Channel Frequency (MHz) Output Peak Power to Antenna (dBm) Antenna Gain Power Density at 20cm (mW/cm2) LIMITS (mW/cm 2 ) CH1 2412.00 14.88 5 0.019352 1 CH6 2437.00 18.38 5 0.043324 1 CH11 2462.00 14.23 5 0.016662 1 Note : 1. For 802.11g Mode (6Mbps). 2. The power density Pd (4 th column) at a distance of 20cm calculated from the fries transmission formula is far below the limit of 1 mW/cm 2 . The EUT is classified as mobile product. So, RF exposure limit warning or SAR test are not required.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：M4Y-04-G3120 Report No.：EC04-11-001FRF Page 1 of 63 RF TEST REPORT Product Name ： 802.11g SMB Wireless Access Point Model Number ： XG-3120 Brand Name ： ZCOM FCC ID ： M4Y-04-G3120 Applicant ： Z-Com, Inc. Address ： 7F-2, No.9, Prosperity Rd. I, Science-Based Industrial, Park Hsinchu, Taiwan, R.O.C. Received Date ： November 01, 2004 Tested Date ： April 09 ~ 30 & September 15, 2004 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. 6. This report is transferred from EC04-09-011. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：M4Y-04-G3120 Report No.：EC04-11-001FRF Page 2 of 63 Test Report Certification Product Name ： 802.11g SMB Wireless Access Point Model Number ： XG-3120 Brand Name ： ZCOM FCC ID ： M4Y-04-G3120 Applicant ： Z-Com, Inc. Measurement Standard : FCC 47 C.F.R. Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：M4Y-04-G3120 Report No.：EC04-11-001FRF Page 3 of 63 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION ................................................................................................... 5 1.1 General Statement ...............................................................................................................................5 1.2 General Description of EUT & Power ................................................................................................5 1.3 Description of Peripherals...................................................................................................................6 1.4 EUT & Peripherals Setup Diagram.....................................................................................................6 1.5 EUT Operating Condition ...................................................................................................................6 1.6 Description of Test Site.......................................................................................................................6 1.7 Summary of Test Results ....................................................................................................................8 2. CONDUCTED POWERLINE TEST....................................................................................... 9 2.1 Test Equipments..................................................................................................................................9 2.2 Test Setup............................................................................................................................................9 2.3 Conducted Power Line Emission Limit ..............................................................................................10 2.4 Test Procedure.....................................................................................................................................10 2.5 Uncertainty of Conducted Emission ...................................................................................................10 2.6 Conducted RF Voltage Measurement .................................................................................................11-12 2.7 Photos of Conduction Test ..................................................................................................................13 3. RADIATED EMISSION TEST ................................................................................................ 14 3.1 Test Equipments..................................................................................................................................14 3.2 Test Setup............................................................................................................................................14 3.3 Radiation Limit ...................................................................................................................................15 3.4 Test Procedures ...................................................................................................................................16 3.5 Uncertainty of Radiated Emission ......................................................................................................16 3.6 Radiated RF Noise Measurement........................................................................................................17-41 3.7 Photos of Open Site.............................................................................................................................42-43 4. 6dB BANDWIDTH MEASUREMENT ................................................................................... 44 4.1 Test Equipments..................................................................................................................................44 4.2 Test Setup.................................................................................…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID M4Y-04-G3120 Report No.EC04-11-001FRF Page 1 of 3 2.7 Photos of Conduction Test Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID M4Y-04-G3120 Report No.EC04-11-001FRF Page 2 of 3 3.7 Photos of Open Site Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID M4Y-04-G3120 Report No.EC04-11-001FRF Page 3 of 3
