1 11Mbps MiniUSB Wireless Adapter Quick Installation Guide Version 1.0.0 I. Network Configuration The 11Mbps MiniUSB Wireless Adapter is an IEEE802.11/802.11b-compliant USB Type DSSS wireless LAN adapter. It fully supports wireless networking under Windows XP/2000/98/ME.
The 11Mbps MiniUSB Wireless Adapter can be operated in Infrastructure and Ad-Hoc network configurations. Infrastructure mode allows 11Mbps MiniUSB Wireless Adapter users to join an Extended Basic Service Set (i.e., connect to access point). Ad-Hoc mode allows 11Mbps MiniUSB Wireless Adapter users to join a Basic Service Set (i.e., peer-to-peer mode, without access point). II. Package Content The 11Mbps MiniUSB Wireless Adapter x 1 Quick Installation Guide x 1 Product CD-ROM or Floppy Diskette x 1 III. Installation of the 11Mbps MiniUSB Wireless Adapter under Windows XP 1. Insert the 11Mbps MiniUSB Wireless Adapter into the USB slot and start Windows. Windows will auto-detect the MiniUSB Wireless Adapter and a “Found New Hardware Wizard” window will show up. 2. Select “Install from a list or specific (Advanced)” and insert the Product CD-ROM or floppy disk into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “ MiniUSB Wireless Adapter”. Click on Next to continue. 4. Click Finish to complete the installation. Infrastructure Ad-hoc Wired Wireless Access Point 2 Note: You are advised to always disable the Wireless MiniUSB Adapter prior to removing the card from the PC Card slot. This will allow the Windows operating system to log off from the network server, disable the driver properly and disconnect power to the PC Card slot. Installation of the 11Mbps MiniUSB Wireless Adapter under Windows 2000 1. Insert the 11Mbps MiniUSB Wireless Adapter into the USB slot and start Windows. Windows will auto-detect the MiniUSB Wireless Adapter and a “Found New Hardware Wizard” window will show up. Click Next to proceed. 2. Select “Search for a suitable driver for my device (recommended)”. Insert the Product CD-ROM or floppy disk into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “ MiniUSB Wireless Adapter”. Click on Next to continue. 4. Click Finish to complete the installation. Installaton of the 11Mbps MiniUSB Wireless Adapter under Windows 98/ME 1. Insert the 11Mbps MiniUSB Wireless Adapter into the USB slot and start Windows. Windows will auto-detect new hardware and will display a “Add New Hardware Wizard” window. 2. Select “Search for a best driver for your device (recommended)”. Insert the Product CD-ROM or floppy disk into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The Windows will find “MiniUSB Wireless Adapter”. Click on Next to continue. 4. Once the [Please insert the disk labeled “Windows 98/ME CD-ROM”, and then click OK] window appears, enter the path corresponding to the appropriate drives and click OK. 5. Click Finish to complete the installation. Restart Windows. IV. Installation of the Wireless LAN Utility 1. Insert the Product CD-ROM or floppy disk again. 2. Go the utility folder and run setup.exe. 3. Follow the on-screen instructions to install the Wireless LAN Utility. 4. Upon completion, go to Program Files and run the Wireless LAN Utility. The utility interface will then appear and at the same time its icon appears in the System Tray in the bottom right corner of your task bar. V. Usage of the Wireless LAN Utility The Wireless LAN Utility consists of window with 5 items for you to monitor and configure the 11Mbps MiniUSB Wireless Adapter: Configuration, Loop Back, AP Browser, Site Survey and About. 3 Configuration: The Configuration item allows you to modify the configuration parameters for the 11Mbps MiniUSB Wireless Adapter such as Profile, Network Type, Channel, Transmit Rate, ESSID, WEP, RTS/CTS, Fragment Threshold, and Power Save mode. Furthermore, you may monitor the current status of the MiniUSB Wireless Adapter such as State, Current Channel, Current Tx Rate, Throughput, Link Quality and Signal Strength. Look Back: The Look Back tool helps you examine point-to-point data transmission quality between the your MiniUSB Wireless Adapter and any work station on the network. By entering IP address of the remote station, set ping interval and packet size, you may know whether communication has been made successfully or not. Additionally, if you use the infrastructure wireless LAN configuration, you may run the loopback test by click the Look back button to verify the communication quality between your wireless station and Access Point. 4 AP Browser: By clicking the Rescan button, the AP Browser can display all the Access Points around working environment. Besides showing the ESSID of each Access Point, it also display BSSID, Channel, Signal, Quality and Supported Rates. To join any of the displayed Access Point, highlight the Access Point you desire to connect and then click the Join BSS or Join ESS to join the group. Site Survey: When the Site Survey screen is displayed, the channel quality of all 14 radio channels will be displayed. These channel quality measurements are shown on each gauge for the 14 radio channels. The blue bar indicated the channel quality is clear and good. The higher the blue bar is, the better quality you have (i.e., less interference). The yellow bar indicates the channel quality is fair and the red bar indicates the channel is busy or having severe interference. 5 About: The About item shows the versions the Wireless LAN Utility, driver, firmware and utility of the 11Mbps MiniUSB Wireless Adapter. Also, the MAC address and frequency domain is displayed. Technical Support You can find the most recent software and user documentation will be updated periodically on the supplier Web site. If you have difficulty resolving the problem while installing or…

Text truncated - open the document above for the full version.

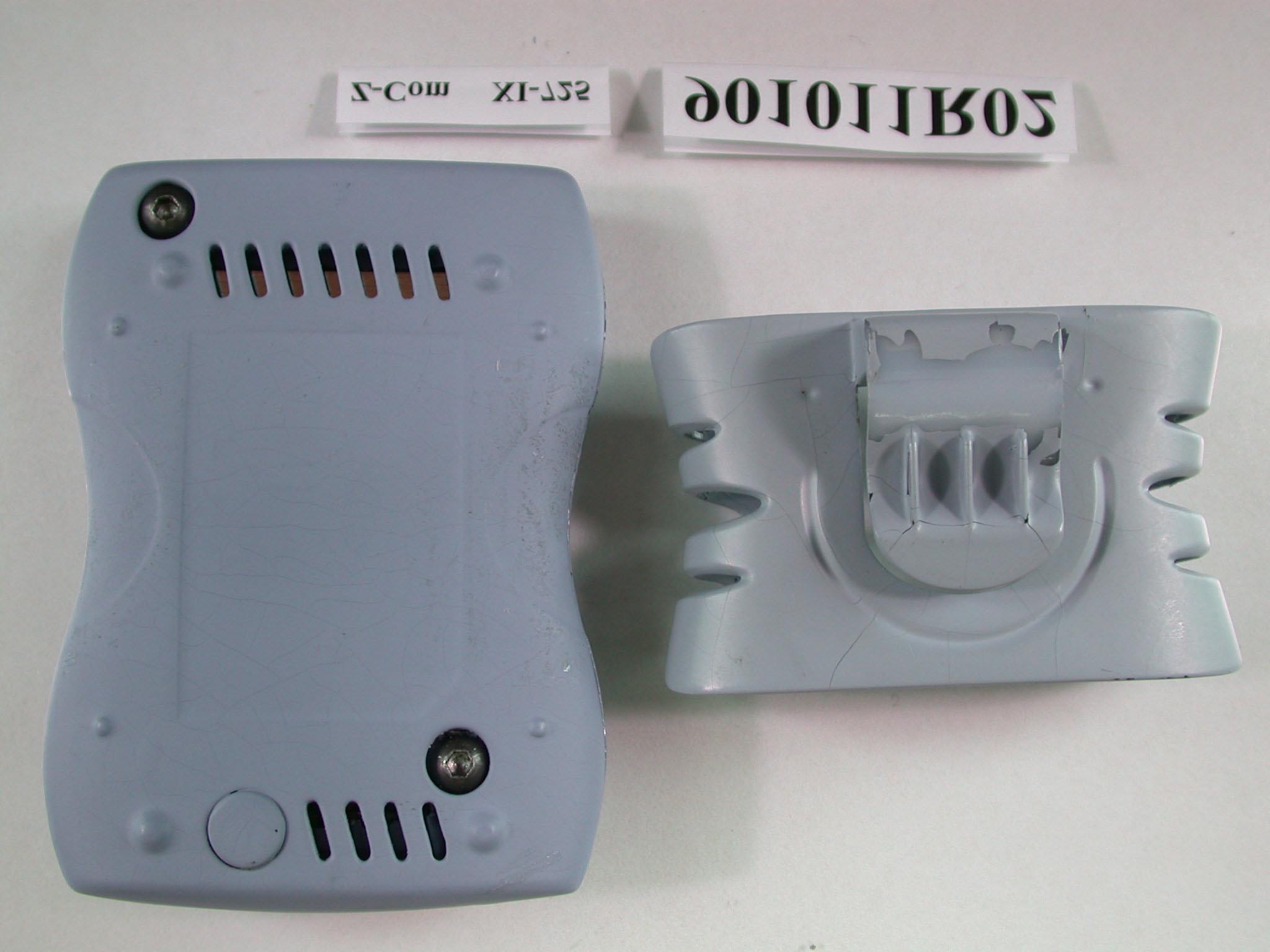

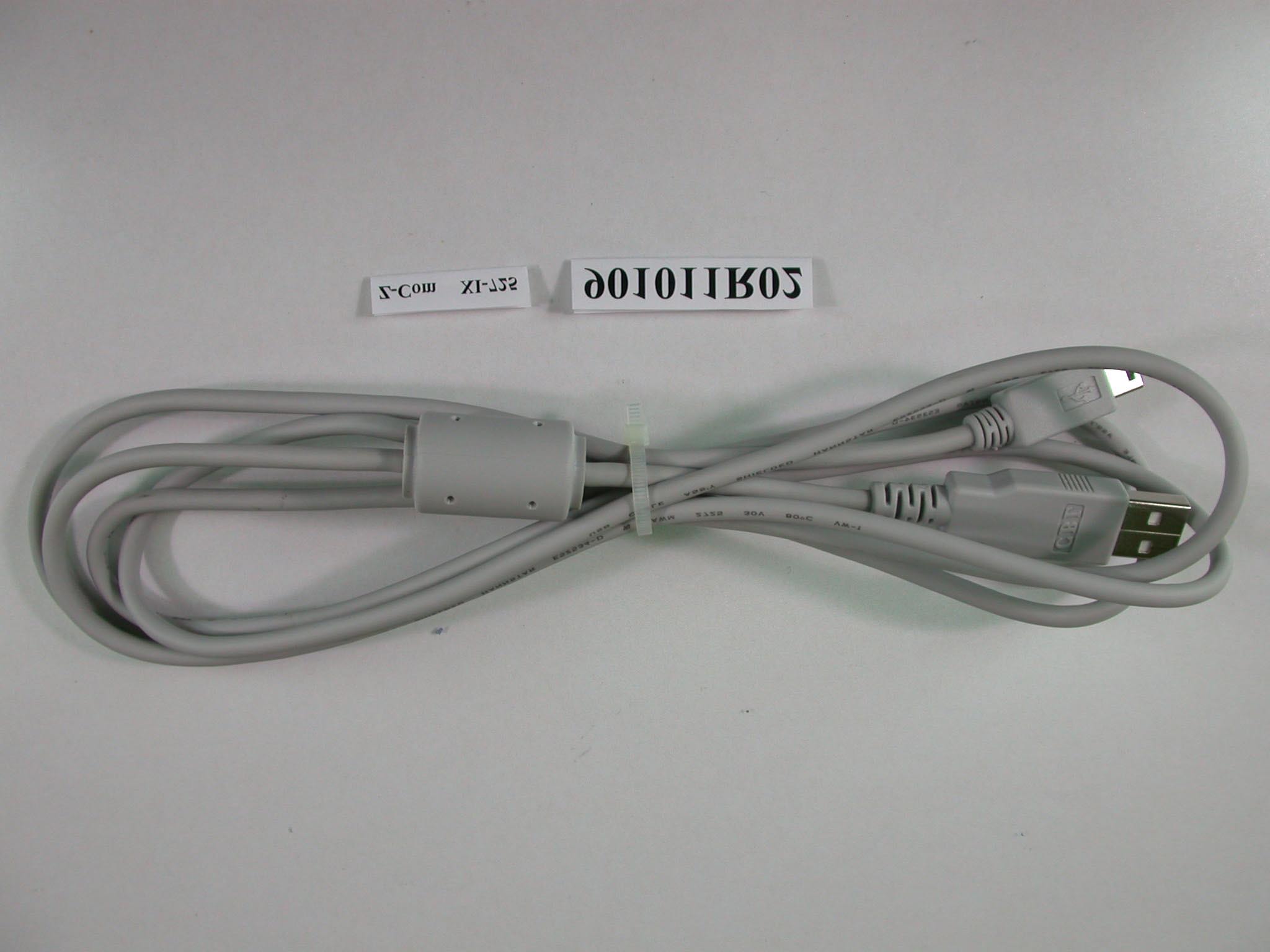

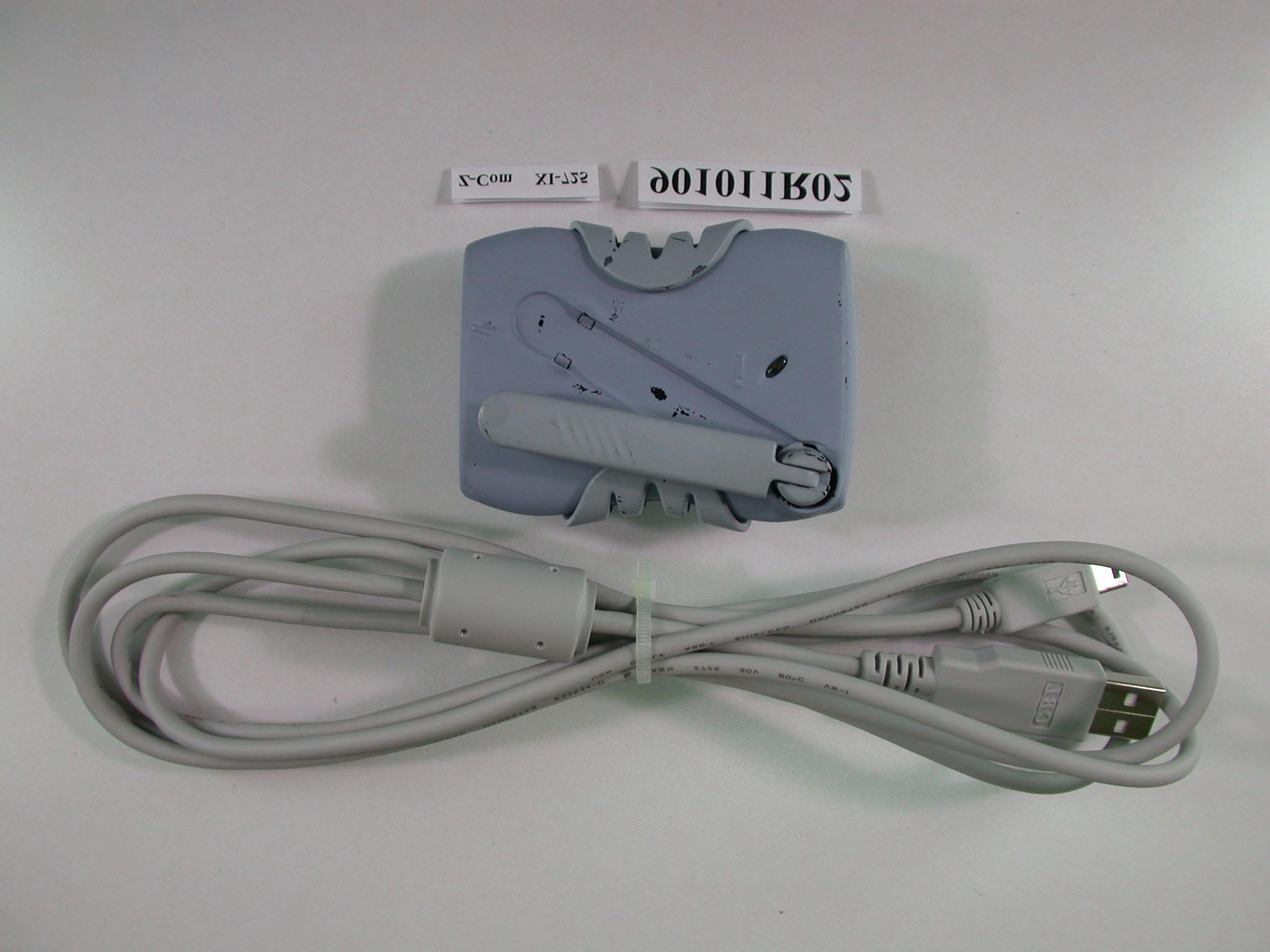

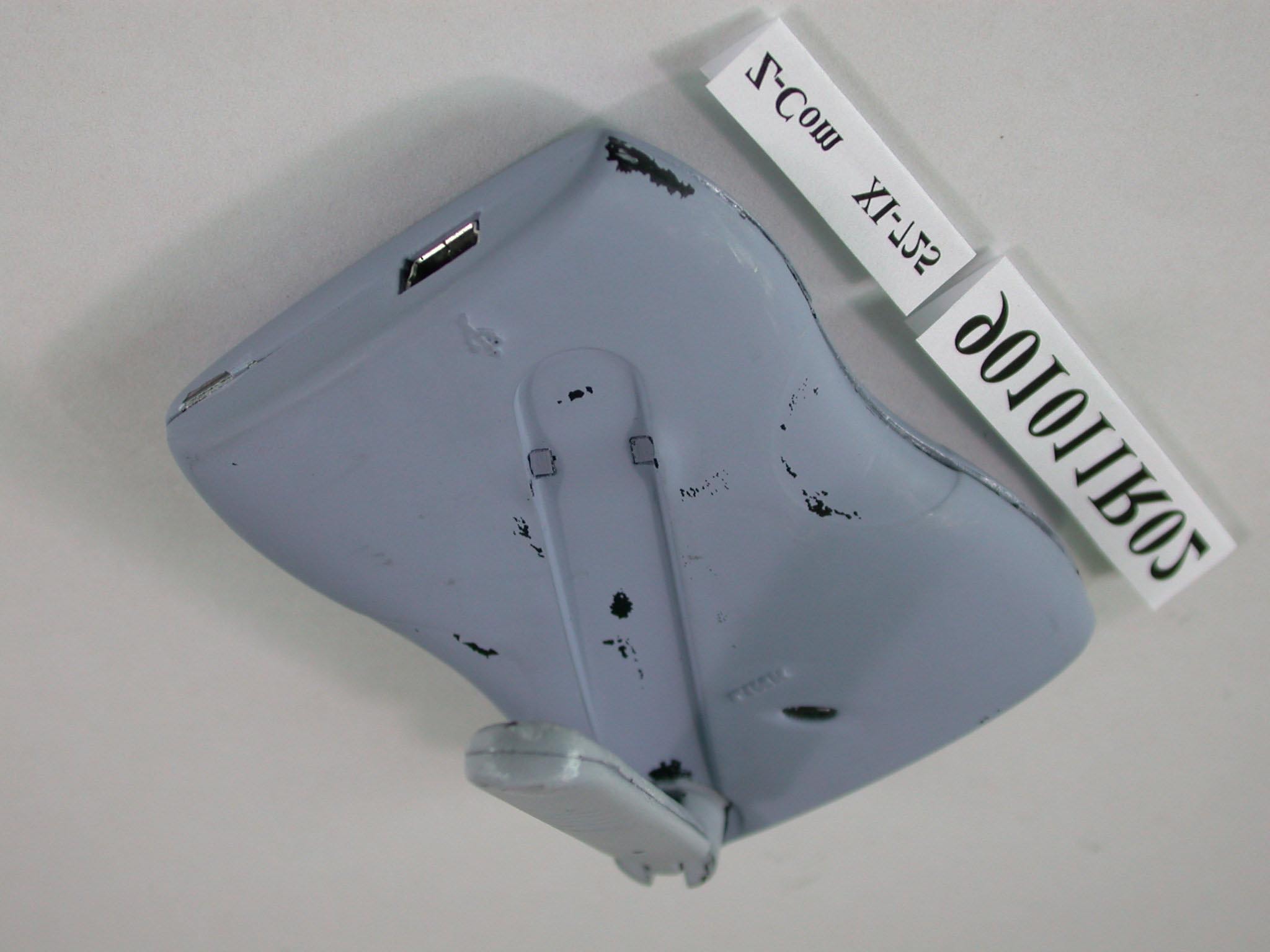

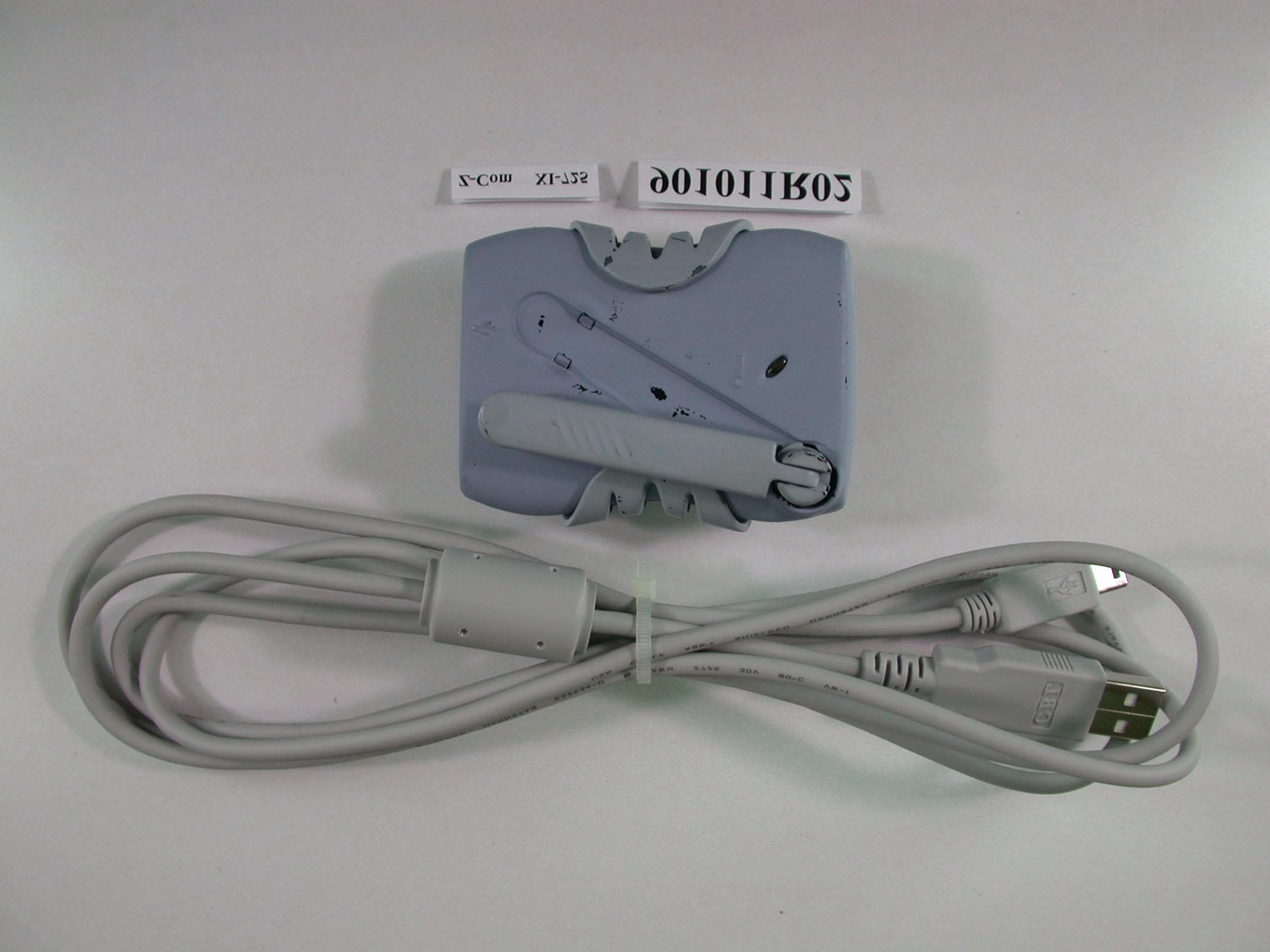

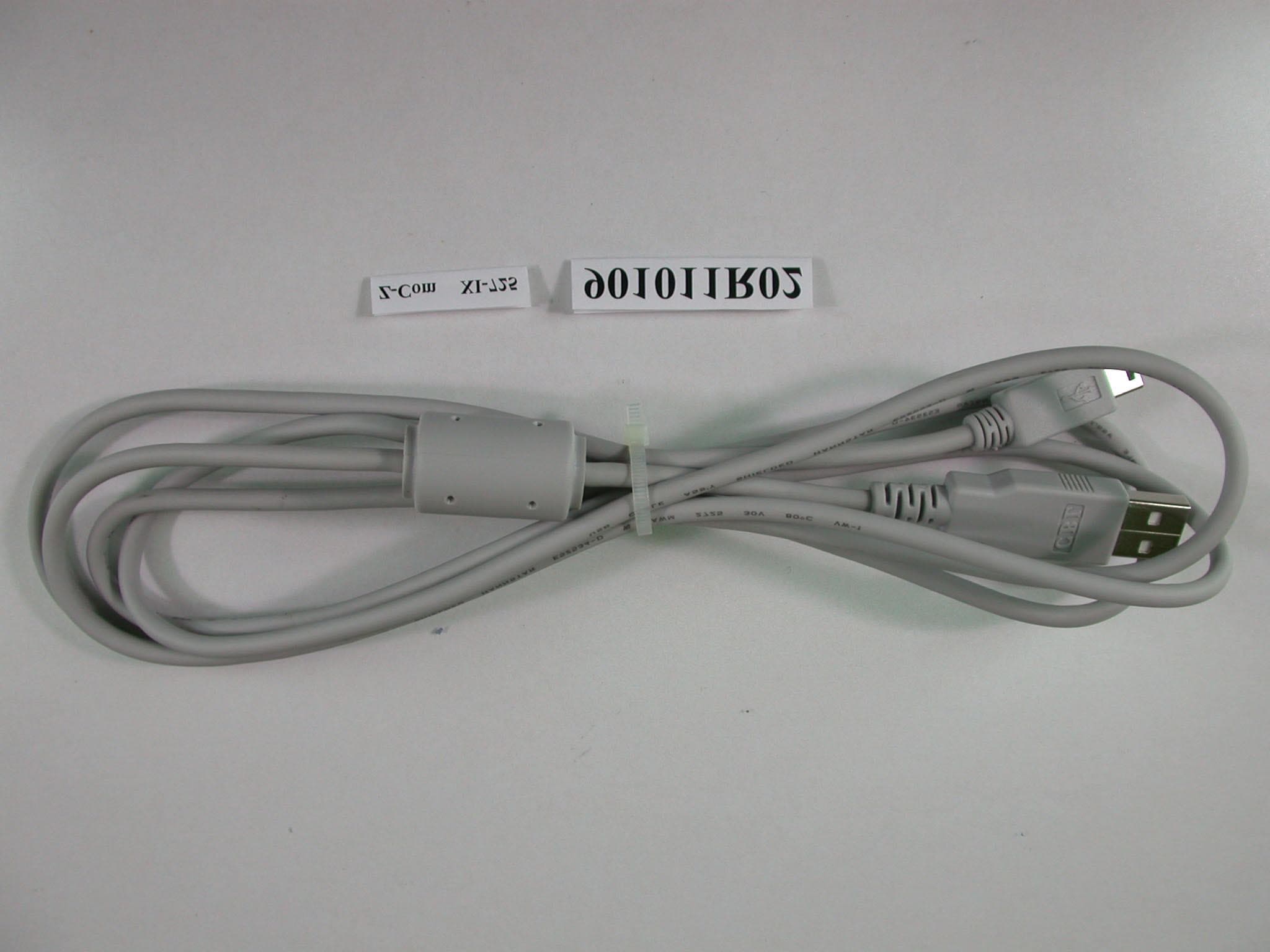

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

FCC ID Label Location

1 11Mbps MiniUSB Wireless Adapter Quick Installation Guide Version 1.0.0 I. Network Configuration The 11Mbps MiniUSB Wireless Adapter is an IEEE802.11/802.11b-compliant USB Type DSSS wireless LAN adapter. It fully supports wireless networking under Windows XP/2000/98/ME.
The 11Mbps MiniUSB Wireless Adapter can be operated in Infrastructure and Ad-Hoc network configurations. Infrastructure mode allows 11Mbps MiniUSB Wireless Adapter users to join an Extended Basic Service Set (i.e., connect to access point). Ad-Hoc mode allows 11Mbps MiniUSB Wireless Adapter users to join a Basic Service Set (i.e., peer-to-peer mode, without access point). II. Package Content The 11Mbps MiniUSB Wireless Adapter x 1 Quick Installation Guide x 1 Product CD-ROM or Floppy Diskette x 1 III. Installation of the 11Mbps MiniUSB Wireless Adapter under Windows XP 1. Insert the 11Mbps MiniUSB Wireless Adapter into the USB slot and start Windows. Windows will auto-detect the MiniUSB Wireless Adapter and a “Found New Hardware Wizard” window will show up. 2. Select “Install from a list or specific (Advanced)” and insert the Product CD-ROM or floppy disk into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “ MiniUSB Wireless Adapter”. Click on Next to continue. 4. Click Finish to complete the installation. Infrastructure Ad-hoc Wired Wireless Access Point 2 Note: You are advised to always disable the Wireless MiniUSB Adapter prior to removing the card from the PC Card slot. This will allow the Windows operating system to log off from the network server, disable the driver properly and disconnect power to the PC Card slot. Installation of the 11Mbps MiniUSB Wireless Adapter under Windows 2000 1. Insert the 11Mbps MiniUSB Wireless Adapter into the USB slot and start Windows. Windows will auto-detect the MiniUSB Wireless Adapter and a “Found New Hardware Wizard” window will show up. Click Next to proceed. 2. Select “Search for a suitable driver for my device (recommended)”. Insert the Product CD-ROM or floppy disk into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “ MiniUSB Wireless Adapter”. Click on Next to continue. 4. Click Finish to complete the installation. Installaton of the 11Mbps MiniUSB Wireless Adapter under Windows 98/ME 1. Insert the 11Mbps MiniUSB Wireless Adapter into the USB slot and start Windows. Windows will auto-detect new hardware and will display a “Add New Hardware Wizard” window. 2. Select “Search for a best driver for your device (recommended)”. Insert the Product CD-ROM or floppy disk into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The Windows will find “MiniUSB Wireless Adapter”. Click on Next to continue. 4. Once the [Please insert the disk labeled “Windows 98/ME CD-ROM”, and then click OK] window appears, enter the path corresponding to the appropriate drives and click OK. 5. Click Finish to complete the installation. Restart Windows. IV. Installation of the Wireless LAN Utility 1. Insert the Product CD-ROM or floppy disk again. 2. Go the utility folder and run setup.exe. 3. Follow the on-screen instructions to install the Wireless LAN Utility. 4. Upon completion, go to Program Files and run the Wireless LAN Utility. The utility interface will then appear and at the same time its icon appears in the System Tray in the bottom right corner of your task bar. V. Usage of the Wireless LAN Utility The Wireless LAN Utility consists of window with 5 items for you to monitor and configure the 11Mbps MiniUSB Wireless Adapter: Configuration, Loop Back, AP Browser, Site Survey and About. 3 Configuration: The Configuration item allows you to modify the configuration parameters for the 11Mbps MiniUSB Wireless Adapter such as Profile, Network Type, Channel, Transmit Rate, ESSID, WEP, RTS/CTS, Fragment Threshold, and Power Save mode. Furthermore, you may monitor the current status of the MiniUSB Wireless Adapter such as State, Current Channel, Current Tx Rate, Throughput, Link Quality and Signal Strength. Look Back: The Look Back tool helps you examine point-to-point data transmission quality between the your MiniUSB Wireless Adapter and any work station on the network. By entering IP address of the remote station, set ping interval and packet size, you may know whether communication has been made successfully or not. Additionally, if you use the infrastructure wireless LAN configuration, you may run the loopback test by click the Look back button to verify the communication quality between your wireless station and Access Point. 4 AP Browser: By clicking the Rescan button, the AP Browser can display all the Access Points around working environment. Besides showing the ESSID of each Access Point, it also display BSSID, Channel, Signal, Quality and Supported Rates. To join any of the displayed Access Point, highlight the Access Point you desire to connect and then click the Join BSS or Join ESS to join the group. Site Survey: When the Site Survey screen is displayed, the channel quality of all 14 radio channels will be displayed. These channel quality measurements are shown on each gauge for the 14 radio channels. The blue bar indicated the channel quality is clear and good. The higher the blue bar is, the better quality you have (i.e., less interference). The yellow bar indicates the channel quality is fair and the red bar indicates the channel is busy or having severe interference. 5 About: The About item shows the versions the Wireless LAN Utility, driver, firmware and utility of the 11Mbps MiniUSB Wireless Adapter. Also, the MAC address and frequency domain is displayed. Technical Support You can find the most recent software and user documentation will be updated periodically on the supplier Web site. If you have difficulty resolving the problem while installing or…

Text truncated - open the document above for the full version.

Page 4

Page 5 Page 6

FCC ID: M4Y-07250 ADT No.901011R02 Operational Description The transmitter of the EUT (11Mbps Wireless USB adapter) is powered by host equipment from USB port. The antenna is Dipole antenna, and there is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: M4Y-07250 ADT No.: 901011R02 FCC TEST REPORT REPORT NO.: RF901011R02 MODEL NO.: XI-725 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Z-COM, INC. ADDRESS: 7F-2, No.9, Prosperity RD.I, Science-Based Industrial Park, Hsinchu, 300 Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: M4Y-07250 ADT No.: 901011R02 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: M4Y-07250 ADT No.: 901011R02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: M4Y-07250 ADT No.: 901011R02 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.0 dBi or 1.26 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241223.011.52 6243725.121.59 11246225.531.60 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: M4Y-07250 Report No.: RF901011R02 1 Issued: November 8, 2001 FCC TEST REPORT REPORT NO.: RF901011R02 MODEL NO.: XI-725 RECEIVED: October 11, 2001 TESTED: Oct. 22 ~ Nov. 6, 2001 APPLICANT: Z-COM, INC. ADDRESS: 7F-2, No.9, Prosperity RD.I, Science-Based Industrial Park, Hsinchu, 300 Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: M4Y-07250 Report No.: RF901011R02 2 Issued: November 8, 2001 Table of Contents 1CERTIFICATION ...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION ...........................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...............................7 3.4DESCRIPTION OF SUPPORT UNITS..........................................................8 4TEST TYPES AND RESULTS.......................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................... 9 4.1.2TEST INSTRUMENTS....................................................................................................... 9 4.1.3TEST PROCEDURES..................................................................................................... 10 4.1.4TEST SETUP .................................................................................................................. 10 4.1.5EUT OPERATING CONDITIONS..................................................................................... 11 4.1.6TEST RESULTS ..............................................................................................................12 4.2RADIATED EMISSION MEASUREMENT ...................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ...................................................... 18 4.2.2TEST INSTRUMENTS..................................................................................................... 19 4.2.3TEST PROCEDURES..................................................................................................... 20 4.2.4TEST SETUP .................................................................................................................. 21 4.2.5EUT OPERATING CONDITIONS..................................................................................... 21 4.2.6TEST RESULTS ..............................................................................................................22 4.36DB BANDWIDTH MEASUREMENT ..........................................................26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.............................................................. 26 4.3.2TEST INSTRUMENTS..................................................................................................... 26 4.3.3TEST PROCEDURE........................................................................................................ 27 4.3.4TEST SETUP .................................................................................................................. 27 4.3.5EUT OPERATING CONDITIONS..................................................................................... 27 4.3.6TEST RESULTS ..............................................................................................................28 4.4MAXIMUM PEAK OUTPUT POWER ..........................................................32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................. 32 4.4.2INSTRUMENTS...............................................................................................................32 4.4.3TEST PROCEDURES..................................................................................................... 33 4.4.4TEST SETUP .................................................................................................................. 33 4.4.5EUT OPERATING CONDITIONS..................................................................................... 33 4.4.6TEST RESULTS ..............................................................................................................34 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ......................................... 35 4.5.2TEST INSTRUMENTS..................................................................................................... 35 4.5.3TEST PROCEDURE........................................................................................................ 36 4.5.4TEST SETUP .................................................................................................................. 36 4.5.5EUT OPERATING CONDITION ....................................................................................... 36 4.5.6TEST RESULTS ..............................................................................................................37 4.6BAND EDGES MEASUREMENT ................................................................41 FCC ID: M4Y-07250 Report No.: RF901011R02 3 Issued: November 8, 2001 4.6.1LIMITS OF BAND EDGES MEASUREMENT ................…
