M4Y-0AG621802.11 a/b/g Mini PCI Card

1 IEEE 802.11 a/b/g Wireless LAN Mini-PCI Module Date of Issue: June. 24 st , 2003 2 CHAPTER 1: INTRODUCTION ................................................................................................. 3 FEATURES AND BENEFITS ..........................................................................................................3 APPLICATIONS............................................................................................................................... 3 PACKAGE CONTENTS................................................................................................................... 4 CHAPTER 2: Install IEEE 802.11a/b/g Wireless LAN Network Adapter ............................. 5 SYSTEM REQUIREMENTS ............................................................................................................5 LED INDICATORS........................................................................................................................... 5 WINDOWS 98SE/ME/2000/XP INSTALLATION............................................................................. 6 VERIFYING DRIVER INSTALLATION ............................................................................................ 6 Verifying Driver Installation under Windows 98SE..................................................................................... 6 Verifying Driver Installation under Windows ME........................................................................................ 7 Verifying Driver Installation under Windows 2000 ..................................................................................... 7 Verifying Driver Installation under Windows XP........................................................................................ 7 CHAPTER 3: Install the Utility for Windows98SE/ME/2000/XP ........................................... 8 CHAPTER 4: Wireless LAN Configuration .......................................................................... 11 WLAN CONFIGURATION UTILITY............................................................................................... 11 WLAN Utility Parameter Modification................................................................................................... 13 Configuration.................................................................................................................................. 13 Security (WEP) ...............................................................................................................................15 AP Browser.................................................................................................................................... 16 About............................................................................................................................................ 17 CHAPTER 5: WIRELESS NETWORK FUNDAMENTALS .................................................... 18 WIRELESS NETWORK CONFIGURATION ................................................................................. 18 Ad-hoc Mode (Peer-to-Peer Workgroup)............................................................................................... 18 Infrastructure Mode.......................................................................................................................... 18 SERVICE SET IDENTIFICATION (SSID) ..................................................................................... 19 AUTHENTICATION AND WEP ENCRYPTION............................................................................. 19 REGULATORY COMPLIANCE INFORMATION........................................................................................ 20 DECLARATION OF CONFORMITY..................................................................................................... 20 FCC WARNING .............................................................................................................................. 20 RF Exposure.................................................................................................................................. 20 3 CHAPTER 1: INTRODUCTION IEEE 802.11 a/b/g Wireless LAN Network Adapter is a up to 54Mbps Cardbus PC Card. Being able to operate at both 5GHz and 2.4 GHz frequency band, the IEEE 802.11 a/b/g Wireless LAN Network Adapter can communicate with other mobile devices enabled for IEEE 802.11a, or 802.11b standard-based, and 802.11g standard wireless LAN connectivity. Using this card in conjunction with the Wireless Access Point of 802.11a, 802.11b or 802.11g, you can create a wireless network for sharing your broadband cable or DSL Internet access among multiple PCs in and around your home or office and enjoy amazing speed of 54Mbps (108Mbps Turbo Mode)!!! Features and Benefits y Delivers up to 108 Mbps speed rate (Turbo Mode). Wireless nodes negotiate to operate in the optimal data transfer rate. In a noisy environment or when the distance between the wireless nodes is far, the wireless nodes automatically adjusts to operate at the optimal speed. y IEEE 802.11a, and IEEE 802.11b standard compliant, IEEE 802.11g standard compliant. y Interoperable with IEEE 802.11a, IEEE 802.11b, and IEEE 802.11g wireless devices. y Supports data encryption up to 152-bit shared key method. y Quickly networks your employees without the time or expense of Ethernet cabling. y Networks from any location in and around the home or office. y Gives you constant access to corporate resources, e-mail and the intranet. y IEEE 802.11b supports 1, 2, 5.5, 11 Mbps data rates. IEEE 802.11a/g supports 6, 9, 12, 18, 24, 36, 48, 54 Mbps data rates. y Connects seamlessly to wired Ethernet and PC network LANs to augment existing networks quickly and easily. y Provides greater flexibility to locate or move networked PCs. y Plug and Play makes it easy to install. y Supports multiple operating system platforms, including Microsoft Windows 98SE, Windows Me, Windows 2000 and Windows XP. Applications IE…

Text truncated - open the document above for the full version.

Transmitter Modular Approval Letter Date: April 21, 2006 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: M4Y-0AG621 Gentlemen: The following attestation addresses the eight requirements to support Modular approval as required by the FCC Public Notice DA 00-1407” Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding.(Refer to “Internal Photograph Exhibit”) 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. (Refer to “Block Diagram and Schematics Exhibit”) 3 The modular transmitter has its own power supply regulator.(Refer to “Block Diagram and Schematics Exhibit ”and Bill of Materials Exhibit”) 4 The modular transmitter has an antenna that complies with section 15.203 of the FCC rules. It has a MHF type of connector at the transmitter end and is Dipole antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user.(Refer to “Operational Description Exhibit” and “Antenna Specification Exhibit”) 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer.(Refer to “Test Configuration”in Compliance Certificaiton Services Inc. test report and to “External Photograph Exhibit”) 6 The modular transmitter will be labeled with it own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior habel will read as follows: “Contains Transmitter Module FCC ID: M4Y-0AG621” or “Contains TX FCCID: M4Y- 0AG621” (Refer to “Label Information Exhibit”) 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations.(Refer to“User’s Guide Exhibit) 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1) (Refer to “RF Exposure Exhibit”.)

Mike Kuo To: daphne.liang Cc: lucy.tsai; [email protected] Subject: RE: Re ： Z Com FCC ID:M4Y-0AG621, Assessment No:AN06T5698 and AN06T5699  4/28/2006 Dear Mike: Much thanks for your great support. Please see the belowing reply and find updated files If still have any problems,please let me know,thank you so so so much! BEST REGARDS Daphne Liang / 梁鈺如 4/27/2006 Certification Team Leader / Certification Dept. ============================================= Compliance Certification Services Inc. Rm.258, Bldg.17, No.195, Sec.4, Chung Hsing Rd.,Chutung,Hsinchu,Taiwan,R.O.C. Tel: 886-3-5910068 EXT: 502 Fax: 886-3-5825720 E-mail: [email protected] URL: http://www.ccsemc.com.tw Hi Daphne : Q#1. Antenna gain and antenna connector indicated in test report and modular approval request letter are different from the antenna specification sheet. In antenna specification sheet, the connector is reverse SMA but MHF was shown on the report. As for antenna gain, the value shown on the antenna specification are 2.3dBi for 2.4GHz and 2.6dBi for 5GHz, but test report listed 2dBi for both 2.4GHz and 5GHz. Please revise. Ans: Please find the updated files for:(1)FCC_Part15C & Part 15E test report . (2)Antenna spec. (3)Part 15C & 15E Test Setup Photo Q#2: Please provide a label format for end product. Ans: Please find the updated files for:(1)Label format Q#3: Page 20 of user manual indicated SAR test has been done with laptop, please explain why this device is required for SAR test since it's filed for complying with modular approval. Q#4: Please provide user information for OEM integrator on how to comply with FCC RF exposure requirement. Q#5: Page 20 of user manual indicated this device is allowed to operate in 5.65-5.85GHz in USA, if then, please provide the test "Mike Kuo" <[email protected]> 2006/04/26 03:42 PM 收件人： "daphne.liang" <[email protected]> 副本抄送： "lucy.tsai" <[email protected]> 主旨： Z Com FCC ID:M4Y-0AG621, Assessment No:AN06T5698 and AN06T5699 data Ans: Q3-Q5 Has revised ,please find the updated files for:User's manual for UNII portion Q#6: User manual indicated 11a has turbo mode but UNII test report hasn't investigated it. Please submit the turbo mode test data. Ans: Sorry ,it's just for 11g has turbo mode (same to test report). We have corrected our user's manual Q# 7 : Please extract section 8.4 of MPE from the UNII test report and filed as an individual file. Ans: Please find the attached for :Part15E_RF Exposure(950427). for DTS portion Q#8 : User manual only 11a can support turbo mode but test report has included 11g turbo mode's test result, please explain. Ans: Sorry ,it's just for 11g has turbo mode (same to test report). We have corrected our user's manual. Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 e-mail:[email protected] http://www.ccsemc.com  4/28/2006

Compliance Certification Services Inc. Report No.60331301 Page 1 of 8 External Photo Compliance Certification Services Inc. Report No.60331301 Page 2 of 8 Compliance Certification Services Inc. Report No.60331301 Page 3 of 8

Label Format “Contains Transmitter Module FCC ID: M4Y-0AG621” or “Contains FCC ID: M4Y-0AG621”.

Company : Z-Com, Inc. Model : AG-621 Product : 802.11 a/b/g Mini PCI Card 802.11 a/b/g Mini PCI Card Model No: AG-621 FCC IDM4Y-0AG621 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Location

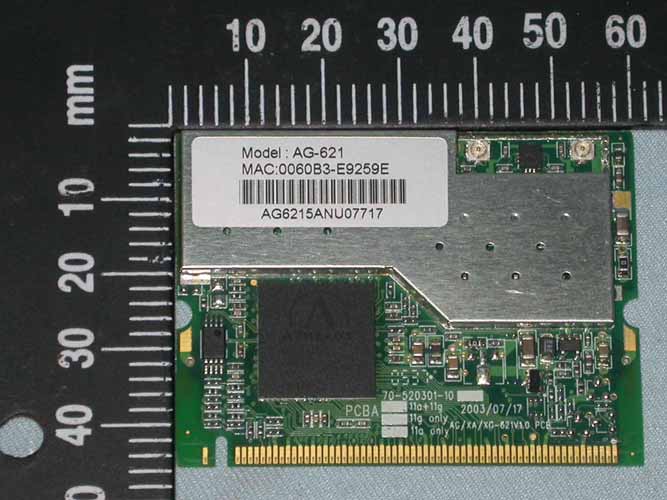

Compliance Certification Services Inc. Report No.60331301 Page 4 of 8 Internal Photo Compliance Certification Services Inc. Report No.60331301 Page 5 of 8 Compliance Certification Services Inc. Report No.60331301 Page 6 of 8 Compliance Certification Services Inc. Report No.60331301 Page 7 of 8 Compliance Certification Services Inc. Report No.60331301 Page 8 of 8

RFA-25-C2M2 Specifications Frequency range 2400 MHz – 2500 MHz 4900 MHz -5875 MHz Gain 2 dBi 2 dBi VSWR 2.0 : 1 Max. 2.0 : 1 Max. Polarization Linear, vertical Linear, vertical Power handling 2 W (cw) 2 W (cw) Impedance 50 50 Connector Reverse SMA PLUG Environmental & Mechanical Characteristics Temperature -10 Humidity 95% @ 25 Radome color Black

Compliance Certification Services Inc.FCC ID M4Y-0AG621 Report No.60331301-RP1 Page 1 of 94 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For 802.11 a/b/g Mini PCI Card Model : AG-621 Trade Name : ZCOM Issued for Z-Com, Inc. 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc.FCC ID M4Y-0AG621 Report No.60331301-RP1 Page 2 of 94 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER ..................................................................................................4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................6 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES ........................................................................................................................................6 5.2 EQUIPMENT ......................................................................................................................................6 5.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................................6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..............................................................................7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................8 6.2 MEASUREMENT UNCERTAINTY .....................................................................................................8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 11 8.1 6dB BANDWIDTH ..............................................................................................................................11-19 8.2 99% BANDWIDTH .............................................................................................................................20-28 8.3 MAXIMUM PEAK OUTPUT POWER................................................................................................29-37 8.4 MAXIMUM PERMISSIBLE EXPOSURE ...........................................................................................38-39 8.5 POWER SPECTRAL DENSITY...........................................................................................................40-49 8.6 CONDUCTED SPURIOUS EMISSION..............................................................................................50-57 8.7 RADIATED EMISSIONS.....................................................................................................................58 8.7.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................ 58-61 8.7.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................ 62 8.7.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz............................................... 63-72 8.7.4 RESTRICTED BAND EDGES ........................................................................................ 73-84 8.8 POWERLINE CONDUCTED EMISSIONS ........................................................................................85-88 9. ANTENNA REQUIREMENT .................................................................................................... 89 9.1 STANDARD APPLICABLE.................................................................................................................89 9.2 ANTENNA CONNECTED CONSTRUCTION ....................................................................................89 APPENDIX SETUP PHOTOS....................................................................................................... 90-94 Compliance Certification Services Inc.FCC ID M4Y-0AG621 Report No.60331301-RP1 Page 3 of 94 1. TEST REPORT CERTIFICATION Applicant Z-Com Inc. Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial Park, Hsinchu, Taiwan R.O.C. Equipment Under Test 802.11 a/b/g Mini PCI Card Model AG-621 Trade Name ZCOM Tested Date March 16 ~ April 11, 2006 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2004 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID M4Y-0AG621 Report No.60331301-RP1 Page 4 of 94 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name 802.11 a/b/g Mini PCI Card Model Number AG-621 Frequency Range IEEE 802.11a (DTS Band) Base mode : 5745MHz～5825MHz IEEE 802.11b/g (DTS Band) Base mode : 2412M…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID M4Y-0AG621 Report No.60331301-RP1 Page 1 of 94 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For 802.11 a/b/g Mini PCI Card Model : AG-621 Trade Name : ZCOM Issued for Z-Com, Inc. 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc.FCC ID M4Y-0AG621 Report No.60331301-RP1 Page 2 of 94 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER ..................................................................................................4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................6 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES ........................................................................................................................................6 5.2 EQUIPMENT ......................................................................................................................................6 5.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................................6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..............................................................................7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................8 6.2 MEASUREMENT UNCERTAINTY .....................................................................................................8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 11 8.1 6dB BANDWIDTH ..............................................................................................................................11-19 8.2 99% BANDWIDTH .............................................................................................................................20-28 8.3 MAXIMUM PEAK OUTPUT POWER................................................................................................29-37 8.4 MAXIMUM PERMISSIBLE EXPOSURE ...........................................................................................38-39 8.5 POWER SPECTRAL DENSITY...........................................................................................................40-49 8.6 CONDUCTED SPURIOUS EMISSION..............................................................................................50-57 8.7 RADIATED EMISSIONS.....................................................................................................................58 8.7.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................ 58-61 8.7.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................ 62 8.7.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz............................................... 63-72 8.7.4 RESTRICTED BAND EDGES ........................................................................................ 73-84 8.8 POWERLINE CONDUCTED EMISSIONS ........................................................................................85-88 9. ANTENNA REQUIREMENT .................................................................................................... 89 9.1 STANDARD APPLICABLE.................................................................................................................89 9.2 ANTENNA CONNECTED CONSTRUCTION ....................................................................................89 APPENDIX SETUP PHOTOS....................................................................................................... 90-94 Compliance Certification Services Inc.FCC ID M4Y-0AG621 Report No.60331301-RP1 Page 3 of 94 1. TEST REPORT CERTIFICATION Applicant Z-Com Inc. Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial Park, Hsinchu, Taiwan R.O.C. Equipment Under Test 802.11 a/b/g Mini PCI Card Model AG-621 Trade Name ZCOM Tested Date March 16 ~ April 11, 2006 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2004 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID M4Y-0AG621 Report No.60331301-RP1 Page 4 of 94 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name 802.11 a/b/g Mini PCI Card Model Number AG-621 Frequency Range IEEE 802.11a (DTS Band) Base mode : 5745MHz～5825MHz IEEE 802.11b/g (DTS Band) Base mode : 2412M…

Text truncated - open the document above for the full version.
