M4Y-0XG65054Mbps Wireless Mini PCI Adapter

FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 54Mbps IEEE802.11g Wireless Network Mini PCI Adapter complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help. CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users. The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ASDL modems and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID:M4Y-0XG650 ". RF Exposure Manual Information That Must be Included The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the device. Service Center in U.S.A Company Name : Zcomax. Company Address:14545 Valley View Ave., Suite S Santa Fe Springs, CA 90670 Tel:562-926-4588 1. Introduction 54Mbps IEEE802.11g Wireless Network Mini PCI Adapter is the perfect solution for your wireless network applications based on the IEEE 802.11g standard offering a data rate of 54Mbps in a wireless LAN environment. XG-650 is designed for Access Point, Router gives you wireless access the web and network resource without the wire. XG-650 provides high-speed access to network resources and has built-in 40/64-bit, 128 bit and 256 bit of WEP (Wired Equivalent Privacy) data encryption. With Direct Spread Spectrum Signaling (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), domain access control, WEP encryption and group security, the modules will safeguard all your wireless data transmissions from your nosy neighbors. XG-650 allows you to take full advantage of your devices mobility with access to real-time information and online services anytime and anywhere. 2. Feature . Complies with IEEE 802.11b/g Standard for 2.4GHz Wireless LAN. . Works with All Existing Network Infrastructures. . Compatible with Wi-Fi Wireless Products and Services . Capable of up to 256-Bit WEP Encryption. . Freedom to Roam While staying Connected . 54 Mbps High-Speed Transfer Rate . Two UF-L Connectors for External Antenna . Support Antenna diversity for Better Sensitivity . Lower Power Consumption. 3. Specification HOST INTERFACE 33MHz, 32-bit MiniPCI, Type III B (support TI VLYNQ bus) RADIO Chipset TI TNETW1130 ; Radia RC2422B & RC2326 Antenna Two UFL Connectors USA (FCC) 11 Channels: 2.412GHz~2.462GHz Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz Frequency Japan (TELEC) 14 Channels : 2.412GHz~2.483GHz (14 th ch only for 11b) 11g / 11g+ :OFDM (64QAM, 16QAM, QPSK, BPSK) Modulation 11b: DSSS (CCK, DQPSK, DBPSK) / 11b+: PBCC 11g / 11g+ : 64QAM 13dBm …

Text truncated - open the document above for the full version.

FCC ID: M4Y-0XG650 Date: Jan. 8, 2004 Modular Approval Request Letter Dear Sir, There’s a 54Mbps 802.11g Wireless Mini-PCI Adapter that would like to have your authorization as a modular approval. The specific product as below, 54Mbps 802.11g Wireless Mini-PCI Adapter, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 by cross-reference list below. Company : Z-Com, Inc. Model Name : 54Mbps 802.11g Wireless Mini-PCI Adapter Model Number : XG-650 FCC ID : M4Y-0XG650 Requirement of Public Notice DA00-1407 Reference to XG-650 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see external photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip AT24C08. Please see Technical description .pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the XG-650. Please see operation description .pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The XG-650 meets the FCC antenna requirements. It has a built-in, unique antenna. Please see external photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The XG-650 was tested in a stand-alone configuration via a PCMCIA extender. Please see conducted set-up photo.pdf and spurious set-up photo.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of XG-650 is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The XG-650 is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see Installation guide.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The XG-650 comply with applicable RF exposure requirements. Please see RF safety evaluation. pdf Yours sincerely, Elton Chen Assistant Manager Intertek Testing Service Taiwan Ltd.

Zcom, Inc. 7F-2, No.9, Prosperity 1St RD., Science-Based Industrial Park, Hsinchu, Taiwan R.O.C. TEL: (886)-3-3577364 ext.147 FAX: (886)-3-5639241 "I, an officer of Z-Com, Inc. do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Beryl Lin Title Product Manager Signature Printed

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 19, 2004 RE: FCC ID: M4Y-0XG650_ATCB001050 Attention: Elton Chen I have a few comments on this Application. 1. Please note that the manual provided states that this device can fit into a PCMCIA slot. Also, pleae note that page 5 of the manual shows either a PCMCIA card or a PCMCIA card adapter. Either one is not correct. Please note that if this device is used or sold to the general public so as to be able to be placed into a PCMCIA to mini-PCI adapter, then you must perform SAR on three laptops (this device is over 200mW) Please note that as is represented in the test report, request for modular approval and other documentation, this device must be installed only by the OEM or integrator into a mobile device only. It cannot be installed by nor provided to the end user. Please provide an appropriate OEM installation manual for this device for mobile ONLY configurations with all of the applicable FCC statements and warnings. 2. Please note that this is a mobile only device. The antenna cable shown in the external photos does not appear long enough to provide 20cm separation. Please explain how the 20cm separation is to be maintained. Alternately, please test the device using a cable of sufficient length for 20cm. 3. Please note that the 2-condition statement on the label is unreadable. Please provide a label sample that is clear and legible. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Photo 1: External photo of EUT XG-650 Photo 2: External photo of EUT XG-650 Photo 3: External photo of Antenna

FCC ID Laction

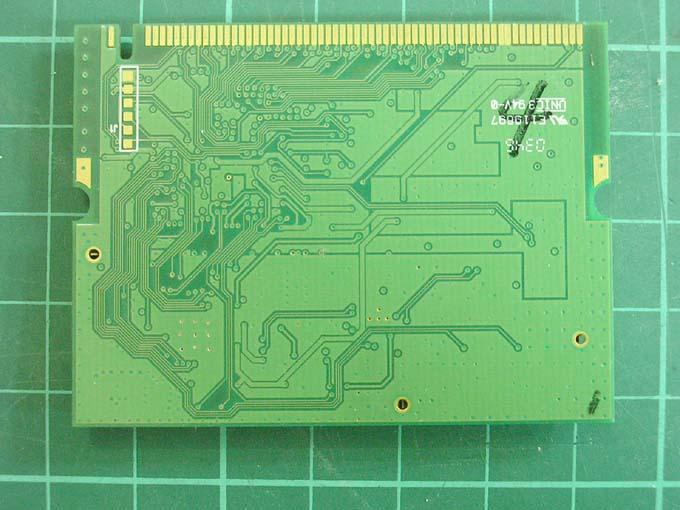

Photo 1: Internal photo of EUT XG-650 Photo 2: External photo of EUT XG-650

FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 1 of 6 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-031356 Model No. : XG-650 Issued Date : Dec. 29, 2003 Applicant : Z-COM, Inc. 7F-2, No. 9, Prosperity 1 st RD., Science-Based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jackey Chiu Project Engineer Reviewed By Elton Chen FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 2 of 6 Table of Contents Summary of Tests.........................................................................................................3 1. Introduction..............................................................................................................4 2. RF Exposure Limit...................................................................................................4 3. RF Exposure calculations..........................................................................................5 4. Test results................................................................................................................5 FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 3 of 6 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 54Mbps 802.11g Wireless Mini-PCI Adapter-Model: XG-650 FCC ID: M4Y-0XG650 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 4 of 6 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The EUT operates in the 2.4GHz ISM band. The EUT (antenna included) is compliant with modular approval and the normal operation distance (after installing in other device, such as router or access point), 20cm from the human body; therefore, the EUT is defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 5 of 6 3. RF Exposure calculations From § FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4* π *20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Condition: 802.11b function (DSSS Modulation) Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 1.58 236.04 0.07442 1.0 6 2437 1.58 241.54 0.07616 1.0 11 2462 1.58 236.04 0.07442 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time. FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 6 of 6 Test Condition: 802.11g function (OFDM Modulation) Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 1.58 264.85 0.08351 1.0 6 2437 1.58 271.01 0.08545 1.0 11 2462 1.58 271.01 0.08545 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 1 of 49 EMC TEST REPORT Report No. : EME-031356 Model No. : XG-650 Issued Date : Dec. 29, 2003 Applicant : Z-COM, Inc. 7F-2, No. 9, Prosperity 1 st RD., Science-Based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 49 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result in this report only applies to the tested sample. Jackey Chiu Project Engineer Reviewed By Elton Chen FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 2 of 49 Table of Contents Summary of Tests..........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 1.4 Peripherals equipment.........................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard.......................................................................................................6 2.2 Operation mode..................................................................................................6 2.3 Test equipment....................................................................................................7 3. Minimum 6dB Bandwidth test...................................................................................8 3.1 Operating environment.......................................................................................8 3.2 Test setup & procedure........................................................................................8 3.3 Measured data of Minimum 6dB Bandwidth test results......................................8 4. Maximum Output Power test...................................................................................15 4.1 Operating environment.....................................................................................15 4.2 Test setup & procedure......................................................................................15 4.3 Measured data of Maximum Output Power test results......................................15 5. Radiated Emission test............................................................................................17 5.1 Operating environment.....................................................................................17 5.2 Test setup & procedure......................................................................................17 5.3 Emission limits.................................................................................................18 5.4 Radiated spurious emission test data.................................................................19 5.4.1 Measurement results: frequencies equal to or less than 1 GHz........................19 5.4.2 Measurement results: frequency above 1GHz.................................................20 6. Power Spectrum Density test...................................................................................26 6.1 Operating environment.....................................................................................26 6.2 Test setup & procedure......................................................................................26 6.3 Measured data of Power Spectrum Density test results......................................26 7. Emission on the band edge §FCC 15.247(C)...........................................................33 7.1 Band-edge (Conducted method)........................................................................34 7.2 Band-edge (Radiated method)...........................................................................38 8. Power Line Conducted Emission test §FCC 15.207.................................................46 8.1 Operating environment.....................................................................................46 8.2 Test setup & procedure......................................................................................46 8.3 Power Line Conducted Emission test data.........................................................48 FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 3 of 49 Summary of Tests 54Mbps 802.11g Wireless Mini-PCI Adapter-Model: XG-650 FCC ID: M4Y-0XG650 Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies FCC ID. : M4Y-0XG650 Report No.: EME-031356 Page 4 of 49 1. General information 1.1 Identification of the EUT Applicant : Z-COM, Inc. Product : 54Mbps 802.11g Wireless Mini-PCI Adapter Model No. : XG-650 FCC ID. : M4Y-0XG650 Frequency Range : 2412~2462 MHz Channel Number : 11 Channels Frequency of Each Channel : 2412MHz, 2417MHz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Type of Modulation : DSSS, OFDM Rated Power : 3.3Vdc Power Cord : N/A Sample Received : Nov. 27, 2003 Test Date(s) : Nov. 27, 2003 ~ Dec. 19, 2003 A FCC DoC report has been generated for the client. 1.2 Additional information about the EUT The 802.11g Wireless LAN Mini-PCI Adapter is an enhanced high-performance, that supports high-spee…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up Photo 2: Conducted Emission Test Set-up Photo 3: Conducted Emission Test Set-up

Photo 1: Radiated Emission Test Set-up Photo 2: Radiated Emission Test Set-up
