M4Y-0XI33011 Mbps 802.11b Wireless PCMCIA Card

11 Mbps 802.11b Wireless PCMCIA Card Date of Issue: Jan. 16th, 2002 Technical Support The firmware version of the 11Mbps Wireless LAN PC Card is displayed on the utility main window. Users could download and upgrade the most recent software version from the supplier’s web site or refer to the selling contact for the latest software information. If you have difficulty resolving the problem while installing or using the 11Mbps Wireless LAN PC Card, please contact the supplier for support. About This Manual 11Mbps Wireless LAN PC Card User’s Manual is first published on January, 2002. The manual includes procedures for the setup of the 11Mbps Wireless LAN PC Card under Windows XP, Windows 2000, Windows 98 or Windows ME. Take a moment to read through this manual and familiarize yourself with wireless technology. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. Table of Contents Chapter 1 About Wireless LAN PC Card............................................1 1-1 Features and Benefits...................................................................................1 1-2 Applications..................................................................................................2 1-3 Product Kit...................................................................................................3 1-4 About Wireless LAN PC Card LED Indicators...........................................3 Chpater 2 Getting Started......................................................................8 2-1 Before Installation......................................................................................15 2-2 Insert the 11Mbps Wireless LAN PC Card................................................20 Chapter 3 Install Driver for Windows................................................30 3-1 Set up Wireless LAN PC Card for Windows XP........................................35 3-2 Set up Wireless LAN PC Card for Windows 2000.....................................57 3-3 Set up Wireless LAN PC Card for Windows NT....! 3-4 Set up Wireless LAN PC Card for Windows 98/ ME.................................75 3-5 Remove the Wireless LAN PC Card...........................................................98 Chpater 4 Configure the Wireless LAN PC Card...........................112 4-1 Install the WLAN Utility...........................................................................115 4-2 Use the WLAN Utility...............................................................................134 Limited Warranty...............................................................................240 -1- About Wireless LAN PC Card The 11Mbps IEEE 802.11b Wireless LAN PC Card is a standard PCMCIA adapter that fits into any standard PCMCIA Type II slot in a notebook computer. Its 11Mbps data rate gives equivalent Ethernet speed to access corporate network or the Internet in a wireless environment. In addition, a detachable antenna version is specifically designed for system integrator application. When installed, 11Mbps Wireless LAN PC Card is able to communicate with any 802.11 and 802.11b compliant products. 1-1 Features and Benefits 1. Fully IEEE 802.11b compatible. 2. Direct Sequence Spread Spectrum (DSSS) technology provides robust, interference-resistant and secure wireless connection. 3. Supports 1, 2, 5.5 and 11 Mbps data rate. 4. Working range up to 800 ft. in an open environment. 5. Seamless connectivity to wired Ethernet and PC network LAN’s augments existing networks quickly and easily. 6. Greater flexibility to locate or move networked PCs. 7. Wireless connection without the cost of cabling. 8. Easy to install and user friendly, just Plug and Play. 9. Low power consumption. 10. Supports a variety of operating systems (Win98/ME/2000/XP) 11. 64-bit and 128-bits WEP encryption capable. 12. Provides Window-based Diagnostic Tools, most notably, Site Survey, Link Quality Test and Access Point Browser. -2- 1-2 Applications 11Mbps Wireless LAN PC Card offers a fast, reliable, cost-effective solution for wireless client access to the network in applications like these: 1. Remote access to corporate network in…

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: 11 Mbps 802.11b Wireless PCMCIA Card MODEL NO.: XI-330 TRADE NAME: Z-Com IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920815H04 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION Manufacturer USA Local Representative Company name: Z-COM,INC. To Be Determined. Address: 7F-2, No.9. Prosperity RD. I , Science-Based Industrial Park Hsinchu, 300 Taiwan Contact Person: Beryl Lin Title: Product Manager Tel/Fax: 03- 577-7364 ext. 211 / 03- 577-3359

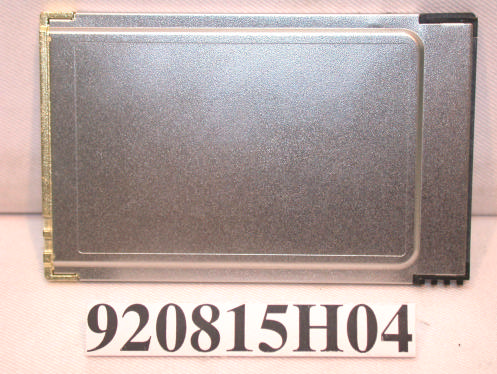

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: M4Y-0XI330 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

SCALE ECO NO.REVISIONAPP.DES.DATE TOLERANCE GRADE ( ) GRADE ABC LENGTH 60.050.080.20 0.080.100.30 0.100.150.40 0.200.300.80 6618 1850 50180 ~ ~ ~ ~ DRW.DES.CKD.RECKD.APP. MODELSHEET D W G N O . V A 1 1 Z-Com, Inc. NAME PART NO. 1 UNITS GRADEANGLE M.M. TOLERANCE 1 1 N P A 0 1 1 9 0 . 1 XI-330 NB FCC Label 4-R1.5 11Mbps Wireless LAN PC Card This device complies with Part 15 of FCC Rules. Operation is Subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. FCC ID: M4Y-0XI330 MADE IN TAIWAN 56-430001-04 2. 4D S4 !! MODEL: XI-330 4 0 . 0 0 m m 64.00 mm 31.5~32.5 mm Jamie 920814 56-430001-04 Remark : 1.Label Material:#75 SILVER POLYESTER 2.Glue Material:PET MAT POLYPROPYLENE 3.Label Color:SILVER 4.Font Color;BLACK 5.Diameter of certification mark 4.27mmX4.27mm XXXXXXXXXX

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: M4Y-0XI330 ADT No. 920815H04 Operational Description The transmitter of the EUT is powered by host equipment. The antenna is Detachable patch Antenna without connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: M4Y-0XI330 Report No.: RF920815H04 ADT No. 920815H04 1 RF EXPOSURE REPORT REPORT NO.: RF920815H04 MODEL NO.: XI-330 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Z-COM, INC. ADDRESS: 7F-2, No.9. Prosperity RD. I , Science-Based Industrial Park Hsinchu, 300 Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: M4Y-0XI330 Report No.: RF920815H04 ADT No. 920815H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: M4Y-0XI330 Report No.: RF920815H04 ADT No. 920815H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 2.5cm away from the body of the user. Warning statement to the user for keeping at least 2.5cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Portable Device FCC ID: M4Y-0XI330 Report No.: RF920815H04 ADT No. 920815H04 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 0Bi or 1 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 2.5cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241245.290.576651.0 6243742.6580.543141.0 11246239.9020.508051.0

FCC ID: M4Y-0XI330 Report No.: SA920815H04 1 Issued: Sept. 22 2003 SAR TEST REPORT REPORT NO.: SA920815H04 MODEL NO.: XI-330 RECEIVED: Sept. 18 2003 TESTED: Sept. 19 2003 APPLICANT: Z-COM, INC.. ADDRESS: No.1 Jen Ai Road, Hsinchu industrial Park Hukou, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 31 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: M4Y-0XI330 Report No.: SA920815H04 2 Issued: Sept. 22 2003 Table of Contents 1. CERTIFICATION.......................................................................................................................3 2. GENERAL INFORMATION.......................................................................................................4 2.1 GENERAL DESCRIPTION OF EUT.........................................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS..........................................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM.................................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ...............................8 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS...............................................13 4. DESCRIPTION OF SUPPORT UNITS....................................................................................14 5. TEST RESULTS......................................................................................................................15 5.1 TEST PROCEDURES.............................................................................................................15 5.2 MEASURED SAR RESULT.....................................................................................................16 5.3 SAR LIMITS............................................................................................................................18 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS....................................................................18 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY.....................................................................20 6. SYSTEM VALIDATION............................................................................................................21 6.1 TEST EQUIPMENT.................................................................................................................21 6.2 TEST PROCEDURE...............................................................................................................21 6.3 VALIDATION RESULT.............................................................................................................23 6.4 SYSTEM VALIDATION UNCERTAINTIES..............................................................................24 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES......................................................25 7.1 PROBE CALIBRATION UNCERTAINTY.................................................................................25 7.2 ISOTROPY UNCERTAINTY...................................................................................................25 7.3 BOUNDARY EFFECT UNCERTAINTY...................................................................................26 7.4 PROBE LINEARITY UNCERTAINTY......................................................................................26 7.5 READOUT ELECTRONICS UNCERTAINTY..........................................................................26 7.6 RESPONSE TIME UNCERTAINTY........................................................................................27 7.7 INTEGRATION TIME UNCERTAINTY....................................................................................28 7.8 PROBE POSITIONER MECHANICAL TOLERANCE.............................................................28 7.9 PROBE POSITIONING...........................................................................................................29 7.10 PHANTOM UNCERTAINTY....................................................................................................29 7.11 DASY4 UNCERTAINTY BUDGET..........................................................................................30 8. INFORMATION ON THE TESTING LABORATORIES...........................................................31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: M4Y-0XI330 Report No.: SA920815H04 3 Issued: Sept. 22 2003 1. CERTIFICATION PRODUCT : 11 Mbps 802.11b Wireless PCMCIA Card MODEL NO. : XI-330 BRAND NAME : Z-COM APPLICANT : Z-COM, INC. TEST ITEM : Engineering sample STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Sept. 19, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: M4Y-0XI330 Report No.: SA920815H04 4 Issued: Sept. 22 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT 11 Mbps 802.11b Wireless PCMCIA Card MODEL NO. XI-330 POWER SUPPLY 3.3VDC powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CC…

Text truncated - open the document above for the full version.

Page 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Mode 1 EUT to the phantom distance 11mm Page 2 Mode 2 EUT to the phantom distance 15mm Page 3 Mode 3 EUT to the phantom distance 0mm Page 4 EUT Photo Page 5 Liquid Level Photo 2450MHz D=155mm Date/Time: 09/19/03 18:14:22 Test Laboratory: Advance Data Technology XI-330 Mode 1 DUT: 11Mbps 802.11b Wireless PCMCIA Card ; Type: XI-330 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.93 mho/m, ε r = 52.89, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 0mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.73 V/m Power Drift = 0.009 dB Maximum value of SAR = 0.2 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.396 W/kg SAR(1 g) = 0.189 mW/g; SAR(10 g) = 0.0992 mW/g Reference Value = 7.73 V/m Power Drift = 0.009 dB Maximum value of SAR = 0.196 mW/g Date/Time: 09/19/03 18:40:32 Test Laboratory: Advance Data Technology XI-330 Mode 1 DUT: 11Mbps 802.11b Wireless PCMCIA Card ; Type: XI-330 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.97 mho/m, ε r = 52.74, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 0mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 6/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 6.98 V/m Power Drift = -0.07 dB Maximum value of SAR = 0.171 mW/g Channel 6/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.336 W/kg SAR(1 g) = 0.158 mW/g; SAR(10 g) = 0.0824 mW/g Reference Value = 6.98 V/m Power Drift = -0.07 dB Maximum value of SAR = 0.164 mW/g Date/Time: 09/19/03 19:06:58 Test Laboratory: Advance Data Technology XI-330 Mode 1 DUT: 11Mbps 802.11b Wireless PCMCIA Card ; Type: XI-330 ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.01 mho/m, ε r = 52.23, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 0mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 11/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 6.53 V/m Power Drift = 0.01 dB Maximum value of SAR = 0.154 mW/g Channel 11/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.299 W/kg SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.0743 mW/g Reference Value = 6.53 V/m Power Drift = 0.01 dB Maximum value of SAR = 0.149 mW/g Date/Time: 09/19/03 19:42:16 Test Laboratory: Advance Data Technology XI-330 Mode 2 DUT: Wireless LAN PCMCIA Card ; Type: XI-330 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.93 mho/m, ε r = 52.89, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 15mm(The tip side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22 degrees ; Liquid temp. : 21 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2003/6/2 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (41x61x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 4.66 V/m Power Drift = 0.06 dB Maximum value of SAR = 0.0457 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.0937 W/kg SAR(1 g) = 0.0439 mW/g; SAR(10 g) = 0.0235 mW/g Reference Value = 4.66 V/m Power Drift = 0.06 dB Maximum value of SAR = 0.0456 mW/g Date/Time: 09/19/03 20:03:36 Test Laboratory: Advance Data Technology XI-330 Mode 2 DUT: Wireless LAN PCMCIA Card ; Type: XI-330 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.97 mho/m, ε r = 52.74, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 15mm(The tip side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22 degrees ; Liquid temp. : 21 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn…

Text truncated - open the document above for the full version.

APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

FCC ID: M4Y-0XI330 Report No.: RF920815H041Issued: Sep. 04, 2003 ADT No. 920815H04 FCC TEST REPORT REPORT NO.: RF920815H04 MODEL NO.: XI-330 RECEIVED: Aug. 18, 2003 TESTED: Aug. 19 to 27, 2003 APPLICANT: Z-COM, INC. ADDRESS: 7F-2, No.9. Prosperity RD. I , Science-Based Industrial Park Hsinchu, 300 Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: M4Y-0XI330 Report No.: RF920815H042Issued: Sep. 04, 2003 ADT No. 920815H04 Table of Contents 1CERTIFICATION......................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................5 3GENERAL INFORMATION....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.....................................................................6 3.2DESCRIPTION OF TEST MODES.......................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................7 3.4DESCRIPTION OF SUPPORT UNITS.................................................................8 4TEST TYPES AND RESULTS...............................................................................9 4.1CONDUCTED EMISSION MEASUREMENT......................................................9 4.1.1TEST INSTRUMENTS...............................................................................................9 4.1.2TEST PROCEDURES.............................................................................................10 4.1.3DEVIATION FROM TEST STANDARD...................................................................10 4.1.4TEST SETUP............................................................................................................11 4.1.5EUT OPERATING CONDITIONS.............................................................................11 4.1.6TEST RESULTS.......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT.........................................................14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................14 4.2.2TEST INSTRUMENTS.............................................................................................15 4.2.3TEST PROCEDURES.............................................................................................16 4.2.4DEVIATION FROM TEST STANDARD...................................................................16 4.2.5TEST SETUP...........................................................................................................17 4.2.6EUT OPERATING CONDITIONS............................................................................17 4.2.7TEST RESULTS.......................................................................................................18 4.36dB BANDWIDTH MEASUREMENT.................................................................22 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT....................................................22 4.3.2TEST INSTRUMENTS.............................................................................................22 4.3.3TEST PROCEDURE................................................................................................23 4.3.4DEVIATION FROM TEST STANDARD...................................................................23 4.3.5TEST SETUP...........................................................................................................23 4.3.6EUT OPERATING CONDITIONS............................................................................23 4.3.7TEST RESULTS.......................................................................................................24 4.4MAXIMUM PEAK OUTPUT POWER.................................................................28 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................28 4.4.2INSTRUMENTS........................................................................................................28 4.4.3TEST PROCEDURES.............................................................................................29 4.4.4TEST SETUP...........................................................................................................29 4.4.5EUT OPERATING CONDITIONS............................................................................29 FCC ID: M4Y-0XI330 Report No.: RF920815H043Issued: Sep. 04, 2003 ADT No. 920815H04 4.4.6TEST RESULTS.......................................................................................................30 4.4.7LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.........................…
