M4Y-AG623CIEEE 802.11 a/b/g Wireless Network Mini PCI

End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: M4Y-AG623C”. RF Exposure Manual Information That Must be Included The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the device. Service Center in U.S.A Company Name : Zcomax. Company Address:14545 Valley View Ave., Suite S Santa Fe Springs, CA 90670 Tel:562-926-4588 1. Introduction 54Mbps IEEE802.11a/b/g Wireless Network Mini PCI Adapter is the perfect solution for your wireless network applications based on the IEEE 802.11a/b/g standard offering a data rate of 54Mbps in a wireless LAN environment. AG-623C is designed for Access Point, Router, ATUR, Printer Server series, IP Camera series and Internet Video Server gives you wireless access the web and network resource without the wire. AG-623C provides high-speed access to network resources and has built-in 40/64-bit, 128 bit and 256 bit of WEP (Wired Equivalent Privacy) data encryption. With Direct Spread Spectrum Signaling (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), domain access control, WEP encryption and group security, the modules will safeguard all your wireless data transmissions from your nosy neighbors. AG-623C allows you to take full advantage of your devices mobility with access to real-time information and online services anytime and anywhere. 2. Feature Complies with IEEE 802.11a/b/g Standard for 2.4GHz Wireless LAN. Works with All Existing Network Infrastructures. Compatible with Wi-Fi Wireless Products and Services Capable of up to 256-Bit WEP Encryption. Freedom to Roam While staying Connected 54 Mbps High-Speed Transfer Rate Two UF-L Connectors for External Antenna Support Antenna diversity for Better Sensitivity Lower Power Consumption. 3.Specification Product Description IEEE 802.11a/g compliant 5 & 2.4 GHz WLAN miniPCI card with Super A & Super G Host Interface 32-bit miniPCI, Operating Voltage DC3.3V ± 5% Chipset MAC / BB Processor Atheros AR5414 (Single chip) PA Chip RF5824 RFMD Power Consumption 11a TX: 550 mA RX: 450 mA 11b TX: 550 mA RX: 450 mA 11g TX: 550 mA RX: 450 mA Radio Antenna connector Primary : one U.FL connector Secondary :one U.FL connector IEEE802.11a Min. Typical Max. Band 1 5.15GHz ~ 5.25 GHz 10 11 12 Band 3 5.725GHz ~ 5.850 GHz ; 14 15 16 IEEE802.11g Min. Typical Max. 54Mbps Ch1Ch11 12 13 14 54Mbps Ch6 17 18 19 IEEE802.11b Min. Typical Max. Output Power 11/1Mbps 15 16 17 IEEE 802.11a / Super A Sensitivity @Packet Error Rate: 10% 5.15GHz ~ 5.25 GHz ; 5.725GHz ~ 5.850 GHz ♦ 54/108 Mbps:-72dBm ♦ 48 Mbps:-73dBm ♦ 36 Mbps:-77dBm ♦ 24 Mbps:-81dBm ♦ 18 Mbps:-84dBm ♦ 12 Mbps:-86dBm ♦ 9 Mbps:-88dBm ♦ 6 Mbps:-90dBm Sensitivity IEEE 802.11g / Super G Sensitivity @ Packet Error Rate: 10% ♦ 54 / 108 Mbps:-74dBm ♦ 48 Mbps:-75dBm ♦ 36 Mbps:-79dBm ♦ 24 Mbps:-83dBm ♦ 18 Mbps:-86dBm ♦ 12 Mbps:-88dBm ♦ 9 Mbps:-90dBm ♦ 6 Mbps:-91dBm IEEE 802.11b Sensitivity @ Packet Error Rate: 8% ♦ 11Mbps:-87dBm ♦ 5.5Mbps:-92dBm ♦ 2Mbps:-93dBm ♦ 1Mbps:-95dBm Modulation IEEE 802.11a (OFDM/DSSS) ♦ 48/54 Mbps (QAM-64) ♦ 24/36 Mbps (QAM-16) ♦ 12/18 Mbps (QPSK) ♦ 6/9 Mbps (BPSK) IEEE802.11g (OFDM/DSSS) ♦ 48/54 Mbps (QAM-64) ♦ 24/36 Mbps (QAM-16) ♦ 12/18 Mbps (QPSK) ♦ 6/9 Mbps (BPSK) IEEE 802.11b (DSSS) ♦ 5.5/11 Mbps (CCK) ♦ 2 Mbps (DQPSK) ♦ 1 Mbps (DBPSK) Range Coverage (Typical range in open environment with 0 dBi Antenna) IEEE 802.11a 54Mbps: 60 meter 48Mbps:70 meter 36Mbps:80 meter 24/18Mbps: 120 meter 12/9/6Mbps:120 meter IEEE 802.11g 54Mbps: 60 meter 48Mbps:70 meter 36Mbps:80 meter 24/18Mbps: 120 meter 12/9/6Mbps:120 meter IEEE 802.11b 11Mbps:80 meter 5.5Mbps:120 meter 2Mbps:200 meter 1Mbps:300 meter IEEE 802.11a ISM Band ♦ USA(FCC): 5.15GHz ~ 5.25 GHz ; 5.725GHz ~ 5.850GHz Operating Frequency IEEE 802.11b/g ISM Band ♦ USA(FCC): 2.412GHz ~ 2.462 GHz (CH1 ~ CH11) Software Specification Supported OS Identical to Atheros Latest Version Security Identical to Atheros Latest Version Physical Specification Dimension 59.6mm(L) * 46.2mm(W) * 4.15mm(H) (include connector) Weight 50 g Environment Specification Temperature (Ambient) Humidity (non-condensing) Operating -10 ~ 65 Storage -20 ~ 80 5 ~ 90% Warranty 12 months 4. Hardware Installation The following sections in this chapter describe how to install AG-623C Module 4.1. Installation Overview AG-623C wireless module is design for Access Point, Router, ATU-R, Printer Server series, IP Camera series and Internet Video Server only. 4.2. Safety Recommendations The safety guidelines are as follows: Keep the board area clear and dust-free before, during, and after installation. Keep tools away from walk areas where you and others could fall over them. Do not wear loose clothing or jewelry, such as earrings, bracelets, or chains, that could get caught in the board. Wear safety glasses if you are working under any conditions that might be hazardous to your eyes. Do not perform any action that creates a potential hazard to people or makes the equipment unsafe. Never attempt to lift an object that is too heavy for one person to handle. 4.3. Maintaining Safety with Electricity Warning: Before working on a board or working near power supplies, unplug the power cord on AC units; on DC units, disconnect the power at the circuit breaker . Follow these guidelines when working on equipment powered by electricity: Do not work alone if potential…

Text truncated - open the document above for the full version.

Page No. : 6 Confidential Letter Date: 2006/9/29 Federal Communications Commission Authorization and Evaluation Division FCC IDΚM4Y-AG623C Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Z-Com, Inc. Applicant’s company address : 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Signature : _________________________________ Job Title and Dept. : Ann Su / EMC Engineer Ann Su 2006.09.29 17:21:02 +08'00'

Page No. : 8 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2006/9/29 FCC ID: M4Y-AG623C Dear Reviewer, We, Sporton International Inc., are authorized by Z-Com, Inc. to have their state-of-the-art IEEE 802.11 a/b/g Wireless Network Mini PCI approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR5414A-001. 3. The requirement of power supply regulation: The part number of the power regulator is M24C32-WDW6TP. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: RF exposure requirement can be fulfilled only for mobile configuration. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Signature : Name : Roger Sheng Job Title : Manager

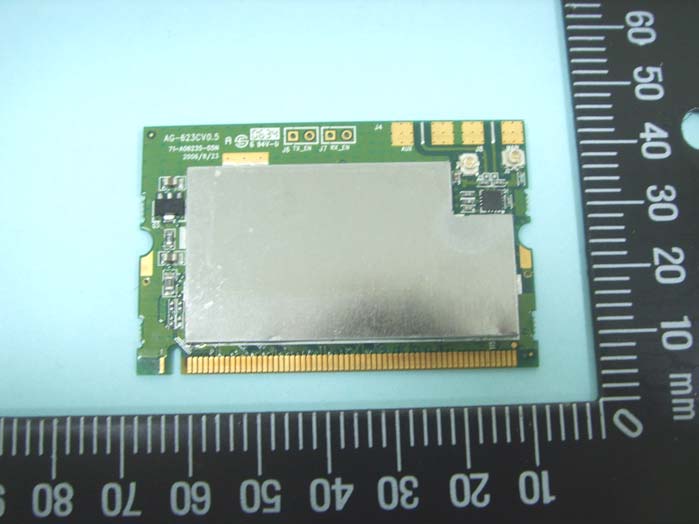

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 28, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 28, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 28, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 28, 2006 FAX : 886-2-2696-2255

29.00mm 23.00mm

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 28, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 28, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 28, 2006 FAX : 886-2-2696-2255

Report No.: FR692606-AB FCC ID: M4Y-AG623C Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR692606-AB FCC ID: M4Y-AG623C Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR692606-AB FCC ID: M4Y-AG623C Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b/g : 21.92dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.3 1.6982 21.9200 155.5966 0.052596 1 Complies Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a (5745~5825MHz) : 17.56dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.6 1.8197 17.5600 57.0164 0.020651 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-6-16-d FCC RADIO TEST REPORT Applicant’s company Z-Com, Inc. Applicant Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan FCC ID M4Y-AG623C Manufacturer’s company Z-Com, Inc. Manufacturer Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Product Name IEEE 802.11 a/b/g Wireless Network Mini PCI Brand Name ZCOM Model Name AG-623C Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Sep. 26, 2006 Final Test Date Sep. 28, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part and 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR692606-AB Report Format Version: RF-15.247-2006-2-17-c Page No. : i of ii FCC ID: M4Y-AG623C Issued Date : Sep. 29, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................8 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................12 4.3. Power Spectral Density Measurement ..............................................................................................................................................14 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................21 4.5. Radiated Emissions Measurement ....................................................................................................................................................28 4.6. Band Edge Emissions Measurement .................................................................................................................................................52 4.7. Antenna Requirements .....................................................................................................................................................................60 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 61 6. TEST LOCATION.............................................................................................................................................. 63 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A6 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B8 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE......................................................................................... C1 ~C3 Report No.:…
