M4Y-AG623G2IEEE 802.11 a/b/g Wireless Network Mini PCI

Z-Com AG-623G2 IEEE 802.11 a/b/g Wireless Network Mini PCI User’s Manual V1.0 January 2010 Page 2 FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help. Page 3 CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users. For laptop installations, the antenna must be installed to ensure that the proper spacing is maintained in the event the users places the device in their lap during use (i.e. positioning of antennas must be placed in the upper portion of the LCD panel only to ensure 20 cm will be maintained if the user places the device in their lap for use) and The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: M4Y-AG623G2 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Page 4 IC Statement : This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than that permitted for successful communication. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems. The maximum antenna gain permitted (for devices in the band 5725-5825 MHz) to comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate, as stated in section A9.2(3). Page 5 IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, …

Text truncated - open the document above for the full version.

Page No. : 21 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2010/2/11 FCC ID: M4Y-AG623G2 Dear Reviewer, We, Sporton International Inc., are authorized by Z-Com, Inc. to have their state-of-the-art IEEE 802.11 a/b/g Wireless Network Mini PCI approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR5414A. 3. The requirements of section 15.203 and 15.204(C): Antenna requirements as defined in §15.203 and §15.204 are only met, when the radio module in conjunction with antenna 2/3 is only controlled integrated by Grantee or dedicated integrators into host devices subject to professional installation. Please reference the exhibition Test Report. 4. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 5. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 6. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 7. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Below items have not been fulfilled in module approval request: 1. The requirement of power supply regulation: No power regulator can provide stability power source. But specific of hosts have 3.3Vdc regulator to provide stability power via mini-PCI interface to EUT. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Z-Com, Inc. 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Tel: 886-3-5777364 Fax: 886-3-5773359 Professionally Installed Declaration FCC ID: M4Y-AG623G2 IC: 3195A - AG623G2 To whom it may concern, We declare that the combination of this modular approved transmitter module together with the antenna SMARTANT ZXL04-050280/ZXL05-200920 will only be integrated by ourself or dedicated integrators into host devices subject to professional installation to assure compliance with the antenna requirements as defined in §15,.203 and §15.204. Sincerely yours, Applicant’s company name : Z-Com, Inc. Applicant’s company address : 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Signature : _____________________________ Job Title and Dept. : Bradd Yu / R&D Deputy Manager E-Mail : [email protected] Tel. : 886-3-5777364

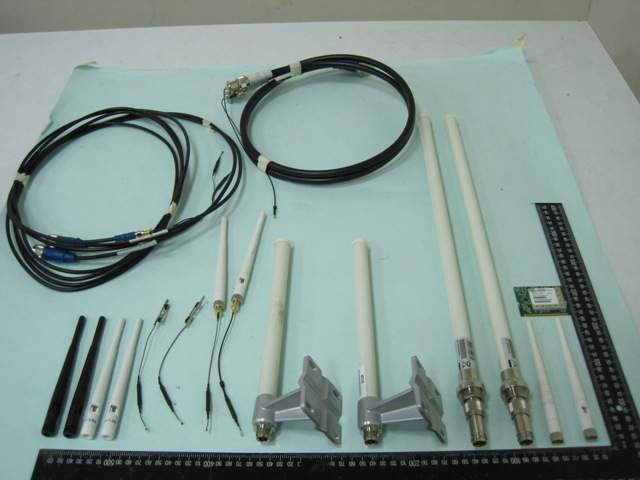

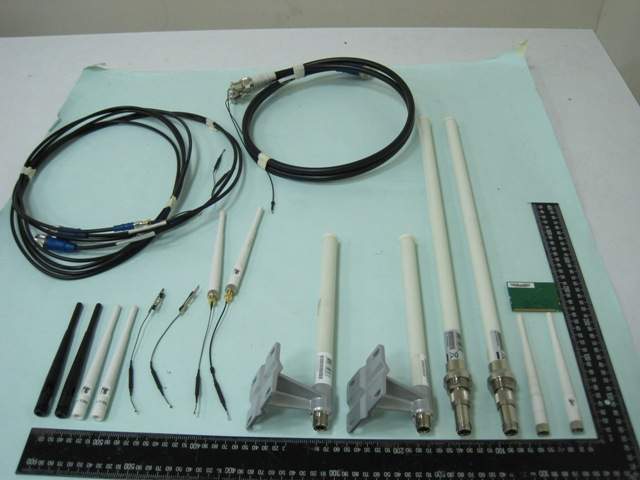

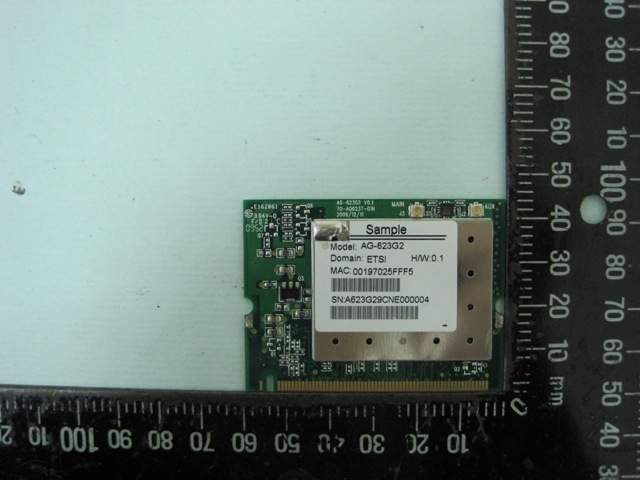

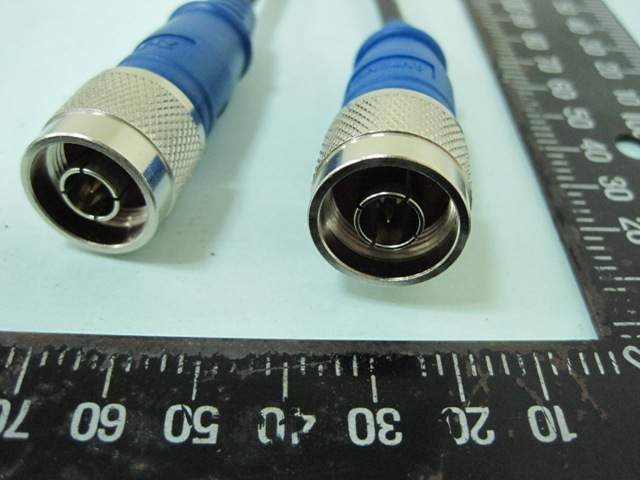

SPORTON International Inc. PAGE NUMBER : A1 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 Antenna 1 SPORTON International Inc. PAGE NUMBER : A6 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 Antenna 2 SPORTON International Inc. PAGE NUMBER : A7 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 Antenna 3 SPORTON International Inc. PAGE NUMBER : A9 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 Antenna 4 SPORTON International Inc. PAGE NUMBER : A12 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 Antenna 5 SPORTON International Inc. PAGE NUMBER : A13 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 Antenna 6 SPORTON International Inc. PAGE NUMBER : A14 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 Antenna 7

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 03, 2010 FAX : 886-2-2696-2255

Report No.: FR011919 FCC ID: M4Y-AG623G2 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR011919 FCC ID: M4Y-AG623G2 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR011919 FCC ID: M4Y-AG623G2 Page No. : C3 of C3 1.3. Calculated Result and Limit <For 5GHz Band>: Antenna Type : Omni Directional Antenna Max Conducted Power for IEEE 802.11g Ant. 2 :18.26 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.9 2.4547 18.2600 66.9885 0.032730 1 Complies <For 2.4GHz Band>: Antenna Type : Omni Directional Antenna Max Conducted Power for IEEE 802.11a Ant. 3 : 16.83 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.9 3.8905 16.8300 48.1948 0.037321 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Z-Com, Inc. Applicant Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan FCC ID M4Y-AG623G2 Manufacturer’s company Z-Com, Inc. Manufacturer Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Product Name IEEE 802.11 a/b/g Wireless Network Mini PCI Brand Name ZCOM Model Name AG-623G2 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Jan. 20, 2010 Final Test Date Jan. 29, 2010 Submission Type Original Equipment Statement Test result included is for the 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR011919AA Report Format Version: 01 Page No. : i of ii FCC ID: M4Y-AG623G2 Issued Date : Feb. 03, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................22 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................26 4.4. Power Spectral Density Measurement ..............................................................................................................................................31 4.5. Peak Excursion Measurement ...........................................................................................................................................................35 4.6. Radiated Emissions Measurement ....................................................................................................................................................39 4.7. Band Edge Emissions Measurement .................................................................................................................................................73 4.8. Frequency Stability Measurement ....................................................................................................................................................80 4.9. Antenna Requirements .....................................................................................................................................................................84 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 85 6. TEST LOCATION.............................................................................................................................................. 86 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 87 APPENDIX…

Text truncated - open the document above for the full version.

Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 1 of 12 Appendix B. Test Photos Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 2 of 12 1. Photographs of Conducted Emissions Test Configuration <For Antenna 3>: For 5GHz Band FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 3 of 12 <For Antenna 4>: For 2.4GHz / 5GHz Band FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 4 of 12 <For Antenna 5>: For 2.4GHz / 5GHz Band FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 5 of 12 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 6 of 12 30MHz~1GHz <For Antenna 3>: For 5GHz Band FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 7 of 12 <For Antenna 4>: For 2.4GHz / 5GHz Band FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 8 of 12 <For Antenna 5>: For 2.4GHz / 5GHz Band FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 9 of 12 Above 1GHz <For Antenna 3>: For 5GHz Band FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 10 of 12 <For Antenna 4>: For 2.4GHz / 5GHz Band FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 11 of 12 <For Antenna 5>: For 2.4GHz / 5GHz Band FRONT VIEW REAR VIEW Report No.: FR011919AA FCC ID: M4Y-AG623G2 Page No. : 12 of 12 SIDE VIEW
