M4Y-AN622V01IEEE 802.11 a/b/g/n Wireless mini-pci card

FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for anintent ional or unintentional ra diator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a reside ntial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from thatto which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help. CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users. For laptop installations, the antenna must be installed to ensure that the proper spacing is maintained in the event the users places the device in their lap during use (i.e. positioning of antennas must be placed in the upper portion of the LCD panel only to ensure 20 cm will be maintained if the user places the device in their lap for use) and The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 cond itions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met(for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ASDL modems, certain laptop configurations, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID:M4Y- AN622V01 ". RF Exposure Manual Information That Must be Included The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the device. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. 1. Introduction IEEE802.11 a/b/g/n dual band 2x2 Wireless Network Mini PCI Adapter is the perfect solution for your wireless network applications based on the IEEE 802.11n standard offering a data rate of up to 300Mbps in a wireless LAN environment. AN-622 can easily integrate into a wide range of devices such as Access Point, Router, ATUR, Printer Server series, IP Camera series and Internet Video Server, etc. The new MIMO wireless miniPCI offers dramatic performance improvement and backward compatible over standard 802.11a/b/g wireless devices. It provides high-speed wireless connection with data rate up to 300Mbps (two streams) and connects to farther distance. 2. Features .Dual band 802.11 a/b/g/n support 2Tx/2Rx to enable data rate up to 300Mbps link rate for 40MHz channel, six times the throughput of 802.11a and 802.11g. .802.11n Draft 2.0 compliant Wi-Fi solution. Fully compatible with 802.11a/b/g legacy devices. .Compatible with Wi-Fi Wireless Products and Services .High system integration drives. .Two UF-L Connectors for External Antenna .Features WEP, WPA-AES hardware-based and TKIP security capabilities. 3. Hardware Installation The following sections in this chapter describe how to install AN-622 Module 3.1. Installation Overview AN-622 wireless module is design for Access Point, Router, ATU-R, Printer Server series, IP Camera series and Internet Video Server only. 3.2. Safety Recommendations The safety guidelines are as …

Text truncated - open the document above for the full version.

Page No. : 22 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2010/7/20 FCC ID: M4Y-AN622V01 Dear Reviewer, We, Sporton International Inc., are authorized by Z-Com, Inc. to have their state-of-the-art IEEE 802.11 a/b/g/n Wireless mini-pci card approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR922x. 3. The requirement of power supply regulation: The part number of the power regulator is AME88052EFTZ. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

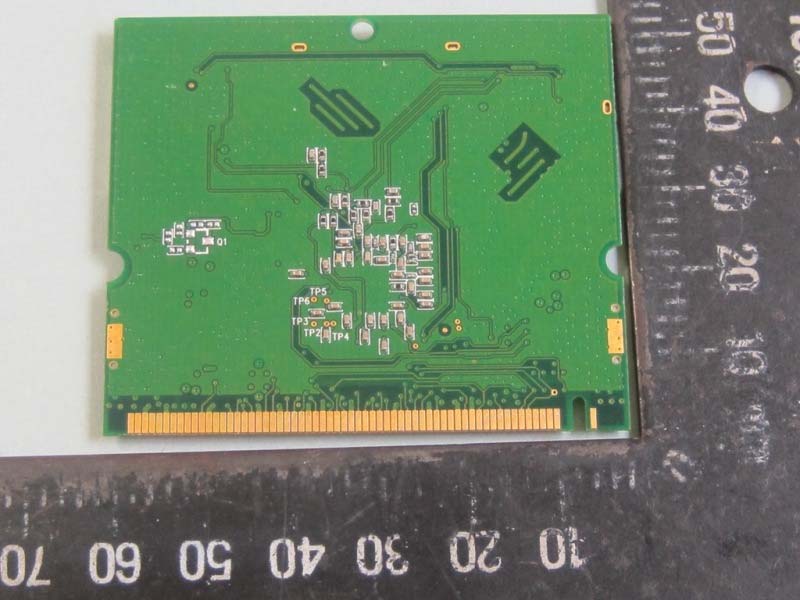

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 05, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 05, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 05, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 05, 2010 FAX : 886-2-2696-2255

Label size: 31mm*16mm

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 05, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 05, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 05, 2010 FAX : 886-2-2696-2255

Report No.: FR062421 FCC ID: M4Y-AN622V01 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR062421 FCC ID: M4Y-AN622V01 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR062421 FCC ID: M4Y-AN622V01 Page No. : C3 of C3 1.3. Calculated Result and Limit <For 5GHz Band>: For 5GHz ISM Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11an MCS8 20MHz Ant. 1 + Ant. 2 : 25.43 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 25.4322 349.3209 0.110198 1 Complies For 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11an MCS8 40MHz Ant. 1 + Ant. 2 : 23.93 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 23.9322 247.2981 0.078014 1 Complies <For 2.4GHz Band>: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11g Ant. 1 + Ant. 2 : 28.34 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 28.3363 681.7637 0.215072 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Z-Com, Inc. Applicant Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan FCC ID M4Y-AN622V01 Manufacturer’s company Z-Com, Inc. Manufacturer Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Product Name IEEE 802.11 a/b/g/n Wireless mini-pci card Brand Name Z-COM Model Name AN-622 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5350MHz / 5470 ~ 5725MHz Received Date Jun. 24, 2010 Final Test Date Jul. 02, 2010 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5350MHz / 5470 ~ 5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR062421AA Report Format Version: 01 Page No. : i of ii FCC ID: M4Y-AN622V01 Issued Date : Jul. 05, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................12 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................16 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................24 4.4. Power Spectral Density Measurement ..............................................................................................................................................35 4.5. Peak Excursion Measurement ...........................................................................................................................................................41 4.6. Radiated Emissions Measurement ....................................................................................................................................................47 4.7. Band Edge Emissions Measurement .................................................................................................................................................78 4.8. Frequency Stability Measurement ....................................................................................................................................................88 4.9. Antenna Requirements .....................................................................................................................................................................90 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 91 6. TEST LOCATION.............................................................................................................................................. 92 7. TAF CERTIFICATE OF ACCREDITATION .........…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC Dynamic Frequency Selection Test Report Applicant’s company Z-Com, Inc. Applicant Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan FCC ID M4Y-AN622V01 Manufacturer’s company Z-Com, Inc. Manufacturer Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Product Name IEEE 802.11 a/b/g/n Wireless mini-pci card Brand Name Z-COM Model Name AN-622 Test Standard(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5250~5350 / 5470~5725 MHz Received Date Jun. 24, 2010 Final Test Date Jun. 25, 2010 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FZ062421 Report Format Version: 01 Page No. : i of ii FCC ID: M4Y-AN622V01 Issued Date : Jul. 05, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Standard Requirement .......................................................................................................................................................................3 3.2. Product Specification Table................................................................................................................................................................3 3.3. Accessories .........................................................................................................................................................................................5 3.4. Table for DFS Band Carrier Frequencies .............................................................................................................................................5 3.5. Antenna Information on DFS Band......................................................................................................................................................6 4. DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS ............................................................................. 7 4.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring.........................................................................7 4.2. DFS Response requirement values......................................................................................................................................................8 4.3. Radar Test Waveforms Minimum Step.................................................................................................................................................9 4.4. Short Pulse Radar Test Waveforms ......................................................................................................................................................9 4.5. Long Pulse Radar Test Waveform......................................................................................................................................................10 4.6. Frequency Hopping Radar Test Waveform.......................................................................................................................................12 4.7. Conducted Calibration Setup ..........................................................................................................................................................14 4.8. Radar Waveform Calibration Procedure ..........................................................................................................................................15 4.9. Calibration Deviation........................................................................................................................................................................15 4.10. Radar Waveform Calibration Result .................................................................................................................................................16 5. TEST SETUP AND TEST RESULT............................................................................................................................ 17 5.1. Test setup ..........................................................................................................................................................................................17 5.2. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement 23 6. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 33 7. TEST LOCATION.............................................................................................................................................. 34 8. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 35 APPENDIX A. PHOTOGRAPHS OF EUT...................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR062421 FCC ID: M4Y-AN622V01 Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR062421 FCC ID: M4Y-AN622V01 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR062421 FCC ID: M4Y-AN622V01 Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR062421 FCC ID: M4Y-AN622V01 Page No. : 4 of 6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR062421 FCC ID: M4Y-AN622V01 Page No. : 5 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR062421 FCC ID: M4Y-AN622V01 Page No. : 6 of 6 SIDE VIEW
