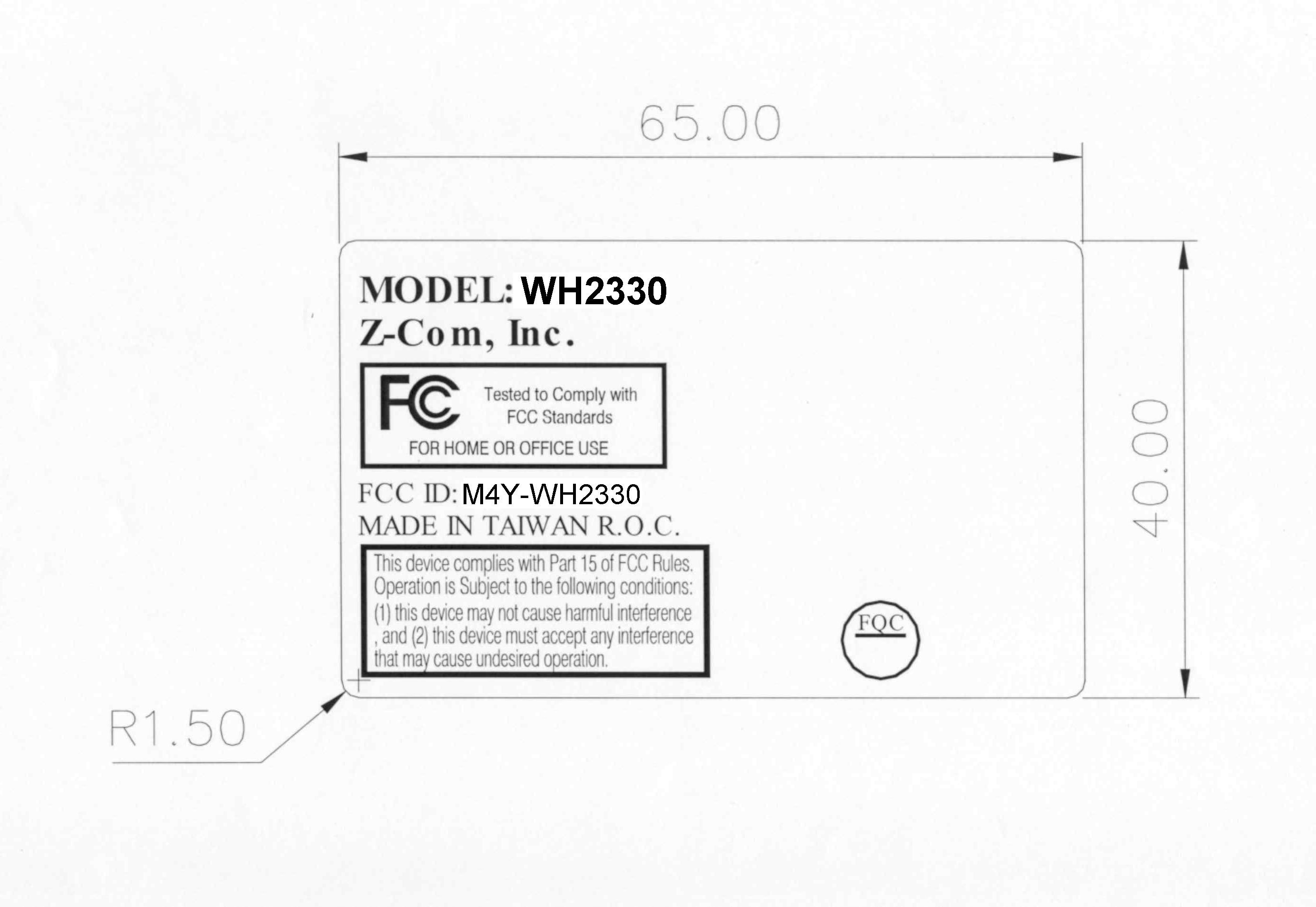

M4Y-WH2330

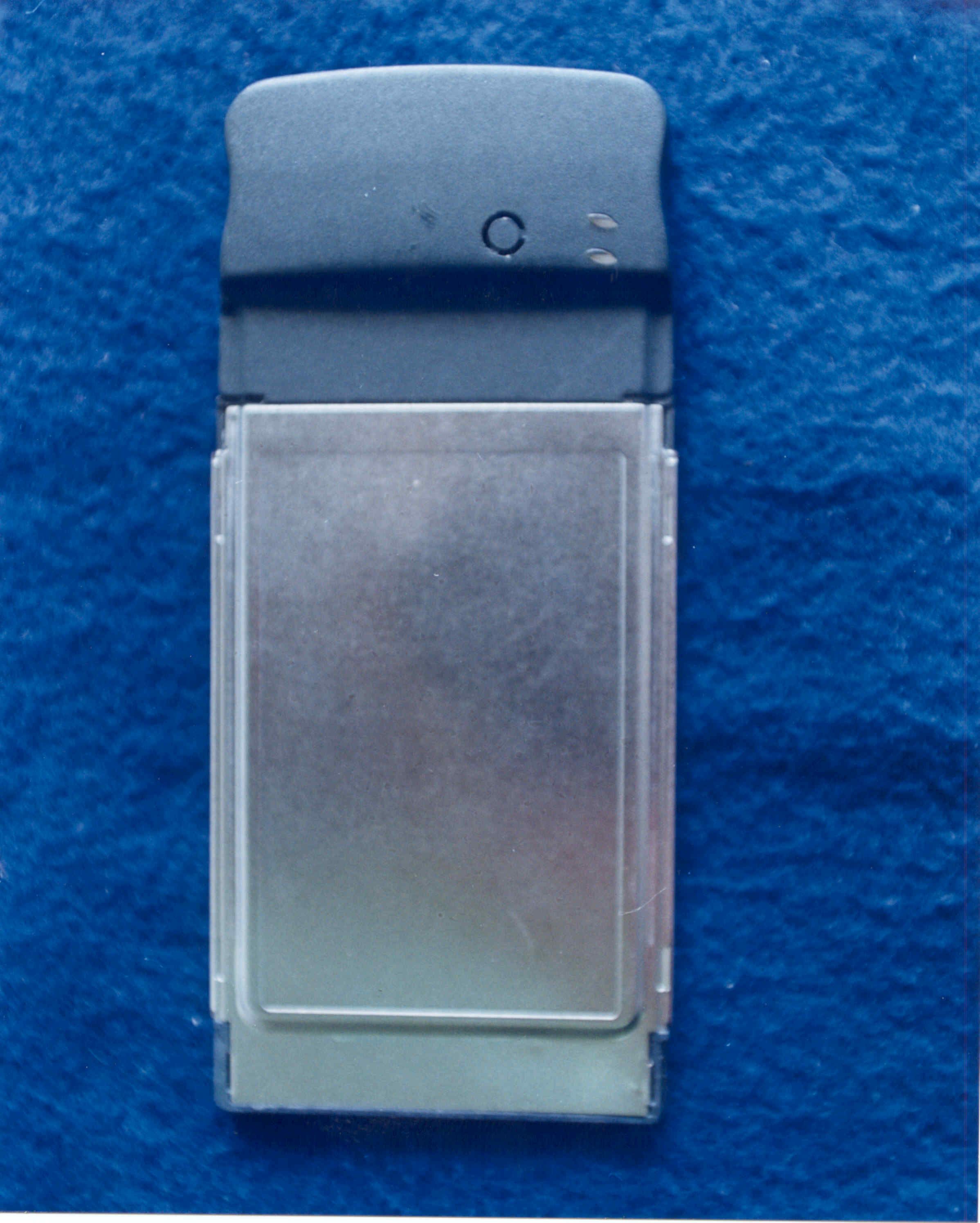

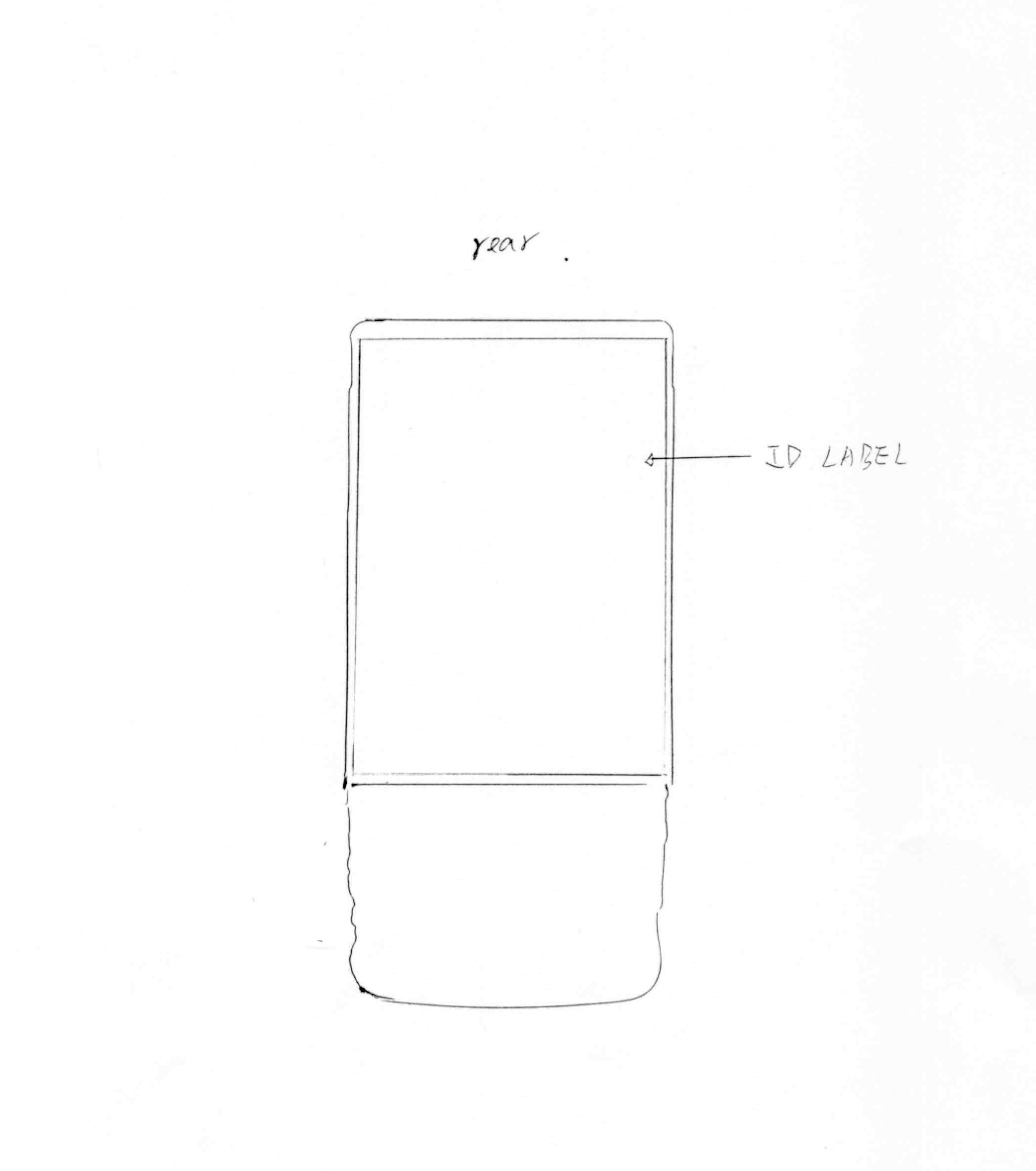

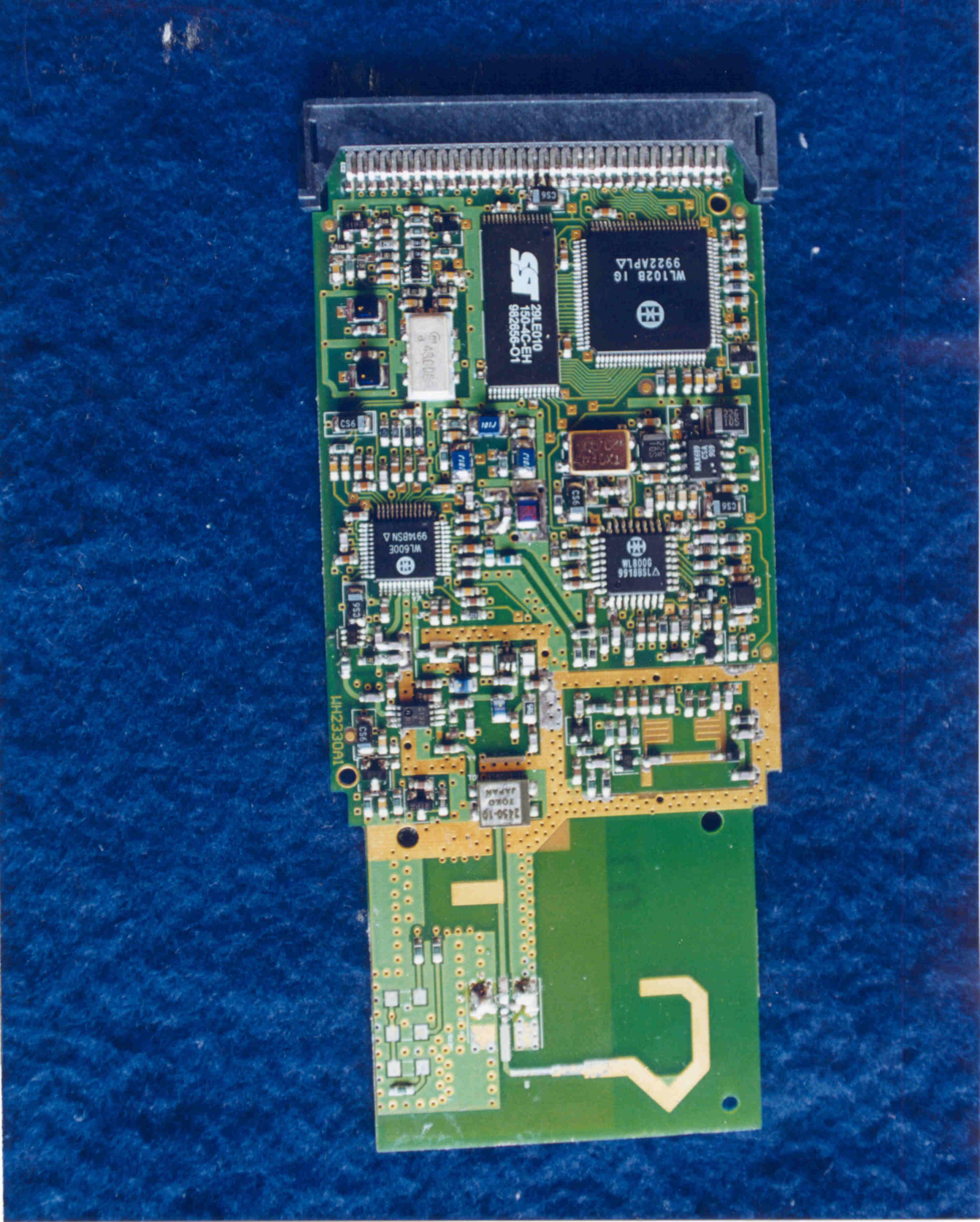

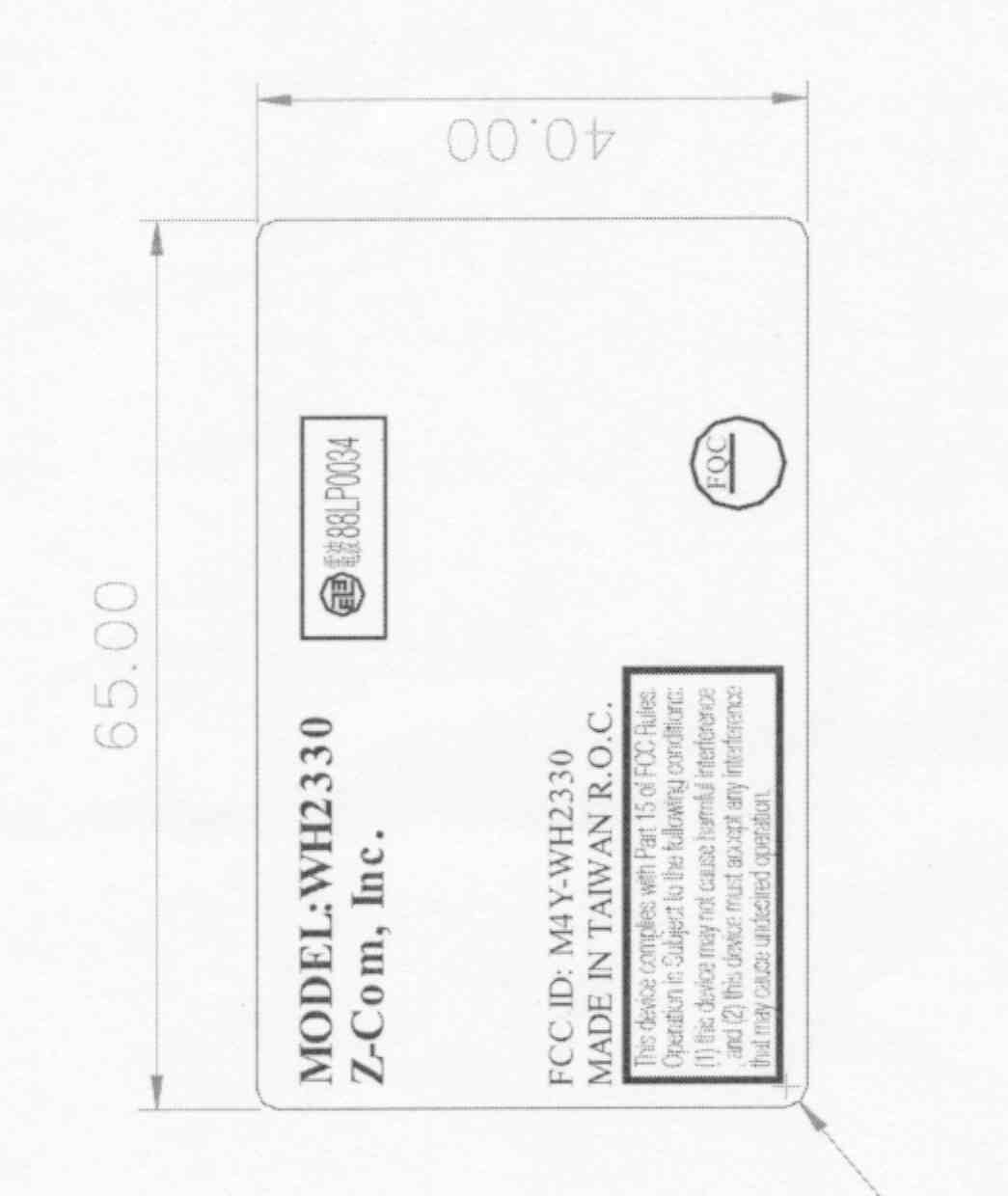

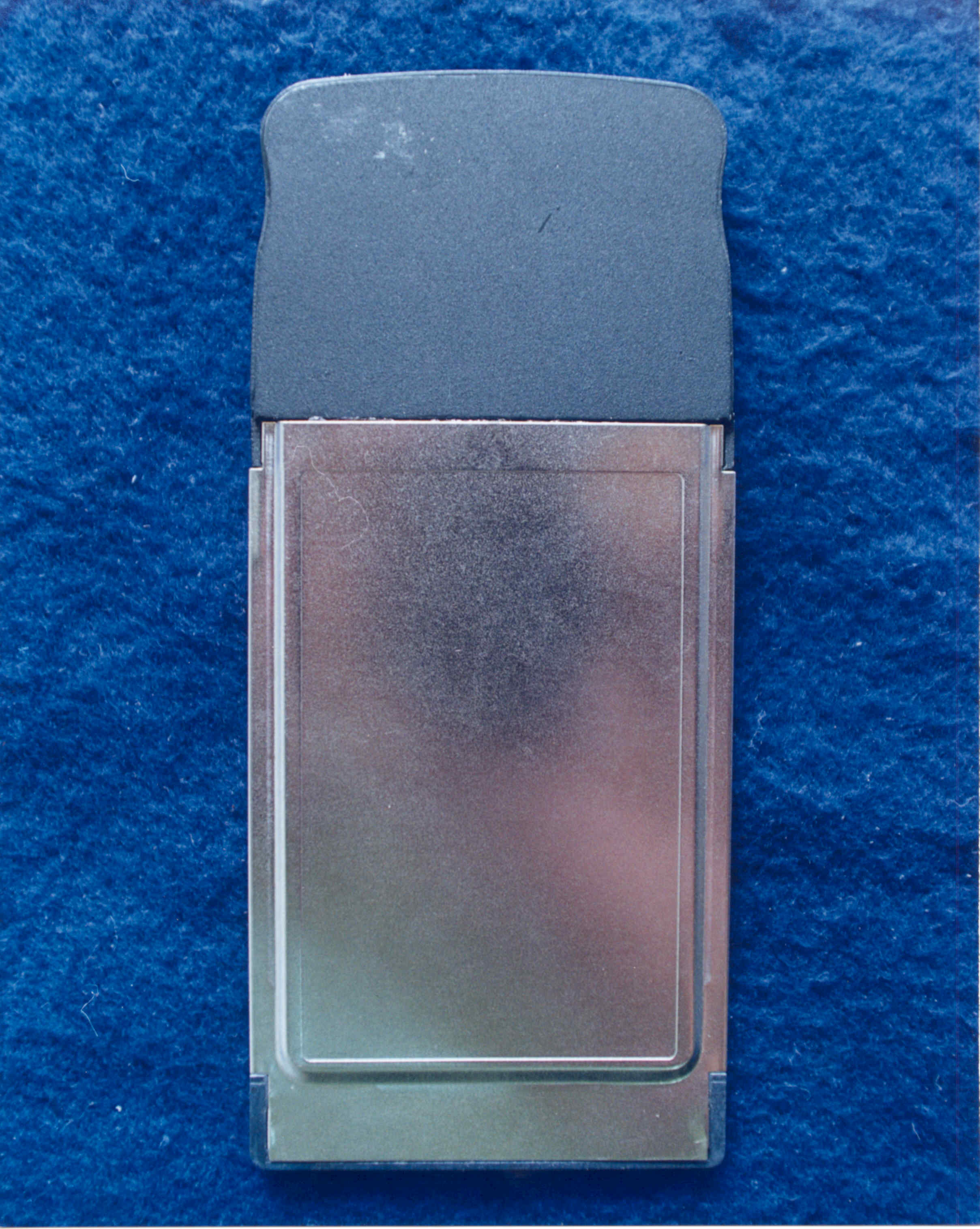

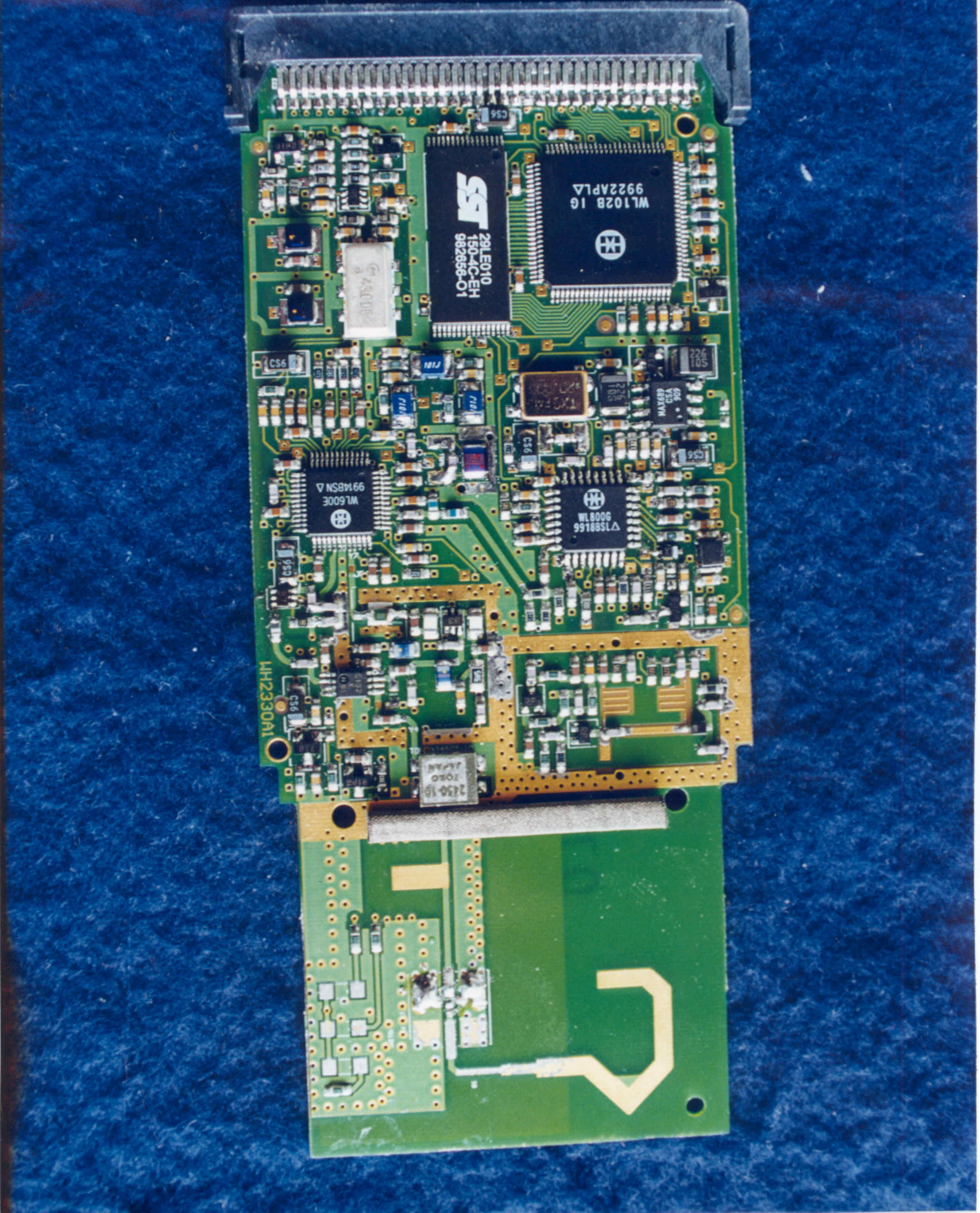

L L A A N N E E s s c c a a p p e e T T M M W W H H 2 2 3 3 3 3 0 0 PCMCIA Adapter Z Z - - C C o o m m , , I I n n c c . . FCC Information This equipment has been tested and found to comply with the limits for a Class B digital devices pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. Operation of this equipment in residential area is likely to cause harmful interference in which case the user will be required to correct the interference at this own expense. The user should not modify or change this equipment without written approval of the company. Modification could make invalid any authority to use this equipment. It is unsafe to work under circumstances in which the RF exposure exceeds recommended amount. To prevent the situation happening, people who work with the antenna should be aware of the following rules: 1. Install the antenna so that a 20 cm distance can be kept from the antenna. 2. While installing the antenna in the location, please do not turn on the power of the wireless card. 3. While the device is working, please do not contact the antenna. 1 Copyright Copyright © 1998 Z-Com, Inc., all rights reserved. No part of this publication may be reproduced, adapted, stored in a retrieval system, translated into any language, or transmitted in any form or by any means without the written permission of Z-Com, Inc. Trademarks LANEscape and Z-Com are trademarks of Z-Com, Inc., all other trademarks throughout this manual are the property of their respective companies. Limited Warranty In no event will Z-Com be liable for any damage, including loss of data or profits, cost of cover, or other incidental, consequential or indirect damages arising from the installation, maintenance, use, performance, failure or interruption of Z-Com’s products, whatever caused and on any theory of liability. This limitation will apply even if Z-Com has been advised of the possibility of such damage. Technical Support Address: 7F-2, No.9, Prosperity 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan Tel. No.: +886-3-5777364 Fax No.:+886-3-5773359 E-mail:[email protected] Web Site: http://www.zcom.com.tw About This Manual The purpose of this manual is to assist users in the setup of the product LANEscape WH2330, the Wireless LAN PCMCIA. This manual, revised as version 2.0 in 1999, includes procedures that will help users to avoid unforeseen problems. Contents Chapter 1 Windows 95 Set-up and Configuration ............................. 5 1-1 Installing the WH2330 Windows 95 Network Driver ...................................................... 5 1.2 Re-installing / Upgrading the WaveRider-II network drivers. .......................................... 6 1.3 Operational / Optional Characteristics of the WH2330 .................................................... 8 Chapter 2 Using the WH2330 Upgrade Utility .................................. 11 Appendix WH2330 Specifications ....................................................... 12 Chapter 1 Windows 95 Set-up and Configuration 1-1 Installing the WH2330 Windows 95 Network Driver The WH2330 (Mitel Semiconductor WaveRider-II) network adapter is a plug and play adapter. If the driver is being installed for the first time, then the installation is simple and straightforward. If the WH2330 is being upgraded or re-installed then pleaase see Section 1.2.

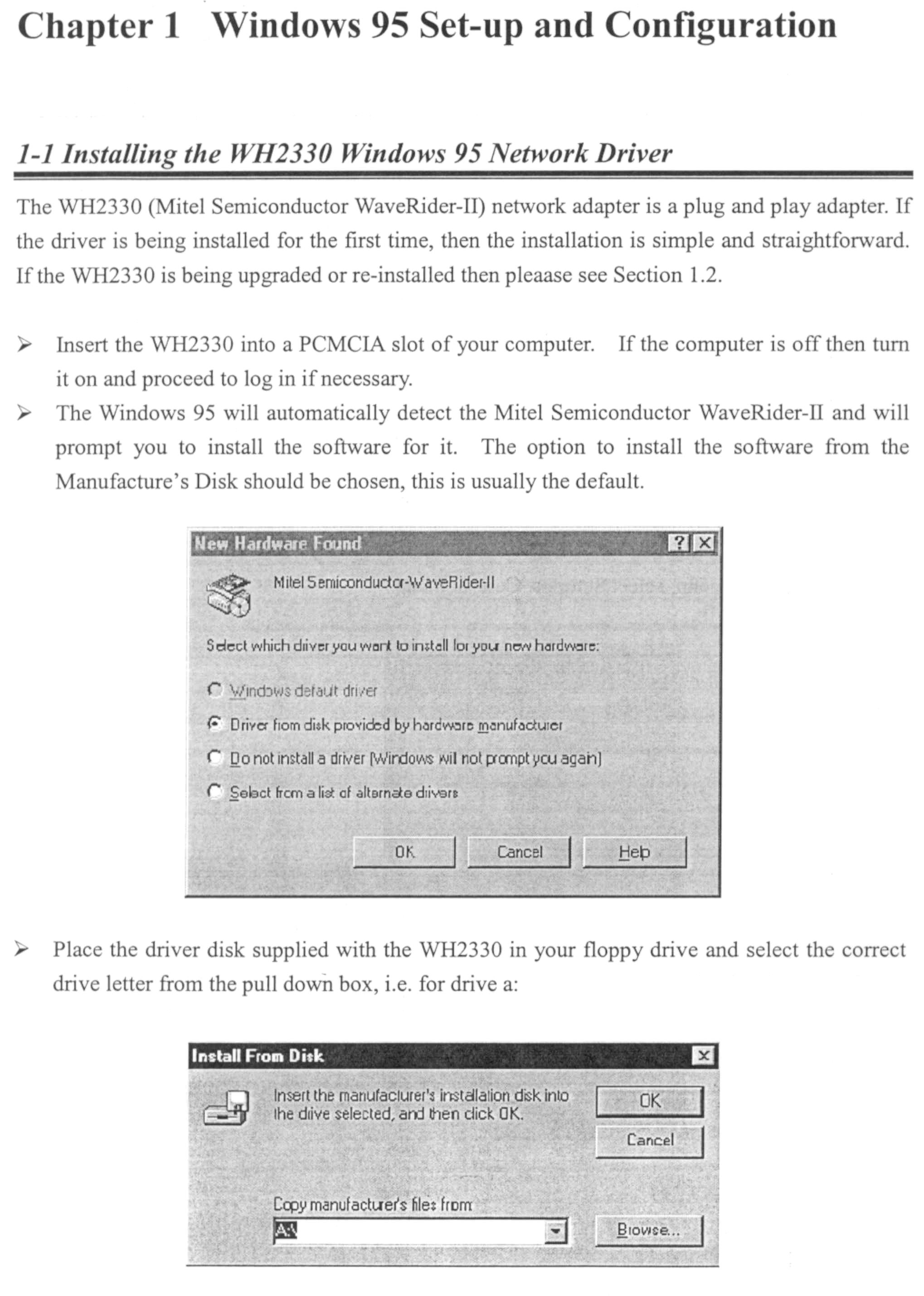

Insert the WH2330 into a PCMCIA slot of your computer. If the computer is off then turn it on and proceed to log in if necessary.
The Windows 95 will automatically detect the Mitel Semiconductor WaveRider-II and will prompt you to install the software for it. The option to install the software from the Manufacture’s Disk should be chosen, this is usually the default.
Place the driver disk supplied with the WH2330 in your floppy drive and select the correct drive letter from the pull down box, i.e. for drive a:

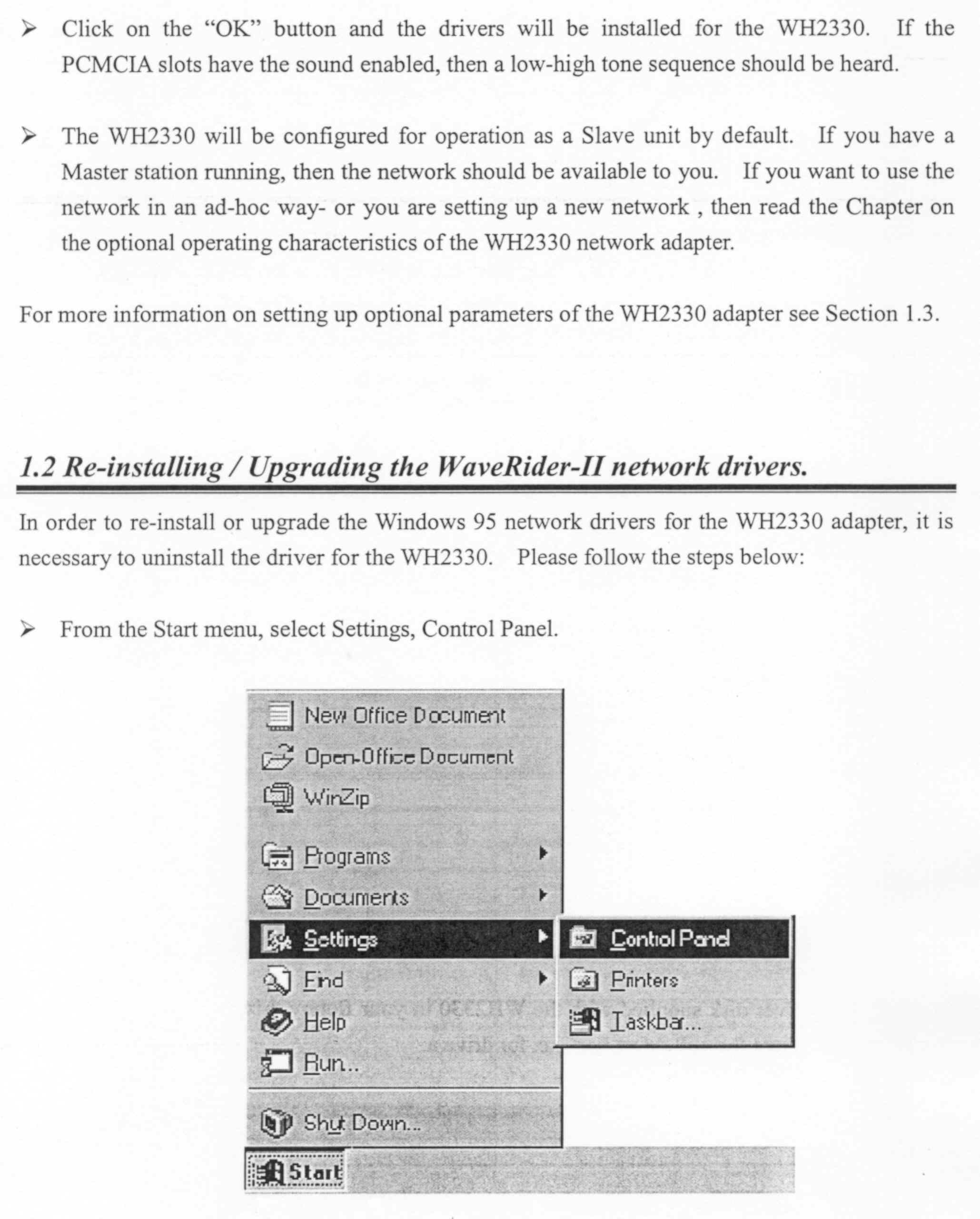

Click on the “OK” button and the drivers will be installed for the WH2330. If the PCMCIA slots have the sound enabled, then a low-high tone sequence should be heard.
The WH2330 will be configured for operation as a Slave unit by default. If you have a Master station running, then the network should be available to you. If you want to use the network in an ad-hoc way- or you are setting up a new network , then read the Chapter on the optional operating characteristics of the WH2330 network adapter. For more information on setting up optional parameters of the WH2330 adapter see Section 1.3. 1.2 Re-installing / Upgrading the WaveRider-II network drivers. In order to re-install or upgrade the Windows 95 network drivers for the WH2330 adapter, it is necessary to uninstall the driver for the WH2330. Please follow the steps below:

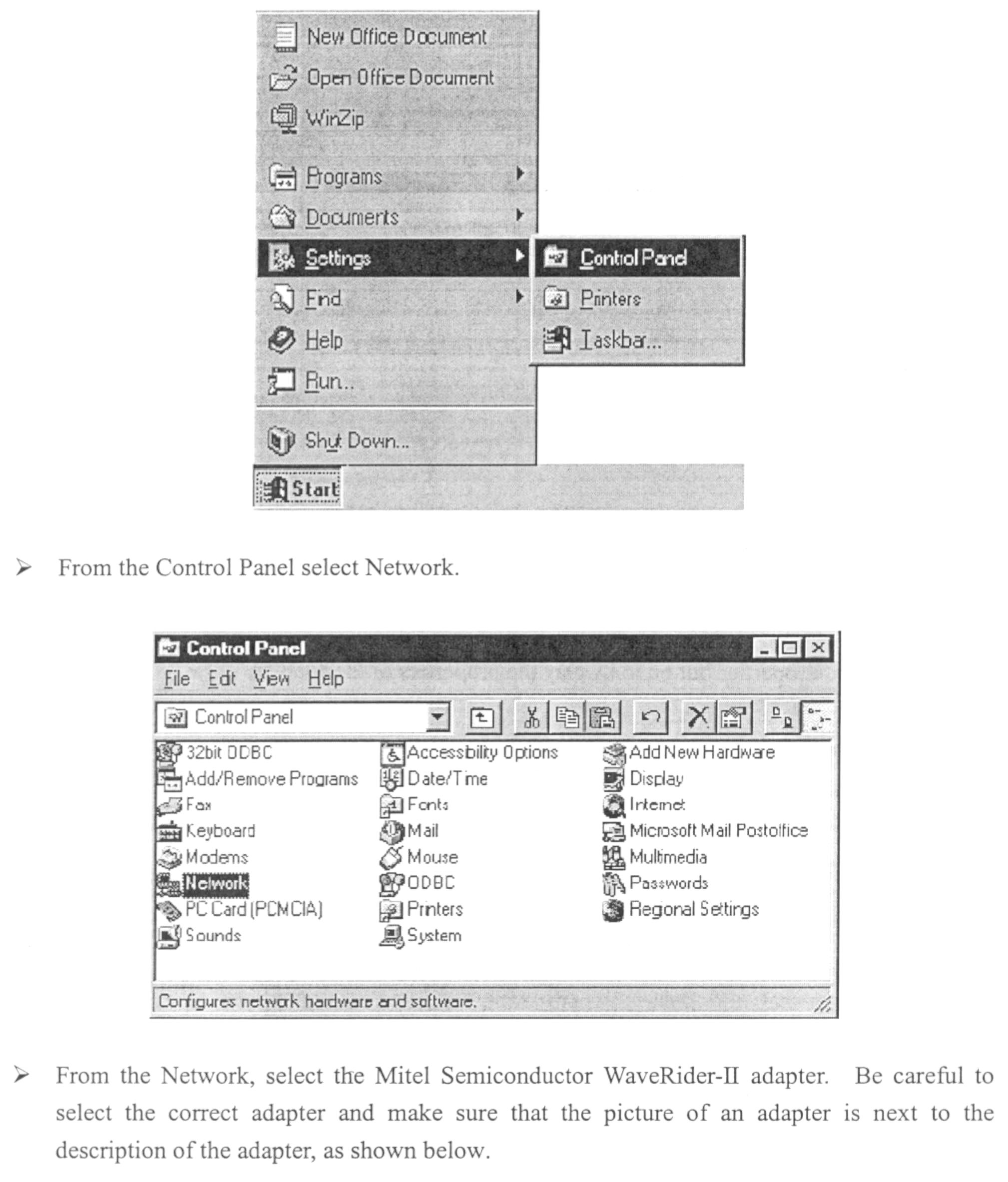

From the Start menu, select Settings, Control Panel.

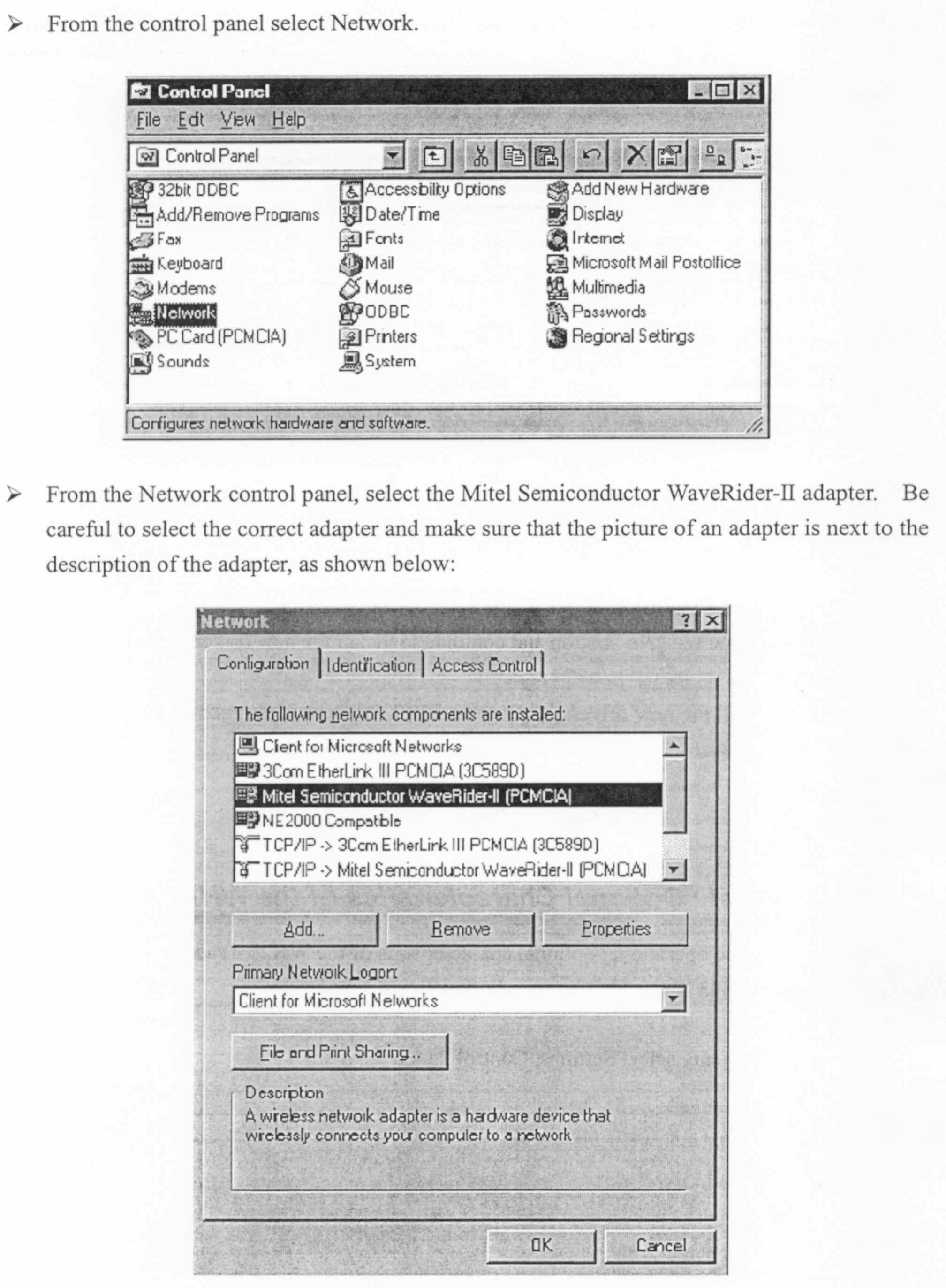

From the control panel select Network.
From the Network control panel, select the Mitel Semiconductor WaveRider-II adapter. Be careful to select the correct adapter and make sure that the picture of an adapter is next to the description of the adapter, as shown below:

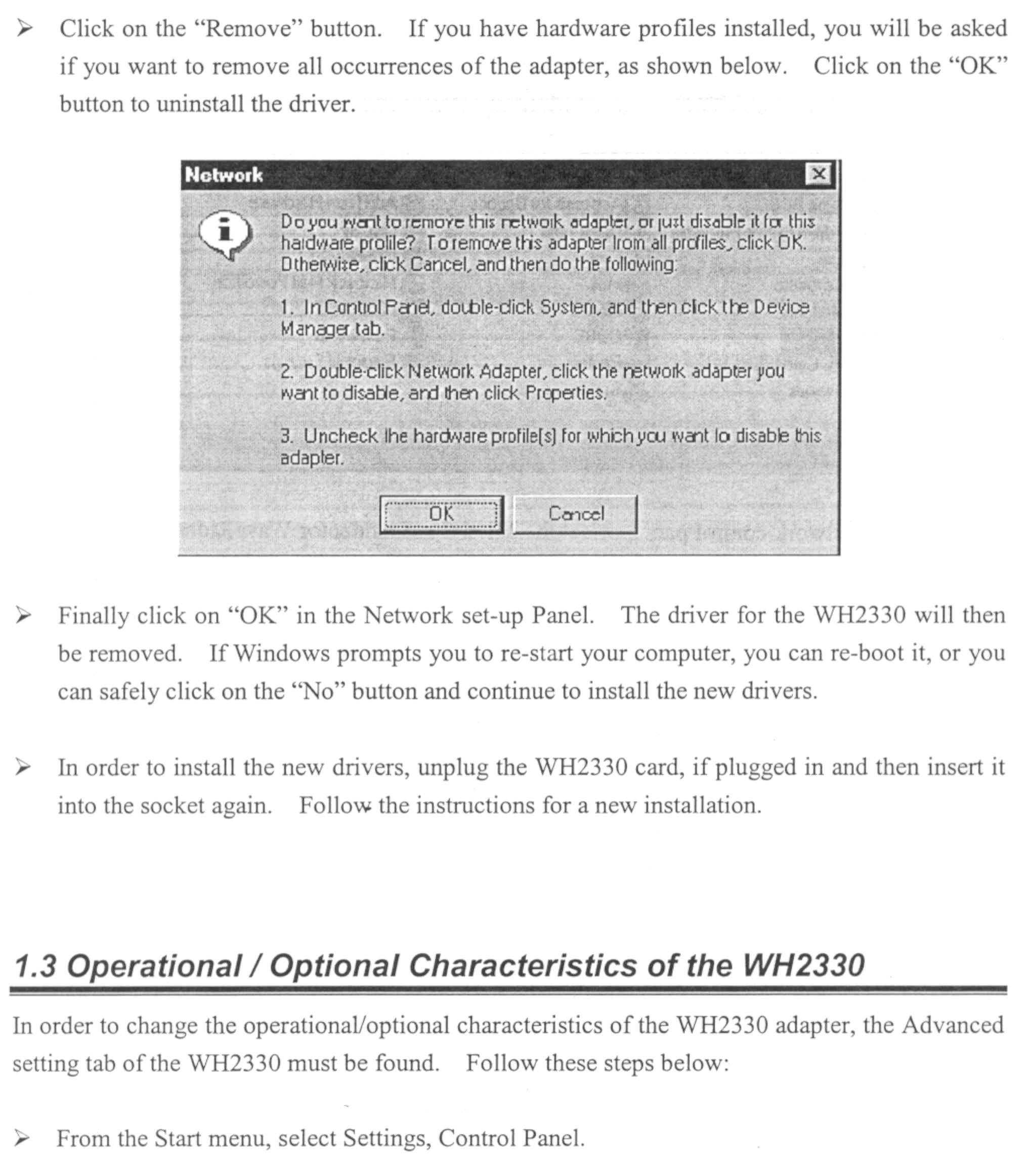

Click on the “Remove” button. If you have hardware profiles installed, you will be asked if you want to remove all occurrences of the adapter, as shown below. Click on the “OK” button to uninstall the driver.
Finally click on “OK” in the Network set-up Panel. The driver for the WH2330 will then be removed. If Windows prompts you to re-start your computer, you can re-boot it, or you can safely click on the “No” button and continue to install the new drivers.
In order to install the new drivers, unplug the WH2330 card, if plugged in and then insert it into the socket again. Follow the instructions for a new installation…

Text truncated - open the document above for the full version.

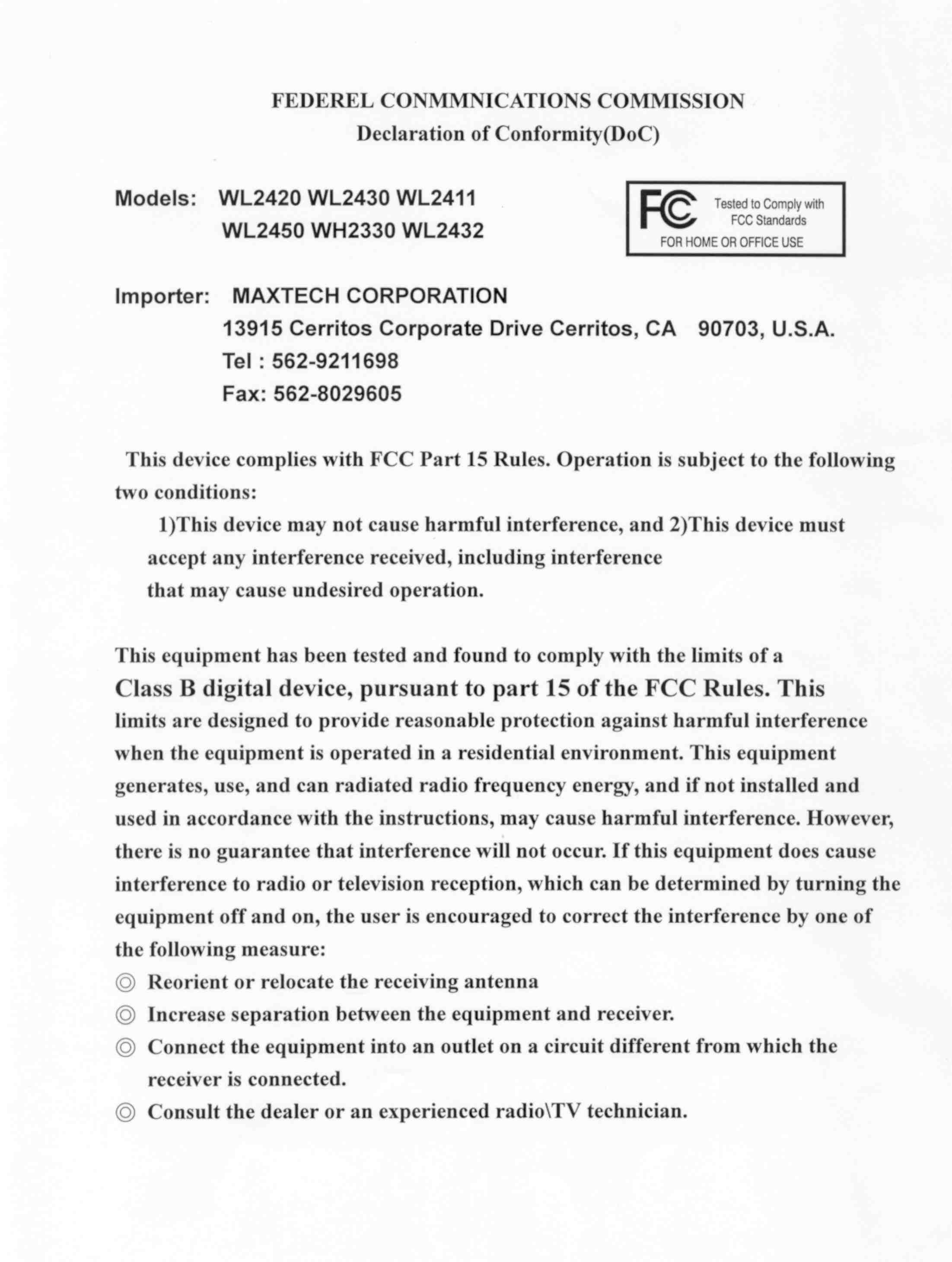

FEDEREL CONMMNICATIONS COMMISSION Declaration of Conformity(DoC) Models: WL2420 WL2430 WL2411 WL2450 WH2330 WL2432 Z-Card 210 VG300 Importer: MAXTECH CORPORATION 13915 Cerritos Corporate Drive Cerritos, CA 90703, U.S.A. Tel : 562-9211698 Fax: 562-8029605 This device complies with FCC Part 15 Rules. Operation is subject to the following two conditions: 1)This device may not cause harmful interference, and 2)This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC Rules. This limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, use, and can radiated radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measure:  Reorient or relocate the receiving antenna  Increase separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from which the receiver is connected.  Consult the dealer or an experienced radio\TV technician.

FEDEREL CONMMNICATIONS COMMISSION Declaration of Conformity(DoC) Models: WL2420 WL2430 WL2411 WL2450 WH2330 WL2432 Z-Card 210 VG300 Importer: MAXTECH CORPORATION 13915 Cerritos Corporate Drive Cerritos, CA 90703, U.S.A. Tel : 562-9211698 Fax: 562-8029605 This device complies with FCC Part 15 Rules. Operation is subject to the following two conditions: 1)This device may not cause harmful interference, and 2)This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC Rules. This limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, use, and can radiated radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measure:  Reorient or relocate the receiving antenna  Increase separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from which the receiver is connected.  Consult the dealer or an experienced radio\TV technician.

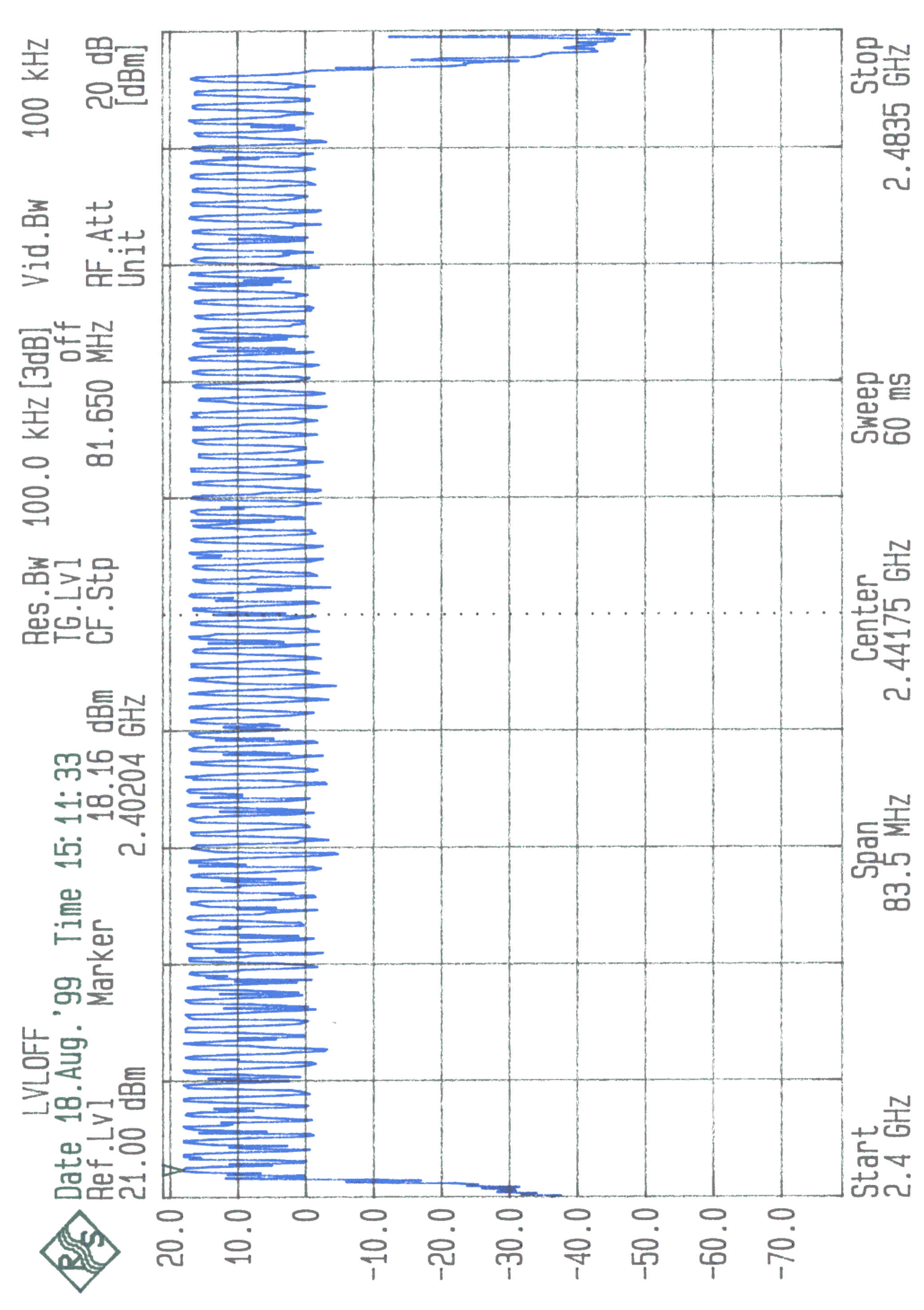

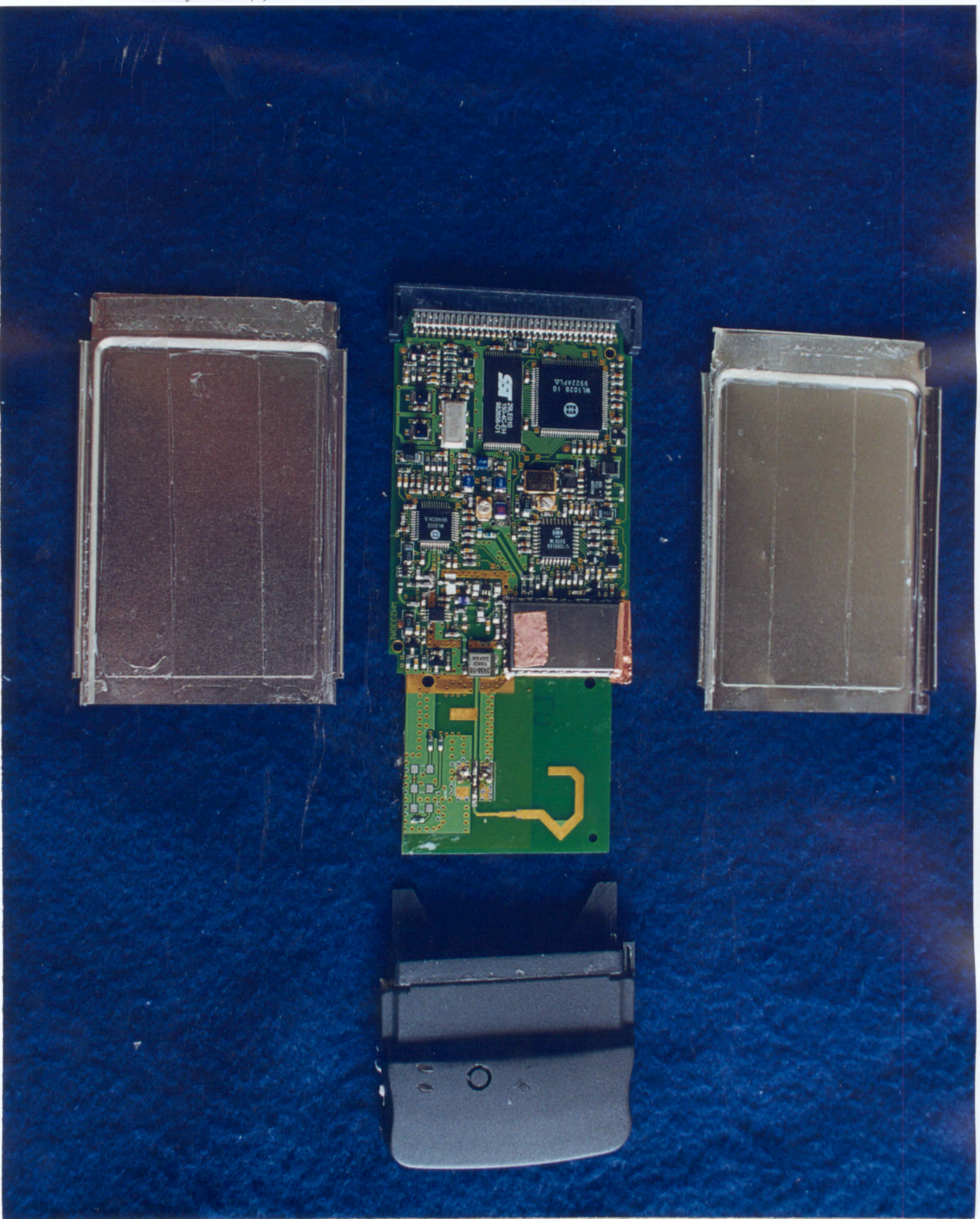

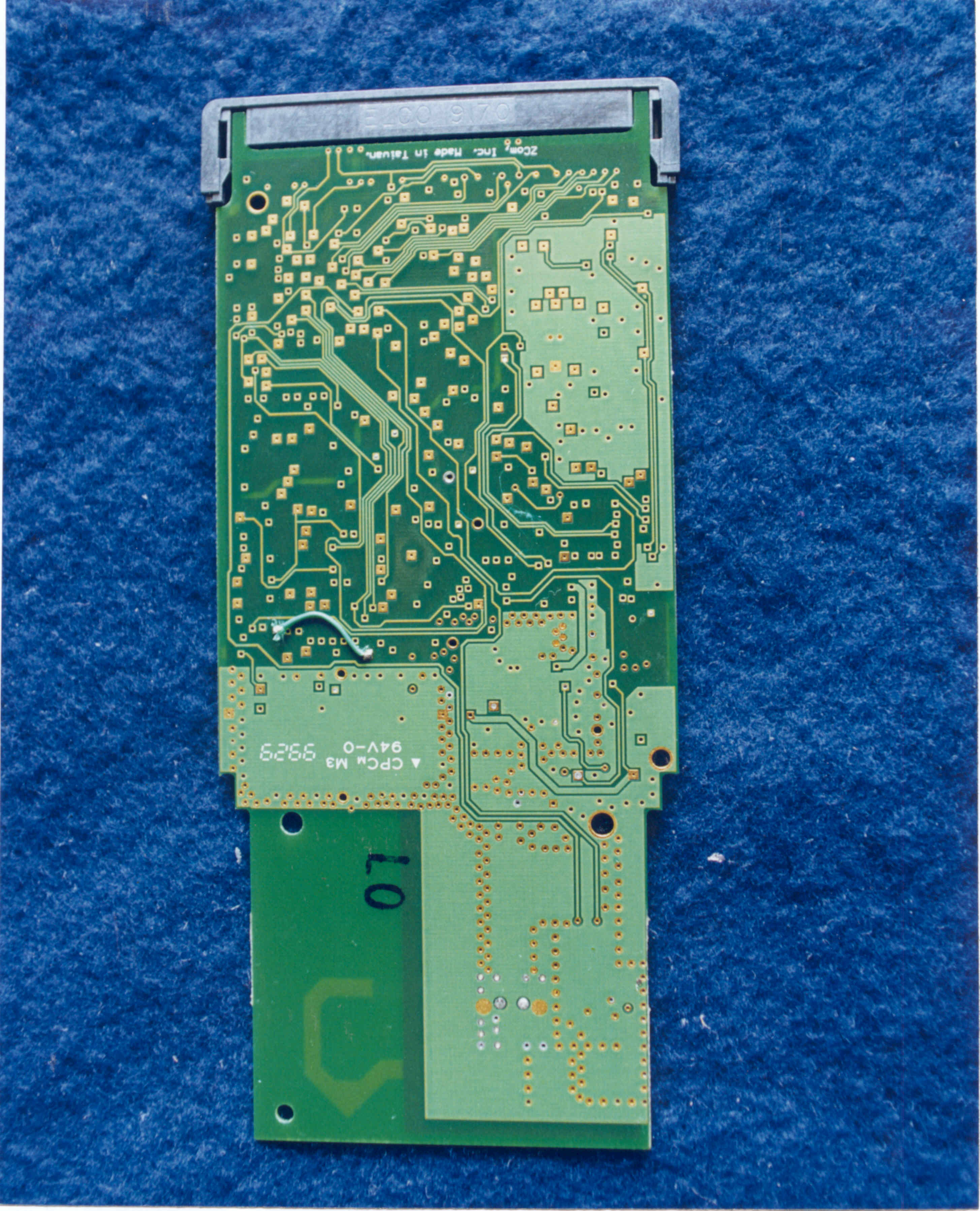

The LANEscape designed with a transmitting method of frquency hopping spread spectrum is for local area network operation, which operates at 2.4 GHz ISM band and data rate up to 2Mbps. For operation of this device, it is asked for maintaining a minimum space of 20 cm from the operator or any by standing in the user’s manual. The on-air protocol and radio characteristic conform to the IEEE 802.11 stabdard (frequency hopping). The ethernet port is compatible with the IEEE 802.3.3-1993 and uses STP interface. It nominal rated output power is 20 dBm.

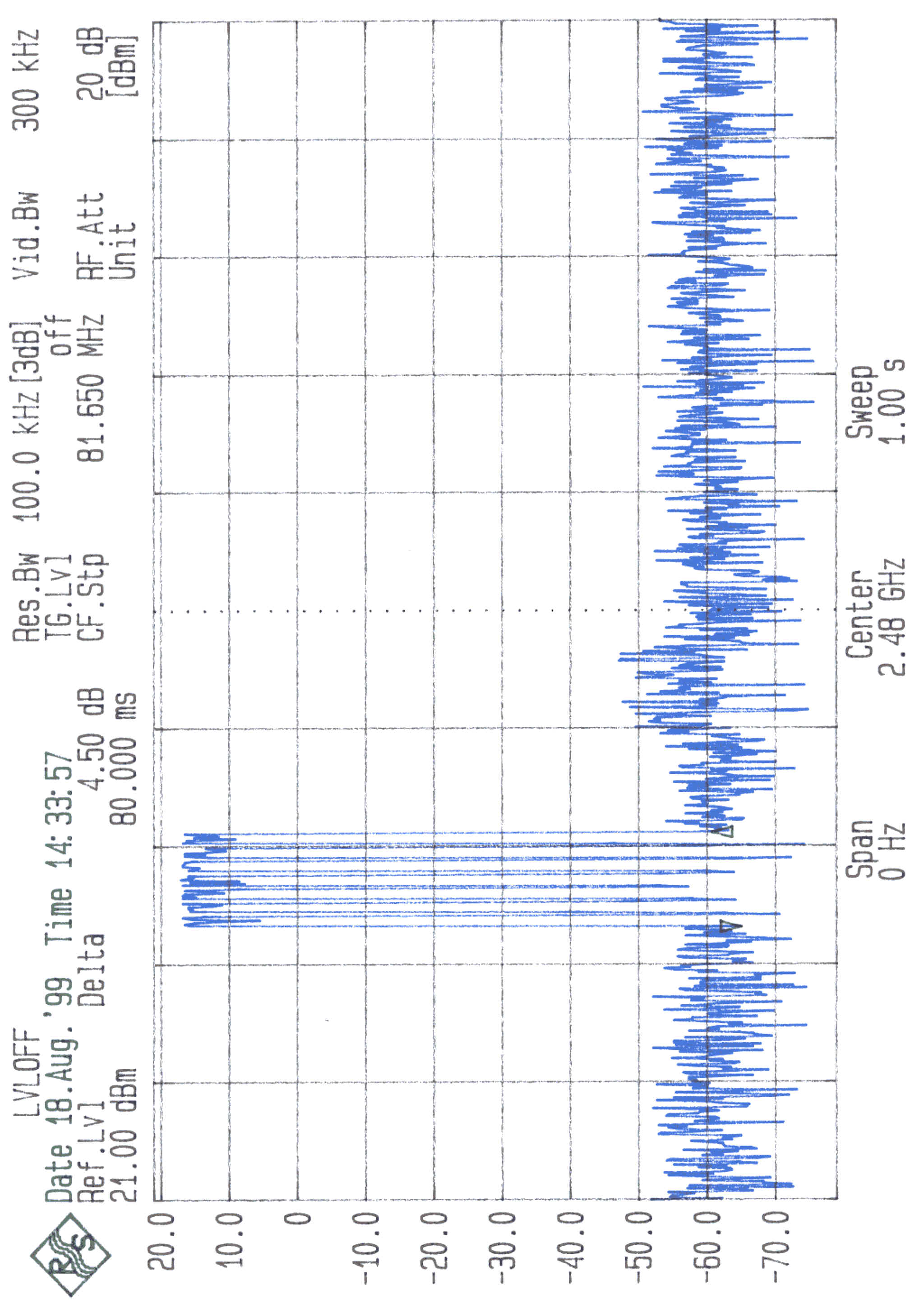

This is an unpublished work, the copyright of which vests in MITEL Semiconductor. All rights reserved. The information contained herein is the property of MITEL Semiconductor and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorised by contract or other written permission. The copyright and the forgoing restriction on reproduction and use extend to all media in which information may be embodied. COMMS DEVELOPMENT GROUP Version 1.0 4 March 1999 MAC Protocol Theory of Operation This applications note details the operating theory of the Mitel MAC protocol such that its operation can be confirmed to regulatory bodies in attaining approval certification. MAC Protocol Theory of Operation The information on this page is COMMERCIAL in CONFIDENCE and its use is restricted to that specified on the front page. The radio controller used with the Mitel Semiconductor ‘Wave’ chip-set, referred to as [xxxxxx], uses a CSMA/CA based protocol for frequency hopping radios. Transmit Duty Cycles The dwell time - the time spent on each channel is 80.00 milliseconds. Data is exchanged through one of two transaction sequences which are: 1. RTS-CTS-DATA-ACK(Request to Send, Clear to Send, Data, Acknowledgement) 2. DATA-ACK(Data, Acknowledgement) The decision on which sequence to use is based upon the length of data. Data blocks greater than 200 bytes use sequence 1. Shorter data blocks use sequence 2. These transactions will only occur when there is enough remaining dwell time for the entire transaction to take place. 1) Each RTS frame takes 0.470 ms to transmit. 2) Each CTS frame takes 0.420 ms to transmit. 3) Each ACK frame takes 0.410 ms to transmit. 4) Each DATA frame takes 0.342 ms + (0.0085*bytes) ms to transmit. 5) The RTS-CTS interframe gap is 0.355 ms. 6) The CTS-Data interframe gap is 0.320 ms. 7) The Data-Ack interframe gap is 0.360 ms. 8) The inter-transaction gap (Ack to next CTS) is 0.300 ms. The largest data frame that can be transmitted is 1514 bytes. a) Unicast Traffic The worst-case duty cycle (e.g. the longest time spent in Transmit Mode) occurs when only two stations are present on a given network – the transmitter and the receiver. If more stations are present, each one will have to contend for access to the channel, resulting in a reduced duty cycle and thus reduced emissions from any one unit. MAC Protocol Theory of Operation The information on this page is COMMERCIAL in CONFIDENCE and its use is restricted to that specified on the front page. The Timing diagram for the worst case is as follows: Sending Station Receiving Station CTS1DATA1 RTS1ACK1 CTS2 RTS2 Shaded Area = Unit Transmitting. Diagram Not To Scale Transaction Time= RTS+CTS+IFG+DATA(1514)+IFG+ACK+IFG = 15.431 ms Sending Station “Tx” Time= RTS + DATA(1514 bytes) = 13.681ms* Receiving Station “Tx” Time = CTS + ACK = 0.830 ms *(Note that this is the worst case in that the sending station spends the most time in “Tx”) Primary “Tx” Duty Cycle= 13.681 / 15.431 = 0.8866 or 88.66% (Sending Station) Since five transactions could be performed in one Dwell Time: “Tx” Duty Cycle for Total Channel Dwell Time = 13.681 * 5 / 80.00 = 0.8550 or 85.50% (Sending Station) “Tx” Duty Cycle per Title 47, Part 15.35 (c) of CFR (“pulse train less than 0.1 seconds” or 100ms) is the Overall “Tx” Duty Cycle and is calculated as: Overall “Tx” Duty Cycle = (“Tx” Duty Cycle for Total Channel Dwell Time) * (Dwell Time) / 100ms = 0.8550 * 80.00ms / 100ms = 0.6840 Note that this Correction Factor, when Field Strength is measured in units of Voltage, is equivalent to CF = 20 log10(0.7093) = -3.3 dB MAC Protocol Theory of Operation The information on this page is COMMERCIAL in CONFIDENCE and its use is restricted to that specified on the front page. b) Broadcast Traffic If the transmissions by a station are ‘broadcast’ packets, then the worst case consists of maximum length transmissions (1514 bytes), separated by an inter-frame gap (0.300ms) The Timing diagram for the worst case is as follows: Sending Station DATA1 Shaded Area = Unit Transmitting. Diagram Not To Scale DATA2 Transaction Time= DATA(1514)+IFG = 13.511 ms “Tx” Duty Cycle= 13.211 / 13.511 = 0.9778 or 97.78% (Sending Station) Since five transactions could be performed in one Dwell Time: “Tx” Duty Cycle for Total Channel Dwell Time = 13.211 * 5 / 80.00 = 0.8256 or 82.56% (Sending Station) “Tx” Duty Cycle per Title 47, Part 15.35 (c) of CFR (“pulse train less than 0.1 seconds” or 100ms) is the Overall “Tx” Duty Cycle and is calculated as: Overall “Tx” Duty Cycle = (“Tx” Duty Cycle for Total Channel Dwell Time) * (Dwell Time) / 100ms = 0.8256 * 80.00ms / 100ms = 0.6605 Note that this Correction Factor, when Field Strength is measured in units of Voltage, is equivalent to CF = 20 log10(0.6605) = -3.6 dB MAC Protocol Theory of Operation The information on this page is COMMERCIAL in CONFIDENCE and its use is restricted to that specified on the front page. Derivation of Average Time of Channel Occupancy in a 30 sec period per 15.247 (a) (1) (ii) The maximum Time of Channel Occupancy including settling time is 80.00ms. Time needed to cycle once through the hop table (79 channels) = 79 x 80.00ms = 6320.0ms = 6.3200seconds. Number of cycles through hop table in a 30 second period = 30 seconds / (6.3200 sec/cycle) = 4.7468cycles; therefore, in worst case, a given channel will be visited 5 times in a given 30 second period. Therefore maximum time of channel occupancy in a 30 second period = 5 x 80.00ms = 400.00ms = 0.400seconds. The maximum permitted is 0.4 seconds. Average time of channel occupancy in a 30 second period = 4.7468 x 80.00ms = 0.379seconds. Frequency Hopping Sequence Under user control, the protocol can be configured to use one of 78 ‘hopping patterns’, numbered 0 to 77. For a pattern number ‘x’, and an index ‘i’ for the next frequency (i = 1 to 79 inclusive), the channel number used by the station is defined by the equation: f = [b(i) + x] mod…

Text truncated - open the document above for the full version.

Rev. No 1.0 RF Maximum Permissible Exposure Measurement Report of E.U.T. : LANEscape MODEL : WH2330 for APPLICANT: Z-Com, Inc. ADDRESS: 7F-2, No. 9, Prosperity 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-06-056-02 ETC Report No. : ET88R-06-056-02 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: Z-Com, Inc. 7F-2, No. 9, Prosperity 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Manufacturer: Z-Com, Inc. 7F-2, No. 9, Prosperity 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Description of EUT: a) Type of EUT: LANEscape b) Trade Name: ---- c) Model No.: WH2330 d) Power Supply: From NoteBook PC Regulation Applied: IEEE C95.1-1991 I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in IEEE C95.1, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relates only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :AUG. 27, 1999 Test Engineer : ( Chin Cheng Yeh ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET88R-06-056-02 Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION............................................................................................................ 1 1.1 Product Description ........................................................................................................................... 1 1.2 Characteristics of Device................................................................................................................... 1 1.3 Test Methodology.............................................................................................................................. 1 1.4 Test Facility ....................................................................................................................................... 1 2 PROVISIONS APPLICABLE........................................................................................................... 2 2.1 Definition........................................................................................................................................... 2 2.2 Relative Requirement for Compliance .............................................................................................. 3 3. SYSTEM TEST CONFIGURATION.............................................................................................. 4 3.1 Justification........................................................................................................................................ 4 3.2 Devices for Tested System ................................................................................................................ 4 4 M AXIMUM PERMISSIBLE EXPOSURE MEASUREMENT........................................................................ 5 4.1 Applicable Standard .......................................................................................................................... 5 4.2 Measurement Procedure .................................................................................................................... 5 4.3 Measurement Instrument ................................................................................................................... 6 4.4 Power Desity Data ............................................................................................................................. 6 APPENDIX A SPECIFICATION OF DEVICE UNDER TEST......................................................................... 7 ETC Report No. : ET88R-06-056-02Page 1 of 7 Page 1 GENERAL INFORMATION 1.1 Product Description a) Type of EUT: LANEscape b) Trade Name: ---- c) Model No.: WH2330 d) Power Supply: From Notebook PC 1.2 Characteristics of Device The LANEscape designed with a transmitting method of frquency hopping spread spectrum is for local area network operation, which operates at 2.4 GHz ISM band and data rate up to 2Mbps. For operation of this device, it is asked for maintaining a minimum space of 20 cm from the operator or any bystanding in the user’s manual. The on-air protocol and radio characteristic conform to the IEEE 802.11 stabdard (frequency hopping). The ethernet port is compatible with the IEEE 802.3.3-1993 and uses STP interface. It nominal rated output power is 20 dBm. For more details of sepcification, please see appendix A. 1.3 Test Methodology The Maximum Permissible Exposure (MPE) was performed according to the procedures illustrated in IEEE C95.1-1991. 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No.34, 5 Lirn, Din Fu Tsun, Lin Kou, Taipei, Taiwan, R.O.C. This site has been fully described in a report submitted to the FCC, and accepted in a letter dated Feb. 10, 1997. ETC Report No. : ET88R-06-056-02Page 2 of 7 Page 2 PROVISIONS APPLICABLE 2.1 Definition MPE in Controlled Environments: For human exposure in controlled environments to electromagnetic energy at radio frequencies from 3 kHz to 300 GHz, the MPE, in terms of rms electric (E) and magnetic (H) field strengths, the equivalent plane-wave freespace power densities (S) and the induced currents (I) in the body that can be associated with exposure to such fields or contact with objects exposed to such fields, is given in Table 1 as a function of frequency. Exposure associated with a controlled environment includes: exposure that may be incurred by persons who are aware of the potential for exposure as a concomitant of employ…

Text truncated - open the document above for the full version.

L L A A N N E E s s c c a a p p e e T T M M W W H H 2 2 3 3 3 3 0 0 PCMCIA Adapter Z Z - - C C o o m m , , I I n n c c . . FCC Information This equipment has been tested and found to comply with the limits for a Class B digital devices pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. Operation of this equipment in residential area is likely to cause harmful interference in which case the user will be required to correct the interference at this own expense. The user should not modify or change this equipment without written approval of the company. Modification could make invalid any authority to use this equipment. It is unsafe to work under circumstances in which the RF exposure exceeds recommended amount. To prevent the situation happening, people who work with the antenna should be aware of the following rules: 1. Install the antenna so that a 20 cm distance can be kept from the antenna. 2. While installing the antenna in the location, please do not turn on the power of the wireless card. 3. While the device is working, please do not contact the antenna. 1 Copyright Copyright © 1998 Z-Com, Inc., all rights reserved. No part of this publication may be reproduced, adapted, stored in a retrieval system, translated into any language, or transmitted in any form or by any means without the written permission of Z-Com, Inc. Trademarks LANEscape and Z-Com are trademarks of Z-Com, Inc., all other trademarks throughout this manual are the property of their respective companies. Limited Warranty In no event will Z-Com be liable for any damage, including loss of data or profits, cost of cover, or other incidental, consequential or indirect damages arising from the installation, maintenance, use, performance, failure or interruption of Z-Com’s products, whatever caused and on any theory of liability. This limitation will apply even if Z-Com has been advised of the possibility of such damage. Technical Support Address: 7F-2, No.9, Prosperity 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan Tel. No.: +886-3-5777364 Fax No.:+886-3-5773359 E-mail:[email protected] Web Site: http://www.zcom.com.tw About This Manual The purpose of this manual is to assist users in the setup of the product LANEscape WH2330, the Wireless LAN PCMCIA. This manual, revised as version 2.0 in 1999, includes procedures that will help users to avoid unforeseen problems. Contents Chapter 1 Windows 95 Set-up and Configuration ............................. 5 1-1 Installing the WH2330 Windows 95 Network Driver ...................................................... 5 1.2 Re-installing / Upgrading the WaveRider-II network drivers. .......................................... 6 1.3 Operational / Optional Characteristics of the WH2330 .................................................... 8 Chapter 2 Using the WH2330 Upgrade Utility .................................. 11 Appendix WH2330 Specifications ....................................................... 12 Chapter 1 Windows 95 Set-up and Configuration 1-1 Installing the WH2330 Windows 95 Network Driver The WH2330 (Mitel Semiconductor WaveRider-II) network adapter is a plug and play adapter. If the driver is being installed for the first time, then the installation is simple and straightforward. If the WH2330 is being upgraded or re-installed then pleaase see Section 1.2.
Insert the WH2330 into a PCMCIA slot of your computer. If the computer is off then turn it on and proceed to log in if necessary.
The Windows 95 will automatically detect the Mitel Semiconductor WaveRider-II and will prompt you to install the software for it. The option to install the software from the Manufacture’s Disk should be chosen, this is usually the default.
Place the driver disk supplied with the WH2330 in your floppy drive and select the correct drive letter from the pull down box, i.e. for drive a:
Click on the “OK” button and the drivers will be installed for the WH2330. If the PCMCIA slots have the sound enabled, then a low-high tone sequence should be heard.
The WH2330 will be configured for operation as a Slave unit by default. If you have a Master station running, then the network should be available to you. If you want to use the network in an ad-hoc way- or you are setting up a new network , then read the Chapter on the optional operating characteristics of the WH2330 network adapter. For more information on setting up optional parameters of the WH2330 adapter see Section 1.3. 1.2 Re-installing / Upgrading the WaveRider-II network drivers. In order to re-install or upgrade the Windows 95 network drivers for the WH2330 adapter, it is necessary to uninstall the driver for the WH2330. Please follow the steps below:
From the Start menu, select Settings, Control Panel.
From the control panel select Network.

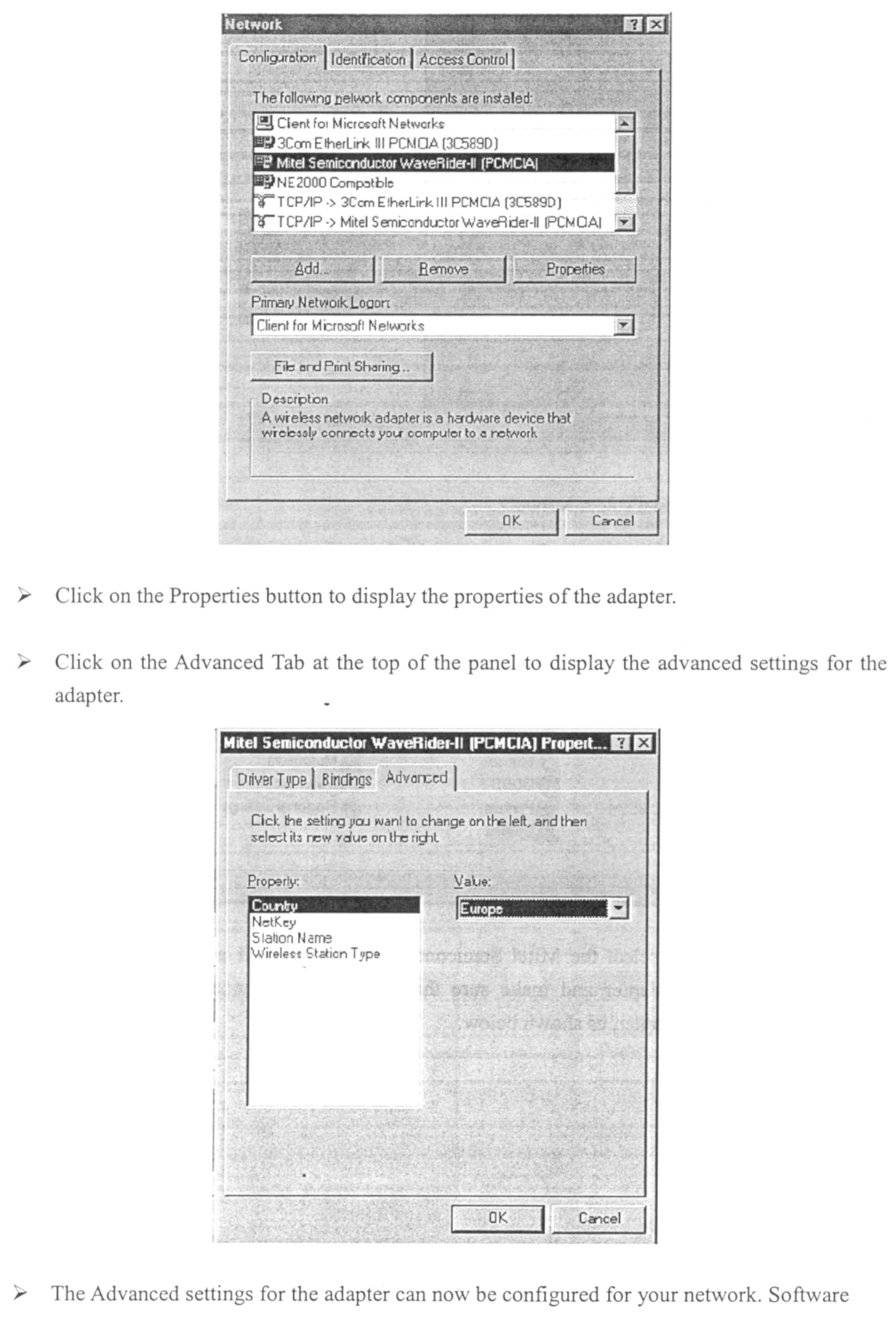

From the Network control panel, select the Mitel Semiconductor WaveRider-II adapter. Be careful to select the correct adapter and make sure that the picture of an adapter is next to the description of the adapter, as shown below:
Click on the “Remove” button. If you have hardware profiles installed, you will be asked if you want to remove all occurrences of the adapter, as shown below. Click on the “OK” button to uninstall the driver.
Finally click on “OK” in the Network set-up Panel. The driver for the WH2330 will then be removed. If Windows prompts you to re-start your computer, you can re-boot it, or you can safely click on the “No” button and continue to install the new drivers.
In order to install the new drivers, unplug the WH2330 card, if plugged in and then insert it into the socket again. Follow the instructions for a new installation…

Text truncated - open the document above for the full version.

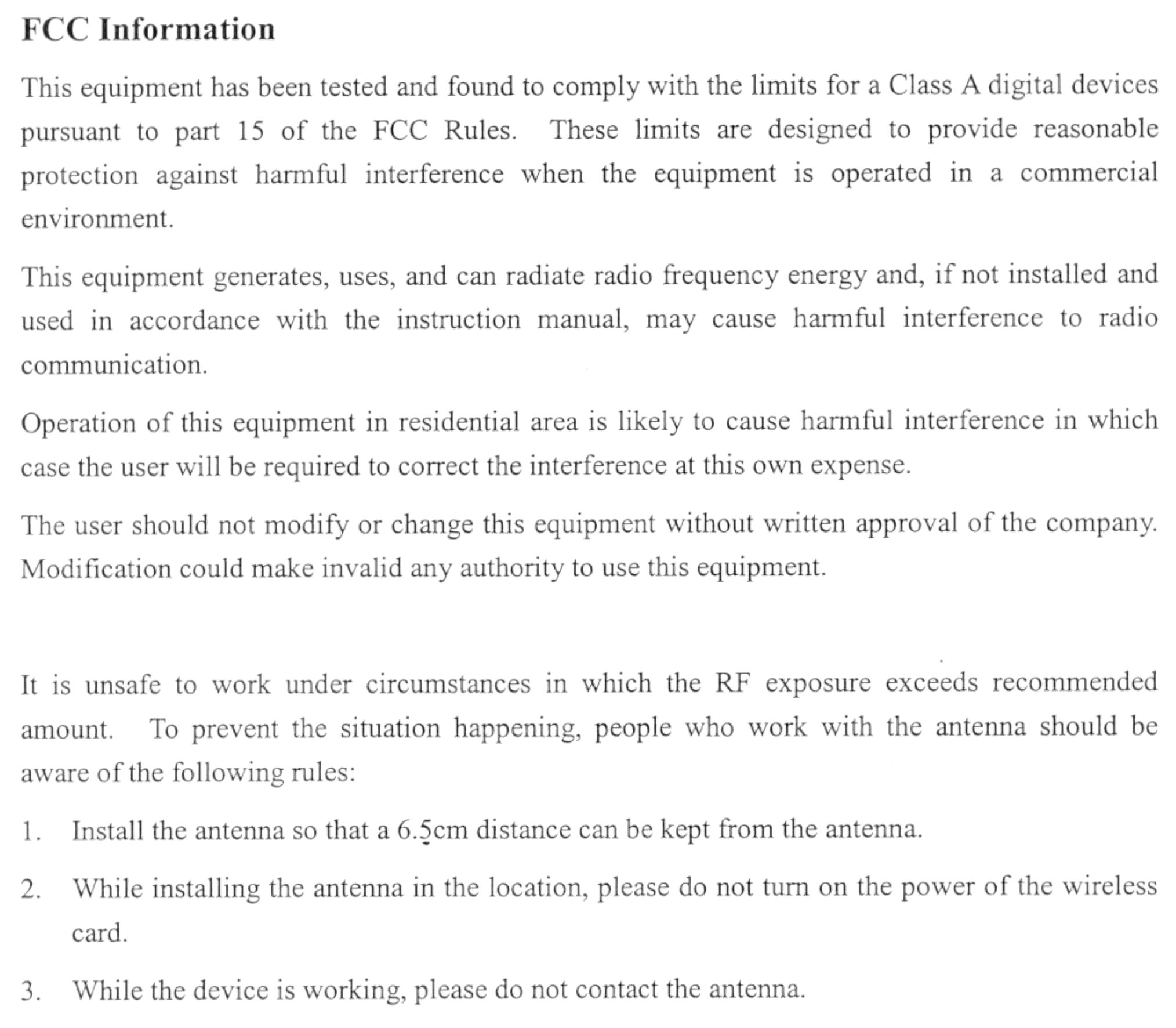

FCC Information This equipment has been tested and found to comply with the limits for a Class B digital devices pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. Operation of this equipment in residential area is likely to cause harmful interference in which case the user will be required to correct the interference at this own expense. The user should not modify or change this equipment without written approval of the company. Modification could make invalid any authority to use this equipment. It is unsafe to work under circumstances in which the RF exposure exceeds recommended amount. To prevent the situation happening, people who work with the antenna should be aware of the following rules: 1. To comply with FCC RF exposure requirements for mobile transmitting devices, a minimum separation distance of 20 cm must be maintained between the antenna and all persons during device operation. 2. While installing the antenna in the location, please do not turn on the power of the wireless card.

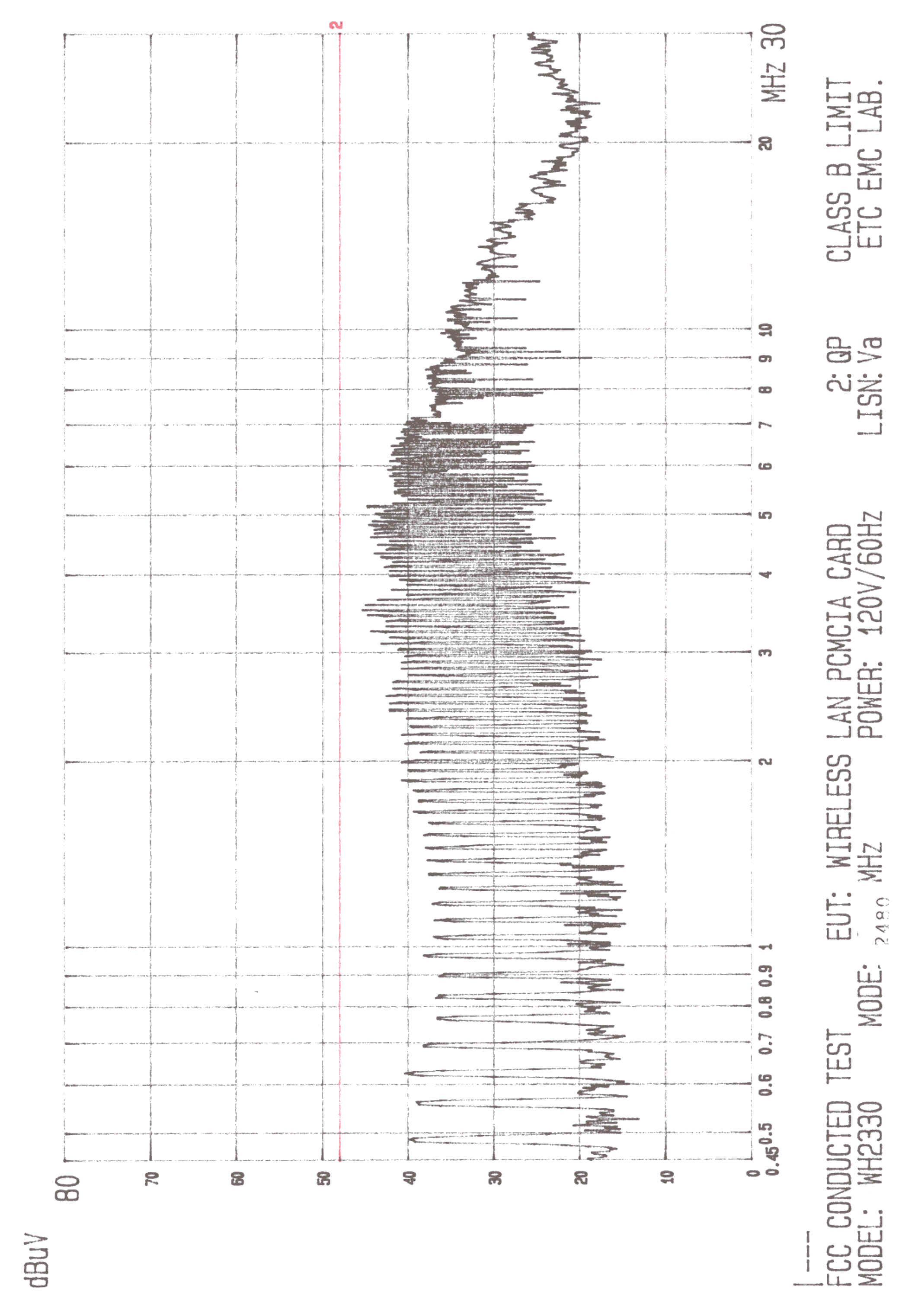

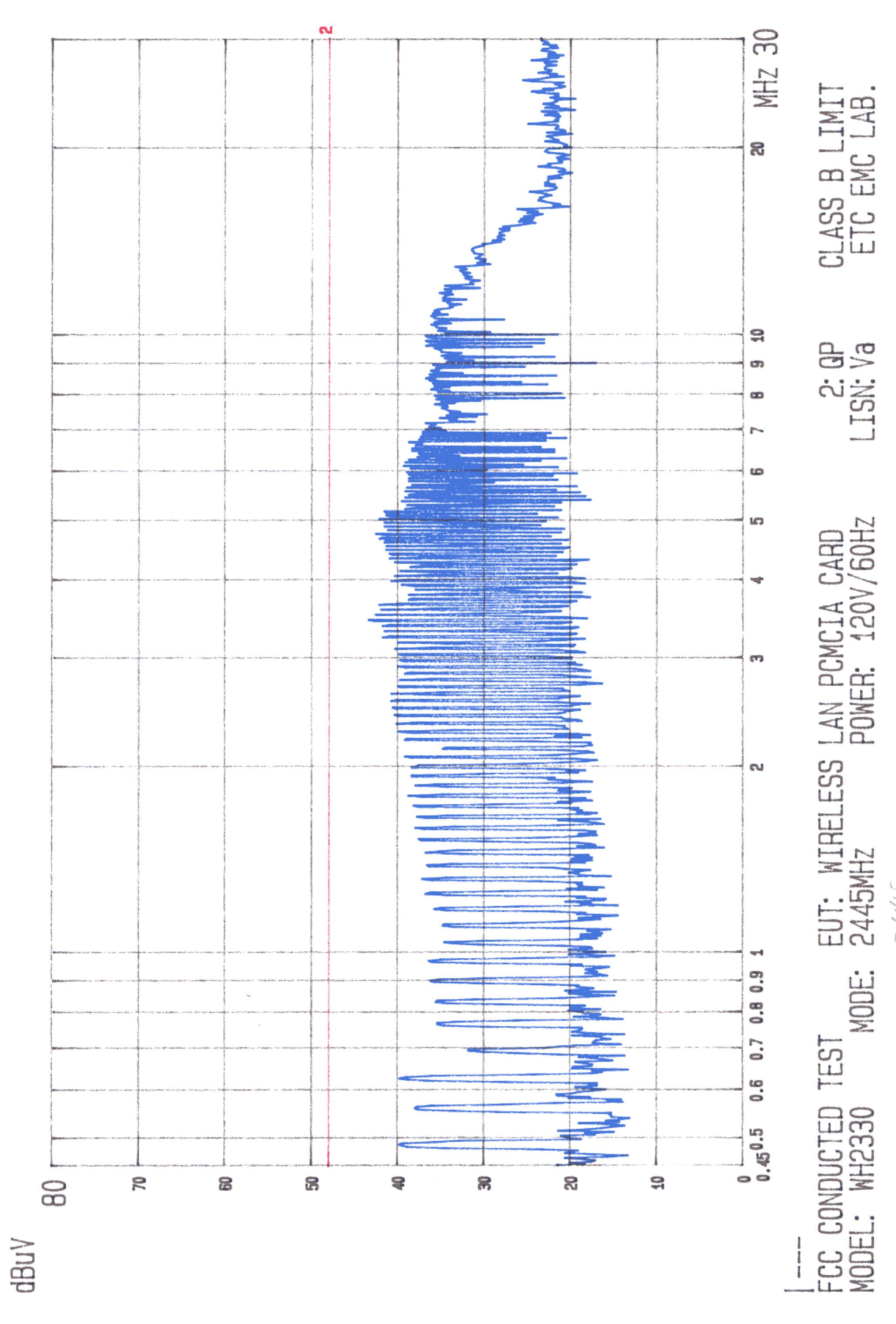

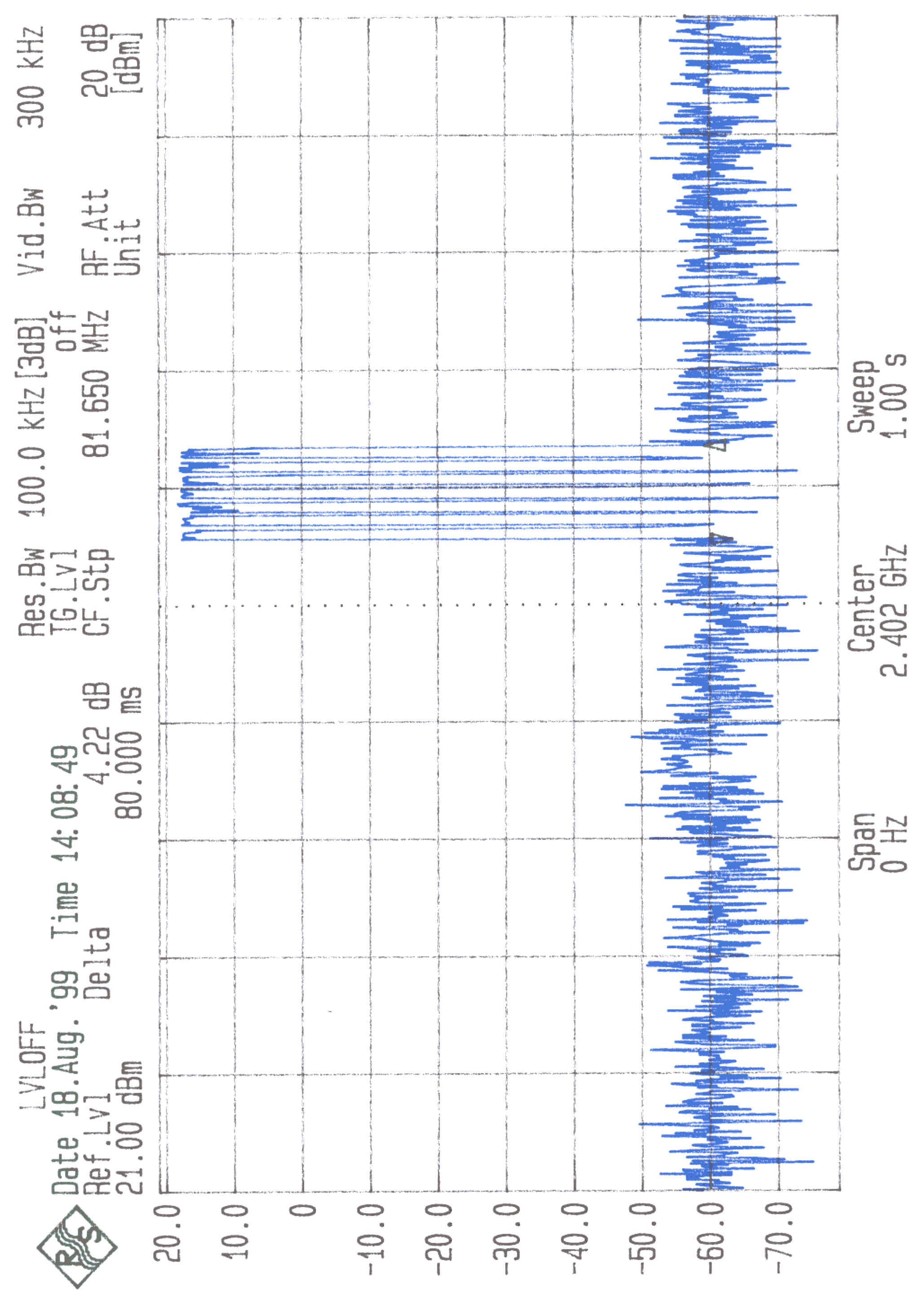

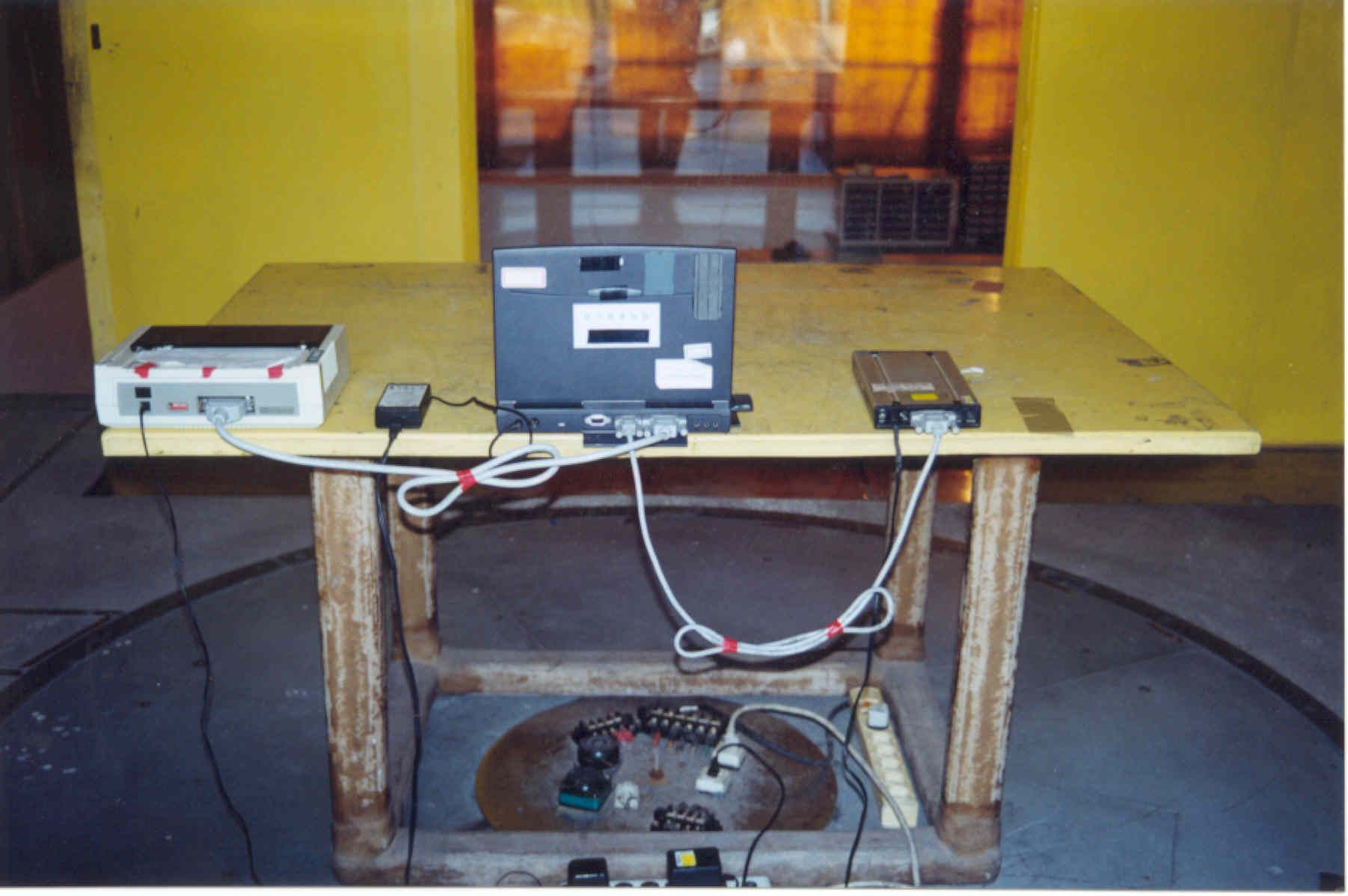

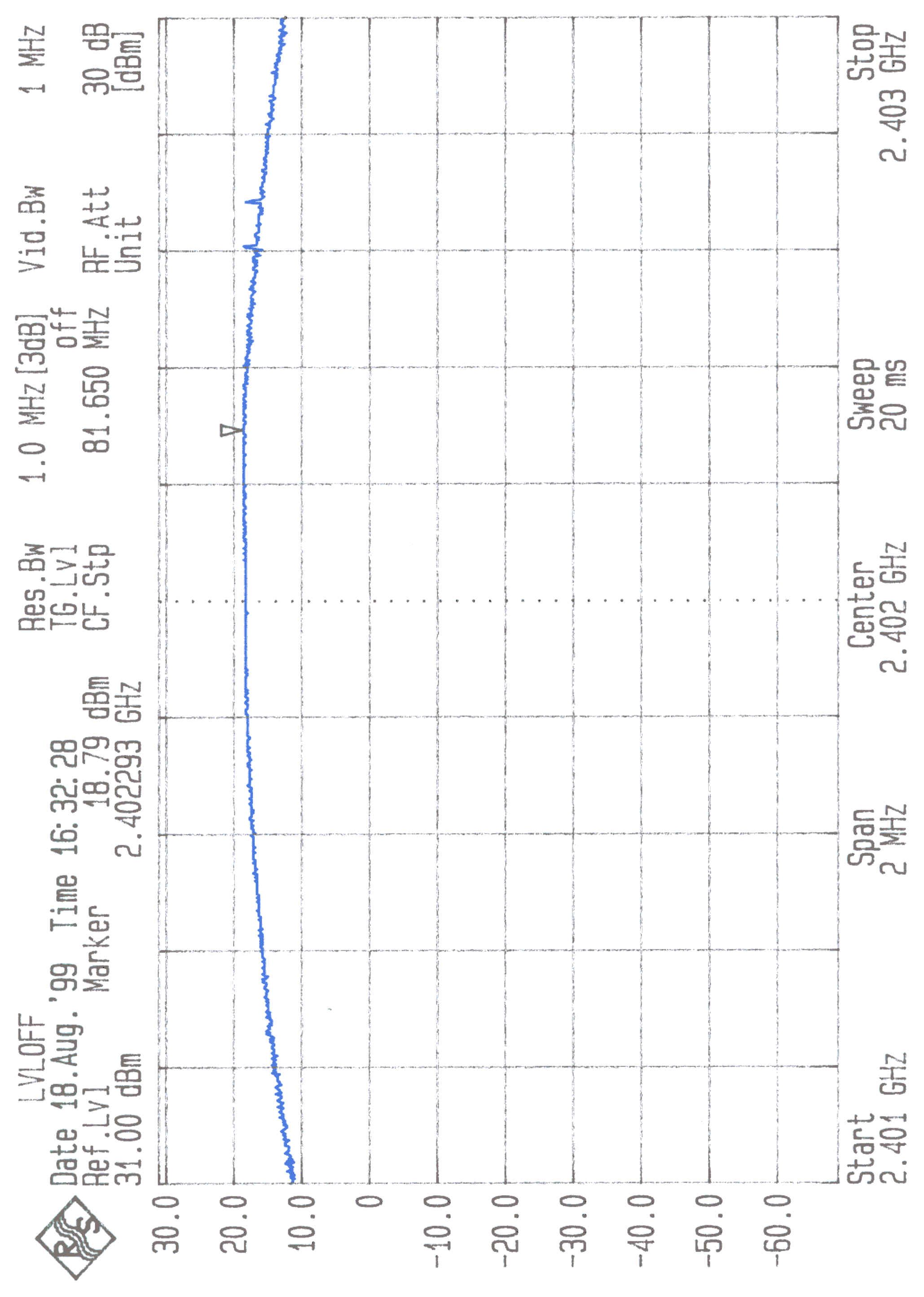

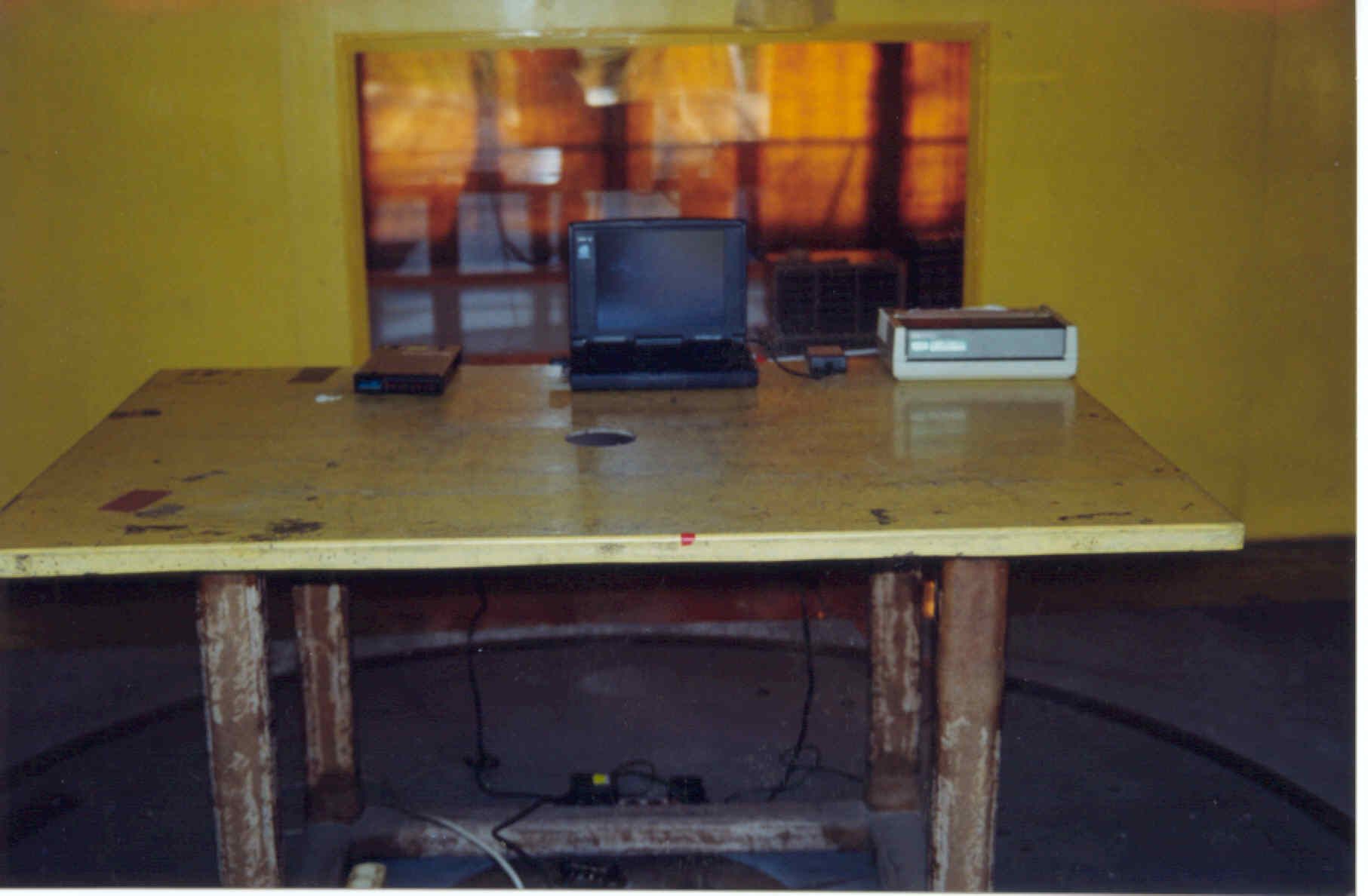

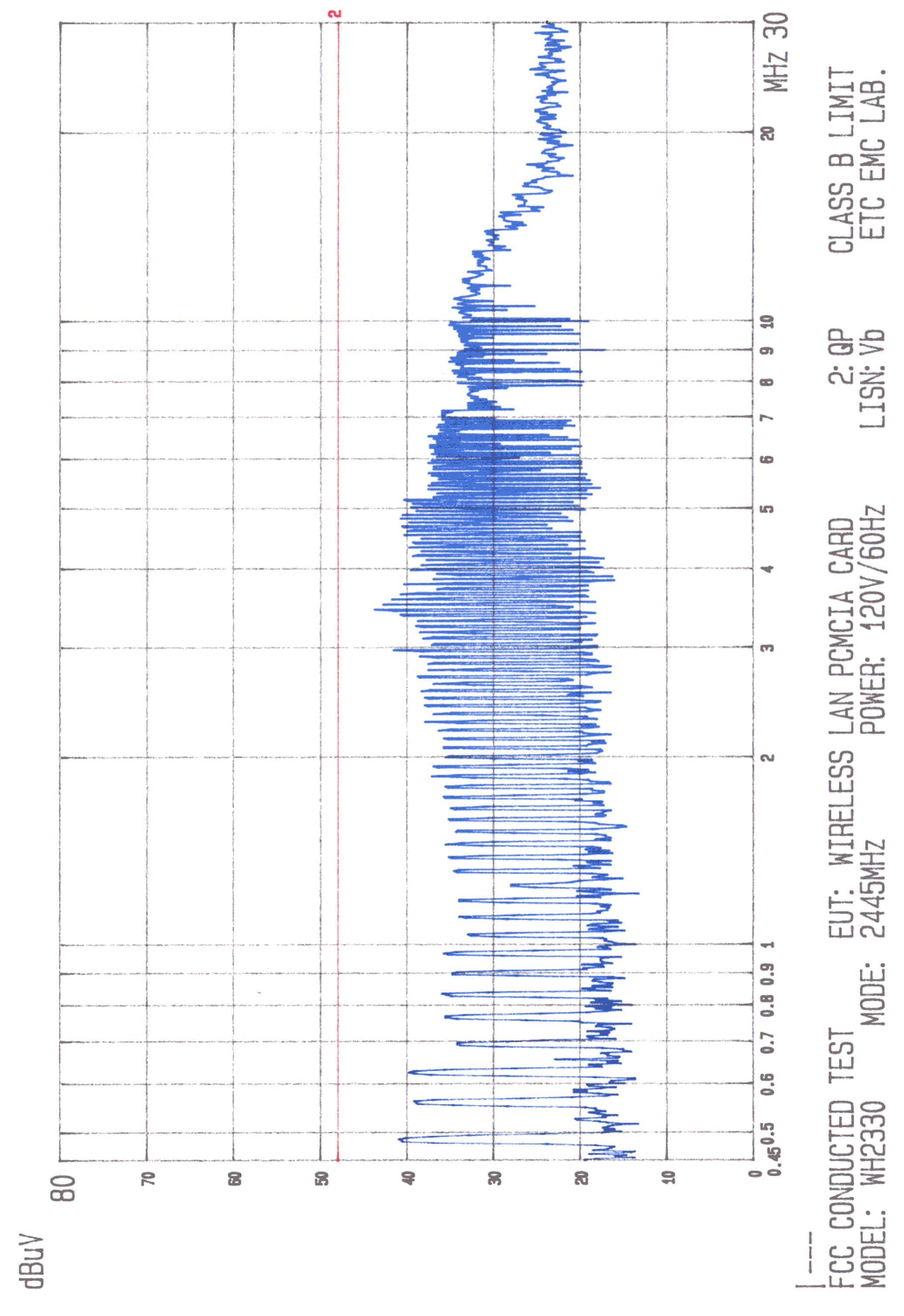

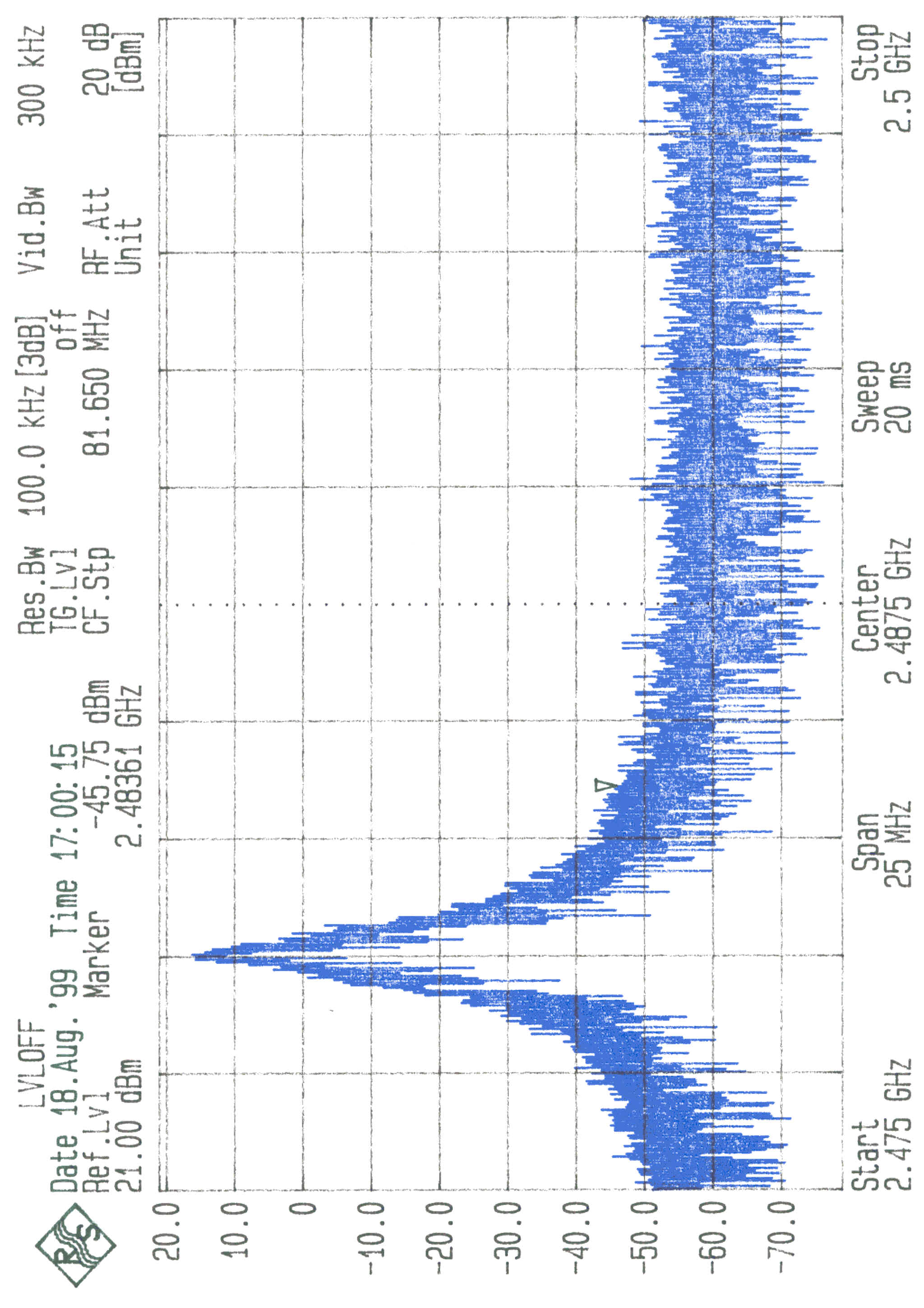

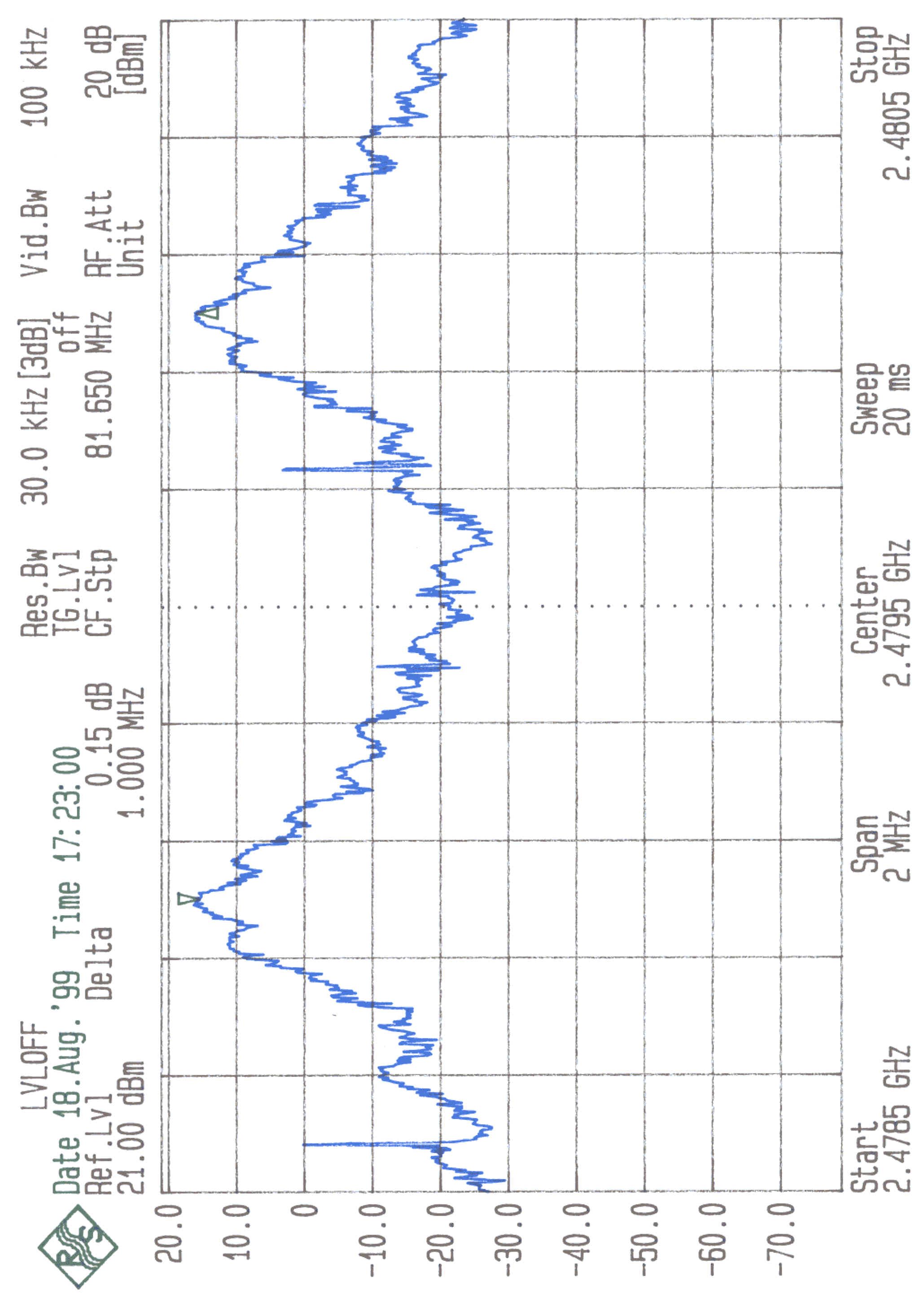

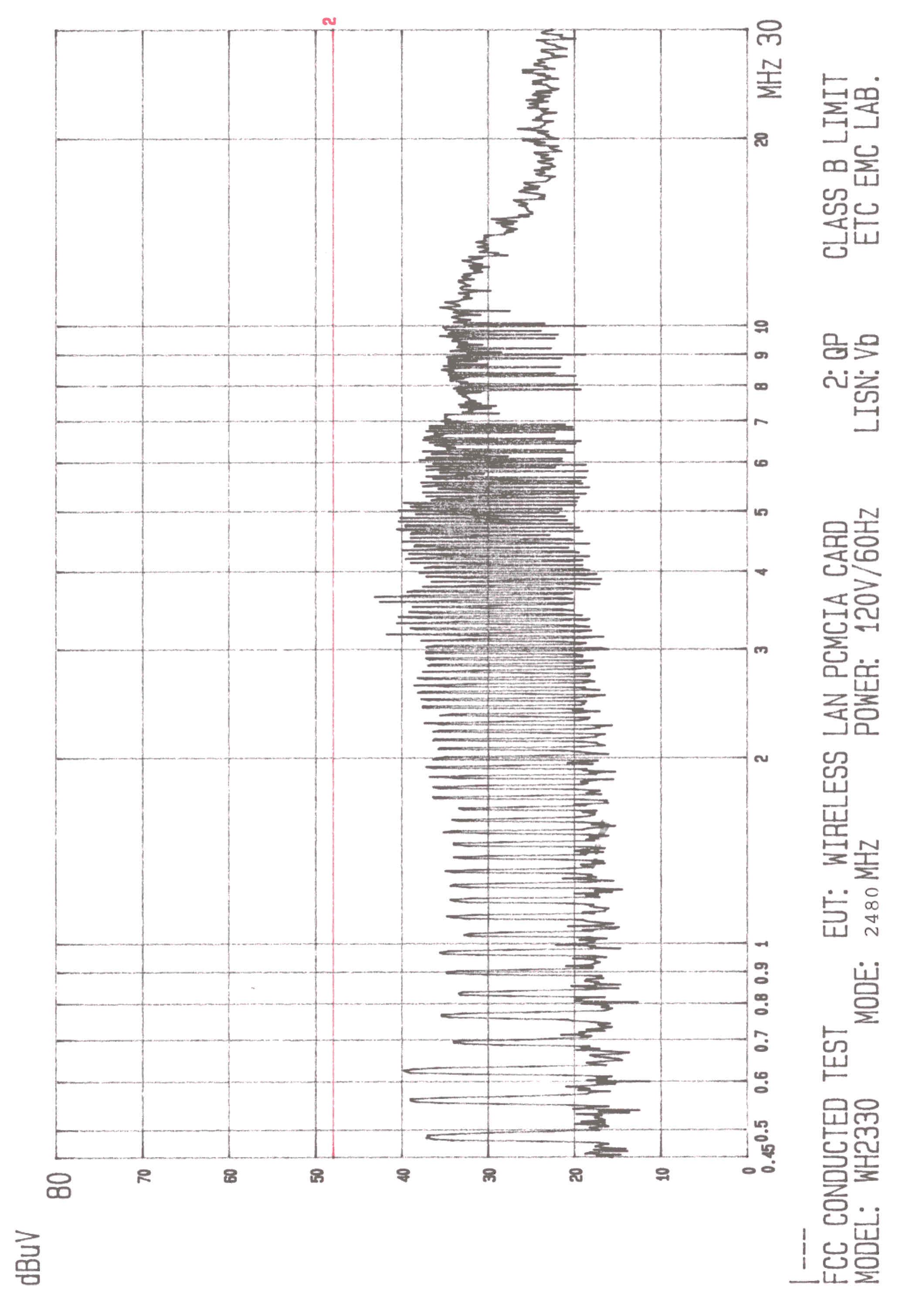

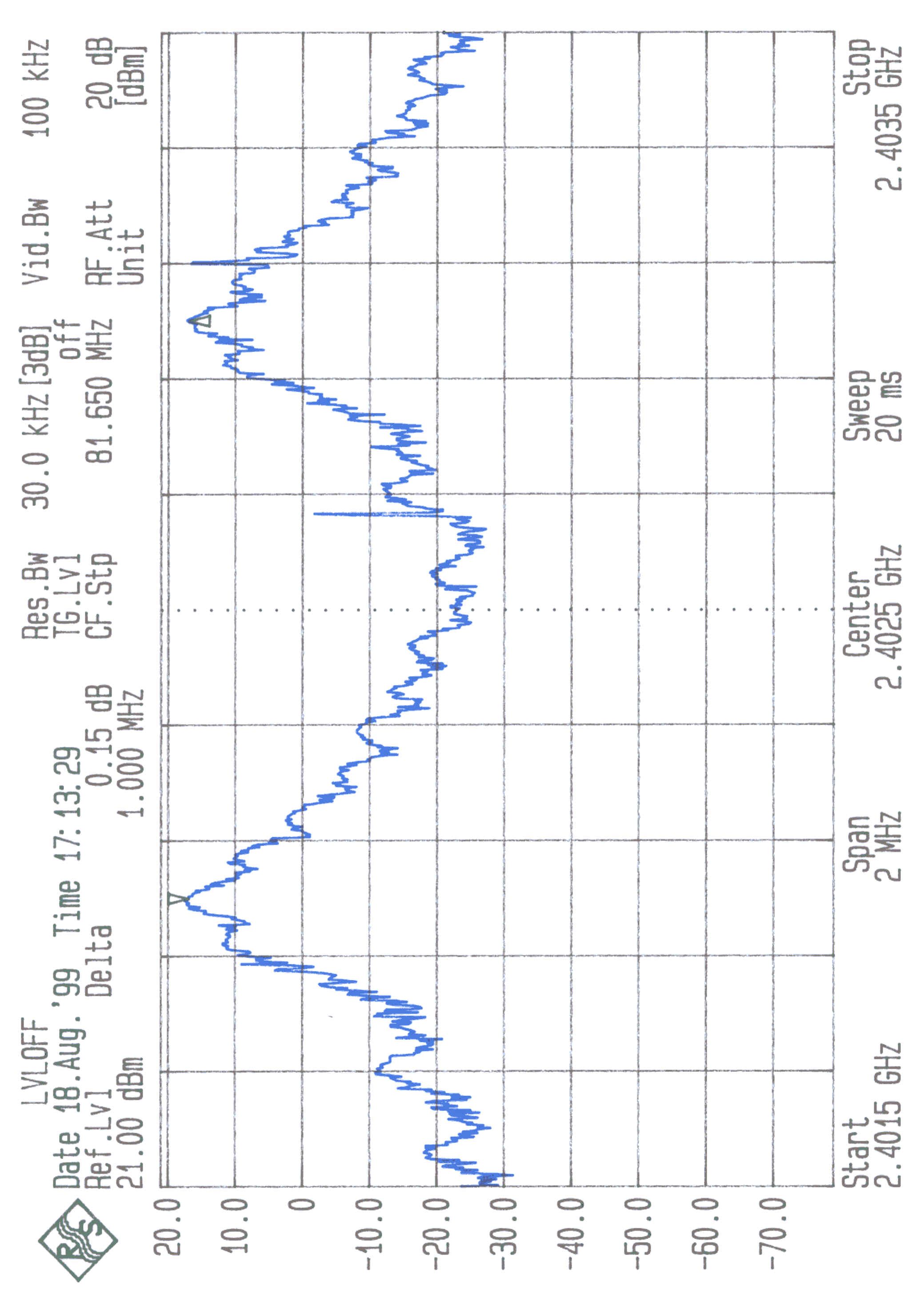

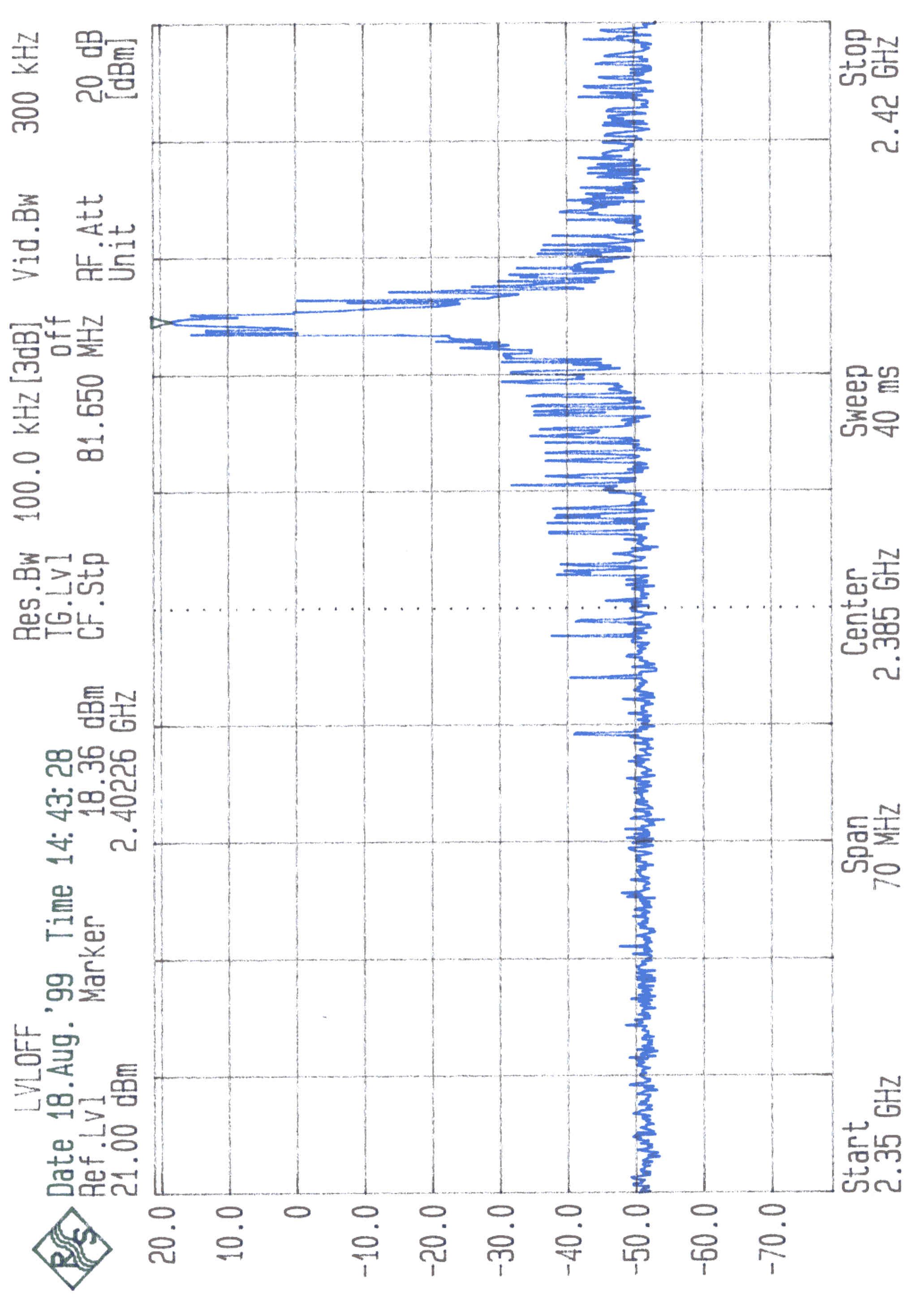

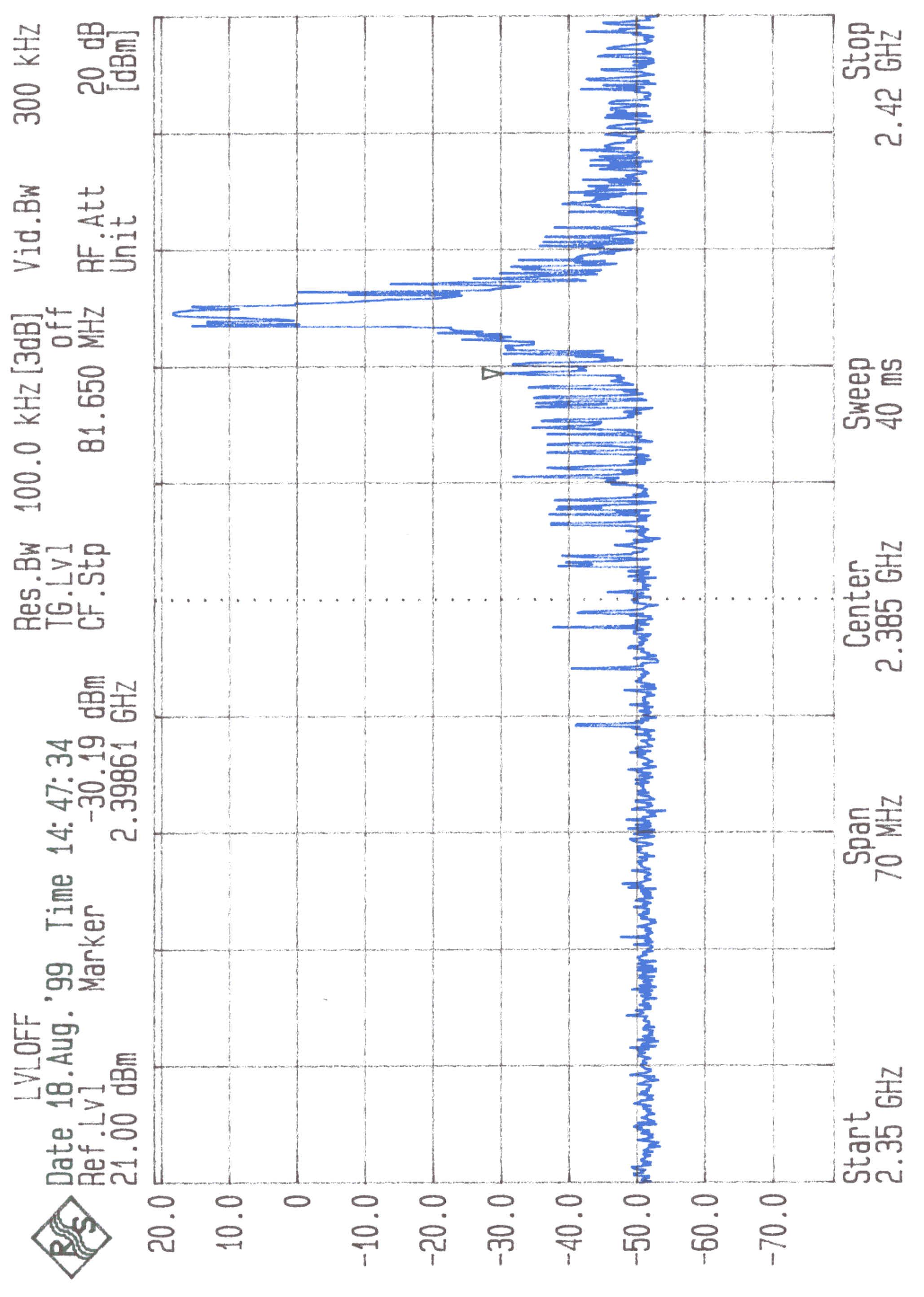

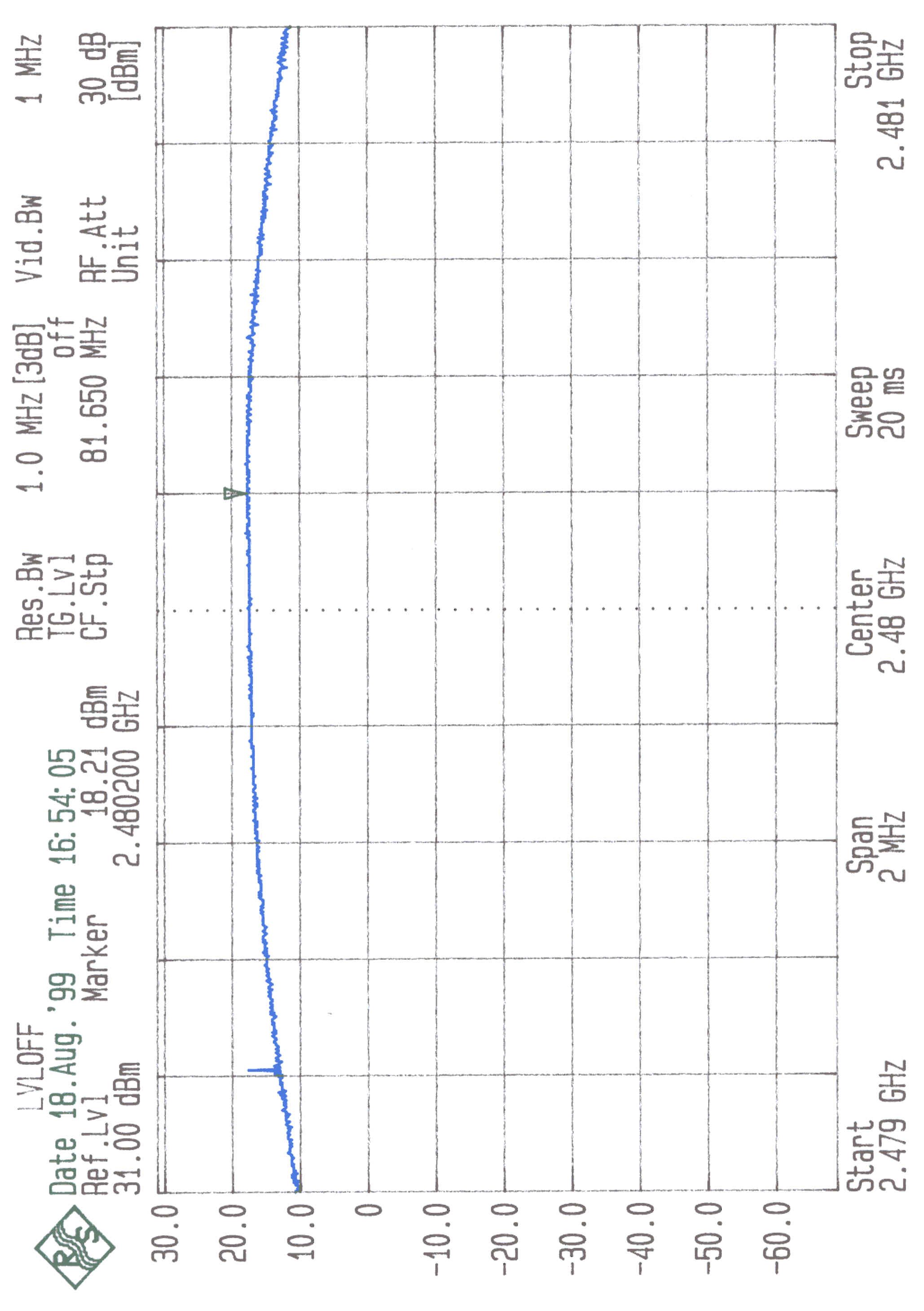

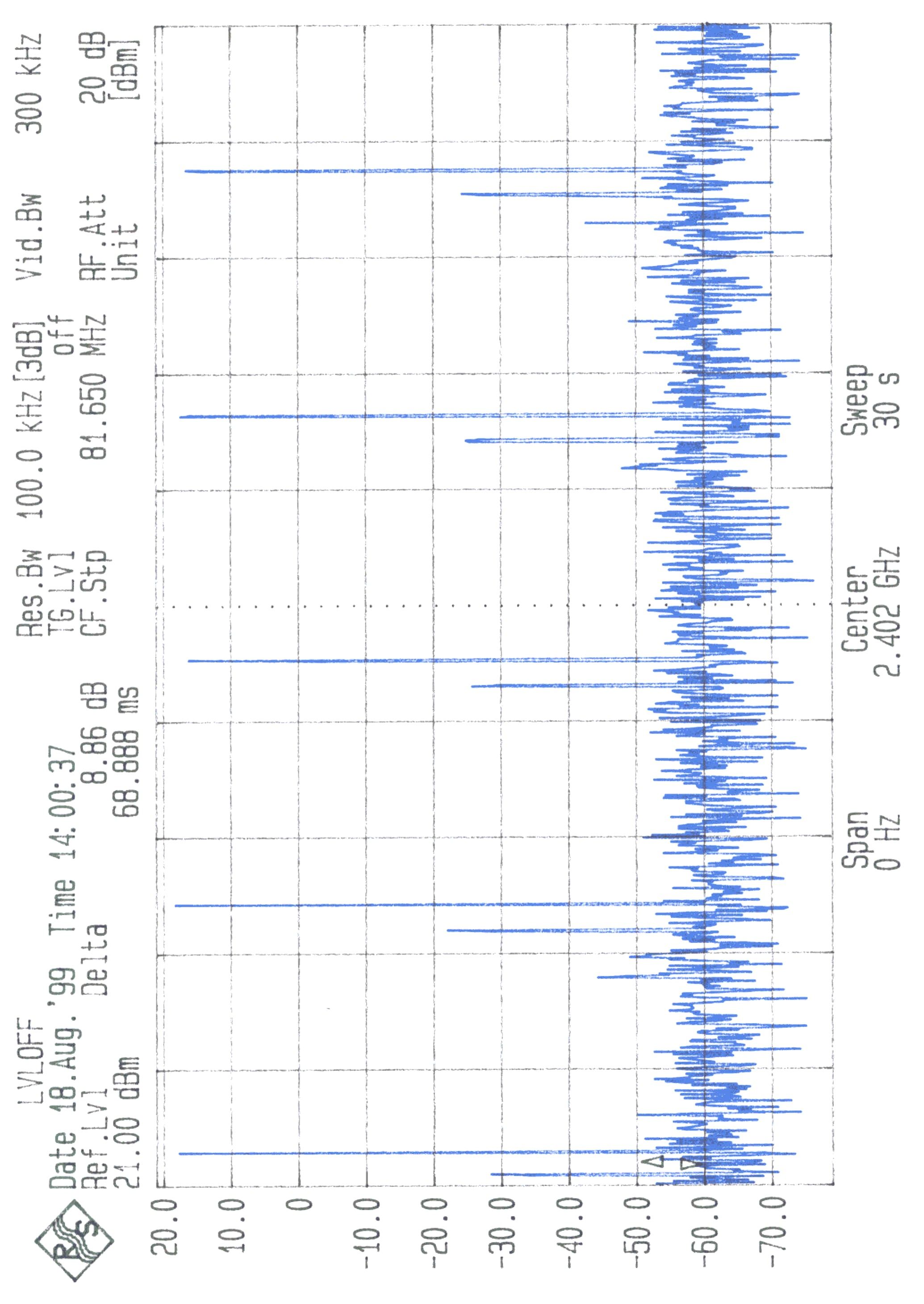

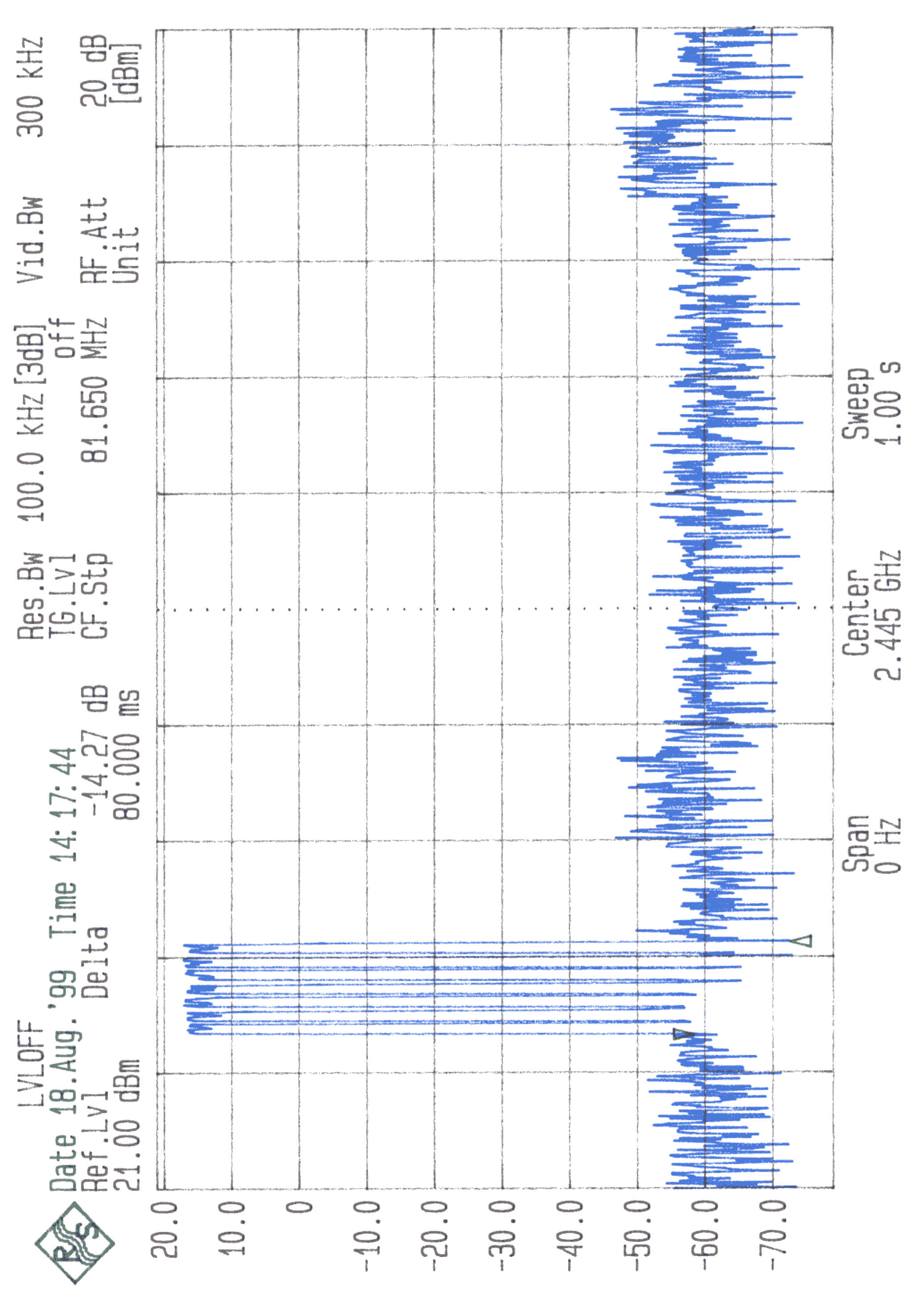

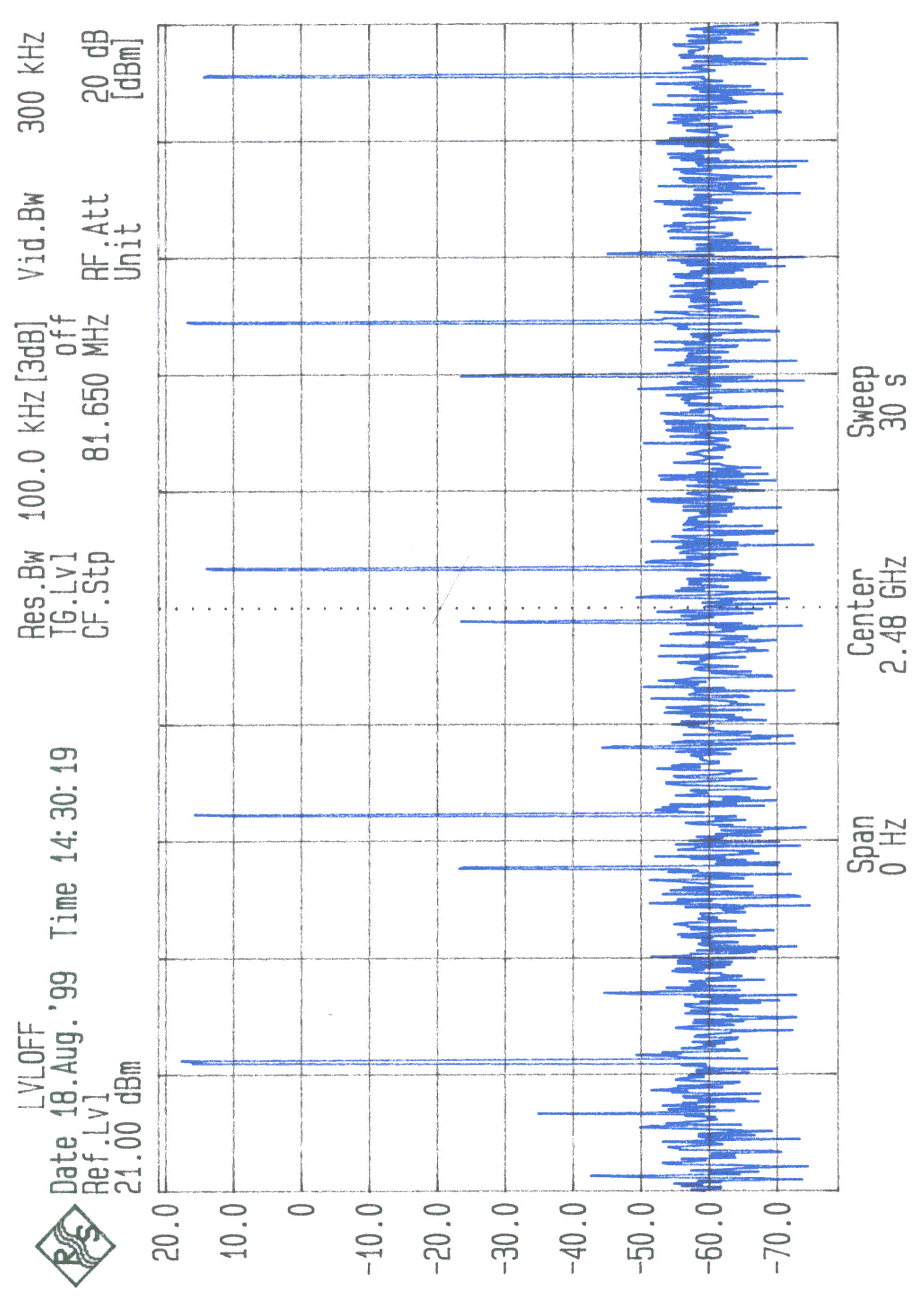

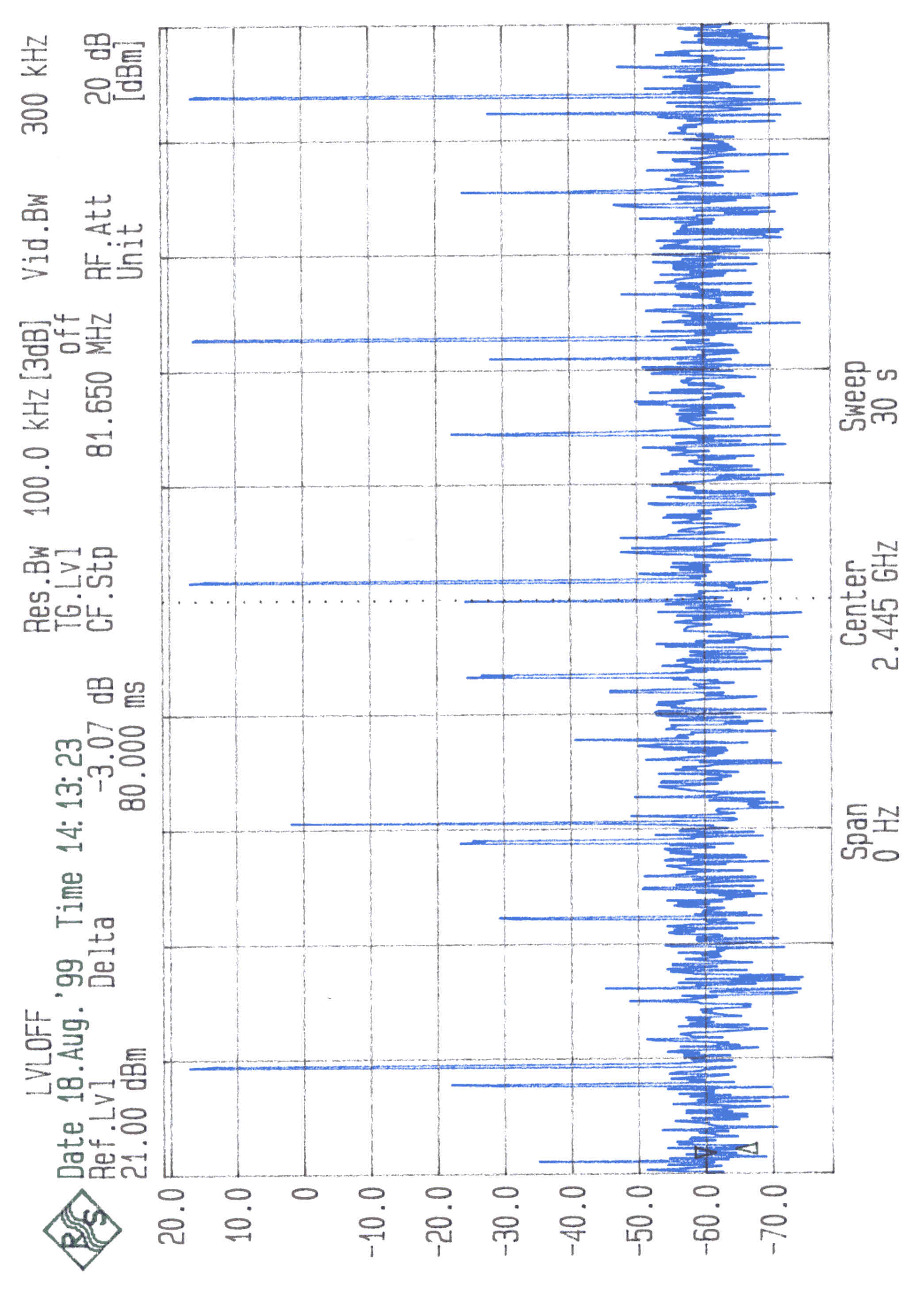

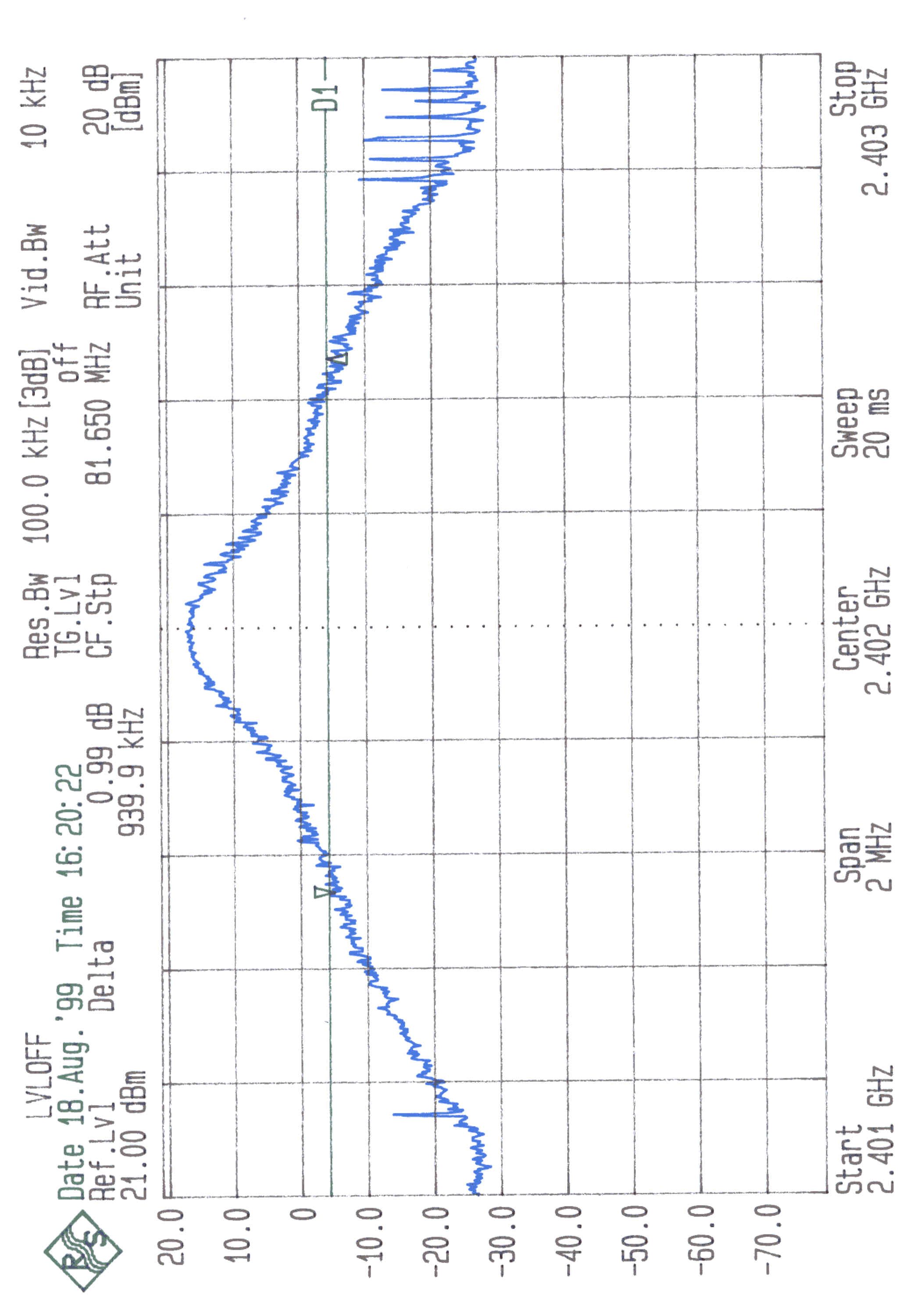

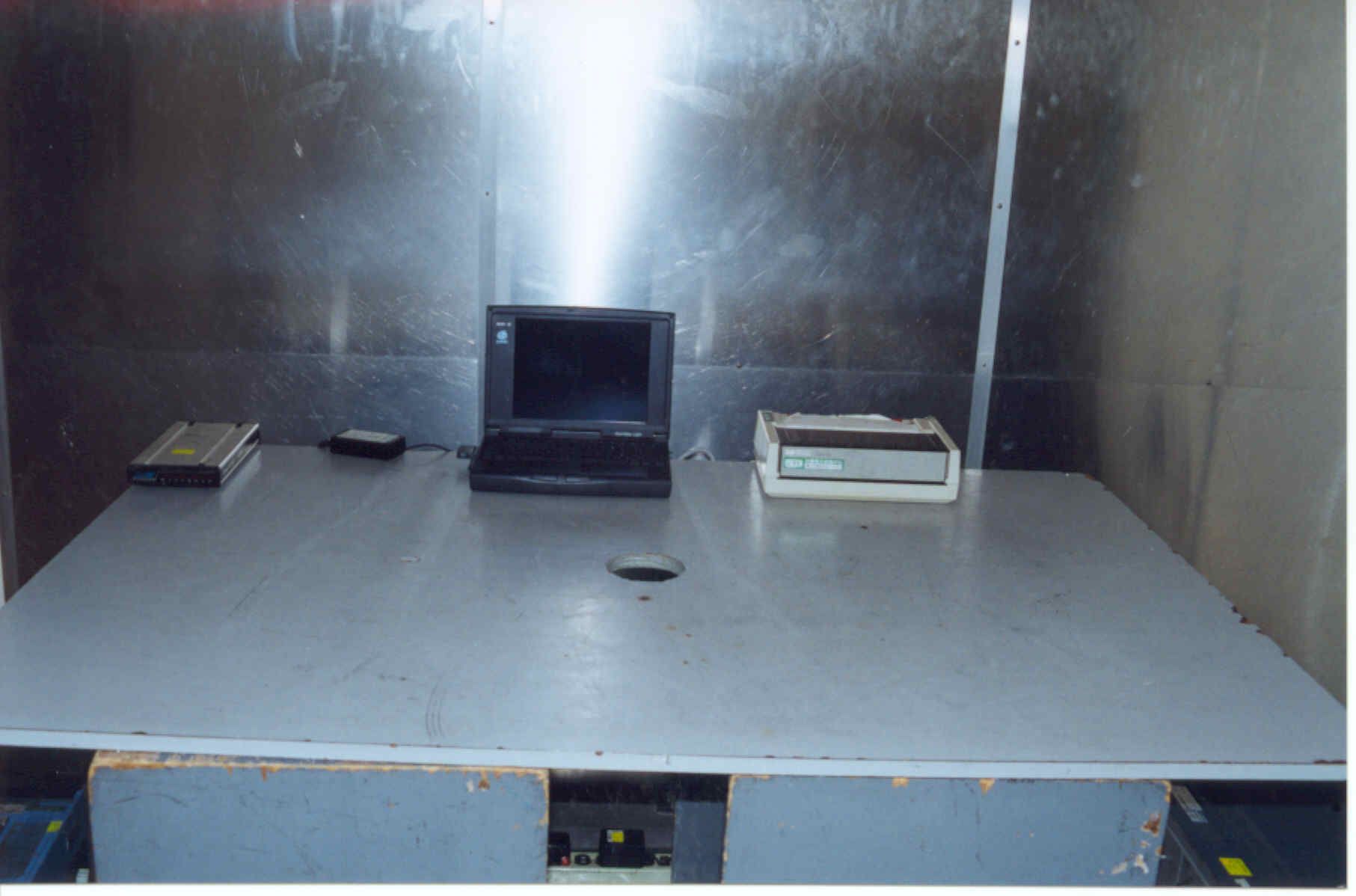

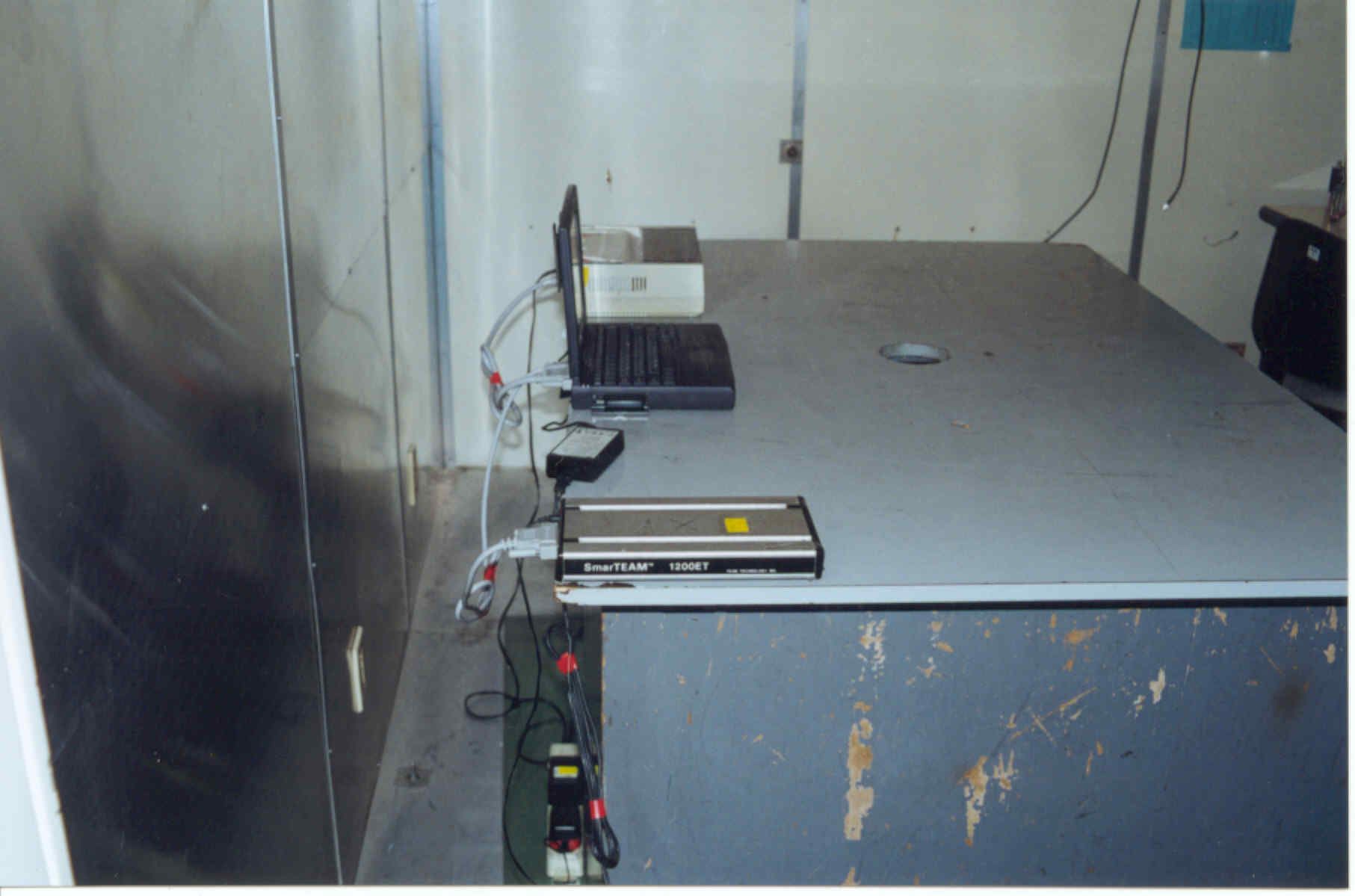

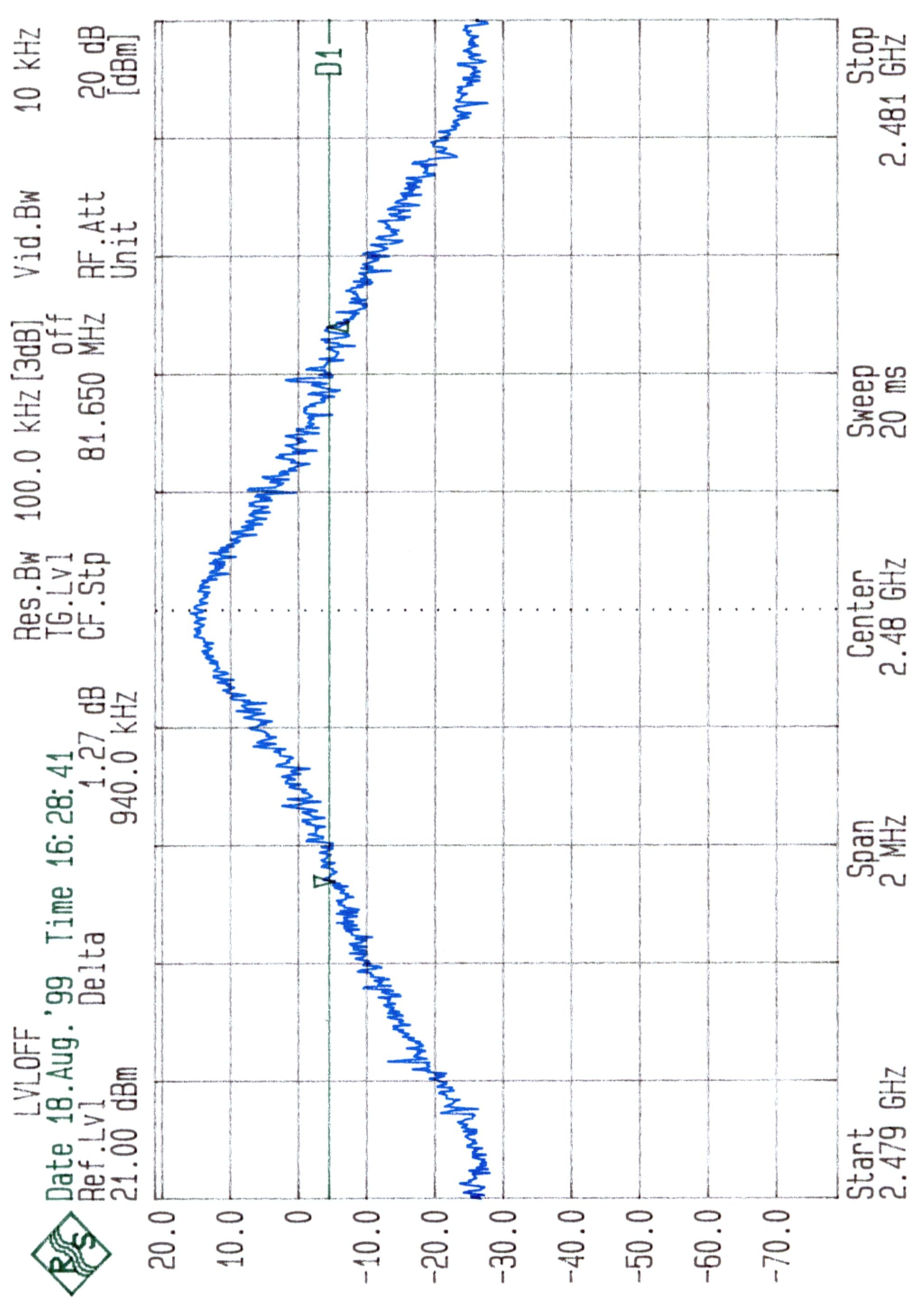

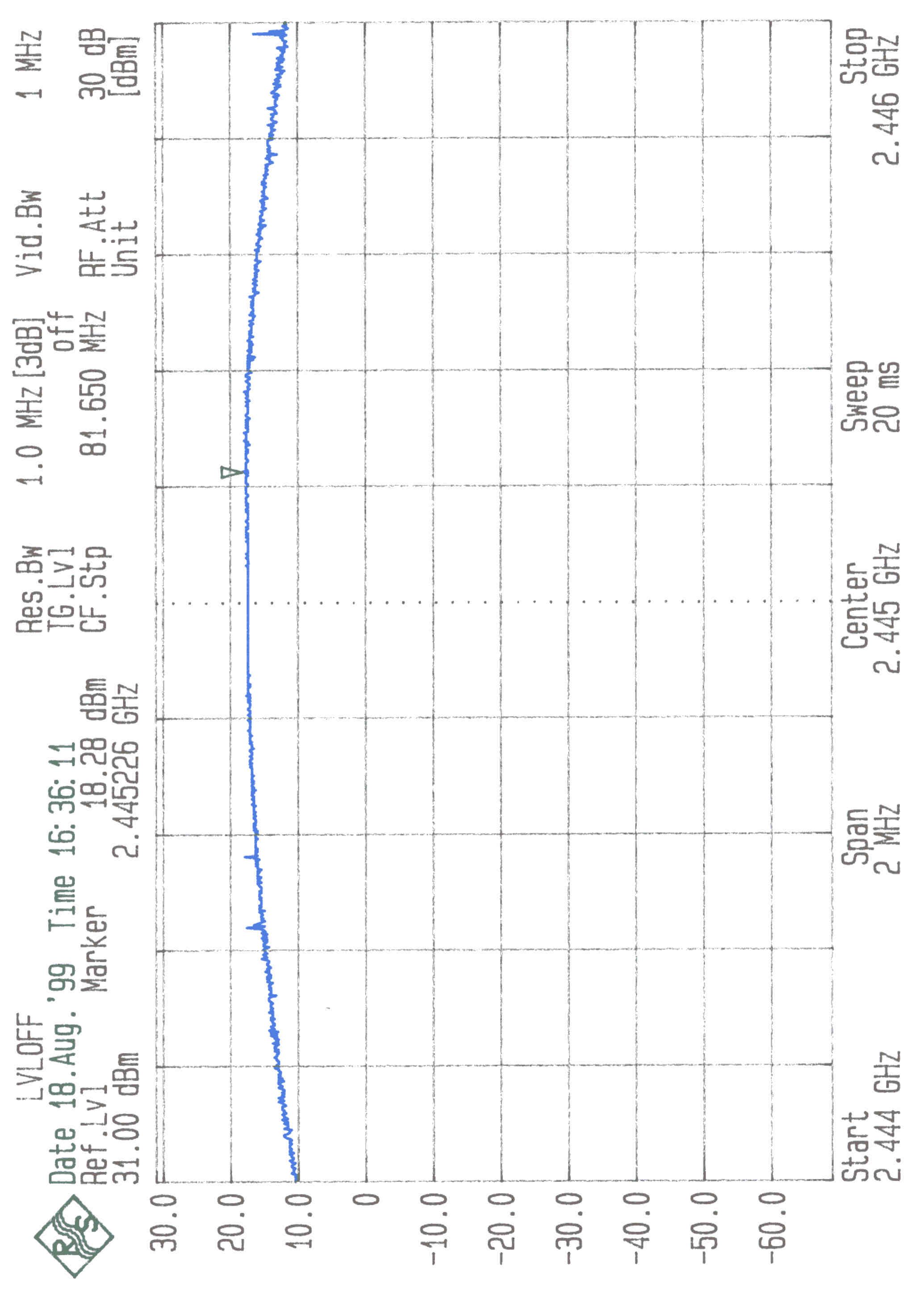

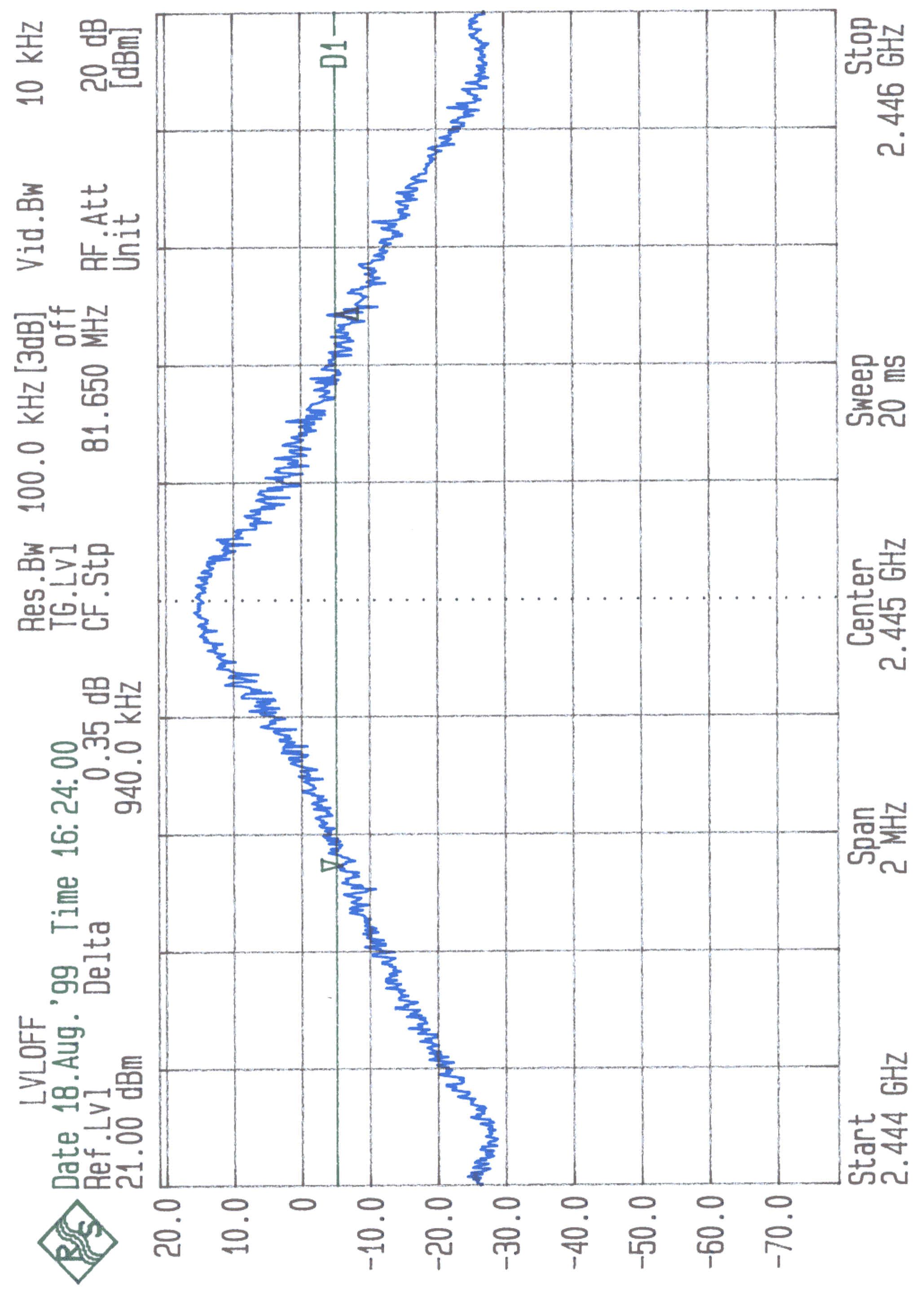

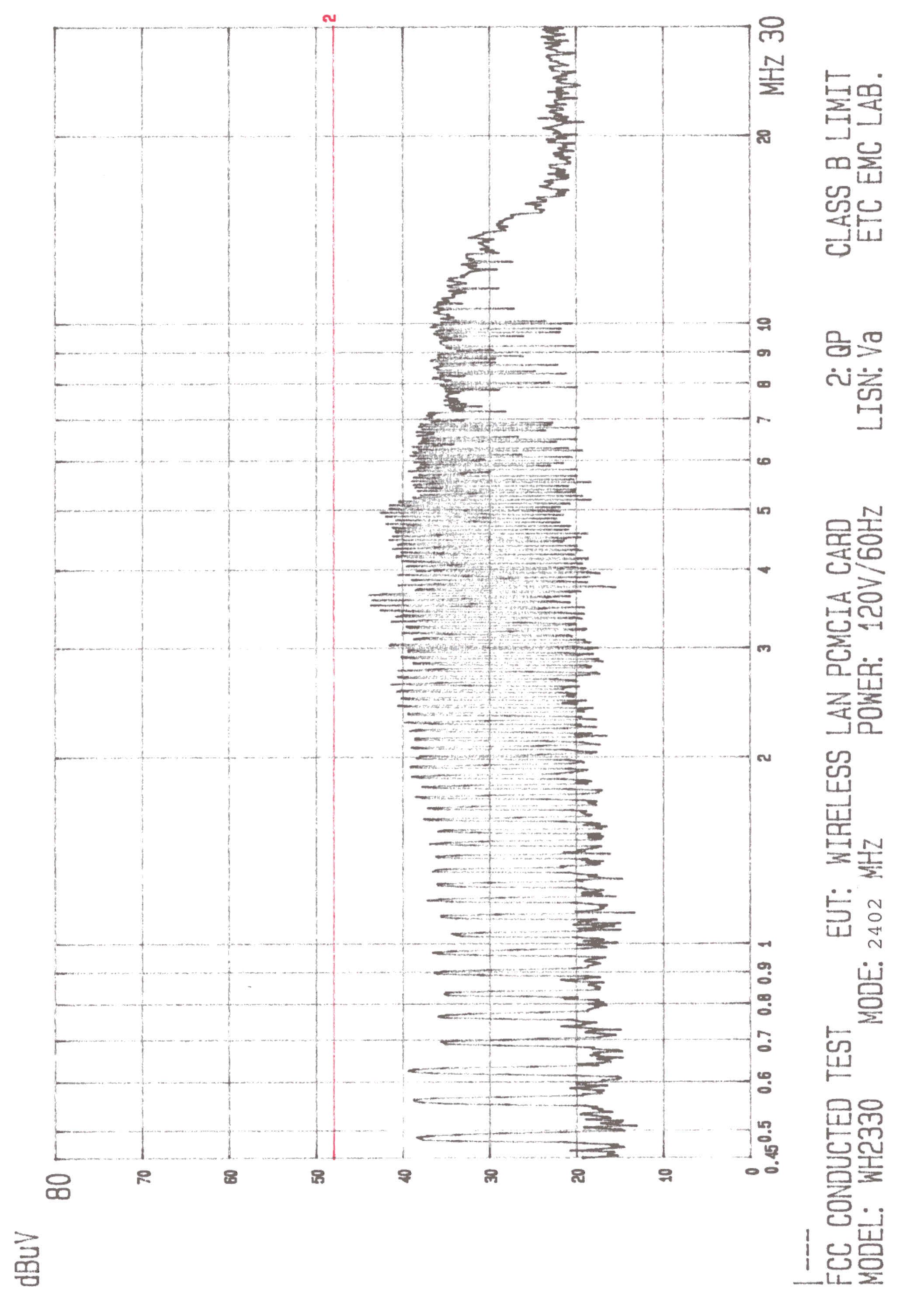

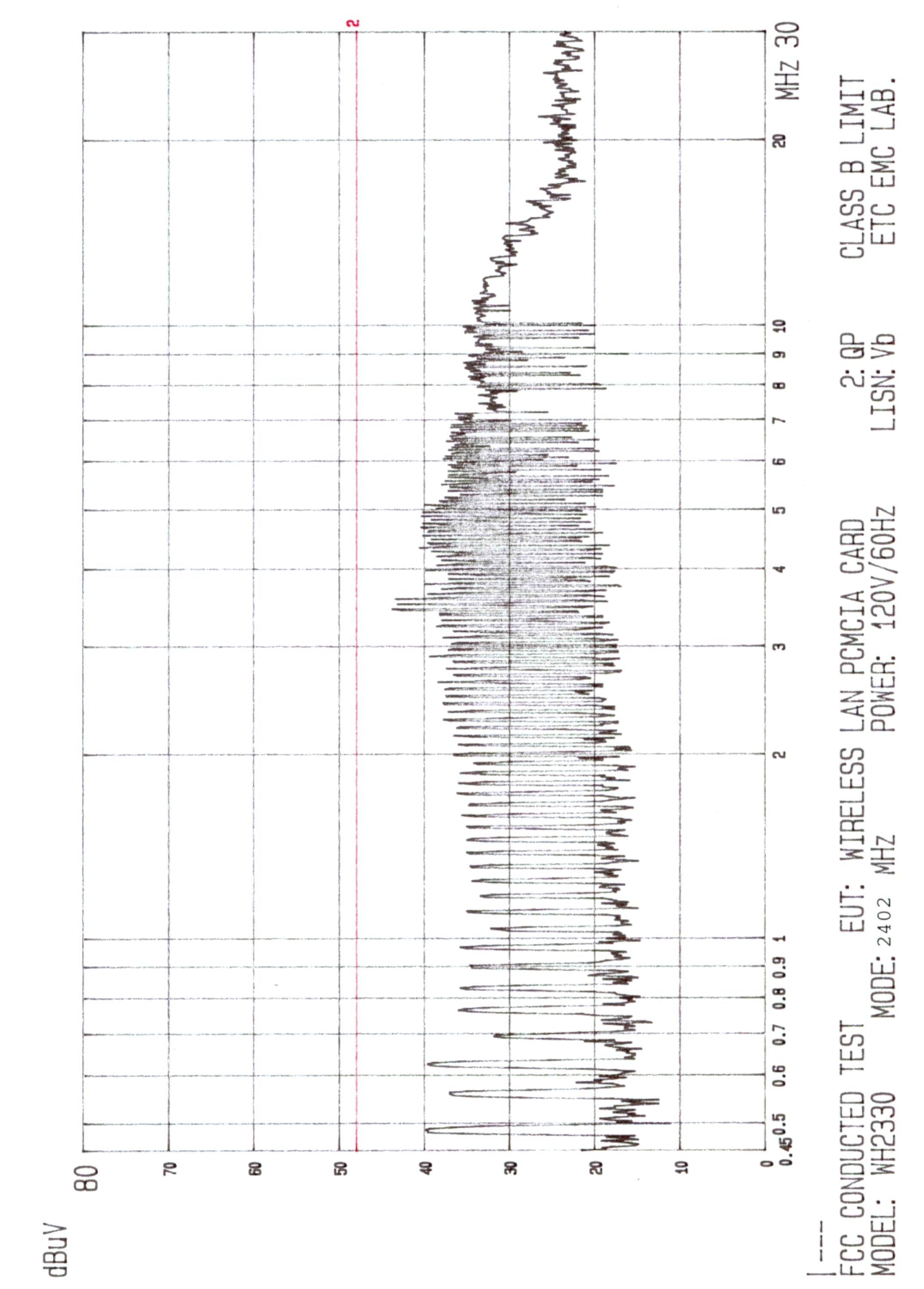

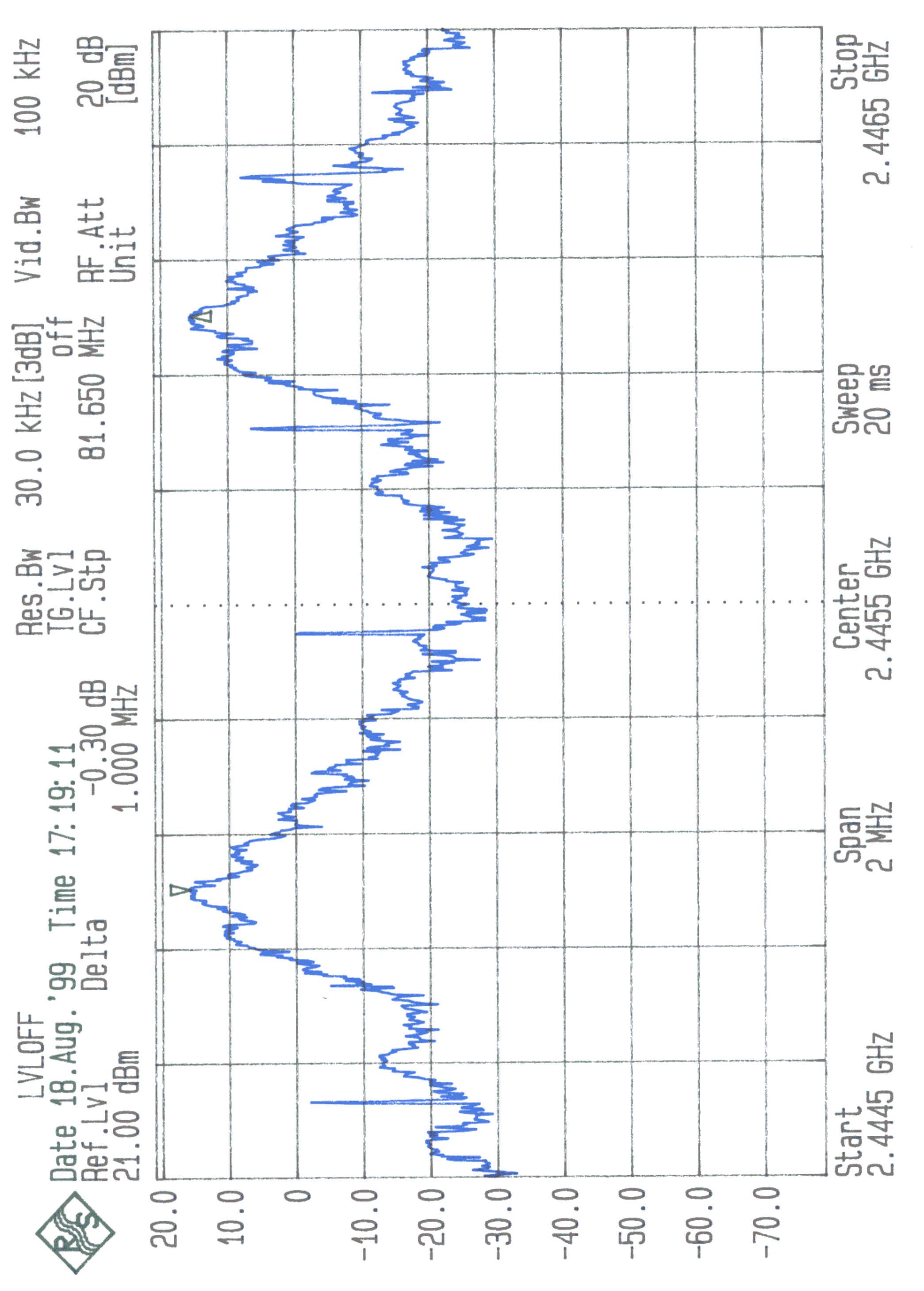

FCC ID. : M4Y-WH2330 Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : LANEscape MODEL : WH2330 FCC ID. : M4Y-WH2330 for APPLICANT : Z-Com, Inc. ADDRESS: 7F-2, No. 9, Prosperity 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-06-056-02 ETC Report No. : ET88R-06-056-02FCC ID. : M4Y-WH2330 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: Z-Com, Inc. 7F-2, No. 9, Prosperity 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Manufacturer: Z-Com, Inc. 7F-2, No. 9, Prosperity 1st Rd., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Description of EUT: a) Type of EUT: LANEscape b) Trade Name: ---- c) Model No.: WH2330 d) Power Supply: From Notebook PC Regulation Applied: FCC Rules and Regulations Part 15 Subpart B & C (1997) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in…
