M4Y-XG-3002.4 GHz IEEE 802.11g WLAN Cardbus Card

Preliminary User manual FCC ID: M4Y-XG-300 Page 1 of 10 Z-COM XG-300 IEEE 802.11g WLAN Cardbus Card User Manual Version 0.1 Preliminary User manual FCC ID: M4Y-XG-300 Page 2 of 10 Table of Contents 0-INTRODUCTION ....................................................................................................3 1-CARDBUS INSTALLATION PROCEDURE .......................................................3 1.1 I NSTALLING THE CARDBUS CARD INTO THE HOST PC NOTEBOOK...................3 1.2 INSTALLING THE SOFTWARE DRIVERS................................................................3 1.3 W IRELESS LAN INSTALLATION GUIDE LINES AND AUTHORIZATION FOR USE.7 2-REGULATORY INFORMATION.........................................................................7 2.1 FCC I NFORMATION TO USER.............................................................................7 2.2 FCC GUIDELINES FOR HUMAN EXPOSURE........................................................7 2.3 FCC ELECTRONIC EMISSION NOTICES..............................................................7 2.4 FCC R ADIO FREQUENCY INTERFERENCE STATEMENT.....................................8 2.5 EXPORT RESTRICTIONS.......................................................................................8 2.6 EUROPE - EU DECLARATION OF CONFORMITY.................................................9 3-TECHNICAL SPECIFICATIONS .......................................................................10 Preliminary User manual FCC ID: M4Y-XG-300 Page 3 of 10 0-Introduction The Z-Com XG-300 WLAN NIC is a complete wireless high speed Network Interface Card (NIC) utilizing the Intersil PRISM GT Æ chip set. It conforms to the IEEE 802.11g protocol and operates in the 2.45 GHz ISM frequency bands. ï Fully compliant with the IEEE 802.11g WLAN standards ï FCC Certified Under Part 15 (pending) to Operate in the 2.45 Bands ï Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates ï Driver Supports Microsoft Windows Æ 98/SE, ME, XP and 2000 (SR1) 1-Cardbus Installation procedure 1.1 Installing the Cardbus card into the host PC Notebook a-Turn Host PC off, then insert Cardbus card into Cardbus slot of notebook Host PC. CAUTION: 1-- This assembly is designed to operate with a supply voltage of 3.3V in laptop computers supporting the CARDBUS32 standard. 2-- Do not force engagement of the card in the CARDBUS32 slot. It is mechanically designed to prevent improper insertion. 1.2 Installing the software drivers a-Start windows b-When windows detects new hardware and asks for drivers, point to directory where the Z-Com driver is located (for example floppy drive, cdrom , harddisk) to install. c-after drivers are installed, restart windows d-the Z-Com WLAN icon will appear in system tray on the bottom right of the screen (see yellow arrow in fig. 01) fig, 01: Z-Com WLAN icon Preliminary User manual FCC ID: M4Y-XG-300 Page 4 of 10 e-double click the Z-Com WLAN icon to open the WLAN settings, the following window will appear (see fig.02) fig, 02: Z-Com WLAN settings window f-click on configuration tab and select which type of network is required (access point or Peer-to-peer mode), see fig. 03. fig, 03: WLAN network type setting window Preliminary User manual FCC ID: M4Y-XG-300 Page 5 of 10 g-select what TX rate is required (default setting is fully automatic) see fig. 04. fig, 04: WLAN tx rate setting window h-select what encryption type is required, 64 or 128 bit WEP (default setting is disabled) see fig. 05. fig, 05: WLAN encryption rate setting window Preliminary User manual FCC ID: M4Y-XG-300 Page 6 of 10 i-click on the status tab to see the connection status (fig.06). fig, 06: WLAN network status j-click on the about tab to see the software drivers versions and MAC address (fig.07). fig, 07: WLAN driver and MAC addres information Preliminary User manual FCC ID: M4Y-XG-300 Page 7 of 10 1.3 Wireless LAN installation guide lines and Authorization for use Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by Z-Com may void the userís authority to operate the equipment. Z-Com is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Z-Com and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. The use of Wireless LAN devices may be restricted in some situations or environments for example: * On board of airplanes, or * In an explosive environment, or * In case the interference risk to other devices or services is perceived or identified as harmful. In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please first verify authorization to use these devices prior to operating the equipment. 2-Regulatory information 2.1 FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals 2.2 FCC Guidelines for Human Exposure Warning: In order to comply with RF exposure limits established in the ANSI C95.1 standards, the user is advised to maintain a distance of at least 1 inch (2.5 cm) from the antenna of this device while it is in use. 2.3 FCC Electronic Emission Notices This device complies with part 15 of the FCC Rules. Operation is s…

Text truncated - open the document above for the full version.

www.intersil.com ING Bank: 65.02.63.049 Swift code: INGBNL2A VAT / BRW: NL8039.66.659.B.01 Chamber of Commerce Utrecht: 30139807 Date 20 December 2002 Your reference -- Our reference 2002-mansup-525a Subject Permission for Z-COM to use Intersil documentation Telefication BV Attn.: TCB department Edisonstraat 12a NL-6902 PK Zevenaar The Netherlands Dear TCB, Intersil Corp. hereby grants permission to: Company Z-Com, Inc. Address, City 7F-2, No.9 Prosperity RD. I Science-Based Industrial Park Hsinchu, 300 Country Taiwan, R.O.C. Phone number +886-3-5777364 Fax number +886-3-5773359 to use Intersil model ISL38000C documentation for FCC, ETSI and other certification purposes for the following product: FCC ID M4Y-XG-300 Brand Z-COM Model number XG-300 Description 2.4GHz IEEE802.11g Cardbus WLAN device This permission is only valid for using the documentation for the above mentioned Intersil model ISL38000C. Yours sincerely, Derick Sariredjo Intersil Corp. Telephone: +31 30 225 97 42 email: [email protected]

Ref: FCC ID: M4Y-XG-300 Z-Com Inc. The device was retested by CETECOM for RF output power with revised firmware power settings. The RF output power of the device proved to be +19.9 dBm. This is a change of -0.3 dB (-6.7%) in RF output power as compared to the previously measured RF output power of +20.2 dBm. Given the fact that the overall combined measurement uncertainty of the measurement system is +/-13.6%, it was concluded that the difference of -0.3dB (-6.7%) in RF output power would cause a change in worst-case SAR values which would fall within the measurement uncertainty range of the measurement system which was used during all measurements. It can therefore be justified that the SAR values, as measured at a RF output power of +20.2 dBm, can be represented as being the absolute worst-case values which could be measured at a RF output power of +19.9 dBm.

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date February 3, 2003 Our reference 02K1259a Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Telefication B.V. Attn.: W. Blom Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Blom, On behalf of our customer Z-Com, Inc., we hereby would like to apply for FCC certification of the following device: FCC ID : M4Y-XG-300 Brand : Z-Com Model number : XG-300 Description : 2.4 GHz IEEE 802.11g WLAN Cardbus Card Type : 2.4 GHz WLAN Cardbus card The following PDF files (exhibits) are electronically submitted: 1. Cover letter containing the request for FCC certification 2. Request for confidentiality 3. Form 731 4. Test report in conformity with 47 CFR Part 15 5. Bill of materials 6. Circuit diagram 7. Block diagram 8. Operational description 9. Interior photographs 10. Exterior photographs 11. Test setup photographs 12. SAR test report 13. SAR calibration data 14. Agent authorization letter 15. User manual 16. Label information 17. Identical product statement 18. Authorization letter of Intersil regarding the use of documents by the applicant Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date December 20, 2002 Our reference 02K1259b Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Telefication B.V. Attn.: W. Blom Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Blom, Pursuant to section 0.457 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: M4Y-XG-300, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Z-Com, Inc. and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Operational description 4. Block diagram The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

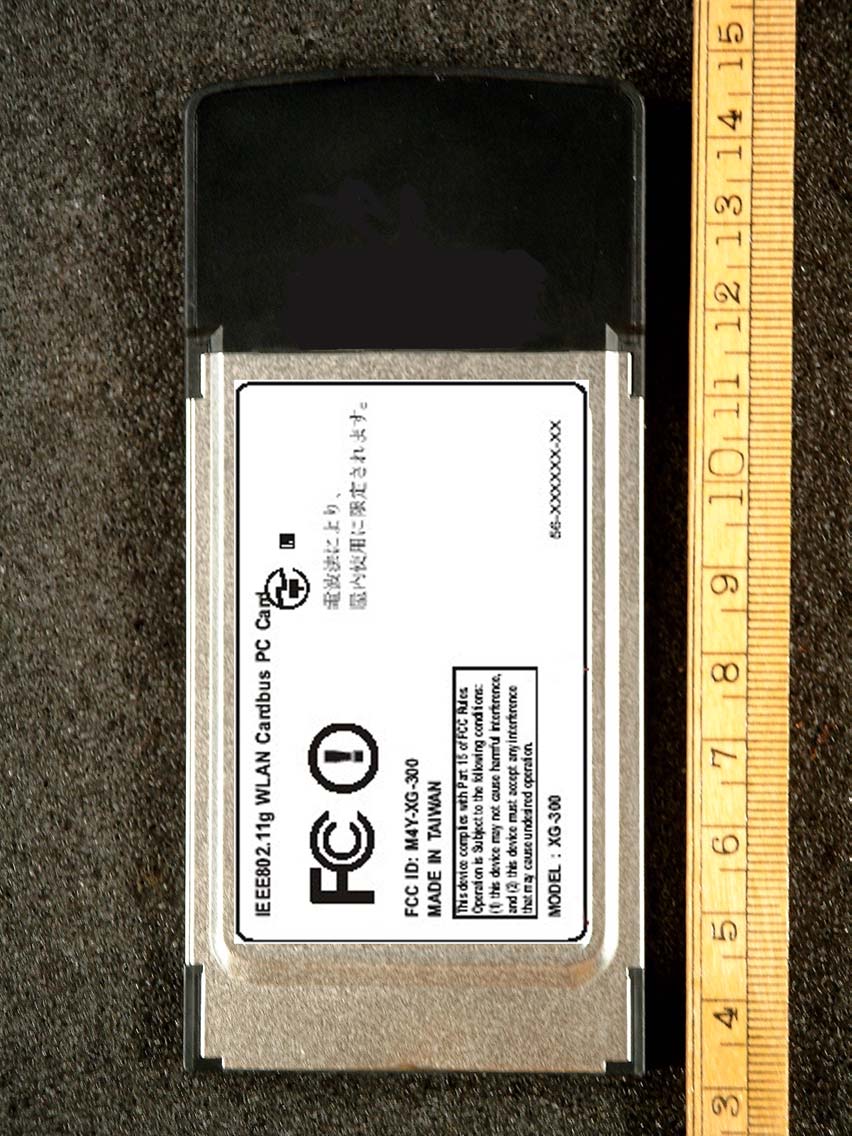

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 02121701.p02c Page 1 of 5 EXTERIOR PHOTOGRAPHS OF A 2.4 GHZ WLAN CARDBUS CARD, BRAND Z-COM, MODEL XG-300. FCC listed Industry Canada : : 90828 IC3501 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.p02c Page 2 of 5 Description of test item Test item : 2.4 GHz WLAN Cardbus card Manufacturer : Z-Com, Inc. Brand : Z-Com Model : XG-300 Serial numbers : 02500007 and 02500003 Revision : n.a. Receipt number : 2 Receipt date : November 17, 2002 Applicant information Applicant's representative : Mr. E. Yu Company : Z-Com, Inc. Address : 7F-2, No. 9 Prosperity Road, I Science-Based Industrial Park Postal code : 300 City : Hsinchu PO-box : n.a. Postal code : n.a. City : n.a. Country : Taiwan, R.O.C. Telephone number : +886 3 577 7364 Telefax number : +886 3 577 3359 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.p02c Page 3 of 5 Table of contents 1 Exterior photographs. .............................................................................................................................................................. 4 1.1 Top view. ......................................................................................................................................................................... 4 1.2 Bottom view. ................................................................................................................................................................... 5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.p02c Page 4 of 5 1 Exterior photographs. 1.1 Top view. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.p02c Page 5 of 5 1.2 Bottom view.

SCALE ECO NO.REVISIONAPP.DES. DATE TOLERANCE GRADE ( ) GRADE ABC LENGTH 6 0.050.080.20 0.080.100.30 0.100.150.40 0.200.300.80 66 18 18 50 50 180 ~ ~ ~ ~ DRW.DES.CKD. RECKD. APP. MODELSHEET DWG NO. V A 1 2 Z-Com, Inc. NAME PAR T NO. 1 UNITS GRADEANGLE M.M. TOLERANCE 1 1 0.1 NB XG-300 NB XG-300 FCC Label 56- NPA0080 Cindy 911214 : 1.: 50# 2.: 3. 4. 5.():0.08mm 6.:+/-0.2mm 7., NPF0049 4-R1.50 56-XXXXXX-XX This device complies with Part 15 of FCC Rules. Operation is Subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. FCC ID: M4Y-XG-300 MADE IN TAIWAN IEEE802.11g WLAN Cardbus PC Card MODEL : XG-300 64.0 mm 40.0 mm 32.8 mm !

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 02121701.p03c Page 1 of 6 INTERIOR PHOTOGRAPHS OF A 2.4 GHZ WLAN CARDBUS CARD, BRAND Z-COM, MODEL XG-300. FCC listed Industry Canada : : 90828 IC3501 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.p03c Page 2 of 6 Description of test item Test item : 2.4 GHz WLAN Cardbus card Manufacturer : Z-Com, Inc. Brand : Z-Com Model : XG-300 Serial numbers : 02500007 and 02500003 Revision : n.a. Receipt number : 2 Receipt date : November 17, 2002 Applicant information Applicant's representative : Mr. E. Yu Company : Z-Com, Inc. Address : 7F-2, No. 9 Prosperity Road, I Science-Based Industrial Park Postal code : 300 City : Hsinchu PO-box : n.a. Postal code : n.a. City : n.a. Country : Taiwan, R.O.C. Telephone number : +886 3 577 7364 Telefax number : +886 3 577 3359 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.p03c Page 3 of 6 Table of contents 1 Interior photographs. ............................................................................................................................................................... 4 1.1 Top view PCB (with shield). ........................................................................................................................................... 4 1.2 Top view PCB (without shield). ...................................................................................................................................... 5 1.3 Bottom view PCB. ........................................................................................................................................................... 6 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.p03c Page 4 of 6 1 Interior photographs. 1.1 Top view PCB (with shield). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.p03c Page 5 of 6 1.2 Top view PCB (without shield). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.p03c Page 6 of 6 1.3 Bottom view PCB.

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 02121701.r01c.rev1 Page 1 of 58 TEST REPORT OF A 2.4 GHZ WLAN CARDBUS CARD, BRAND Z-COM, MODEL XG-300, IN CONFORMITY WITH 47 CFR PART 15 (2001-12-18). FCC listed Industry Canada : : 90828 IC3501 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2001-12-18) 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.r01c.rev1 Page 2 of 58 MEASUREMENT/TECHNICAL REPORT Z-Com, Inc. Model : XG-300 FCC ID: M4Y-XG-300 January 31, 2003 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Digital Transmission System Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No Report prepared by: Name : P.A.J.M. Robben, B.Sc.E.E. Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-1992. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: January 31, 2003 Signature: P. de Beer TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2001-12-18) 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.r01c.rev1 Page 3 of 58 Description of test item Test item : 2.4 GHz WLAN Cardbus card Manufacturer : Z-Com, Inc. Brand : Z-Com Model : XG-300 Serial numbers : 02500007 and 02500003 Revision : n.a. Receipt number : 2 Receipt date : January 24, 2003 Applicant information Applicant's representative : Mr. E. Yu Company : Z-Com, Inc. Address : 7F-2, No. 9 Prosperity Road, I Science-Based Industrial Park Postal code : 300 City : Hsinchu PO-box : n.a. Postal code : n.a. City : n.a. Country : Taiwan, R.O.C. Telephone number : +886 3 577 7364 Telefax number : +886 3 577 3359 Test(s) performed Location : Niekerk Test(s) started : January 24, 2003 Test(s) completed : January 30, 2003 Purpose of test(s) : Type approval / certification Test specification(s) : 47 CFR Part 15 (2001-12-18) Test engineer : O.H. Hoekstra Report written by : P.A.J.M. Robben, B.Sc.E.E. Project leader : P.A.J.M. Robben, B.Sc.E.E. This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2001-12-18) 2.4 GHz WLAN Cardbus card Z-Com, Inc. Z-Com XG-300 M4Y-XG-300 Project number: 02121701.r01c.rev1 Page 4 of 58 Table of contents 1 General information................................................................................................................................................................. 6 1.1 Product description .......................................................................................................................................................... 6 1.2 Related submittal(s) and/or Grant(s) ............................................................................................................................... 6 1.3 Tested system details ....................................................................................................................................................... 6 1.4 Test methodology ............................................................................................................................................................ 7 1.5 Test facility ...................................................................................................................................................................... 7 1.6 Product labeling ............................................................................................................................................................... 7 1.7 System test configuration ................................................................................................................................................ 8 1.7.1 Justification.............................................................................................................................................................. 8 1.7.2 EUT exercise software............................................................................................................................................. 9 1.8 Special accessories .......................................................................................................................................................... 9 1.9 Equipment modifications................................................................................................................................................. 9 1.10 Configuration of the tested system .................................................................................................................................. 9 1.11 Block diagram(s) of the EUT .........................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, GermanyPhone: +49 (0) 681 598-0Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of January 28, 2003Page 1 of 44 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Test report no. : 4-0795-4-1/02 Type identification: ISL38000C Test specification : Draft IEEE Std 1528-200X FCC-ID: OSZ38000C Test specification : CETECOM ICT Services GmbH Test report no.: 4-0795-4-1/02 As of January 28, 2003Page 2 of 44 Table of Contents 1General Information.......................................................................................................................................................3 1.1Notes......................................................................................................................................................................3 1.1.1Statement of Compliance.................................................................................................................................3 1.2Testing laboratory...................................................................................................................................................4 1.3Details of applicant.................................................................................................................................................4 1.4Application details..................................................................................................................................................4 1.5Test item................................................................................................................................................................5 1.5.1Test specification(s)........................................................................................................................................6 1.6RF exposure limits..................................................................................................................................................6 2Technical test.................................................................................................................................................................7 2.1Summary of test results...........................................................................................................................................7 2.2Test environment....................................................................................................................................................7 2.3Measurement and test set-up...................................................................................................................................7 2.4Measurement system...............................................................................................................................................8 2.4.1System Description.........................................................................................................................................8 2.4.2Test environment............................................................................................................................................9 2.4.3Probe description............................................................................................................................................9 2.4.4Phantom description......................................................................................................................................10 2.4.5Device holder description..............................................................................................................................10 2.4.6Scanning procedure.......................................................................................................................................11 2.4.7Spatial Peak SAR Evaluation.........................................................................................................................12 2.4.8Data Storage and Evaluation..........................................................................................................................13 2.4.9Test equipment utilized.................................................................................................................................15 2.4.10Tissue simulating liquids : dielectric properties..............................................................................................16 2.4.11Tissue simulating liquids : parameters...........................................................................................................17 2.4.12Measurement uncertainties............................................................................................................................18 2.4.13System validation..........................................................................................................................................19 2.4.14Validation procedure.....................................................................................................................................19 2.5Test results (Body SAR).......................................................................................................................................20 2.5.1Description of test positions during SAR evaluation.......................................................................................20 2.6Test results (conducted power measurement).........................................................................................................21 Annex 1System performance verification.......................................................................................................................22 Annex 2Measurement results (printout from DASY TM )..................................................................................................23 Annex 3Photo documen…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, GermanyPhone: +49 (0) 681 598-0Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of December 17, 2002Page 1 of 29 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registr…

Text truncated - open the document above for the full version.
