M4Y-XG-3020802.11g SMC Wireless Access Point

0 802.11g SMB Wireless Access Point User’s Manual Version 1.0 -- January 2004 1 FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 2 Table of Content Chapter 1 Introduction ....................................................................................................... 3 1-1 Features and Benefits .................................................................................................. 3 1-2 Applications ................................................................................................................4 1-3 System Configurations................................................................................................ 5 Chapter 2 Hardware Installation....................................................................................... 6 2-1 Package Contents ........................................................................................................ 6 2-2 System Requirements.................................................................................................. 6 2-3 Mechanical Description .............................................................................................. 7 2-4 Hardware Installation.................................................................................................. 9 2-5 Safety Notification .................................................................................................... 10 Chapter 3 Setting Up Basic Wireless Connectivity ........................................................ 11 3-1 802.11g SMB Wireless Access Point Default Factory Settings ................................ 11 Chapter 4 Configuring your Access Point with the Web-Based User Interface .......... 12 4-1 Basic Configuration .................................................................................................. 12 4-2 AP Setup.................................................................................................................... 14 4-3 Management Setup.................................................................................................... 25 4-4 AP Status ................................................................................................................... 29 Chapter 5 Troubleshooting ............................................................................................... 31 Limited Warranty.............................................................................................................. 34 3 Chapter 1 Introduction The 802.11g SMB Wireless Access Point is 2.4GHz and up to 54Mbps wireless LAN access point. The 802.11g SMB Wireless Access Point can communicate with other mobile devices enabled for 802.11g standard-based wireless LAN connectivity. Using the card in conjunction with the 802.11g SMB Wireless Access Point, you can create a wireless network for sharing your broadband cable or DSL Internet access among multiple PCs in and around your home or office and enjoy amazing speed of 54Mbps. This high-speed wireless device simultaneously supports both IEEE 802.11b and 802.11g wireless networks and lets you quickly network multiple PCs and notebooks without laying new cables, and gives users the freedom to roam throughout the workplace and stay connected to corporate resources, e-mail, and the Internet. 1-1 Features and Benefits „ Technique operating in the unlicensed 2.4GHz ISM band. „ Delivers up to 54Mbps. Wireless nodes negotiate to operate in the optimal data transfer rate. In a noisy environment or when the distance between the wireless nodes is far, the wireless nodes automatically adjusts to operate at the optimal speed. „ Interoperable with IEEE 802.11g wireless devices. „ Provides the highest available level of WEP encryption: 64-bit, 128-bit, and 152-bit for 802.11g devices. „ Interfaces directly to IEEE 802.3 (10/100-BaseTX RJ-45 LAN port) Fast Ethernet networks. „ Supports 1, 2, 5.5, 11, 6, 9,12,18, 24, 36, 48, and 54 Mbps data rates. „ MAC Address Control provides increased security. 4 1-2 Applications The 802.11g SMB Wireless Access Point offer a fast, reliable, high-speed, high security solution for wireless client access to the network in applications like these: 1. Remote access to corporate network information E-mail,…

Text truncated - open the document above for the full version.

Company: Zcom Inc. Page : 1 of 4 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Dipole Antenna Antenna gain: 5 dBi Antenna Model: Joymax / Wanshi Company: Zcom Inc. Page : 2 of 4 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Dipole Antenna Antenna gain: 5 dBi Antenna Model: Joymax / Wanshi Company: Zcom Inc. Page : 3 of 4 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Dipole Antenna Antenna gain: 5 dBi Antenna Model: Joymax / Wanshi Company: Zcom Inc. Page : 4 of 4 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Dipole Antenna Antenna gain: 5 dBi Antenna Model: Joymax / Wanshi Company: Zcom Inc. Page : 1 of 5 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Ceiling Antenna Antenna gain: 5 dBi Antenna Model: ANT2405 Company: Zcom Inc. Page : 2 of 5 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Ceiling Antenna Antenna gain: 5 dBi Antenna Model: ANT2405 Company: Zcom Inc. Page : 3 of 5 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Ceiling Antenna Antenna gain: 5 dBi Antenna Model: ANT2405 Company: Zcom Inc. Page : 4 of 5 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Ceiling Antenna Antenna gain: 5 dBi Antenna Model: ANT2405 Company: Zcom Inc. Page : 5 of 5 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Ceiling Antenna Antenna gain: 5 dBi Antenna Model: ANT2405 Company: Zcom Inc. Page : 1 of 4 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Omnidirectional Antenna Antenna gain: 12 dBi Antenna Model: ANT24P12 Company: Zcom Inc. Page : 2 of 4 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Omnidirectional Antenna Antenna gain: 12 dBi Antenna Model: ANT24P12 Company: Zcom Inc. Page : 3 of 4 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Omnidirectional Antenna Antenna gain: 12 dBi Antenna Model: ANT24P12 Company: Zcom Inc. Page : 4 of 4 Product : 802.11g SMB Wireless Access Point Model : XG-3020 Antenna Type: Omnidirectional Antenna Antenna gain: 12 dBi Antenna Model: ANT24P12 Company: Zcom Inc. Page : 1 of 5 Product : 802.11g SMB Wireless Access Point Model: XG-3020 Antenna Type: Patch Antenna Antenna gain: 18 dBi Antenna Model: ANT24D18 Company: Zcom Inc. Page : 2 of 5 Product : 802.11g SMB Wireless Access Point Model: XG-3020 Antenna Type: Patch Antenna Antenna gain: 18 dBi Antenna Model: ANT24D18 Company: Zcom Inc. Page : 3 of 5 Product : 802.11g SMB Wireless Access Point Model: XG-3020 Antenna Type: Patch Antenna Antenna gain: 18 dBi Antenna Model: ANT24D18 Company: Zcom Inc. Page : 4 of 5 Product : 802.11g SMB Wireless Access Point Model: XG-3020 Antenna Type: Patch Antenna Antenna gain: 18 dBi Antenna Model: ANT24D18 Company: Zcom Inc. Page : 5 of 5 Product : 802.11g SMB Wireless Access Point Model: XG-3020 Antenna Type: Patch Antenna Antenna gain: 18 dBi Antenna Model: ANT24D18 Product : Cable 1 (ACC-10314-01) : 1.5m Page : 1 of 1 Attenuation:1.1dB Product : SIGNAL CABLE(Unshielded RS232 cable, 1m) Page: 1 of 1 Company: NETGEAR Inc. Page : 1 of 6 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-121A2J Company: NETGEAR Inc. Page : 2 of 6 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-121A2J Company: NETGEAR Inc. Page : 3 of 6 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-121A2J Company: NETGEAR Inc. Page : 4 of 6 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-121A2J Company: NETGEAR Inc. Page : 5 of 6 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-121A2J Company: NETGEAR Inc. Page : 6 of 6 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-121A2J Company: NETGEAR Inc. Page : 1 of 8 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-151A-1 Company: NETGEAR Inc. Page : 2 of 8 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-151A-1 Company: NETGEAR Inc. Page : 3 of 8 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-151A-1 Company: NETGEAR Inc. Page : 4 of 8 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-151A-1 Company: NETGEAR Inc. Page : 5 of 8 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-151A-1 Company: NETGEAR Inc. Page : 6 of 8 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-151A-1 Company: NETGEAR Inc. Page : 7 of 8 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-151A-1 Company: NETGEAR Inc. Page : 8 of 8 Product : Adapter for the 802.11g ProSafe Wireless Access Point Model: DV-151A-1

802.11g SMB Wireless Access Point Model No: XG-3020 FCC IDM4Y-XG-3020 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

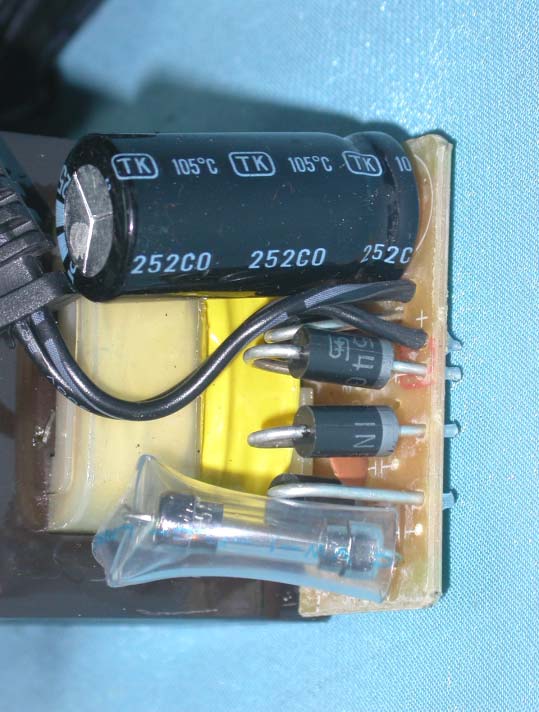

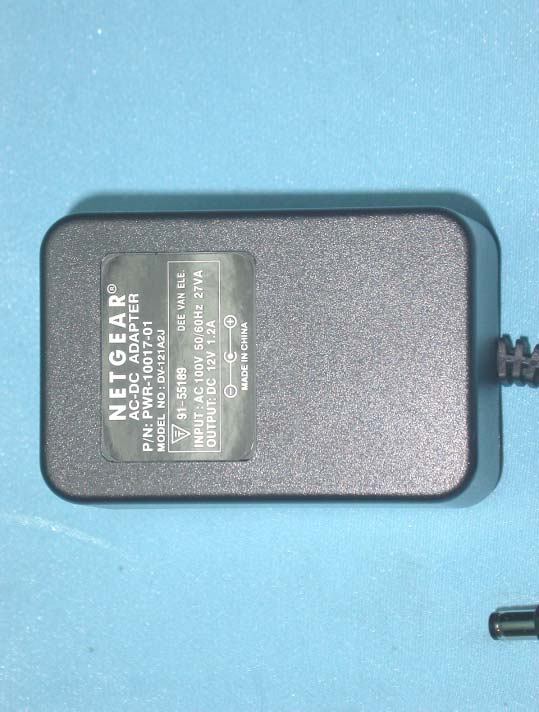

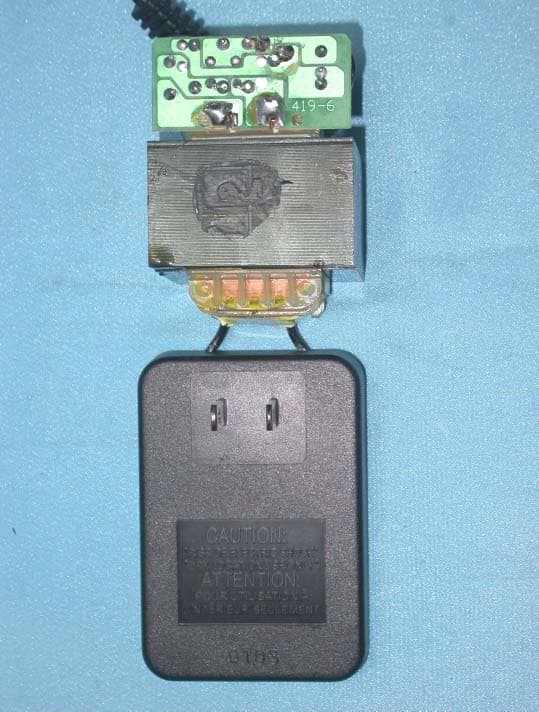

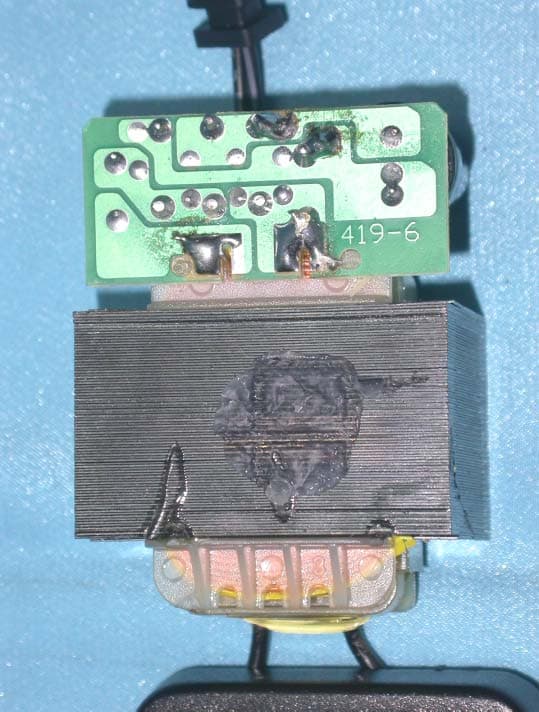

Company: Z-Com, Inc. Page : 5 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020 Company: Z-Com, Inc. Page : 6 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020 Company: Z-Com, Inc. Page : 7 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020 Company: Z-Com, Inc. Page : 8 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020 Company: Z-Com, Inc. Page : 9 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020 Company: Z-Com, Inc. Page : 10 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020 Company: Z-Com, Inc. Page : 11 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020 Company: Z-Com, Inc. Page : 12 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020 Company: Z-Com, Inc. Page : 13 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020 Company: Z-Com, Inc. Page : 14 of 14 Product: 802.11g SMB Wireless Access Point Model: XG-3020

Description of Operation EUT is a 802.11g SMB Wireless Access Point with 13 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on DIPOLE provided diversity function to improve the receiving function. This 802.11g SMB Wireless Access Point is an IEEE 802.11b&g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) or Orthogonal Frequency Division Multiplex (OFDM) radio transmission, the 802.11g SMB Wireless Access Point transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b&g network.

MCS-004 IEEE 802.11 B Straight Antenna Electrical Properties Frequency Range 2.4~2.5 GHz Impedance 50 Ohms nominal VSWR 2.0 Gain 5 dBi Radiation Omni Polarization Vertical Electrical Wave λ/4 Dipole array Standard Connector Reverse SMA Mechanical Properties Antenna Cover Polyurethane Color Black Operation Temperature -20 o C ~ +60 o C Storage Temperature -30 o C ~ +75 o C H-Plain Field Pattern E-Plain Field Pattern VSWR Return Loss TEL:886(2)2668-5793 FAX:886(2)2668-5795 Antenniques Corp. L.T.D. E-mail : [email protected] TECHNICAL DATA

SpecificationsModel No .NAP-2405(N) 1. Frequency Range............ 2. Impedance..................... 3. SWR.............................. 4. Return Loss.................... 5. Gain.............................. 6. Polarization................... 7. Connector...................... 8. Cable............................. 2.4~2.4835GHz 50 Ohms (nominal) 2.0 -10 dB 5.0dBi Vertical SMA Plug (Reverse Polarity) RG-316 Wireless Solution Provider Test ReportModel No . Return Loss Wireless Solution Provider NAP-2405(N) Test ReportModel No . Wireless Solution Provider NAP-2405(N) Test ReportModel No . Frequency: 2.45GHz X-Y Plane X-Z Plane Y-Z Plane 1 Mesters Testing Wireless Solution Provider NAP-2405(N) X Y X Z Y Z Test ReportModel No . Frequency: 2.45GHz X-Y Plane X-Z Plane Y-Z Plane 3 Mesters Testing Wireless Solution Provider NAP-2405(N) X Y X Z Y Z Test ReportModel No . Frequency: 2.45GHz X-Y Plane X-Z Plane Y-Z Plane 5 Mesters Testing Wireless Solution Provider NAP-2405(N) X Y X Z Y Z Test ReportModel No . Frequency: 2.45GHz X-Y Plane X-Z Plane Y-Z Plane 7 Mesters Testing Wireless Solution Provider NAP-2405(N) X Y X Z Y Z

APPROVAL SHEET CUSTOMER： NETGEAR MODEL NO ： NAP-2418(N) PART NO ： ACC-10337-01 DESCRIPTION：18dBi Patch antenna with N (F) jack DATE： 2003/03/28 (Version:1.0) Customer Approved Issued Checked Approved Jason Lee Jac Lee Damy Wu Senao International Co., Ltd. 3 fl, No. 529, Chung Cheng Rd., Hsin Tien City, Taipei 231 Taiwan R.O.C. Tel: 886-2-2218-3588 Fax: 886-2-2218-8843 Electric properties 1. Frequency Range............. 2.45±5Mhz 2. Type..............................Patch 3. Impedance...................... 50 OHMS± 5Ω 4. SWR.............................. ≦1.5 5. Return Loss..................... ≦-15dB 6. Gain...............................18dBi 7. Radiation........................Directional 8. Polarization.....................Vertical 9. Beam Degree.................. HORZ 60 °...VERT 30° Mechanical Properties 1. Connector Type................N FEMALE 2. Material...........................PC+ABS 3. Color..............................WHITE 4. Mounting Base ................STEEL 5. Operation Temperature......-30°C+80°C 6. Storage Temperatue..........-30°C+80°C 7. Weight............................1520g±20g Test Report Return Loss SWR Te s t R e p o r t H-PLANE FIELD PATTERN E-PLANE FIELD PATTERN Dimension Device Size: 262.8(L) * 262.8(W) * 40(H) mm Color: Body(Pantone 428C), Lettering(Pantone 2756C) Packages Brown Box Size: 395(L) * 265(W) * 55(H) mm Quantity : 1PCS/SET Weight : 1.15Kg Carton Size: 420(L) * 555(W) * 300(H) mm Quantity : 10PCS/Carton Weight : 12.5Kg

APPROVAL SHEET CUSTOMER MODEL NO . NAS-2405 (N) DESCRIPTION 2.4GHz Flying Lead Omni-Directinoal Antenna Customer Approval Wireless Solution Provider SpecificationsModel No . 1. Frequency Range............ 2. Impedance..................... 3. SWR.............................. 4. Return Loss.................... 5. Gain.............................. 6 .Polarization................... 7. Connector...................... 8. Cable............................. 2.4~2.4835GHz 50 Ohms (nominal) 2.0 -9.6 dB 5.0dBi Vertical SMA Plug (Reverse Polarity) RG-316 NAS-2405 (N) Wireless Solution Provider Test ReportModel No . Return Loss SWR NAS-2405 (N) Wireless Solution Provider Frequency: 2.45GHz E-Plane Field Patterns H-Plane Field Patterns SpecificationsModel No . Gain: 5.0dBi NAS-2405 (N) Z X Wireless Solution Provider X Y Dimension mm NAP-2405(N) Model No .NAS-2405(N) Rendering Model No .NAS-2405(N)

APPROVAL SHEET CUSTOMER MODEL NO . NAS-T0405(N) DESCRIPTION Tri-Band Flying Lead Omni-Directinoal Antenna Customer Approval Wireless Solution Provider SpecificationsModel No . 1. Frequency Range............ 2. Impedance..................... 3. SWR.............................. 4. Return Loss.................... 5. Gain.............................. 6 .Polarization................... 7. Connector...................... 8. Cable............................. 2.4~2.4835GHz 5.15~5.85GHz 50 Ohms (nominal) 2.0 -9.6 dB 4.0dBi(2.45GHz) 5.0dBi(5.25GHz) 4.5dBi(5.75GHz) Vertical SMA Plug (Reverse Polarity) RG-316 NAS-T0405(N) Wireless Solution Provider Test ReportModel No . Return Loss SWR NAS-T0405(N) Wireless Solution Provider Frequency: 2.45GHz E-Plane Field Patterns Frequency: 5.25GHz H-Plane Field Patterns Frequency: 5.75GHz SpecificationsModel No . Gain: 4.0dBi Gain: 4.5dBi Gain: 5.0dBi NAS-T0405(N) Wireless Solution Provider Z X Z X Z X X Y X Y X Y X Y Dimension mm NAP-T0405(N) Model No .NAS-T0405(N) Rendering Model No .NAS-T0405(N)

APPROVAL SHEET CUSTOMER： NETGEAR MODEL NO ： Cable-SMA(Mu)-1.5M-SMA(Mu) PART NO ： ACC-10314-01 DESCRIPTION：Cable Assembly HPF195 SMA(M)rp + 1.5M + SMA(M)rp DATE： 2003/03/28 (Version:0.1) Customer Approved Issued Checked Approved Jason Lee Jac Lee Damy Wu Senao International Co., Ltd. 3 fl, No. 529, Chung Cheng Rd., Hsin Tien City, Taipei 231 Taiwan R.O.C. Tel: 886-2-2218-3588 Fax: 886-2-2218-8843 SMA JACK Electric properties 1. Frequency Range...................0~8GHz 2. Impedance........................... 50 OHMS± 5Ω 3. SWR....................................≤1.5 4. Working Voltage.....................≤250 Vrms 5. Dielectric Withstanding Voltage.≤750 Vrms 6. Insulation Resistance..............≥2000 Megohms 7. Contact Resistance................ (Center contact) 3.0 Milliohms(Max) 8. Contact Resistance................ (Outer contact) 2.5 Milliohms(Max) 9. Insertion Loss................ 0.2dB Mechanical Properties 1. Recommended coupling nut torque.................................. 4.0 in.lbs.~8.8 in.lbs. 2. Coupling nut retention force......≥50 lbs 3. Contact captivation axial..........≥5 lbs. 4. Operating Temperature...........-40°C~+80°C 5. Thermal Shock....................... MIL-STD-202,Method107,ConditionB 6. Corrosion.............................. MIL-STD-202,Method101,ConditionB 7. Shock................................... MIL-STD-202,Method213,Condition I 8. Vibration............................... MIL-STD-202,Method204,ConditionD 9. Moisture Resistance................ MIL-STD-202,Method106 Material Properties 1. Body.................................... Brass Per JIS H3250 C3604 BD, Gold Plated,Per MIL-G-45204 2. Contact...................................... Beryllium Copper Per QQ-C-530, Gold Plated,Per MIL-G-45204 3. Insulator.................................... PTFE Fluorocarbon Per ASTM D 1710 CABLE HPF195 Dimension Cable Length: 1500mm Length SMA(M)rp SMA(M)rp Packages Plastic Bag Size: 450(L) * 280(W) * 0.12(H) mm Quantity : 1PCS/SET Weight : 50g Carton Size: 320(L) * 250(W) * 230(H) mm Quantity : 20PCS/Carton Weight : 1.8Kg

APPROVAL SHEET CUSTOMER： NETGEAR MODEL NO ： Cable-SMA(Mu)-10M-SMA(Mu) PART NO ： ACC-10314-04 DESCRIPTION：Cable Assembly HPF195 SMA(M)rp + 10M + SMA(M)rp DATE： 2003/03/28 (Version:0.1) Customer Approved Issued Checked Approved Jason Lee Jac Lee Damy Wu Senao International Co., Ltd. 3 fl, No. 529, Chung Cheng Rd., Hsin Tien City, Taipei 231 Taiwan R.O.C. Tel: 886-2-2218-3588 Fax: 886-2-2218-8843 SMA JACK Electric properties 1. Frequency Range...................0~8GHz 2. Impedance........................... 50 OHMS± 5Ω 3. SWR....................................≤1.5 4. Working Voltage.....................≤250 Vrms 5. Dielectric Withstanding Voltage.≤750 Vrms 6. Insulation Resistance..............≥2000 Megohms 7. Contact Resistance................ (Center contact) 3.0 Milliohms(Max) 8. Contact Resistance................ (Outer contact) 2.5 Milliohms(Max) 9. Insertion Loss................ 0.2dB Mechanical Properties 1. Recommended coupling nut torque.................................. 4.0 in.lbs.~8.8 in.lbs. 2. Coupling nut retention force......≥50 lbs 3. Contact captivation axial..........≥5 lbs. 4. Operating Temperature...........-40°C~+80°C 5. Thermal Shock....................... MIL-STD-202,Method107,ConditionB 6. Corrosion.............................. MIL-STD-202,Method101,ConditionB 7. Shock................................... MIL-STD-202,Method213,Condition I 8. Vibration............................... MIL-STD-202,Method204,ConditionD 9. Moisture Resistance................ MIL-STD-202,Method106 Material Properties 1. Body.................................... Brass Per JIS H3250 C3604 BD, Gold Plated,Per MIL-G-45204 2. Contact...................................... Beryllium Copper Per QQ-C-530, Gold Plated,Per MIL-G-45204 3. Insulator.................................... PTFE Fluorocarbon Per ASTM D 1710 CABLE HPF195 Dimension Cable Length: 10000mm Length SMA(M)rp SMA(M)rp Packages Plastic Bag Size: 450(L) * 280(W) * 0.12(H) mm Quantity : 1PCS/SET Weight : 440g Carton Size: 320(L) * 250(W) * 230(H) mm Quantity : 5PCS/Carton Weight : 3Kg

APPROVAL SHEET CUSTOMER： NETGEAR MODEL NO ： Cable-SMA(Mu)-3M-SMA(Mu) PART NO ： ACC-10314-02 DESCRIPTION：Cable Assembly HPF195 SMA(M)rp + 3M + SMA(M)rp DATE： 2003/03/28 (Version:0.1) Customer Approved Issued Checked Approved Jason Lee Jac Lee Damy Wu Senao International Co., Ltd. 3 fl, No. 529, Chung Cheng Rd., Hsin Tien City, Taipei 231 Taiwan R.O.C. Tel: 886-2-2218-3588 Fax: 886-2-2218-8843 SMA JACK Electric properties 1. Frequency Range...................0~8GHz 2. Impedance........................... 50 OHMS± 5Ω 3. SWR....................................≤1.5 4. Working Voltage.....................≤250 Vrms 5. Dielectric Withstanding Voltage.≤750 Vrms 6. Insulation Resistance..............≥2000 Megohms 7. Contact Resistance................ (Center contact) 3.0 Milliohms(Max) 8. Contact Resistance................ (Outer contact) 2.5 Milliohms(Max) 9. Insertion Loss................ 0.2dB Mechanical Properties 1. Recommended coupling nut torque.................................. 4.0 in.lbs.~8.8 in.lbs. 2. Coupling nut retention force......≥50 lbs 3. Contact captivation axial..........≥5 lbs. 4. Operating Temperature...........-40°C~+80°C 5. Thermal Shock....................... MIL-STD-202,Method107,ConditionB 6. Corrosion.............................. MIL-STD-202,Method101,ConditionB 7. Shock................................... MIL-STD-202,Method213,Condition I 8. Vibration............................... MIL-STD-202,Method204,ConditionD 9. Moisture Resistance................ MIL-STD-202,Method106 Material Properties 1. Body.................................... Brass Per JIS H3250 C3604 BD, Gold Plated,Per MIL-G-45204 2. Contact...................................... Beryllium Copper Per QQ-C-530, Gold Plated,Per MIL-G-45204 3. Insulator.................................... PTFE Fluorocarbon Per ASTM D 1710 CABLE HPF195 Dimension Cable Length: 3000mm Length SMA(M)rp SMA(M)rp Packages Plastic Bag Size: 450(L) * 280(W) * 0.12(H) mm Quantity : 1PCS/SET Weight : 145g Carton Size: 320(L) * 250(W) * 230(H) mm Quantity : 20PCS/Carton Weight : 3.7Kg

APPROVAL SHEET CUSTOMER： NETGEAR MODEL NO ： Cable-SMA(Mu)-5M-SMA(Mu) PART NO ： ACC-10314-03 DESCRIPTION：Cable Assembly HPF195 SMA(M)rp + 5M + SMA(M)rp DATE： 2003/03/28 (Version:0.1) Customer Approved Issued Checked Approved Jason Lee Jac Lee Damy Wu Senao International Co., Ltd. 3 fl, No. 529, Chung Cheng Rd., Hsin Tien City, Taipei 231 Taiwan R.O.C. Tel: 886-2-2218-3588 Fax: 886-2-2218-8843 SMA JACK Electric properties 1. Frequency Range...................0~8GHz 2. Impedance........................... 50 OHMS± 5Ω 3. SWR....................................≤1.5 4. Working Voltage.....................≤250 Vrms 5. Dielectric Withstanding Voltage.≤750 Vrms 6. Insulation Resistance..............≥2000 Megohms 7. Contact Resistance................ (Center contact) 3.0 Milliohms(Max) 8. Contact Resistance................ (Outer contact) 2.5 Milliohms(Max) 9. Insertion Loss................ 0.2dB Mechanical Properties 1. Recommended coupling nut torque.................................. 4.0 in.lbs.~8.8 in.lbs. 2. Coupling nut retention force......≥50 lbs 3. Contact captivation axial..........≥5 lbs. 4. Operating Temperature...........-40°C~+80°C 5. Thermal Shock....................... MIL-STD-202,Method107,ConditionB 6. Corrosion.............................. MIL-STD-202,Method101,ConditionB 7. Shock................................... MIL-STD-202,Method213,Condition I 8. Vibration............................... MIL-STD-202,Method204,ConditionD 9. Moisture Resistance................ MIL-STD-202,Method106 Material Properties 1. Body.................................... Brass Per JIS H3250 C3604 BD, Gold Plated,Per MIL-G-45204 2. Contact...................................... Beryllium Copper Per QQ-C-530, Gold Plated,Per MIL-G-45204 3. Insulator.................................... PTFE Fluorocarbon Per ASTM D 1710 CABLE HPF195 Dimension Cable Length: 5000mm Length SMA(M)rp SMA(M)rp Packages Plastic Bag Size: 450(L) * 280(W) * 0.12(H) mm Quantity : 1PCS/SET Weight : 225g Carton Size: 320(L) * 250(W) * 230(H) mm Quantity : 20PCS/Carton Weight : 5.4Kg

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：M4Y-XG-3020 Report No.：EC04-04-047FRF Page 154 of 156 9. RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 9.1 Friis Formula Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 9.2 EUT Operating Condition A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：M4Y-XG-3020 Report No.：EC04-04-047FRF Page 155 of 156 9.3 Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 9.3.1 Maximum PEAK Output Power Refer to 5.6 Maximum peak Output Power is : 19.18 dBm (for 802.11b mode CH6), 19.90 dBm (for 802.11g mode CH6) 9.3.2 Output Power into Antenna & RF Exposure Evaluation Distance Outpower (max) (dBm) Cable length to antenna (m) Min Cable Loss (dB) Input Power to Antenna (dBm) Antenna Model Antenna Type Antenna Gain (dBi) EIRP (dBm) EIRP (Watts) MPE Distance (cm) Pd at 20cm (mW/cm^2) Comments 17.92 0 17.92 ANT24P2 Omni2 19.920.0981752.80 0.019531 Minimum separation shall be 20cm 17.92 0 17.92 ANT24P3 Omni3 20.920.1235953.14 0.024588 Minimum separation shall be 20cm 17.92 0 17.92 ANT24P4 Omni4 21.920.1555973.52 0.030955 Minimum separation shall be 20cm 17.92 1.5 1.1 16.82 ANT24S4 Omni Triband Stand 4 20.820.1207813.10 0.024029 Minimum separation shall be 20cm 17.92 0 17.92 ANT24P5 Omni5 22.920.1958843.95 0.03897 Minimum separation shall be 20cm 17.92 1.5 1.1 16.82 ANT24S5 Omni Stand 5 21.820.1520553.48 0.03025 Minimum separation shall be 20cm 17.92 0 17.92 ANT24P7 Omni7 24.920.3104564.97 0.061763 Minimum separation shall be 20cm 17.92 1.5 1.1 16.82 ANT24P93 Omni triband 9 25.820.3819445.51 0.075985 Minimum separation shall be 20cm 17.92 1.5 1.1 16.82 ANT2409 Omni9 25.820.3819445.51 0.075985 Minimum separation shall be 20cm 17.92 1.5 1.1 16.82 ANT24P12 Omni12 28.820.7620797.79 0.151611 Minimum separation shall be 20cm 17.92 1.5 1.1 16.82 ANT24P123 Omni triband 12 28.820.7620797.79 0.151611 Minimum separation shall be 20cm 17.92 1.5 1.1 16.82 ANT24O5 Ceiling5 21.820.1520553.48 0.03025 Minimum separation shall be 20cm 17.92 1.5 1.1 16.82 ANT24D12 Patch12 28.820.7620797.79 0.151611 Minimum separation shall be 20cm 17.92 1.5 1.1 16.82 ANT24D18 Patch18 34.823.03389115.54 0.603573 Minimum separati…
